USER MANUAL DHRCD DANFOSS

Technical Information

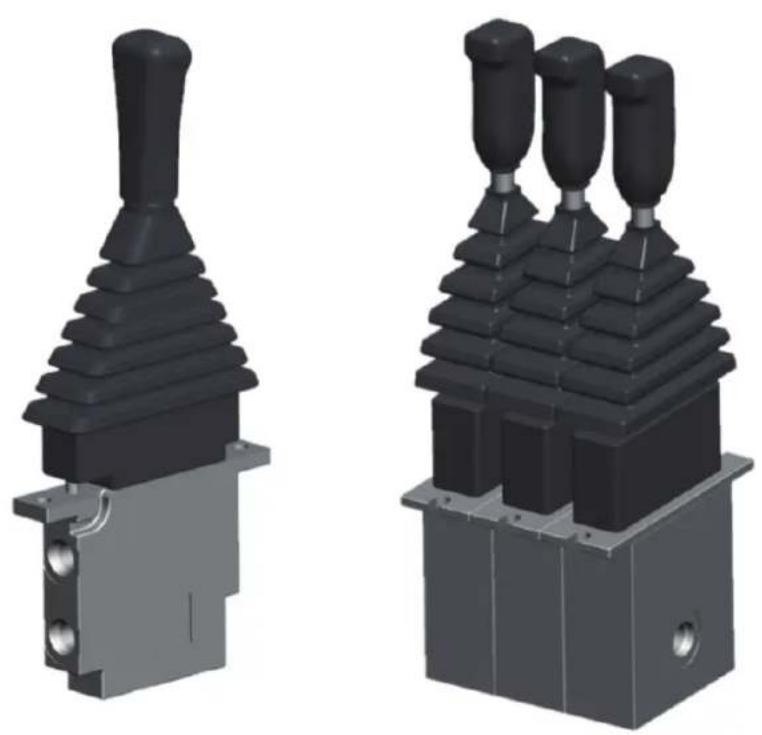

DHRCD

Hydraulic Pilot Sectional valve

DHRCD is part of D-HRC series.

D-HRC means Danfoss Hydraulic Remote Control valves which include:

DHRCJ — — Hydraulic Joystick

DHRCD — — Hydraulic Pilot Sectional Valve

DHRCP — — Hydraulic Foot Pedals

Excavator Forklift

Crane Drilling machine

Loader Special vehicles

AWP

Contents

General Description....3

General Specification....4

Configuration....5

Options 6

Dimensions....9

Revision history....12

Black-and-white photo of a smiling worker operating machinery inside a vehicle cab (no visible text or symbols)

Description

Hydraulic Remote Controls (HRCs) are used to activate and control directional valves or pumps from a remote and single operating station. HRCs come in hand, foot and mechanically operated versions, like the DHRCD series, sectional hydraulic pilot valve. Each section can achieve single axis direction pilot control. There are options for single and multi section type. Suitable for various applications such as excavators, cranes, forklifts, and backhoe loader. Flexible configuration with multiple valve bodies, handles, and function options. It has excellent handling performance, sturdy and durable design, and reliable quality.

Operation

HRCs are fed a constant input pressure, from which they create reduced output pressures that vary proportionally with lever or pedal stroke. When the HRC is operated, output pilot pressure flows to the main directional control valves, precisely controlling main spool position and direction.

D-HRC Features

• Market leader with over 30 years of industry experience.
- Precision control with less leakage, close to flat hysteresis and excellent linearity.
• Reliability and Quality.
- Ergonomic efficiency and customization capabilities provide unparalleled flexibility.


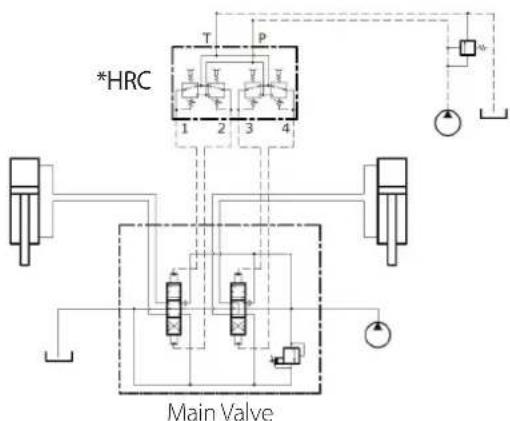

*Schematic exemplification can be either one of the DHRC products.

Cross-sectional view of a mechanical assembly showing internal components (no text or symbols visible)

3D rendering of a black industrial control switch component with no visible text or symbols

Hydraulic specification:

Max. inlet pressure (bar) 50
Max. back pressure (bar) 3
Rated flow (LPM/Section) 10 each
Output pressure (bar) 0~30
Fluid type Mineral oil
Fluid temperature -20°C to 90°C
Ambient temperature -40°C to 60°C
Viscosity 12~400 mm^2/s
Max level of fluid contamination 18/16/13 –ISO 4406

Mechanical specification:

Weight for refer (Kg/Section)	Grip 0.2~0.3
	Body Assy 0.8~1
	Total 0.8~1.3
Operation angle range (°) 13 ~ 26.5
Operation torque range (Nm) 0.35 ~ 1.3
Lifecycle	>1,000,000 cycles

Note: Detailed operating angle and torque are provided on the drawings.

Electric specification:

A type lever push button	NO IP	3A 125VAC
G type lever push button	NO IP	5A 125VAC

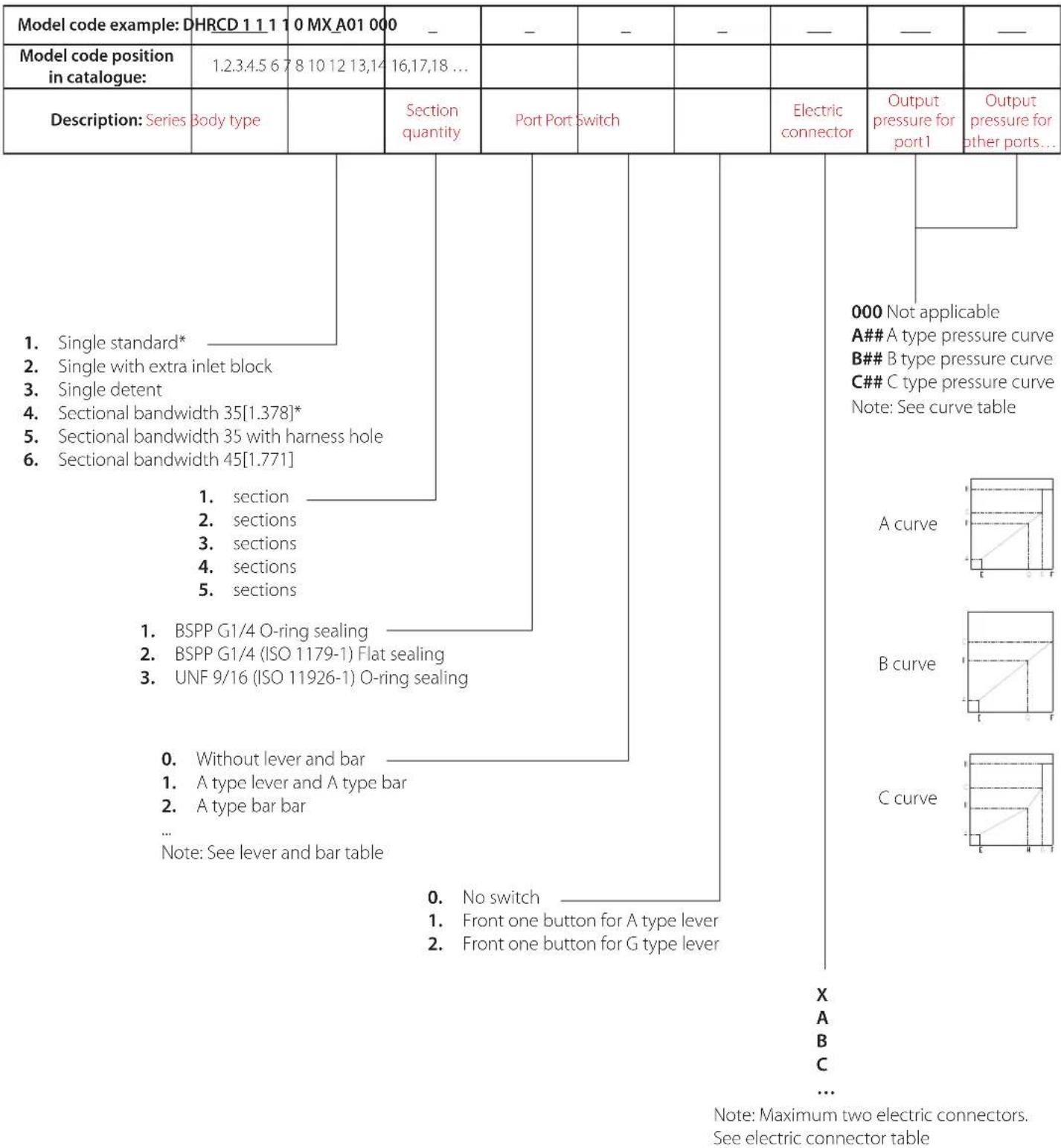

DHRCD Configuration

Note:
Above is simple version of model code, only focus on main requirement information. If have more requirement or need more information, please find details in catalogue.
^n* means most recommend option.

DHRCD Options

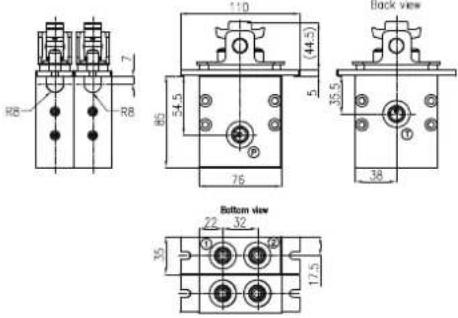

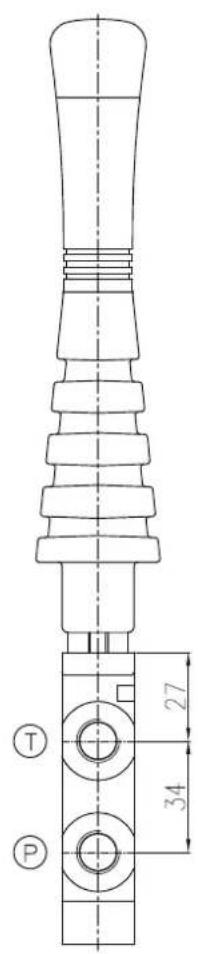

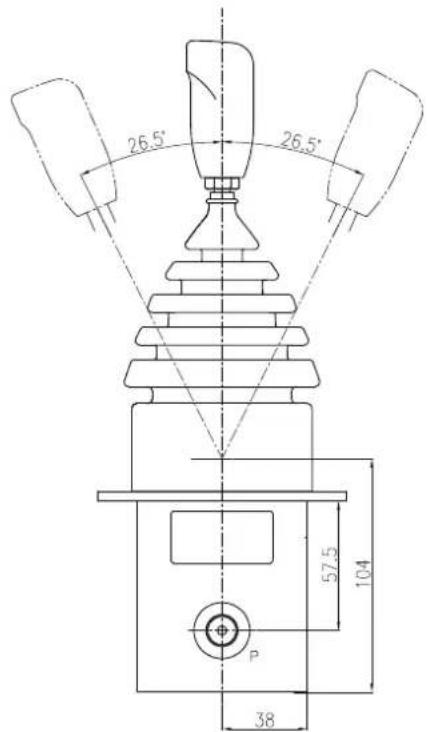

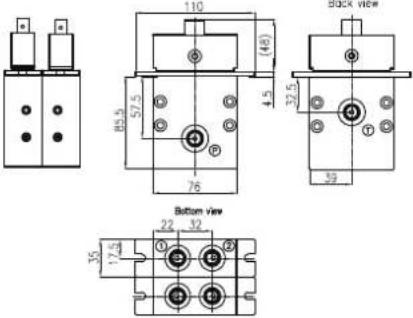

Body type – Model code position 6

Model code position 6	Description 3D diagram 2D diagram Schematic
1 Single standard
2	Single with extra inlet block
3 Single detent
4	Sectional type bandwidth 35[1.378]
5	Sectional type bandwidth 35 with harness hole

DHRCD Options

Lever and bar -- Model code position 10

Model code position 10	Description Diagram
0	Without lever and bar
1	A type lever with A type bar	(29.3)
2 A type bar only
3	B type lever with B type bar	20
4 B type bar only
5	C type bar only 30 degree to the left side from P,T port
6	C type bar only 30 degree to the right side fromP,T port

Model code position 10	Description Diagram
7 D type bar only
8	G type lever with G type bar 6degree	M12X1.25P
9	B type lever with E type bar 10degree to the left side from P,T port
A	G type bar only 6degree
B	F type bar only 30degree

DHRCD Options

Switch- - Model code position 12

Model code position 12 Description Diagram
1 Front one button for A type lever
2 Front one button for G type lever

Electric connector - Model code position 13,14

Model code position 23~26	Description Diagram
X No connector
A	JIS D5403 CA104 & CB104 terminal end
B	JIS D5403 CA104 2EA terminal end male
C	JIS D5403 CB104 2EA terminal end female
D	Korea Electric Terminal KET 2Pin
E	Korea Electric Terminal KET 3Pin
F	Korea Electric Terminal KET 4Pin
G	Korea Electric Terminal KET 6Pin
H	Korea Electric Terminal KET 8Pin

Model code position 23~26	Description Diagram
I	Deuchi DT04-2PReceptacle Assembly
J	Deuchi DT04-3PReceptacle Assembly
K	Deuchi DT04-4PReceptacle Assembly
L	Deuchi DT04-6PReceptacle Assembly
M	Deuchi DT04-08PAReceptacle Assembly
N	Deuchi DT04-6P-E004Receptacle Assembly
O	Deuchi DT06-2S PlugAssembly
P Female crimp terminal

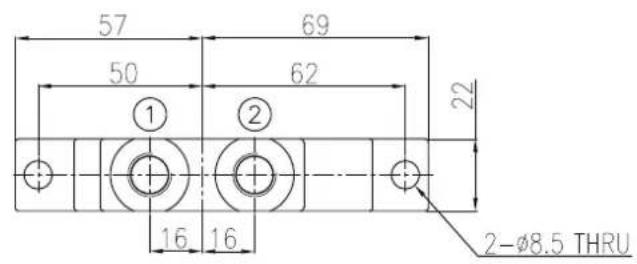

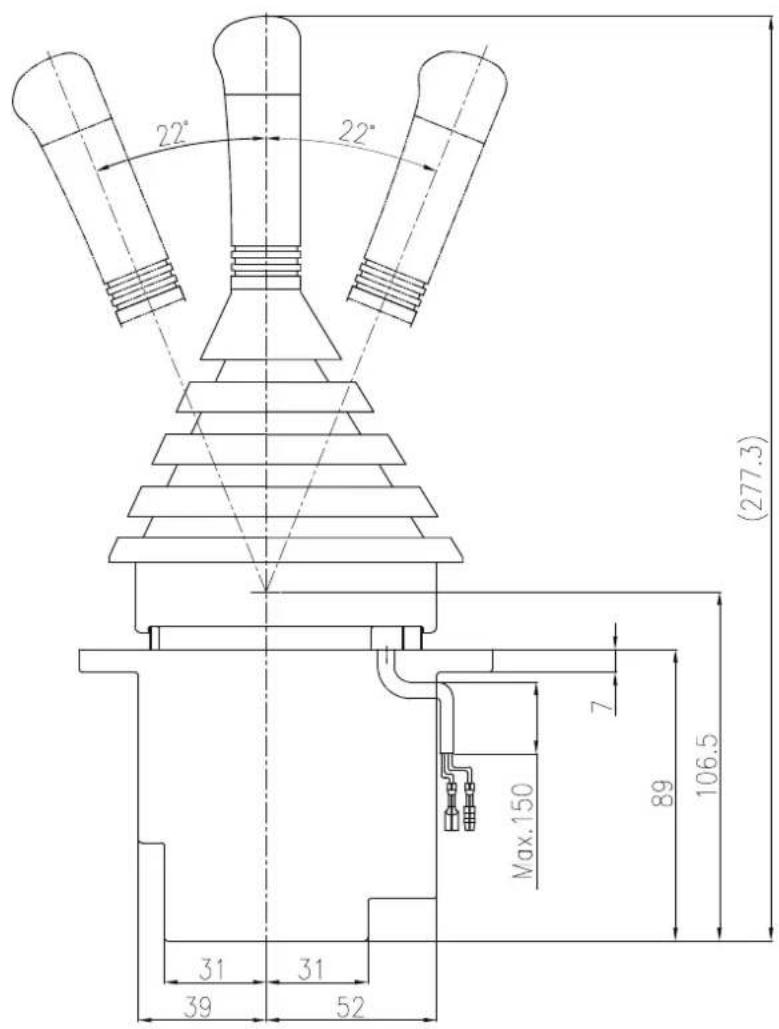

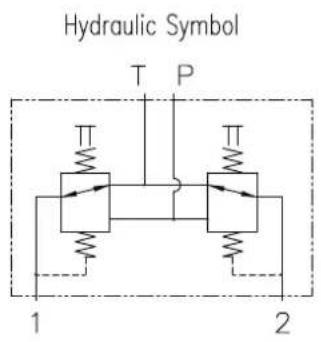

Single standard

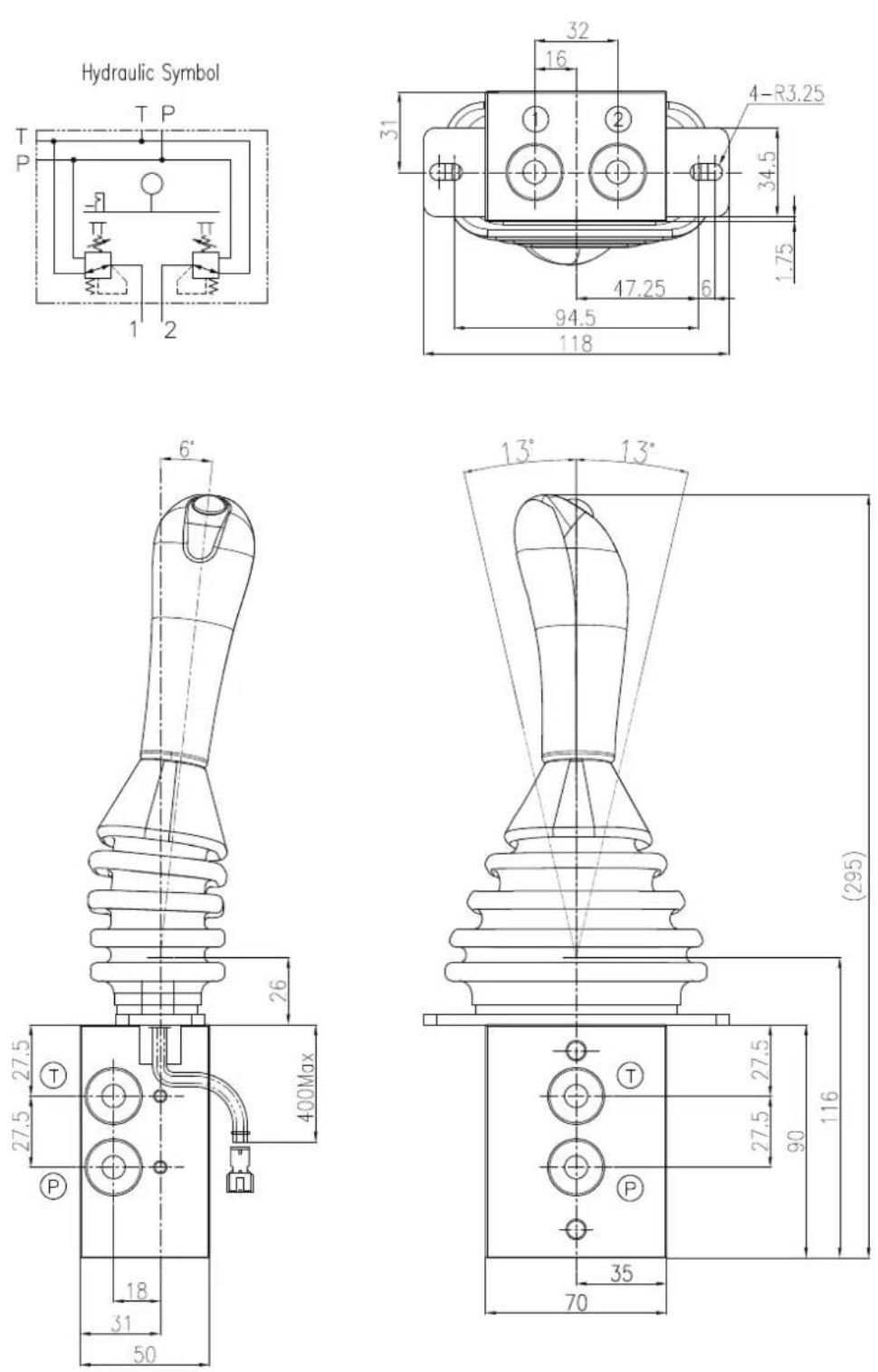

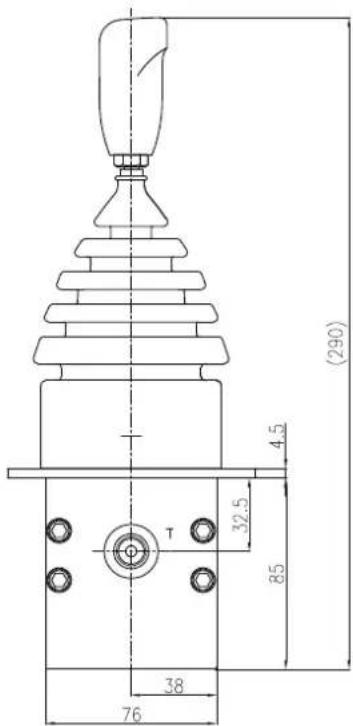

Single detent

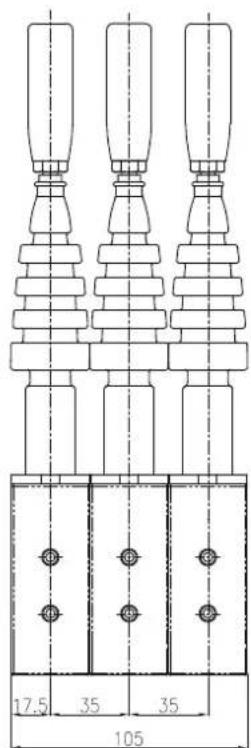

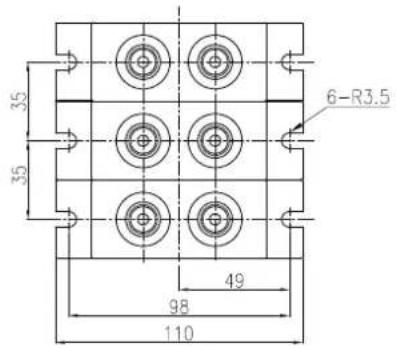

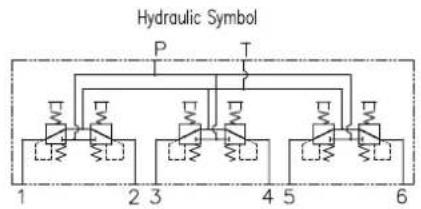

Sectional

Revision history

Date Changed Rev
March 2024 New created A
