| Product Type | Flat screen wall mount |
| Brand | Gabor |
| Model | FSM-L |
| Compatible Screen Sizes | 13" to 42" |
| Maximum Load Capacity | 25 kg (55 lbs) |
| VESA Compatibility | 75x75mm / 100x100mm / 200x200mm |
| Material | Steel / Aluminum |
| Product Dimensions | 250 x 180 x 30 mm (folded) |
| Net Weight | 1.5 kg |
| Tilt Adjustment | +15° / -15° |
| Swivel Adjustment | ±180° (if applicable) |
| Rotation (Landscape/Portrait) | Yes, 360° |
| Distance from Wall | 50 mm to 400 mm (adjustable arm) |
| Power Supply | None (manual) |

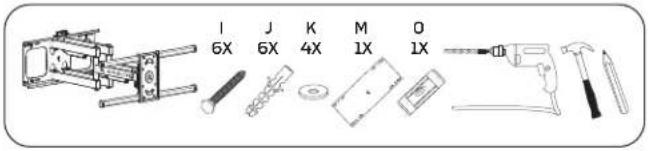

| Included Accessories | Mounting kit, screws, anchors, level, instruction manual |
| Installation Type | Wall mounting (concrete, brick, wood stud) |
| Recommended Tools | Drill, screwdriver, level |
| Cleaning Instructions | Wipe with a soft dry cloth; avoid solvents |
| Safety Standards | Meets general safety requirements for TV mounts |
| Warranty | 1 year (subject to retailer policy) |
Frequently Asked Questions - FSM-L Gabor
What is the maximum screen size that the Gabor FSM-L can support?
The Gabor FSM-L is designed for flat screens from 13 to 42 inches. Always check the weight of your TV against the 25 kg maximum load.
Is the FSM-L compatible with VESA 200x200?
Yes, the mount supports VESA patterns 75x75, 100x100, and 200x200 mm. Verify your TV's VESA pattern before installation.

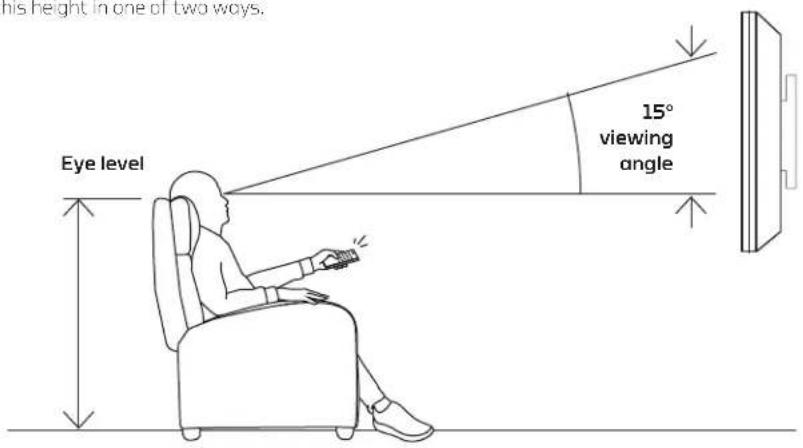

Can I tilt the screen after mounting?
Yes, the mount offers tilt adjustment from -15° to +15°, allowing you to reduce glare and improve viewing angle.
Does the mount allow swiveling?
Depending on installation, the FSM-L can swivel up to 180° left or right. Ensure sufficient clearance.
What tools do I need for installation?
You will need a drill, screwdriver, and a level. The mount includes all necessary screws and anchors for concrete, brick, or wood stud walls.
How far from the wall will the screen sit?
The distance from the wall can be adjusted from 50 mm to 400 mm using the articulating arm.
Is professional installation recommended?
While the mount can be DIY installed, we recommend professional installation for safety, especially if you are unsure about wall type or weight capacity.
Can I rotate the screen to portrait mode?
Yes, the mount supports 360° rotation, allowing both landscape and portrait orientations.
How do I clean the mount?
Clean with a soft dry cloth. Do not use abrasive cleaners or solvents as they may damage the finish.
What is the warranty on the Gabor FSM-L?
The mount typically comes with a 1-year warranty. Check with your retailer for specific coverage details.
