Product Type	Ceiling Speaker
Model	CENA5
Brand	Audac
Speaker Type	2-way Coaxial
Woofer Diameter	5.25 inches (133 mm)
Tweeter Diameter	1 inch (25 mm)
Impedance	8 ohms
Power Handling (RMS)	30 Watts
Power Handling (Peak)	60 Watts
Sensitivity	88 dB (1W/1m)
Frequency Response	70 Hz - 20 kHz
Cutout Diameter	178 mm (7 inches)
Overall Diameter	209 mm (8.23 inches)
Mounting Depth	97 mm (3.82 inches)
Weight	1.5 kg (3.3 lbs)
Mounting Type	Dog ear spring clamps
Grille Material	Steel, white paintable
Connector Type	Spring-loaded terminals
Compliance	CE, RoHS
Warranty	2 years

Frequently Asked Questions - CENA5 Audac

How to install the CENA5 ceiling speaker?

Cut a hole of 178 mm diameter using a template. Feed the speaker wire through the cutout, connect to the spring terminals, push the speaker into the hole, and tighten the mounting screws to clamp the dog ears against the ceiling.

What amplifier power is recommended for the CENA5?

Use an amplifier with a power rating between 15 and 60 watts RMS per channel at 8 ohms for optimal performance and to avoid damage.

Can I paint the speaker grille to match my ceiling?

Yes, the steel grille is paintable. Carefully remove the grille, apply thin coats of spray paint, and let it dry before reattaching. Avoid painting the drivers.

What tools are needed for installation?

You will need a drywall saw or jigsaw for cutting the hole, a tape measure, a wire stripper, and a screwdriver for tightening the mounting screws.

Is the CENA5 suitable for outdoor use?

No, the CENA5 is designed for indoor ceiling installation only. It is not weatherproof or rated for outdoor environments.

How do I connect the speaker wire to the CENA5?

Strip about 10 mm of insulation from the wire ends, press down the spring-loaded terminal lever, insert the bare wire, and release the lever to secure.

What impedance is the CENA5 and how do I match it with an amplifier?

The speaker has an impedance of 8 ohms. Ensure your amplifier supports an 8 ohm load and connect only one speaker per channel unless using a series/parallel configuration with compatible total impedance.

Does the CENA5 come with mounting accessories?

Yes, the package includes a cutout template, mounting screws, and the speaker with attached dog ear clamps. A grille is also included.

How to clean the speaker?

Wipe the grille and bezel with a soft, dry cloth. For the grille, you can use a vacuum with a brush attachment. Avoid using water or cleaning agents on the drivers.

What is the warranty period for the Audac CENA5?

The Audac CENA5 comes with a 2-year limited warranty against manufacturing defects. Check with your dealer for specific terms.

USER MANUAL CENA5 Audac

Cut a hole on the desired mounting location in the ceiling. Make sure the dimension is matching the cut-out measurement for the installing loudspeaker

• CENA306 = ∅ 80 mm
• CENA506 = ∅ 150 mm
• CENA706 = ∅ 167 mm
• CENA812 = ∅ 207 mm

Double check if there are no cables or other obstructions behind the mounting surface before making the cut-out.

Technical line drawing of a mechanical assembly with no visible text or symbols

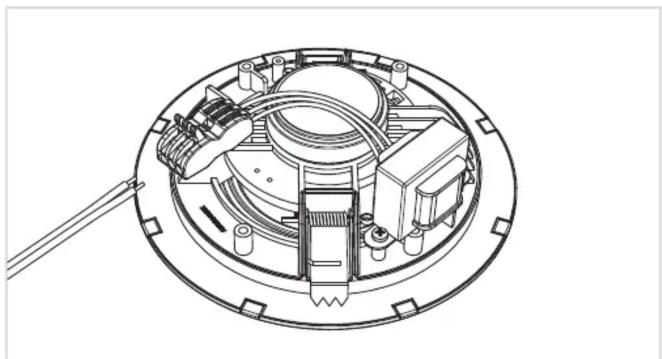

Connect the wires coming from the amplifier to the SnapConnect™ on the rear of the loudspeaker.

The correct power tapping is chosen by connecting the appropriate terminals of the connector. A description of the power tap selection is shown on the magnet sticker on the rear side of the loudspeaker.

CENA306/506/706:

• Red: 6 Watt / 1667 Ω
• White: 3 Watt / 3333 Ω
- Black: COM

CENA812:

• Red: 12 Watt / 833 Ω
• White: 6 Watt / 1667 Ω
- Black: COM

STEP 3

Technical line drawing of a mechanical assembly with no visible text or symbols

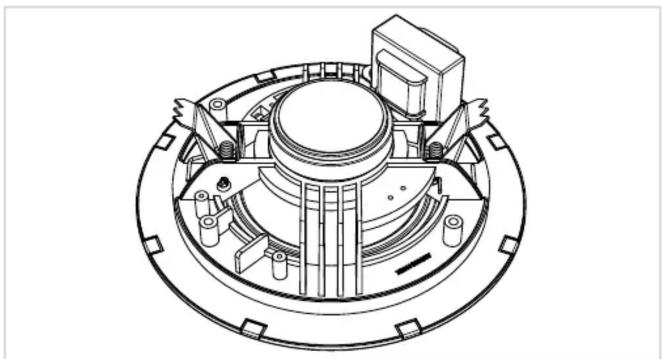

Bend the spring loaded mounting arms inwards by pushing them by fingers, making them fit through the provided ceiling cut-out.

STEP 4

Technical line drawing of a mechanical assembly with no visible text or symbols

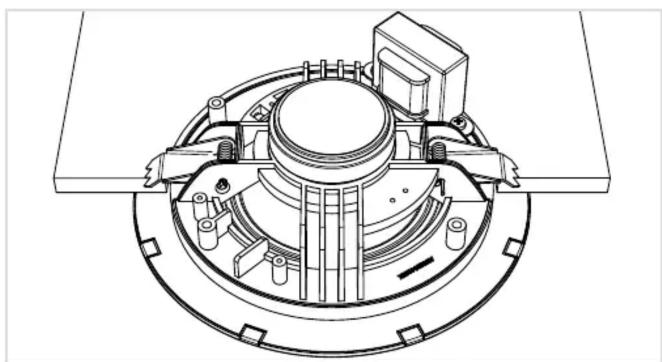

Insert the speaker through the provided ceiling cut-out, make sure the spring loaded mounting arms are behind the clamping surface and release them. The ceiling is clamped between the mounting arms and the speaker baffle and is installed correctly.

The speaker is now ready for use.

PRECAUTIONS

• ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY
• ALWAYS HANDLE THIS UNIT WITH CARE
- CLEAN ONLY WITH DRY CLOTH
• HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS
• NEVER EXPOSE THIS EQUIPMENT TO RAIN, MOISTURE, ANY DRIPPING OR SPLASHING LIQUID.
• DO NOT INSTALL THIS UNIT NEAR ANY HEAT SOURCES SUCH AS RADIATORS OR OTHER APPAR ATUS THAT PRODUCE HEAT
• DO NOT PLACE THIS UNIT IN ENVIRONMENTS WITH A HIGH LEVEL OF DUST, HEAT, MOISTURE OR VIBRATION
- THIS UNIT IS DEVELOPED FOR INDOOR USE ONLY. DO NOT USE IT OUTDOORS
• ONLY USE ATTACHMENTS & ACCESSORIES SPECIFIED BY THE MANUFACTURER.
- ONLY INSTALL THE SPEAKER IN LOCATIONS THAT CAN STRUCTURALLY SUPPORT THE WEIGHT OF THE SPEAKER. IGNORING THIS CAN BRING THE SPEAKER DOWN.
• DO NOT USE ANY OTHER METHOD THAN SPECIFIED TO MOUNT THE SPEAKER. IF EXTREME FORCE IS APPLIED TO THE SPEAKER, IT COULD FALL DOWN
• ATTACH A SAFETY WIRE TO THE SPEAKER WHEN IT IS MOUNTED HIGH UP. ONLY USE INDUSTRY-ACCEPTED RIGGING TOOLS AND METHODS
- CAREFULLY CHECK THE UNIT'S CONDITION AFTER UNPACKING.

CAUTION - SERVICING

This product contains no user serviceable parts. Refer all servicing to qualified service personnel. Do not perform any servicing (unless you are qualified to do so.)

EC DECLARATION OF CONFORMITY

This product conforms to all the essential requirements and further relevant specifications described in following directives: 2014/30/EU (EMC) and 2014/35/EU (LVD)

• IF THERE IS ANY DAMAGE TO THE CARTON BOX OR THE UNIT ITSELF, INFORM YOUR VENDOR IMMEDIATELY.
• ALWAYS FOLLOW THE LOCAL REGULATIONS AND REQUIREMENTS REGARDING INSTALLATION, SUSPENSION AND CONNECTION OF THIS LOUDSPEAKER. EVEN WHEN OTHERWISE SPECIFIED IN THIS DOCUMENT.
• THE INSTALLATION OF THIS LOUDSPEAKER SHALL BE DONE BY QUALIFIED PERSONNEL ONLY.
  • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER
  • USE CABLES WITH CLEAR COLOR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM.
  • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
  • AVOID EXPLOSIONS: DO NOT USE THE SPEAKER AROUND GASOLINE, THINNER OR OTHER COMBUSTIBLES
  • AVOID ELECTRIC SHOCKS: SWITCH OFF THE AMPLIFIER WHEN CONNECTING THE LOUDSPEAKER
  • DO NOT USE THE LOUDSPEAKER FOR AN EXTENDED PERIOD OF TIME AT DISTORTED SOUND. THIS COULD CAUSE PERMANENT DAMAGE.

WASTE OF ELECTRICAL AND ELECTRONIC EQUIPMENT (WEEE)

The WEEE marking indicates that this product should not be disposed with regular household waste at the end of its product life. This regulation is created to protect both the environment and human health.

This product is developed and manufactured with high quality materials and components which can be recycled and/or reused. Please dispose of this product at your local collection point or recycling center for electrical and electronic waste. Do this to make sure that the product is recycled in an environmental friendly way, and help to protect the environment in which we all live.
