| Product Type | Range Hood |
| Brand | Glem Gas |
| Model | CK90CGLBF |
| Width | 90 cm |
| Material | Stainless Steel and Curved Glass |
| Control Type | Electronic |
| Number of Speeds | 3 |
| Extraction Rate | 800 m³/h |
| Lighting | Twin LED Low Consumption (2W + 2W) |
| Noise Level | 55 dB |
| Filter Type | Stainless Steel Baffle Filter |
| Filter Cleaning | Dishwasher Safe |
| Warranty | 2 Years |
| Power Supply | 220-240V ~ 50Hz |
| Installation Type | Under Cabinet or Wall Mount |
| Dimensions (H x W x D) | Approx. 60 x 90 x 50 cm |
| Weight | Approx. 18 kg |
| Air Discharge | Ducted or Recirculating (Kit not included) |
| Safety Features | Auto Shut-off Timer (if applicable) |
| Spare Parts Availability | Through Authorized Service Centers |
| Repairability | Modular design - contact service |
Frequently Asked Questions - CK90CGLBF Glem Gas
How to install the Glem Gas CK90CGLBF range hood?
Installation should be carried out by a qualified professional. The hood must be mounted at a minimum distance of 65 cm from electric hobs and 75 cm from gas hobs. Secure the unit to the wall using the provided template and screws. Ensure proper ducting or recirculation setup.
How to clean the stainless steel baffle filters?
The filters are dishwasher safe. Remove them by pulling the handle and sliding out. Wash in dishwasher on a gentle cycle or hand wash with mild detergent. Ensure they are completely dry before reinstalling. Clean monthly for optimal performance.
How to replace the LED lights on this hood?
The LED lights are low consumption and long-lasting. If replacement is needed, contact a qualified technician or Glem Gas service center. Do not attempt to replace yourself as it may require disassembly.
What is the noise level of the CK90CGLBF?
The noise rating is 55 dB at maximum speed, which is comparable to a quiet conversation. Lower speeds produce even less noise.
Can this range hood be used with a recirculation kit?
Yes, the hood can be used in recirculation mode with a charcoal filter (not included). Purchase a compatible recirculation kit and install according to the manual. This is ideal for homes without external ducting.
What is the extraction rate of the CK90CGLBF?
The maximum extraction rate is 800 m³/h, suitable for medium to large kitchens. It efficiently removes smoke, steam, and odors.
Does the hood have an auto shut-off timer?
The electronic control may include a delay shut-off function. Refer to the manual for specific features. Typically, you can set the hood to run for a set time after cooking.
What is the warranty period for this product?
Glem Gas offers a 2-year warranty against manufacturing defects. Keep your proof of purchase. The warranty covers parts and labor but not misuse or improper installation.
How to adjust the fan speed?
Use the electronic control panel. Press the speed button to cycle through 3 speeds. The indicator light shows the selected speed.
What maintenance does the hood require?
Regularly clean the baffle filters (monthly) and the exterior with mild detergent. Inspect ducting for blockages. For recirculation mode, replace charcoal filters every 3-6 months.
User questions about CK90CGLBF Glem Gas
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
No questions yet. Be the first to ask one.
Download the instructions for your Range hood in PDF format for free! Find your manual CK90CGLBF - Glem Gas and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. CK90CGLBF by Glem Gas.
USER MANUAL CK90CGLBF Glem Gas

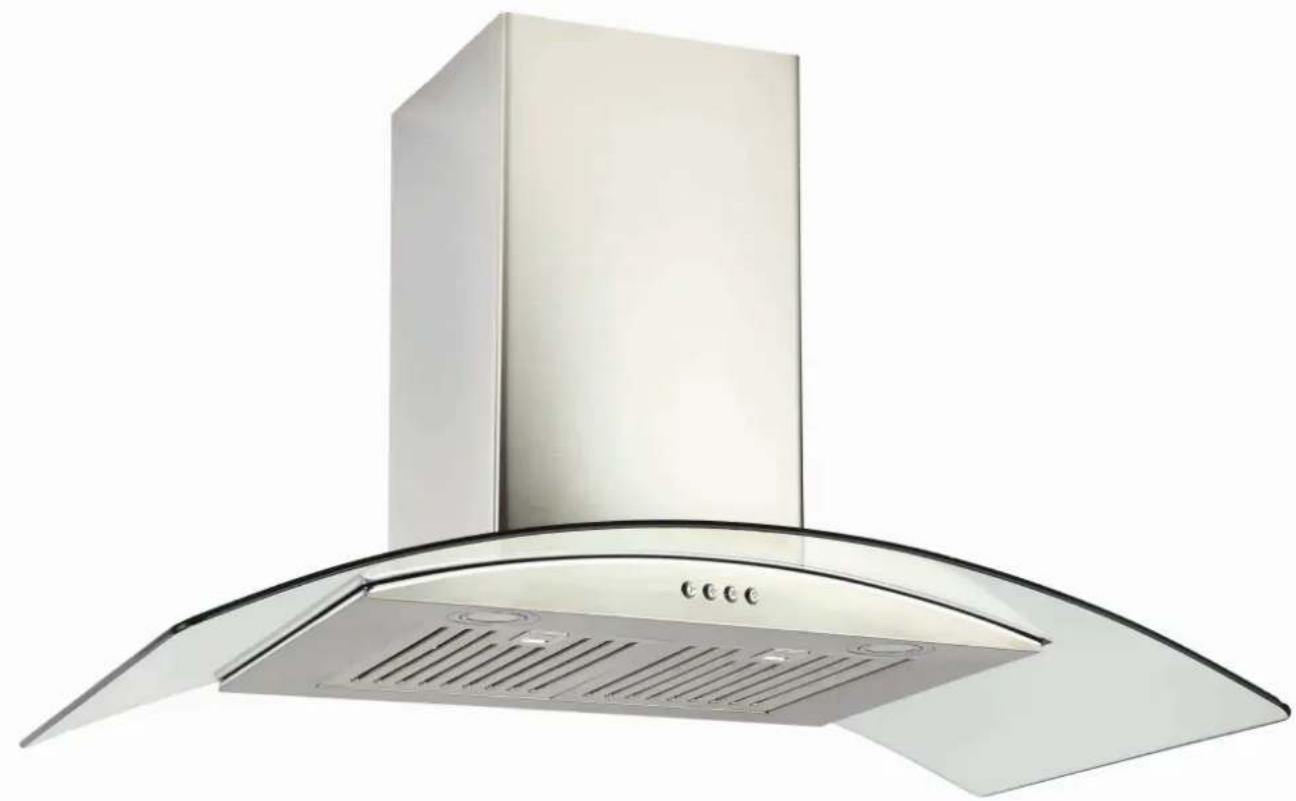

CK90CGLBF 90cm Curved Glass rangehood
Functions and features
| 90cm Curved Glass Rangehood |
| Stainless steel construction |
| Twin LED low consumption lights 2W + 2W |
| Electronic control |
| 3 speed fan |
| 800 cubic metre extraction |
| SS Baffle filter - dishwasher safe |
| 2 year warranty |
| Noise rating - 55dB |
Please note:
Every effort has been made to ensure this information is correct. However, due to product improvement Emilia Glem reserves the right to make changes to products without prior notice.
