HUS-SC70-B - Fridge Schmick - Free user manual and instructions

Product Type	Refrigerator
Brand	Schmick
Model	HUS-SC70-B
Dimensions (H x W x D)	50 cm x 45 cm x 45 cm (approx.)
Weight	22 kg
Power Supply	220-240V ~ 50Hz
Power Consumption	100 W
Energy Class	F (approx.)
Climate Class	N
Noise Level	42 dB
Refrigerant	R600a
Adjustable Thermostat	Yes
Reversible Door	Yes
Interior Light	Yes
Defrost Type	Automatic (frost-free)
Shelves Material	Tempered glass
Vegetable Crisper	Yes
Egg Tray	Included
Maintenance	Clean condenser coils every 6 months
Safety Features	Child lock, anti-tip bracket
Replaceable Parts	Door gasket, shelves, thermostat
Manual Available Online	Yes, free PDF download

Frequently Asked Questions - HUS-SC70-B Schmick

How do I set the temperature on my Schmick HUS-SC70-B fridge?

Use the adjustable thermostat dial inside the fridge compartment. Turn clockwise for colder temperatures (typically 1-7 scale). Recommended setting is 3-4 for normal use.

Does the HUS-SC70-B have automatic defrost?

Yes, this model features automatic defrost (frost-free operation), so you do not need to manually defrost the freezer.

How often should I clean the condenser coils?

Clean the condenser coils every 6 months to ensure efficient operation. Use a soft brush or vacuum to remove dust and lint.

Why is my fridge making a loud noise?

Common causes include the fridge not being level, items vibrating on top, or the compressor running. Ensure the fridge is on a flat surface and check for loose items. If noise persists, contact support.

What should I do if the door does not seal properly?

Check the door gasket for debris or damage. Clean with warm soapy water. If the gasket is worn, it may need replacement. Also verify the fridge is level.

How much clearance is needed around the fridge?

Leave at least 5 cm (2 inches) of space on the sides and back for proper ventilation, and 10 cm (4 inches) above the fridge.

Can I reverse the door opening direction?

Yes, the door is reversible. Follow the instructions in the manual to move hinges and door handles to the opposite side.

How do I prevent ice buildup in the fridge?

Ensure the door is fully closed and the gasket is clean. Do not leave the door open for long periods. Check that the thermostat is set correctly.

What is the energy class of the HUS-SC70-B?

The energy class is approximately F (on the EU energy label scale from A to G). Actual consumption may vary based on usage.

Where can I download the user manual?

You can download the manual for free from notice-facile.com or the Schmick support website. Search for model HUS-SC70-B.

USER MANUAL HUS-SC70-B Schmick

Storage inside the cabinet

-It is not recommended to store blood or special pharmaceuticals in the fridge

-Always let warm food cool before placing into fridge for storage

-Keep drinks at least 1cm away from walls to allow air flow and to stop bottles freezing on back wall close to cold-plate.

Trouble Shooting / Basic Info

There are basic things you need to look and check before trying to initiate a technician call out for warranty circumstances.

Noise

If you unit has become noisy, please check the following:

- Can you ascertain exactly where the noise is coming from? It may be a loose screw or part of the fridge that is now vibrating and is easy to fix.

- Is the compressor / fridge level, a compressor not level will make a 'clunking' noise on start-up and shut down.

- Does the fan sound noisy? It may be as simple as needing slight adjustment.

Warranty: Contact 1300 170640 with Serial Number, purchase details and fridge model details for warranty queries. Hours 8:30am > 7:00pm Mon - Fri and 9:30am > 12:00pm Saturday.

Not Cooling

So all of a sudden unit has stopped cooling.

- Does the compressor run? Make sure compressor is running, if it is running and you have a warm fridge then there is a gas problem and technician will be needed.

- Check fan inside unit (if applicable). If fan inside unit is not working then air won't be being distributed evenly, a lot of areas will not be as cold as some, and rear plate may ice up.

- Have you got the thermostat set correct? Or has it been altered, remember the higher the number you set this on the colder the fridge will be.

- Is your door sealing properly, check all the way around door seal to make sure it is sealing correct on fridge body, small gaps won't effect cooling.

Freezing Product.

- The units are not freezers but there is a possibility of freezing drinks, especially if unit is set on the highest setting of 5 or drinks are placed within 1 cm of back cold-plate within the fridge.

- If you are experiencing rapid ice buildup on inside walls of unit the thermostat is likely to be faulty, technician is needed.

Maintenance

- Clean door seal every 6 months, use eucalyptus oil and a soft cloth

- Clean inside unit every 6 months as water parts and food can cause mold and bacteria may form

- Clean underneath unit periodically

Operation manual for Schmick mini bar fridges

HUS-SC70-B

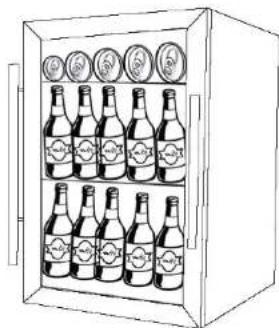

Line drawing of a refrigerator with multiple bottles on the shelves and circular plates on the door (no text or symbols)

Not to be used for preservation of Fresh Foods, this is a drinks fridge.

Bar Fridge Basic Instructions

HUS-SC70-B

1. Unit is ready to plug in

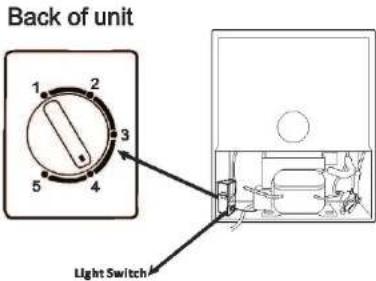

2. Thermostat temperature control is located back of unit, see pic following.

Back of unit 1 2 3 5 4 Light Switch

1. There are different shelving positions in the unit.

2. For Warranty enquiries and claims call 1300 170640, 8:30AM > 7:30PM Mon-Fri, 9:30AM > 12:00PM Sat

3. Things you need to know;

a. Unit is N rated, so indoor use is normal operation
b. Unit is compressor driven and you will hear this running if near the fridge
c. In high humidity levels of 55% and over, the unit will get condensation on glass door, meaning water will form, this is normal operation
d. Do not place in direct sunlight or build in behind a cupboard door

Specifications

Model	HUS-SC70-B
Climatic class	N
Storage Temperature (°C)	0>10 (38oC Ambient)
Anti shock protection class	I
Capacity (L)	70
Rated Voltage (V)	AC220/240V
Rated Frequency (Hz)	50/60Hz
Power Consumption Kwh/24Hrs	0.96
LIGHT	1W
Power Watts	85W
Refrigerant/Charging (g)	R600a/20g

Set up and Positioning

-After unpacking dispose of rubbish sensibly

-When moving the fridge avoid hard jolts and bumps

-Don't carry fridge holding the door, always carry using body of fridge or use trolle

-Upon setting up fridge into your position ensure it is square and level, use feet adjustments where needed

-Do not position near sources of heat, like ovens and dishwashers

-Do not position in direct sunlight

-Do not move or tilt while in operation

-Allow as much ventilation wherever and whenever you can, the more ventilation the more economical the fridge will run and the longer the compressor life you will get

-Ensure your electrical lead hasn't been damaged, if you see any fault or cut in the power lead refer to electrician before plugging in

-Once in position allow 30minutes and turn "ON"

Safety

-Do not pull plug directly from socket without turning 'OFF' first

-Do not try to access unit electrics unless authorized to do so and unless unit is "OFF" and "UNPLUGGED"

-Do not have items near unit that could be damaged by heat, the condenser coils are located in the walls so these get quite hot during normal operation

-This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

-Do not rest heavy items (including the fridge) on the electrical lead

-Queensland installation/servicing requirement: Needs a Gas Repair Job (hydrocarbon refrigerants) if the appliance gas system is being opened or charged.

Not to be used for preservation of Fresh Foods, this is a drinks fridge
