Product Type	Refrigerator
Brand	Schmick
Model	HUS-SC50AB
Capacity	50 liters
Energy Class	A+
Dimensions (H x W x D)	500 x 450 x 450 mm
Weight	15 kg
Power Supply	220-240 V, 50 Hz
Climate Class	N (16°C - 32°C)
Defrost Type	Manual defrost
Temperature Control	Thermostat knob
Adjustable Shelves	Yes, 2 shelves
Door Reversible	Yes
Interior Light	Yes, LED
Noise Level	40 dB
Refrigerant	R600a (flammable)
Compressor Warranty	2 years
Product Warranty	2 years

Frequently Asked Questions - HUS-SC50AB Schmick

How do I clean the refrigerator?

Unplug the refrigerator first. Use a soft cloth with warm water and mild detergent. Avoid abrasive cleaners. Clean the interior, shelves, and door seals. Dry thoroughly before plugging back.

What is the recommended temperature setting?

The ideal temperature for the refrigerator compartment is between 2°C and 8°C. Use the thermostat knob to adjust. Higher numbers mean colder.

Why is my refrigerator making noise?

Normal sounds include the compressor hum, refrigerant flow gurgling, and ice crackling. If it's loud or irregular, ensure the fridge is level and not touching walls or cabinets.

Can I reverse the door swing?

Yes, the door is reversible. You need to remove the hinge pins and relocate the hinge brackets. Refer to the user manual for step-by-step instructions.

How often should I defrost the refrigerator?

Defrost when the frost layer exceeds 5mm (1/4 inch). Manual defrost requires turning off the fridge, removing food, and letting ice melt. Do not use sharp tools.

What should I do if the refrigerator is not cooling?

Check if it's plugged in and the thermostat is not set to '0'. Ensure the door closes properly and the condenser coils are clean. If issues persist, contact a technician.

How can I save energy with my refrigerator?

Place it away from heat sources, leave space around the back for ventilation, cover food, and avoid frequent door openings. Set the thermostat to the minimum required temperature.

Is the refrigerant dangerous?

The refrigerant used is R600a (isobutane), which is flammable. Do not damage the cooling circuit. In case of leakage, ventilate the area and avoid sparks. Keep away from fire.

What are the installation requirements?

Place on a flat, stable surface. Allow at least 10 cm clearance around the back and sides for air circulation. Use a dedicated power outlet. Do not install outdoors or in damp areas.

How do I change the interior light?

Unplug the fridge. The light cover is typically snapped on. Pry it off gently, replace the LED bulb (check your manual for type), and snap the cover back. If LED is integrated, contact service.

USER MANUAL HUS-SC50AB Schmick

Storage inside the cabinet

-It is not recommended to store blood or special pharmaceuticals in the fridge

-Always let warm food cool before placing into fridge for storage

-Keep drinks at least 1cm away from walls to allow air flow and to stop bottles freezing on back wall close to cold-plate.

Trouble Shooting / Basic Info

There are basic things you need to look and check before trying to initiate a technician call out for warranty circumstances.

Noise

If you unit has become noisy, please check the following;
- Can you ascertain exactly where the noise is coming from? It may be a loose screw or part of the fridge that is now vibrating and is easy to fix.
- Is the compressor / fridge level, a compressor not level will make a 'clunking' noise on start-up and shut down.
- Does the fan sound noisy? It may be as simple as needing slight adjustment.

Warranty: Contact 1300 170640 with Serial Number, purchase details and fridge model details for warranty queries. Hours 8:30am > 7:00pm Mon - Fri and 9:30am > 12:00pm Saturday.

Not Cooling

So all of a sudden unit has stopped cooling.

• Does the compressor run? Make sure compressor is running, if it is running and you have a warm fridge then there is a gas problem and technician will be needed.
• Check fan inside unit (if applicable). If fan inside unit is not working then air won't be being distributed evenly, a lot of areas will not be as cold as some, and rear plate may ice up.
• Have you got the thermostat set correct? Or has it been altered, remember the higher the number you set this on the colder the fridge will be.
• Is your door sealing properly, check all the way around door seal to make sure it is seating correct on fridge body, small gaps won't effect cooling.

Freezing Product.

• The units are not freezers but there is a possibility of freezing drinks, especially if unit is set on the highest setting of 5 or drinks are placed within 1 cm of back cold-plate within the fridge.
• If you are experiencing rapid ice buildup on inside walls of unit the thermostat is likely to be faulty, technician is needed.

Maintenance

• Clean door seal every 6 months, use eucalyptus oil and a soft cloth
• Clean inside unit every 6 months as water parts and food can cause mold and bacteria may form
• Clean underneath unit periodically

Operation manual for Schmick mini bar fridges

HUS-SC50-AB

Line drawing of a simple refrigerator with open door and side panel (no text or symbols)

Not to be used for preservation of Fresh Foods, this is a drinks fridge.

Bar Fridge Basic Instructions

HUS-SC50-AB

1. Unit is ready to plug in

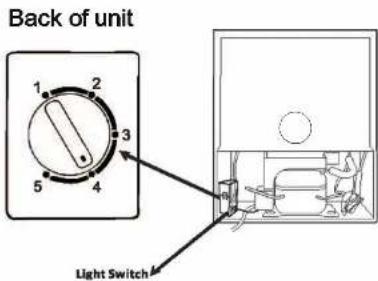

2. Thermostat temperature control is located back of unit, see pic following.

Back of unit 1 2 3 5 4 Light Switch

1. There are different shelving positions in the unit.

2. For Warranty enquiries and claims call 1300 170640, 8:30AM > 7:30PM Mon-Fri, 9:30AM > 12:00PM Sat

3. Things you need to know;

a. Unit is N rated, so indoor use is normal operation
b. Unit is compressor driven and you will hear this running if near the fridge
c. In high humidity levels of 55% and over, the unit will get condensation on glass door, meaning water will form, this is normal operation
d. Do not place in direct sunlight or build in behind a cupboard door

Specifications

Model HUS-SC70-B
Climatic class	N
Storage Temperature (°C)	0>10 (38oC Ambient)
Anti shock protection class	I
Capacity (L)	70
Rated Voltage (V) AC220/240V
Rated Frequency (Hz)	50/60Hz
Power Consumption Kwh/24Hrs	0.98
LIGHT	1W
Power Watts	85W
Refrigerant/Charging (g)	R600a/20g

Set up and Positioning

-After unpacking dispose of rubbish sensibly

-When moving the fridge avoid hard jolts and bumps

-Don't carry fridge holding the door, always carry using body of fridge or use trolle

-Upon setting up fridge into your position ensure it is square and level, use feet adjustments where needed

-Do not position near sources of heat, like ovens and dishwashers

-Do not position in direct sunlight

-Do not move or tilt while in operation

-Allow as much ventilation wherever and whenever you can, the more ventilation the more economical the fridge will run and the longer the compressor life you will get

-Ensure your electrical lead hasn't been damaged, if you see any fault or cut in the power lead refer to electrician before plugging in

-Once in position allow 30minutes and turn "ON"

Safety

-Do not pull plug directly from socket without turning 'OFF' first

-Do not try to access unit electrics unless authorized to do so and unless unit is "OFF" and "UNPLUGGED"

-Do not have items near unit that could be damaged by heat, the condenser coils are located in the walls so these get quite hot during normal operation

-This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given

supervision or instruction concerning use of the appliance by a person responsible for their safety.

Children should be supervised to ensure that they do not play with the appliance.

-Do not rest heavy items (including the fridge) on the electrical lead

-Queensland installation/servicing requirement: Needs a Gas Repair Job (hydrocarbon refrigerants) if the appliance gas system is being opened or charged.

Not to be used for preservation of Fresh Foods, this is a drinks fridge
