Product Type	AV Extender
Model	REX2.1
Brand	Simplified MFG
Supported Video Resolution	Up to 1080p @ 60Hz
Maximum Transmission Distance	60 meters (over CAT5e/6)
Input Interface	HDMI (Type A Female)
Output Interface	HDMI (Type A Female)
Power Supply	5V DC, 1A (via included adapter)
Dimensions (Transmitter)	70 x 50 x 20 mm
Dimensions (Receiver)	70 x 50 x 20 mm
Weight (per unit)	Approx. 100 g
Operating Temperature	0°C to 50°C
Storage Temperature	-20°C to 60°C
Key Features	Plug-and-play, EDID pass-through, surge protection
Care Instructions	Wipe with dry cloth; avoid liquids
Safety	Use only provided power adapter; do not expose to moisture
Spare Parts	Power adapters and HDMI cables sold separately
Repairability	No user-serviceable parts; contact support for repair
General Information	Compatible with HDMI 1.4 and HDCP 1.4

Frequently Asked Questions - REX2.1 Simplified MFG

What is the maximum distance the REX2.1 can transmit video?

The REX2.1 can transmit video up to 60 meters over a single CAT5e or CAT6 cable.

Does the extender support 4K resolution?

No, the REX2.1 supports up to 1080p @ 60Hz resolution. For 4K, consider a different model.

What type of cable is required?

You need a CAT5e or CAT6 Ethernet cable with RJ45 connectors to connect the transmitter and receiver.

Is the extender plug-and-play?

Yes, the REX2.1 is plug-and-play. No drivers or software installation is needed.

Can I use the extender with a computer and a TV?

Yes, it works with any HDMI source (computer, streaming device) and HDMI display (TV, projector).

Does it require power for both units?

Yes, both the transmitter and receiver need to be powered via the included 5V DC adapters.

What should I do if there is no video signal?

Check all connections, ensure both units are powered, and verify the Ethernet cable is securely connected. Try a shorter cable if possible.

Is HDCP supported?

Yes, the extender supports HDCP 1.4, allowing playback of protected content.

Can I daisy-chain multiple extenders?

No, the REX2.1 is designed for point-to-point extension only. For multiple outputs, consider a splitter.

How do I clean the device?

Use a soft, dry cloth to wipe the surface. Do not use liquids or solvents.

USER MANUAL REX2.1 Simplified MFG

1080p Extender (70m/231ft.)

Two black electronic devices with ports and connectors, shown from different angles (no visible text or symbols)

User Manual

V1.1

Thank you for purchasing the REX2.1 Extender

The REX2.1 is a HDMI 1.4b Extender set designed to provide years of reliable service. Please keep this manual as a reference.

Surge protection device recommended

The external supply is very robust, but a surge device is always good insurance in electrically active areas where the power grid is unreliable. If connected to satellite or cable boxes, a HDSURGE is recommended to prevent surges through the HDMI cable.

Table of Contents

1. Introduction......1
2. Features....1
3. Package Contents......2
4. Specifications....2
5. Operation Controls and Functions......4
   5.1 Transmitter Panel......4
   5.2 Receiver Panel....5
   5.3 IR Pin Definition....6
6. Application Example....7
7. Warranty....8
8. Contact....9

1. Introduction

The REX2.1 Extender can extend a 1080p AV signal up to 70m (232ft) and a 4K 30hz. signal up to 40m (131ft). The REX2.1 is compact and robust making it a robust 1080p extender with the ability to also support 4K@30Hz. Applications would be 4K 30Hz NVR's or media servers that have HDCP 1.4 or no HDCP, cable or satellite boxes in 1080p

2. Features

• Compact Design
• IR Pass-through from display back to TX
  • Supports up to 4K 30Hz.
  CAT6: 230ft/70m for 1080p, 131ft/40m for 4K30
  CAT5E: 197ft/60m for 1080p, 115ft/35m for 4K30
• Loop out allows cascading or intercepting of signal
  • EDID can be attained from RX or Loop out

3. Package Contents

1 × HDMI Transmitter
1 × HDMI Receiver
1 × IR Blaster Cable
1 × IR Receiver Cable
1 × 12V/1A DC Power Adapter
1 × User Manual

1. Specifications

Technical
HDMI Compliance	HDMI 1.4
HDCP Compliance	HDCP 1.4
Video Bandwidth	10.2Gbps
Video Resolution	Up to 4K@30Hz
Audio Support	Up to 7.1CH HD audio
Input TMDS Signal	3.3 volts
Input DDC Signal	5.0 volts/P-P
ESD Protection	Human Body model:+/- 8 kV (air-gap discharge)+/- 4 kV (contact discharge)
Connection
Transmitter	Input: 1 x HDMI Type A [19-pin female]Outputs:1 x HDMI Type A [19-pin female]1 x IR OUT [3.5mm Stereo Mini jack]1 x CAT OUT [RJ45, 8-pin female]
Receiver	Inputs: 1x IR IN [3.5mm Stereo Mini jack]1x CAT IN [RJ45, 8-pin female]Output: 1x HDMI Type A [19-pin female]
Mechanical
Housing	Metal Enclosure
Color	Black
Dimensions	79.5mm (3.125") [W] x 69mm (2.75") [D] x 16.5mm (0.65") [H]
Weight	Transmitter: 132g (4.65 oz.), Receiver: 130g (4.6 oz.)
Power Supply	12V/1A DC
Power Consumption	Transmitter: 1.86W, Receiver: 0.87W
Operation Temperature	32 - 104°F / 0 - 40°C
Storage temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)

5. Operation Controls and Functions

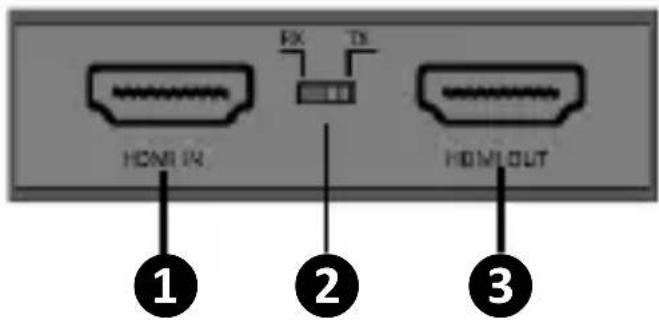

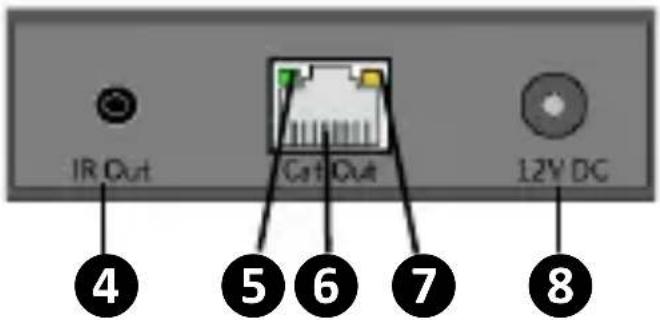

5.1 Transmitter Panel

No.	Name	Function Description
1	HDMI IN	HDMI signal input port. Connect to HDMI source device
2	EDID Switch	The switch is used for selecting EDID: Switch to the right position, the extender will copy HDMI loop out display EDID information to signal source. Switch to the left position, the extender will copy RX display EDID to signal source
3	HDMI OUT	HDMI signal loop out port. Connect to another extender or display
4	IR OUT	Connect to IR blaster cable, the IR signal is from the IR IN port of the RX device
5	Power LED	When the transmitter is powered on, the LED will be Illuminated
6	CAT	CAT output port. Connect to the CAT input port of the RX device with CAT5E/6 cable.
7	Link LED	When the transmitter is connected to HDMI source, the amber LED will be illuminated
8	DC 12V	DC 12V power supply port

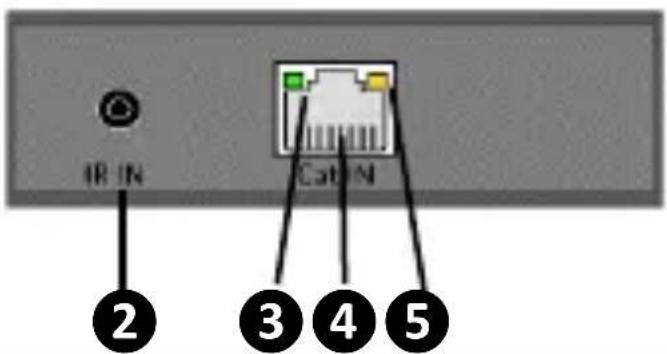

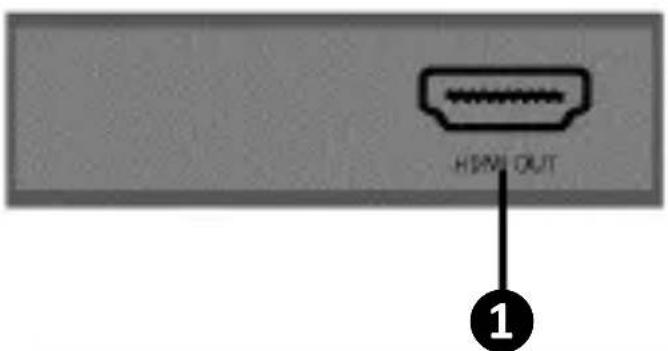

5.2 Receiver Panel

No.	Name	Function Description
1	HDMI OUT	HDMI signal output port. Connect to HDMI display device such as HDTV
2 IR IN		Connect to IR receiver cable, the IR signal will emit to the IR OUT port of the transmitter
3 Power LED		When the receiver is powered on, the LED will be on
4	CAT	CAT input port. Connect to the CAToutput port of the transmitter with CAT5E/6 cable
5	Link LED	When the receiver is connected to HDMI source, the amber LED will be on

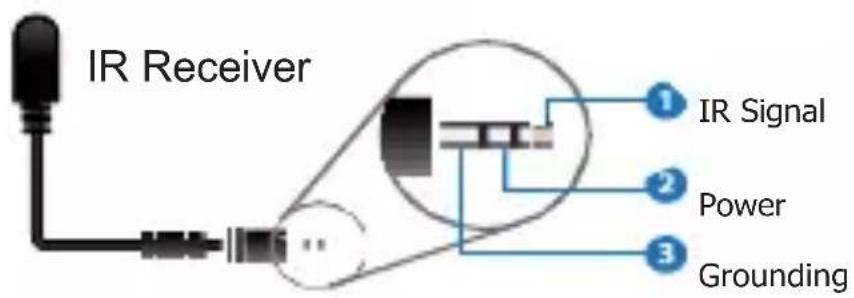

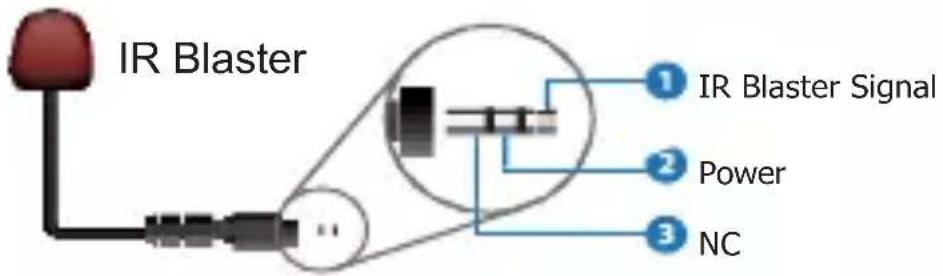

5.3 IR Pin Definition

IR Receiver and Blaster pin's definition is as below:

Close-up of two black cables with connectors, no visible text or symbols

IR RECEIVER

Two black cables with connectors, one dark and one light, shown against a white background (no text or symbols visible)

IR BLASTER

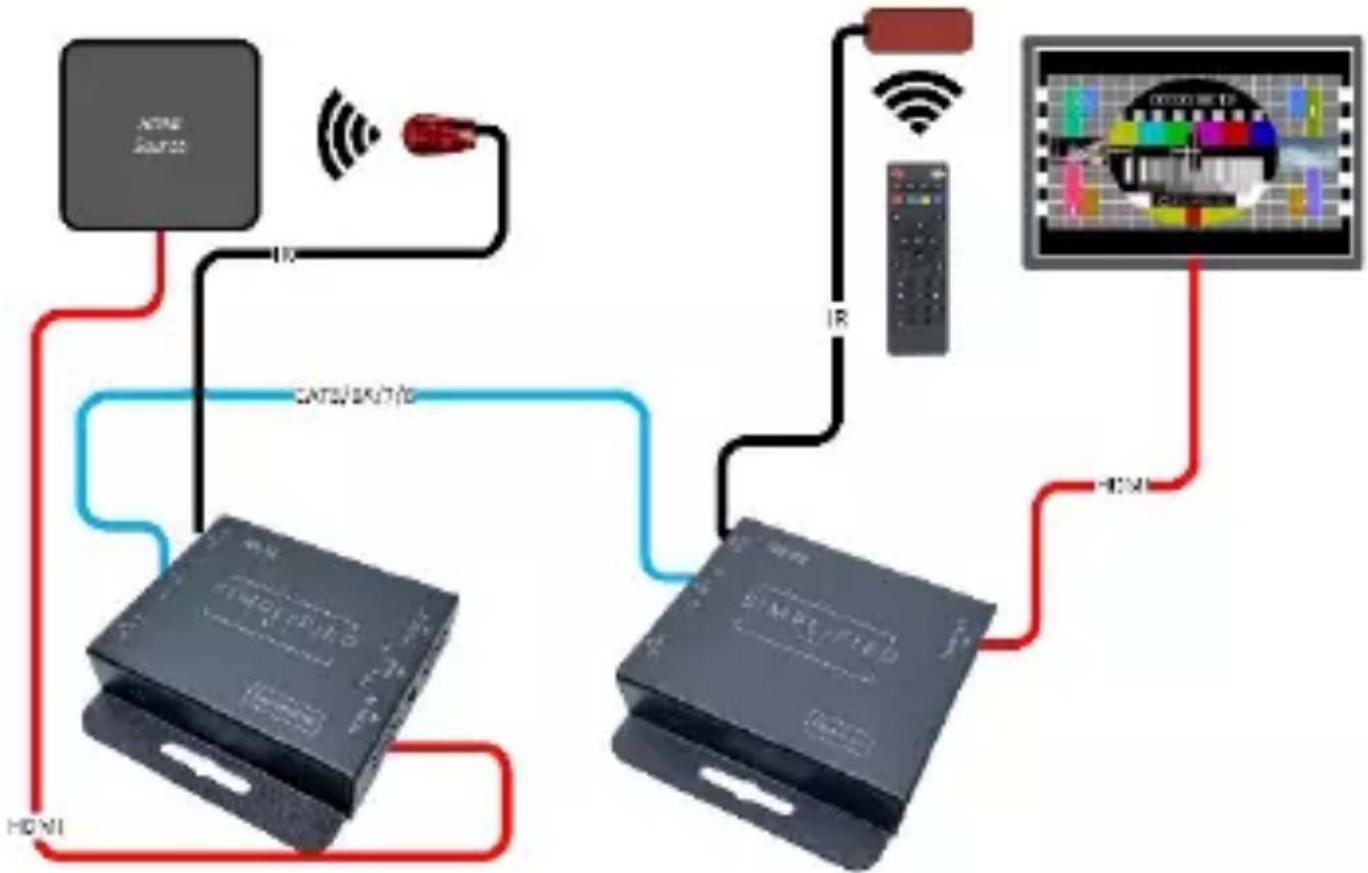

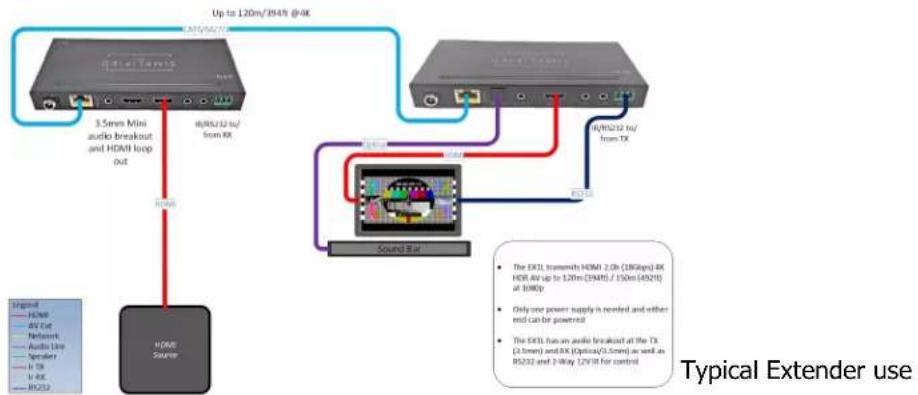

6. Application Example

The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI Logo are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.

7. Warranty

Should you feel that this product does not function adequately due to defects in materials or workmanship, we (referred to as "the warrantor") will, for the length of the period indicated below (starting from the original date of the purchase) either a) repair the product with new or refurbished parts. Or b) Replace the product with new or refurbished product. All Simplified MFG products are covered by a 3-year warranty. During this period there will be no charge for unit repair, replacement of unit components or replacement of the product if deemed necessary. The decision to repair or replace is made by the warrantor. The purchaser must mail in the product during the warranty period. This limited warranty only covers the product purchased as new and is extended to the original purchaser only. It is non-transferrable to subsequent owners, even during the warranty period. A purchase receipt or other proof of purchase date is required for the limited warranty service.

8. Contact

Sales and tech support;

P. 833-HDMI-411 (833-436-4411)

E. [e-mail]

Simplified MFG • 550 W Baseline Rd Ste 102-121 • Mesa, AZ 85210

©Copyright 2023 Simplified MFG

SIMPLIFIED

MFG

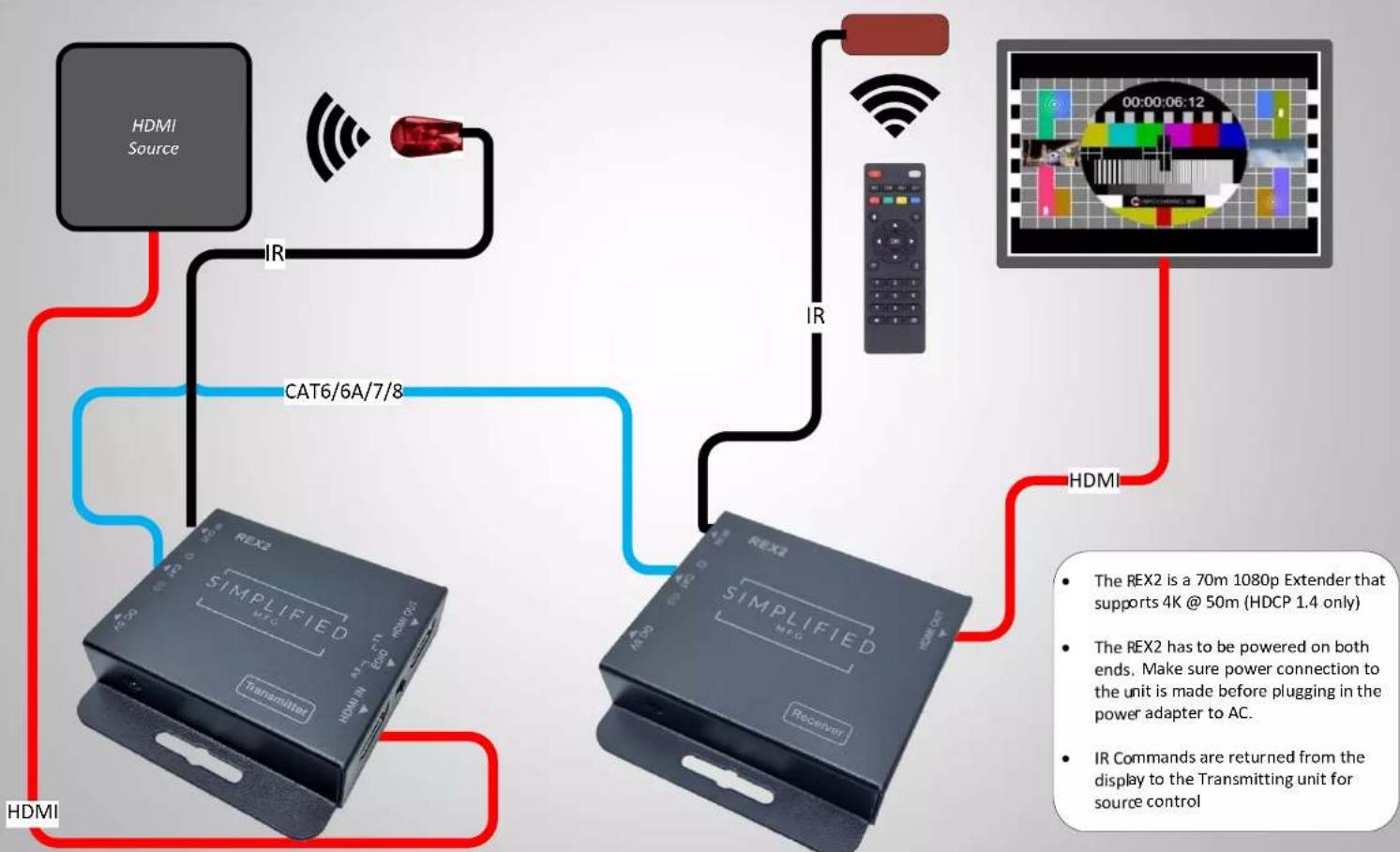

REX2 Quick Start Guide

Simplified MFG • 550 W Baseline Road Ste 102-121 • Mesa, AZ 85210 • www.simplifiedmfg.com • 833-HDMI-411 (436-4411)

REX2.1

4K HDMI 2.0a/b over

Category Cable Extender Kit

Two black electronic devices with ports and connectors, no visible text or symbols

The REX2.1 is a HDMI 2.0a 4K Extender set that supports HDR @24/25/30Hz. Applications are; 4K cameras/NVR/DVR where HDCP2.2 is not used and as a far more robust version of the REX1 for 1080p applications (longer distance more throughput) Small size makes it easy to place behind displays. 1 Way IR kit is included and sends IR from the display end to the transmission end. Upgrade over REX2 is that the REX2.1 powers at the TX only.

Features:

• HDMI 2.0a
• Supports HDR
  • Supports all HD Audio Formats
• Small size for easy placement
• HDMI loop through
  • LED Indicators for Input, Power, & Link
• 50m [4K @ 24/25/30Hz.]
  • 3-Year Warranty

SIMPLIFIED

MFG

Specifications:

Technical
HDMI Compliance	HDMI 2.0a [10.2Gbps, supports HDR]
HDCP Compliance	HDCP 1.4
Video Bandwidth	10.2 Gbps
Video Resolutions	up to 4K2K@50/60Hz(YUV4:4:4),4K2K@30Hz,1080P@120Hz, and 1080P 3D@60Hz
Color Space RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth	10-bit, 12-bit
HDMI Audio Formats(Pass-through)	LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
ESD Protection	Human body model — ±8kV (air-gap discharge) & ±4kV(contact discharge)
Connections
Inputs	TX: 1x HDMI Type A [19-pin female]1x Locking PowerRX: 1x RJ45 Input1x 3.5mm mini jack for IR
Outputs	TX: 1x RJ45 Output1x 3.5mm mini jack for IR1x HDMI Type A [19-pin female]RX: 1x HDMI Type A [19-pin female]
Mechanical
Housing Metal Enclosure
Color Black
Dimensions [RX]	60mm [W] x 60mm [D] x 17mm [H], 2.375" x 2.375"x .67"
Weight [RX] 90g 3	17 Oz.
Power Supply	Input: AC100 - 240V 50/60HzOutput: DC 12/1A (US/EU standards, CE/FCC/UL certified)
Power Consumption	2.8W (Max)
Operation Temperature	32 - 104°F / 0 - 40°C
Storage Temperature	-4 - 140°F / -20 - 60°C
Relative Humidity	20 - 90% RH (no condensation)

SIMPLIFIED

MFG

How to use and trouble shoot Simplified MFG Extenders

At the TX end:

Is everything connected (Cat, HDMI, Power etc)?

Is the HDMI cable in the HDMI input of the TX? We often use a loop out, make sure the input is not in this port.

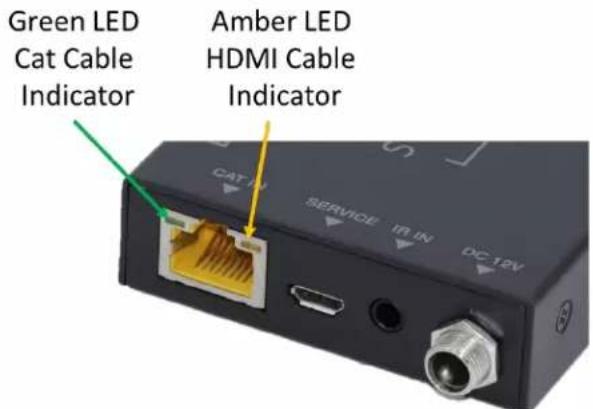

What are the lights where the Cat cable plugs into doing?

Is the Green Lit Solid?

Yes, good! Flashing or off the category cable is poor. This can be the termination (check the manual for wiring termination), poor wire, or interference from being run poorly

Is the Amber Lit Solid?

Yes good! Flashing slowly means no HDCP, off means no signal at HDMI port(s)

At the RX end:

Is the Green Lit Solid?

Yes, good! Flashing or off the category cable is poor. This can be the termination (check the manual for wiring termination), poor wire, or interference from being run poorly

Is the Amber Lit Solid?

Yes good! Flashing slowly means no HDCP, off means no signal at HDMI port(s)

Other Techniques:

Make the circuit simpler. Move the source near the display or the display near the source and see if it works with a short HDMI cable. You can use this to verify the HDMI cables work as well. Add components until the system fails.

Use a known working run of category cable across the floor and see if behavior changes.

It is often the case that the display's setting can cause odd/poor behavior. Consult the display's tech resources. Also, it is possible we have seen the issue and may have a tech paper on this.

Not a bad idea to keep the following on your service vehicle:

• Test source like an AppleTV or signal generator
• Known working HDMI cables
- Known working terminated Category cable
- SP12S splitter for clocking issues, etc.
