Product Type	Cooker (Hob and Grill)
Brand	Thetford
Model	SHB142
Dimensions (W x D x H)	390 mm x 360 mm x 90 mm
Weight	4.5 kg
Power Source	Gas (Butane/Propane)
Gas Consumption (Hob)	Approx. 160 g/h per burner
Gas Consumption (Grill)	Approx. 200 g/h
Number of Burners	2
Grill Type	Gas grill with flame control
Ignition	Manual (match or lighter)
Material	Stainless steel top, painted steel body
Safety Features	Flame failure device on all burners and grill
Cleaning	Wipe with damp cloth, remove grates and soak in warm soapy water
Maintenance	Check gas connections periodically, clean burner ports
Spare Parts Available	Yes (burner caps, knobs, grates, injectors)
Compliance	CE, EN 30-1-1, EN 30-2-1
Designed For	Caravans and motorhomes
Installation	Must be installed by a qualified gas engineer

Frequently Asked Questions - SHB142 THETFORD

How do I connect the gas to the Thetford SHB142 cooker?

Use a flexible gas hose with the correct fittings (typically a 1/2 inch BSP male). Ensure the gas supply is off before connecting. Tighten connections securely and check for leaks using soapy water. The installation must comply with local regulations and be done by a qualified professional.

What type of gas can I use with this cooker?

The Thetford SHB142 is designed for butane or propane gas. The injectors are set for one type; conversion kits may be available if you need to switch. Check the manual for specific pressure requirements.

How do I clean the hob and grill?

Remove the burner grates and knobs. Wash grates in warm soapy water. Wipe the stainless steel top with a damp cloth and mild detergent. Avoid abrasive cleaners. The grill pan can be washed similarly. Ensure all parts are dry before reassembling.

Why does the flame on my SHB142 go out?

This could be due to a blocked burner port, low gas pressure, or a faulty flame failure device. Clean the burner ports with a pin. Check gas pressure. If the flame failure device is defective, contact a service technician.

Can I use this cooker indoors?

The Thetford SHB142 is designed for caravan or motorhome use with proper ventilation. It can be used indoors only if adequate ventilation is provided and the installation complies with local building codes. Do not use in small unventilated spaces.

What are the dimensions of the SHB142?

The approximate dimensions are 390 mm wide, 360 mm deep, and 90 mm high. The cutout size for installation is typically 380 x 350 mm. Always measure the exact unit before cutting.

Does the SHB142 have an electric ignition?

No, the standard model uses manual ignition (match or lighter). Some versions may have a piezoelectric igniter; check your specific model. If yours has an igniter, ensure the battery (if any) is replaced.

How do I replace a burner cap?

Remove the old cap by lifting it off. Make sure the burner base is clean. Place the new cap correctly over the burner ring. Ensure it sits flat and the holes align. Test for proper flame distribution.

Are spare parts available for the SHB142?

Yes, Thetford provides spare parts such as burner caps, knobs, grates, and injectors. You can order them through authorized dealers or Thetford's website. Use only genuine parts.

How do I troubleshoot a weak flame?

A weak flame may result from low gas pressure, a clogged burner jet, or improper adjustment. Check that the gas cylinder is not empty. Clean the jet with a thin wire. If the problem persists, consult a professional.

USER MANUAL SHB142 THETFORD

Top-down view of a gas stove appliance with open lid and three side outlets (no visible text or symbols)

Hob 140-145 Series

User Manual

DECLARATION OF CONFORMITY

We: THETFORD Ltd

Address: Unit 6 Brookfields Way, Manvers, Rotherham, S63 5DL

Telephone: (+44) (0) 844 997 1960. Fax: (+44) (0) 844 997 1961

Declare under our sole responsibility that;

Product Types; Domestic build-in LP Gas and dual fuel cooking appliances;

Model Number/Description; SHB353xx Series Hobs & SCU353xxx Series Combination Hobs; SHB33000 to SHB33099 Triangular Hobs & SHB34000 to SHB34599 Rectangular Hobs; SHB140xx, SHB144xx, SHB143xx, SHB145xx & SHB142xx Series Argent Gas & Dual Fuel Hobs; SHB174xx & SHB172xx Series Linear Gas & Dual Fuel Hobs;

Are in conformity with the relevant European Union harmonization legislation, Regulation (EU) 2016/426, which applies as from 21 April 2018 and are manufactured in accordance with the harmonised European standards; EN 30-1-1:2008+A3:2013 & EN 30-2-1:2015;

Satisfy the essential requirements of the Low Voltage Directive 2014/35/EU, where applicable and are manufactured in accordance with the harmonised European standards; EN 60335-1 (IEC 60335-1:2010); EN 60335-2-6 (IEC 60335-2-6:2002 +A1:2004 +A2:2008); EN 60335-2-102 (IEC 60335-2-102:2006 +A1:2010);

Satisfy the essential requirements of the Electro Magnetic Compatibility Directive 2014/30/EU and are manufactured in accordance with the harmonized European standards; EN 55014-1: 2006 + A1:2009 + A2:2011 & EN55014-2: 1997 + A1:2001 + A2: 2008; EN 61000-3-2:2006 +A1:2009 & EN 61000-3-3:2013 where applicable;

We also declare that the production of each specific model will be in conformity with the type as described in the EC type-examination certificate;

CE 680544, Issued by BSI

We also declare that the production of each specific model will be in conformity with the type as described in Test Report(s):

8515933, 8432405, TR 14/404 & TR 15 049 as applicable, Issued by BSI

Name

: Bartho Anderson

Title/Position

: Director

Place & Date of Issue

: Rotherham 23 ^rd February 2018

Signature

Abstract curved line drawing with no text or symbols

EN

Original User Manual

Contents

1 Introduction....2
2 Symbols....2
3 Safety.... 3
4 Main components....6
5 Before use....7
6 Use of the burners....7
7 Use of the electric hotplate (if applicable)....8
8 Safe cooking....9
9 Maintenance and cleaning....10
10 Gas leaks.... 10
11 Troubleshooting....11
12 Servicing....11
13 Putting in storage....11
14 Technical specifications....12
15 Disposal....13
16 Questions....13
17 Warranty....13

1. Introduction

This is the user manual for your Thetford hob. Read the safety instructions and information on use and maintenance of the hob carefully before continuing. This will enable you to use the hob safely and efficiently. Retain this manual for future reference.

For the latest version of this manual, please visit www.thetford.com.

2. Symbols

Key to symbols:

Warning. Risk of injury and/or damage.

Caution. Hot surface. Risk of injury and/or damage.

3. Safety

This appliance may be used by children aged 8 years or older and persons with reduced physical, sensory or mental capabilities and/or lack of experience and knowledge only if they are supervised or have been given instructions on the safe use of this appliance and understand the potential hazards.
Keep children younger than 8 years away from the appliance, except under constant supervision.
Do not allow children to play with the appliance.
Do not allow children to clean or maintain this equipment unattended.
Use only parts supplied by the manufacturer.
Do not change or adjust anything on the appliance, unless the change is authorised by the manufacturer or its representative.
Use the appliance for cooking only and not for anything else, for example room heating. This can lead to carbon monoxide poisoning and overheating. The manufacturer cannot be held liable for damage resulting from improper use or incorrect setting of the controls.

This appliance is not intended to be operated by means of an external timer or separate remote-control system.

The use of this gas cooking appliance results in the production of heat, moisture and products of combustion in the room in which it is installed.

Ensure the room has sufficient ventilation when the appliance is in use. During prolonged use, additional ventilation may be needed by opening a window or increasing the extraction force of the hood.

Never extinguish a cooking fire with water. Turn the burner off and cover the flame with a lid or a fire blanket.

The burners and pan supports are hot during and after use. Allow all parts to cool before touching them, as this can cause serious injury.

Unattended cooking on a hob with fat or oil can be dangerous and may result in fire. Do not leave the appliance unattended when in use.

The use of inappropriate hob guards can cause accidents.

Do not store items on the cooking surface of the hob.

Do not use steam cleaners or pressure washers to clean the appliance. See Maintenance and cleaning for instructions.

Do not allow oil or fat to build up on the appliance. Clean the appliance after each use.

The glass lid may snap shut towards the end of lowering due to the travel-lock action of the hinges.

Make sure all fingers are clear of the appliance when closing the lid.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the surface of the glass, since they can scratch the glass surface which may result in shattering of the glass.

Remove any spillage from the glass lid before opening the lid.

Do not shut the glass lid when the burners are lit or still warm.

EN

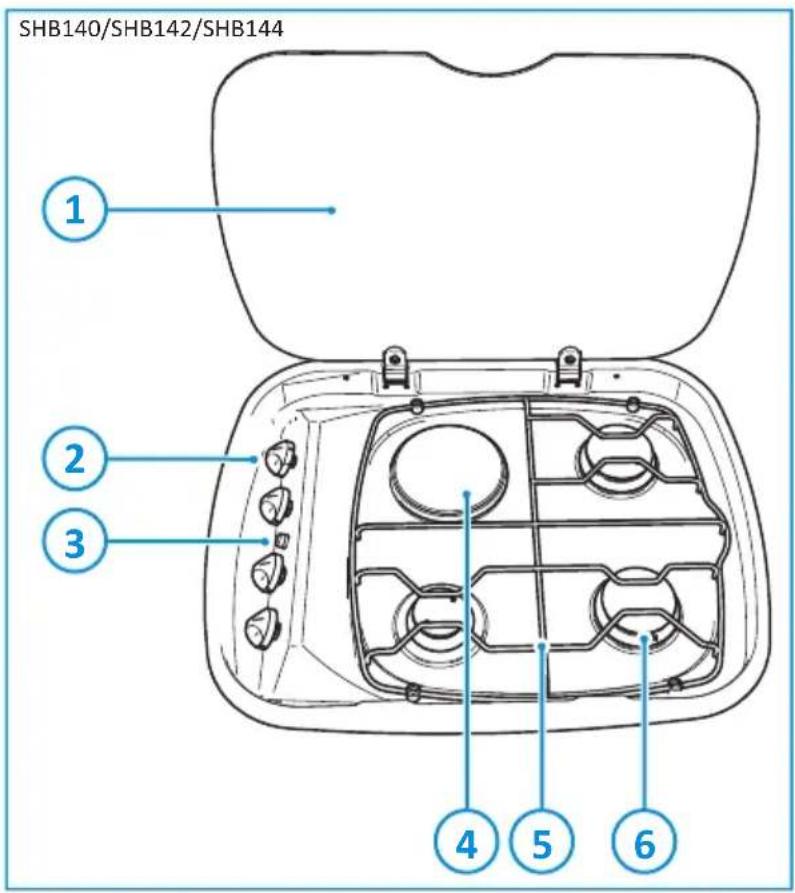

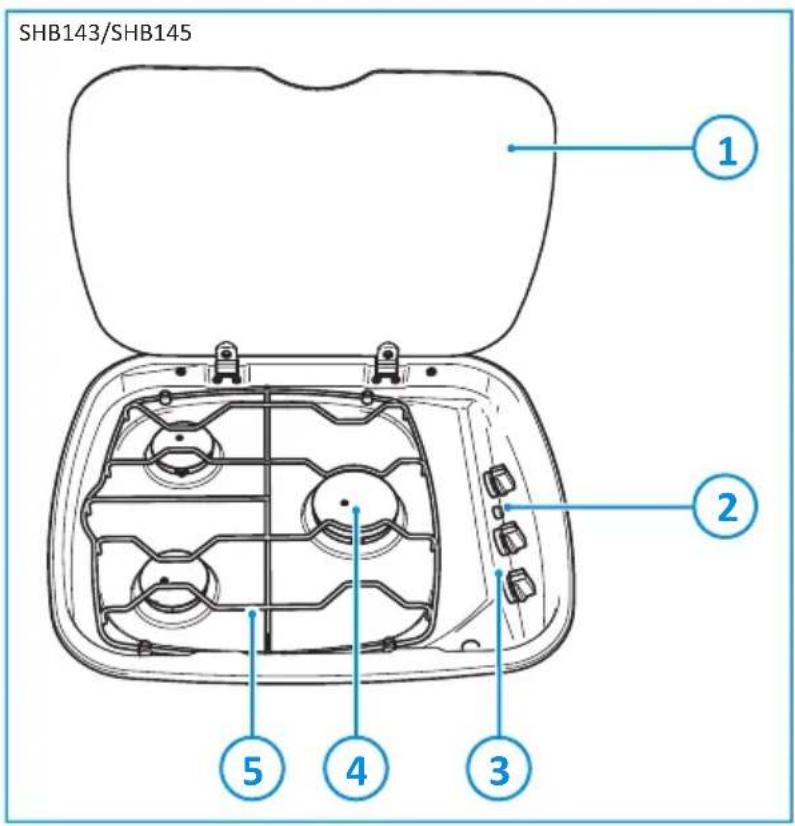

4. Main components

1.iLid (optional)
2.iControl panel
3.iSpark ignition (optional)
4.iElectric hotplate (SHB142)
Gas burner (SHB140/SHB144)
5.iPan supports
6.iGas burners

1.iLid (optional)
2.iSpark ignition (optional)
3.iControl panel
4.iGas burners
5.iPan supports

The types of burners may vary depending on the type of appliance. Refer to Technical specifications for further details.

5. Before use

Before using the appliance:

■ Ensure that all packaging materials have been removed.
■ Clean the appliance with warm water and household detergent and dry carefully with a soft cloth.
■ Ensure that the gas supply is connected and turned on.
■ For ignition models: Ensure that the appliance is connected to the 12V DC battery for the spark ignition.
■ Ensure that the pan supports are positioned properly.
- Ignite the gas burners and let them burn to expel odours and vapours first.

Dual Fuel only:

■ Ensure the electricity is connected and switched on.
■ Prime the hotplate by switching on the hotplate for a short period, without a pan, to harden and burn off the coating. Use a medium to high setting for 3 – 5 minutes. Allow adequate ventilation to disperse any smoke that occurs during this process. Allow the hotplate to cool.
- Season the hotplate by heating the hotplate for 30 seconds on a medium setting and then switching off. Pour a minimal amount of unsalted vegetable oil onto a clean dry cloth or paper towel, and apply a thin coat of oil to the hotplate surface. Wipe off any excess oil, then heat the hotplate on a medium setting for 1 minute. Occasional seasoning will help to maintain the hotplate's appearance.

Only use LPG (Liquefied Petroleum Gas). The appliance operates on propane or butane. Propane is preferred over butane, because butane provides poor performance at an ambient temperature below 10^ C and cannot be used at an ambient temperature below 5^ C.

6. Use of the burners

For the exact location of the control knobs, see Main components.

Turning on:

■ Push and turn the control knob.
■ Turn the control knob anti-clockwise to the full rate position.
- For models fitted with standard ignition: Push the ignition button.

- For non-ignition models: Hold a lit match or gas match to the burners.

• Keep the control knob pressed for about 10-15 seconds and then release it.
  ■ Adjust the height of the flame.

If the burner accidentally extinguishes turn the control knob to the 0 position and wait at least 1 minute before re-igniting the burner.

If the burner has not lit within 15 seconds turn the control knob back to the 0 position and release it. Wait at least 1 minute and repeat the steps above to turn on the appliance.

Turning off:

■ Turn the control knob clockwise to the 0 position to turn off the burner.

Always make sure the control knob is in the 0 position when you have finished using the gas burners.

Do not shut the glass lid when the burners are lit or still warm.

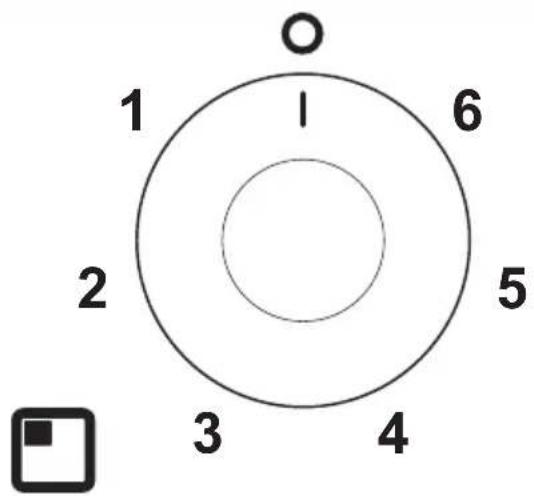

7. Use of the electric hotplate (if applicable)

For the exact location of the control knob, see Main components.

Turning on:

■ Rotate the control knob either clockwise or anti-clockwise to the required position (1 - 6) .

For maximum efficiency, a correctly sized pan with a flat heavy gauge base should be used. The pan size should be the same or slightly larger than the hotplate (up to 1" / 2.5cm oversize).

Turning off:

■ Turn the control knob to the 0 position to turn off the hotplate.

Always make sure the control knob is in the off position when you have finished using the hotplate.

Do not shut the glass lid when the hotplate is turned on or still warm.

8. Safe cooking

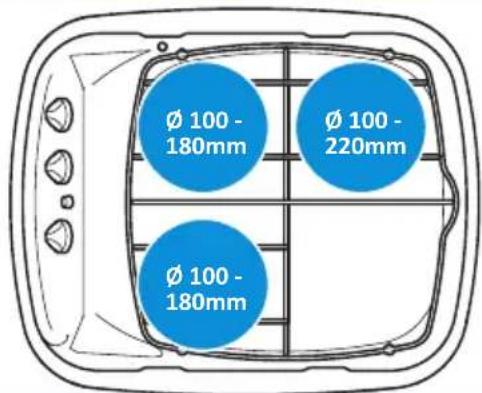

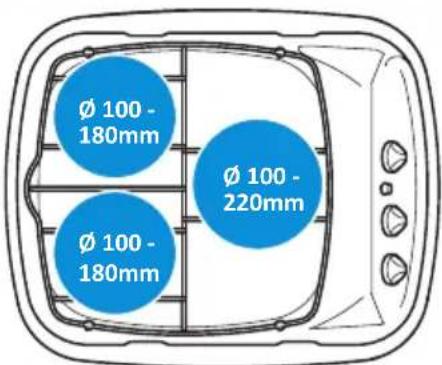

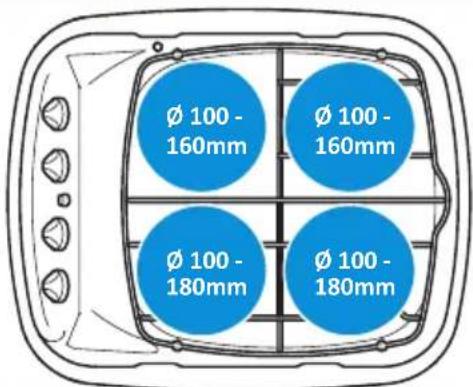

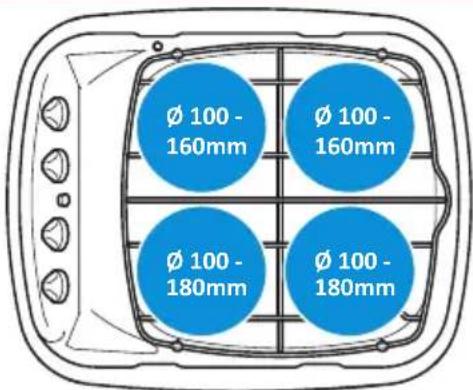

- Do not allow cooking vessels to overlap the edges of the appliance – use the correct sizes of pans and position them centrally over the burners.

SHB140/SHB144

EN

SHB142

SHB143

SHB145

■ Ensure that there is at least a 10mm gap between the pans and the edges of the hob.
■ Turn the pans so that the handles do not overhang the front of the appliance.
■ Ensure that the flame of the gas burner heats the bottom of the pan, not the sides.
■ Do not leave the appliance unattended when in use.
■ Do not use the appliance while the vehicle is moving.
■ Turn the control knob back to the 0 position after cooking.
- Keep the appliance clean and prevent accumulation of grease and food scraps.

9. Maintenance and cleaning

Thetford recommends an annual inspection service by an approved service centre. Between annual servicing, clean the appliance regularly after use. Before any cleaning work is started, the appliance should have been left to cool and be disconnected from the gas and electrical supplies.

■ Always remove any spills or contamination immediately after use with soap and hot water. Towel dry the surface with a soft cloth.
■ Use a non-abrasive multi-purpose cream cleaner and a nylon scourer pad to clean more stubborn dirt or grease.

Do not use abrasive cleaners, metal scouring pads or hard brushes. They could damage the appliance.

If you clean the burner rings, ensure that the holes are not clogged.

Remove any spillage from the glass lid before opening the lid.

The control knobs can be removed for cleaning. The knobs are easy to replace.

10. Gas leaks

As soon as you smell gas:

■ Ensure that all burners are turned off.
■ Extinguish all naked lights and do not smoke.
■ Shut off the gas supply at the gas bottle immediately.
■ Do not use electrical switches.
■ Open all doors and windows.

LPG is heavier than air. Escaping gas accumulates at lower levels. By following the strong, unpleasant smell of gas, you can determine where the leak is located. To investigate where it is exactly, use a special leak detection spray. Never use an open flame to find the leak!

11. Troubleshooting

ProblemiPossible causeiSolution
Burners do not burn or burn un-evenly	Gas bottle is emptyGas tap is closedBurner caps are not correctly positionedBurners are wet or clogged	Change gas bottleOpen tapAllow caps to cool, then re-position themDry or clean burners
Spark ignition does not sparki12	V DC battery is dischargedConnections are looseIgnition points are wet or dirty	Charge batterySecure connectionsDry or clean ignition points
Control knobs do not function	Knobs are mounted incorrectly	Install knobs correctly

If you cannot solve a problem, contact the authorised local Service Centre or Thetford Customer Service in your country.

12. Servicing

All servicing must be carried out by an approved competent person. Before any service work is started, the appliance should have been left to cool and be disconnected from both the gas and electrical supplies. After each service the appliance must be checked for gas soundness and electrical safety.

For service, please contact your authorised local Service Centre giving details of the model and serial number on the data badge plus date of purchase.

Model Name & Series Number
G30G31	CAT I_3+(28-30/37) BUTANE 28-30mbarPROPANE 37mbar	CAT I_3B/P(30) BUTANE 30mbarPROPANE 30mbar	THETFORD
ΣQn	Power kW (g/hr)	Model Number	Spark Ignition
			Voltage ~ 50 Hz
CE	Pin Number	Serial Number	Power kW
Country Codes 1 Country Codes 2			QC Pass	Order No

13. Putting in storage

■ Close the gas valve at the gas bottle.
■ Dual Fuel only: Disconnect the electrical supply.
■ Spark ignition models only: Disconnect the battery.
■ Ensure that the control knobs are in the 0 position.
■ Close the lid, if present.
■ Wipe the appliance clean and dry.

14. Technical specifications

Table 1: Burner specifications

	SHB140/SHB144 seriesiSHB142 series
	Gas inputInjectoriGas inputinjector
	(###)	(###)	(###)	(###)	(###)	(###)
	kWig/hrimmikWig/hrimm
Gas burnersi4 x 1.5i4 x 108			0.61i2 x 1.5	2 x 108	0.61
				1 x 1.0	1 x 72	0.52
Hotplate burneri1 x 800W 230V ~ AC 50Hz
Totali6.0i432				4.0 (gas)800W(electric)	288

	SHB143 seriesiSHB145 series
	Gas inputilnjectoriGas inputilnjector
		[SACH]		[DO78]	[WY60]
	kWig/hrimmikWig/hrimm
Gas burners	3 x 1.5i3 x 108i0.61			2 x 1.5	2 x 108	0.61
				1 x 2.4	1 x 173	0.77
Totali4.5i324i5.4i389

This appliance is suitable for use with LPG (Liquefied Petroleum Gas) and should not be used with any other gas.

This appliance must be earthed.

Energy consumption measurement and calculations in accordance with EN60350-2 2013
Thetford appliance model identification	Cooking zonesiType of hob (watt)		Diameter of cooking zone	Energy consumption EC_electric hob Wh/kg
Argent Dual-Fuel Hobs SHB142XX Series	1i800W solid	hotplate	115mm	190.0

To reduce energy use on the hob while cooking:

■ Use the correct size of pan – a pan which fits the hotplate will use less energy than one that is too large or too small.
■ Use the minimum heat setting to maintain simmering or boiling – additional heat is just wasted.
■ Cover pans or kettles with a lid whenever possible – this helps to retain heat.

■ Do not use old, damaged or distorted pans, they will reduce efficiency.

15. Disposal

Your product has been designed and manufactured with high quality materials and components, which can be recycled and reused. When your product has reached its end of life, dispose of the product according to the local rules. Do not dispose of the product with the normal household waste. The correct disposal of your old product will help prevent potential negative consequences to the environment and human health.

16. Questions

If you have questions about your product, parts, accessories or authorised services:

■ Visit www.thetford.com.
If you cannot solve a problem, contact the authorised local Service Centre or Thetford Customer Service in your country.

17. Warranty

For our warranty clause, please refer to the conditions mentioned on www.thetford-europe.com/service/warranty. For more information, please contact the Thetford Customer Service in your country.

THETFORD

EUROPEAN HEADQUARTERS

Thetford B.V. EUROPEAN HEADQUARTER

The Netherlands 4870 AD Etten-Leur

The Netherlands

T+31 76 504 22 00

F+31765042300T+31(0)765042200

[e-mail] F+31(0)765042300

E [e-mail]

UNITED KINGDOM

Thetford Ltd UNITED KINGDOM

Unit 6 Thetford Ltd. Brookfields Way Unit 6

Manvers, Rotherham Brookfields Way

S63 5DL England Manvers, Rotherham

United Kingdom S63 SDL, England

United Kingdom T+44 844 997 1960

T+441084499719611960

[e-mail] F+44(0)8449971961

E [e-mail]

GERMANY

195800 GERGY 11, Rue Rosa Luxembourg

Thetford Italy c/o Tecma s.r.l.

Via Flaminia Thetford Italy c/o Tecma s.r.l.

Representative Office Scandinavia

SCANDUNAVIA Hartvet Karegatan 32D

Thetford BV 52161 Stenstorp

Representative Office

Scandinavia

Hönekullavägen 13

43544 Mölnlycke

Sverige 146313363580

F+46 31 44 85 70

TE+46(0)313363580

F+46(0)31448570

E [e-mail]

AUSTRALIA

Thetford Australia Pty. Ltd.

41 Lara Way

AUSTRALIA Campbellfield VIC 3061

Thetford Australia Pty. Ltd. Australia

41 Lara Way

Campbellfield VIC 3061

Australia

T+61 3 9358 0700

F+61393577060

TE-61(0)393580700

F.61(0)393572060 www.Retford.com.au

[e-mail]

www.thetford.com.au

©Thetford 2018

CHINA

Thetford China

Rm. 1207, Coastal Building

CHINA (East Block)

Thetford (Shenzhen) Trade Co., Ltd.

Rpn 1207, Coastal Building Shenzen, 518094

(East Block) Hai De San Dao

Nanshan, Shenzhen 518059

China 755 8627 1393

F+86 755 8627 1673

TE-8675586276363

Fwww.thetford.cn2005

E [e-mail]

www.thetford.cn
