USER MANUAL GCC15 Giesen Coffee Roasters

Please read this manual carefully before using. Retain the manual for further future reference.

TABLE OF CONTENTS

1.0 Manufacturer 3

2.0 How to use 4

3.0 Additional GCC features 6

3.1 Weighing cells ____ 6

3.2 Automatic valve 7

3.3 Dust cyclone (W140A only) 7

4.0 Maintenance 8

5.0 Specifications 10

6.0 CE Declaration of Conformity 11

6.1 Declaration of Conformity file ____ 11

1.0 MANUFACTURER

The manufacturer of the Giesen External Cyclone is Giesen Coffee Roasters B.V. located in The Netherlands.

Address:

Giesen Coffee Roasters

Industrieweg 13-15

7071 CK Ulft

The Netherlands

Contact:

Telephone support: [phone]

E-mail support: [e-mail]

Telephone service / sales: [phone]

E-mail service / sales: [e-mail]

Copyright:

Copyright © 2020 by Giesen Coffee Roasters

All rights reserved. No part of this publication may be reproduced, distributed, or transmitted in any form or by any means, including photocopying, recording, or other electronic or mechanical methods, without the prior written permission of the publisher. For permission requests, write to the publisher, addressed "Attention: Manual" at the address above.

Giesen Coffee Roasters is constantly improving its products and reserves the right to change these without prior notice. This manual contains general information and is not part of the contract. Although this manual has been compiled with the utmost care, it may contain incomplete information or inaccuracies. Giesen Coffee Roasters, therefore, disclaims all liability. Giesen Coffee Roasters advises its users at all times to consult on the use of its coffee roaster and accessories. This manual applies to the type or types of machines indicated on the front cover. These instructions meet the requirements as laid down in the applicable European directive as stated on the declaration of conformity. If there are any questions or comments, please contact Giesen Coffee Roasters. The machine can only be started when the complete manual has been read and understood. Any responsibility for damage or injury resulting from non-compliance with the instructions as described in this manual, or non-observance of normal and generally accepted caution and care during installation, operation, maintenance or repairs, even if not expressly stated, will be rejected by the manufacturer.

2.0 HOW TO USE

The standard GCC conveyor system allows you to load your green coffee beans into the hopper without having to lift up buckets with coffee. Simply load your coffee into the GCC hopper and the system transports the coffee to the hopper on your roaster.

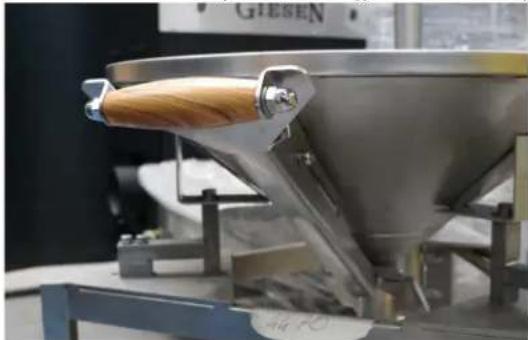

1. Make sure the valve underneath the GCC hopper is closed When this valve isn't closed, coffee will fall on the ground

Close-up of a stainless steel funnel with a wooden handle, mounted on a metal stand (no visible text or symbols)

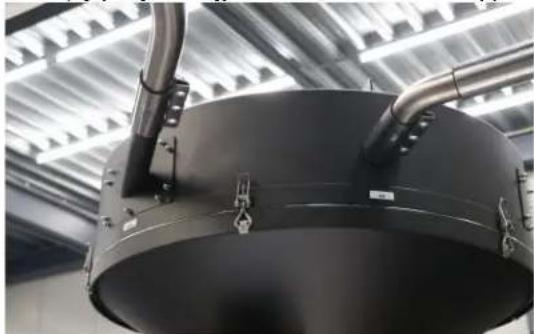

1. Load your coffee into the GCC hopper Simply put your coffee into the metal GCC hopper

Close-up of a black industrial cylindrical device with metal pipes and mounting brackets, no visible text or symbols.

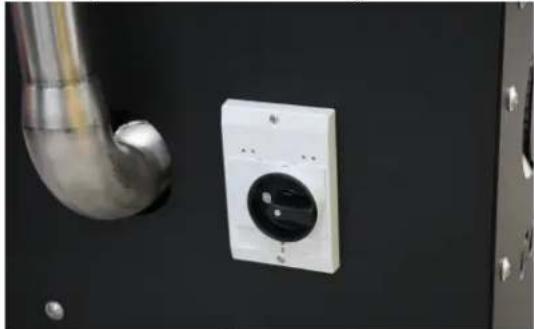

1. Operate the switch on the GCC vacuum housing Operate the main switch on the GCC vacuum housing which will start up the system

Close-up of a white electrical switch mounted on a dark surface with a metallic pipe attached nearby (no visible text or symbols)

1. Open the valve underneath the GCC hopper When this valve is opened, the coffee will be transported to the roasters' hopper

Close-up of a stainless steel funnel with a wooden handle, mounted on a metal stand (no visible text or symbols)

1. When the GCC hopper is empty and all the coffee is in the roasters' hopper, you can operate the main switch again to turn off the system.

Close-up of a white electrical switch mounted on a black panel, next to a metallic pipe (no visible text or symbols)

3.0 ADDITIONAL GCC FEATURES

3.1 WEIGHING CELLS

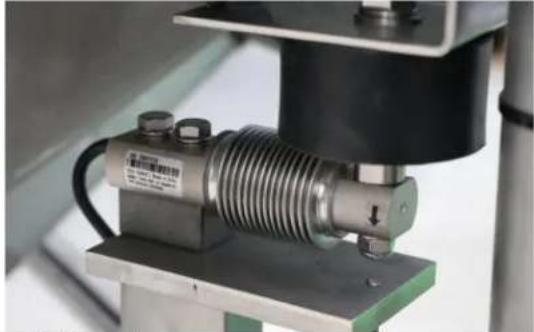

The weighing cells allow you to read out how much coffee is being transported to your roasters' hopper. When your GCC system is equipped with this option, your system will have an additional control panel. You can use this control panel to tare your scales, change units and many more options. Please refer to the METTLER TOLEDO manual for full instructions on this control panel.

Close-up of a mechanical testing setup with a metallic threaded component mounted on a base, no visible text or symbols.

A weighing cell

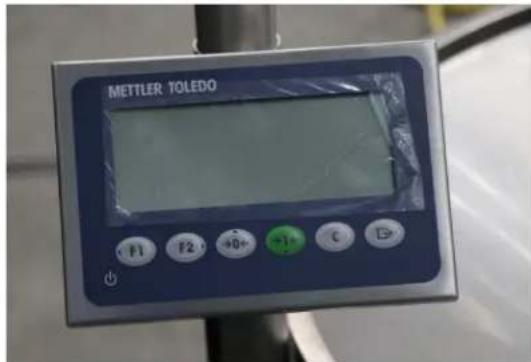

METTLER TOLEDO control panel

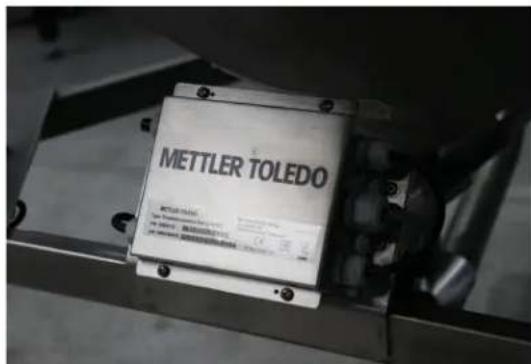

Calculator unit

3.2 AUTOMATIC VALVE

Your GCC system can be equipped with an automatic release valve. This means you don't have to open the valve manually but you can open the valve with a button on your roasters' control panel.

Close-up of a mechanical device mounted on a stand, showing a screwdriver and cable (no visible text or symbols)

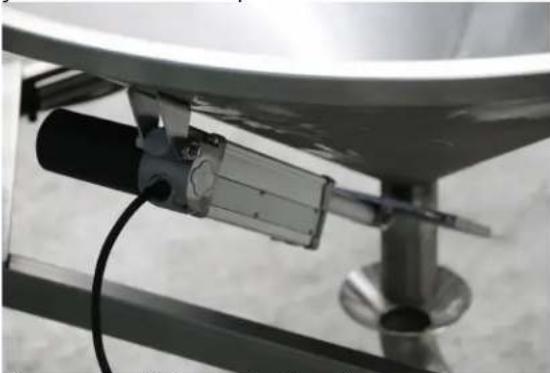

Linear motor that operates the valve

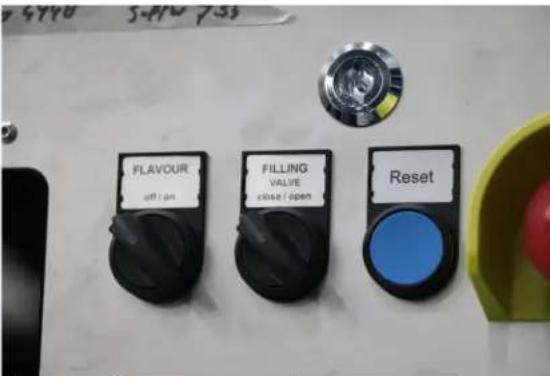

The center button operates the automatic valve

3.3 DUST CYCLONE (W140A ONLY)

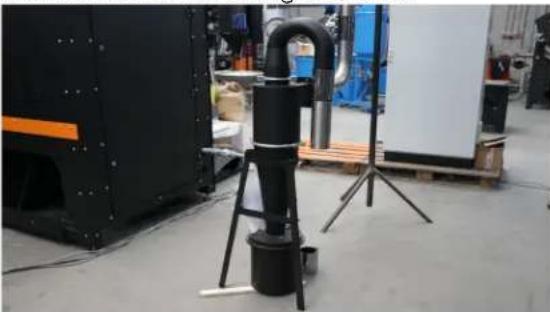

The W140A GCC system can be equipped with an additional dust cyclone. This device will be turned on at the same time as the GCC and will prevent dust and other debris from entering the hopper of the roaster. The dust cyclone can be installed between the normal tubing of the GCC.

Black cylindrical industrial vacuum cleaner in a workshop setting, with no visible text or symbols on the device or background.

4.0 MAINTENANCE

Maintenance is important to keep your GCC system in good condition. In case of the GCC that means that the air filtration system needs to be cleaned weekly. This chapter describes the steps you need to take to do this.

1. Open the GCC vacuum box

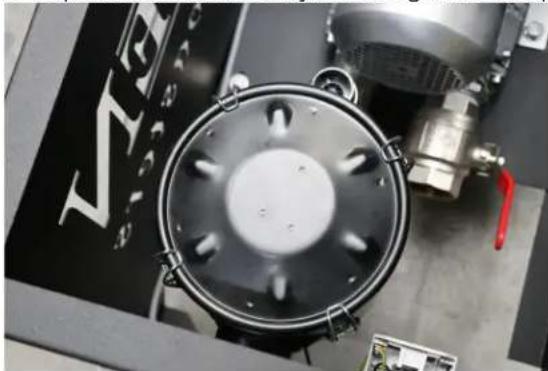

2. Open the air filter box by loosening the four clips that hold the lid in place

Close-up of a mechanical component with a circular fan and attached parts, no visible text or symbols.

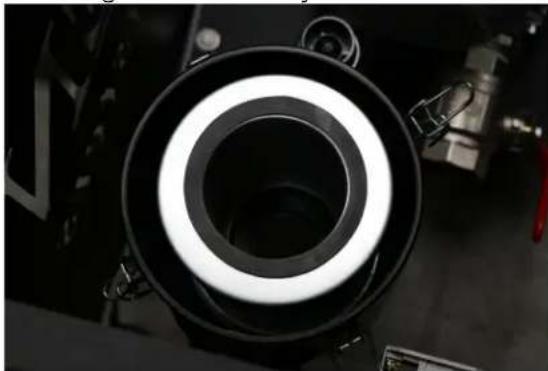

1. Taking off the lid shows you the location of the air filter

Close-up of a black cylindrical optical component with a white ring, mounted on a dark surface (no visible text or symbols)

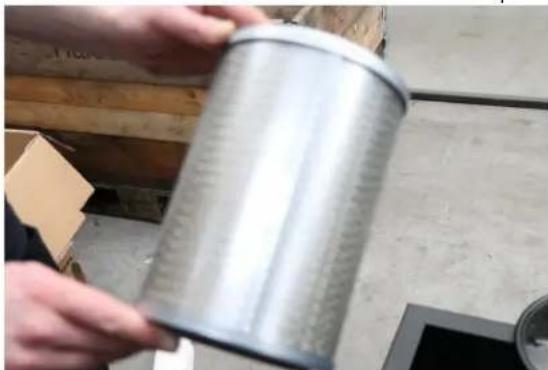

1. Take out the air filter and clean it with compressed air

Close-up of hands holding a metallic cylindrical object, possibly a filter or container, in a workshop setting (no visible text or symbols)

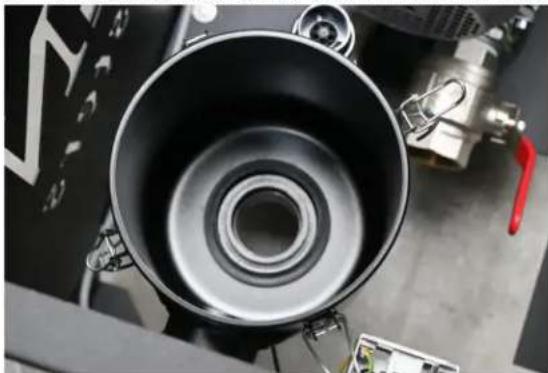

1. Make sure the container that holds the air filter is clean as well

Top-down view of a black cooking pot with a red handle, placed on a stove with metal fittings (no visible text or symbols)

1. Put the parts back together in reversed order

NOTE: The air filter needs to be replaced from time-to-time. On which frequency this occurs depends on the amount of usage and can be seen on the general condition of the air filter. Every GCC system comes with a spare air filter that you can use when the first one is too dirty. When you need an additional spare air filter, please contact Giesen support.

5.0 SPECIFICATIONS

TABLE 1. TECHNICAL SPECIFICATIONS

Induvac motor type W6A / W15A:	VC 115-510W30A / W45A / W60A:VC 322-710W140A: VC 375-830
Capacity (m3/h) W6A / W15A: 210	W30A / W45A / W60A: 318W140A: 700
Supply voltage (V) W6A / W15A: 220	- 240W30A / W45A / W60A: 400 / 460W140A: 345 - 480
Supply frequency (Hz) W6A / W15A:	50 - 60W30A / W45A / W60A: 50 - 60W140A: 50 - 60
Supply amperage (A) W6A / W15A:	9 - 10W30A / W45A / W60A: 4.35 - 4.17W140A: 16.7 - 17.3
Power consumption (kW) W6A / W15A:	1.5 - 1.75W30A / W45A / W60A: 2.2 - 2.55W140A: 7.5 - 8.6
Motor RPM (RPM) W6A / W15A: 29	20 - 3450W30A / W45A / W60A:2855 - 3445W140A: 2830 - 3490
Sound level 70 (all)

6.0 CE DECLARATION OF CONFORMITY

6.1 DECLARATION OF CONFORMITY FILE

Inclustrieweg 13-15 7071 CK UIH [phone] Kvk-nr: 09165753 BTW: NL817325621B01

Declaration of Conformity.

Giesen Coffee Roasters B.V. Industrieweg 13-15 7171 CK Ulft

Declares that under our sole responsibility the

GCC (Green Coffee Conveyor)

Are in conformity with the provisions of the following EC Directives, including all amendments, and with national legislation implementing these directives:

Low Voltage Directive (LVD) 2014/35/EU EMC Directive (EMCD) 2014/30/EU Machinery Directive (MD) 2006/42/EC

Incorporated weighing system meets in addition the essential requirements of the: Measuring Instruments Directive (MID) 2014/32/EU

Place Ulft Mr. Wilfred Giesen November 2018
