Product Type	Side by Side Refrigerator
Brand	Becken
Model	BSBS2355 IX
Refrigerating Chamber Temperature Range	2°C to 8°C
Freezing Chamber Temperature Range	-16°C to -24°C
Defrosting Type	Automatic (air-cooling principle)
Control Type	Touch panel with lock/unlock function
Vacation Mode	Yes (turns off refrigerator compartment, sets freezer to -18°C)
Quick Cooling Mode	Yes
Quick Freezing Mode	Yes
Ice Maker	Manual ice tray with twist knob
LED Lighting	Yes (both refrigerator and freezer compartments)
Door Alarm	Yes (buzzer after 2 minutes open)
Error Code Display	E1, E2, E5, E6, E7
Levelling Feet	Adjustable (turn clockwise to raise)
Door Height Adjustment	Yes (using wrench on adjusting nut)
Refrigerant Type	Flammable (R600a or similar, check label)
Power Supply	220-240 V, 50 Hz (typical, verify rating plate)
Installation Clearances	Above: >30 cm, Back: >10 cm
Cleaning	Soft cloth and neutral detergent; no abrasives
Warranty	2 years (from date of purchase)

Frequently Asked Questions - BSBS2355 IX Becken

How do I set the refrigerator temperature?

Press the REF.TEMP button; the current temperature will blink. Press again to adjust between 2°C and 8°C. After 5 seconds of no action, the setting is saved. Lock the panel to finalize.

How do I set the freezer temperature?

Press the FRZ.TEMP button; the current temperature blinks. Press repeatedly to set from -16°C to -24°C. Wait 5 seconds or lock the panel to confirm.

How do I use the ice maker?

Fill the ice tray with water up to the indicated line. Place it horizontally. Once frozen, turn the knob clockwise to release ice cubes into the ice box. For faster ice, activate Quick Freezing mode.

What is Vacation mode and how do I activate it?

Vacation mode turns off the refrigerator compartment while keeping the freezer at -18°C. Press MODE until the vacation icon lights up, then lock the panel. The refrigerator temperature display turns off.

Why does the door alarm sound?

If any door is left open for more than 2 minutes, the buzzer will beep once per minute. Press any button to stop the alarm. Close the door to silence it completely.

What do the error codes E1, E2, E5, E6, E7 mean?

E1: Refrigerator temperature sensor failure. E2: Freezer temperature sensor failure. E5: Defrost sensor error. E6: Communication error. E7: Ambient temperature sensor error. Contact service for repair.

How do I clean the refrigerator?

Unplug the appliance. Use a soft cloth or sponge with warm water and mild neutral detergent. Avoid abrasives, organic solvents, or boiling water. Wipe dry and air dry before plugging back in.

Does the refrigerator defrost automatically?

Yes, the refrigerator uses an air-cooling system with automatic defrosting. If frost builds up due to temperature changes, you can manually defrost by unplugging the unit and wiping with a dry towel.

How do I level the refrigerator?

Use the levelling feet at the bottom. Turn clockwise to raise the unit, counterclockwise to lower. Adjust both feet until the refrigerator is stable and level. Use a wrench for door height adjustment if needed.

What should I do during a power failure?

Keep the doors closed to maintain temperature. The refrigerator can keep food cold for several hours. Avoid adding fresh food. When power returns, check food quality and do not reconnect within 5 minutes to protect the compressor.

USER MANUAL BSBS2355 IX Becken

Side by Side Refrigerator

Frigorífico Side by Side Frigorífico Side by Side

INSTRUCTIONS MANUAL

MANUAL DE INSTRUÇÕES

BECKEN

BSBS2355 IX

Dear client,

Thank you for purchasing this product.

The quality of this appliance has been certified by several laboratory tests. This instructions manual is provided to simplify the use of the appliance as well as to guarantee a safe use.

Please read carefully the instructions and safety measures described in this manual.

We sincerely hope you will be satisfied when using your new appliance.

INDEX

1. SAFETY INSTRUCTIONS 4

1.1. Power Supply 5

1.2. Power Cord and Other Cables 5

1.3. Humidity and Water 5

1.4. Cleaning 6

1.5. General Precautions 6

2. OPERATING INSTRUCTIONS 9

2.1. Product Description 9

2.2. Product Usage 10

2.3. Maintenance 25

2.4. Troubleshooting 28

3. POST-SALE SERVICE 20

4. ENVIRONMENTAL PROTECTION 30

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

1. SAFETY INSTRUCTIONS

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

Warning: to avoid the risk of electric shock, do not remove the cover. The interior does not contain any parts that can be repaired by the user. Ask for assistance from the Customer Support Service.

Important Warnings

Before using your appliance read these instructions manual carefully and keep it in a safe place as you may need to consult it in the future.

Before turning on your appliance, and to ensure a safe and correct operation, do not use if:

• It has fallen to the ground;
• You notice any evidence of damage;
• Any anomaly occurs during its operation.

To avoid hazards or deterioration of your appliance through incorrect use it is advisable to read these instructions thoroughly.

Your appliance should not be used for other purposes than the ones intended and solely for household use. Any damage resulting from using the appliance outside this scope, any incorrect use, as well as any manual modifications to the product will not be covered and automatically voids the warranty.

[you can trust]

Assistance

In case of malfunction, take your appliance to the Customer Support Service for assistance.

This appliance can be used by children from the age of 8 and by people with reduced physical, sensorial or mental capabilities and/or lack of experience and knowledge if they have been given instructions on using the appliance safely and if they understand the hazards involved. Children may not play with the appliance. Cleaning and maintenance must not be carried out by children without supervision.

These instructions are also available at www.suporteworten.pt

1.1. Power Supply

Make sure the main voltage is compatible with the appliance's. If this is not the case, please consult the Customer Support Service.

1.2. Power Cord and Other Cables

Do not tangle the cord or pull it to disconnect the appliance. Also, keep the cord away from warm surfaces.

Never use the appliance if it has a damaged cable or socket.

Take it to the Customer Support Service for replacement.

1.3. Humidity and Water

Do not use your appliance in humid places. Do not allow the appliance to become wet under any circumstances as this may be dangerous. To avoid fire hazard or electric shock do not expose your appliance to humidity or water. Furthermore, do not place your appliance under water (e.g. for cleaning).

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

1.4. Cleaning

Before cleaning, be sure to switch off the appliance and remove the plug from the main power supply. Always allow the unit to cool down before cleaning.

To clean the exterior of the product, use a dry soft cloth only.

1.5. General Precautions

• Please follow the instructions in the user manual which will help you to properly install and operate this product and enjoy its advanced features. Please keep the instructions for future reference.
• Read all instructions before using the product.
• Maintenance and service operations are only to be carried out by authorized professionals.
• Any damage caused by manual modifications to the product is not covered by the warranty.
• If this product is used for other purposes than the ones originally intended, or if it is not correctly connected, the product may become damaged and the warranty will be voided.
• This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

[you can trust]

• Children should be supervised to ensure that they do not play with the appliance.
• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

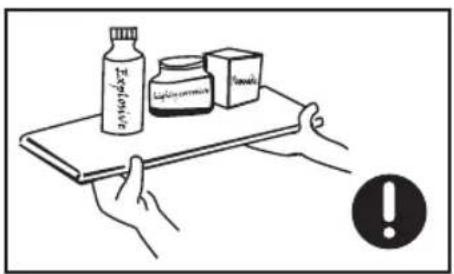

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.
• The appliance has to be unplugged after use and before performing any user maintenance on it.

WARNING: Risk of fire/flammable materials.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstructions.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please dispose of the refrigerator according to local regulations for it uses flammable gas and refrigerant.

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

WARNING: When positioning the appliance, please ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket outlets or portable power supplies at the rear of the appliance.

Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer, please make sure to:

• Take off the doors.
• Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the mains before attempting the installation of any accessory.

The refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

[you can trust]

2. OPERATING INSTRUCTIONS

2.1. Product Description

(Freezing chamber)
(Refrigerating chamber)

Freezing chamber
1 LED lighting
2 Glass shelf
3 Door tray
4 Drawer

Refrigerating chamber

1 LED lighting

2 Door tray

3 Glass shelf

4 Fruits and vegetables box

(The above picture is for reference only. The actual configuration will depend on the physical product or statement by the distributor)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

2.2. Product Usage

Refrigerating chamber

• The refrigerating chamber is suitable to store a variety of fruits, vegetables, beverages and other food consumed within a short term.
• Cooked food should not be placed in the refrigerating chamber until it has cooled to room temperature.
• It is recommended to seal food up before putting it into the refrigerator.

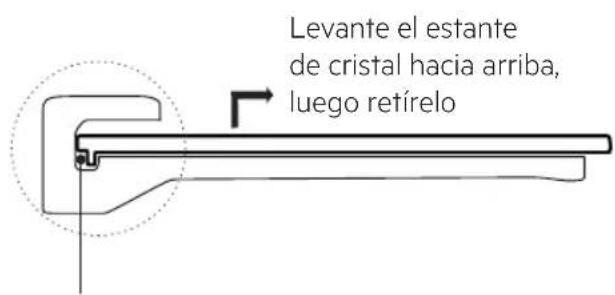

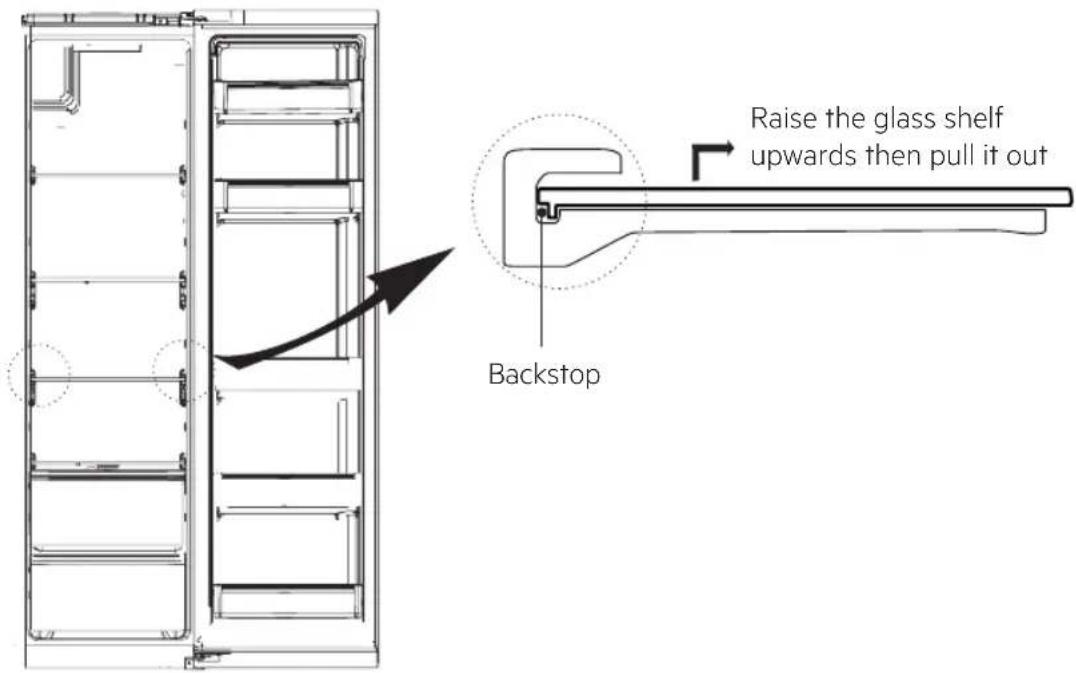

• The glass shelves can be adjusted up or down for a proper storage space and ease of use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen food and to make ice.
• The freezing chamber is suitable for storing meat, fish, rice balls and other food not to be consumed within a short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please note that food should be consumed within the shelf time.
• Important: Storing too much food during operation once the refrigerator has been initially plugged to the mains may adversely affect its freezing effect. Stored food should not block the air outlet, otherwise the freezing effect will also be adversely affected.

[you can trust]

Functions

(The above picture is for reference only. The actual configuration will depend on the physical product or statement by the distributor)

Display

1 Freezer compartment temperature

2 Refrigerating compartment temperature

3 Vacation icon

4 Quick Freezing icon

5 Quick Cooling icon

6 Lock/unlock icon

Button

A Freezer compartment temperature adjustment
B Refrigerating compartment temperature adjustment
C Mode function/setting
D Lock/unlock controls

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Operation

1. Lock 🔒/Unlock 🔒

In the unlocked ⏻ mode, long press the button LOCK/UNLOCK HOME/UNLOCK for 3 seconds, then enter the lock ⏻ mode;

In the locked mode, long press the button LOCK/UNLOCK HOLD 35 UNLOCK for 3 seconds, then enter the unlocked mode.

The following functions must all be operated in the unlocking mode.

2. Vacation mode

Click the button MODE to enter the vacation mode. Icon will light up and the vacation mode will start after locking the control panel.

Under vacation mode, the refrigerating compartment is turned off as well as the temperature area display; the freezer compartment temperature is set at -18^ .

3. Quick Cooling mode

Click the button MODE to enter the quick freezing mode. Icon will light up and the quick refrigerating mode will start after locking the control panel.

4. Quick Freezing mode

Click the button MODE to enter the quick freezing mode. Icon*will light up and the quick freezing mode will start after locking the control panel.

5. Refrigerating chamber's temperature setting

Click the refrigerating chamber's temperature adjusting button REF.TEMP.; The refrigerating compartment temperature will blink.

[you can trust]

Then click the button REF.TEMP. again to set the temperature. Once set you will hear a beep. The setting range is between 2 °C and 8 °C. Every time you click the button, the temperature will be changed by 1 °C.

After adjusting, the digital tube will keep blinking for 5 seconds.

The new temperature setting will take effect after locking the control panel.

6. Freezing chamber's temperature setting -88.

Click the freezing chamber's temperature adjusting button FRZ.TEMP.; the freezer compartment temperature will blink.

Then click the button FRZ.TEMP. again to set the temperature. Once set you will hear a beep. The setting range is between -16 °C and -24 °C. Every time you click the button, the temperature will be changed by 1 °C.

After adjusting, the digital tube will keep blinking for 5 seconds.

The new temperature setting will take effect after locking the control panel.

BECKEN

7. Ice Maker Usage

1. Gently pull out the ice tray and fill it with water until the water level line. Then, carefully place the ice tray horizontally.

2. When the ice cubes are frozen and ready to be used, turn the corresponding knob clockwise (turn to the end and release). The ice cubes will drop from the ice tray into the ice box.

* Picture for illustration purposes only

Notes:

In order to quickly prepare ice cubes quickly, set the freezer to the lowest temperature, or select the Quick Freeze Mode. This will lower the freezer's temperature.

Do not over-fill the trays with water. It may become difficult to remove the ice cubes from ice tray and any trickle of water in the ice box structure will freeze the ice cubes together.

If the knob is turned before the ice cubes are ready, any remaining water will trickle into the ice box and will freeze the ice cubes together.

8. Storage upon power failure

In case of a power failure, the refrigerator's current mode will be locked and maintained until power is restored.

9. Opening warning and alarm control

When opening the refrigerator's doors, the opening music will play. If the door is not closed within two minutes, the buzzer will beep once every minute until the door is closed. Press any button to stop the buzzer alarm.

[you can trust]

10. Error code

The following warnings that appear on the display show the refrigerator's corresponding faults. Although the refrigerator may still have its cold storage function with the following faults, the user should contact a maintenance specialist for a maintenance check, so as to ensure the appliance's optimised operation.

Error Code Fault Description

E1 Temperature sensor failure - refrigerating chamber

E2 Temperature sensor failure - freezing chamber

E5 Freezing/defrost sensor - detection circuit error

E6 Communication error

E7 Ambient temperature sensor error

BECKEN

Proper use of refrigerators Placement

Illustration of a person lifting two boxes (no text or symbols present)

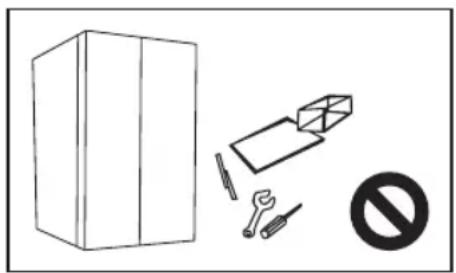

• Before using, remove all packing materials, including bottom cushions, foam pads and tapes inside the refrigerator;
• Tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

- Keep the unit away from heat sources and avoid direct sunlight. Do not place the freezer in humid or damp places to prevent rust or reduce the insulating effect. Also, do not spray or wash the refrigerator.

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

- The refrigerator must be placed in a well-ventilated indoor location and on a flat and sturdy floor (rotate left or right to adjust the levelling wheel if unstable).

- The space above the refrigerator must be greater than 30 cm, and it should be placed against a wall with a clearing area of more than 10 cm to facilitate heat dissipation.

[you can trust]

Levelling feet

Precautions before operation:

Before operating the accessories, please ensure that the refrigerator is disconnected from the mains. Also, please take all precautions before adjusting the levelling feet to prevent any personal injury.

Schematic diagram of the levelling feet

(The above picture is for reference only. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

A. Turn the feet clockwise to raise the refrigerator;
B. Turn the feet counter clockwise to lower the refrigerator;
C. Based on the procedures above adjust the right and left feet to a horizontal level.

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

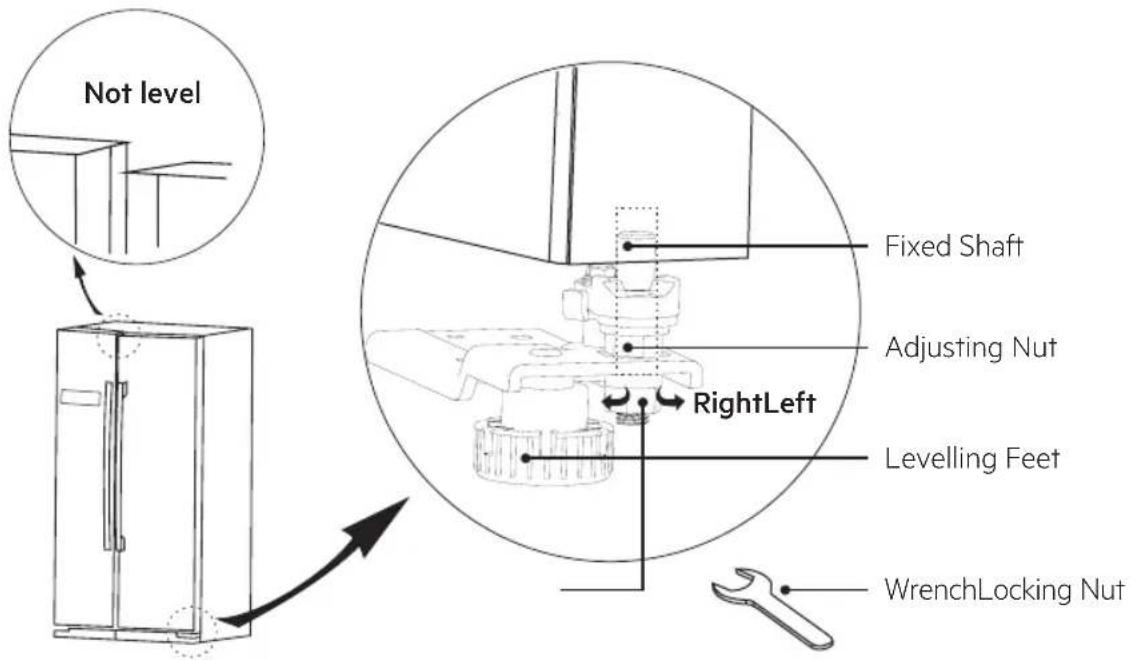

Levelling door

Precautions before operation:

Before operating the accessories, please ensure that the refrigerator is disconnected from the mains. Also, please take all precautions before adjusting the door to prevent any personal injury.

Schematic diagram of the levelling feet

List of tools to be provided by the user
M10	Wrench

(The above picture is for reference only. The actual configuration will depend on the physical product or statement by the distributor)

[you can trust]

When the fridge door is low:

Open the door, use a wrench to loosen the locking nut and to rotate the adjusting nut anti-clockwise to raise the height of the door.

Once the doors are aligned, tighten the locking nut by rotating it anti-clockwise.

When the fridge door is high:

Open the door, use a wrench to rotate the adjusting nut clockwise to lower the height of the door.

Once the doors are aligned, tighten the locking nut by rotating it anti-clockwise.

Changing the Light

Any replacement or maintenance to the LED lamps is to be made by the manufacturer, its service agent or a similarly qualified person.

Starting to use

Simple line drawing of a smiling refrigerator with closed eyes and a power outlet connected to its side (no text or symbols)

• Before the initial start, keep the refrigerator still for half an hour before connecting it to the power supply.
• Before placing any fresh or frozen food inside, the refrigerator must run empty for 2-3 hours, or above 4 hours in summer when the ambient temperature is high.
• Spare enough space to conveniently open the doors and drawers.

(The above picture is for reference only. The actual configuration will depend on the physical product or statement by the distributor)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Energy saving tips

• The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and avoiding direct sunlight.
• Let hot food cool to room temperature before placing it in the refrigerator. Please note that overloading the appliance forces the compressor to run longer. Also, food that freezes too slowly may lose quality, or spoil.
• Be sure to wrap food properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.
• The appliance's storage bin should not be lined with aluminium foil, wax paper, or paper towelling. Liners interfere with cold air circulation, making the appliance less efficient.
• Organize and label food to reduce door openings and extended searches. Remove as many items as needed at once, and then close the door as soon as possible.

Meaning of safety warning symbols

Prohibition symbol	This is a prohibition symbol.Any non-compliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.
Warning symbol	This is a warning symbol.It is required to operate in strict observance of instructions marked with this symbol; otherwise there is a risk of damage to the product or personal injury.
Note symbol	This is a cautioning symbol.Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

[you can trust]

Electricity related warnings

- Do not pull the power cord when pulling the refrigerator's power plug. Please firmly grasp the plug and pull it out directly from the socket.

- To ensure safe use, do not damage the power cord nor use it when it is damaged or worn.

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

- Please use a dedicated power socket, one that must not be shared with other electrical appliances.

- The plug should be firmly inserted in the socket otherwise there is a risk of fire.

- Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Simple line drawing of a kitchen appliance with a label and warning symbol (no text or symbols on the main diagram)

- Please turn the gas valve off and then open the doors and windows in case of a gas leak. Do not unplug the refrigerator and other electrical appliances considering that sparks may cause a fire.

Simple line drawing of a cabinet with a monitor and warning symbol (no text or labels)

- Do not use nor place electrical appliances on top of the appliance, unless they are of the type recommended by the manufacturer.

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Warnings for use

Simple line drawing of a cabinet, a 3D model with tools, and a no-smoking symbol (no text or labels)

- Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; any maintenance to the appliance must be conducted by a specialist.

- A damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid any danger.

Illustration of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

- The gaps between the refrigerator's doors and between the doors and the refrigerator's body are small; be careful not to put your hand in these areas to avoid squeezing your fingers. Please be gentle when closing the refrigerator's door to avoid articles from falling.

- Do not pick up foods or containers from the freezing chamber with your hands wets when the refrigerator is running, especially metal containers, in order to avoid a frostbite.

Illustration of a child climbing a shelf next to an open refrigerator, with a no-smoking symbol nearby (no text or labels)

- Do not allow children to get into or climb the refrigerator; otherwise there is a risk of suffocation or injury due to falling down.

[you can trust]

Cartoon illustration of a distressed character with a stack of boxes and a warning symbol (no text or labels)

- Do not place heavy objects on top of the refrigerator considering that these may fall when closing or opening the door, and there is a risk of accidental injuries.

- Please unplug the unit in case of a power failure or when cleaning. Do not connect the freezer to a power supply within five minutes to avoid damages to the compressor due to successive starts.

Warnings for use

- Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator or near it to avoid damages to the product or fire accidents.

- The refrigerator is intended for household use, such as food storage and it shall not be used for other purposes, such as blood, drugs or biological products storage, etc.

- Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the refrigerator's freezing chamber; otherwise the bottles or enclosed containers may crack due to freezing and cause damages.

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Warnings for energy

• Refrigerating appliances might not operate consistently (possibility of defrosting contents or temperature becoming too warm in the frozen food compartment) when set for a long time below the minimum cold temperature range for which the refrigerating appliance is designed;
• Effervescent drinks should not be stored in the freezer's food compartments or cabinets or in low-temperature compartments or cabinets; also, some products such as iced water should not be consumed too cold;
• Please do not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in the freezer's food storage compartments or cabinets;
• Please take all necessary precautions to avoid frozen food from defrosting while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper;
• Please note that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life;
• Keys to doors or lids fitted with locks should be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.

[you can trust]

2.3. Maintenance Overall cleaning

- Dust behind the refrigerator and on the floor should be timely cleaned to improve the cooling effect and energy saving. The refrigerator's interior should be regularly cleaned to avoid any odour.

For this we suggest using soft towels or sponge dipped in water and non-corrosive neutral detergents. The freezer should then be finally cleaned with clean water and a dry cloth. Open the door for natural drying before the power is turned on.

- Do not use hard brushes, steel wool pads, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items to clean the refrigerator considering that this may damage the unit's surface and interior. - Do not rinse with water so as not to affect the electrical insulation properties.

Please unplug the refrigerator for defrosting and cleaning.

Overall cleaning

- According to the arrow direction in below figure, use both hands to squeeze the tray, push it upwards, and then take it out.

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

• After washing the tray, you can adjust its installing height according to your needs.

Line drawing of two hands holding a rectangular box with arrows indicating upward and downward motion (no text or symbols)

(The above picture is for reference only. The actual configuration will depend on the physical product or statement by the distributor)

Cleaning the Glass shelf

• Since most inner shelf supports of the refrigerator have a backstop, you may raise the shelves upwards, and then you will be able to take them out.
• Adjust or clean the shelves according to your needs.

(The above picture is for reference only. The actual configuration will depend on the physical product or statement by the distributor)

[you can trust]

Defrosting

- This refrigerator is made based on the air-cooling principle, thus has an automatic defrosting function. Frost formed due to a change of season or temperature may also be manually removed by unplugging the appliance from the mains or by wiping it with a dry towel.

Out of order

- Power failure: In case of a power failure, even if in summer, food inside the appliance can be kept for several hours; please note that during a power failure, you should avoid opening the doors as much as possible.

Do not place more fresh food inside the appliance.

- Extended lack of use: The appliance shall be unplugged and then cleaned; the doors are to be left open to avoid odours.

- Moving: Before the refrigerator is moved, remove all objects inside, tape the glass shelves, vegetable holders, freezing chamber drawers, etc., and tighten the levelling feet. Then close the doors and tape them as well.

While moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during said move should not exceed 45^ .

This appliance shall run continuously once it is initially started. Generally, its operation shall not be interrupted; otherwise its service life may be impaired.

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

2.4. Troubleshooting

You may try to solve the following simple problems by yourself. If you cannot solve them, please contact the after-sales department.

Problem Possible Causes
Failed operation •	Check if the appliance is connected to the mains or if the plug is properly contacting the socket• Check if the voltage is too low• Check whether there is a power failure or partial circuits have tripped
Odour • Odorous food	food shall be tightly wrapped• Check whether there is any rotten food• Clean the inside of the refrigerator
Compressor operating for a long time	• Long operation of the refrigerator is normal in summer when the ambient temperature is high• It is not suggestible having too much food in the appliance at the same time• Food shall get cool before being put into the appliance• The doors are opened too frequently
No light • Check if	the refrigerator is connected to the mains and if the light bulb is damaged• Have the light bulb replaced by a specialist
Doors cannot be properly closed	• The door is stuck by food packages• Too much food inside• The refrigerator is tilted
Loud noise • Check	if the floor is levelled and if the refrigerator is stable• Check if the accessories are properly placed

[you can trust]

Problem Possible Causes
Door does not seal properly	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration (blow hot air using an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or the stored food contains too much water, resulting in heavy defrostingThe doors are not properly closed, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing • The	built-in condenser dissipates heat via the housing, which is normalIf the housing becomes too hot due to a high ambient temperature, excessive food storage or a malfunction the compressor will shut down. Provide good ventilation to facilitate heat dissipation
Surface condensation	Condensation on the refrigerator's outer surface and door seals is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise • Buzzing: The compressor may produce buzzes during operation, and these are particularly loud upon start or stop, which is normal.Creaking: Refrigerant flowing inside the appliance may produce a creaking noise, which is normal.

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

3. POST-SALE SERVICE

BECKEN has designed this appliance in order to guarantee maximum reliability. However, if a problem occurs do not attempt to open the appliance - there is a risk of electrical shock. If you are not able to solve the problem, please contact the Customer Support Service of any Worten, Modelo or Continente store in order to be assisted. Worten Equipamentos para o Lar provides a 2-year warranty for manufacturing defects from the date of purchase of the appliance.

WARNING: Any attempt to repair the appliance without contacting the manufacturer or seller will void the warranty.

All users must be familiar with these instructions. Knowing what could go wrong can help prevent problems from occurring.

4. ENVIRONMENTAL PROTECTION

In order to protect the environment, we strive to reduce the volume of packaging used, limiting it to three easily sorted materials: cardboard, paper and plastic. The appliance is manufactured using recyclable materials after disassembled by a specialized company. Please comply with local regulations concerning the recycling of all materials.

Symbol of a trash bin crossed with no visible text or numbers

[you can trust]

EN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

Estimado cliente:

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

1.4. Limpieza

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Funcionamiento

Illustration of a person lifting two large cardboard boxes (no text or symbols present)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Simple line drawing of a smiling rectangular box connected to an electrical outlet (no text or symbols)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Simple line drawing of a plug with a bulb and cable, next to an exclamation mark (no text or symbols on the diagram itself)

Simple line drawing of a kitchen appliance with a label 'GAS' and an exclamation mark (no text or symbols on the main diagram)

Simple line drawing of a cabinet with a monitor and directional arrows, accompanied by a warning symbol (no text or labels)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Simple line drawing of a cabinet, a hard drive with tools, and a no-smoking symbol (no text or labels)

Illustration of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Illustration of a child climbing a ladder inside a cabinet, with a no-smoking symbol nearby (no text or labels)

Cartoon illustration of a distressed character with a stack of boxes and a warning symbol (no text or labels)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Illustration of hands holding a rectangular box with arrows indicating direction (no text or symbols)

Technical line drawing of a vertical panel or cabinet structure with internal compartments and mounting holes, showing no text or symbols.

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

3. SERVICIO POSVENTA

Symbol of a trash bin crossed with no visible text or labels

[you can trust]

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

ES

Caro(a) cliente,

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

1. INSTRUÇÕES DE SEGURANÇA

ATENÇÃO

RISCO DE CHOQUE ELÉTRICO NÃO ABRIR

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

1.4. Limpeza

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Funcionamento

1. Bloquear 📋/Desbloquear 🌐

Illustration of a person lifting two boxes (no text or symbols present)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Nivelar a porta

Simple line drawing of a smiling rectangular box connected to an electrical outlet (no text or symbols)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Simple line drawing of a plug with a bulb and cable, next to an exclamation mark (no text or symbols on the diagram itself)

Simple line drawing of a kitchen appliance with a hanging dish and warning symbol (no text or labels)

Simple line drawing of a cabinet with a mounted device and warning symbol (no text or labels)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Simple line drawing of a cabinet, a 3D model with tools, and a no-smoking symbol (no text or labels)

Illustration of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Illustration of a child climbing a shelf next to a bookshelf, with a no-smoking symbol nearby (no text or labels)

Cartoon illustration of a distressed, anthropomorphic object with a warning symbol (no text or labels)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Avisos relativos à energia

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Line drawing of hands holding a rectangular box with arrows indicating direction (no text or symbols)

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

3. SERVIÇO PÓS-VENDA

Symbol of a trash bin crossed with no visible text or labels

[you can trust]

PT

Side by Side Refrigerator | Frigorífico Side by Side | Frigorífico Side by Side

BECKEN

Imported, produced and distributed by:

Worten Equipamentos p/o Lar S.A.
