ZHC65DX - Oven Zephir - Free user manual and instructions

Product Type	Built-in Electric Oven
Brand	Zephir
Model	ZHC65DX
Energy Class	A
Dimensions (HxWxD)	595 x 595 x 575 mm
Weight	30 kg
Power Supply	230 V ~ 50 Hz
Total Power	2.5 kW
Oven Capacity	65 L
Heating Functions	Conventional, Grill, Fan-assisted, Defrost
Temperature Range	50°C - 250°C
Timer	Yes, with automatic shut-off
Display Type	LED
Cleaning Type	Enamel interior, easy to clean
Door Type	Cool touch, triple-glazed
Safety Features	Child lock, automatic shut-off, thermal cut-out
Spare Parts Availability	Yes, via authorized service centers
Repairability Index	7.5/10
Included Accessories	1 shelf, 1 drip tray, 1 baking tray
Manual Language	English, Italian

Frequently Asked Questions - ZHC65DX Zephir

How do I install the Zephir ZHC65DX oven?

Ensure the oven is installed by a qualified electrician. It must be connected to a 230 V power supply and placed in a suitable built-in cabinet with proper ventilation. Refer to the installation section in the manual for detailed dimensions and electrical requirements.

What should I do before using the oven for the first time?

Remove all packaging materials and accessories. Heat the empty oven at 200°C for 30 minutes to eliminate any manufacturing residues. Let it cool, then clean the interior with a damp cloth.

How do I set the timer on my oven?

Press the timer button, then use the +/- buttons to set the desired time. The oven will automatically shut off when the timer reaches zero. Some models have a 'cook time' and 'end time' function.

Which heating function should I use for baking cakes?

For cakes, use the conventional (static) or fan-assisted function. Preheat the oven and place the cake on the middle shelf. The fan-assisted function provides even heat distribution.

How do I clean the oven interior?

Allow the oven to cool, then wipe with a damp cloth and mild detergent. Avoid abrasive cleaners. The enamel coating makes cleaning easier. For stubborn stains, use a paste of baking soda and water.

Why is the oven not heating up?

Check if the oven is properly plugged in and the circuit breaker is on. Ensure the timer is set and the temperature is selected. If it still doesn't heat, the heating element may be faulty and need replacement.

How do I activate the child lock?

Press and hold the key lock button (often a padlock icon) for 3 seconds until a beep sounds. This locks all buttons to prevent accidental operation. Repeat to deactivate.

What does the defrost function do?

The defrost function uses the fan to circulate air at room temperature, speeding up the thawing of frozen food without cooking it. Place the food on a tray in the center of the oven.

How do I replace the oven light bulb?

Disconnect the oven from the power supply. Remove the glass cover by turning it counterclockwise. Replace the old bulb with a new one of the same type (usually 25W, 300°C resistant, E14 socket). Reattach the cover and restore power.

Where can I find spare parts for my Zephir oven?

Spare parts can be ordered through authorized Zephir service centers. Check the manual for a list of approved service providers. Common parts like shelves, trays, and heating elements are available.

USER MANUAL ZHC65DX Zephir

Black microwave oven with open door and control knobs, no visible text or symbols on the appliance body

MANUALE D'ISTRUZIONI

Labeled diagram of a microwave oven with numbered parts for identification

Diagram showing labeled components of a mechanical or electrical component with numbered parts 12 and 13, and a circular waveform pattern with numbered label 14.

Simple line drawing of a rectangular tray or holder with a label '15' pointing to its top edge (no text or symbols on the tray itself)

10 30 0 40 50 60

PRIMA DELL'USO

Close-up of a metallic industrial machine with a metal grate and ventilation grilles (no visible text or symbols)

Close-up of a metal tool interacting with a metallic panel or fixture, no visible text or symbols.

Interior view of an oven with metal grating and ventilation slots (no text or symbols visible)

Hand opening a microwave oven with control panel and door (no visible text or symbols)

Simple right-pointing arrow shape with three vertical lines inside, no text or symbols present

Please read carefully before use and keep for future reference

IMPORTANT SAFEGUARDS

When using electrical appliances, basic precautions should always be followed, which include the following: Please read carefully instruction manual before use.

1. WARNING: This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of appliance in a safe way and understand the hazard involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children less than 8 years.

1. WARNING: This symbol means: Hot surfaces. The temperature of the door or the outer surfaces may be high when the appliance is operating.

2. WARNING: to avoid overheating DO NOT COVER the appliance,

3. After removing the packing materials, check the integrity of the appliance. The packing materials (plastic bags, polystyrene foam, etc.) must be kept out of the reach of children because they are potential source of danger; dispose them according to current regulations, in dedicated containers for different disposal.

4. Avoid contact with hot surfaces. Only touch the knobs and the handle when the appliance is operating.

5. Close supervision is necessary when any appliance is used near children.

6. Do not immerse cord, plug, or any part of the appliance in water or other liquids. Risk of electric shock.

7. Don't permit electric cord goes in touch with the sharp edges of tables or furnitures or goes in touch with hot surfaces.

8. Do not operate appliance with damaged cord or plug or after the appliance malfunctions, or has been damaged in manner. If the appliance is damaged or broken, do not repair yourself, if the power cord or the plug is broken or damaged, do not repair or change yourself, please send the appliance to qualified service centre for repair or service.

9. Do not place the product near any other gas appliance or heat source, such as microwave ovens

10. Do not use appliance as heating source.

11. When the oven is operating, keep clear at least four inches (ten centimeters) on all sides of the oven to allow adequate air circulation.

12. Disconnect from the socket before starting a cleaning cycle. Wait for the oven to cool before handling.

13. Turn the heating knob to OFF position, before unplugging the appliance.

14. Never warm or use flammable materials inside or near the appliance; vapors might cause fires or explosions

15. Do not cover the grill, tray or any other part of the oven with aluminum foil. Risk of overheating .

16. Do not place anything on top of the oven, do not obstruct the ventilation openings: the obstruction of the openings can result in overheating.

17. Be extremely careful when extracting grill or tray they can burn.

18. Do not leave the oven unattended when it is switched on and in service.

19. Do not move the oven while it is operating.

20. Do not clean the oven with metal brushes or tools that could corrode or damage the surface.

21. Do not insert food with a volume greater than the load capacity, and any other metallic object inside the oven. This may cause risk of electric shock.

22. Do not cover the oven or insert objects inside that may burn. This would result in a risk of fire.

23. When the oven is operating, handle the door carefully

24. Never drop liquids or objects on the door when it is open to avoid the risk to break its glass.
25. Do not lean on the door (pots or other containers). To avoid the overturning of the oven.
26. Be extremely cautious when in the oven are placed in metal or glass containers.
27. Never place paper, cardboard or plastic inside the oven and never rest anything on top of it (tools, grills, other objects).
28. Some items may burn: always check the oven during baking them. In case of fire emanated from food or other parts groped in no case to extinguish with water, but instead keep the door closed, remove the power plug from the wall outlet and smother the flames with a damp cloth. Do not move the oven while it is operating.
29. For cooking, use only heat-resistant containers: Do not use containers that can warp, burn or alter the food.
30. When you use the appliance heats up (the surfaces are to become hot during use), and then tap only handle door knobs and plastic; to extract dishes or other containers, use kitchen gloves.
31. Do not use plastic containers, paper or cardboard.
32. Not enter inside the oven objects or accessories outside of those present in the package.
33. It is advised to wear gloves when you heat or cook food.
34. This appliance is designed for domestic use (not professional), heat to bake, toast, defrost, in the manner described in these instructions. Pay attention to cooking with oils and fats as if overheated are possible causes of fire. Any other use is considered improper and dangerous. The manufacturer cannot be held responsible for any damage caused by improper, incorrect and irresponsible and / or repair by unqualified personnel.
35. This oven must be used inside buildings, on a secure footing (see par. Installation), so the oven is not designed to be used outdoors or for use recessed, nor for purposes other than those listed in the previous paragraph.
36. The temperature of accessible surfaces may 'be high when the appliance and' function in
37. The surfaces are subject to become hot during use
38. Not place heavy objects on the cables or heat sources close to them. The cables may be damaged.
39. Unplug the appliance when it is upside down or resting.
40. Before performing maintenance and cleaning, disconnect the appliance from.
41. Not use aerosols spray (for ex. Insecticides, hair spray, etc.), it may cause damage to the housing.
42. In case of abnormal situations immediately switch off the appliance and contact your dealer or service center.
43. Do not use this unit connected to programmers, external timer, remote control system separate timer or any other device that can switch automatically
44. Do not use power sockets or flying damaged cables.
45. When it pulls the plug hold it firmly to avoid electric shock, short circuit or fire
46. Do not fix safety switches with tape, for fire hazard.
47. It's absolutely prohibited to disassemble or repair the unit by electric shock; if necessary contact your dealer or service center.
48. During period of non-use: remove the plug from 'main power when the unit is not used for long periods of time.
49. Do not use the appliance near a bathtub, shower, swimming pool.
50. Do not place anything on the unit to fire hazard
51. Do not use the appliance near flammable objects
52. Do not insert metal objects into the slots of the unit
53. Before connecting to the mains supply, make sure the voltage is correct as reported on the label of the product and that the installation complies with current regulations
54. Do not touch the power connection with wet hands
55. Do not use multiple plugs but only dealing with single output power specification.
56. If the supply cord is damaged it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to prevent any risk.
57. Do not leave the appliance exposed to atmospheric agents (sun, rain, etc.).
58. Do not pull on the cable to move the unit
59. Do not pull the power cord or the appliance itself to remove the plug from the socket.
60. Place the appliance: far from other heat sources (eg. Others ovens, gas stove, etc.) flammable materials (upholstery, etc.). Explosive material (aerosols) or from materials that can deform with the heat on a horizontal supporting plane and firm, whose surface is heat-resistant, flame retardant and is not sensitive (eg, lacquered furniture, tablecloths, etc.) in a position where it cannot be hit, and at a safe distance from the edge of the cabinet, so that it cannot fall.

61. In case of failure or malfunction, turn off the unit and have it checked by qualified personnel; repairs carried out by unauthorized personnel may be dangerous and invalidate the warranty.

62. To protect against risk of electric shock, do not immerse the cord, plug or cooking unit in water or any other liquid.

63. Unplug from outlet when not in use and before cleaning. Allow to cool before putting on or taking off parts, and before cleaning appliance.
64. Do not operate any appliance with a damaged has malfunctioned or has been damaged in any manner. In order to avoid the risk of an electric shock, never try to repair the Grill Toaster yourself. Take it to an authorized service station for examination and repair. An incorrect reassembly could present a risk of electric shock when the Grill Toaster is used.
65. The use of accessories not recommended by the manufacturer may result in fire, electrical shock, or risk of injury to persons.
66. Do not let power cord hang over the edge of the table or counter, or touch hot surfaces.
67. Do not place on or near a hot gas or electric burner or heated oven.
68. Do not use appliance for other than intended use
69. Extreme caution must be exercised when moving an appliance containing hot oil or other hot liquids.
70. Before connecting to the mains supply, make sure the voltage is correct as reported on the label of the product and that the installation complies with current regulations
71. Do not touch the power connection with wet hands
72. WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, ONLY AUTHORIZED PERSONNEL SHOULD DO REPAIRS. SAVE THESE INSTRUCTIONS. FOR HOUSEHOLD USE ONLY

ACCESSORIES

*BAKE PAN
*BAKE RACK
* PAN HANDLE
*ROTISSERIE
*ROTIESSERIE HANDLE
*CRUMB TRAY

FEATURES

Labeled diagram of a microwave oven with numbered parts for identification

Diagram showing labeled components of a sensor or signal detection system with numbered parts 12 and 13, and a corresponding circular diagram with concentric rings.

Simple line drawing of a rectangular tray or holder with a label '15' pointing to the top edge (no text or symbols on the tray itself)

1. Power Light
2. Timer and lamp dial
3. Heating selector dial
4. Thermostat dial
5. Convection and Rotisserie set dial
6. Door handle
7. Bake rack
8. Pan handle
9. Bake pan
10. Heating elements
11. Glass door
12. Rotisserie
13. Rotisserie handle
14. Convection air vent
15. Crumb tray

1. Off
2. Convection
3. Rotisserie
4. Convection and Rotisserie

THERMOSTAT DIAL

Turn the thermostat knob to select the desired cooking temperature

HEATING SELECTOR

1. OFF (Heating elements off)
2. Top heating
3. Bottom heating
4. Top & bottom heating

TIMER and INTERNAL LIGHT

1. When the timer is on, the internal light is on.
2. When the timer is off, the internal light is off.

1 2 3 4

L 10 30 0 40 50 60

BEFORE USING

• Make sure there is sufficient ventilation around the oven.
• Make sure the oven is completely dry before use.
• The oven cannot be placed on untreated wood surfaces. Place it on solid, heat-resistant surfaces.
• The feet at the base of the oven can leave marks on the table. If so, remove these marks with a damp cloth.

GUIDA ALL'USO

• Turn the thermostat dial clockwise to the desired temperature.
• Turn the convection and rotisserie set dial to the desired setting
• Turn the heating selector dial to the desired position.
• Turn the timer dial clockwise to the desired cooking time.
• The power light will light up after timer is turned on, and it will go out when the timer is turned to OFF.
• When the cooking time is over, the timer will auto shut off and the bell will ring.
• If the cooking is finished earlier than the set cooking time, please turn back the timer to OFF to turn off the oven.
• In the first use of this oven, there might be some light smoke coming out from the oven, this is normal. After 5-15 minutes the smoke will disappear.
• In order to get better cooking performance, it is recommended to pre-heat the oven about 10-15 minutes.

HOW TO USE THE ROTISSERIE SET

- Insert one of the two forks into the spit, making sure that the pointed part of the fork faces the center of the spit. Fix the first fork to the spit with the butterfly screw.

- Insert the food on the spit sliding it along the first fork

- Insert the second fork from the opposite side of the spit, making sure that the pointed part of the fork is also facing the center of the spit.

- Insert the second fork through the food and fix the fork with the other butterfly screw.

• Make sure you have placed the food in the center of the spit, to ensure a more homogeneous cooking.

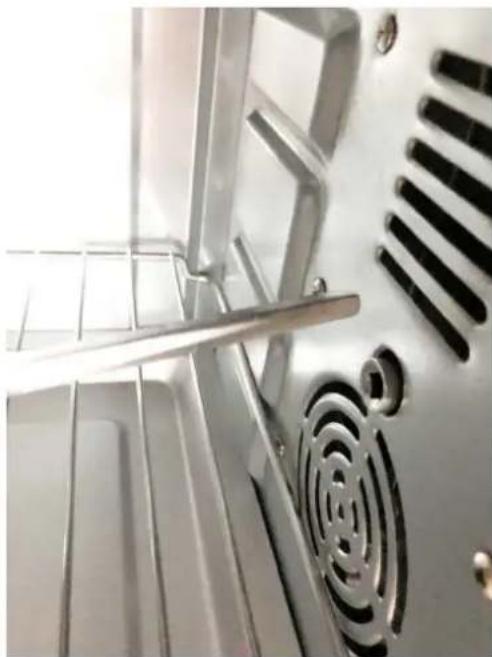

- Insert one side of the spit in the square hole placed on the right side inside the oven cavity.

Close-up of a metallic industrial machine with a metal bracket and circular vent, no visible text or symbols

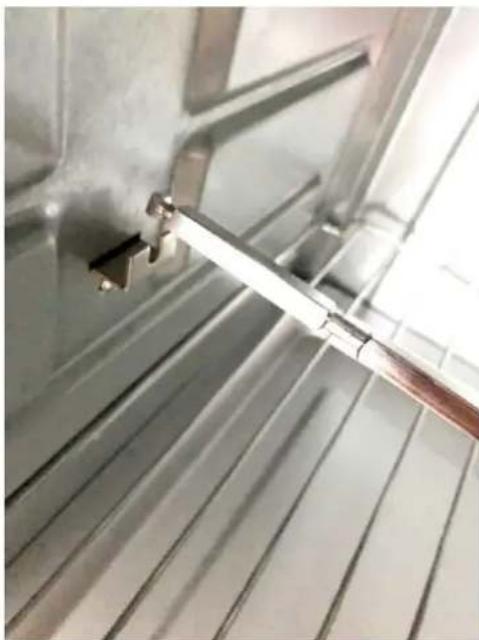

- Place the other end on the support, on the left side inside the oven cavity.

Close-up of a metal pipe joint in a stainless steel industrial setting, no visible text or symbols

- Rotisserie Set correctly installed:

Interior view of a stainless steel oven with metal grating and ventilation slots (no text or symbols visible)

• Turn on the oven.
• Set the thermostat to the temperature of 230^ C .
• Turn the timer knob to set the desired cooking time. The LED will light up. Normally it takes 30 minutes to roast 2.5Kg of chicken.
  • After setting the rotisserie knob with or without convector, the spit will start to rotate.
• When you want to finish cooking, turn the timer knob to the OFF position.
• Once the oven has cooled down, the rotisserie handle must be used to remove the spit from the oven. Raise the left side of the spit first. Once the left side of the spit has slipped slightly outward, make sure that the right side, comes out of the square hole. Once unhooked, carefully remove the spit.

GRILL COOKING

• Turn the selector to GRILL setting (Top heating).
  • Turn the temperature dial to 230°
• Turn the timer to the desired grill time.

- When the grill cooking is done, turn back the timer to OFF to turn off the oven.

Remark: Keep a distance of at least 2 cm between food items and the top element.

CRUMB TRAY USE

Before operating the oven, firstly open the door, put the crumb tray at the bottom of the inside chamber(under the bottom heating element). So during the cooking process, all remains will fall into the crumb tray instead of the bottom plate, it is much easier for cleaning.

AFTER USE

• Turn the cooking selector to OFF
• Turn back the timer to OFF.
• Turn the convection knob to OFF
• Unplug the appliance from the outlet.
• Wait until the oven is completely cool before any cleaning or maintenance.

MAINTENANCE AND CLEANING

• Unplug the appliance and allow it to cool before cleaning.
• Do not immerse the appliance in water. All surfaces can be cleaned with a clean damp cloth.
• If stains still appear, it is recommended to use soap.
• Do not use abrasive cleaners or sharp utensils to clean the appliance.
• Clean the interior chamber with a clean damp cloth.
• Clean bake rack and bake pan with a damp cloth

TECHNICAL SPECIFICATION

Rated voltage: 220-240V\~50-60Hz

Rated power: 2000W

Capacity: 65L

www.uniorservice.com

WESTIM S.p.A.

Via Roberto Bracco 42/E

00137, Roma

Tel. [phone]

Italiano

Disposal of old electrical & electronic equipment (Applicable in the European Union and other European countries with separate collection systems)

This symbol on the product or in its packaging indicates that this product shall not be treated as household waste. Instead it shall be handed over to the applicable collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. The recycling of materials will help to conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

Français
