Product Type	Digital Terrestrial TV Receiver
Brand	Ferguson
Model	Ariva T75
Category	Media Player
Dimensions (W x H x D)	141 x 95 x 30 mm
Power Supply	5V DC, 1.5A (via included AC adapter)
Video Decoding	MPEG-2, MPEG-4, H.264, HEVC/H.265, AVS, VC-1, JPEG
Audio Decoding	MPEG-1/2/4, AAC, HE-AAC, E-AC-3
Tuner Type	DVB-T/T2+C (Silicon Tuner)
Frequency Range	47-862 MHz
Video Outputs	HDMI, SCART, RF loop-through
Audio Outputs	Optical S/PDIF, SCART (analog stereo)
USB Port	1 x USB 2.0 for external storage and WiFi adapter
Recording Function	Supports recording to USB HDD/flash drive (min. 9 MB/s write speed, NTFS/FAT32)
Remote Control	Infrared with pairing function for RCU76
Software Updates	Via USB or OTA (check ferguson-digital.eu)
Safety Certifications	CE, RoHS, WEEE, Double Insulation
Operating Temperature	0°C to 40°C
Humidity	<95%
Accessories Included	Remote control, HDMI cable, AC adapter, user manual
Cleaning Instructions	Use a soft, lint-free cloth with mild soap solution; avoid alcohol/ammonia

Frequently Asked Questions - Ariva T75 Ferguson

How do I pair the remote control with the Ariva T75?

Unplug the receiver from power, then plug it back in and immediately press and hold the red function button on the remote for at least 10 seconds. The pairing is complete when the remote works correctly.

What type of USB storage is supported for recording?

The receiver supports external USB hard drives and flash drives with USB 2.0 and a write speed of at least 9 MB/s. The drive must have a single NTFS or FAT32 partition (NTFS recommended). Externally powered HDDs are recommended due to limited USB power.

Can I watch and record at the same time?

Yes, the Ariva T75 supports time-shift and allows recording one channel while watching another, provided your USB storage is fast enough. Use the REC button to start recording and STOP to end.

How do I reset the receiver to factory settings?

Go to Menu > System > Factory Settings and confirm. This will delete all user data, including channel lists and timers. The default parental lock code is 0000.

Why is there no picture or sound?

Check that the receiver is powered on and connected to the TV via HDMI or SCART. Ensure the antenna cable is properly connected and the correct input source is selected on your TV. If the signal is weak, adjust the antenna or enable Antenna Power in the installation menu.

How do I update the software?

Download the latest firmware from the Ferguson website (ferguson-digital.eu) to a USB drive. Insert the USB, go to Menu > System > Update, and follow the on-screen instructions. Do not disconnect power during the update.

What is the maximum resolution supported?

The receiver supports up to 1080p via HDMI, and can scale PAL signals to 720p or 1080p. It also passes through 4K channels (HEVC/H.265) but outputs at a lower resolution.

Can I use a WiFi adapter?

Yes, the Ariva T75 supports WiFi via a USB adapter. Go to Menu > Network > WiFi to configure the connection. Note that network services depend on third-party providers and may not be available indefinitely.

How do I clean the receiver safely?

Disconnect the receiver from power before cleaning. Use a soft, lint-free cloth slightly dampened with a mild soap and water solution. Avoid alcohol, ammonia, or abrasive cleaners. Never let liquids enter the device.

What do I do if the remote stops working?

First, replace the batteries with two new AAA (R03) batteries, observing correct polarity. If it still doesn't work, try re-pairing the remote (see question 1). If problems persist, you may need a replacement remote.

USER MANUAL Ariva T75 Ferguson

Ferguson receivers support recording on external hard disk drives (HDDs) and flash memories (pendrives). In all instances, the correct operation of the recording function depends on the type of connected memory! You must read the following limitations.

REMEMBER:

1. In order to use an external USB memory, the memory must support the USB 2.0 standard. To ensure stable recording and playback, you must use a memory with a recording speed of 9.0 MB/s or greater. Slower hard disk drives and flash memories may not function properly, have problems with recording (image jitter), or not function at all!!!
2. Only disks with one basic NTFS or FAT32 partition (we recommend using the NTFS format) will function properly. If you do not have such a format, prepare the disk on your computer before connecting it to the receiver.
3. Highly fragmented or used memories may also not operate smoothly or correctly.
4. External hard disk drives should be autonomously powered, since the built-in USB port is unable to provide sufficient power.

CAUTION

1. Under no circumstances should you disconnect the USB device from the receiver during recording or playback. Disconnecting during operation may cause damage to the receiver and/or flash memory, and to the recorded data.
2. Do not touch the working device (and in particular the USB connector) with wet hands. Risk of electric shock and permanent damage to the receiver!

SAFETY MEASURES

We request that you read the instruction manual and recommendations set forward therein. Also remember to correctly position the antenna!

In order to avoid an electric shock, never open the housing. Damage to the warranty seal shall void the warranty.

Disconnect the device from the mains during thunderstorms or when it is not to be used for an extended period of time. Please remember that the warranty does not cover damage to the equipment caused by a lightning strike.

Do not expose the device to direct sunlight. Place it away from sources of heat and humidity. Do not cover ventilation ducts, in order to ensure the correct circulation of air.

Place the device horizontally on a flat, even and stable surface.

If you move the device from a room that is warm to one that is cold (or vice versa), wait at min. 1 hour before connecting it to the mains. Otherwise, problems may arise.

The device should be placed away from vases, bottles, aquariums and other water containers in order to avoid damage. Do not touch the mains plug with your bare hands.

Do not place any objects on the housing of the device. This may cause overheating and reception problems.

Before commencing maintenance or installation work, disconnect the receiver from the mains. Do not clean the receiver with alcohol or liquids containing ammonia. If necessary, clean it with a soft, lint-free cloth wetted with a gentle solution of water and soap.

• Do not connect any cables when the mains plug is in the socket.
• Check the condition of your cables. Damaged cables may cause a fire.
• Please disconnect the receiver from the mains before connecting any cables.

DOWNLOADABLE SOFTWARE

Ferguson has taken every effort to provide for users software with updates in order to ensure that the parameters of the terrestrial television receiver are up to date. Ferguson reserves the right to amend, change or modify the software used in the terrestrial television receiver on any basis and without prior notification. The latest version of the software is available on the website http://www.ferguson-digital.eu

ABOUT THE INSTRUCTION MANUAL

Ferguson Sp. z o.o. has made every effort to provide the most current information about its products. Ferguson Sp. z o.o. does not grant any guarantee as to the contents of the present instruction manual and disclaims any implied guarantees concerning market value or suitability for specific purposes. The information contained herein is an instruction intended to enable the correct usage and maintenance of the receiver.

Ferguson Sp. z o.o. reserves itself the right to introduce amendments, changes or translations of the instruction manual without prior notification thereof. For this reason, we recommend you regularly visit our website in order to obtain the latest information.

MARKINGS AND SIGNS APPLIED TO THE RECEIVER

Digital Video Broadcasting

Digital signal transmission logo. This logo informs that the receiver conforms to the Digital Video Broadcasting standards.

Risk of electric shock - do not open. This notice warns the user not to open the receiver housing. The housing may be opened solely by authorized service technicians.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste. Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste. Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

CE logo. The logo informs that the receiver conforms to the terms and conditions of Directive 2004/108/EC concerning observance by Member States of provisions regulating electromagnetic compatibility, and to the terms and conditions of Directives 2006/95/EC concerning observance by Member States of provisions regulating low voltage electricity and safety with relation to the handling and operation of electrical equipment.

Double insulation logo. This logo informs that the receiver is an electrically safe device, provided that it is used in accordance with the recommendations set forward in the chapter concerning safety.

Hot surface mark CAUTION: HOT SURFACE. DO NOT TOUCH. The top surface over the internal heat sink may become hot when operating this product continuously. Do not touch hot areas, especially around the "Hot surface mark" and the top panel.

When this logo is attached to a product, it means a financial contribution has been paid to the associated national recovery and recycling system.

Table of Contents

SAFETY MEASURES....3

DOWNLOADABLE SOFTWARE....3

ABOUT THE INSTRUCTION MANUAL....4

MARKINGS AND SIGNS APPLIED TO THE RECEIVER....4

BASIC INFORMATION ABOUT THE RECEIVER......6

1. Main features....6
2. Contents of box....6
3. Important instructions concerning handling of the receiver....6
4. Device description....7
   5.1 RCU....8
   5.2 Installation of batteries....9
   5.3 Connecting....9
5. First installation....9
6. Settings....10
7. Troubleshooting....11

ATTACHMENT A - SPECIFICATION....12

BASIC INFORMATION ABOUT THE RECEIVER

1. Main features

√ MPEG-2, MPEG-4, MPEG-4 AVC/H.264, HEVC/H.265 standards (Compatible with DVB-T/T2 system)
√ Reception of high definition channels
√ Scaling of PAL signals to a resolution of 720p or 1080p
√ Availability of programmable timers
√ Separate lists of favourite, TV and Radio channels
√ Quick channel search function (QuickFind)
√ Teletext and on-screen captions

2. Contents of box

Unpack the receiver and check whether all of the following elements are present

√ 1 x remote control unit
√ 1 x instruction manual
√ 1 x receiver
√ 1 x AC adapter
√ 1 x HDMI cable

3. Important instructions concerning handling of the receiver

The screen menu (OSD) simplifies operation of the receiver and has made it possible to reduce the number of keys on the remote control. All of the functions are displayed on the screen and may be controlled by means of a small number of keys. Common functions have been connected in one "MENU". The selected function is coloured. Depending on the selected option, various "function keys" are displayed: red, green, yellow and blue in the form of graphics and descriptions. The colours represent various functions in individual "Menus". The selected function is activated by pressing a key on the remote control unit. The so-called function keys are active only when in the appropriate field there is information about it. The user interface makes it possible to navigate within a menu and between functions in a number of different ways. Certain buttons on the remote control allow direct access to functions. The buttons are multi-functional, i.e. their functions depend on previously activated elements.

NOTE:

Please keep in mind that new software may change the functionality of the receiver. Photographs and descriptions included in the instruction manual are for informational purposes only. If you should notice an error, please report it - we shall make every effort to have it rectified.

4. Device description

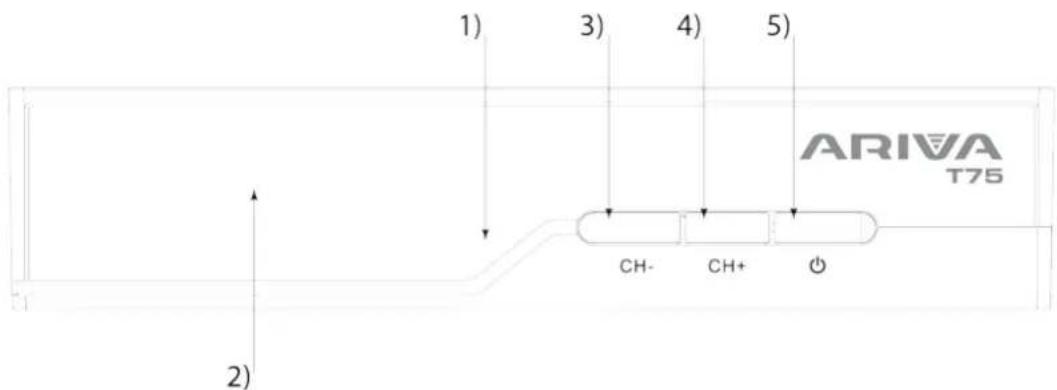

a) Front panel

1) The IR sensor - to the RCU signal receiving.
2) The LED display - displays the channel or time.
3) CH+ - changes the channel to the previous one.
4) CH- - changes the channel to the next one.
5) Standby - Turns off or on the STB.

b) Rear panel

6) RF IN - antenna input
7) DV-OUT - digital signal output.
8) S/PDIF - optical audio output.
9) SCART - analog video and audio output.

c) Sides panel

10) Power in connector - for the 12V power source.
11) USB – for external device plugin.

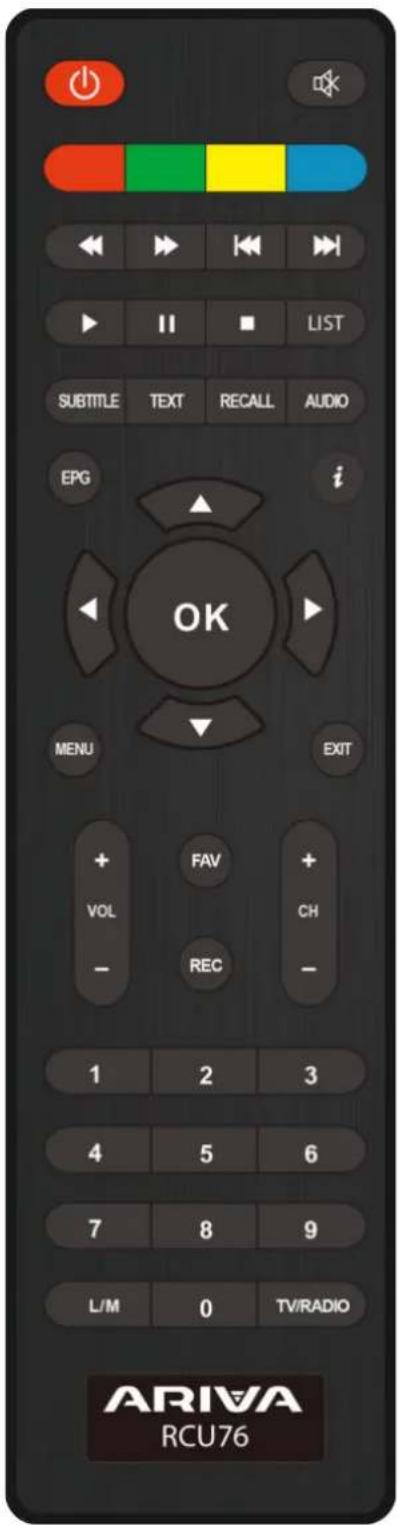

5.1 RCU

5.1 Buttons description

No.:	Button	Description
1.		Sound muting.
2. Fu
3.		Buttons are for controlling record, playback, multimedia, and time-shift functions.
4. LI		een groups T2/C
5. S		off/on the subtitle if subs are available.
5. TEYT	Enables the	Teletext to be displayed on the screen, if available.
6. RE		the previously viewed channel.
7. AL		e version of the audio track, if available.
8. Dis		on about the current program
9. OK	Confirm changes.	Activation of the channel list.
10.		Navigating the receiver's menuAdjust the volume level (quieter, louder).
11. N		eiver's menu. Switch to the next or previous channel.
12. E		the previous submenu, exit from the menu.
	[87HX]
13. O		Selecting a channel by number in the channel list.
		Entering numerical values. Return to the previous submenu, exit from the menu.
14. TV/DADIO		Change the channel list between TV and Radio
15. CHT/CH-		change channels
16. VOLT/-		change the volume
17. MENU		Display the main menu on the screen.
18. FAY		Displays a selection of favorite channel list.
19. REC	Starts recording.

Attention! RCU requires to be paired with the STB.

Pairing:

1. Unplug your set top box from a power source.
2. Plug in your set top box to a power source, then press and hold down the red function button for at least 10 seconds.
3. The setup is complete. Check RCU's performance.

Attention! To pair the new RCU76, please follow the instruction above.

5.2 Installation of batteries

Remove the cover of the battery compartment on the rear panel of the remote control unit; slide it downwards and put it aside. Insert two AAA (R03) batteries into the compartment, observing the indicated polarity. Do not mix old and new batteries, or batteries of different types. Replace the battery compartment cover. Slide it upwards until it locks in place.

5.3 Connecting

ATTENTION: Make sure the voltage specification of the domestic electrical system matches the receiver's power supply.

PAY ATTENTION! When connecting the receiver to other equipment (such as the TV, the receiver), make sure you follow the appropriate instructions for use. Check that you have disconnected all equipment from the main power supply.

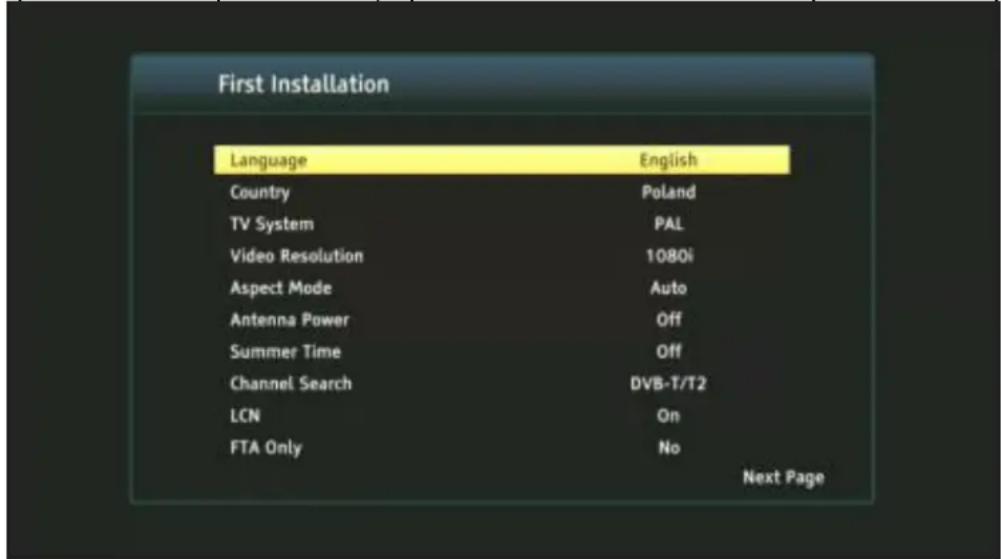

6. First installation

After the decoder is connected correctly to the rest of the equipment, turn on the decoder and remaining equipment. When the first start-up or restoration of factory settings, the first installation menu screen will appear. Use the navigation keys on the remote to choose the appropriate settings for you.

• Language - a setting of the OSD language.
• Country - setting to specify scanning parameters appropriate for the country of installation of the device.
  • TV system - a choice between PAL, NTSC broadcasting systems
  • Video Resolution - select a screen resolution
• Aspect Mode - selection of the picture format (4: 3 Letterbox, 4: 3 Pan scan; 16: 9)
• Antenna Power - This allows you to choose between a powered or passive antenna.
• Summer Time – toggle summertime on/off
• Channel Search - a choice between terrestrial TV and cable
• LCN - sort by terrestrial provider numbering
• FTA Only - This allows you to filter pay channels. FTA - "free to air" (free channels)

After selecting the settings we are interested in, go to the "next page" item and confirm with the "OK" button. Scanning of the signal from the antenna will proceed.

ATTENTION! After selecting the settings we are interested in, go to the "next" item and confirm with the "OK" button. Scanning of the signal from the antenna will proceed.

ATTENTION! Select a country other than the one the device installation. May result in the lack of reception of the full range of channels due to differences in signal parameters!

7. Settings

To go to the settings, press the "MENU" button. For navigating, use the arrows of remote controls. Switch between pages using right/left buttons. To enter the setting page, press the "OK" or Up/Down buttons. To change the selected setting, use the up/down buttons. For select, the setting, use the "OK" or left/right buttons. To back to a previous setting page or close the main menu press the "EXIT" button.

- Channel list

• TV channel list - channel list editor, allows you to delete channels, change their order, create favorite channel lists, rename channels.
• Radio channel list - editor of radio channel lists
• Parental Lock - allows you to set a lock code (default "0000") and customize the services lock
• Play mode - the setting of stable or AV sync
• Delete All - removes all channel lists

- Channel search

• Terrestrial - allows you to search terrestrial TV channels. In the terrestrial scan menu, there is the scan auto/manual, the antenna power settings, and the country of installation.
• Cable menu - allows you to search cable TV.
• LCN - sort by terrestrial provider numbering

- Language - language settings

• Language - OSD language setting
• First/Second audio language - sets the default soundtrack
• Subtitle Language - Sets the default subtitle language.
• Teletext - sets the teletext language

• AV settings - audio-video settings

• TV System - allows you to select the broadcasting system
• Video Resolution - Select the resolution on HDMI output

- Aspect Mode - Aspect Ratio configuration

• SCART Out - selecting the signal generated on the SCART output
• Audio Out - allows you to select the output and the type of sound
• Audio Description - enable or only audio description
• Audio Description volume - setting the volume difference between the audio description and normal audio track

• Time - This tab allows you to set the system time, including turning on summertime.

• SYSTEM

• Information - shows information about the current firmware version and decoder data
• Factory Settings - restores original settings, deletes data set by the user
• Timer Settings - allows you to set events using Timers
• OSD Settings - allows you to adjust the OSD
• Update - This allows you to update the software or back up the channel lists.
• Standby Settings - Automatic stand-by, stand-by mode, and clock display in standby.
• HDMI CEC Switch - enable disables HDMI CEC support

• Media Center - Selecting the media type allows you to view the supported file formats on external media.

• Recording Manager - viewing recorded TV programs.
• DVR Configuration - allows you to enable TimeShift and select an external medium
• HDD Information - shows information about the external medium
• Storage format - allows you to format the external media
• Jump - allows you to adjust the shift using the left / right buttons in multimedia and websites.

- Network

• WiFi – allows you to configure the network connection after connecting the WiFi card to a USB
• Network applications - access to network applications

Attention! Some websites/network applications available after changing parental lock settings. Attention! Ferguson reserves that the operation of network services depends on third parties. Malfunctioning of network services is not a condition for initiating the complaint procedure.

- REC - recording

- This function only works with properly connected external USB memory!

1. Select a channel and press the REC button. Recording of the current channel starts.
2. Pressing the REC button again will display an option where you can define the duration of the recording (the default is 2 hours).
3. The information bar indicates which program you are recording and viewing.

4. To stop recording, press the STOP button and confirm your decision.

5. Troubleshooting

Problem Potential Cause What to do?
No picture No power	Connect the power
	Power strip turned off	Turn on the power strip
The screen shows no signal	No antenna cable connected	Connect the antenna cable
	Incorrect settings	Set the correct settings
No sound from the speakers	Missing or bad connection with audio cable	Connect the audio cable correctly
	Muted sound	Set the volume to an appropriate value
	Incorrect soundtrack	Try a different soundtrack
Audio only (no picture) The video	o cable is missing or not connected properly	Connect the video cable correctly
	The program is a radio channel	Press the TV / RADIO button to change to TV mode
	4k channel selected Change the channel	channel
The remote does not work The battery is dead Replace the batteries
Image freezes or has artifacts The signal is too weak Strengthen the signal

ATTACHMENT A - SPECIFICATION

Main Features
	STB Type DVB-T/T2 Receiver
	Main Chipset MT2203-M2000D
Special Features
	Encrypt ASIC Type
	TUNER Type Silicon Tuner
	SMPS Type Separate SMPS
Mechanical
	Dimension 141*95*30mm
	Net Weight
Main Chip Sets
	CPU frequency	576M
	Flash Memory	4 MB
	SDRAM Memory	1PC 64MB DDR2
DVB-T tuner
	Tuner Type	T/T2+C
	Frequency Range	47-862 MHz
	Input Impedance	75Ω
	Active Ant Power	5VDC @ 1500mA MAX, Overload Protection
	Input Level Range	256QAM: 78.5dBm~-8.75dBm; 64QAM:-78.5dBm~-8.75dBm; 128QAM:-80.1dBm~-8.75dBm;16QAM:-82.1dBm~-8.75dBm;
TS Demux
	Demultiplexer	MPEG2 ISO/IEC 13818-1
	Input Bit Rate	Max 100Mbit/s
Video Decode
	Video Decode	MPEG-2 MP@ML/HL, H.264 BP (with no ASO/FMO), MP&HP@L3/L4.1/L4.2, AVS Jizhun profile @ L6.0/ L4.0, AVS Broadcast profile@ L6.0/ L4.0, MPEG-4 SP Profile, Advanced Simple Profile@ Level 5 without GMC/Data Partitioning/Reversible VLC, VC1 SP@ML, MP@HL, AP@L0~3, H.263 baseline profile, JPEG decoder engineHEVC Main Profile@level 4.1 and Main10 Profile@L4.1,High tier
	Aspect Ratio	4:3, 16:9, auto
	Video Resolution	576i, 576p, 720p, 1080i, 1080p, auto
Audio Decode
	Audio Decode	MPEG-1/2 Layer I/II/III, MPEG-2/4 LC-AAC, MPEG-4 HE-AAC@Level 4, E-AC-3
	Sampling Frequency	32 kHz, 44.1 kHz, 48 kHz
SCART Output
	Video Bandwidth	SD:5.0 MHz (-3dB), HD:30 MHz (-3dB)
	Video Impedance	75Ω
	Video Voltage Level	1.0 Vp-p
	Audio Freq. Range	20 ~ 20 kHz
	Audio Impedance	600Ω
	Audio Voltage Level 2V rms(5.6Vp-p)
Environment
	Input Voltage 5C/1.5A DC
	Consumption Max 7.5W
	Temperature 0~40°C
	Humidity <95%

SIMPLIFIED DECLARATION OF CONFORMITY

Producer: Ferguson Sp. z o.o., ul. Dworska 1, 61-619 Poznań

Name: Ariva T75

Device type: Digital terrestrial TV receiver

The above-mentioned product complies with Directive 2014/53/EU of the European Parliament and of the Council of 16 April 2014 on the harmonization of the laws of the Member States relating to the making available on the market of radio equipment and repealing Directive 1999/5/EC.

Full Declaration of Conformity for download at: https://ferguson-digital.eu/deklaracje-zgodnosci/
