USER MANUAL COMPACT C 45 RCF

1 SAFETY PRECAUTIONS AND GENERAL INFORMATION....4
2 DESCRIPTION 6
3 CONNECTIONS 7
4 CONFIGURATIONS 8
5 HORIZONTAL MOUNTING WITH U BRACKET....10
6 VERTICAL MOUNTING WITH U BRACKET....11
7 HN-KIT COMPACT C 32 C 45....12
8 NOTES ABOUT LOW IMPEDANCE CONNECTIONS....13

ITALIANO

1 AVVERTENZE PER LA SICUREZZA E INFORMAZIONI GENERALI....14
2 DESCRIZIONE 16
3 COLLEGAMENTI 17
4 CONFIGURAZIONI 18
5 INSTALLAZIONE IN POSIZIONE ORIZZONTALE TRAMITE STAFFA AD "U" 20
6 INSTALLAZIONE IN POSIZIONE VERTICALE TRAMITE STAFFA AD "U" 21
7 HN-KIT COMPACT C 32 C 45....22
7 NOTE SUI SISTEMI CON CONNESSIONE A BASSA IMPEDENZA 23

COMPACT C32 DIMENSIONS / DIMENSIONI 24

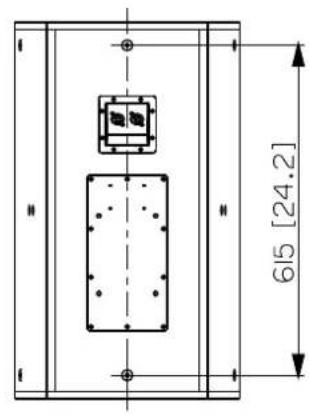

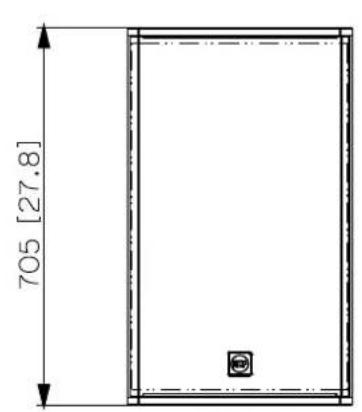

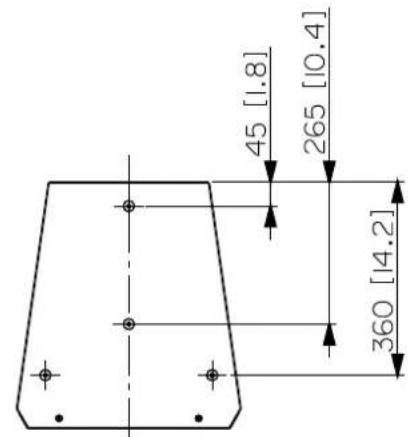

COMPACT C45 DIMENSIONS / DIMENSIONI 25

SPECIFICATIONS / DATI TECNICI....26

1. SAFETY PRECAUTIONS AND GENERAL INFORMATION

The symbols used in this document give notice of important operating instructions and warnings which must be strictly followed.

	CAUTION	Important operating instructions: explains hazards that could damage a product, including data loss
	WARNING	Important advice concerning the use of dangerous voltages and the potential risk of electric shock, personal injury or death.
[Gxw3]	IMPORTANT NOTES	Helpful and relevant information about the topic
	SUPPORTS, TROLLEYS AND CARTS	Information about the use of supports, trolleys and carts. Reminds to move with extreme caution and never tilt.
	WASTE DISPOSAL	This symbol indicates that this product should not be disposed with your household waste, according to the WEEE directive (2012/19/EU) and your national law.

IMPORTANT NOTES

This manual contains important information about the correct and safe use of the device. Before connecting and using this product, please read this instruction manual carefully and keep it on hand for future reference. The manual is to be considered an integral part of this product and must accompany it when it changes ownership as a reference for correct installation and use as well as for the safety precautions. RCF S.p.A. will not assume any responsibility for the incorrect installation and / or use of this product.

SAFETY PRECAUTIONS

1. All the precautions, in particular the safety ones, must be read with special attention, as they provide important information.

2. Power supply from mains

a. The mains voltage is sufficiently high to involve a risk of electrocution; install and connect this product before plugging it in.
b. Before powering up, make sure that all the connections have been made correctly and the voltage of your mains corresponds to the voltage shown on the rating plate on the unit, if not, please contact your RCF dealer.
c. The metallic parts of the unit are earthed through the power cable. An apparatus with CLASS I construction shall be connected to a mains socket outlet with a protective earthing connection.
d. Protect the power cable from damage; make sure it is positioned in a way that it cannot be stepped on or crushed by objects.
e. To prevent the risk of electric shock, never open this product: there are no parts inside that the user needs to access.
f. Be careful: in the case of a product supplied by manufacturer only with POWERCON connectors and without a power cord, jointly to POWERCON connectors type NAC3FCA (power-in) and NAC3FCB (power-out), the following power cords compliant to national standard shall be used:

• EU: cord type H05VV-F 3G 3x2.5 mm2 - Standard IEC 60227-1
• JP: cord type VCTF 3x2 mm2; 15Amp/120V\~ - Standard JIS C3306

• US: cord type SJT/SJTO 3x14 AWG; 15Amp/125V\~ - Standard ANSI/UL 62

• Make sure that no objects or liquids can get into this product, as this may cause a short circuit. This apparatus shall not be exposed to dripping or splashing. No objects filled with liquid, such as vases, shall be placed on this apparatus. No naked sources (such as lighted candles) should be placed on this apparatus.

• Never attempt to carry out any operations, modifications or repairs that are not expressly described in this manual.

Contact your authorized service centre or qualified personnel should any of the following occur:

• The product does not function (or functions in an anomalous way).

• The power cable has been damaged.

• Objects or liquids have got in the unit.

• The product has been subject to a heavy impact.

• If this product is not used for a long period, disconnect the power cable.

• If this product begins emitting any strange odours or smoke, switch it off immediately and disconnect the power cable.

• Do not connect this product to any equipment or accessories not foreseen. For suspended installation, only use the dedicated anchoring points and do not try to hang this product by using elements that are unsuitable or not specific for this purpose. Also check the suitability of the support surface to which the product is anchored (wall, ceiling, structure, etc.), and the components used for attachment (screw anchors, screws, brackets not supplied by RCF etc.), which must guarantee the security of the system / installation over time, also considering, for example, the mechanical vibrations normally generated by transducers.

To prevent the risk of falling equipment, do not stack multiple units of this product unless this possibility is specified in the user manual.

1. RCF S.p.A. strongly recommends this product is only installed by professional qualified installers (or specialised firms) who can ensure correct installation and certify it according to the regulations in force. The entire audio system must comply with the current standards and regulations regarding electrical systems.

2. Supports, trolleys and carts.

The equipment should be only used on supports, trolleys and carts, where necessary, that are recommended by the manufacturer. The equipment / support / trolley / cart assembly must be moved with extreme caution. Sudden stops, excessive pushing force and uneven floors may cause the assembly to overturn. Never tilt the assembly.

1. There are numerous mechanical and electrical factors to be considered when installing a professional audio system (in addition to those which are strictly acoustic, such as sound pressure, angles of coverage, frequency response, etc.).

2. Hearing loss

Exposure to high sound levels can cause permanent hearing loss. The acoustic pressure level that leads to hearing loss is different from person to person and depends on the duration of exposure. To prevent potentially dangerous exposure to high levels of acoustic pressure, anyone who is exposed to these levels should use adequate protection devices. When a transducer capable of producing high sound levels is being used, it is therefore necessary to wear ear plugs or protective earphones. See the manual technical specifications to know the maximum sound pressure level.

OPERATING PRECAUTIONS

• Place this product far from any heat sources and always ensure an adequate air circulation around it.
• Do not overload this product for a long time.
• Never force the control elements (keys, knobs,etc.).
• Do not use solvents, alcohol, benzene or other volatile substances for cleaning the external parts of this product.

IMPORTANT NOTES

To prevent the occurrence of noise on line signal cables, use screened cables only and avoid putting them close to:

• Equipment that produces high-intensity electromagnetic fields
• Power cables
• Loudspeaker lines

1. SAFETY PRECAUTIONS AND GENERAL INFORMATION

WARNING! CAUTION! To prevent the risk of fire or electric

shock, never expose this product to rain or humidity.

WARNING! To prevent electric shock hazard, do not connect to

mains power supply while grille is removed

WARNING! to reduce the risk of electric shock, do not disassemble

this product unless you are qualified. Refer servicing to qualified service personnel.

CORRECT DISPOSAL OF THIS PRODUCT

This product should be handed over to an authorized collection site for recycling waste electrical and electronic equipment (EEE). Improper handling of this type of waste could have a possible negative impact on the environment and human health due to tially hazardous substances

that are generally associated with EEE. At the same time, your cooperation in the correct disposal of this product will contribute to the effective usage of natural resources. For more information about where you can drop off your waste equipment for recycling, please contact your local city office, waste authority or your household waste disposal service.

CARE AND MAINTENANCE

To ensure a long-life service, this product should be used following these advices:

• If the product is intended to be set up outdoors, be sure it is under cover and protected to rain and moisture.
• If the product needs to be used in a cold environment, slowly warm up the voice coils by sending a low-level signal for about 15 minutes before sending high-power signals.
• Always use a dry cloth to clean the exterior surfaces of the speaker and always do it when the power is turned off.

CAUTION: to avoid damaging the exterior finishes do not use

cleaning solvents or abrasives.

WARNING! CAUTION! For powered speakers, do cleaning

only when the power is turned off.

RCF S.p.A. reserves the right to make changes without prior notice to rectify any errors and / or omissions.

Always refer to the latest version of the manual on www.rcf.it.

2. DESCRIPTION

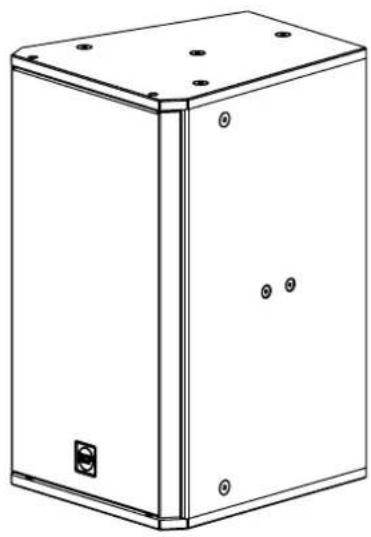

COMPACT C SERIES

COMPACT C is a series of professional two-way fullrange speakers, suitable for a wide range of medium throw applications, even if their balanced sound is a big asset also in nearfield applications. Thanks to the use of top quality neodymium transducers and 100^ x 50^ constant directivity horn, COMPACT C speakers feature high sensitivity and exceptional sound quality, with smooth and wide frequency response. The incredible, distortion free, SPL level they can provide goes far beyond expectations of such a compact solution. The elegant design with accurate finishing makes COMPACT C speakers suitable for any environment, while optional mounting accessories allow using it for wall or ceiling installations.

Line drawing of a rectangular metal enclosure with mounting holes and a small electrical outlet (no text or symbols)

C 32
12" neodimium woofer, 3.0" v.c. 1.4" neodimium compression driver, 3.0" v.c. Directivity H 100° x V 50°

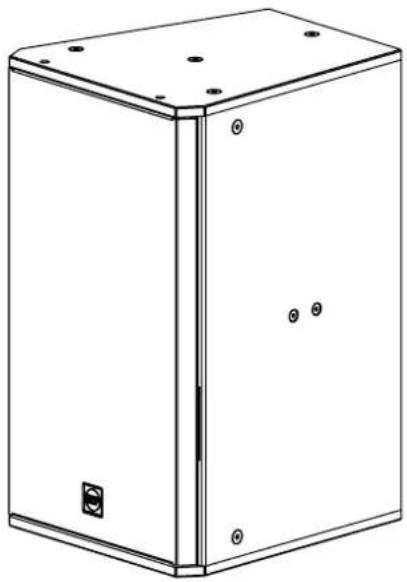

Line drawing of a rectangular metal enclosure with mounting holes and a small square base (no text or symbols)

C 45
15" neodimium woofer, 4.0" v.c. 1.4" neodimium compression driver, 4.0" v.c. Directivity H 100° x V 50°


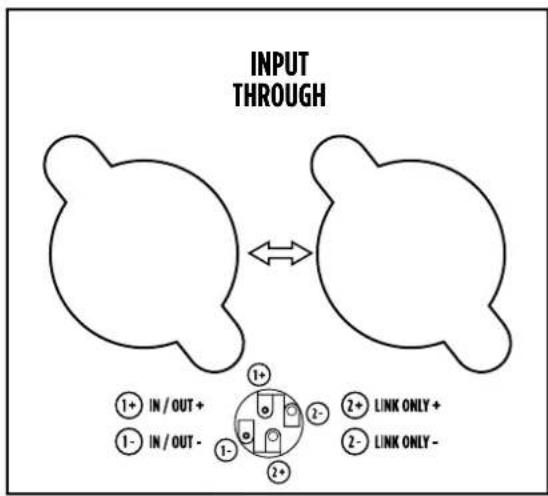

The rear panel displays 2 sockets, both for 'Neutrik Speakon NL4' (4-pole) plugs:

One of the two sockets receives the signal from the amplifier; the other one becomes the "THROUGH" socket and be used to link another speaker.

The impedance value of each loudspeaker is 8 Ω.

WARNING! CAUTION! Loudspeaker connections should be only made by qualified and experienced personnel

having the technical know-how or enough specific instructions (to ensure that connections are made correctly) in order to prevent any electrical danger.

To prevent any risk of electric shock, do not connect loudspeakers when the amplifier is switched on.

Before turning the system on, check all connections and make sure there are no accidental short circuits.

The entire sound system shall be designed and installed in compliance with the current local laws and regulations regarding electrical systems.

The entire sound system shall be designed and installed in compliance with the current local laws and regulations regarding electrical systems.

WARNING! CAUTION! Loudspeakers are to be install by qualified personnel, respecting all safety standards.

Loudspeakers are to be installed securely.

Make sure the support structure (walls / ceilings) has the necessary mechanical characteristics for the loudspeaker weight, without the risk of a fall that could damage things or cause an injury.

Use attachments elements suitable for walls / ceilings (e.g. wall plugs for bricks, for concrete, etc.).

4. CONFIGURATIONS

Both Compact C32 and C 45 can be used either in vertical or horizontal configuration. When used in horizontal configuration, the horn needs to be rotated 90°.

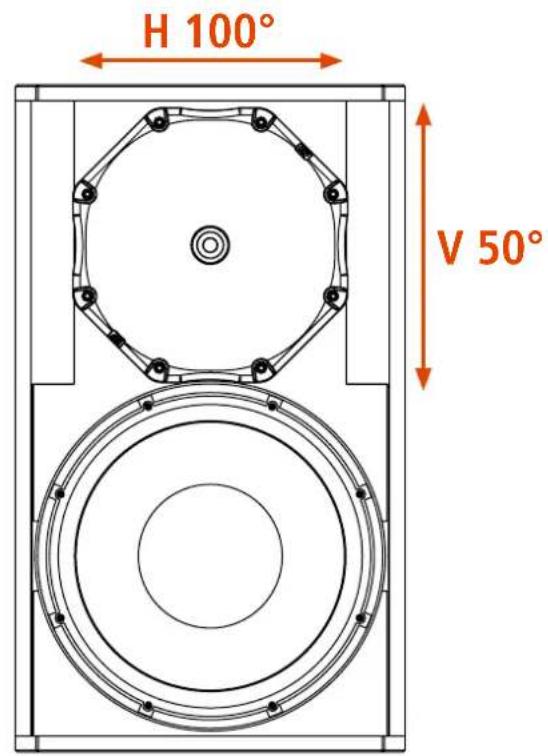

VERTICAL CONFIGURATION

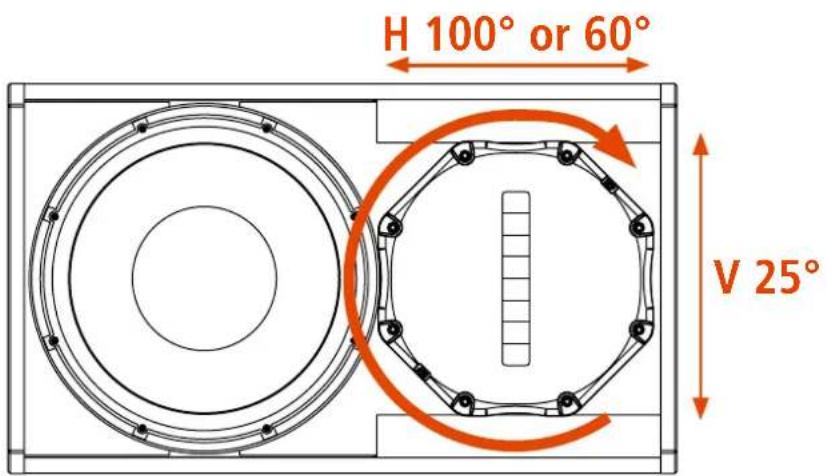

HORIZONTAL CONFIGURATION (horn rotated)

4. CONFIGURATIONS

HORN ROTATION

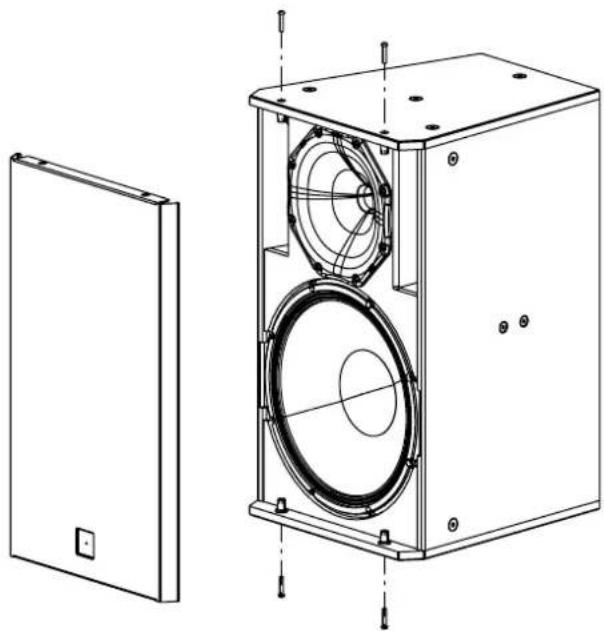

1. Remove the 4 screws from the top and bottom panel and remove the front grille

Technical line drawing of a mechanical device with two views: front view and side view (no text or symbols)

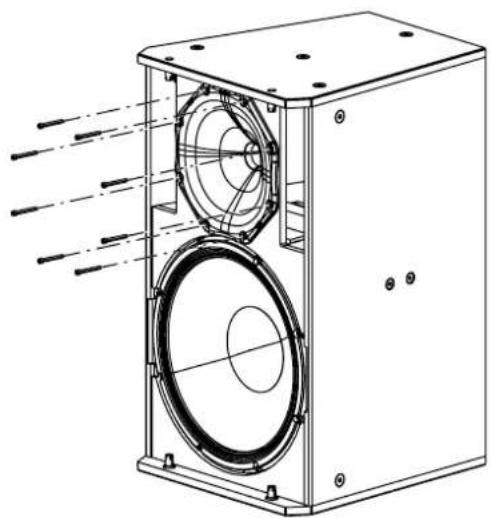

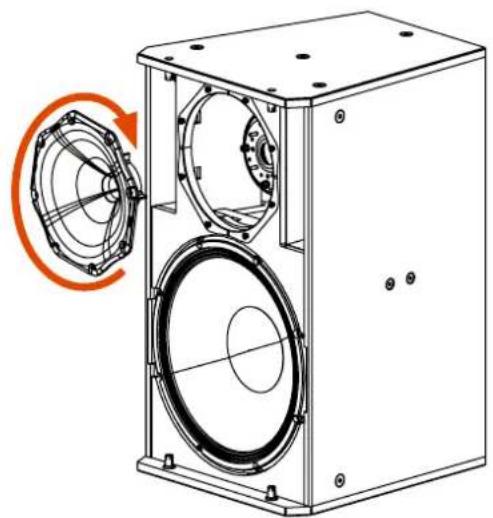

1. Remove the 8 screws from the horn and rotate it 90^

Technical line drawing of a mechanical device with fan and housing, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical device with two circular components and an orange circular component, no text or symbols present.

1. Screw back the horn and the grille. The speaker can now be used horizontally.

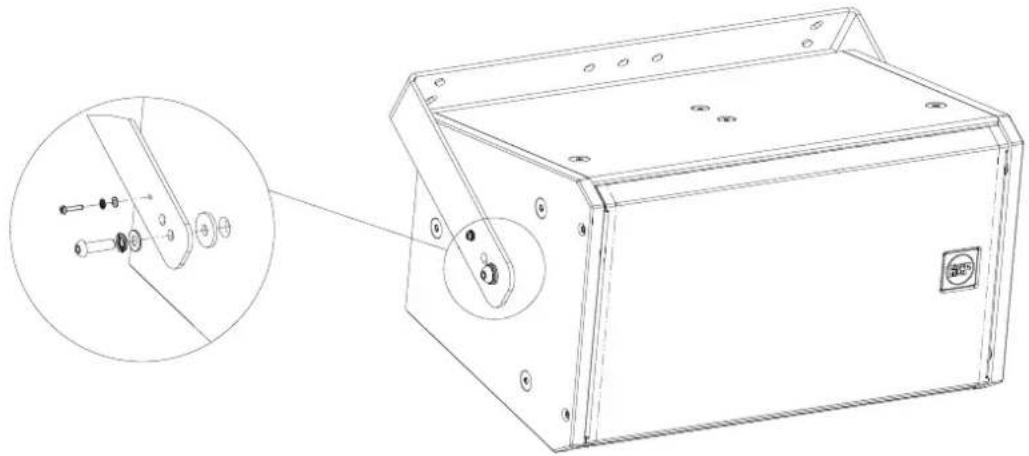

5. HORIZONTAL MOUNTING WITH U BRACKET

Accessories needed:

• H-BR 2X COMPACT M 12 (for COMPACT C 32);

• H-BR 2X COMPACT C 45 (for COMPACT C45);

• Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus a central one (max. M10).

• Mount the U bracket to the loudspeaker by tightening the two M10x35 bolts into the holes of the loudspeaker top and bottom, as shown in the figure below.

Technical line drawing of a mechanical enclosure with internal components and a magnified inset showing a pin alignment detail (no text or symbols present)

Alternatively, it's possible to install the speaker in a less protruding way by using the other two inner holes on the U bracket. Before tightening the two M10 bolts, adjust the loudspeaker vertical tilt and then (when you found the right angle) fix it through two M4.2x22 self-threading screws (passing through the small hole of the U bracket) directly into the loudspeaker cabinet wood.

NOTE: instead of simple M10 bolts, it is possible to use the M10 bolt included knobs.

CAUTION: do not tilt the loudspeaker upwards.

6. VERTICAL MOUNTING WITH U BRACKET

Accessories needed:

• V-BR 2X COMPACT M 12 (for COMPACT C 32);
• V-BR 2X COMPACT C 45 (for COMPACT C 45);

Fix the U bracket to the wall / ceiling through at least 4 lateral wall plugs (max. M8) plus a central one (max. M10).

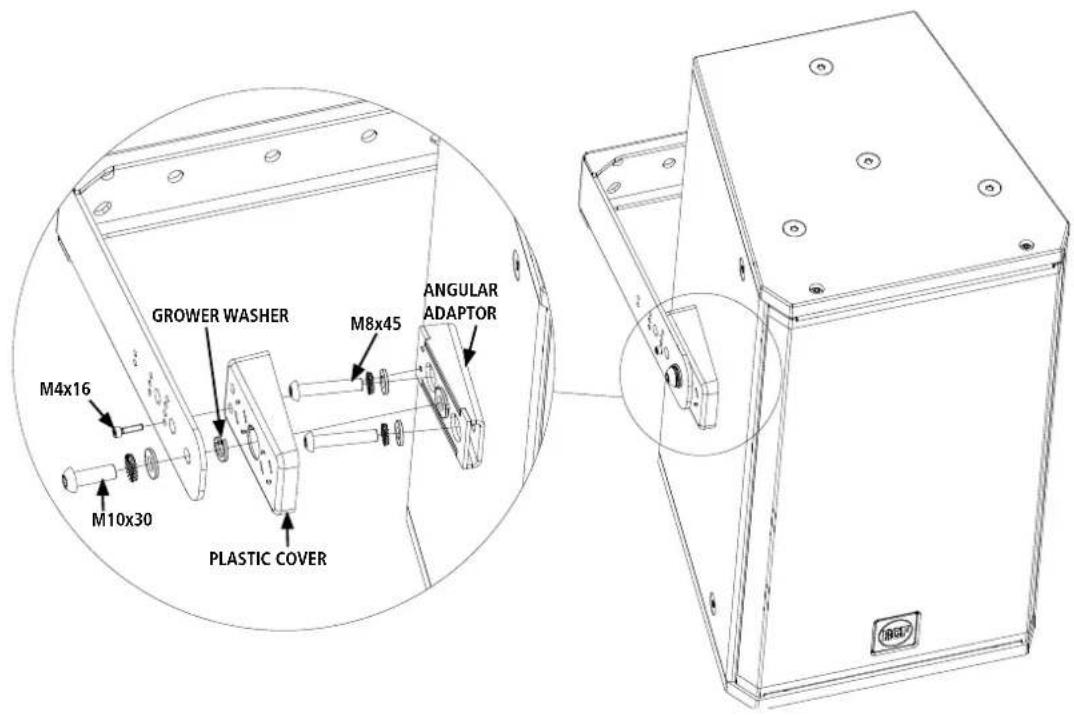

1. After removing the screws on the speaker sides, fix the angular adaptor on the speaker with the M8x45 screws.
2. Place the plastic cover on the angular adaptor.
3. Fix the braket to the speaker with the M10x30 screws placing a grower washer between the bracket and the plastic cover.

Set the speaker vertical tilt and fix the inclination by screwing the two M6 screws on the adaptor.

NOTE: alternatively, a less protruding installation is possible thanks to the inner holes of the U bracket.

CAUTION: do not tilt the loudspeaker upwards.

With the use of the accessory HN-KIT COMPACT C 32 C 45, it is possible to replace the speaker horn with two different horns and change directivity to 100^ × 25^ or 60^ × 25^ .

Pure geometric diagram of a circular frame with internal vertical lines and corner connectors (no text or symbols)

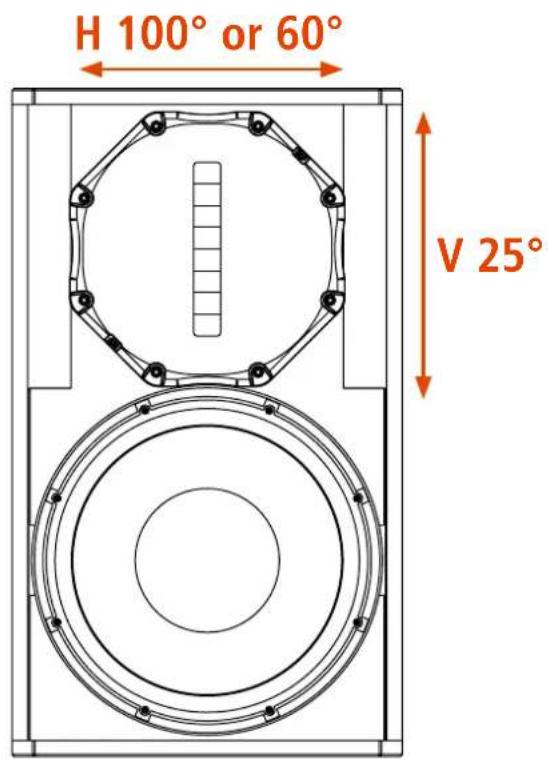

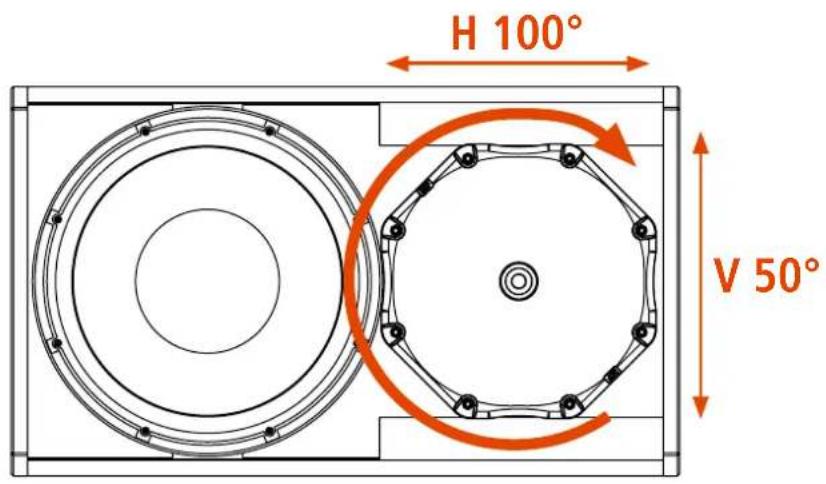

Whether the speaker is used vertically or horizontally the waveguide must always be mounted as shown on the picture on the side.

VERTICAL CONFIGURATION

HORIZONTAL CONFIGURATION (horn rotated)

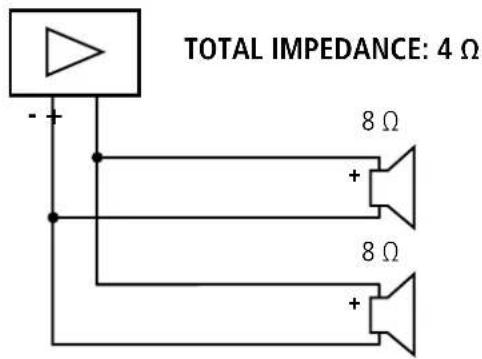

WARNING! CAUTION!

• The total loudspeaker impedance must not be lower than the amplifier output impedance. Note: a loudspeaker total impedance equal to the amplifier output one permits to get the maximum deliverable power (but an higher loudspeaker impedance entails less power).
• The total loudspeaker power shall be adequate for the maximum deliverable power of the amplifier.
• The loudspeaker line shall be short (for long distances, it may be necessary to use cables with large cross-section wires).
• Always use cables having wires with an adequate cross-section, considering the cable length and the total loudspeaker power.
• Loudspeaker lines must be kept separated from the mains cables, microphone cables or others, in order to avoid inductive phenomena may cause hum or noises.
• Use loudspeaker cables with twisted wires to reduce hum caused by inductive effects due to coupling with electromagnetic fields.
• Do NOT connect the low impedance input directly to 70 / 100 V constant voltage lines.

1. AVVERTENZE PER LA SICUREZZA E INFORMAZIONI GENERALI

Line drawing of a rectangular metal enclosure with mounting holes and a small circular component on the side (no text or symbols)

C 32

Line drawing of a rectangular metal enclosure with mounting holes and a small square base (no text or symbols)

C 45

Woofer in neodimio da 15", con bobina da 4.0"

Technical line drawing of a mechanical device with two views: front view and side view (no text or symbols)

Technical line drawing of a mechanical device with fan and housing, showing airflow direction (no text or symbols)

Technical line drawing of a mechanical device with two circular components and an orange rotation arrow (no text or symbols)

Technical line drawing of a mechanical enclosure with internal components and a magnified inset showing a pin alignment detail (no text or symbols present)

Pure geometric diagram of a circular frame with internal vertical lines and corner markers (no text or symbols)

		COMPACT C 32 COMPACT C 45
Acoustical specifications	Frequency Response (-10dB):	54 Hz ÷ 20000 Hz	48 Hz ÷ 20000 Hz
	Max SPL @ 1m:	137 dB	138 dB
	Horizontal coverage angle:	100°	100°
	Vertical coverage angle:	50°	50°
	Directivity index Q:	10	10
	System Sensitivity:	97 dB	98 dB
Power section	Amplification:	Full Range	Full Range
	Nominal Impedance:	8 ohm	8 ohm
	Power Handling:	600 W RMS	700 W RMS
	Peak Power Handling:	2400 W PEAK	2800 W PEAK
	Recommended Amplifier:	1200 W	1400 W
	Protections:	Dynamic Active Mosfet	Dynamic Active Mosfet
	Crossover Frequencies:	1100 Hz	1100 Hz
Transducers	Compression Driver:	1 x 1.4" neo, 3.0" v.c	1 x 1.4" neo, 4.0" v.c
	Woofer:	12" neo, 3.5" v.c	15" neo, 4.0" v.c
Input/Output section	Input connectors:	Speakon	Speakon
	Output connectors:	Speakon	Speakon
Standard compliance	CE marking:	Yes	Yes
Physical specifications	Cabinet/Case Material:	Birch plywood	Birch plywood

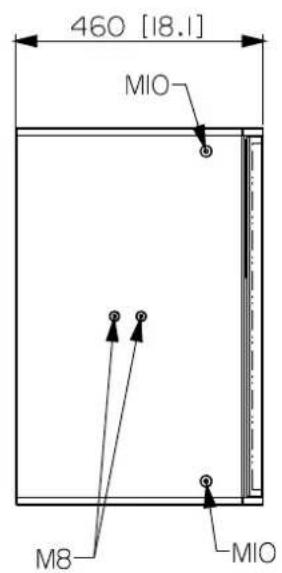

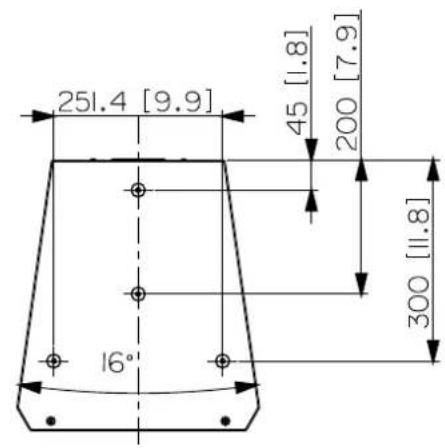

	Hardware:	4 x M8, 14 x M10	4 x M8, 14 x M10
	Grille:	Steel with clothing	Steel with clothing
	Color:	Black	Black
Size	Height:	620 mm / 24.41 inches	705 mm / 27.76 inches

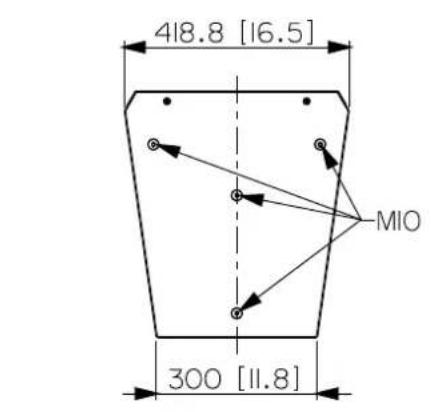

	Width:	361.8 mm / 14.24 inches	418.8 mm / 16.49 inches
	Depth:	404 mm / 15.91 inches	460 mm / 18.11 inches
	Weight:	23.5 kg / 51.81 lbs	32.5 kg / 71.65 lbs
