Brand	Planar
Model	Simplicity SL6551
Product Type	Professional Flat Panel Display
Screen Size	65 inches (163.9 cm) diagonal
Native Resolution	3840 x 2160 pixels (4K UHD)
Dimensions (without stand)	1460 x 840 x 80 mm
Weight (without stand)	25 kg
Power Supply	100-240 V AC, 50/60 Hz, 150 W (max)
Standby Power Consumption	Less than 0.5 W
Connectivity	HDMI (x2), DisplayPort, VGA, USB 2.0 (x2), 3.5 mm jack
Main Features	4K display, HDCP 2.2 compatibility, built-in speakers (2 x 10 W), VESA 400 x 400 mm wall mount
Care and Cleaning	Clean with a soft, dry cloth. Do not use abrasive products or liquids directly on the screen.
Safety	Use a wall mount suitable for the weight. Do not block ventilation openings.
Spare Parts and Repairability	Contact Planar customer service for spare parts. Repairability index: 7.5/10.
General Information	Warranty: 2 years. Operating temperature: 0°C to 40°C. Humidity: 20% to 80%.

Frequently Asked Questions - Simplicity SL6551 Planar

How to connect a computer to the Planar Simplicity SL6551 display?

Use an HDMI or DisplayPort cable for a digital connection. Plug one end into the computer and the other into the corresponding input on the display. Select the appropriate source via the OSD menu.

What is the maximum resolution supported by the display?

The display supports a native resolution of 3840 x 2160 pixels (4K UHD) at a refresh rate of 60 Hz.

Can I wall-mount the display?

Yes, the display is compatible with VESA 400 x 400 mm wall mounts. Ensure the mount can support a weight of at least 25 kg.

How to clean the display without damaging it?

Use a soft, dry cloth (microfiber). For stubborn stains, lightly dampen the cloth with distilled water. Never use chemical products or sprays directly on the screen.

Does the display have built-in speakers?

Yes, it is equipped with two built-in speakers of 10 W each. You can also connect external speakers via the 3.5 mm jack.

What to do if the display does not turn on?

Check that the power cord is properly connected and that the electrical outlet works. Make sure the power switch on the back of the display is in the ON position. Test with another outlet if necessary.

How to change the input source?

Press the Source button on the remote control or control panel to cycle through available inputs (HDMI1, HDMI2, DisplayPort, VGA, USB). Confirm with the OK button.

Is the display compatible with HDCP 2.2?

Yes, the display supports HDCP 2.2, required for playing protected 4K content (Netflix, Blu-ray, etc.).

Can I use the display as a PC monitor?

Absolutely. Connect it to your PC via HDMI or DisplayPort. It is also compatible with Plug and Play (no driver needed).

Where to find the complete user manual?

The manual is available for free download in PDF format on notice-facile.com. You can also request a translated version by email.

USER MANUAL Simplicity SL6551 Planar

Planar Simplicity Series

USER'S GUIDE

www.planar.com

Safety Instructions

Warnings and Precautions

KNOW THESE SAFETY SYMBOLS

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This symbol indicates high voltage is present inside. It is dangerous to make any kind of contact with any inside part of this product.

This symbol alerts you that important literature concerning operation and maintenance has been included with this product.

CAUTION: FCC/CSA regulations state that any unauthorized changes or modifications to this equipment may void the user's authority to operate it.

CAUTION: To prevent electric shock, match the wide blade of plug to the wide slot, and fully insert the plug.

TO PREVENT DAMAGE WHICH MAY RESULT IN FIRE OR ELECTRIC SHOCK HAZARD, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

The Socket-outlet should be installed near the apparatus and be easily accessible.

Read and follow these instructions when connecting and using your Public Information Display:

• Unplug the display if you are not going to use it for an extensive period of time.
• Unplug the display if you need to clean it with a slightly damp cloth. The screen many be wiped with a dry cloth when the power is off. However, never use alcohol, solvents or ammonia-based liquids.
• Consult a service technician if the display does not operate normally when you have followed the instructions in this manual.
• The casing cover should be opened only by qualified service personnel.
• Keep the display out of direct sunlight and away from stoves or any other heat sources.
• Remove any object that could fall into the vents or prevent proper cooling of the display's electronics.
• Do not block the ventilation holes on the cabinet.
• Keep the display dry. To avoid electric shock, do not expose it to rain or excessive moisture.
• If turning off the display by detaching the power cable, wait for 6 seconds before re-attaching the power cable for normal operation.
• To avoid the risk of shock or permanent damage to the set do not expose the display to rain or excessive moisture.
• When positioning the display, make sure the power plug and outlet are easily accessible.
• IMPORTANT: Always activate a screen saver program during your application. If a still image in high contrast remains on the screen for an extended period of time, it may leave an 'after-image' or 'ghost image' on the front of the screen. This is a well-known phenomenon that is caused by the shortcomings inherent in LCD technology. In most cases the after-image will disappear gradually over a period of time after the power has been switched off. Be aware that the after-image symptom cannot be repaired and is not covered under warranty.

Important Safety Instructions

1. Read these instructions.
   2 Keep these instructions.
2. Heed all warnings.
3. Follow all instructions.
4. Do not use this apparatus near water.
5. Do not use over 16 hours per day.
6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer's instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

1. Unplug this apparatus during lightning storms or when unused for long periods of time.

2. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

WARNING: Apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases, shall be placed on the apparatus.

WARNING: The batteries (batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

WARNING: The mains plug or appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

WARNING: To prevent the spread of fire, keep candles or other open flames away from this product at all times.

WARNING: To prevent injury, this apparatus must be securely attached to the floor/wall in accordance with the installation instructions.

WARNING: This equipment is compliant with Class A of EN55032/CISPR. In a residential environment this equipment may cause radio interference.

WARNING: This is a class A product. In a domestic environment this product may cause radio interference in which case the user may be required to take adequate measures..

CAUTION: These servicing instructions are for use by qualified service personnel only. To reduce the risk of electric shock, do not perform any servicing other than that contained in the operating instructions unless you are qualified to do so.

CAUTION: Excessive sound pressure from earphones and headphones can cause hearing loss. Adjustment of the equalizer to maximum increases the earphone and headphone output voltage and the sound pressure level. Therefore, to protect your hearing, adjust the equalizer to an appropriate level.

NOTE: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at his own expense.

RISQUE D'ÉLECTROCUTION NE PAS OUVRIR

ATTENTION : POUR RÉDUIRE LE RISQUE DE CHOC ELECTRIQUE, NE PAS ENLEVER LE COUVERCLE (OU LE CAPOT ARRIÈRE). AUCUNE PIECE UTILISABLE NE SE TROUVE A L'INTERIEUR. CONTACTER UN TECHNICIEN QUALIFIE POUR LES REPARATIONS.

ATTENTION : POUR RÉDUIRE LE RISQUE DE CHOC ELECTRIQUE, NE PAS ENLEVER LE COUVERCLE (OU LE CAPOT ARRIÈRE). AUCUNE PIECE UTILISABLE NE SE TROUVE A L'INTERIEUR. CONTACTER UN TECHNICIEN QUALIFIE POUR LES REPARATIONS.

Please recycle or dispose of all electronic waste in accordance with local, state, and federal laws. Additional resources can be found online at http://www.planar.com/about/green/.

The crossed-out wheelie bin symbol is to notify consumers in areas subject to Waste Electrical and Electronic Equipment (WEEE) Directive 2012/19/EU that the product was placed on the market after August 13, 2005 and must not be disposed of with other waste. Separate collection and recycling of electronic waste at the time of disposal ensures that it is recycled in a manner that minimizes impacts to human health and the environment. For more information about the proper disposal of electronic waste, please contact your local authority, your household waste disposal service, or the seller from whom you purchased the product.

Table Of Contents

1. Unpacking and Installation ....1

1.1. Unpacking....1
1.2. Package Contents....1
1.3. Installation Notes....1
1.4. Mounting on a Wall....2
1.5. IR Remote Sensor and Power Status Indicator......3
1.6. Mounting in Portrait Position ....3

2. Parts and Functions ....4

2.1. Control Panel....4
2.2. Input/Output Terminals....6

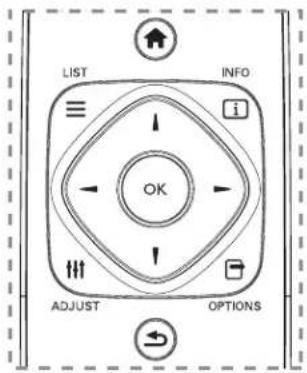

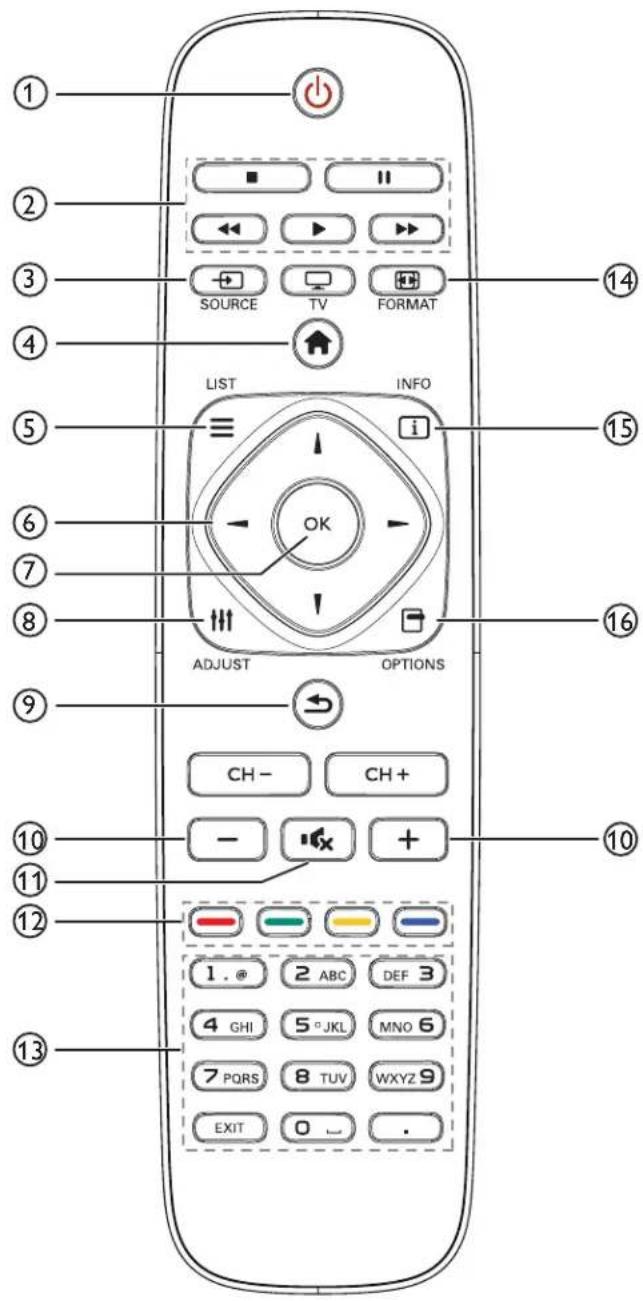

2.3. Remote Control....8
2.3.1. General functions....8
2.3.2. Inserting the batteries in the remote control....9
2.3.3. Handling the remote control....9

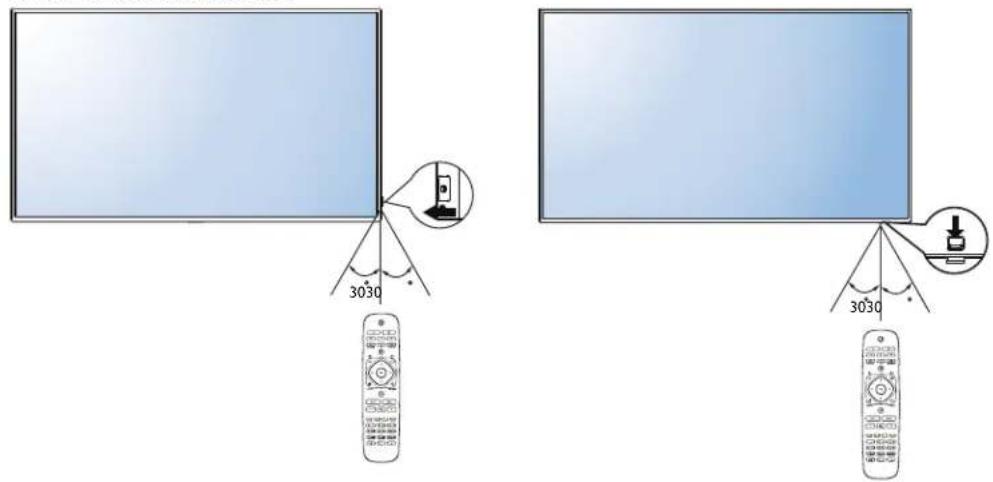

2.3.4. Operating range of the remote control.....9

3. Connecting External Equipment....10

3.1. Connecting External Equipment (DVD/VCR/VCD) 10

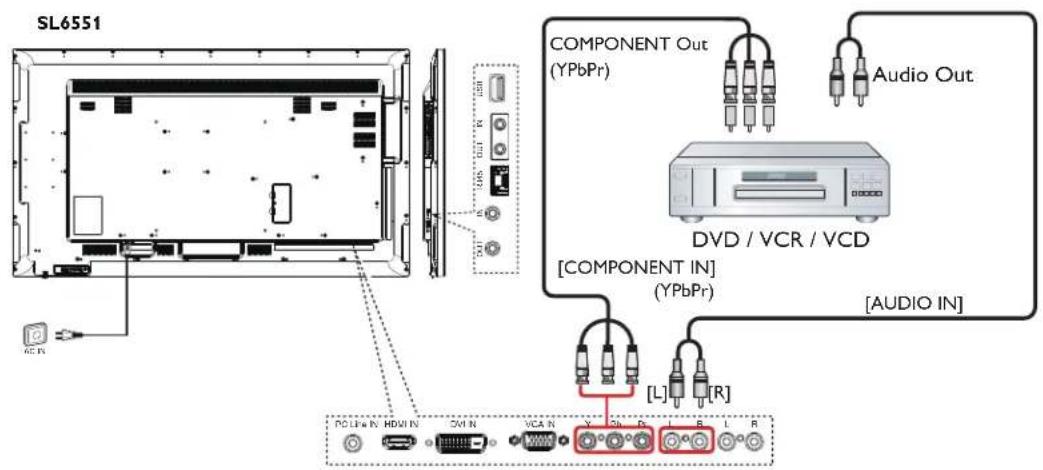

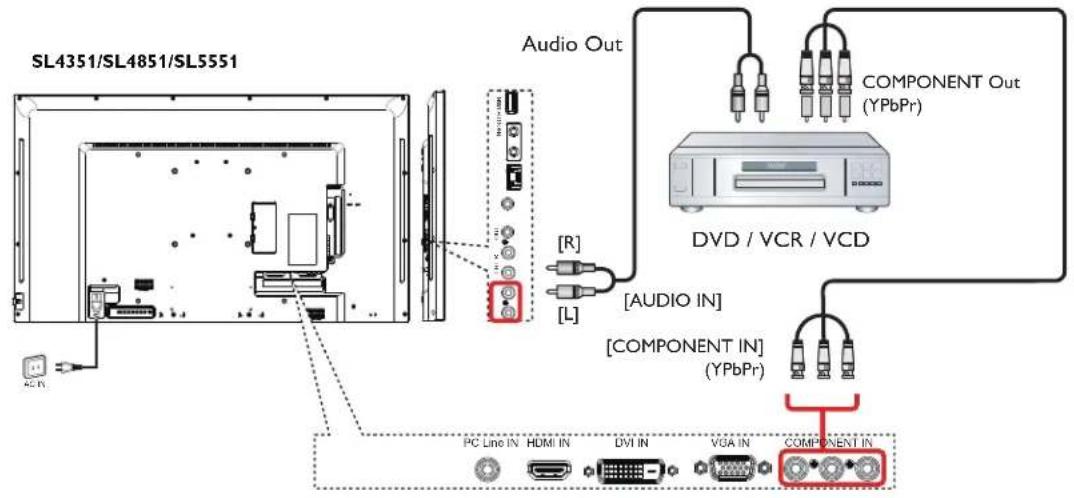

3.1.1. Using COMPONENT video input.....10

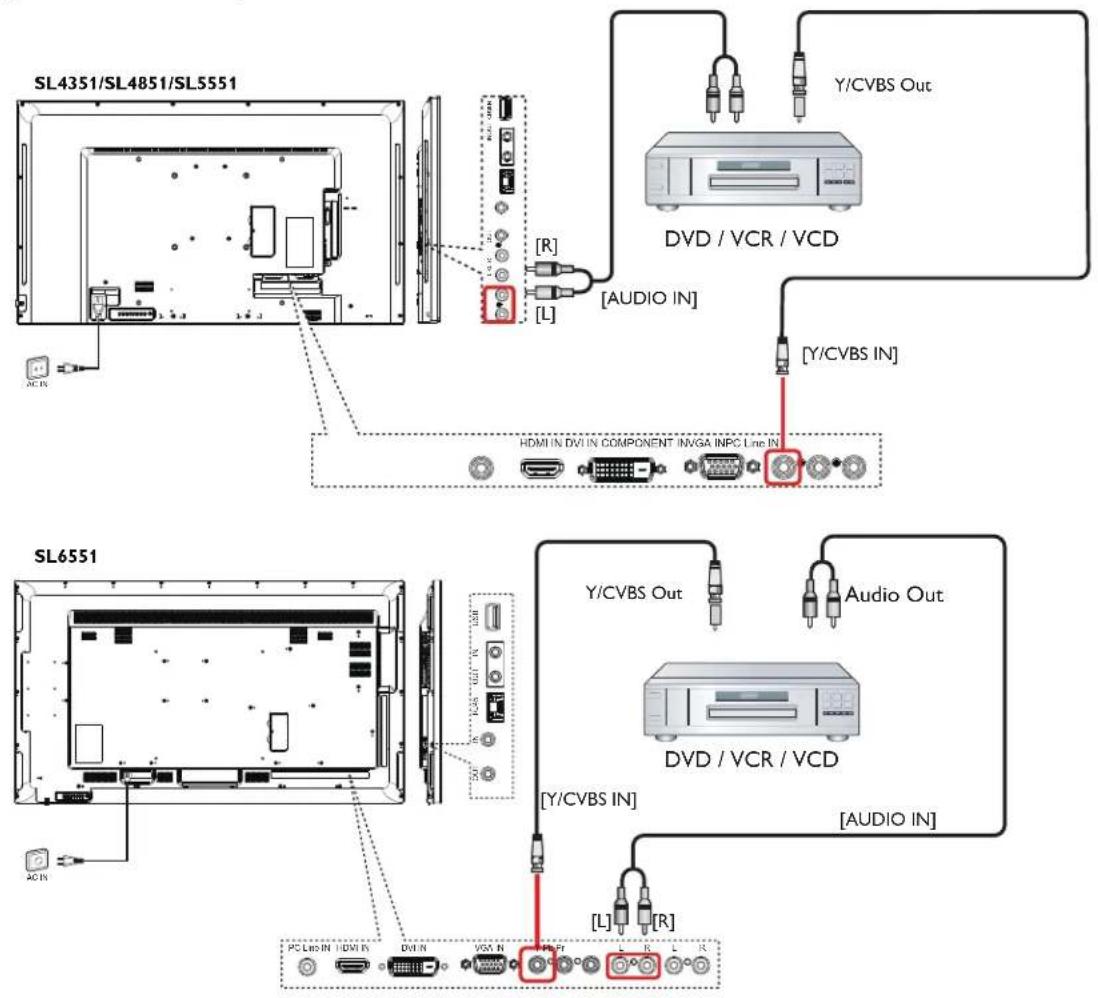

3.1.2. Using Video Source input....11

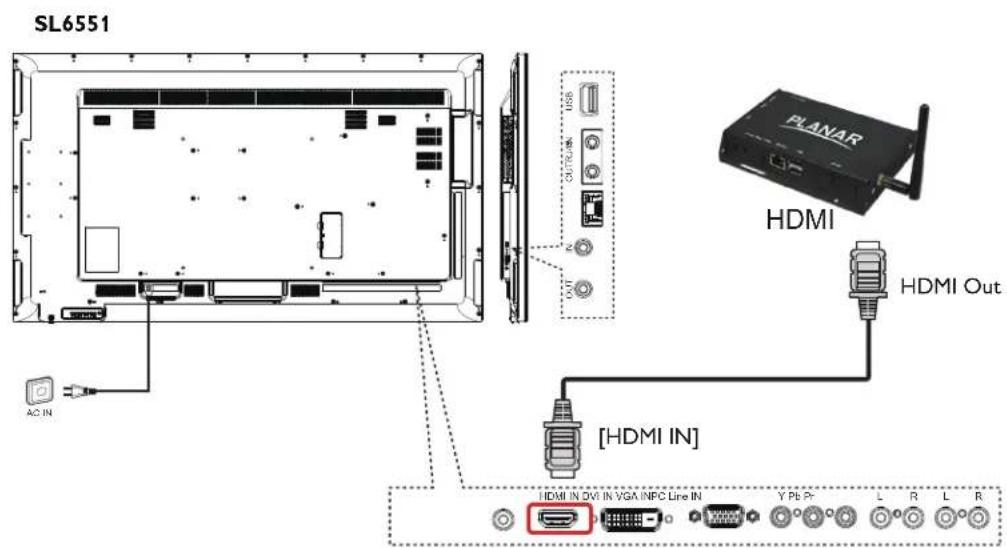

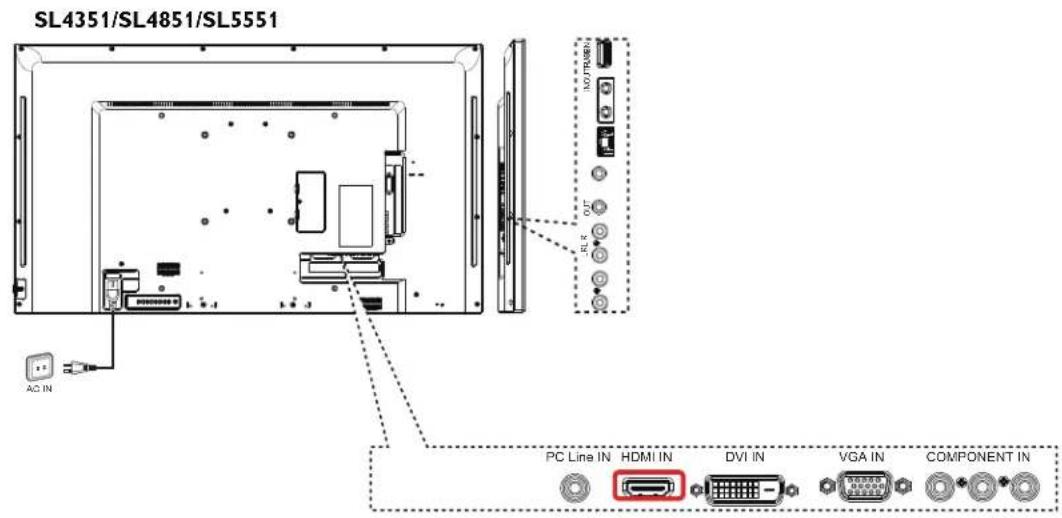

3.1.3. Using HDMI video input....12

3.2. Connecting a PC....13

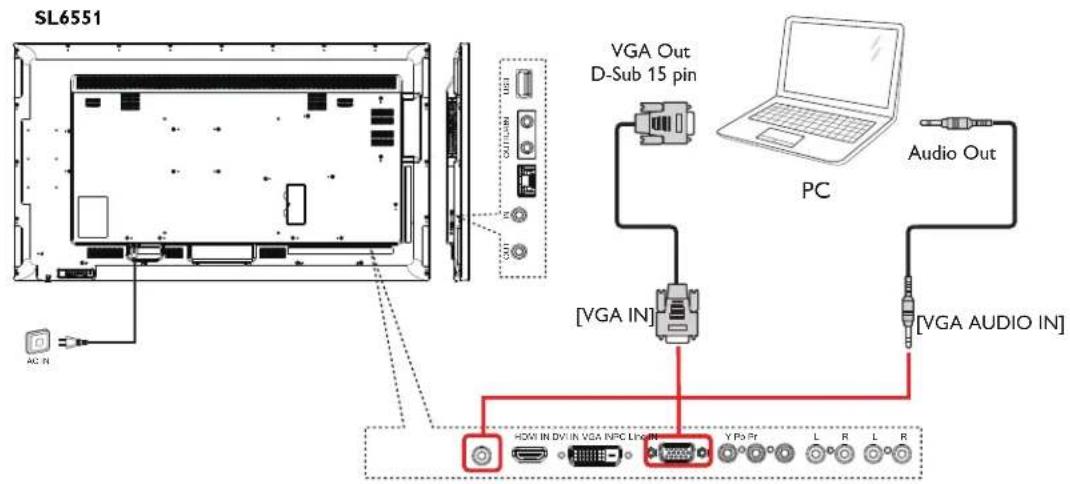

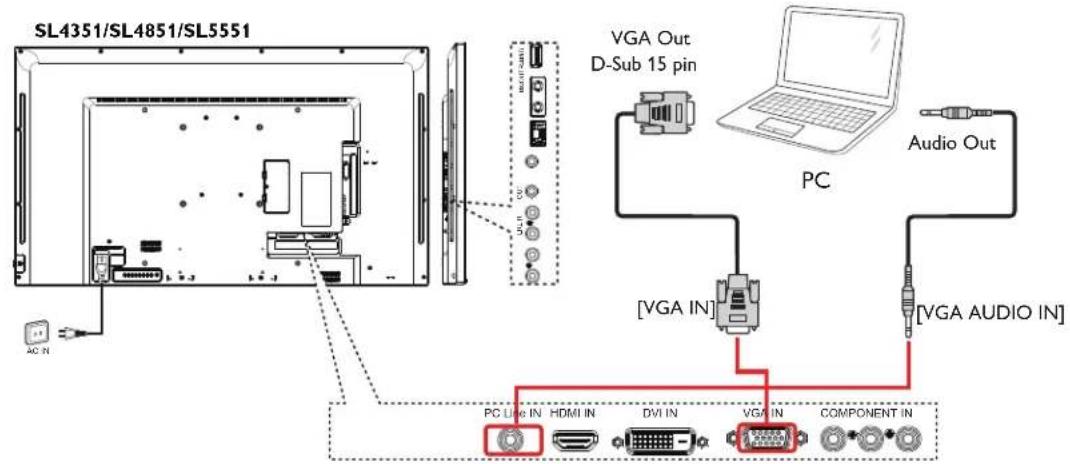

3.2.1. Using VGA input....13

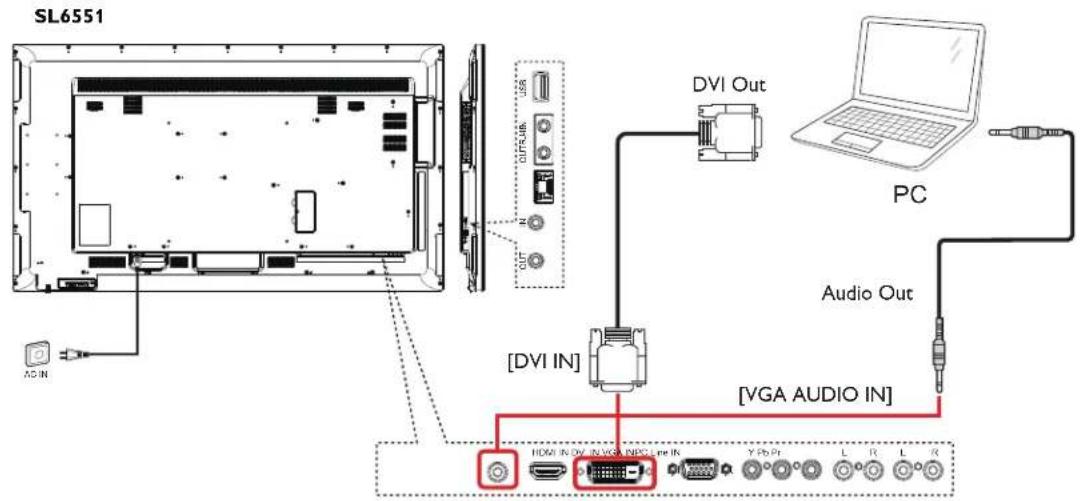

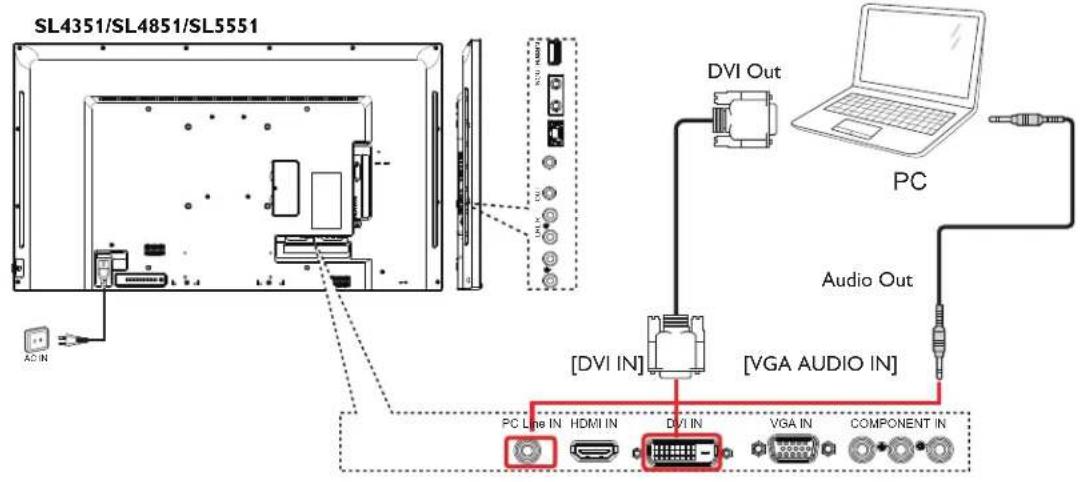

3.2.2. Using DVI input....14

3.3. Connecting Audio Equipment....15

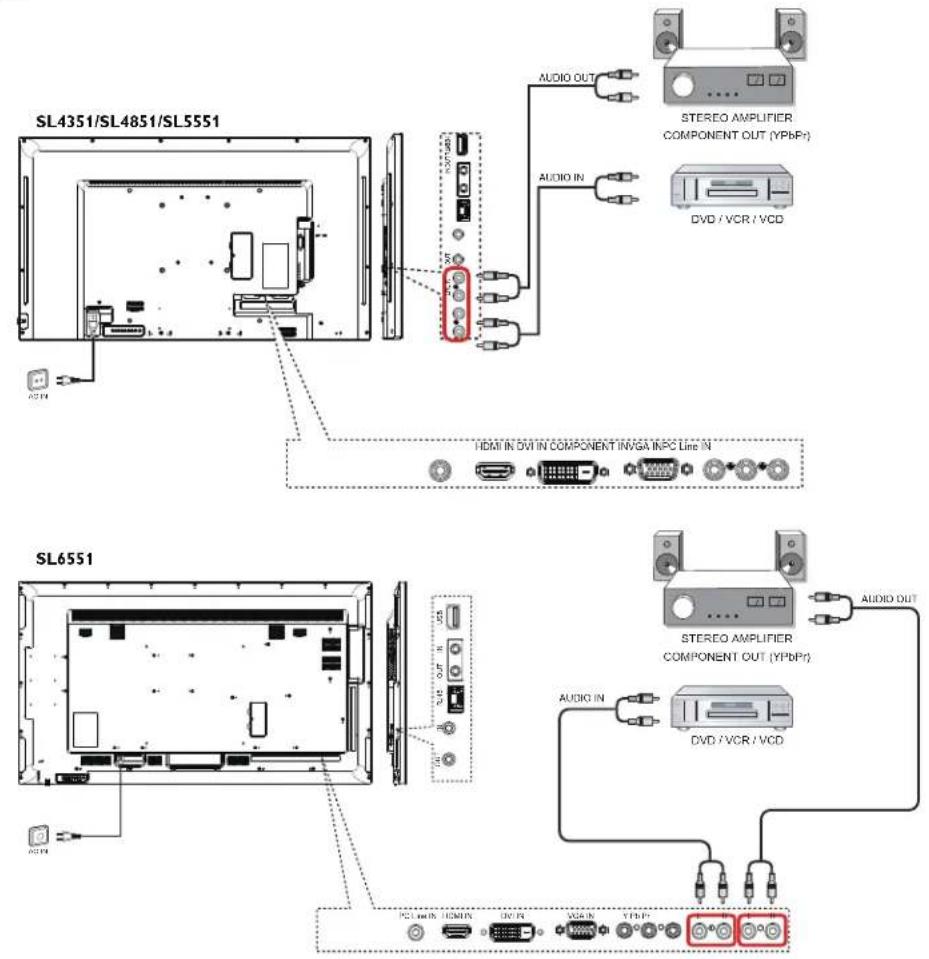

3.3.1. Connecting an external audio device.....15

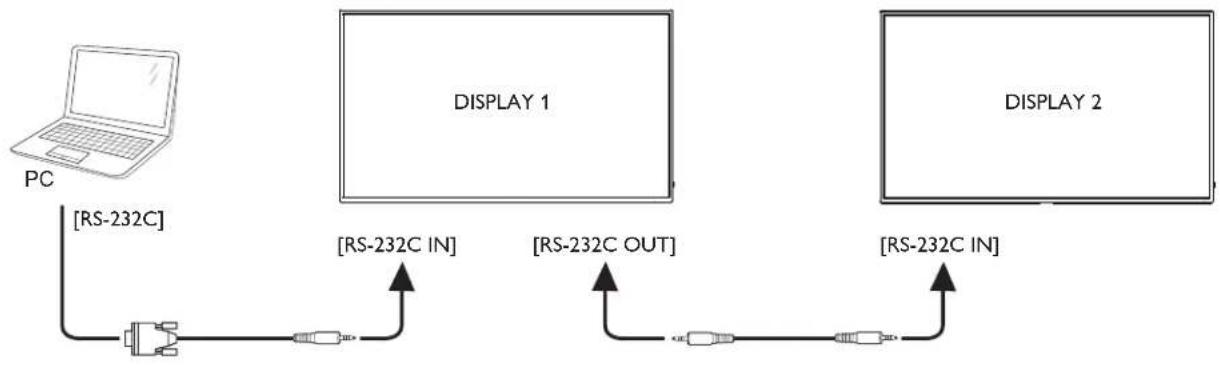

3.4. Display control connection....15

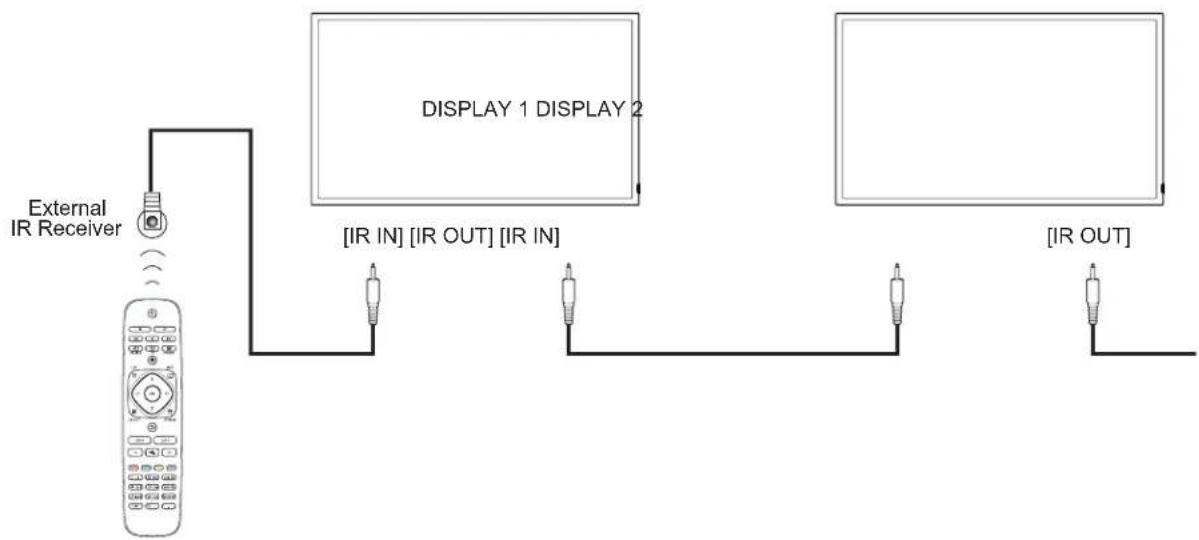

3.5. IR connection 16

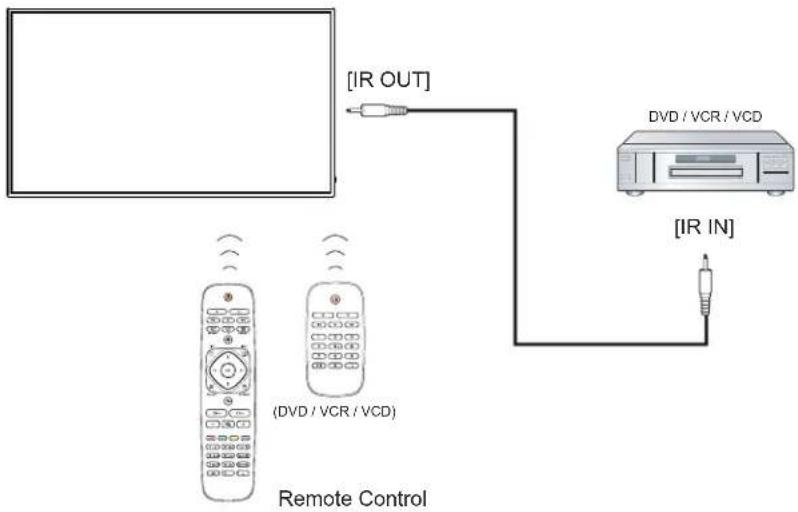

3.6. IR Pass-through Connection....16

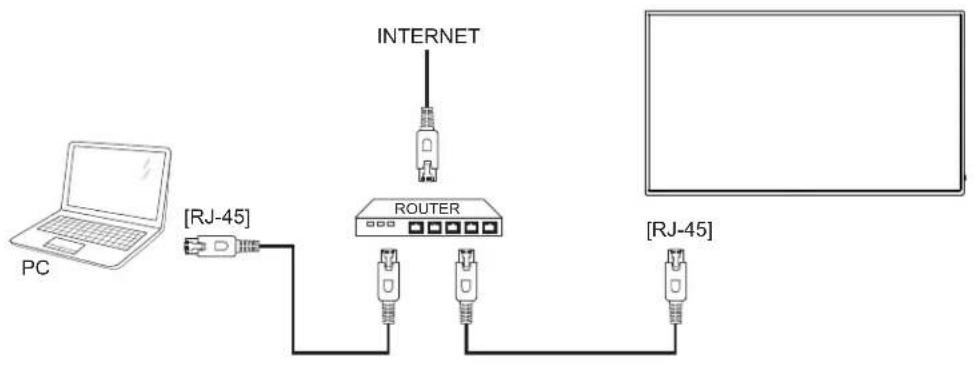

3.7. Connecting Display to the Network.....17

3.8. Connecting Display to a Wireless Device....17

4. Operation....18

4.1. Change Aspect Ratio 18
4.2. Play Multimedia Files....18

4.2.1. Play files from computer....18

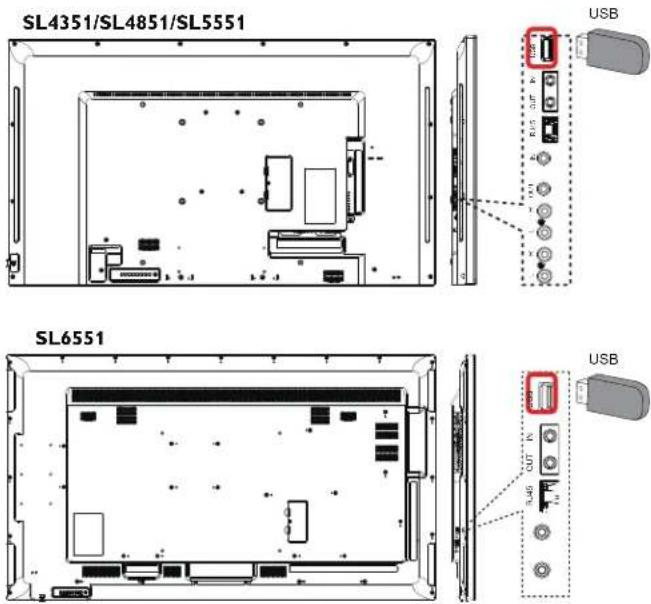

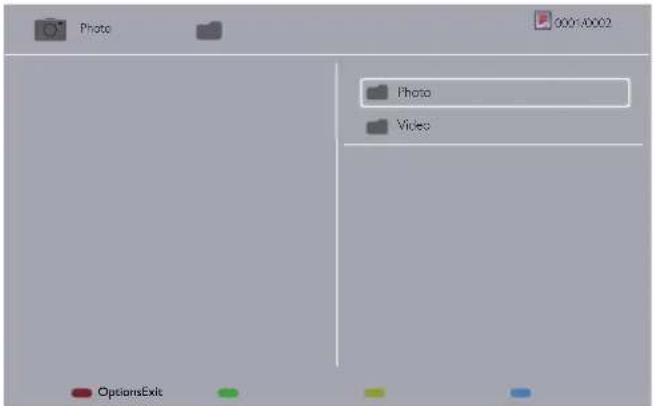

4.2.2. Play multimedia files from USB device.....18

4.3. Play options....19

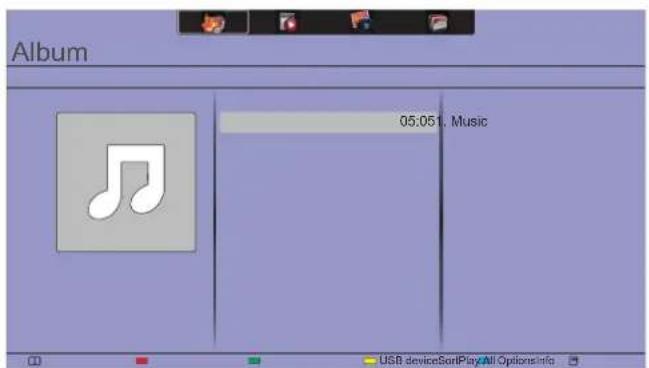

4.3.1. Playing music files....19

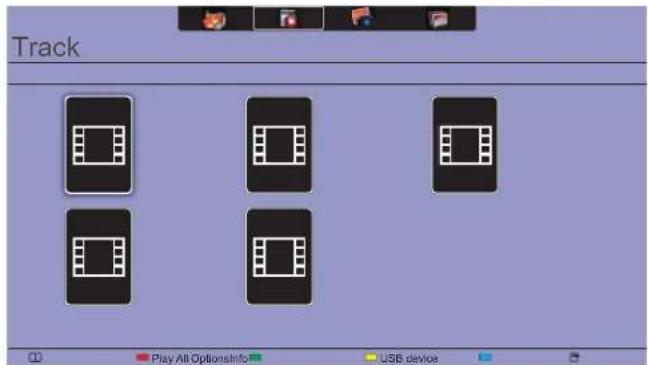

4.3.2. Playing movie files....19

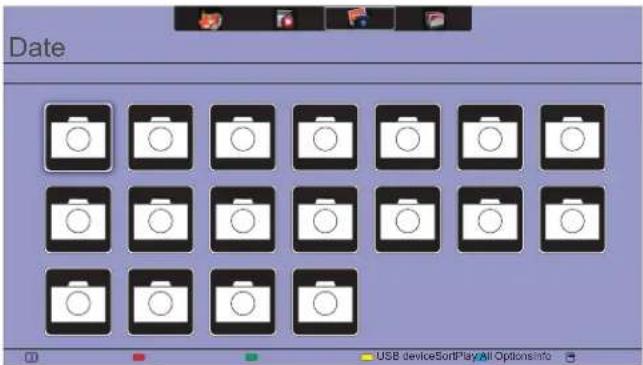

4.3.3. Playing photo files 20

5. Change your settings 21

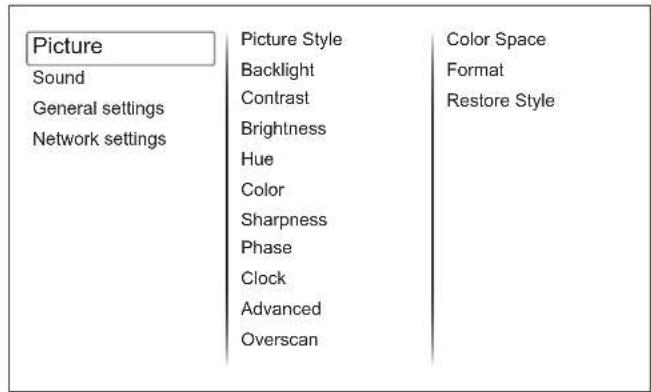

5.1. Settings....21
5.1.1. Picture menu....21
5.1.2. Sound menu....22
5.1.3. General settings menu....23
5.2. Network Settings....25

6. USB device compatibility....26

7. Input Mode....28

8. Cleaning and Troubleshooting....29

8.1. Cleaning 29
8.2. Troubleshooting....30

9. Technical Specifications 31

9.1. Planar Simplicity SL4351....31
9.2. Planar Simplicity SL4851....33
9.3. Planar Simplicity SL5551....35
9.4. Planar Simplicity SL6551....37

1. Unpacking and Installation

1.1. Unpacking

• This product is packed in a carton, together with the standard accessories.
- Any other optional accessories will be packed separately.
- Due to the size and weight of this display it is recommended for two people to move it.
• After opening the carton, ensure that the contents are complete and in good condition.

1.2. Package Contents

Please verify that you received the following items with your package content:

• LCD display
• Quick Start Guide
  • Remote control with AAA batteries
  • Power cord (1.8 m)
  • HDMI cable (1.8 m)
  • RS232 cable (1.8 m)
• Cable clamps (2)

Empty white rectangle with a thin gray border (no text or symbols)

Remote Control and AAA Batteries

Power Cord

RS232 Cable

HDMI Cable

Quick Start Guide

Cable Clamps (2)

NOTES:

• For all other regions, apply a power cord that conforms to the AC voltage of the power socket and has been approved by and complies with the safety regulations of the particular country.
• You might like to save the package box and packing material for shipping the display.

1.3. Installation Notes

• Due to the high power consumption, always use the plug exclusively designed for this product.
- The product should be installed on a flat surface to avoid tipping. The distance between the back of the product and the wall should be maintained for proper ventilation. Avoid installing the product in the kitchen, bathroom or any other places with high humidity so as not to shorten the service life of the electronic components.
• The product can normally operate only under 3000m in altitude. In installations at altitudes above 3000m, some abnormalities may be experienced.

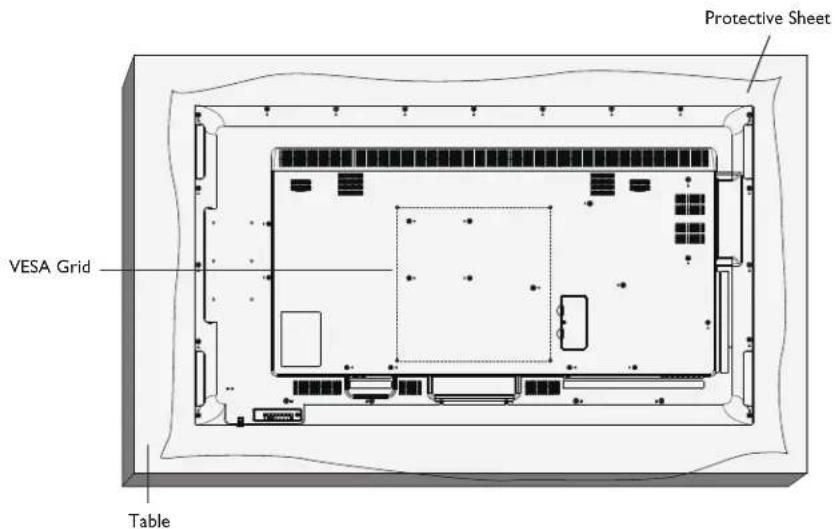

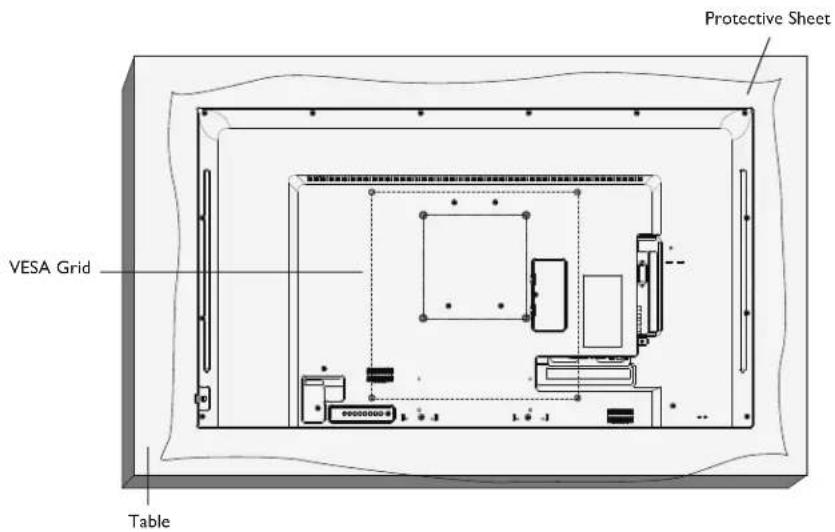

1.4. Mounting on a Wall

To mount this display to a wall, you will have to obtain a standard wall-mounting kit (commercially available). We recommend using a mounting interface that complies with TUV-GS and/or UL1678 standard in North America.

Planar SL4351/SL4851/SL5551

Protective Sheet VESA Grid Table

Planar SL6551

Protective Sheet VESA Grid Table

1. Lay a protective sheet on a table, which was wrapped around the display when it was packaged, beneath the screen surface so as not to scratch the screen face.
2. Ensure you have all accessories for mounting this display (wall mount, ceiling mount, table stand, etc).
3. Follow the instructions that come with the base mounting kit. Failure to follow correct mounting procedures could result in damage to the equipment or injury to the user or installer. Product warranty does not cover damage caused by improper installation.
4. For the wall-mounting kit, use M6 mounting screws (having a length 10 mm longer than the thickness of the mounting bracket) and tighten them securely.

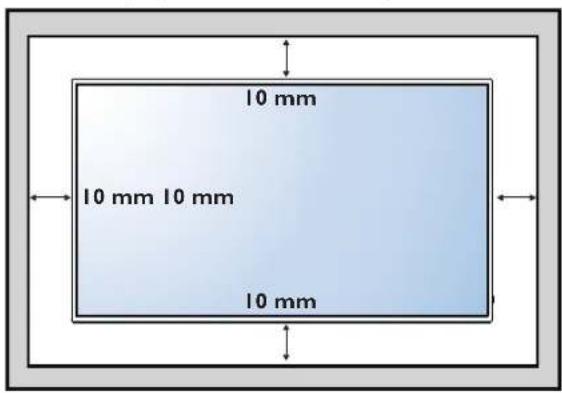

Ventilation requirements for enclosure

To allow heat to disperse, leave space between surrounding objects as shown in the diagram below.

10 mm 10 mm 10 mm 10 mm

1.5. IR Remote Sensor and Power Status Indicator

1. For optimal IR remote control performance, pull out the retractable lens from the backside of the display. The LED power status light is also best viewed when the lens is pulled out.
2. You will hear a click when the lens is fully in position.

SL4351/SL4851/SL5551SL6551SL4351/SL4851/SL5551SL6551

Diagram showing two mechanical or electrical component configurations with arrows indicating direction (no text or symbols)

Push in to collapse the lens

Technical diagram showing a door mechanism with an arrow indicating left motion and a close-up of the door assembly with a downward arrow.

Push out to extend the lens

1.6. Mounting in Portrait Position

This display can be installed in portrait position. Rotate 90 degrees clockwise from the back side of the display. The terminals will be on the left and bottom sides of the user from the back of the display.

2. Parts and Functions

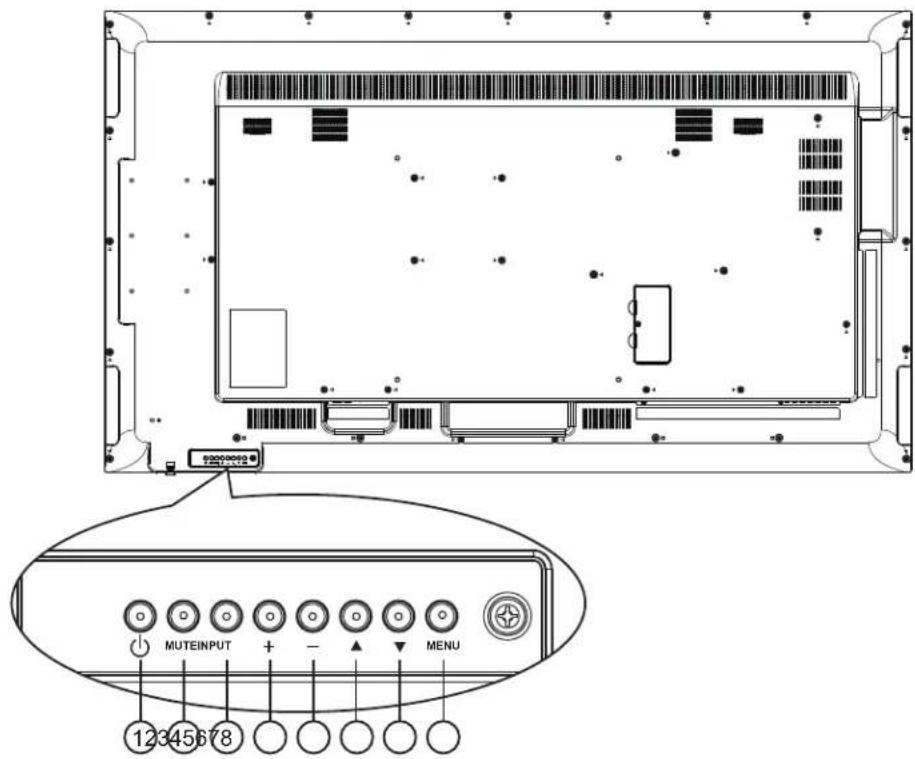

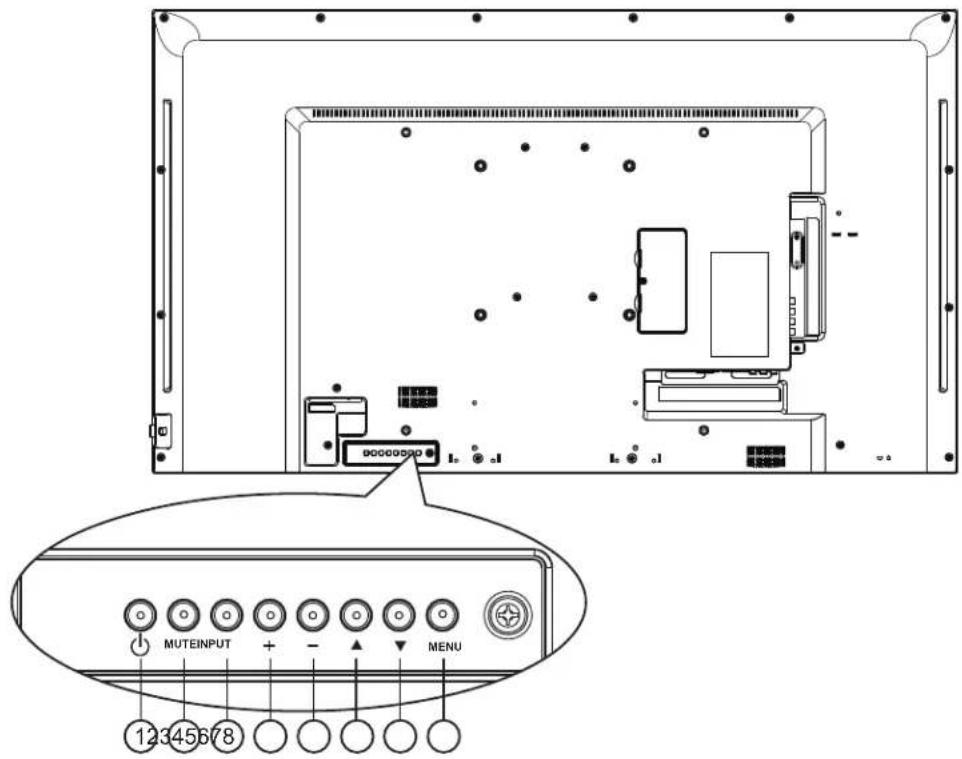

2.1. Control Panel

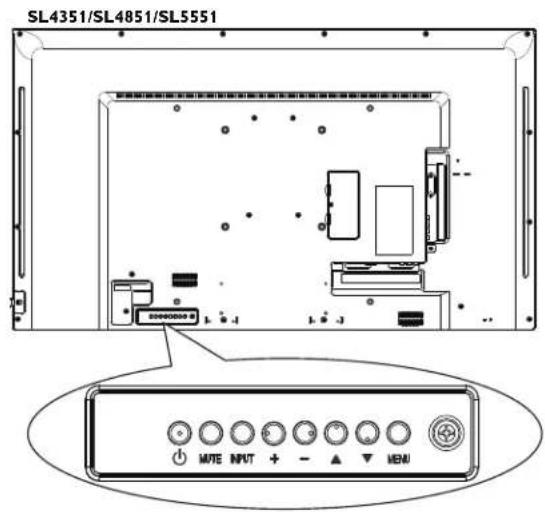

Planar SL4351/SL4851/SL5551

Technical diagram of an electronic device rear panel with labeled ports and a zoomed-in view showing MUTEINPUT, MENU, and numbered buttons.

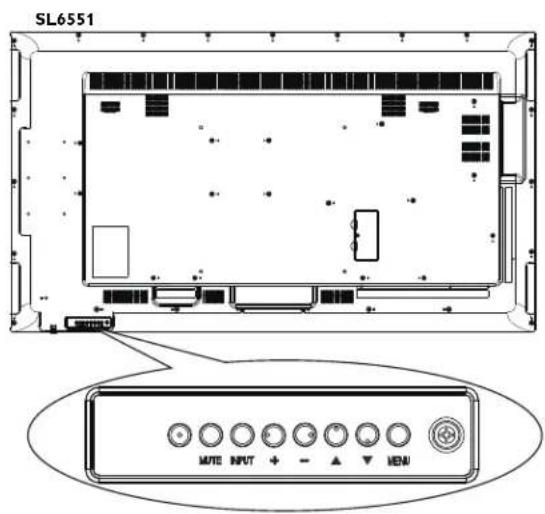

Planar SL6551

Technical diagram of an electronic device rear panel with labeled buttons and ports, including a zoomed-in view showing control buttons.

① [button

Use this button to turn the display on or put the display to standby.

② [MUTE] button

Switch the audio mute ON/OFF.

③ [INPUT] button

Choose the input source.

• Used as [] button in the On-Screen-Display menu.

④ [+] button

Move the highlight bar up / Increase the adjustment while OSD menu is on, or increase the audio output level while OSD menu is off.

⑤ [] button

Move the highlight bar down / Decrease the adjustment while OSD menu is on, or decrease the audio output level while OSD menu is off.

⑥ [▲button

Move the highlight bar up to adjust the selected item while OSD menu is on.

⑦ [▼button

Move the highlight bar down to adjust the selected item while OSD menu is on.

⑧ [MENU] button

Return to previous menu while OSD menu is on, or to activate the OSD menu when OSD menu is off.

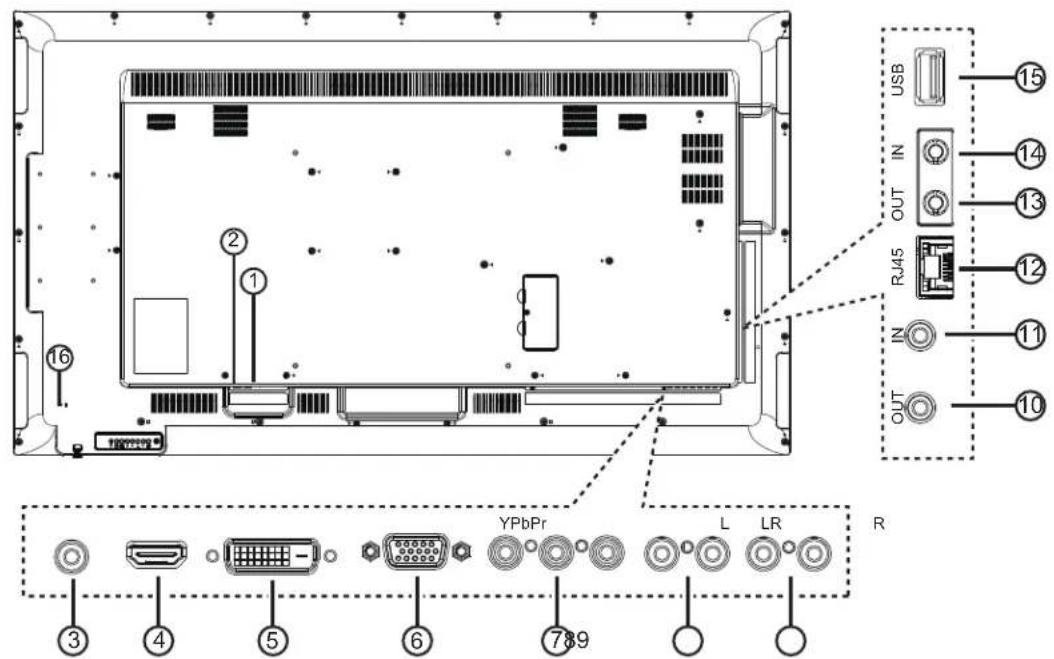

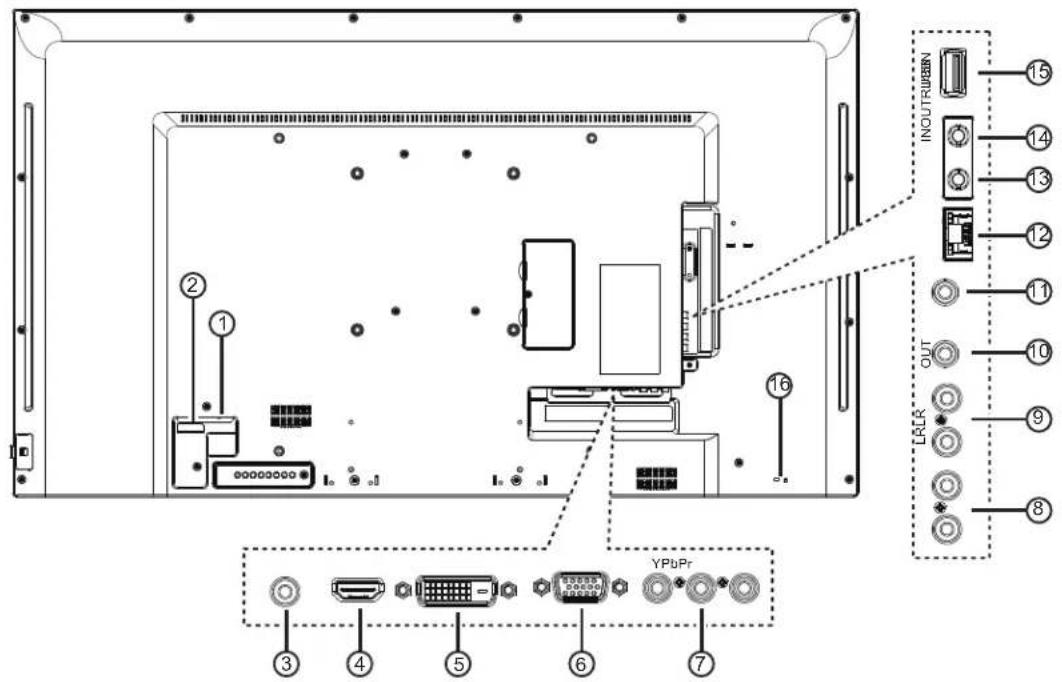

2.2. Input/Output Terminals

Planar SL4351/SL4851/SL5551

INOUTRUNN 15 14 13 12 11 10 9 8 16 OUT LATA YPbPr ③ ④ ⑤ ⑥ ⑦

Planar SL6551

USB IN OUT RJ45 IN OUT YPbPr L LR R ③ ④ ⑤ ⑥ ⑦89 ⑩ ⑪ ⑫ ⑬

① MAIN POWER SWITCH

Switch the main power on/off.

② AC IN

AC power input from the wall outlet.

③ PC AUDIO IN

Audio input from VGA source (3.5mm stereo phone).

④ HDMI IN

HDMI video / audio input.

⑤ DVI IN

DVI-D video input.

⑥ VGA IN (D-Sub)

VGA video input.

⑦ COMPOSITE/COMPONENT VIDEO

Video source input.

⑧ AUDIO IN

Audio input from external AV device (RCA).

⑨ AUDIO OUT

Audio output to external AV device.

⑩ IR OUT / ⑪ IR IN

IR signal output /input for the loop-through function.

NOTES:

• This display's remote control sensor will stop working if the jack [IR IN] is connected.
• To remotely control your A/V device via this display, refer to page 16 for IR Pass Through connection.

⑫ LAN

LAN control function for remote control from a network.

⑬ RS232 OUT / ⑭ RS232 IN

RS232C network output / input for the loop-through function.

⑮ USB PORT

Connect your USB storage device.

⑯ Security LOCK

Used for security and theft prevention.

2.3. Remote Control

2.3.1. General functions

① ② ③ ④ ⑤ ⑥ ⑦ ⑧ ⑨ ⑩ ⑪ ⑫ ⑬ ⑭ ⑮ ⑯ ⑰ ⑱ ⑲ ⑳ ⑴ LIST INFO OK ADJUST OPTIONS CH- CH+ - + 1. @ 2 ABC DEF 3 4 GHI 5°JKL MNO 6 7 PQRS 8 TUV WXYZ 9 EXIT 0 .

① [+] POWER button

Turn the display on or to put the display into standby mode.

② [PLAY] buttons

Control playback of media files.

③ [→SOURCE button

Choose input source. Press [or] button to choose from USB, Network HDMI, DVI, YPbPr, AV, or VGA Press [OK] button to confirm and exit.

④ [HOME button

Access the OSD menu.

⑤ LIST button

Not applicable.

⑥ [1] [1] [3+]NAVIGATION buttons

Navigate through menus and choose items.

⑦ [①button

Confirm an entry or selection.

⑧ [↑]ADJUST button

Access currently available options, picture and sound menus.

⑨ [BACK button]

Return to the previous menu page or exit from the previous function.

⑩ [—] [+] VOLUME button

Adjust volume.

⑪ [×] MUTE button

Press to turn the mute function on/off.

⑫ [ ] [ ] [ ] [ ] COLOR buttons

Select tasks or options for media player.

⑬ [NUMERIC] buttons

Enter text for network setting.

⑭ [FORMAT button]

Change aspect ratio.

⑮ [i] INFO button

View info about the display.

⑯ OPTIONS button

Access currently available options, picture and sound menus.

2.3.2. Inserting the batteries in the remote control

The remote control is powered by two 1.5V AAA batteries.

To install or replace batteries:

1. Press and then slide the cover to open it.
2. Align the batteries according to the (+) and (−) indications inside the battery compartment.
3. Replace the cover.

Four sequential diagrams showing a cylindrical device with internal components, no text or symbols present

Caution:

The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions:

• Place "AAA" batteries matching the (+) and (−) signs on each battery to the (+) and (−) signs of the battery compartment.
• Do not mix battery types.
• Do not combine new batteries with used ones. It causes shorter life or leakage of batteries.
• Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don't touch exposed battery acid, as it can damage your skin.

NOTE: If you do not intend to use the remote control for a long period, remove the batteries.

2.3.3. Handling the remote control

• Do not subject to strong shock.
- Do not allow water or other liquid to splash the remote control. If the remote control gets wet, wipe it dry immediately.
- Avoid exposure to heat and steam.
- Other than to install the batteries, do not open the remote control.

2.3.4. Operating range of the remote control

Point the front of the remote control toward this display's remote control sensor when pressing a button.

Use the remote control within a distance of less than 5m/16ft from this display's sensor, and a horizontal and vertical angle of less than 30 degrees.

NOTE: The remote control may not function properly when the remote control sensor on this display is under direct sunlight or strong illumination, or when there is an obstacle in the path of signal transmission.

SL4351/SL4851/SL5551SL6551

3030 3030

2.4. RS232 Control

See www.planar.com for the Planar® Simplicity ^TM RS-232 manual.

2.5. LAN Control

The Planar Simplicity Series supports extending access to the RS232 commands over a network connection. Below are the steps to follow for controlling the display over LAN through the RJ45 connector:

1. Connect display & PC to hub or connect display to PC with LAN cable directly.

2. SET display IP address

Step 1: In Network Settings menu, select "Network configuration" -> "Static IP"

Step 2: Then go to "Static IP configuration" and enter the pertinent information.

Step 3: "View network settings" to check IP address

1. Commands are sent via TCP connection to port 5000. The commands are the same as for the RS232 port (see Simplicity RS-232 manual on www.planar.com).

2. You can test commands using any TCP utility program that allows you to enter binary data in hexadecimal format. (Note: Contact Planar Technical Support for recommended programs.)

3. Connecting External Equipment

3.1. Connecting External Equipment (DVD/VCR/VCD)

3.1.1. Using COMPONENT video input

SL4351/SL4851/SL5551 Audio Out [ R ] [ L ] [ AUDIO IN ] [ COMPONENT IN ] (YPbPr ) DVD / VCR / VCD COMPONENT OUT (YPbPr) PC Line IN HDMI IN DVI IN VGA IN COMPONENT IN

SL6551 COMPONENT Out (YPbPr) Audio Out DVD / VCR / VCD [COMPONENT IN] (YPbPr) [AUDIO IN] [L] [R] PC LEA IN HDW IN DVIN VCA N Y CA D I B L R

3.1.2. Using Video Source input

SL4351/SL4851/SL5551 R [L] [AUDIO IN] Y/CVBS Out DVD / VCR / VCD [Y/CVBS IN] HDMI IN DVI IN COMPONENT IN VGA INPC Line IN SL6551 Y/CVBS Out Audio Out DVD / VCR / VCD [AUDIO IN] [L] [R] AICIN PC Lbs IN HDMI R DV IN VSM N HAF L R L R

3.1.3. Using HDMI video input

SL4351/SL4851/SL5551 AC IN PLR OUT PC Line IN HDMI IN DVI IN VGA IN COMPONENT IN

SL6551 HDMI HDMI Out [ HDMI IN ] HDMI IN DVD IN VGA INPC Line IN Y PL Pr L R L R

3.2. Connecting a PC

3.2.1. Using VGA input

SL4351/SL4851/SL5551 VGA Out D-Sub 15 pin PC Audio Out [ VGA IN ] [ VGA AUDIO IN ] PC Line IN HDMI IN DVI IN VGA IN COMPONENT IN

SL6551 VGA Out D-Sub 15 pin PC Audio Out [VGA IN] [VGA AUDIO IN] HDMI IN DV IN VGA NPC Line IN Y Po Pr L R L R

3.2.2. Using DVI input

SL4351/SL4851/SL5551 DVI Out PC Audio Out [DVI IN] [VGA AUDIO IN] PC Line IN HDMI IN DVI IN VGA IN COMPONENT IN

SL6551 DVI Out PC Audio Out [DVI IN] [VGA AUDIO IN] HDMI IN DW IN VGA IN PC Line IN Y Fb Pr L R L R

3.3. Connecting Audio Equipment

3.3.1. Connecting an external audio device

SL4351/SL4851/SL5551 AUDIO OUT STEREO AMPLIFIER COMPONENT OUT (YPBP) DVD / VCR / VCD HDMI IN DVI IN COMPONENT INVGA INPC Line IN SL6551 AUDIO OUT STEREO AMPLIFIER COMPONENT OUT (YPBP) DVD / VCR / VCD AUDIO IN PCI / HD / HDMI / DV / X2000 / YFP / 2.0

3.4. Display control connection

Connect the [RS232C OUT] connector of DISPLAY 1 to the [RS232C IN] connector of DISPLAY 2.

3.5. IR connection

NOTE: This display's remote control sensor will stop working if the [IR IN] is connected.

3.6. IR Pass-through Connection

3.7. Connecting Display to the Network

If you connect the display to a network, you can play photos, videos, and music from your computer.

To set up the connection::

1. Connect the display with a LAN cable connected to a hub or router on your network.
2. Press ⬆ HOME button to display the OSD menu.
3. Press | or | button to select the menu item {Network setting}. Press OK button to enter its submenu.
4. Go to network configuration and select DHCP & Auto IP or Static IP. If you select Static IP, you will need to enter the information in the Static IP Configuration menu.
5. Connect the PC with a LAN cable connected to the Ethernet using a hub or router. Identify the network on your computer.
6. Confirm that a media server is running on your computer, such as Windows Media Player (11 or higher) for PC or Twonky for Mac.
7. Make sure you have the appropriate settings on your computer firewall to allow you to run the media server through the network.
8. See Play Multimedia Files (Page 15) for more detail on playing content.
   Manage security to files using standard Windows and Mac privacy features.

3.8. Connecting Display to a Wireless Device

If you connect the display to a wireless router, you can access files from a wireless device, like a smartphone, tablet, or laptop. For best results, we recommend using a device with built-in DLNA functionality. Do not connect multiple device at the same time.

To set up the connection:

1. Connect your wireless device to the internet to download app that are designed to send media via DLNA (Examples: iMediashare, ArkMC)
2. Connect your device to the wireless router.
3. Enable network sharing on your device. This varies for different phone/tablet models.
4. Enable DMR (Digital Media Renderer) feature on the display under Network Settings. Got to Digital Media Renderer submenu and select ON.
5. See Play Multimedia Files (Page 15) for more detail on playing content.

4. Operation

NOTE: The control button described in this section is mainly on the remote control unless specified otherwise.

4.1. Change Aspect Ratio

You can change the aspect ratio to suit the video source. Each video source has its available aspect ratios..

The aspect ratios depend on the video source:

1. Press [FORMAT button.

2. Press [] or [] button to choose an aspect ratio, then press [O] button.

Options: Auto, Letterbox, Full Screen, Native, 4:3

4.2. Play Multimedia Files

You can play videos, photos, and music on your display from:

- Your computer connected to your network.

• A USB device connected to the display.

• A device connected wirelessly to a router connected to the display

Supported file system:

• FAT32

Supported file format:

• Music: MP3, WMA, M4A, AAC, AC3

• Movie: AVI, MP4, MOV, MPG/MPEG

• Photo: JPEG, BMP, GIF

4.2.1. Play files from computer

1. Connect your display to the network (see page 12)
2. Confirm that the computer, hub or router, and display are turned on and connected.
3. Switch on media sharing on your computer using the media server. For more information on how to set up the media server, refer to the website of the media server.
4. Press the SOURCE button on the remote and Select Network.
5. Select a file from the content browser, then press OK button to start playing.
6. When adding new multimedia files, exit the current file and return to the upper folder.
7. Use the remote control to control the media files on the display.

Tips:

• Select the top bar to filter your files by type.
• Select [Sort] to arrange the files by album name, artist, or other fields.
  • To clear the list of offline media servers, press button, then select [Clear offline servers] and press OK button

4.2.2. Play multimedia files from USB device

This display can play music, movie, or photo files from your USB device.

1. Connect your USB device to the USB port on this display.

1. Press → SOURCE button, select USB, then press OK button.
2. The connected USB device is detected automatically for all its playable files, which will be automatically sorted into 3 types: Music Movie and Photo

Pure diagram of three vertical panels with colored icons at top (no text or symbols)

1. Press the ➕ BACK button to go up to the top layer in the screen. Press ➕ button to select the file type. Press OK button to enter its play list.
2. Select the file you want. Press OK button to start playing.
3. Follow the on-screen instruction to control the play option.
4. Press the PLAY buttons ( ■ □ ◀◀ ▶ ▶▶) to control playing.

Caution:

• The manufacturer is not responsible if the USB device is not supported, nor is it responsible for damage to or loss of data in the device.
• Do not overload the USB port. If you connect a USB storage device that consumes more than 500mA power, make sure that it is connected to its own external power supply.

NOTE: USB content will auto play for scheduled events only (see page 18 for Scheduling). If a display is powered down and powered up manually, the last input used prior to the USB source will be automatically detected at start up. If no input other than USB has been used, the display will detect the HDMI source.

4.3. Play options

4.3.1. Playing music files

1. Select Music top bar.
2. Select one music track, then press OKton.

Album 05:05 L. Music USB deviceSoftPlayAll OptionsInfo

• To play all the tracks in a folder, select one music file, then select {Play All}.
• To skip to the next or previous track, press CH+ or VOL-button.
  • To pause the track, press OK button. Press OK button again to resume playback.
  • To skip backward or forward 10 seconds, press◀ or ▶ button.
• To search backward or forward, press ◀◀ or ▶▶ button, press repeatedly to toggle between different speeds.
  • To stop the music, press ■ button.

Music options

While you play music, press ⏻ OPTIONS button, then press OK button to select an option:

• {Repeat}: Select {Repeat} to play a track or an album repeatedly, or select {Play once} to play a track once.
• {Media Server}: When you play content from a media server, you can select another media server.
  • {Shuffle On} / {Shuffle Off}: Enable or disable random play of tracks.

NOTE: To view information about a song (for example, title, artist or duration), select the song, then press i INFE on. To hide the information, press i INFE on again.

4.3.2. Playing movie files

1. Select Movie the top bar.
2. Select a video, then press OK button.

Track Play All OptionsInfo USB device

• To play all the videos in a folder, select one video file, then select {Play All}.
• To skip to the next or previous video, press CH+ or VOL-button.
  • To pause the video, press OK button. Press OK button again to resume playback.
  • To skip backward or forward 10 seconds, press← or→ button.
• To search backward or forward, press ◀◀ or ▶▶ button, press repeatedly to toggle between different speeds.
  • To stop the video, press ■ button.

Movie options

While playing video, press OPTIONS button, then press OK button to select an option:

• {Subtitles}: Select the available subtitle settings.
  • {Subtitle Language}: Select the language for subtitles if available.
  • {Character Set}: Select the correct character set for the subtitles.
  • {Audio Language}: Select an audio language.
• {Repeat}: Select {Repeat} to play the video file repeatedly or {Play once} to play the video file once.
• {Media server}: When you play content from a media server, you can select another media server.
• {Shuffle On} / {Shuffle Off}: Enable or disable random play of video files.

NOTE: To view information about a video (for example, played position, duration, title, or date), select the video, then press i INFO button. To hide the information, press i INFO button again.

4.3.3. Playing photo files

1. Select Photo bar.
2. Select a photo thumbnail, then press OKton.

Date USB deviceSoftPlay All OptionsInfo

Start a slideshow

If there are multiple photos in a folder, select a photo, then select {Play All}.

• To skip to the previous or next photo, press-or-button, and then press OK button.
  • To stop the slideshow, press ■ button.

Slideshow options

While you play a slideshow, press 📄 OPTIONS press

OK button to select an option:

• {Shuffle Off} / {Shuffle On}: Enable or disable random display of pictures in the slideshow.
• {Repeat}: Select {Repeat} to watch a slideshow repeatedly or {Play once} to watch once.
• {Slideshow Time}: Select the displaying time for each photo in the slideshow.
• {Slideshow Transitions}: Select the transition from one photo to the next.
  • {Media Server}: When you play content from a media server, you can select another media server.

5. Change your settings

Using the remote control:

LIST INFO i OK ADJUST OPTIONS

1. Press 🏠HOME display the OSD menu.
2. Press 🔊, or button to select its menu item or to adjust its value. Press OK button to confirm.
3. Press ➕ BACK go back to the previous menu layer.
4. Press EXIT to exit the OSD menu.

Using this display's control buttons:

SL4351/SL4851/SL5551 MATE INPUT + - ▲ MENU

SL6551 RATE INPUT + - ▲ MENU

1. Press MENU to display the OSD menu.
2. Press[▲][▼][+] or [−] button to select menu item or adjust its value.
3. Press INPUT button to confirm menu selection and enter its submenu.
4. Press MENU to exit the OSD menu.

5.1. Settings

5.1.1. Picture menu

Picture Sound General settings Network settings Picture Style Backlight Contrast Brightness Hue Color Sharpness Phase Clock Advanced Overscan Color Space Format Restore Style

Picture Style

Choose a predefined picture setting.

Options: General, Vivid, Natural, Standard, Movie, Photo, and Energy Saving

Note: YUV sources only.

Backlight

Adjust the intensity of the display's backlight.

Options: 0-100.

Contrast

Adjust video contrast.

Options: 0-100

Brightness

Adjust screen brightness.

Options: 0-100

Hue

Adjust screen hue.

Options: -50 - +50

Color

Adjust the color saturation of the picture.

Options: 0-100

Sharpness

Adjusts the definition of the picture.

Options: 0-20

Note: YUV sources only.

Phase

Adjust to improve the focus, clarity and stability of the image.

Options:0-100

Note: This item is functional for VGA input only.

Clock

Adjust the width of the image

Options: 0-100

Note: This item is functional for VGA input only.

Advanced

• {Noise Reduction}: Choose the amount of noise reduction for the picture.
  Options: Off, Low, Medium, High
  Note: YUV sources only
• {Gamma}: Adjust the non-linear setting for picture luminance and contrast.
  Options: 1.8, 1.9, 2.0, 2.1, 2.2, 2.3, 2.4, 2.5
  • {Color Temp}: Change the color balance.
  Options: 11000K, 9300K, 6500K, 3200K, Custom

• {Custom Color Temp}: Customize color balance setting. Only available if {Color Temp} → {Custom} is chosen.
  R-Gain
  Options: 0 - 255
  G-Gain
  Options: 0 - 255
  B-Gain
  Options: 0 - 255
  R-Offset
  Options: 0 - 255
  G-Offset
  Options: 0 - 255
  B-Offset
  Options: 0 - 255

• {Advanced Sharpness}: Enable superior sharpness, especially on lines and contours in the picture.
  Options: Off, On
  • {Dynamic Contrast}; Dynamically enhance the details in the dark, medium and light areas of the picture.
  Options: Off, Low, Medium, High

• {Dynamic Backlight}: Choose a backlight level which optimizes dynamic power consumption and picture contrast.
  Options: Off, Standard, Best Power, Best Picture
• {Color Enhancement}: Dynamically enhance the vividness and details of colors.
  Options: Off, Low, Medium, High

Overscan

Enables or disables the overscan function.

Options: Off, On

Note: YUV sources only

Color Space

Select the color space of the source signal.

Options: Auto, RGB-Video, RGB-PC, YUV

Format

• {Aspect Ratio}: Change the picture format.
Options: Auto, Letterbox, Full Screen, Native, 4:3
- {Overscan Percentage}Adjust the percentage of the image is shaded off.

Options: 0 - 10

• {Picture Shift}:

Adjust position of image.

Restore Style

Restore the picture setting to default values.

5.1.2. Sound menu


Sound

General settings

Network settings

Sound Style

Bass

Treble

Audio Out Volume

Audio Select

Advanced

Restore style

Sound Style

Access predefined sound settings.

Options: General, Original, Movie, Music, Game, News

Bass

Adjust to increase or decrease lower-pitched sounds.

Options: -8 - +8

Treble

Adjust to increase or decrease higher-pitched sounds.

Options: -8 - +8

Audio Out

Adjust audio output volume. For line out audio sources only.

Options: 0 - 60

Audio Select

Select audio source

Options: HDMI, AV, Line In

Advanced

• {Auto Volume Leveling}: Enable the reduction of sudden volume changes.
Options: Off, On
• {Internal Speakers}: Turn on or off the internal speakers.
Options : Off, On
• {Clear Sound}: Enhance sound quality.
Options: Off, On

Restore Style

Restore the sound setting to default values.

5.1.3. General settings menu

PictureSoundGeneral settingsNetwork settings

Monitor IDEco ModeAuto SearchClockSchedulingSleep TimerAuto Switch OffAuto AdjustPixel ShiftControl Settings

Splash ScreenOSD Time OutFactory Settings

Monitor ID

Adjust the ID number for controlling the display via the RS232C connection. Each display must have a unique ID number when multiple sets of this display are connected. Monitor ID number range is between 1 to 255. The default setting is 1.

Eco mode

Select standby power consumption setting.

Options: Normal, Low power standby.

Note: For the lowest standby power consumption, select Low power standby. When the Eco mode is set to Low power standby, the display cannot wake from sleep. When the Eco mode is set to Normal, the display can wake from sleep. See Auto Search Setting for more information on how to wake the display..

Auto search

Automatically detects available input sources when "On". When "Off" the display will automatically detect the last input.

Options: Off, On.

Note: When set to "On", the last input will wake the display. When set to "Off", the last input will wake the display. When set to "Off", a RS-232 command can wake the display using any input. Note that Eco Mode needs to be set to "Normal" for the display to wake up.

Clock

Set the current date (DD-MM-YYYY) and time.

Scheduling

This function allows you to program up to 3 different scheduled time intervals for this display to activate.

NOTES:

• Set up current date and time in the {Clock} menu before setting up a schedule.
  • After changing the date and time in the {Clock} menu, the schedule may need to be re-entered.

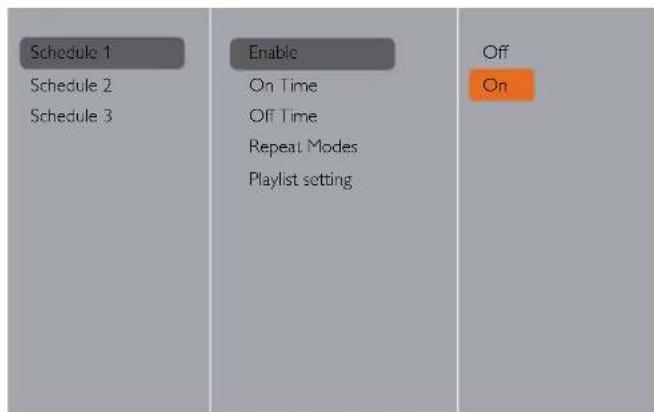

• Up to 3 schedules can be programmed. To activate a schedule, select Enable and choose On.

Schedule 1 Schedule 2 Schedule 3 Enable On Time Off Time Repeat Modes Playlist setting Off On

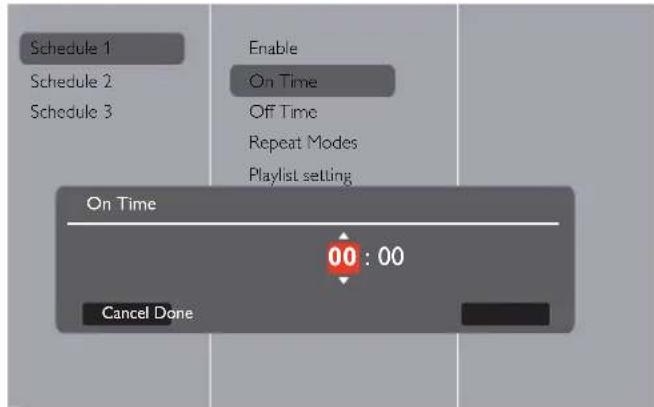

1. Set On time.

Schedule 1 Schedule 2 Schedule 3 Enable On Time Off Time Repeat Modes Playlist setting On Time 00 : 00 Cancel Done

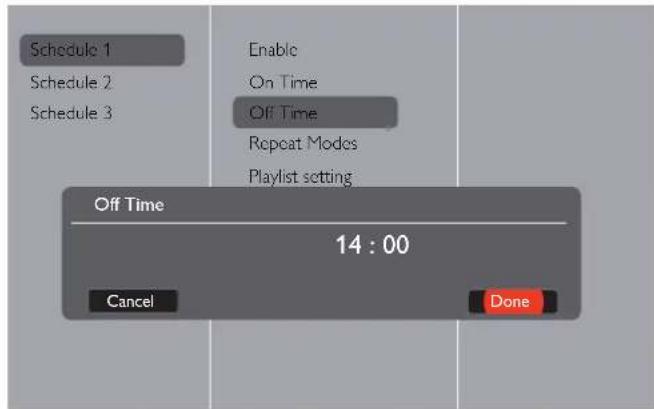

1. Set OffTime

Schedule 1 Schedule 2 Schedule 3 Enable On Time Off Time Repeat Modes Playlist setting Off Time 14 : 00 Cancel Done

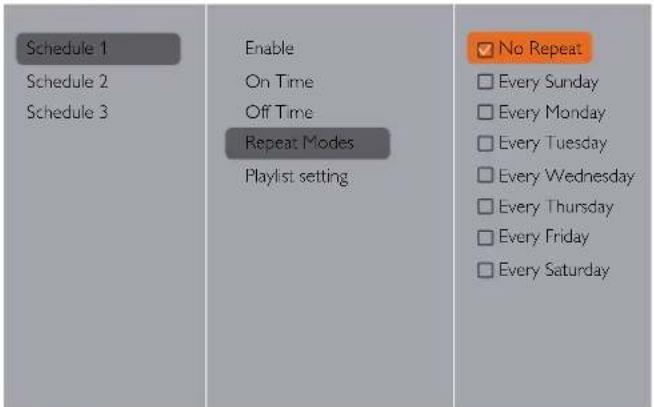

4. Go to Repeat Modes and choose.

Schedule 1 Schedule 2 Schedule 3 Enable On Time Off Time Repeat Modes Playlist setting No Repeat Every Sunday Every Monday Every Tuesday Every Wednesday Every Thursday Every Friday Every Saturday

5. If {Source} → {USB} is chosen. Go to Playlist setting.

Photo Photo Video OptionsExit

- Press [1] [7] buttons to choose files.

- Press [◀] [▶] buttons to switch Playlist and File Manager.

- Press [OK] button to set or clear the playlist.

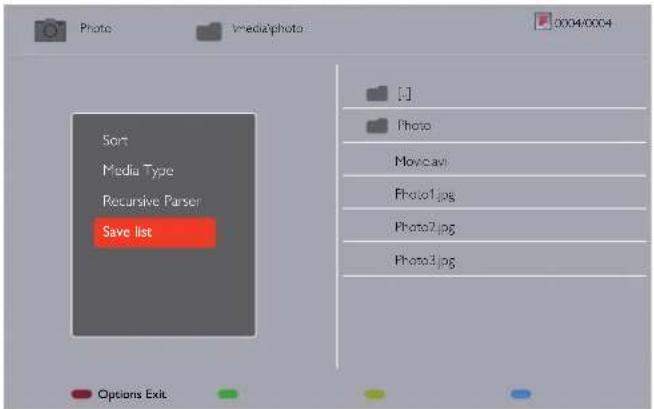

6. To save the playlist, press [—] and choose Save list

Sort Media Type Recursive Parser Save list Options Exit

NOTES:

• Each Playlist supports up to 30 files.
- Playlist will not be cleared after {Factory settings}. You have to manually remove the files or delete usb_schedulinglist.txt in the USB.

Sleep Timer

Switch off this display after a specified time.

Options: 0-240 seconds

Auto Switch Off

With no user interaction (via the OSD), the display will enter the specified ECO mode with a signal present after the set period of time. When set to off, the display will only enter the specified ECO mode when no signal is present for 10 minutes. Options (in minutes): off, 30, 60, 120, 240.

Auto Adjust

Use this function to automatically optimize the display of VGA input image.

NOTE: This item is functional for VGA input only.

Pixel Shift

Automatically moves the screen image every 30 minutes to protect the display from "burn-in" symptoms.

Options: Off, On

Control Settings

• {Keypad Lock}: Choose to enable or disable the keypad function on the backside of the display.
• {Unlock}: Enable the keyboard function.
• {Lock all}: Lock all keyboard function.
• {IR Lock}: Choose to enable or disable the button function of the remote control.
• {Unlock}: Enable the IR Remote function.
• {Lock}: Lock the IR Remote function.

NOTE: To disable the lock function from [Keypad Lock] or [IR lock] item, press buttons [1 and 1998 on the remote control.

Splash Screen

Enables or disables the splash screen during start up.

Options: Off, On.

OSD Time Out

Set OSD menu display time.

Options: 10-60 sec.

Factory Settings

Reset all your customized settings to the factory defaults.

5.2. Network Settings

Picture	View Network Settings
Sound	Network Configuration
General settings	Static IP Configuration
Network settings	Digital Media Renderer- DMRWake On LANNetwork Name

View Network Settings

View connected network status.

Network Configuration

Select how this display should assign addresses to the network resources.

Static IP Configuration

Assign {IP address}, {Netmask}, {Gateway}, {DNS1}, and {DNS2} for this display.

Digital Media Renderer - DMR

Receive multimedia files from smartphones and tablets connected to your network.

Options: Off, On

Wake On LAN

Wake the display through a network connection.

Options: Off, On

Network Name

Rename this display for easy identification if you have more than one display connected to your network.

6. USB device compatibility

USB Video Subtitle Formats (for language subtitles, etc.)

File Extensions	Container	Video codec	Maximum resolution Max.Frame Rate (fps)		Max.Bit Rate (Mbps)	Audio codec
.mpgmpeg.vob	PS	MPEG-1 19	20x1080 25p,30p,50i,60i 30			MPEG-1(L1&L2),MPEG-1,2,2.5 L3,AAC/HE-AAC(v1&v2),DVD-PCM,AC3
		MPEG-2 19	20x1080 25p,30p,50i,60i 30
		MPEG-4 ASP	1920x1080 25p,30p,50i,60i 30
		H.264 1920	20x1080 25p,30p,50p,60p,60i 30
.ts TS		MPEG-2 19	20x1080 25p,30p,50i,60i 30			MPEG-1(L1&L2),MPEG-1,2,2.5 L3,AAC/HE AAC (v1&v2),AC3,E-AC3,Dolby Pulse
		MPEG-4 ASP	1920x1080 25p,30p,50i,60i 30
		H.264 1920	20x1080 25p,30p,50p,60p,60i 30
		MVC	1920x1080@field rate=50, 60Hz1920x1080p@frame rate=24, 25,30Hz1280x720p@frame rate=50, 60Hz	-	30
.ts.m2ts.mts.mt2	MaTS TTS	MPEG-2 19	20x1080 25p,30p,50i,60i 30			MPEG-1(L1&L2),MPEG-1,2,2.5 L3,AAC/HE-AAC (v1&v2),AC3,E-AC3,Dolby Pulse
		MPEG-4 ASP	1920x1080 25p,30p,50i,60i 30
		H.264 1920	20x1080 25p,30p,50p,60p, 60i 30
		MVC	1920x1080 @ field rate=50, 60Hz1920x1080p @ frame rate=24, 25,30Hz1280x720p @ frame rate=50, 60Hz	-	30
.ts.m2ts.mts	AVCHD	MPEG-2 19	20x1080 25p,30p,50i,60i 30			MPEG-1(L1&L2),MPEG-1,2,2.5 L3,AAC/HE-AAC (v1&v2),AC3,E-AC3,Dolby Pulse
		MPEG-4 ASP	1920x 1080 25p,30p,50i,60i 30
		H.264 1920	20x1080 25p,30p,50p,60p,60i 30
.ts.m2ts.mts	AVCHD	MVC	1920x1080@field rate=50, 60Hz1920x1080p@frame rate=24, 25,30Hz1280x720p @ frame rate=50, 60Hz	-	30	MPEG-1(L1&L2),MPEG-1,2,2.5 L3,AAC/HE-AAC (v1&v2),AC3,E-AC3,Dolby Pulse
.m4v	M4V	H.264	1920x1080	25p,30p,50p,60p,60i	30	AAC
.ism/Manifest.mpd	frag MP4	H.264 1920	20x1080 25p,30p,50p,60p,60i 30			AAC/HE-AAC(v1&v2),AC3,E-AC3,WMA,WMA-PRO
		MVC	1920x1080@field rate=50, 60Hz1920x1080p@frame rate=24, 25,30Hz1280x720p @ frame rate=50, 60Hz	-	30
.mp4	MP4	MPEG-4 ASP	1920x1080 25p,30p,50i,60i 30			AAC/HE-AAC(v1&v2),AC3,E-AC3,WMA,WMA-PRO
		H.264 1920	20x1080	30
		MVC	1920x1080@field rate=50, 60Hz1920x1080p@frame rate=24, 25,30Hz1280x720p @ frame rate=50, 60Hz	-	30
		WMV9/VC1	1920x1080	30p,60	30
.mkv.mk3d	MKV	MPEG-4 ASP	1920x1080 25p,30p,50i,60i 30			MPEG-1(L1&L2),MPEG-1,2,2.5 L3,AAC/HE-AAC (v1&v2),AC3,E-AC3,WMA,WMA-PRO
		H.264 1920	20x1080	30

USB Multimedia Formats

File Extensions Container Video codec	Maximum resolution		Frequency (kHz)	Max.Bit Rate (Mbps)	Audio codec
.mp3 MP3 -	- 48 384 MPEG-1,2,2.5 L3
.wma.asf	WMA(V2 up to V9.2)	- - 48 192 WMA
.wma WMA	Pro - - 96 768 WMA,WMA Pro
.wav(PC) LPCM	- - 192	768 LPCM
.aif(mac).aiff(mac)	LPCM - - 192	768 LPCM
.aac.mp4.m4a	AAC	-	-	48	1024
.pls.m3u	Playlists	-	-	-	-
.m4a	M4A	-	-	48	1024

USB Photo Formats

File Extensions	Container Video	codec	Maximum Resolution	Frequency	Max.Bit Rate	Audio codec
jpg/jpeg	JPEG		baseline: color mode = 444, size <=32768x16128 color mode = 422v, size <= 16384x16128 color mode = other; not support	-	-	-
bmp	BMP		4096x3072_4bit, 2730x2500_8bit, 2048x1536_16bit, 1500x1200_32bit	-	-	-
png	PNG		4096x3072_4bit, 2730x2500_8bit, 2048x1536_16bit, 1500x1200_32bit	-	-	-
gif GIF		4096x3072_4bit	2730x2500_8bit, 2048x1536_16bit, 1500x1200_32bit	-	-	-

NOTES:

• Sound or video may not work if the contents have a standard bit rate/frame rate above the compatible Frame/sec listed in the table above.

• Video content with a Bit rate or Frame rate larger than the rate specified in the table above can cause choppy video during playback.

7. Input Mode

VGA Resolution:

Standard Resolution	Active Resolution		Refresh Rate Pixel Rate Aspect Ratio		Stand for Mode
	H Pixels V Lines
VGA 640 480			60 Hz 25.175 MHz		4:3 Video Graphic Array72 Hz 31.5 MHz
			75 Hz 31.5 MHz
WVGA	720	400	70 Hz	33.75 MHz	16:9	Wide Video Graphic Array
SVGA	800 600		60 Hz 40 MHz		4:3	Super VGA
			75 Hz 49.5 MHz
XGA	1024	768	60 Hz 65 MHz		4:3	Extended Graphic Array
			75 Hz	78.75 MHz
WXGA	1280	768	60 Hz	79.5 MHz	5:3	Wide XGA
WXGA	1280	800	60 Hz	79.5 MHz	16:10	Wide XGA
SXGA	1280	960	60 Hz	108 MHz	4:3	Super XGA
SXGA	1280	1024	60 Hz	108 MHz	5:4	Super XGA
WXGA	1360	768	60 Hz	85.5 MHz	16:9	Wide XGA
WXGA	1366	768	60 Hz	85.5 MHz	16:9	Wide XGA
UXGA	1600	1200	60 Hz	162 MHz	4:3	Ultra XGA
HD1080	1920	1080	60 Hz	148.5 MHz	16:9	HD1080

SDTV Resolution:

Standard Resolution	Active Resolution		Refresh Rate Pixel	Rate Aspect Ratio	Stand for Mode
	H Pixels V Lines
480i	720 480		29.97 Hz	13.5 MHz	4:3 Modified NTSC Standard
480p			59.94 Hz 27 MHz
576i	720 576		25 Hz	13.5 MHz	4:3	Modified PAL Standard
576p			50 Hz	27 MHz

HDTV Resolution:

Standard Resolution	Active Resolution		Refresh Rate Pixel Rate Aspect Ratio	Stand for Mode
	H Pixels V Lines
720p	1280	720	50 Hz	74.25 MHz 16:9	Normally DVB Mode
			60 Hz
1080i	1920	1080	25 Hz	74.25 MHz 16:9	Normally ATSC Mode
			30 Hz
1080p	1920	1080	50 Hz	148.5 MHz 16:9	Normally ATSC Mode
			60 Hz

• The PC text quality is optimum in HD 1080 mode (1920 x 1080, 60Hz).
- Your PC display screen might appear different depending on the manufacturer (and your particular version of Windows).
- Check your PC instruction book for information about connecting your PC to a display.
- If a vertical and horizontal frequency-select mode exists, select 60Hz (vertical) and 31.5KHz (horizontal). In some cases, abnormal signals (such as stripes) might appear on the screen when the PC power is turned off (or if the PC is disconnected). If so, press the [INPUT] button to enter the video mode. Also, make sure that the PC is connected.
- When horizontal synchronous signals seem irregular in RGB mode, check PC power saving mode or cable connections.
• The display settings table complies to the IBM/VESA standards, and based on the analog input.
• The DVI support mode is regarded as same to the PC support mode.
• The best timing for the vertical frequency to each mode is 60Hz.

8. Cleaning and Troubleshooting

8.1. Cleaning

Caution When Using the Display

• Do not bring your hands, face or objects close to the ventilation holes of the display. The top of the display is usually very hot due to the high temperature of exhaust air being released through the ventilation holes. Bums or personal injuries may occur if any body parts are brought too close. Placing any object near the top of the display could also result in heat related damage to the object as well as the display itself.
• Be sure to disconnect all cables before moving the display. Moving the display with its cables attached may damage the cables and thus cause fire or electric shock.
• Disconnect the power plug from the wall outlet as a safety precaution before carrying out any type of cleaning or maintenance procedure.

Front Panel Cleaning Instructions

• The front of the display has been specially treated. Wipe the surface gently using only a cleaning cloth or a soft, lint-free cloth.
• If the surface becomes dirty, soak a soft, lint-free cloth in a mild detergent solution. Wring the cloth to remove excess liquid. Wipe the surface of the display to remove dirt. Then use a dry cloth of the same type to dry.
• Do not scratch or hit the surface of the panel with fingers or hard objects of any kind.
• Do not use volatile substances such as insert sprays, solvents and thinners.

Cabinet Cleaning Instructions

• If the cabinet becomes dirty, wipe the cabinet with a soft, dry cloth.
• If the cabinet is extremely dirty, soak a lint-free cloth in a mild detergent solution. Wring the cloth to remove as much moisture as possible. Wipe the cabinet. Use another dry cloth to wipe over until the surface is dry.
• Do not allow any water or detergent to come into contact with the surface of the display. If water or moisture gets inside the unit, operating problems, electrical and shock hazards may result.
• Do not scratch or hit the cabinet with fingers or hard objects of any kind.
• Do not use volatile substances such as insert sprays, solvents and thinners on the cabinet.
• Do not place anything made from rubber or PVC near the cabinet for any extended periods of time.

8.2. Troubleshooting

Symptom Possible Cause Remedy
No picture is displayed 1. The power cord is disconnected.2. The main power switch on the back of the display is not switched on.3. The selected input has no connection.4. The display is in standby mode.	1. Plug in the power cord.2. Make sure the power switch is switched on.3. Connect a signal connection to the display.
Interference displayed on the display or audible noise is heard	Caused by surrounding electrical appliances or fluorescent lights.	Move the display to another location to see is the interference is reduced.
Color is abnormal	The signal cable is not connected properly.	Make sure that the signal cable is attached firmly to the back of the display.
Picture is distorted with abnormal patterns	1. The signal cable is not connected properly.2. The input signal is beyond the capabilities of the display.	1. Make sure that the signal cable is attached firmly.2. Check the video signal source to see if it is beyond the range of the display. Please verify its specifications with this display's specification section.
Display image doesn't fill up the full size of the screen	1. The zoom mode is not set correctly.2. Scan Mode may be set incorrectly to underscan.3. If the image exceeds the screen size, Scan Mode may need to be set to Underscan.	Use the Zoom mode or Custom zoom function in the Screen menu to fine tune display geometry and time frequency parameter.
Can hear sound, but no picture	Improperly connected source signal cable.	Make sure that both video inputs and sound inputs are correctly connected.
Can see picture but no sound is heard	1. Improperly connected source signal cable.2. Volume is turned all the way down.3. (Mute) is turned on.4. No external speaker connected.	1. Make sure that both video inputs and sound inputs are correctly connected.2. Press [+] or [−] button to hear sound.3. Switch MUTE off by using the [×] button.4. Connect external speakers and adjust the volume to a suitable level.
Some picture elements do not light up	Some pixels of the display may not turn on.	This display is manufactured using an extremely high level of precision technology: however, sometimes some pixels of the display may not display. This is not a malfunction.
After-Images can still be seen on the display after the display is powered off. (Examples of still pictures include logos, video games, computer images, and images displayed in 4:3 normal mode)	A still picture is displayed for an over extended period of time	Do not allow a still image to be displayed for an extended period of time as this can cause a permanent after-image to remain on the display.

9. Technical Specifications

9.1. Planar Simplicity SL4351

Display:

Item Specifications
Screen Size (Active Area) 940.9(H) × 529.25(V)
Aspect Ratio 16:9
Number of pixels 1920 (H) × 1080 (V)
Pixel pitch 0.49(H) × 0.49(V) [mm]
Displayable colors 16.7M
Brightness (typical) 350 cd/m	^2
Contrast ratio (typical) 3000:1
Viewing angle 178 degrees

In/Out Terminals:

Item		Specifications
Speaker Output	Internal Speakers	10W (L) + 10W (R) [RMS]/16Ω1 Way 1 Speaker System82 dB/W/M/160 Hz ~ 13 KHz
Audio Output	RCA Jack x 2	0.5V [ms] (Normal) / 2 Channel (L+R)
Audio Input	RCA Jack x 23.5mm phone jack x 1	0.5V [ms] (Normal) / 2 Channel (L+R)
RS232C	2.5mm Phone jack x 2	RS232C in/RS232C out
RJ-45	RJ-45 Jack x 1 (8 pin)	10/100 LAN Port
HDMI Input	HDMI Jack x 1(Type A) (19 pin)	Digital RGB: TMDS (Video + Audio)MAX: Video - 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)Audio - 48 KHz/ 2 Channel (L+R)Supports LPCM only
DVI-D Input	DVI-D jack	Digital RGB:TMDS (Video)
VGA Input	D-Sub Jack x 1 (15 pin)	Analog RGB: 0.7V [p-p] (75Ω), H/CS/V:TTL (2.2kΩ), SOG: 1V [p-p] (75Ω)MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)
Component Input	RCA Jack x 3	Y: 1V [p-p] (75Ω), Pb: 0.7V [p-p] (75Ω), Pr: 0.7V [p-p] (75Ω)MAX: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video Input	RCA x 1 (Share with Component_Y)	Composite 1V [p-p] (75Ω)

General:

Item Specifications
Power Supply AC 100 - 240V, 50 - 60Hz
Power Consumption (Max)	132 W
Power Consumption (typ.)	99 W
Power Consumption (Standby & Off)	<0.5 W (RS232 in active)
Dimensions (With Stand) [W x H x D]	968.2(W)x599.1(H)x329.6(D)
Dimensions (Without Stand) [W x H x D]	968.2(W)x559.4(H)x59.9(D@Rear Cover)/60.9(D@Wall Mount)
Weight (With Stand)	10.57 Kg
Weight (Without Stand)	8.7 Kg
Gross Weight (Without Stand)	12.2 Kg

Environmental Condition:

Item Specifications
Temperature Operational	0 ~ 40°C
	Storage -20 ~ 60°C
Humidity Operational 20	~ 80% RH (No condensation)
	Storage 5 ~ 95% RH (No condensation)
Altitude Operational 0 ~	3,000 m
	Storage / Shipment 0 ~ 9,000 m

Internal Speaker:

Item Specifications
Type 1 Way 1 Speaker
Input 10 W (RMS)
Impedance 16Ω
Output Sound Pressure 82 dB/W/M
Frequency Response	160 Hz ~ 13 KHz

9.2. Planar Simplicity SL4851

Display:

Item Specifications
Screen Size (Active Area) 1054.08(H) × 592.92(V)
Aspect Ratio 16:9
Number of pixels 1920 (H) × 1080 (V)
Pixel pitch 0.549(H) × 0.549(V) [mm]
Displayable colors 1073.7M colors
Brightness (typical) 350 cd/m
Contrast ratio (typical) 4000:1(typ.)
Viewing angle 178 degrees

In/Out Terminals:

Item Specifications
Speaker Output Internal S	speakers 10W (L)	+ 10W (R) [RMS]/16Ω1 Way 1 Speaker System82 dB/W/M/160 Hz ~ 13 KHz
Audio Output	RCA Jack x 2	0.5V [ms] (Normal) / 2 Channel (L+R)
Audio Input	RCA Jack x 23.5mm phone jack x 1	0.5V [ms] (Normal) / 2 Channel (L+R)
RS232C	2.5mm Phone jack x 2	RS232C in/RS232C out
RJ-45	RJ-45 Jack x 1 (8 pin)	10/100 LAN Port
HDMI Input	HDMI Jack x 1(Type A) (19 pin)	Digital RGB: TMDS (Video + Audio)MAX: Video - 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)Audio - 48 KHz/ 2 Channel (L+R)Supports LPCM only
DVI-D Input	DVI-D jack	Digital RGB:TMDS (Video)
VGA Input	D-Sub Jack x 1 (15 pin)	Analog RGB: 0.7V [p-p] (75Ω), H/CS/V:TTL (2.2kΩ), SOG: 1V [p-p] (75Ω)MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)
Component Input	RCA Jack x 3	Y: 1V [p-p] (75Ω), Pb: 0.7V [p-p] (75Ω), Pr: 0.7V [p-p] (75Ω)MAX: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video Input	RCA x 1 (Share with Component_Y)	Composite 1V [p-p] (75Ω)

General:

Item Specifications
Power Supply AC 100 - 240V, 50 - 60Hz
Power Consumption (Max)	149W
Power Consumption (typ.)	115W
Power Consumption (Standby & Off)	<0.5 W (RS232 in active)
Dimensions (With Stand) [W x H x D]	1081.8 x 663.1 x 329.6 mm
Dimensions (Without Stand) [W x H x D]	1081.8 x 623.4 x 59.9 (Rear Cover) / 61.1(Wall Mount)
Weight (With Stand)	13.39 Kg
Weight (Without Stand)	11.52 Kg
Gross Weight (Without Stand)	16.4 Kg

Environmental Condition:

Item Specifications
Temperature Operationa	0 ~ 40°C
	Storage -20 ~ 60°C
Humidity Operational 20	~ 80% RH (No condensation)
	Storage 5 ~ 95% RH (No condensation)
Altitude Operational 0 ~	3,000 m
	Storage / Shipment 0 ~ 9,000 m

Internal Speaker:

Item Specifications
Type 1 Way 1 Speaker
Input 10 W (RMS)
Impedance 16Ω
Output Sound Pressure 82 dB/W/M
Frequency Response	160 Hz ~ 13 KHz

9.3. Planar Simplicity SL5551

Display:

Item Specifications
Screen Size (Active Area) 1209.6(H) x 680.4(V)
Aspect Ratio 16:9
Number of pixels 1920 (H) x 1080 (V)
Pixel pitch 0.63(H) x 0.63(V) [mm]
Displayable colors 16.7M
Brightness (typical) 350 cd/m
Contrast ratio (typical) 1200:1
Viewing angle 178 degrees

In/Out Terminals:

Item Specifications
Speaker Output Internal S	Speakers 10W (L)	+ 10W (R) [RMS]/16Ω1 Way 1 Speaker System82 dB/W/M/160 Hz ~ 13 KHz
Audio Output	RCA Jack x 2	0.5V [ms] (Normal) / 2 Channel (L+R)
Audio Input	RCA Jack x 23.5mm phone jack x 1	0.5V [ms] (Normal) / 2 Channel (L+R)
RS232C	2.5mm Phone jack x 2	RS232C in/RS232C out
RJ-45	RJ-45 Jack x 1 (8 pin)	10/100 LAN Port
HDMI Input	HDMI Jack x 1(Type A) (19 pin)	Digital RGB: TMDS (Video + Audio)MAX: Video - 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)Audio - 48 KHz/ 2 Channel (L+R)Supports LPCM only
DVI-D Input	DVI-D jack	Digital RGB:TMDS (Video)
VGA Input	D-Sub Jack x 1 (15 pin)	Analog RGB: 0.7V [p-p] (75Ω), H/CS/V:TTL (2.2kΩ), SOG: 1V [p-p] (75Ω)MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)
Component Input	RCA Jack x 3	Y: 1V [p-p] (75Ω), Pb: 0.7V [p-p] (75Ω), Pr: 0.7V [p-p] (75Ω)MAX: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video Input	RCA x 1 (Share with Component_Y)	Composite 1V [p-p] (75Ω)

General:

Item Specifications
Power Supply AC 100 - 240V, 50 - 60Hz
Power Consumption (Max)	179 W
Power Consumption (typ.)	141 W
Power Consumption (Standby & Off)	<0.5 W (RS232 in active)
Dimensions (With Stand) [W × H × D]	1238.6(W)×751.7(H)×329.6(D)
Dimensions (Without Stand) [W × H × D]	1238.6(W)×711.1(H)×59.9(Rear Cover)/61.7(Wall Mount)
Weight (With Stand)	17.87 Kg
Weight (Without Stand)	16.0 Kg
Gross Weight (Without Stand)	23.0 Kg

Environmental Condition:

Item Specifications
Temperature Operational	0 ~ 40°C
	Storage -20 ~ 60°C
Humidity Operational 20	~ 80% RH (No condensation)
	Storage 5 ~ 95% RH (No condensation)
Altitude Operational 0 ~	3,000 m
	Storage / Shipment 0 ~ 9,000 m

Internal Speaker:

Item Specifications
Type 1 Way 1 Speaker
Input 10 W (RMS)
Impedance 16Ω
Output Sound Pressure 82 dB/W/M
Frequency Response	160 Hz ~ 13 KHz

9.4. Planar Simplicity SL6551

Display:

Item Specifications
Screen Size (Active Area) 1428.48 (H)× 803.52 (V) [mm]
Aspect Ratio 16:9
Number of pixels 1920 (H) × 1080 (V)
Pixel pitch 0.744 (H) × 0.744 (V) [mm]
Displayable colors 16.7M
Brightness (typical) 350 cd/m
Contrast ratio (typical) 4000:1
Viewing angle 178 degrees

In/Out Terminals:

Item Specifications
Speaker Output Internal S	speakersExternal Speakers	10W (L) + 10W (R) [RMS]/8Ω1 Way 1 Speaker System82 dB/W/M/160 Hz ~ 13 KHz
Audio Output	3.5mm phone jack x 1	0.5V [rms] (Normal) / 2 Channel (L+R)
Audio Input	RCA Jack x 23.5mm phone jack x 1	0.5V [rms] (Normal) / 2 Channel (L+R)
RS232C	2.5mm Phone jack x 2	RS232C in/RS232C out
RJ-45	RJ-45 Jack x 1 (8 pin)	10/100 LAN Port
HDMI Input	HDMI Jack x 2(Type A) (18 pin)	Digital RGB: TMDS (Video + Audio)MAX: Video - 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)Audio - 48 KHz/ 2 Channel (L+R)Supports LPCM only
DVI-D Input	DVI-D jack	Digital RGB:TMDS (Video)
VGA Input	D-Sub Jack x 1 (15 pin)	Analog RGB: 0.7V [p-p] (75Ω), H/CS/V:TTL (2.2kΩ), SOG: 1V [p-p] (75Ω)MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)
DVI-I (DVI-D & VGA)Output	DVI-I Jack x 1 (29 pin)	Digital RGB: TMDS (Video)Analog RGB: 0.7V [p-p] (75Ω), H/CS/V:TTL (2.2kΩ), SOG: 1V [p-p] (75Ω)MAX: 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)
Component Input	BNC Jack x 3	Y: 1V [p-p] (75Ω), Pb: 0.7V [p-p] (75Ω), Pr: 0.7V [p-p] (75Ω)MAX: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p
Video Input	BNC x 1 (Share with Component_Y)	Composite 1V [p-p] (75Ω)
Displayport in/out	Displayport Jack x 2(20 pin)	Digital RGB: TMDS (Video + Audio)MAX: Video - 720p, 1080p, 1920 x 1080/60 Hz (WUXGA)Audio - 48 KHz/ 2 Channel (L+R)Supports LPCM only

General:

Item Specifications
Power Input 100 - 240V~, 50 - 60Hz
Power Consumption (Max) 313 W
Power Consumption (typ.) 176 W
Power Consumption (Standby & Off) <0.5 W (RS232 in active)
Dimensions (Without Stand) [W x H x D] 1458.7 x 834.7 x 81.6 mm
Weight (Without Stand) 24.8 Kg
Gross Weight (Without Stand) 39.3 Kg

Environmental Condition:

Item Specifications
Temperature Operational	0 ~ 40°C
	Storage -20 ~ 60°C
Humidity Operational 20	~ 80% RH (No condensation)
	Storage 5 ~ 95% RH (No condensation)
Altitude Operational 0 ~	3,000 m
	Storage / Shipment	0 ~ 9,000 m

Internal Speaker:

Item Specifications
Type	1 Way 1 Speaker
Input	10 W (RMS)
Impedance	8Ω
Output Sound Pressure 82 dB/W/M
Frequency Response	160 Hz ~ 13 KHz

Planar, a Leyard company

Customer Service

24x7 Online Technical Support: http://www.planar.com/support

1195 NW Compton Drive

Beaverton, OR 97006-1992

Tel: 1-866-PLANAR1 (866-752-6271), or+1503-748-5799 outside the United States.

©2016 Planar Systems, Inc.

Planar is a registered trademark of Planar Systems, Inc. Other brands and names are the property of their respective owners. Technical information in this document is subject to change without notice (08/2016).

PN: 020-1283-01A
