Product Type	Oscillating High Velocity Blower Fan
Model	4924
Brand	Lasko
Intended Use	Residential only
Power Supply	120V, 60Hz, AC only
Plug Type	Polarized plug (one blade wider)
Speed Settings	3 speeds (Low, Medium, High)
Oscillation	Yes, with push button control
Control Type	Power/Speed knob and oscillation button
Cleaning Method	Vacuum with brush attachment; wipe body with soft cloth only
Safety Feature	Polarized plug with safety device; auto shut-off if tipped?
Warranty	1-year limited warranty
Customer Service	800-233-0268 (Mon-Fri, 8am-5pm Eastern)
Email Support	[e-mail]
Storage	Store in original carton in cool, dry place
Not Suitable For	Outdoor use, agricultural or hazardous locations
Dimensions (approx)	20 x 20 x 20 inches (estimated)
Weight (approx)	10 lbs (estimated)

Frequently Asked Questions - 4924 Lasko

How do I clean the Lasko 4924 fan?

Always unplug the fan before cleaning. Use a vacuum with a brush attachment to remove lint and dirt from inside. Wipe the body with a soft cloth only. Never use alcohol or solvents.

Can I use this fan outdoors?

No, this fan is for indoor residential use only. Never use it outdoors or in wet or damp locations.

What should I do if the fan does not work?

Check that the plug is fully inserted into the outlet. If it still doesn't work, the safety device in the plug may have tripped. Return to an authorized service center or call Lasko at 800-233-0268.

Can I use an extension cord with this fan?

Avoid extension cords if possible. If necessary, use the shortest cord possible that is UL listed. Never use a single extension cord for more than one fan.

Is the fan oscillating?

Yes, it has an oscillation function. Press the oscillation button to turn it on, and press again to turn it off. It works on any speed setting.

How do I change the speed?

Turn the Power/Speed knob to the desired setting: 3 for high, 2 for medium, 1 for low. Turn to OFF (0) and unplug to turn off.

Can I use a solid state speed control with this fan?

No, do not use any solid state speed control devices with this fan. It may cause fire or shock.

What is the warranty period?

Lasko offers a 1-year limited warranty from the date of original purchase for the original purchaser.

Can the fan be repaired by the user?

No, there are no user serviceable parts. Do not attempt to take apart the fan. For service, contact Lasko Customer Service.

What should I do if the plug or cord is damaged?

Never operate the fan with a damaged cord or plug. Do not remove, replace, or tamper with the plug. Call Lasko at 800-233-0268 for assistance.

USER MANUAL 4924 Lasko

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

Innovators in Home Comfort

OSCILLATING HVB HIGH VELOCITY

BLOWER FAN

MODEL 4924

This Fan is for residential use only.

It is not intended to be used in commercial, industrial or agricultural settings.

READ AND SAVE THESE INSTRUCTIONS

READ CAREFULLY BEFORE ATTEMPTING TO ASSEMBLE,

INSTALL, OPERATE OR MAINTAIN THE PRODUCT DESCRIBED.

PROTECT YOURSELF AND OTHERS BY OBSERVING ALL

SAFETY INFORMATION. FAILURE TO COMPLY WITH

INSTRUCTIONS COULD RESULT IN PERSONAL INJURY AND/OR

PROPERTY DAMAGE!

KEEP INSTRUCTIONS FOR FUTURE REFERENCE.

SAVE THESE INSTRUCTIONS

⚠ WARNING

GENERAL SAFETY INFORMATION

When using electrical appliances, basic precautions should always be followed to reduce the risk of fire, electrical shock and injury to persons, including the following:

Read all instructions before using this Fan.

1. Make certain the power source conforms to the electrical requirements of the Fan.
2. Make certain that the power is equipped with a working sample detector.
3. Use this Fan only as described in this manual. Any other use not recommended by the manufacturer may cause fire, electrical shock, or injury to persons.
4. To reduce the risk of personal injury and electric shock, the Fan should not be played with or placed where small children can reach it.
5. Unplug power cord before installing, servicing, or moving the Fan.

⚠ WARNING

DO NOT DEPEND ON THE ON/OFF SWITCH AS THE SOLE MEANS OF DISCONNECTING POWER WHEN SERVICING OR MOVING THE FAN. ALWAYS UNPLUG THE POWER CORD. ALWAYS TURN OFF AND UNPLUG FAN BEFORE LEAVING THE AREA. NEVER LEAVE CHILDREN UNATTENDED WHEN THE FAN IS ON OR PLUGGED IN.

1. This Fan must NOT be used in potentially dangerous locations such as flammable, explosive, chemical-laden or wet atmospheres where gasoline, paint or flammable liquids are used or stored.

2. DO NOT use Fan in or near a window. Rain may create an electrical hazard.
   B. Completely assemble Fan, according to instructions, before connecting to power supply.
   This appliance has a polarized plug (one blade is wider than the other). To reduce the risk of electric shock, this plug is intended to fit in a polarized outlet only one way. Match wide blade of plug to wide slot. Fully insert. If the plug does not fit fully in the outlet, reverse the plug. If it still does not fit, contact a qualified electrician. DO NOT attempt to defeat this safety feature.
   This plug is a safety feature, to reduce the risk of fire, electric shock and personal injury. DO NOT remove, replace, repair or tamper with the originally supplied plug. If the Fan does not function properly, it may be due to the safety device incorporated in this plug. Return to an authorized service center or call 800-233-0268, Monday - Friday, between 8:00 a.m. and 5:00 p.m. Eastern. If the plug warning label is missing or damaged, call the toll free number for a replacement label.

3. Where possible, avoid the use of extension cords because the extension cord may overheat and cause a fire. If you must use an extension cord, minimize the risk of overheating by using the shortest cord possible and ensuring that it is UL listed. NEVER use a single extension cord to operate more than one Fan. Do not plug Fan into any other cord connected device, such as a power strip, cord reel, surge protector, multiple outlet adapters or outlet-type air fresheners. The use of such devices may create a fire hazard.
4. NEVER operate any Fan with a damaged cord or plug or after the Fan malfunctions, has been dropped or damaged in any manner. There are no user serviceable parts.
5. NEVER insert or allow fingers or foreign objects to enter any ventilation or exhaust opening as it may cause an electric shock or fire, or damage the Fan. To reduce the risk of fire, DO NOT block or tamper with the Fan in any manner while it is in operation.
6. Always place the Fan on a stable, flat, level surface when operating to avoid the chance of the Fan overturning. Locate the Power Cord so the Fan or other objects are not resting on it. Do not run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and where it will not be tripped over.
   Cord with throw rugs, runners or the like. Arrange Power Cord away from room traffic and where it will not be tripped over.
7. This Fan is not intended for use in wet or damp locations. Never locate a Fan where it may fall into a bathtub or other water container. NEVER use Fan where flammable liquids are used or stored.
8. NEVER use Fan outdoors.
9. Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Fan. If this occurs, move the Fan to another location.
10. Keep Fan remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Fan.
11. This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for Agricultural Buildings. THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008).
12. This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for Hazardous locations. THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008).

⚠ WARNING

REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK - DO NOT USE THIS FAN WITH ANY SOLID STATE SPEED CONTROL DEVICES.

SAVE THESE INSTRUCTIONS

Rev. G 10/10

2

4924ES

Rev. G 10/10

7

MODELO 4924

Due to the high velocity of air generated by this Fan, hearing the sound of the air is normal. For quieter operation, use low speed.

1. Carefully remove the Fan from the plastic bag and the carton. Assemble unit per these instructions.
2. Place the Fan on a firm and level surface.
   CAUTION: Plastic or rubber tabs, like the feet on this unit, may stick to furniture surfaces and/or hardwood floors. The unit may leave a residue that could darken, stain or leave permanent blemishes on the finish of certain furniture surfaces, including wood surfaces, and/or hardwood floors.
3. Plug the cord set into a 120 volt outlet. △WARNING

Be sure that the plug fits tightly into outlet.

When plugs fit loosely into receptacles, they may slip partially or completely out of the receptacle with only the slight movement of the attached cord. Receptacles in this condition may overheat and pose a serious fire hazard; if covered by a curtain or drape, the fire hazard is even greater.

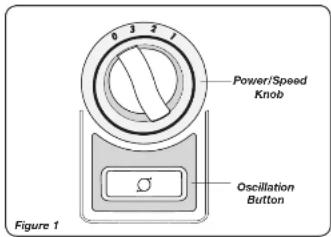

1. Turn the Fan ON by turning the Power/Speed Knob.
2. Set the Fan to the desired speed.
   3 - High Speed
   2 - Medium Speed
   1 - Low Speed
3. The oscillation function will operate in any speed mode. Press the Oscillation Button (Pto turn this function on. Press it once more to turn this function off.
4. To turn the Fan OFF, turn the Power/Speed Knob to OFF (0) and unplug the unit from the electrical outlet.

Rev. G 10/10

3

4924E5

MODEL 4924

MAINTENANCE

⚠ WARNING To reduce the risk of electrical shock and fire please observe the following instructions:

- Always unplug the cord before moving, servicing or cleaning.

- NEVER place the Fan in or near water.

- Clean the Fan only with a vacuum equipped with a brush attachment; the vacuum will remove the lint

and dirt from inside the Fan.

- NEVER attempt to take apart the Fan.

- Clean the body of the Fan with a soft cloth only.

- NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at 800-233-0268, Monday through Friday, from 8am-5pm Eastern.

STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.

LASKO PRODUCTS, INC. LIMITED WARRANTY

(NOT VALID IN MEXICO)

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.

HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO: During the warranty period, Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model.

WHAT THIS WARRANTY DOES NOT COVER. This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko following warranty or resale or replacement. The purchase price of the Product Sold is subject to increase in the value of the purchase price and the amount of the purchase price. The last ONE YEAR FROM THE DATE OF ORIGINAL PURCHASE OR UNTIL THE ORIGINAL PURCHASER OF THE PRODUCT SELLS OR TRANSFERS THE PRODUCT, WHICHEVER FIRST OCCURDS AND IN NO EVENT SHALL LASKO'S LIABILITY UNDER ANY EXPRESS OR IMPLIED WARRANTY INCLUDE (I) INCIDENTAL OR CONSEQUENTIAL DAMAGES FROM ANY CAUSE WHATSOEVER, OR (II) REPLACEMENT OR REPAIR OF ANY HOUSE FUSES, CIRCUIT BREAKERS OR RECEPTACLES. NOTWITHSTANDING ANYTHING TO THE CONTRARY, IN NO EVENT SHALL LASKO'S CHANGE OR CHANGE FOR ANY CHANGE TO THE PURCHASE PRICE OF THE PRODUCT AND ANY SUCH LIABILITY SHALL TERMINATE UPON THE EXPIRATION OF THE WARRANTY PERIOD.

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.

Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:

Toll-Free [phone]. Email: [e-mail]

Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style

(located on the underside of your product).

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

(Please do not send product to this location)

www.laskoproducts.com
