Product Type	Box Fan
Brand	Lasko
Model	1880
Color	White
Fan Size	20 inches
Number of Speeds	3
Airflow	2900 CFM
Power Supply	120 V, 60 Hz, 0.5 A
Power Consumption	60 Watts
Cord Length	6 feet
Weight	7.5 lbs
Dimensions (W x H x D)	20.5 x 20.5 x 5.5 inches
Adjustable Tilt	Yes, manual tilt
Carry Handle	Yes, integrated handle
Material	Plastic (ABS) and metal guard
Grille Type	Safety grille with tight spacing
Overheat Protection	Yes, auto shut-off
Fused Plug	Yes
Assembly Required	No
Warranty	1 year limited

Frequently Asked Questions - 1880 Lasko

How do I clean the Lasko 1880 fan?

Unplug the fan. Use a soft damp cloth to wipe the grille and housing. For deeper cleaning, you can remove the front grille by unscrewing the retaining ring. Clean blades with a cloth or brush. Do not immerse the fan in water.

Can I use this fan outdoors?

No, the Lasko 1880 is designed for indoor use only. Exposure to moisture can damage the motor and create electrical hazards.

Does the fan have a remote control?

No, the Lasko 1880 is a manual box fan. It features a built-in control knob on the side for selecting speeds (Off, Low, Medium, High).

What should I do if the fan stops working?

Check if the plug is securely inserted. Test the outlet with another device. If the fan still doesn't work, it may have tripped its overheat protection. Turn off and unplug, wait 30 minutes, then plug back in and try again. If it still fails, contact Lasko customer service.

Is the fan noisy on high speed?

On high speed, the Lasko 1880 produces typical box fan noise. It is designed for airflow, not silence. For quieter operation, use low or medium speed.

Can I adjust the angle of the fan?

Yes, the fan has a manual tilt mechanism. You can tilt the fan upward or downward by gently pushing the grille. Do not force it.

How do I replace the fuse in the plug?

The plug contains a replaceable 5A, 125V fuse. To access, slide the fuse door open on the plug, remove the old fuse, and insert a new one of the same rating. Then close the door securely.

Does the fan oscillate?

No, this model does not have oscillation. It is a fixed box fan with adjustable tilt.

What are the dimensions of the Lasko 1880?

The fan measures approximately 20.5 inches in width and height, and 5.5 inches in depth. It fits standard 20-inch window frames.

Can I use an extension cord with this fan?

Yes, but use a heavy-duty extension cord rated for at least 10 amps. Ensure the cord is fully unrolled and not damaged. Do not use with a damaged cord or outlet.

USER MANUAL 1880 Lasko

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

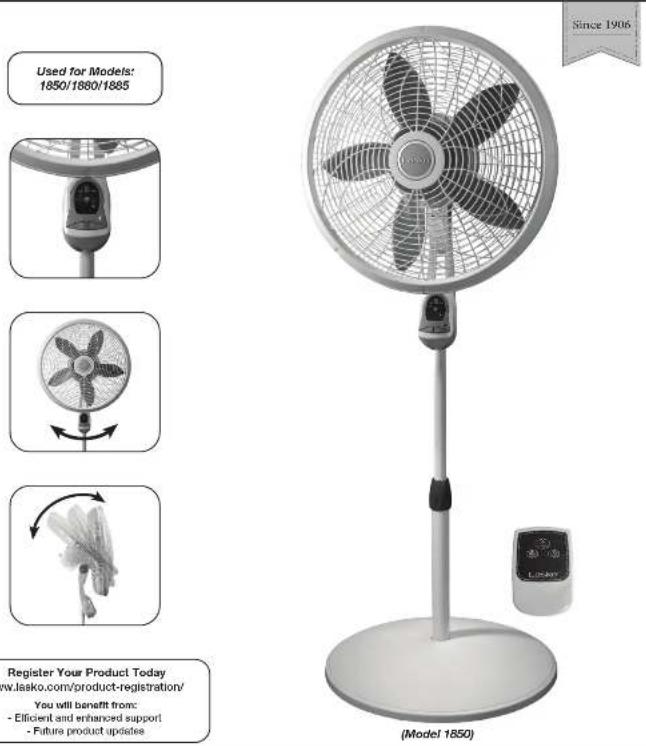

18" Remote Control Pedestal Fan Instruction Manual

Have a Question? Need a Part? Please Do Not Return Product to Store!

Contact Lasso Customer Service [phone] Monday-Friday 8AM - 6PM EST. (Valid in the USA, its Tenhorics, and CANADA Only)

READ AND SAVE THESE INSTRUCTIONS

Read carefully before attempting to assemble, install, opicate or maintain the product described. Protect yourself and others by observing all safety information. Failure to comply with instructions could result in personal injury and/or property damage.

This Family for residential use only. It is not intended to be used in commercial, industrial or agricultural settings.

WARNING

IMPORTANT SAFETY INSTRUCTIONS

When using electrical appliances, these instructions and warnings should always be followed to reduce the risk of fire, electrical shock and injury to persons:

Read all instructions before using this Fan.

WARNING

TO REDUCE THE RISK OF FIRE, ELECTRICAL SHOCK OR PERSONAL INJURY, ALWAYS FOLLOW THESE IMPORTANT SAFETY INSTRUCTIONS AND WARNINGS:

DO NOT use this Fan to ventilate areas where flammable liquids or vapore are used, stored or are present, including paints, gasoline, varnishes, floor refinishing products or solvents. ALWAYS read and follow all warnings and instructions on the containers for these products! ALWAYS be sure the plug file lightly into the outlet. When plugs fit loosely into outlets, they may slip partially out of the outlet and create a poor connection. This may cause outlets to overheat and create a potential fire hazard. Outlets in this condition should be replaced by a qualified electrician.
ALWAYS unplug the power cord when servicing, cleaning or moving the Fan. DO NOT use the ON/OFF switch as the sole means of disconnecting power. NEVER leave children unattended when the Fan is on or plugged in. ALWAYS turn off and unplug the fan when not in use.
The Blue Plug™ on your Lasko Fan is a safety feature. It contains a non-replacesable safety device (fuse) that should not be removed or tampered with. To reduce the risk of fire, electric shock and personal injury, DO NOT attempt to remove, replace, repair or tamper with the originally supplied plug. If the Fan has stopped functioning, it may be due to the safety device Incorporated in this plug.
THIS FAN HAS A POLARIZED PLUG (one blade is wider than the other). This plug is designed to fit into the outlet only one way. Match the wide blade to wide slot in outlet and FULLY INSERT, DO NOT attempt to bypass or defeat this safety feature. If the plug does not fit in the outlet, consult a qualified electrician. The outlet may need to be replaced.

CAUTION

• AVOID the use of extension cords, power strips, power taps, outlet style air fresheners or other cord connected device, as these devices may overheat and cause a fire hazard.
• DO NOT route power cord under rugs, carpets, runners or furniture. This may damage the cord or cause it to overheat creating a fire hazard.
• ALWAYS ignore the Fan on a stable flat, level surface while in operation to prevent the Fan from overturning.
• ALWAYS place the Fan on a table, that, lever surface while in operation to prevent the Fan from overturning.
• NEVER insert or allow fingers or objects to enter grill openings while Fan is in operation or injury and/or damage to the Fan may occur.
• DO NOT block, cover or obstruct air flow to or from the Fan while in operation.
• DO NOT use this Fan outdoors or near water or wet locations such as a bath tub, pool or hot tub. Use of this Fan in a wet location may create a shock hazard.
  • DO NOT run cord under carpeting. Do not cover cord with throw rugs, runners, or similar coverings. Do not route cord under furniture or appliances. Arrange cord away from traffic area and whom it will not be shipped over.
• NEVER use a single extension cord to operate more than one Fan or other electrical device.
  • DO NOT use this Fan if it has been damaged or is not functioning properly.
• Remote controls for other appliances or electronic equipment can sometimes interfere with the operation of this Fan. If this occurs, move the Fan to another location.
• Keep Fan remote control unit away from chairs and your bed where it may be sat or laid upon and inadvertently turn on the Fan.
• THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 547-7 (2008). This Fan is not suitable for use in agricultural facilities including areas where livestock, poultry or other animals are confined. Please refer to National Electric Code (NEC) Article 547-7 (2008), or applicable state or local codes or standards relating to electrical requirements for agricultural buildings.
• THIS FAN DOES NOT MEET THE REQUIREMENTS OF NEC ARTICLE 500 (2008). This Fan is not suitable for use in hazardous locations. Please refer to National Electric Code (NEC) Article 500 or applicable state or local codes or standards relating to electrical requirements for hazardous locations.

Partes Incluidas

6

7

⑥
⑦
8
9

。

⑥ ⑦ ⑧ ⑨

m = 311

)
3
1
•
The image is too blurry to recognize any text content.
•
-

1 + u1 - 1 = ( 1 + u) u1 < 1 = u

[Non-Text]

-

-

-

-

-

-

-

-

-

-

ria

ria

ria

ria

ria

ria

ria

ria

ria

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

m = 311

ria

ria

ria

ria

ADVERTENCIA

Oscillation

Push down Oscillation Knob on motor housing to make Fan Head move from side to side.

Tilt

To adjust direction of air, simply power Off and tilt the Head of the Fan.

Controls

Power Button
Turn Fan ON/OFF by pressing the Power Button.

Fan Spned Button
Fan Speed can be adjusted to 1 (low). 2 (medium),
or 3 (high).

Timar Buolin
The timer can be set up to 4 hours. Continue pressing
the Timer Button to reach the desired time setting.

NEW 5/22 3 2085222

REMOTE CONTROL:

1. Install two "AAA" batteries (not included).
2. Do not mix old and new batteries. Do not mix alkaline, standard (carbon-zinc) or rechargeable nickel-cad mI uml batteries.
3. DO NOT DISPOSE OF BATTERIES IN FIRE. BAT TER IES MAY EXPLODE OR LEAK.
4. Always purchase the correct size and grade of battery most suitable for the intended use.
   Suitable for the intended use.
5. Replace all batteries of a set at the same time.

MAINTENANCE

⚠ WARNING To reduce the risk of electrical shock and fire please observe the following instructions:

• Always unplug the cord before moving, servicing or cleaning.
• NEVER place the Fan in or near water.
• Disassembled grills may be immersed to be cleaned with a mild detergent and water. Wipe all other parts with soft cloth moistened with water and mild detergent only, DRY ALL PARTS COMPLETELY BEFORE REASSEMBLING. After any maintenance or servicing, completely reassemble unit as described in this instruction manual before reconnecting to the power supply.

- NEVER use ALCOHOL or SOLVENTS such as gasoline, benzene, paint thinner, or other harsh cleaners.

TROUBLE SHOOTING TIPS

If your Fan fails to operate, see below for a list of probable causes and solutions:

Be sure the power cord is plugged into a working electrical outlet.

SERVICING: For servicing, other than general user maintenance, please contact Customer Service at [phone].

Monday through Friday, from 8am-5pm Eastern.

STORAGE: Store the Fan with these instructions, in the original carton in a cool, dry place.

LUBRICATION: Motor is permanently lubricated.

DISPOSITION: Corrugated packaging materials are recyclable. For environmentally responsible disposal of this product, contact your local waste service provider or visit www.1800recycling.com ^6 .

LASKO PRODUCTS, LLC LIMITED WARRANTY (VALID IN THE USA, ITS TERRITORIES, AND CANADA ONLY)

WHAT THIS WARRANTY COVERS: This product is warranted against defects in workmanship and/or materials.

HOW LONG THIS WARRANTY LASTS: This warranty extends only to the original purchaser of the product and lasts for one (1) year from the date of original purchase or until the original purchaser of the product sells or transfers the product, whichever first occurs.

WHAT LASKO WILL DO: During the warranty period, Lasko will, at its sole option, repair or replace any part or parts that prove to be defective or replace the whole product with the same or comparable model. For all warranty claims, the product must be returned to Lasko Products, LLC at customer expense with proof of purchase within the warranty period. Contact the Lasko customer service department to obtain a Return Authorization ("RA"). DO NOT return products without an RA or the warranty claim will not be processed.

WHAT THIS WARRANTY DOES NOT COVER: This warranty does not apply if the product was damaged or failed because of accident, improper handling or operation, shipping damage, abuse, misuse, unauthorized repairs made or attempted. This warranty does not cover shipping costs for the return of products to Lasko for repair or replacement. Lasko will pay return shipping charges from Lasko falling weekly repairs or replacement. ANY AND ALL WARRANTIES, EXPRESSED OR IMPLIED (INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTY OF MERCHANTABILITY), ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS OR ANY OTHERS

Some states and provinces do not allow limitations on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so these exclusions or limitations may not apply to you. This warranty gives you specific legal rights. You may also have other rights which vary from state to state and province to province.

Proof of purchase is required before a warranty claim will be accepted.

CUSTOMER SERVICE:

Toll-Free [phone]. Email: [e-mail]

Our Customer Service team is available to assist you with product and service questions, and replacement parts. They can be

reached Monday through Friday, 8am-5pm Eastern. Please have your model number available, as well as the type and style

(located on the underside of your product).

Customer Service Dept., 820 Lincoln Ave., West Chester, PA 19380

(Please do not send product to this location) www.lasko.com

Manual printed in USA

Lasko

www.lasko.com/product-registration/

Exterior view of a modern office air conditioner with a five-petal fan and mounted stand (no text or symbols visible)

(Model 1850)
