Product Type	Wireless Router
Model	TEW-712BR
Brand	TRENDnet
Wireless Standard	IEEE 802.11n, backward compatible with 802.11b/g
Frequency Band	2.4 GHz
Maximum Wireless Speed	150 Mbps
LAN Ports	4 x 10/100 Mbps Fast Ethernet
WAN Port	1 x 10/100 Mbps Fast Ethernet
Antenna	1 x Fixed external antenna
VPN Support	PPTP, L2TP, IPSec pass-through
Security	WEP, WPA/WPA2, WPA-PSK/WPA2-PSK, MAC address filtering, SPI firewall
Management	Web-based user interface, DHCP server, QoS
Dimensions (W x D x H)	6.5 x 4.3 x 1.1 inches (165 x 110 x 28 mm)
Weight	0.4 lbs (180 g)
Power Supply	5V DC, 1A external adapter
Operating Temperature	0° to 40°C (32° to 104°F)
Storage Temperature	-10° to 70°C (14° to 158°F)
Operating Humidity	10% to 90% non-condensing
Certifications	CE, FCC, RoHS
Maintenance	Keep clean and dry; avoid exposure to extreme temperatures and humidity; unplug during storms

Frequently Asked Questions - TEW-712BR TRENDNET

How do I reset the TRENDnet TEW-712BR to factory defaults?

To reset, locate the reset button on the back panel. Use a paperclip to press and hold it for 10 seconds while the device is powered on. Release the button; the router will reboot with factory settings.

What is the default IP address and login credentials?

The default IP address is 192.168.10.1. The default username is admin and password is admin (all lowercase).

How do I change the Wi-Fi password?

Log in to the router's web interface (default IP: 192.168.10.1). Go to Wireless Settings > Security. Choose WPA2-PSK and enter your desired password in the Passphrase field. Click Save.

Does the TEW-712BR support WPA3?

No, the TEW-712BR only supports WEP, WPA, and WPA2 encryption. It does not support the newer WPA3 standard.

What is the maximum wireless range?

The typical indoor range is up to 100 feet (30 meters), but can vary based on obstacles and interference. For best performance, place the router centrally and away from thick walls.

Can I use the TEW-712BR as a wireless repeater?

Yes, the TEW-712BR has a repeater mode. Access the web interface, go to Operation Mode, select 'Repeater', and follow the setup to extend an existing Wi-Fi network.

How many devices can connect simultaneously?

The TEW-712BR can theoretically handle up to 20-30 devices, but performance may degrade with heavy usage. For stable connections, limit to about 15 devices.

What is the difference between 802.11n and 802.11g?

802.11n offers higher speeds (up to 150 Mbps) and better range compared to 802.11g (up to 54 Mbps). The TEW-712BR is backward compatible with 802.11b/g devices.

How do I update the firmware?

Download the latest firmware from TRENDnet's support site. Log into the router, go to System Tools > Firmware Upgrade, select the file, and click Upgrade. Do not power off during the process.

Is the TEW-712BR compatible with gigabit internet?

No, the TEW-712BR has 10/100 Mbps Fast Ethernet ports, so it cannot utilize gigabit (1000 Mbps) internet speeds. Maximum throughput is 100 Mbps wired and 150 Mbps wireless.

USER MANUAL TEW-712BR TRENDNET

Trendnet wireless router device with visible ports and antenna (no readable text or symbols beyond branding)

N150 Wireless Router

TEW-712BR

- Quick Installation Guide (1)

1. Before You Start

Package Contents

• TEW-712BR
  • Multi-Language Quick Installation Guide
  • CD-ROM (User's Guide)
  • Network cable (1.5 m /5 ft.)
  • Power adapter (5V DC, 1A)

Installation Requirements

• A computer with a wired or wireless network adapter and web browser
- Broadband internet
- Installed modem

2. Installation

1. Verify that you have an internet connection.
2. Power down your modem.
3. Disconnect the network cable from your modem and your computer.

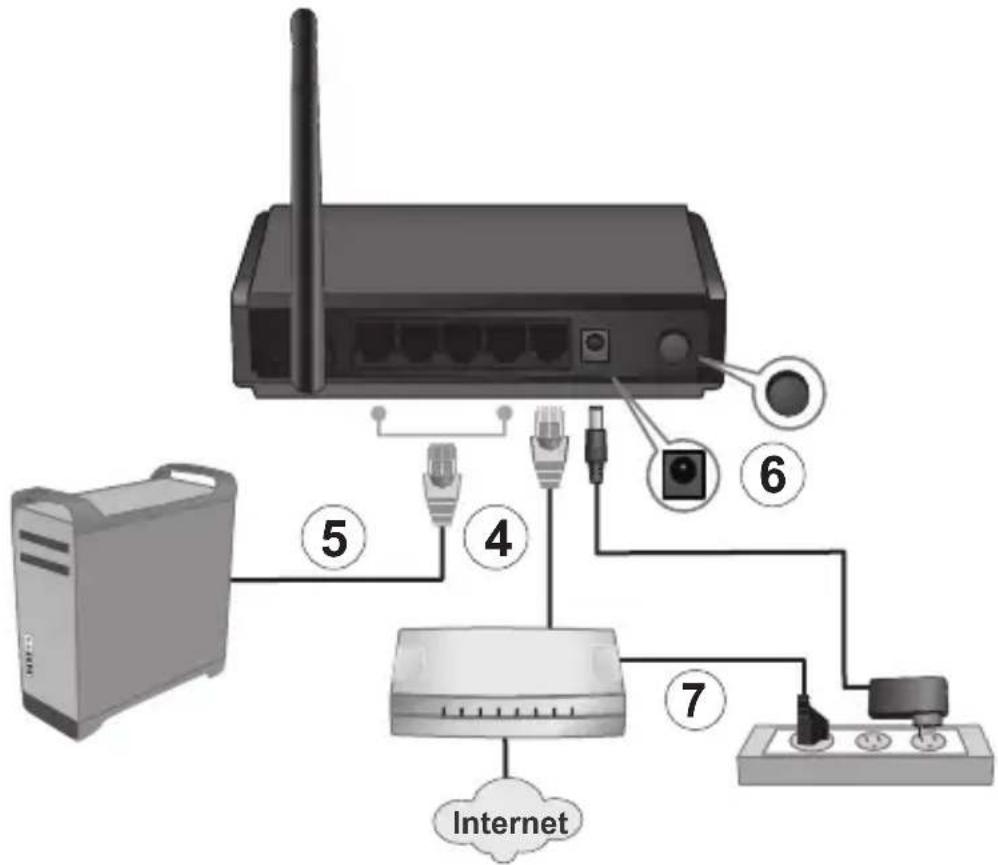

4. Connect your modem to the TEW-712BR's WAN port.
5. Connect your computer to one of the TEW-712BR's LAN ports.
6. Connect the power adapter to the TEW-712BR and then to a power outlet. Push the power button to the "On" position.
7. Power on your modem. Wait until the LEDs indicate that modem is fully booted up. For more information on your modem's LEDs, please consult with your modem's user's guide.

1. Verify the status LED indicators on the front of the router to confirm that the device is fully functional: (Power, WAN, WLAN and the LAN port (1, 2, 3 or 4) that your computer is connected are solid green).

Note: It is recommended that you configure the Wireless Router from a wired computer.

1. Open your web browser, type http://192.168.10.1 in the Address bar, and then press Enter.

1. Enter the User Name and Password and then click OK. By default:

User Name: admin

Password: admin

Note: User Name and Password are case sensitive.

1. The Wizard will automatically appear. Click Wizard if the Wizard does not automatically appear.

1. Follow the setup wizard's instructions and then click Restart.

Note:

- To protect your network from any unauthorized access it is recommended to enable wireless encryption. Please refer to the User Guide on the User's Guide CD-ROM for information on setting up encryption on the wireless router.

- Once encryption is enabled on the router, make sure your encryption key is in a safe location. Each additional wireless computer will require you to input the encryption key.

1. Open up your browser and enter in a URL (e.g. www.trendnet.com) to verify that you have Internet connection.

Wireless router installation is now complete. For detailed information regarding the

TEW-712BR's configuration and advanced settings, please refer to the User's Guide CD-ROM, or TRENDnet's website at http://www.trendnet.com.

Company Information:

Company Name:

TRENDnet, Inc.

Company Address:

20675 Manhattan Place

Torrance, CA 90501

USA

Product Information:

Product Description:

N150 Wireless Router

Model Number:

TEW-712BR

Brand name:

TRENDnet

Technical Standards:

EN 300 328

V1.7.1: 10-2006

EN 301 489-1

V1.8.1:04-2008

EN 301 489-17

V2.1.1:05-2009

EN 50385:2002

The product is herewith confirmed to comply with the requirements of Directive 1999/5/EC of the Council (European Parliament) on the radio and telecommunications terminal equipment and Energy-related products Directive 2009/125/EC.

I hereby declare that the products and devices mentioned above are consistent with the standards and provisions of the guidelines.

Sonny Su

Full Name

July 27, 2012

Date

Director of Technology

Position/Title

GPL/LGPL General Information

This TRENDnet product includes free software written by third party developers. These codes are subject to the GNU General Public License ("GPL") or GNU Lesser General Public License ("LGPL"). These codes are distributed WITHOUT WARRANTY and are subject to the copyrights of the developers. TRENDnet does not provide technical support for these codes. The details of the GNU GPL and LGPL are included in the product CD-ROM.

Please also go to (http://www.gnu.org/licenses/gpl.txt) or (http://www.gnu.org/licenses/lgpl.txt) for specific terms of each license.

The source codes are available for download from TRENDnet's web site (http://trendnet.com/downloads/list_gpl.asp) for at least three years from the product shipping date.

You could also request the source codes by contacting TRENDnet.

20675 Manhattan Place, Torrance, CA 90501, USA. Tel: [phone] Fax: [phone]

Product Warranty Registration

Please take a moment to register your product online. Go to TRENDnet's website at http://www.trendnet.com/register

Certifications

This equipment has been tested and found to comply with FCC and CE Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference.
(2) This device must accept any interference received. Including interference that may cause undesired operation.

Waste electrical and electronic products must not be disposed of with household waste. Please recycle where facilities exist. Check with you Local Authority or Retailer for recycling advice.

NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE EQUIPMENT.
