USER MANUAL HMVZ173SS HISENSE

Over the Range Microwave Oven Installation Instructions

Model:

HMVZ173SS

For questions about features, operation/performance, parts or service, call: 1-877-465-3566

CONTENTS

General information

Important Safety Instructions .... 3

Electrical Requirements .... 3

Damage – Shipment/ Installation.... 4

Parts Included.... 4

Tools You Will Need .... 5

Mounting Space 5

Step-by-step installation guide

Placement of The Mounting Plate 6–8

Removing the Mounting Plate 6

Finding the Wall Studs....6

Determining Wall Plate Location....7

Aligning the Wall Plate 8

Installation Types.... 9–22

Hood Exhaust 10-11

A Outside Top Exhaust 12–15

Attach Mounting Plate to Wall......12

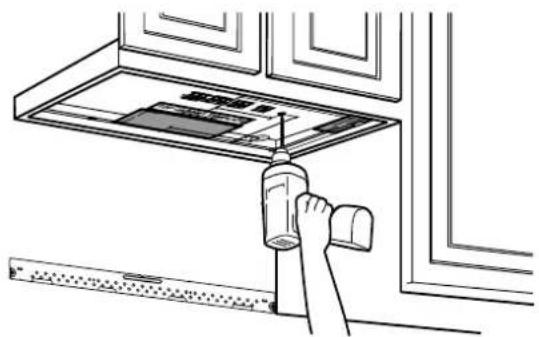

Preparation of Top Cabinet......13

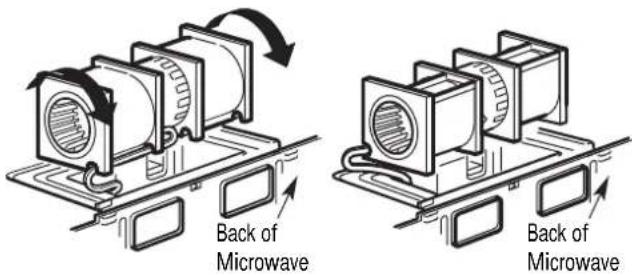

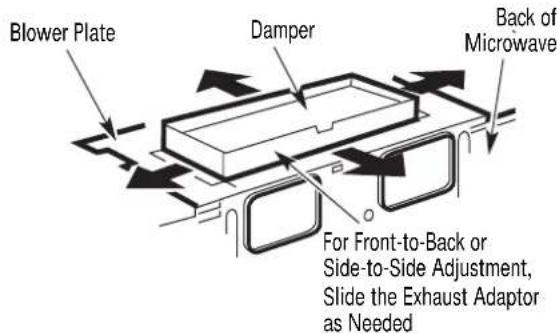

Adapting Microwave Blower for

Outside top Exhaust 13–14....

Checking for Proper Damper

Operation....14

Mount the Microwave Oven .....14–15

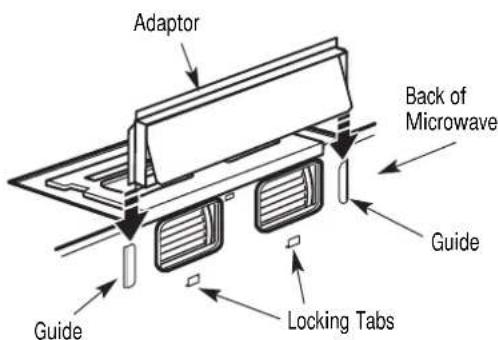

Adjust the Exhaust Adaptor .....15

Connecting Ductwork....15

B Outside Back Exhaust.... 16–19

Preparing Rear Wall for

Outside Back Exhaust....16

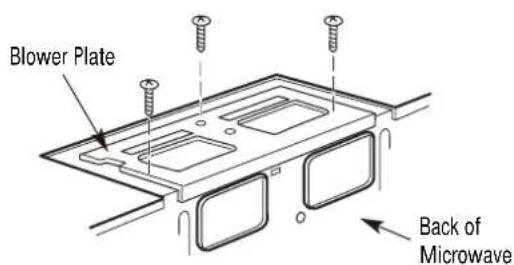

Remove Blower Plate 16.....

Attach Mounting Plate to Wall ......17

Preparation of Top Cabinet ......17

Adapting Microwave Blower

for Outside Back Exhaust......17–18

Mount the Microwave Oven ....19

C Recirculating 20–22

Attach Mounting Plate to Wall ......20

Preparation of Top Cabinet ......21

Check Blower Plate 21

Mount the Microwave Oven .....21–22

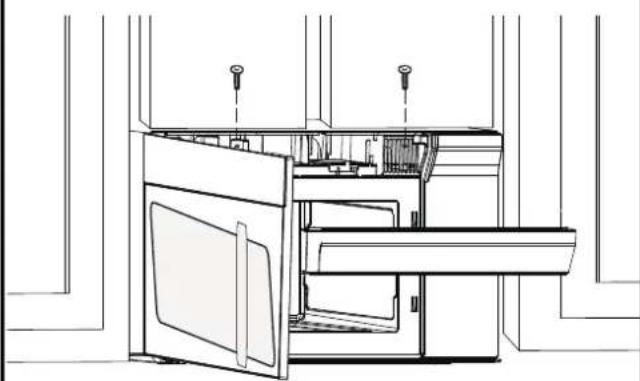

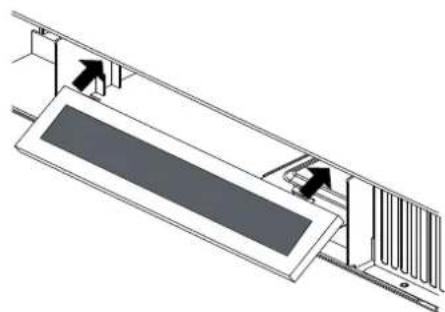

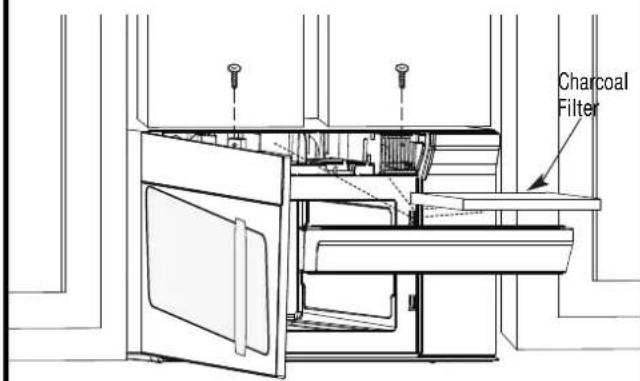

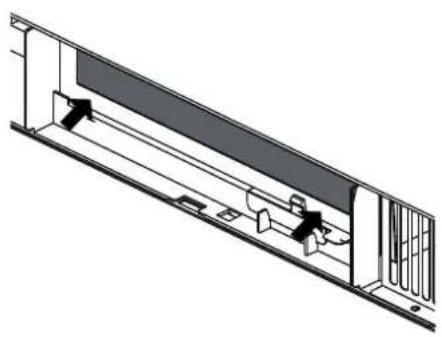

Installing or Change the

Charcoal Filter 22

Before You Use Your Microwave 24

Template Information.... 25

IMPORTANT SAFETY INSTRUCTIONS

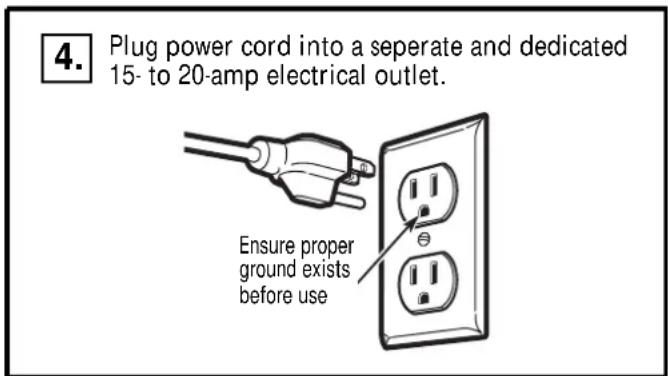

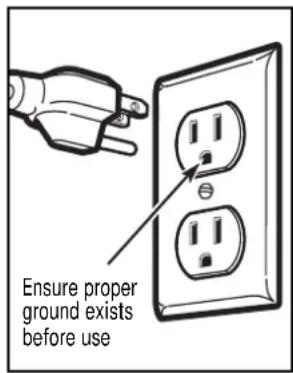

This product requires a three-prong grounded outlet. The installer must perform a ground continuity check on the power outlet box before beginning the installation to ensure that the outlet box is properly grounded. If not properly grounded, or if the outlet box does not meet electrical requirements noted (under ELECTRICAL REQUIREMENTS), a qualified electrician should be employed to correct any deficiencies.

Illustration of a hand inserting a component into an electrical box (no text or symbols visible)

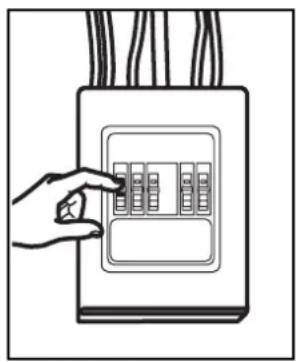

CAUTION: For personal safety, remove house fuse or open circuit breaker before beginning installation to avoid severe or fatal shock injury.

CAUTION: For personal safety, the mounting surface must be capable of supporting the cabinet load, in addition to the added weight of this 63–85 pound (28.5–38.5 kg) product, plus additional oven loads of up to 50 pounds (22.7 kg) or a total weight of 113–135 pounds (51.3–61.2 kg).

CAUTION: For personal safety, this product cannot be installed in cabinet arrangements such as an island or a peninsula. It must be mounted to BOTH a top cabinet AND a wall.

NOTE: For easier installation and personal safety, it is recommended that two people install this product.

IMPORTANT – PLEASE READ CAREFULLY. FOR PERSONAL SAFETY, THIS APPLIANCE MUST BE PROPERLY GROUNDED TO AVOID SEVERE OR FATAL SHOCK.

The power cord of this appliance is equipped with a three-prong (grounding) plug which mates with a standard three-prong (grounding) wall receptacle to minimize the possibility of electric shock hazard from this appliance.

You should have the wall receptacle and circuit checked by a qualified electrician to make sure the receptacle is properly grounded.

Where a standard two-prong wall receptacle is encountered, it is very important to have it replaced with a properly grounded three-prong wall receptacle, installed by a qualified electrician.

DO NOT, UNDER ANY CIRCUMSTANCES, CUT, DEFORM OR REMOVE ANY OF THE PRONGS FROM THE POWER CORD. DO NOT USE WITH AN EXTENSION CORD.

ELECTRICAL REQUIREMENTS

Product rating is 120 volts AC, 60 Hertz, 15 amps and 1.6 kilowatts. This product must be connected to a separate and dedicated supply circuit of the proper voltage and frequency. Wire size must conform to the requirements of the National Electrical Code or the prevailing local code for this kilowatt rating. The power supply cord and plug should be brought to a separate and dedicated 20 ampere branch circuit single grounded outlet. The outlet box should be located in the cabinet above the microwave oven. The outlet box and supply circuit should be installed by a qualified electrician and conform to the National Electrical Code or the prevailing local code.

DAMAGE—SHIPMENT/ INSTALLATION

• If the unit is damaged in shipment, return the unit to the store in which it was bought for repair or replacement.
• If the unit is damaged by the customer, repair or replacement is the responsibility of the customer.
• If the unit is damaged by the installer (if other than the customer), repair or replacement must be made by arrangement between customer and installer.

PARTS INCLUDED

HARDWARE PACKET

PART QUANTITY
	Wood Screws 2 ( 1/4^ × 2^ )

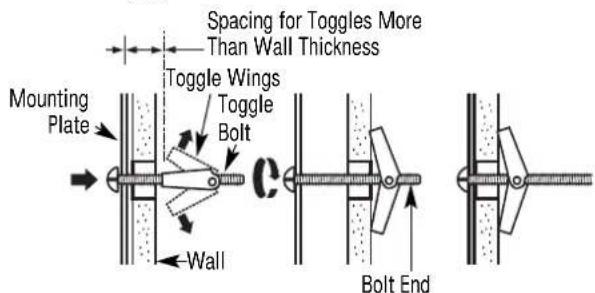

	Toggle Bolts (and wing nuts) ( 3/16^ × 3^ )	2
	Self-Aligning Machine 3 Screws ( 1/4^ - 28 × 31/4^ )
	Nylon Grommet(for metal cabinets)	1

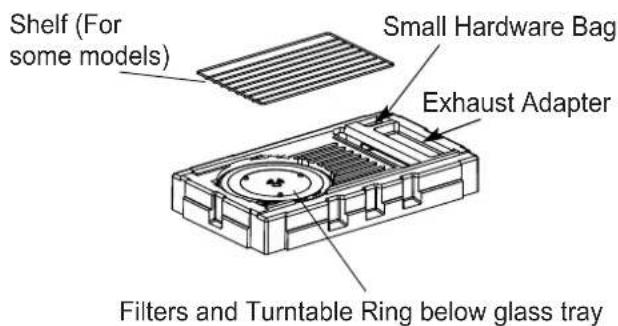

You will find the installation hardware contained in a packet with the unit. Check to make sure you have all these parts.

NOTE: Some extra parts are included.

PARTS INCLUDED (CONT.) ADDITIONAL PARTS

PART		QUANTITY

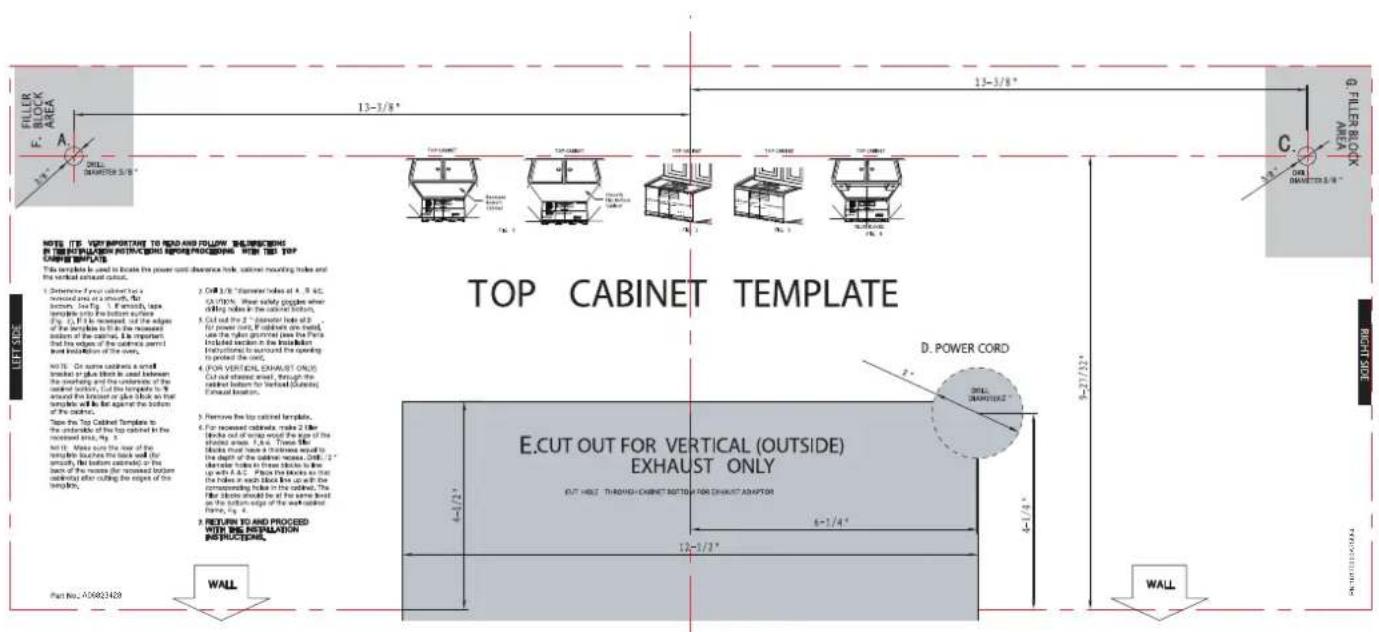

	CabinetTop Template	1

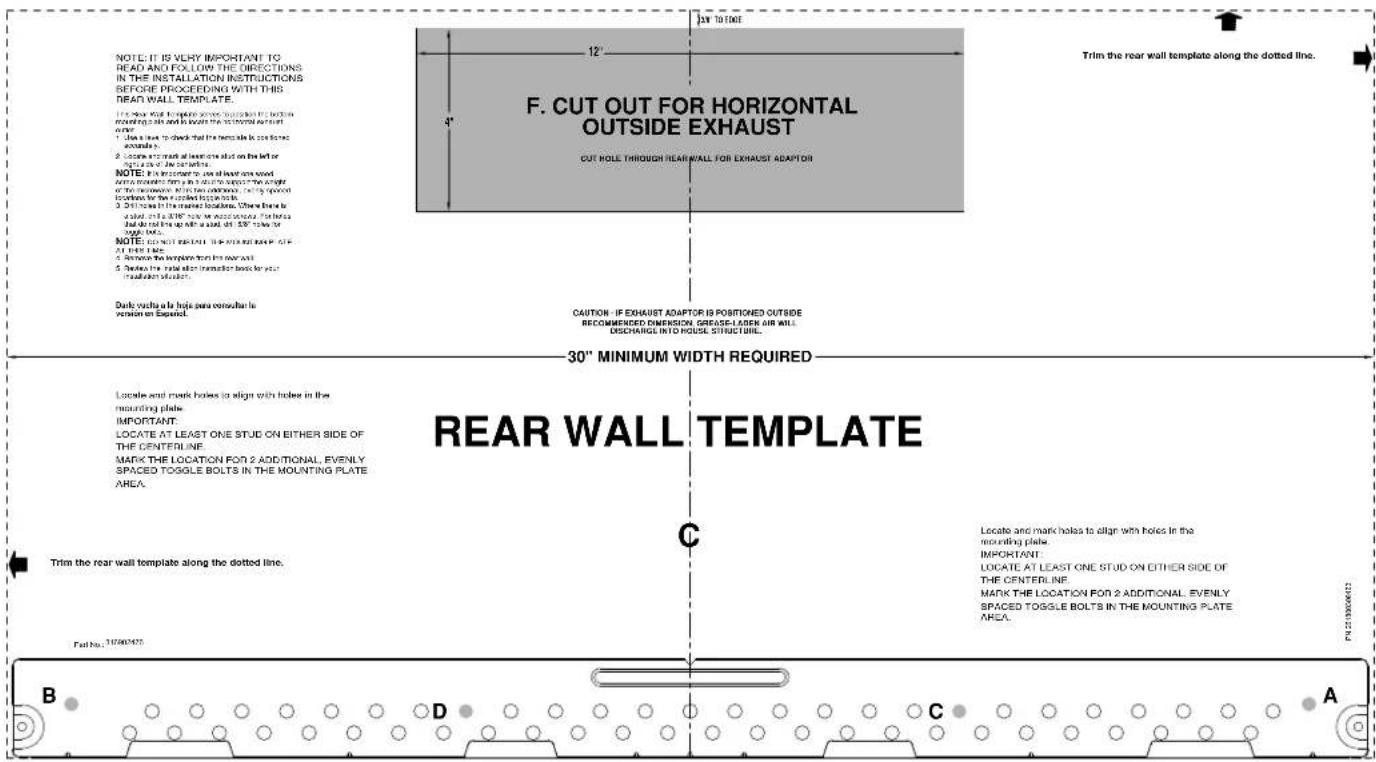

	Rear Wall Template	1
	Installation Instructions	1
	Use & Care Manual	1
	Separately Packed Grease Filters	2
	Exhaust adaptor	1
	Glass Tray	1
	Tru ntable Ring	1
For some models	Convection wire rack	1
For some models	Shelf	1
	CHARCOAL FILTER	1

TOOLS YOU WILL NEED

2 Phillips screwdriver

Pencil

Tin snips (for cutting damper, if required)

Scissors (to cut template, if necessary)

Electric drill with 316 ", 12 " and 58 " drill bits

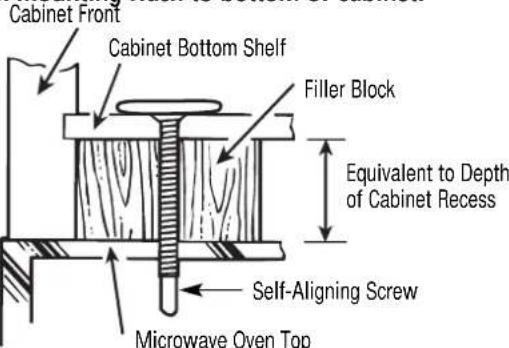

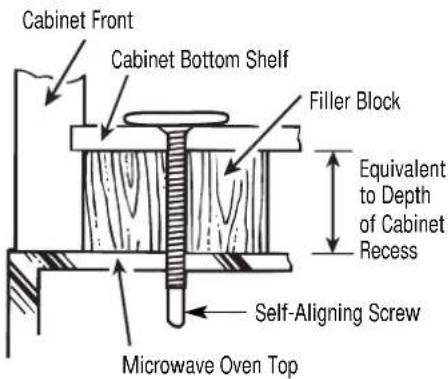

Filler blocks or scrap wood pieces, if needed for top cabinet spacing (used on recessed bottom cabinet installations only)

Gloves

Three technical line drawings of electrical components: a motor, a plug with a wire, and a hook (no text or symbols)

Saw (saber, hole or keyhole)

Stud finder

Hammer (optional)

Safety goggles

Level

Duct and masking tape

MOUNTING SPACE

NOTES:

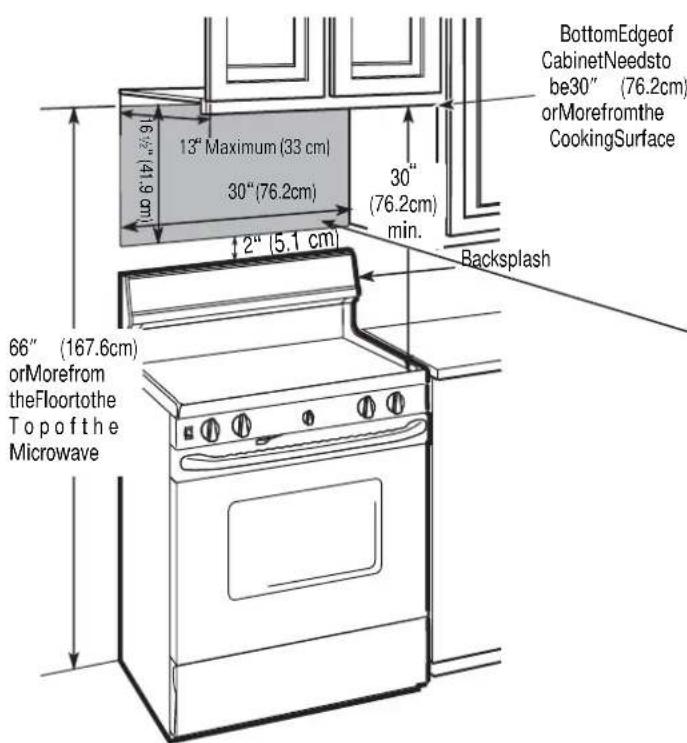

• Thespacebetweenthecabinetsmustbe 30"(76.2cm)wideandfreeofobstructions.
• If you are going to every your microwave oven to the outside, see Hood Exhaust Section for exhaust duct preparation.
• When installing them microwave oven beneath smooth, flat cabinets, be careful to follow the instructions on the top cabinet template for power cord clearance.
• As a guide to installation, see page 25 for Mounting Template Information.
• If the cabinet depth including the cabinet doors is more than 13" then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/ intake.

Pure technical line drawing of a U-shaped component with no text or symbols

Pure technical line drawing of a U-shaped component with no text or symbols

1 PLACEMENT OF THE MOUNTING PLATE

A. REMOVINGTHEMICROWAVE OVENFROM THECARTON/ REMOVINGTHEMOUNTING PLATE

1 Remove the top cover board, installation instructions, use and care, exhaust adapter, turntable ring, shelf, filters, glass tray and the small hardware bag. Do not remove the Styrofoam protecting the front of the oven.

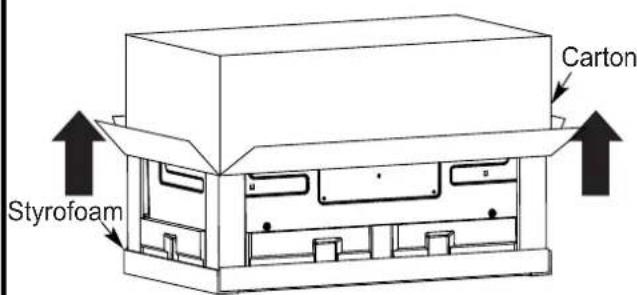

2 Foldbackall4cartonflapsfullyagainstcarton sides. Thencarefullyrolltheovenandcartonover ontothetopside. Theovenshouldberesting in theStyrofoam.

3 Pullthecartonupandofftheoven.

4 Cutthemiddleoftheouterprotectiveplasticbagto remove the mountinglate

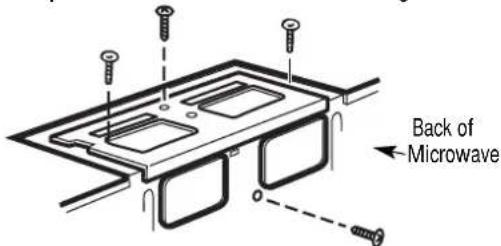

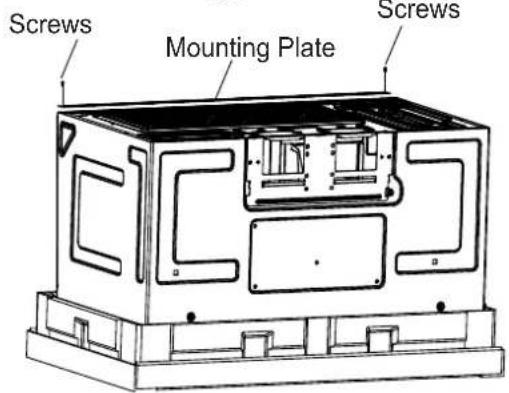

5 Remove the screws from each end of the mounting plate. This plate will be used as the rear wall template and for mounting. Reinstall the screws into the holes where they were removed.

B. FINDINGTHEWALLSTUDS

1 Findthestuds, using one of the following methods:

A. Studfinder-amagnetic device which locatesnails.

B. Useahammertotaplightlyacrossthe mountingsurfacetofindasolidsound. Thiswillindicateastudlocation.

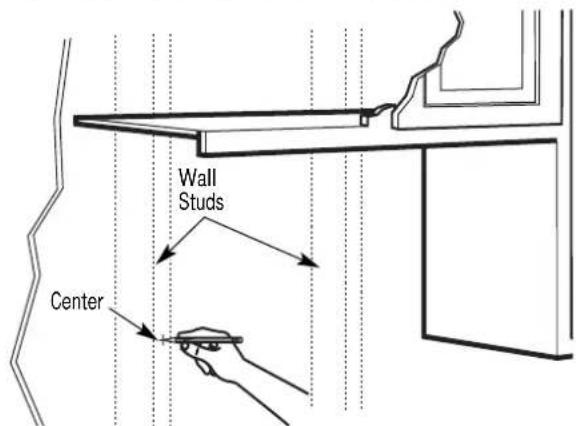

2 Afterlocatingthestud(s), find the center by probing the wall with a small nail to find the edges of the stud. Then place a mark halfway between the edges. The center of any adjacent stud should be 16" (40.6cm) or 24" (61cm) from this mark.

3 Drawalinedownthecenterofthestuds. THEMICROWAVEMUSTBECONNECTEDTO ATLEASTONEWALLSTUD.

C. DETERMINING WALL PLATE LOCATION UNDER YOUR CABINET

Plate position-beneath flat bottom cabinet

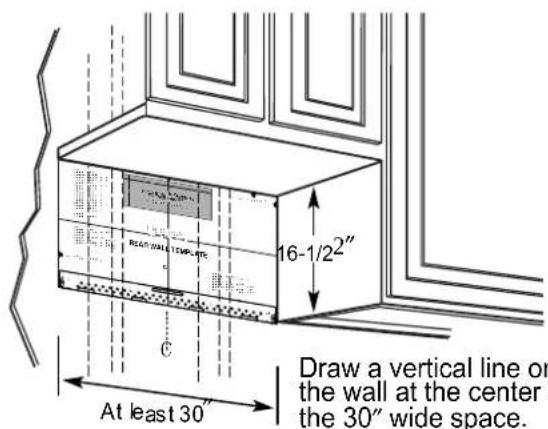

Draw a vertical line on the wall at the center of the 30" wide space.

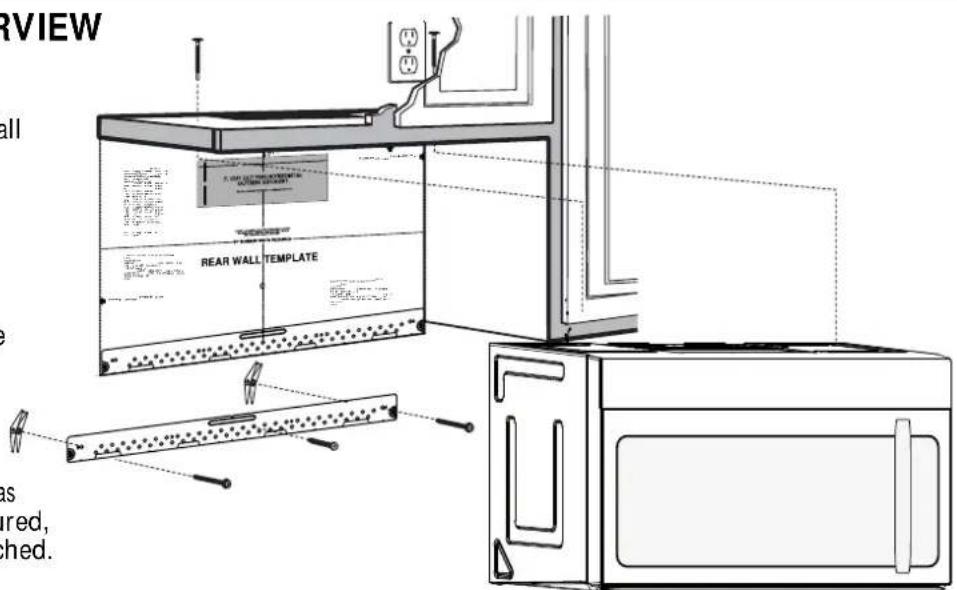

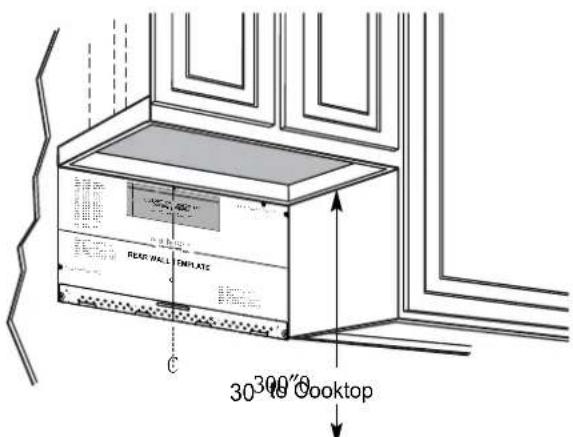

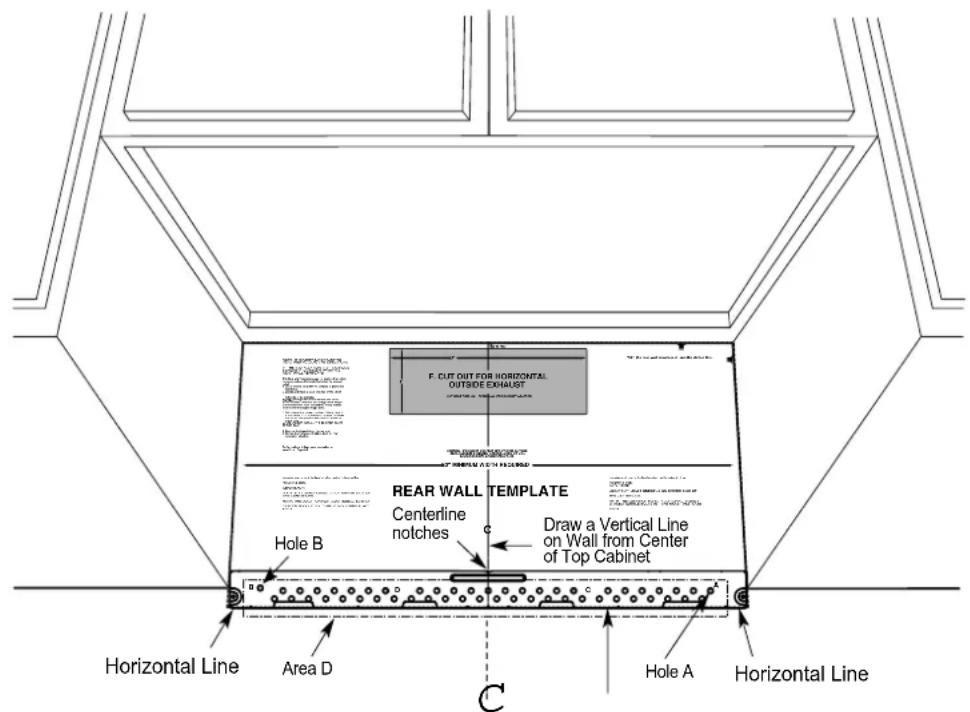

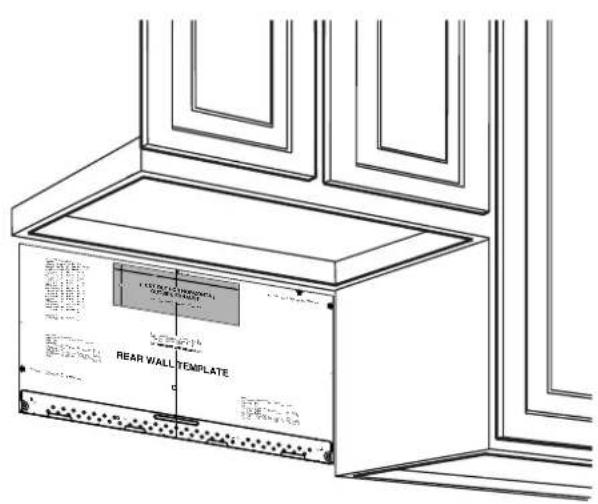

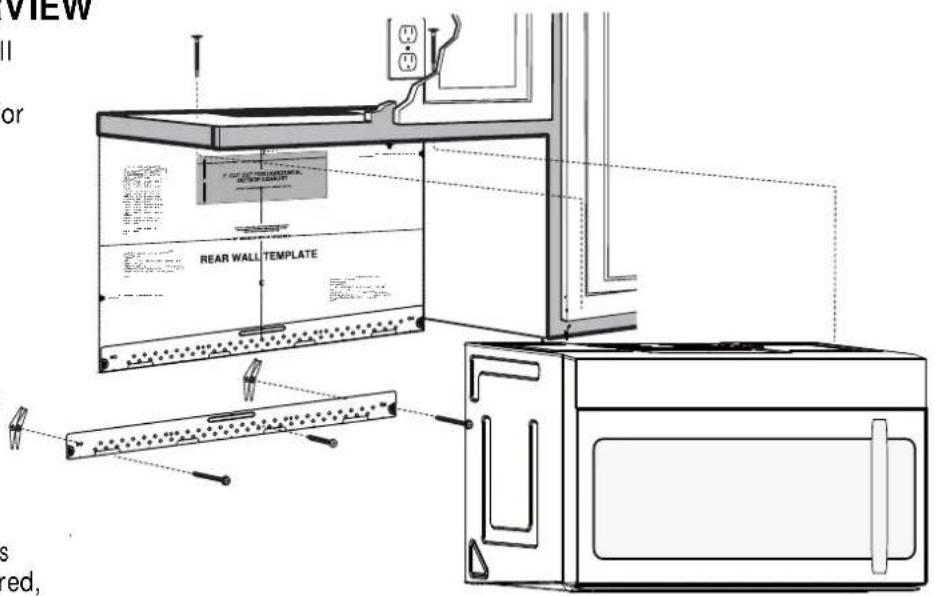

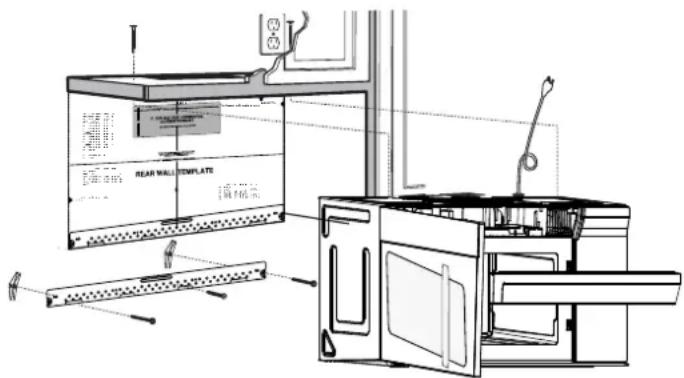

Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom of the cabinet.

Plate position-beneath framed recessed cabinet bottom

Draw a vertical line on the wall at the center of the 30" space.

Tape the Rear Wall Template onto the wall matching the centerline and touching the bottom cabinet frame.

Plate position-beneath recessed bottomcabinetwith front overhang

Your cabinets may have decorative trim that interferes with the microwave installation. Remove the decorative trim to install the microwave properly and to make it level.

Use a level to make sure the cabinet bottom is level. If the cabinets have a front overhang only, with no back or side frame, install the mounting plate down the same distance as the front overhang depth. This will keep the microwave level.

1 Measure the inside depth of the front overhang.

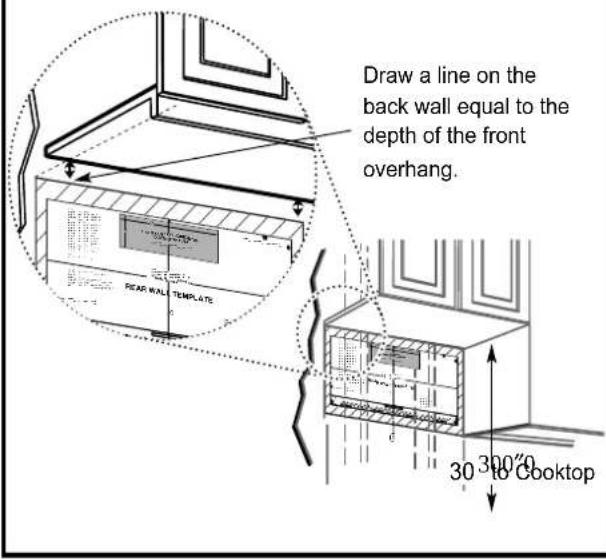

2 Draw a horizontal line on the back wall an equal distance below the cabinet bottom as the inside depth of the front overhang.
3 For this type of installation with front overhang only, align the rear template with this horizontal line, not touching the cabinet bottom as described in Step D.

D. ALIGNING THE WALL PLATE

CAUTION: Weargloves to avoid cutting fingerson sharpedges.
Draw a horizontal line on wall at the bottom of "Rear Wall Template".

1 Draw a vertical line on the wall at the center of the 30" wide space.
2 Draw a horizontal line on the wall at the bottom of "Rear Wall Template".
3 Find a wall stud in area "D" of mounting plate Refer to section 1B. Finding the wall studs.

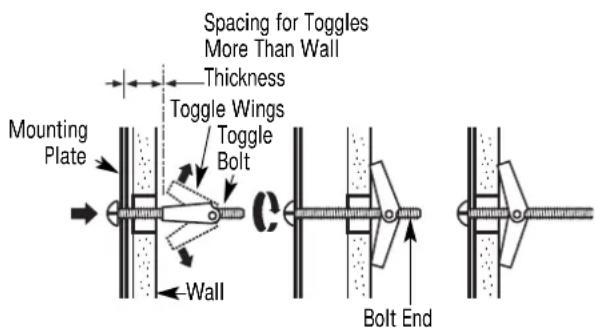

4 For attaching the mounting plate into stud drill a 3/16" hole into wood stud. Drill a 5/8" hole for toggle bolt in 2 other locations at or as close to both hole A and B as possible.

NOTE: DO NOT MOUNT THE PLATE AT THIS TIME.

NOTE: For proper installation, holes A and B should be used.

If Holes A and B are not in a stud, find a stud somewhere in a D, C and draw a circle to line up with the stud. It is important to have at least one wood screw mounted firmly in a stud to support the weight of the microwave. Set the mounting plate aside.

2 | INSTALLATION TYPES (Choose A, B or C)

Thismicrowaveovenisdesignedforadaptation to the following three types of ventilation:

A. Outside Top Exhaust (Vertical Duct)

B. OutsideBack Exhaust (Horizontal Duct)

C. Recirculating (Non-Vented Ductless)

NOTE: This microwave is shipped assembled for Recirculating. Select the typeof ventilation required for your installation and proceed to that section.

A

OUTSIDE TOP EXHAUST (VERTICAL DUCT)

Seepage12

B

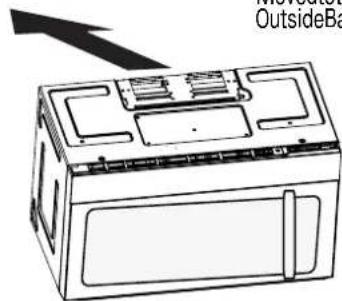

OUTSIDE BACK EXHAUST (HORIZONTAL DUCT)

Line drawing of a kitchen appliance with ventilation slots and door (no text or symbols)

Seepage16

C

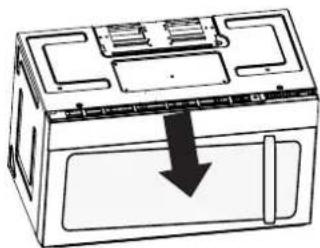

RECIRCULATING (NON-VENTED DUCTLESS)

Diagram of a refrigerator interior with a downward arrow indicating a drop or reduction in the refrigerator (no text or symbols present)

Seepage20

Modelsareshippedfor recirculatingexhaust. These models have a disposablecharcoalfilter installedtohelpremove smokeandodors.

NOTE: Read the next two pages only if you plan to vent your exhaust to the outside. If you plan to recirculate the air back into the room, proceed to page 20.

INSTALLATION INSTRUCTIONS FOR EXTERNAL EXHAUST DUCTING

NOTE: If you need to install ducts, note that the total duct length of 314 " x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 120 equivalent feet (36.5 m). Outside ventilation requires an EXTERNAL EXHAUST DUCT. Read the following carefully.

NOTE: It is important that venting be installed using the most direct route and with as few elbows as possible. This ensures clear venting of exhaust and helps prevent blockages. Also, make sure dampers swing freely and nothing is blocking the ducts.

Exhaust connection:

The exhaust adaptor has been designed to mate with a standard 3^1/4 x 10" (8.2 x 25.4 cm) rectangular duct.

If a round duct is required, a rectangular-to-round transition adaptor must be used. A 5" (12.7cm)/ 6" (15.2cm) diameter duct is acceptable to use.

Maximum duct length:

For satisfactory air movement, the total duct length of 314 " x 10" (8.2 x 25.4 cm) rectangular or 5" (12.7 cm) diameter/6" (15.2 cm) diameter round duct should not exceed 120 equivalent feet (36.5 m).

Elbows, transitions, wall and roof caps, etc., present additional resistance to airflow and are equivalent to a section of straight duct which is longer than their actual physical size. When calculating the total duct length, add the equivalent lengths of all transitions and adaptors plus the length of all straight duct sections. The chart below shows you how to calculate total equivalent ductwork length using the approximate feet of equivalent length of some typical ducts.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER EQUIVALENT
	Rectangular-to-Round 5 Ft. (1.5 m) x ( ) = Ft. or mTransition Adaptor*
	Wall Cap 40 Ft. (12.2 m) x ( ) = Ft. or m
	90° Elbow 10 Ft. (3 m) x ( ) = Ft. or m
	45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
	90° Elbow 25 Ft. (7.6 m) x ( ) = Ft. or m
	45° Elbow 5 Ft. (1.5 m) x ( ) = Ft. or m
	Roof Cap	24 Ft. (7.3 m) x ( ) = Ft. or m
	Straight Duct 6" (15.2 cm)Round or 31⁄4" x 10"(8.2 x 25.4 cm Rectangular)	1 Ft. (0.3 m) x ( ) = Ft. or m
Total Ductwork = Ft. or m

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.

EXTERNAL EXHAUST DUCTING

OUTSIDE TOP EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES LENGTH x USED = LENGTH		EQUIVALENT NUMBER EQUIVALENT
	Roof Cap 24 Ft. (7.3 m) x (1) = 24 Ft. (7.3 m)
	12 Ft. (3.6 m) Straight Duct (6"/15.2 cm Round)	12 Ft. (3.6 m) x (1) = 12 Ft. (3.6 m)
	Rectangular-to-Round 5 Ft. ( Transition Adaptor*	1.5 m) x (1) = 5 Ft. (1.5 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood. Total Length =		41 Ft. (12.4 m)

* IMPORTANT: If a rectangular-to-round transition adaptor is used, the bottom corners of the damper will have to be cut to fit, using the tin snips, in order to allow free movement of the damper.

OUTSIDE BACK EXHAUST (EXAMPLE ONLY)

The following chart describes an example of one possible ductwork installation.

DUCT PIECES		EQUIVALENT LENGTH* NUMBER x USED = LENGTH	EQUIVALENT
	Wall Cap	40 Ft. (12.2 m) x (1) = 40 Ft. (12.2 m)
[EXGC]	3 Ft. Straight Duct (3 ^1 /4" x 10"/8.2 x 25.4 cm Rectangular)	3 Ft. (0.9 m) x (1) = 3 Ft. (0.9 m)
	90° Elbow	10 Ft. (3 m) x (2) = 20 Ft. (6 m)
Equivalent lengths of duct pieces are based on actual tests and reflect requirements for good venting performance with any vent hood.Total Length =			63 Ft. (19.1 m)

NOTE: For back exhaust, care should be taken to align exhaust with space between studs, or wall should be prepared at the time it is constructed by leaving enough space between the wall studs to accommodate exhaust.

A

OUTSIDE TOP EXHAUST (Vertical Duct)

INSTALLATION OVERVIEW

A1. Attach Mounting Plate to Wall
A2. Prepare Top Cabinet
A3. Adapting Microwave Blower for Outside Top Exhaust
A4. Check Damper Operation
A5. Mount Microwave Oven
A6. Adjust Exhaust Adaptor
A7. Connect Ductwork

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
  • Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

A1.

ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the Rear wall template when pushed flush against the wall and that the plate is properly centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.
4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

A2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws, a hole large enough for the power cord to fit through, and a cutout large enough for the exhaust adaptor.

Line drawing of a hand using a tool to lift a wall-mounted device (no text or symbols present)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

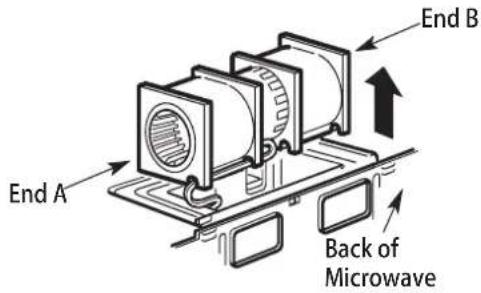

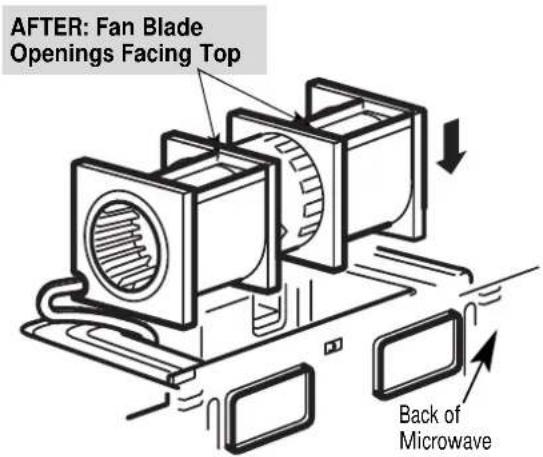

3 Roll the blower unit 90° so that fan blade openings are facing out the top of the microwave. Before Rotation After Rotation

4 Place the blower unit back into the opening.

A3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST

1 Place the microwave in its upright position, with the top of the unit facing up.

Remove the screw that holds the blower plate to the microwave. Remove and save the screw holding the blower motor to the microwave.

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

A3. ADAPTING MICROWAVE BLOWER FOR OUTSIDE TOP EXHAUST

5 Secure blower unit to microwave with the screw removed in Step 1. Make sure the screw is tight.
6 Replace blower plate with the screws removed in Step 1. Make sure the screws are tight.

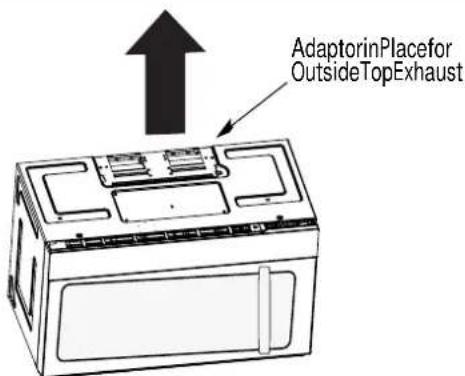

7 Attach the exhaust adaptor to the top of the blower plate by sliding it into the guides of the blower plate.

Push in securely until it is in the locking tabs. Take care to assure that the damper hinge is installed so that the damper swings freely.

• Make sure tape securing damper is removed and damper pivots easily before mounting microwave.
• You will need to make adjustments to assure proper alignment with your house exhaust duct after the microwave is installed.

Illustration of three scenes showing people handling boxes and a person interacting with a door (no text or symbols present)

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps 1–3. Do not pinch cord or lift oven by pulling cord.

2 Rotate front of oven up against cabinet bottom.

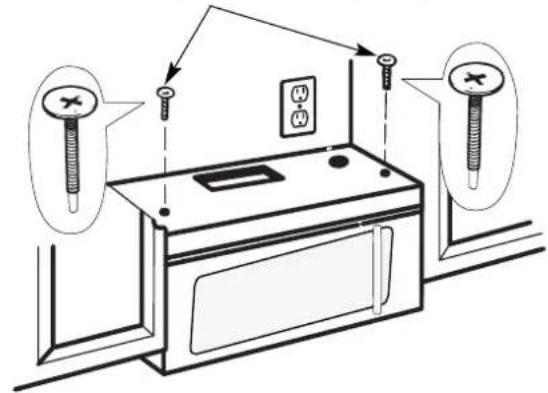

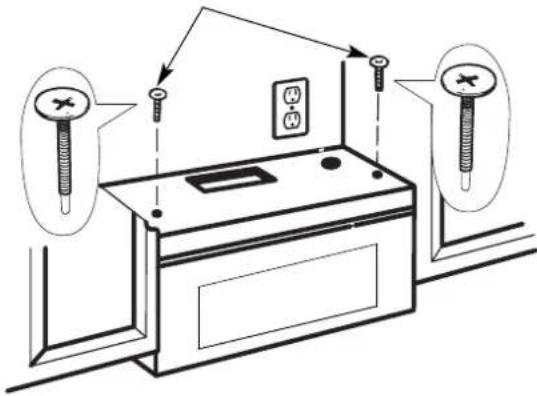

3 Insert a self-aligning screw through one of the top cabinet holes. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

4 Attach the microwave oven to the top cabinet.

5 Insert 2nd self aligning screw through remaining top cabinet hole.

Turn two full turns on screw.

7 Tighten the outer two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Line drawing of a hand holding a grid-patterned device on a screen (no text or symbols)

8 Install grease filters. See the Use and Care packed with the microwave.

A6. ADJUST THE EXHAUST ADAPTOR

Open the top cabinet and adjust the exhaust adaptor to connect to the house duct.

A7. CONNECTING DUCTWORK

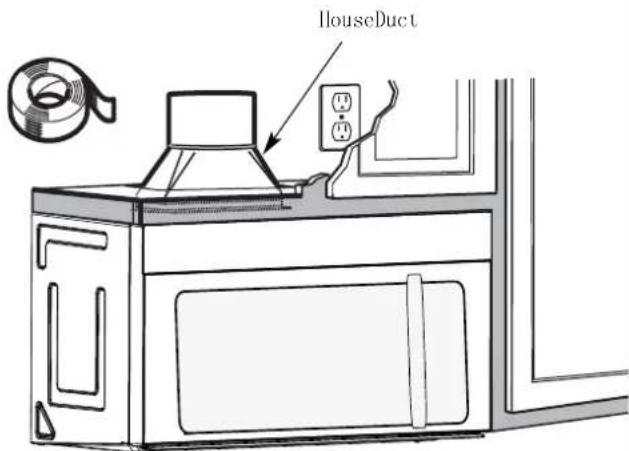

1 Extend the house duct down to connect to the exhaust adaptor.
2 Seal exhaust duct joints using furcantape for high temperature applications.

B OUTSIDE BACK EXHAUST (Horizontal Duct)

INSTALLATION OVERVIEW

B1. Prepare Rear Wall
B2. Remove Blower Plate
B3. Attach Mounting Plate to Wall
B4. Prepare Top Cabinet
B5. Adjust Blower
B6. Mount the Microwave Oven

IMPORTANT NOTES:

• Make sure the screws for the blower motor and blower plate are securely tightened when they are reinstalled. This will help to prevent excessive vibration.
  • Make sure the motor wiring has been properly routed and secured, and that the wires are not pinched.

B1. PREPARING THE REAR WALL FOR OUTSIDE BACK EXHAUST

You need to cut an opening in the rear wall for outside exhaust.

• Read the instructions on the REAR WALL TEMPLATE.
• Tape it to the rear wall.
• Cut the opening, following the instructions of the REAR WALL TEMPLATE.

B2. REMOVE BLOWER PLATE

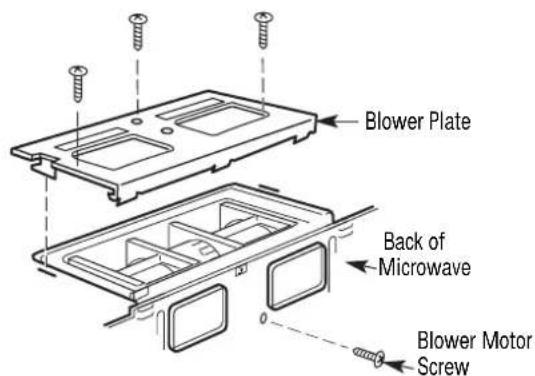

Remove and save the screw that holds the blower plate to the microwave. Lift off the blower plate.

B3. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

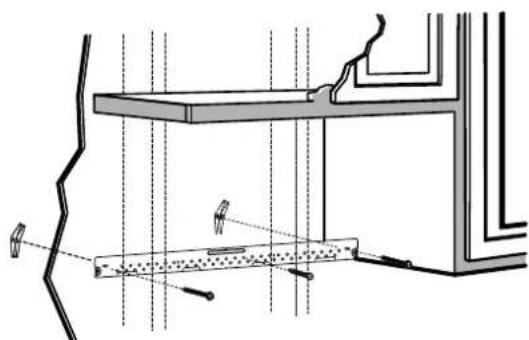

Attach the plate to the wall using toggle bolts. At least one wood screw must be used to attach the plate to a wall stud.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the row when all template pushed flush against the wall and that the plate is properly centered under the cabinet.
CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.
4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

B4. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand inserting a plastic into a rack-mounted device (no text or symbols)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.
• Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

B5. ADAPTING MICROWAVE BLOWER FOR OUTSIDE BACK EXHAUST

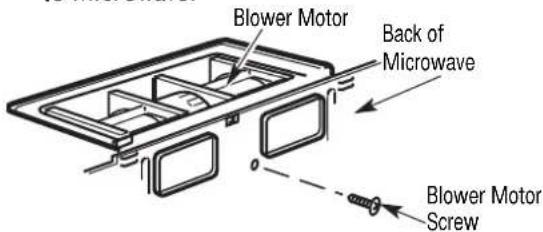

1 Remove and save screw that holds blower motor to microwave.

2 Carefully pull out the blower unit. The wires will extend far enough to allow you to adjust the blower unit.

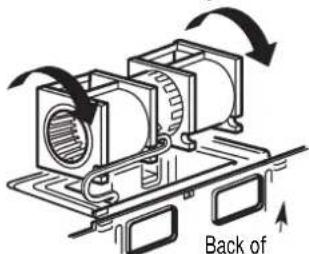

3 Roll the blower unit 90°

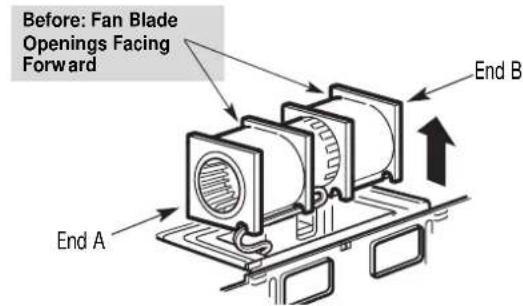

Before Rotation

Back of Microwave

After Rotation

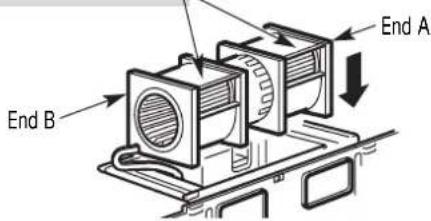

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

Back of Microwave

Before Rotation After Rotation

Diagram of a mechanical device with rotating components and labeled 'Back of' (no text or symbols on the diagram itself)

Back of Microwave

Technical diagram of a mechanical assembly with labeled components (no readable text or symbols)

Back of Microwave

5 Gently remove the wires from the grooves. Reroute the wires through grooves on other side of the blower unit.

Before Rerouting After Rerouting

Technical line drawing of two rectangular electronic components with internal circuitry and mounting brackets (no text or symbols)

Wires Routed Through Right Side

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Wires Routed Through Left Side

6 Roll the blower unit 90° so that fan blade openings are facing out the back of the microwave.

Before Rolling After Rolling

Back of Microwave

Diagram of a mechanical device with labeled components, showing front and back views (no text or symbols present)

Back of Microwave

7 Remove the knockout plates in the back of the unit with snips. (For some models) Knockout Plates:

Technical line drawing of a mechanical assembly with no visible text or symbols

Back of microwave

Knockout Plates: Snip all 4 tabs on each knockout panel and remove the metal knockouts for rear airflow. Please take care to remove any sharp edges created from removing the knockout plates.

8 Place the blower unit back into the opening.

AFTER: Fan Blade Openings Facing Back

CAUTION: Do not pull or stretch the blower unit wiring. Make sure the wires are not pinched, and that they are properly secured.

NOTE: The blower unit exhaust openings should match exhaust openings on rear of microwave oven.

9 Secure the blower unit to the microwave with the original screws.

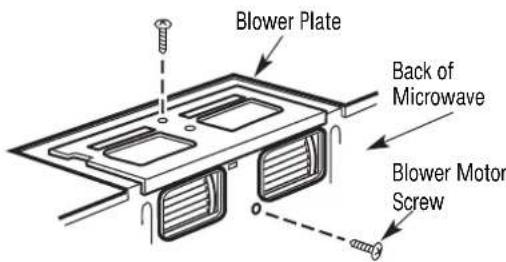

10 Replace the blower plate in the same position as before with the screws is tight.

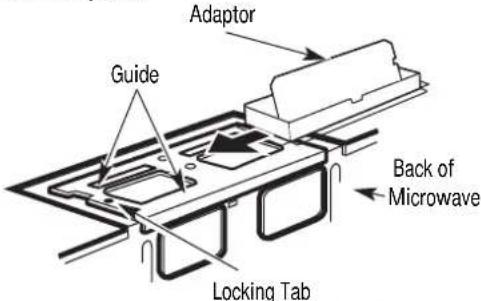

11 Attach the exhaust adaptor to the rear of the oven by sliding it into the guides at the top center of the back of the oven.

Push in securely until it is in the lower locking tabs. Take care to assure that the damper hinge is installed so that it is at the top and that the damper swings freely.

B6. MOUNT THE MICROWAVE OVEN

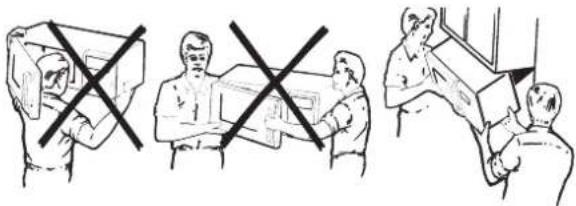

Three line drawings showing people handling boxes, crossed by a black X (no text or symbols)

FOR EASIER INSTALLATION AND PERSONAL SAFETY, WE RECOMMEND THAT TWO PEOPLE INSTALL THIS MICROWAVE OVEN.

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps

1–3. Do not pinch cord or lift oven by pulling cord.

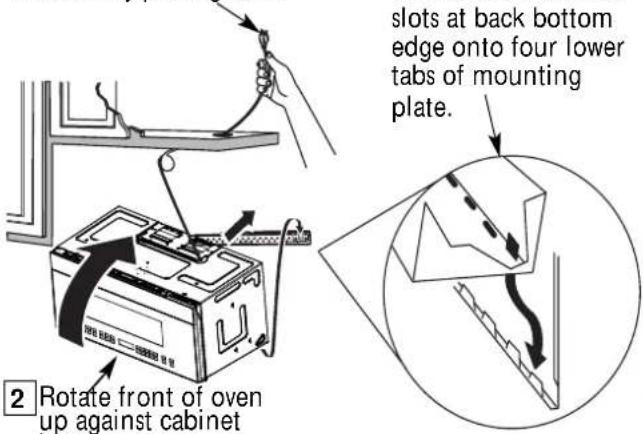

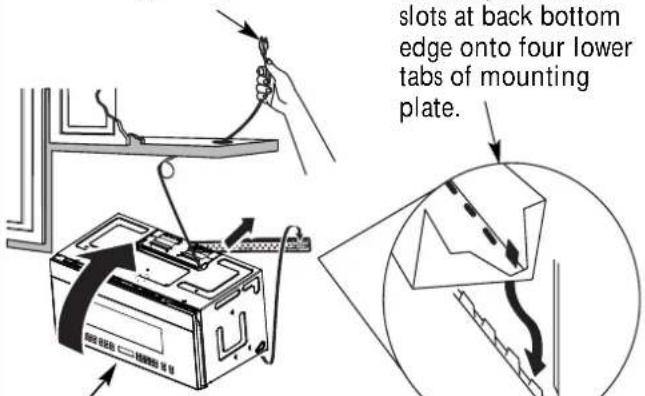

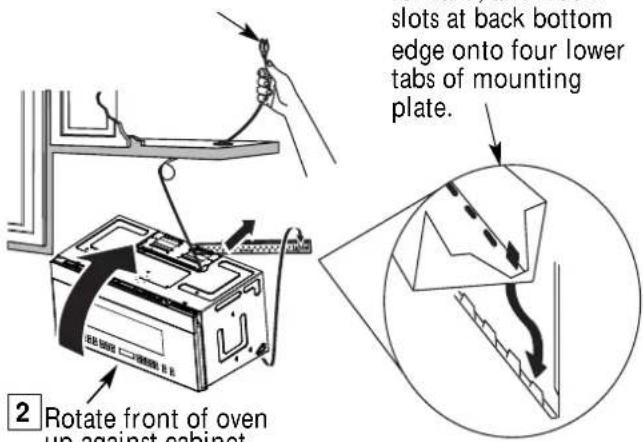

1 Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

2 Rotate front of oven up against cabinet bottom.

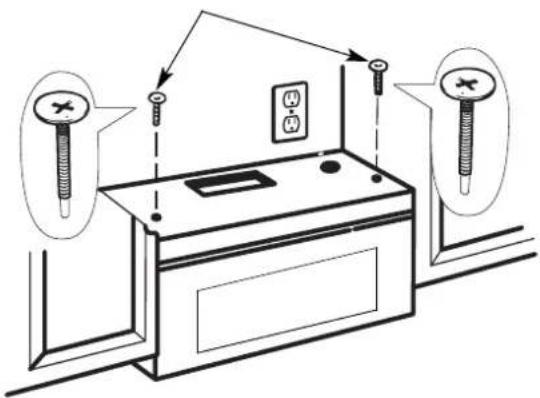

3 Insert a self-aligning screw through one of the top cabinet holes. Temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

4 Attach the microwave oven to the top cabinet.

5 Insert 2nd self aligning screw through remaining top cabinet hole. Turn two full turns on screw.

7 Tighten the two screws to the top of the microwave oven. (While tightening screws, hold the microwave oven in place against the wall and the top cabinet.)

Simple line drawing of a hand holding a rectangular device with a mesh screen (no text or symbols)

8 Install grease filters. See the Use and Care packed with the microwave.

C | RECIRCULATING (Non-Vented Ductless)

INSTALLATION OVERVIEW

C1. Attach Mounting Plate to Wall
C2. Prepare Top Cabinet
C3. Check Blower Plate
C4. Mount the Microwave Oven
C5. Install or change Charcoal Filter

C1. ATTACH THE MOUNTING PLATE TO THE WALL

Technical line drawing of a structural assembly with beams and supports, showing no text or symbols

Attach the plate to the wall using toggle bolts.

At least one wood screw must be used to attach the plate to a wall stud.

NOTE: If the cabinet depth including the cabinet doors is more than 13" then the unit must be spaced out from wall using adequate materials supporting 150 lbs to allow proper top vent air exhaust/ intake.

1 Remove the toggle wings from the bolts.
2 Insert the bolts into the mounting plate through the holes designated to go into drywall and reattach the toggle wings to 34 " (19 mm) onto each bolt.

To use toggle bolts:

3 Place the mounting plate against the wall and insert the toggle wings into the holes in the wall to mount the plate.

NOTE: Before tightening toggle bolts and wood screw, make sure the bottom of the mounting plate touch the bottom of the Rear wall template when pushed flush against the wall and that the plate is properly centered under the cabinet.

CAUTION: Be careful to avoid pinching fingers between the back of the mounting plate and the wall.

4 Tighten all bolts. Pull the plate away from the wall to help tighten the bolts.

C2. USE TOP CABINET TEMPLATE FOR PREPARATION OF TOP CABINET

You need to drill holes for the top support screws and a hole large enough for the power cord to fit through.

Line drawing of a hand using a tool to clean or install a window (no text or symbols visible)

• Read the instructions on the TOP CABINET TEMPLATE.
• Tape it underneath the top cabinet.

NOTE: Adjust top template accordingly if the microwave is being spaced out from the wall due to cabinet depth (including cabinet doors) of more than 13".

- Drill the holes, following the instructions on the TOP CABINET TEMPLATE.

CAUTION: Wear safety goggles when drilling holes in the cabinet bottom.

C3.

Technical line drawing of a mechanical component with two rectangular cutouts and mounting brackets (no text or symbols)

IMPORTANT: Do not grip or use the handle or heat shield during installation. Do not remove the cardboard spacers between the heat shield and door.

NOTE: If your cabinet is metal, use the nylon grommet around the power cord hole to prevent cutting of the cord.

NOTE: We recommend using filler blocks if the cabinet front hangs below the cabinet bottom shelf.

IMPORTANT: If filler blocks are not used, case damage may occur from overtightening screws.

NOTE: When mounting the microwave oven, thread power cord through hole in bottom of top cabinet. Keep it tight throughout Steps

1-3. Do not pinch cord or lift oven by pulling cord.

1 Lift microwave, tilt it forward, and hook slots at back bottom edge onto four lower tabs of mounting plate.

2 Rotate front of oven up against cabinet bottom.

3 Insert a self-aligning screw through one of the top cabinet how temporarily secure the oven by turning the screw at least two full turns after the threads have engaged. (It will be completely tightened later.) Be sure to keep power cord tight. Be careful not to pinch the cord, especially when mounting flush to bottom of cabinet.

4 Attach the microwave oven to the top cabinet.

5 Insert 2nd self aligning screw through remaining top cabinet hole. Turn two full turns on screw.

7 Tightenthetwoscrewstothetopofthe microwaveoven.(Whiletighteningscrews,hold themicrowaveoveninplaceagainstthewalland thetopcabinet.)

Line drawing of a hand holding a grid-patterned object over a rectangular frame (no text or symbols)

8 Install grease filters. See the Use and Care packedwiththemicrowave.

C5. INSTALLING OR CHANGE THE CHARCOAL FILTER (Some Models)

NOTE: The charcoal filter is factory installed in some models. Refer to the Use and Care to see if yours is factory installed and for replacement information.

Some models have a filter access door. Refer to the Use and Care to see if yours does. For models without the recirculation filter access door, follow these steps to replace or install a charcoal filter.

1 Unplug microwave oven or disconnect power.

2 Open the microwave door and remove the two vent cover mounting screws located on top of the microwave using a #2 Phillips screwdriver. Remove the vent cover by pulling it out at the top and then pulling out.

3 Remove the charcoal filter by pushing the top of the filter inwards, then pull it forward out from the unit.

Technical diagram showing two views of a mechanical assembly with no visible text or symbols

4 Slide the top of the new charcoal filter into the top of the filter cavity.

Technical diagram of a mechanical assembly with directional arrows indicating movement or force (no text or symbols present)

5 Press the bottom of charcoal filter to place it into the correct position.

Technical line drawing of a mechanical assembly with no visible text or symbols

6 Reinstall the vent cover by pushing the bottom into place. Push the vent top into position and hold in place. Replace the two vent cover mounting screws located on top of the microwave using a #2 Phillips screwdriver.

Technical line drawing of a mechanical device interior (no text or symbols)

7 Close the microwave door. Plug in microwave oven or reconnect power.

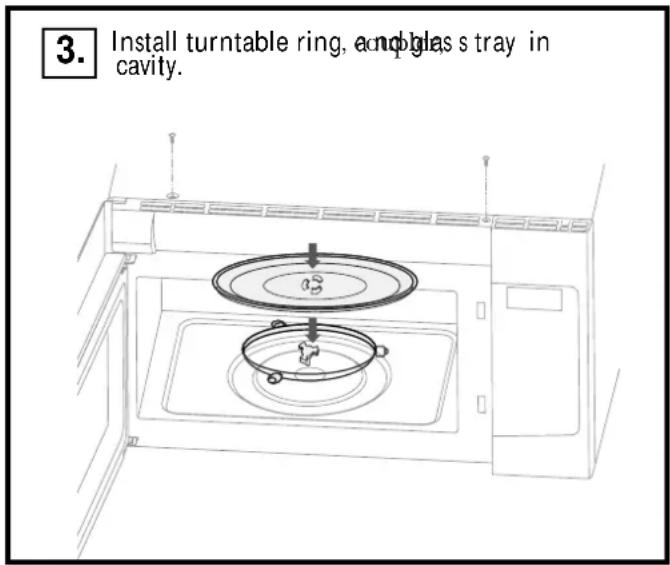

Operational check

1. Make sure the unit has been installed according to these instructions.
2. Remove all packing materials from the oven.

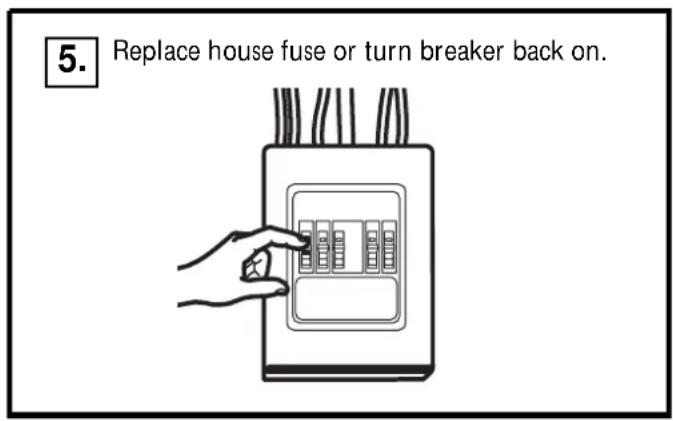

3. Replace house fuse or turn circuit breaker back on.
4. Plug power cord into receptacle.
5. Read operating instructions before testing the product.
6. Turn on the exhaust fan at high speed and confirm it is operating by using a tissue (it will stick to the filter).
7. The outdoverhedistalbportsaconfirmed.
8. Set the microwave oven for 1 minute and confirm the oven is operating normally using a cup of water.

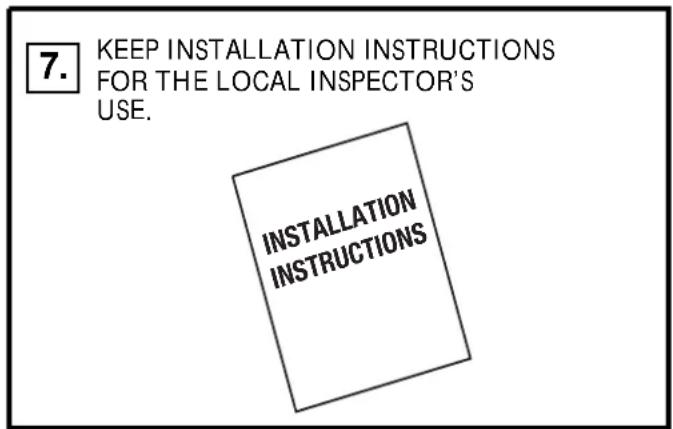

9. Keep these installation instruction for the local electrical inspector's use.

Printed in China

Hisense

life reimagined

Hisense

Hand placing a button into an electrical outlet box (no text or symbols visible)

PRECAUCIÓN:

Technical line drawing of three electrical components: a motor, a plug, and a hook (no text or symbols)

Pure technical line drawing of a U-shaped component with no text or symbols

Pure technical line drawing of a U-shaped pipe or channel with no text, numbers, or symbols

Simple line drawing of a cylindrical object with a flanged top and base (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no text or symbols present

Line drawing of a hand holding a spray bottle over a window with a tray (no text or symbols)

Illustration of three scenes showing people exchanging items, with no visible text or symbols

Line drawing of a hand holding a grid-patterned device on a screen (no text or symbols)

Technical line drawing of a structural assembly with beams and supports, no visible text or symbols

Line drawing of a hand holding a tool near a window with a tray and door (no text or symbols)

Technical line drawing of two cylindrical electronic components with mounting brackets and a side-mounted fan (no text or symbols)

Technical line drawing of two rectangular electronic components with internal circuitry (no text or symbols)

Three line drawings showing a person holding a box, another person seated at a table with a cross mark, and a third person reading a book (no text or symbols present)

Illustration of a hand holding a rectangular device with a mesh screen (no text or symbols visible)

Technical line drawing of a structural assembly with beams and supports, showing no text or symbols

Line drawing of a hand using a tool to clean or store items from a window (no text or symbols)

Technical line drawing of a mechanical component with two rectangular cutouts and mounting brackets (no text or symbols)

C4.

Illustration of three scenes showing people exchanging boxes with crossed-out X marks, no text or symbols present

Line drawing of a hand holding a grid-patterned device (no text or symbols)

Technical diagram showing two views of a mechanical assembly with no visible text or symbols

Technical diagram of a mechanical assembly with directional arrows indicating motion or force (no text or symbols present)

Technical line drawing of a mechanical assembly with no visible text or symbols

Technical line drawing of an open refrigerator with doors and ventilation slots (no text or symbols)

Line drawing of a hand pressing a button on an electrical outlet (no text or symbols)

Line drawing of a microwave oven with a circular lid and lid, showing internal components (no text or symbols)

+

Impreso en China

Hisense

life reimagined
