USER MANUAL BLK 1000 MAC AUDIO

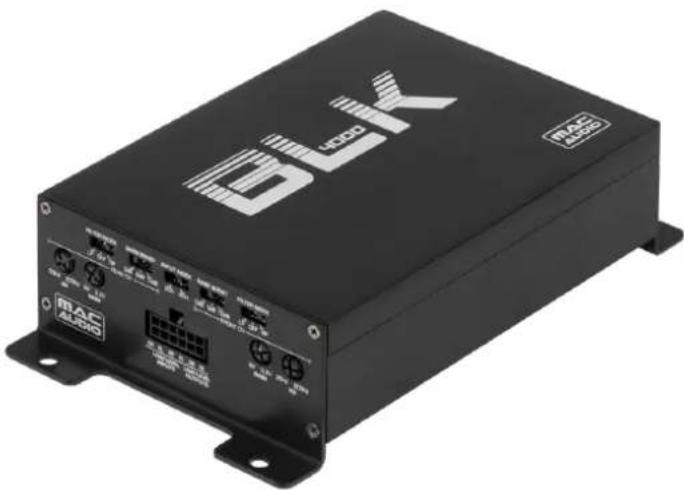

• Variable Bass Boost 0-12dB at 45 Hz
• Multi Connectivity: High and low level inputs
• Automatic turn on/off remote output for subwoofer amplifier
- Adjustable input sensitivity
- Low level RCA outputs providing signal from the rear channels for use with a subwoofer amplifier
• Multi Connectivity: High and low level inputs - Variable Low- and Highpass filters 25 Hz - 200 Hz (12dB per Octave)
| SPECIFICATIONS | BLK 1000 BLK 4000 | |
| Typ 1-Channel Class D Mini Amplifier 4-Channel Class D Mini Amplifier | ||
| Max. power output (sine burst 2:8, 1 kHz) into 4 ohms , 14.4V | 360 W | 4x 100 W |
| RMS power output (DIN 45 324) into 4 ohms, 14.4V 180 W 4x 50 W | ||
| Max. power output (sine burst 2:8, 1 kHz) into 2 ohms , 14.4V | 600 W | 4x 160 W |
| RMS power output (DIN 45 324) into 2 ohms, 14.4V 300 W 4x 80 W | ||
| Frequency response 15 Hz – 250 Hz (-3 dB) 10 Hz – 30 kHz (-3 dB) | ||
| THD < 0,05 % (1 kHz) < 0,05 % (1 kHz) | ||
| Signal-to-noise ratio (A-weighted) > 100 dB > 100 dB | ||
| Input sensitivity low level inputs 0,2 V – 6 V 0,2 V – 6 V | ||
| Input sensitivity high level inputs 0,6 V – 8 V 0,6 V – 8 V | ||
| Input impedance low level inputs 100 kOhm | 100 kOhm | |
| Input impedance high level inputs | 1 kOhm 1 kOhm | |
| Power supply | 12 V minus an Masse | 12 V minus an Masse |
| Dimensions (W x H x D) | 172 x 36 x 97 mm | 172 x 36 x 97 mm |
| Amplifier Weight | 0,58 kg | 0,65 kg |
| Art.No.: | 110 3772 | 110 3774 |
| EAN. | 40 23037 03772 2 | 40 23037 03774 6 |
