PVTA20 - Receiver Pyle - Free user manual and instructions

Product Type	Receiver
Brand	Pyle
Model	PVTA20
Power Output	100W per channel at 8 ohms
Frequency Response	20 Hz - 20 kHz
Total Harmonic Distortion	< 0.1%
Input Sensitivity	200 mV
Signal-to-Noise Ratio	≥ 80 dB
Inputs	RCA (2 pairs), 3.5mm auxiliary, microphone
Outputs	Speaker terminals, RCA line out
Supported Audio Sources	AM/FM radio, Bluetooth, USB, SD card
Bluetooth Version	4.0
Dimensions (W x H x D)	17.0 x 5.0 x 12.0 inches
Weight	15.5 lbs
Power Supply	AC 120V/60Hz
Construction Material	Aluminum front panel, metal chassis
Cooling	Passive ventilation
Compliance	FCC, CE
Cleaning	Wipe with dry cloth; avoid solvents
Safety	Do not expose to moisture or extreme temperatures
Spare Parts Availability	Contact Pyle customer service
Repairability	Serviceable by qualified technician

Frequently Asked Questions - PVTA20 Pyle

How do I connect my speakers to the PVTA20?

Use speaker wire to connect to the spring-loaded terminals: red to positive, black to negative. Ensure the receiver is off.

Can I play music via Bluetooth?

Yes, enable Bluetooth on your device, select PVTA20 from the list. The LED will flash and then stay solid when paired.

How do I set up the FM radio?

Connect the included FM antenna to the FM ANT terminal. Press Band to select FM, then use Auto Scan or manual tuning.

What is the maximum audio power output?

The PVTA20 delivers 100 watts per channel at 8 ohms, enough for most home speakers.

Can I use a USB drive or SD card?

Yes, insert a FAT32-formatted USB or SD card with MP3 files. Press USB/SD to switch to that source.

How do I connect a turntable?

Use an RCA cable from the turntable to the AUX or Phono input if available. Note: the PVTA20 may not have a dedicated phono stage.

Why is there no sound?

Check that the correct input is selected, volume is turned up, and speakers are connected. Also ensure the receiver is not muted.

How do I clean the receiver?

Unplug the unit, wipe with a soft dry cloth. Do not use liquid cleaners or abrasives.

Can I use a microphone with the PVTA20?

Yes, plug a standard microphone into the MIC jack. Adjust volume using the MIC level control.

Where can I find replacement parts?

Contact Pyle customer support at [e-mail] or visit the official website for spare parts.

USER MANUAL PVTA20 Pyle

VISIT US ONLINE: Have a question? Need service or repair? Want to leave a comment? PyleUSA.com/ContactUs

Questions? Issues?

We are here to help!

Phone: [phone]

Email: [e-mail]

PYLE

PyleUSA.com

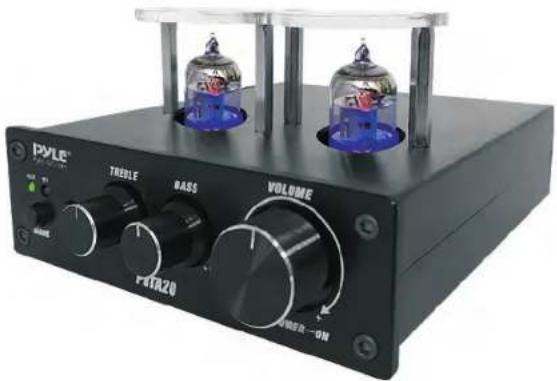

Black electronic device with three dome-shaped domes and control knobs (no visible text or symbols)

★★★☆

*□※□▲+ *◆※☆○□□□□※※※□

2 Vacuum Tube Power Amp,

Multimedia Disc Inputs (L/R), 600 Watts

USER MANUAL

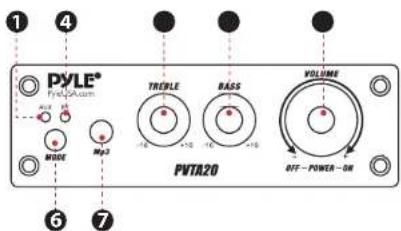

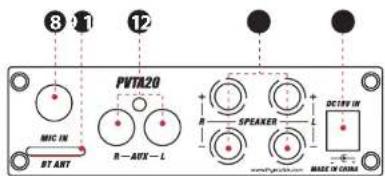

Front and Back Panel

1. AUX Input Indicator
2. Wireless BT Indicator
3. Treble Volume Control
4. Bass Volume Control
5. Master Volume Control and Power ON/OFF
6. Input select
7. MP3 Input
8. Microphone Input
9. Wireless BT Antenna
10. AUX Input (L/R)
11. Pure Copper Terminal Output
12. Power Adapter jack (DC 19V/4A)

1 4 PYLE® PVTA20 TREPLE BASS VOLUME OFF - POWER - SH 6 7 MOSI MP3 PVTR20

8 9 1 12 PVT A20 MIC IN R-AUX-L R SPEAKER DC150 UN BT ANT MADE IN CHINA

WIRELESS BT STREAMING OPERATION INSTRUCTION:

External devices which have a built-in Wireless BT feature can be connected to this amplifier wirelessly to play through the amplifier's speakers. If your amp is connected to speakers, you will hear audible tones which will help for connecting.

1. The unit will auto enter Wireless BT mode within 30 seconds after power on. If no other device is connected to Wireless BT during this time, unit will auto enter AUX mode.
2. When unit enter AUX mode, press "MODE" button on the front panel, the unit is automatically ready to pair with your devices when you hear audible tones.
3. Turn ON the Wireless BT of your external device.
4. Search for available BT devices and make sure to be within range of your amp, and wait for your device to select "PYLEUSA" on the pairing devices lists of Wireless BT networks.
5. You can now play music on your external device through the amplifier.

WARNING:

This product can expose you to a chemical or group of chemicals, which may include "Lead (PB)" which is known in the state of California to cause cancer, birth defects, or other reproductive harm. For more info, go to https://www.p65warnings.ca.gov/.

Features:

• 2 Vacuum Tube Power Amp
• BT Wireless Streaming Ability
• Double-sided Fiber Circuit Board
• CD/DVD Inputs (L/R)
• Aux/3.5mm Inputs Jack
• Pure Copper Terminal Output
• Treble, Bass, and Master Volume Controls

Wireless BT Connectivity:

• Receives Wireless Signal for Audio Streaming
• Simple & Hassle-Free Pairing Setup
• Integrated Antenna for Extended Wireless Range
- Works with All of Today's Latest Devices (Smartphones, Tablets, Laptops, Computers, etc.)
• Wireless BT Version: 5.0
• Wireless BT Network Name: 'PYLEUSA'
• Wireless Range: 40'+ Ft.

What's in the Box:

• (1) Wireless BT Tube Amplifier
• (1) Power Adapter

Technical Specs:

• Power Output: 600 Watts Peak Power
• Power supply: AC 120V/240V, DC 19V 4A
• Construction Material: Aluminium
• Amplifier Chip: TPA3116
• Rated output power: 2*50W /4Ω
• Audio input: RCA input + BT input
• Audio output: 1 set of Banana Speaker Jacks
• Signal to noise ratio: >99dB
• Frequency: 20Hz-20KHz
• Product Dimension (L x W x H): 4.65" x 6.3" x 2.87"-inches
