Product Type	Canister Vacuum Cleaner
Brand	Samsung
Model	SC15K4170VP
Weight	Approx. 6 kg
Power Supply	220-240V ~ 50/60Hz
Filtration	Washable dust filter and outlet filter
Accessories Included	2-step brush, 2-in-1 accessory (crevice tool & dusting brush), mini turbo, power pet, anti-tangle tool, parquet master, hose, pipe
Control	Handle control and body power button
Safety Features	Thermal protector, auto power off after 30 min inactivity, safety device on dust bin
Maintenance	Empty dust bin when full, clean filters regularly, replace outlet filter annually, inspect brush and belt
Usage	Indoor household use only
Brush Types	2-step brush, parquet master, power pet, mini turbo, anti-tangle tool
Cord Rewind	Yes, with button
Filter Light	Yes, indicates when to clean filter
Washable Parts	Dust bin, dust filter, sponge filter (use neutral detergent only)
Drying Time for Filter	12 hours in shade
Special Features	Cyclone force, anti-tangle turbine

Frequently Asked Questions - SC15K4170VP SAMSUNG

How do I clean the dust filter?

Remove the dust filter and wash it with lukewarm water and neutral detergent. Let it dry for 12 hours in the shade before reinstalling.

Why does my vacuum cleaner suddenly stop?

The vacuum cleaner has a thermal protector. If it overheats, it will shut off. Turn off the switch, unplug, check for blockages, wait 30 minutes, and restart.

How to rewind the power cord?

Hold the power cord with one hand and press the cord rewind button. Do not pull the cord fully; pull out 2-3 m first if it doesn't rewind.

What to do if suction is low?

Check filters for clogging and clean or replace them. Also check hose, pipe, and dust bin for blockages.

Can I use the vacuum cleaner to pick up water?

No, it is designed for dry use only. Never use to suck up liquids.

How often should I replace the outlet filter?

For best performance, replace the outlet filter once a year.

How to clean the power pet attachment?

Open the power pet, remove debris from brush roller and belt. Replace belt if broken. Follow manual instructions.

Is it safe to wash the dust bin?

Yes, you can wash the dust bin with cold water. Do not use alkaline or acidic detergents.

What should I do if the cord does not rewind completely?

Pull the cord out 2-3 meters and press the rewind button again.

Can children use this vacuum cleaner?

Children aged 8 and above can use it under supervision. Children should not play with it.

USER MANUAL SC15K4170VP SAMSUNG

Vacuum Cleaner user manual

02 Safety information

06 Assembling

Name of each part / Where to use the brushes

08 Using the vacuum cleaner

Using the handle control / Using the body

09 Cleaning and maintaining

Cleaning the outlet filter / Cleaning the pipe / Cleaning the hose / Cleaning the dust filter / Cleaning the dust bin / Maintaining the mini turbo / Cleaning the Power pet / Cleaning the 2-step brush / Cleaning the Parquet master / Cleaning the anti tangle tool / Storing the vacuum cleaner

14 Notes and cautions

In use / About storing / Cleaning and maintenance

15 Troubleshooting

* Before operating this unit, please read the instructions carefully.

* For indoor use only.

English

imagine the possibilities

Thank you for purchasing a Samsung product.

Safety information

SAFETY INFORMATION

- Before operating the appliance, please read this manual thoroughly and retain it for your reference.

- Because these following operating instructions cover various models, the characteristics of your vacuum cleaner may differ slightly from those described in this manual.

CAUTION/WARNING SYMBOLS USED

WARNING	Indicates that a danger of death or serious injury exists.
CAUTION	Indicates that a risk of personal injury or material damage exists.

OTHER SYMBOLS USED

NOTE	Represents something you must follow.

This vacuum cleaner is designed for household use only.

Do not use this vacuum cleaner to clean building waste and debris, toner of laser printer.

Regularly keep the filters in clean conditions to prevent of collecting fine dust in them.

Dry carpet cleaners or fresheners, powders and fine dust such as flour should be only vacuumed in very small amounts.

Always clean the dust bin & filters after vacuuming them.

Do not use this vacuum cleaner with any of the filters or dust bin removed.

Do not use worn, deformed or damaged filters.

Always install the filters in the correct position as shown in this manual.

Failure to meet these requirements could cause damage to the internal parts and void your warranty.

Never twist micro filter after washing. It can be a reason of deformation or damage filter.

If filter deformed or damaged please replace the filter (it can be a reason of penetration of dust and debris into motor).

Please insert filter properly without gap between filter and cover filter (it can be a reason of penetration of dust and debris into motor).

IMPORTANT SAFEGUARDS

GENERAL

- Read all instructions carefully. Before switching on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate on the bottom of the cleaner.

- WARNING : Do not use the vacuum cleaner when rug or floor is wet.

- Close supervision is necessary when any appliance is used by or near children. Do not allow the vacuum cleaner to be used as a toy. Do not allow the vacuum cleaner to run unattended at any time. Use the vacuum cleaner only for its intended use as described in these instructions.

- Do not use the vacuum cleaner without a dust bin.

- Empty the dust bin before it is full in order to maintain the best efficiency.

- Do not use the vacuum cleaner to pick up matches, live ashes or cigarette butts. Keep the vacuum cleaner away from stoves and other heat sources. Heat can deform and discolour the plastic parts of the unit.

- Avoid picking up hard, sharp objects with the vacuum cleaner as they may damage the cleaner parts.

Do not stand on the hose assembly. Do not put weight on the hose.

Do not block the suction or the exhaust port.

- Switch the vacuum cleaner off on the body of the machine before unplugging from the electrical outlet. Disconnect the plug from the electrical outlet before emptying the dust bin. To avoid damage, please remove the plug by grasping the plug itself, not by pulling on the cord.

- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

- Children should be supervised to ensure that they do not play with the appliance.

- The plug must be removed from the socket outlet before cleaning or maintaining the appliance.

- The use of an extension cord is not recommended.

- If your vacuum cleaner is not operating correctly, switch off the power supply and consult an authorized service agent.

- If the supply cord is damaged, it must be replaced by the manufacturer or its service agent or a similarly qualified person in order to avoid a hazard.

- Don't carry the vacuum cleaner by holding the hose. Use the handle on the vacuum cleaner set.

- Unplug the cleaner when not in use. Turn off the power switch before unplugging.

- Do not use to suck up water.

- Do not immerse in water for cleaning.

- The hose should be checked regularly and must not be used if damaged.

- Please contact the manufacturer or service center for a replacement.

Safety information

WARNING

Power related

▶ Please prevent any risk of electric shock or fire.

- Do not damage the power cord. - Do not pull the power cord too hard or touch the power plug with wet hands.

- Do not use a power source other than the national rated voltage and also do not use a multi outlet to supply power to number of devices at the same time.

- Do not use a damaged power plug, power cord or a loose socket outlet.

- Turn off the power before connecting or disconnecting the power plug to the socket outlet and make sure your fingers don't come in contact with the pin of the power plug.

- Do not disassemble or modify the vacuum cleaner. When power cord is damaged, contact the manufacturer or service center to get it replaced by certified repairman.

- Clean dust or any foreign matters on the pin and contact part of the power plug.

If there's any gas leak or when using combustible sprays such as a dust remover, do not touch the socket outlet and open the windows to ventilate the room.

– There is a risk of explosion or fire.

WARNING

In use and maintenance

Do not use this product outdoors since it's designed for household use only.

– There is a risk of malfunction or damage.

* Outdoor cleaning : A stone, Cement

* A billiard room : Powder of a chalk

* An aseptic room of a hospital

▶ Do not use the vacuum cleaner to suck up liquids(such as water), blades, pins or embers.

– There is a risk of malfunction or damage.

▶ Be sure children do not touch the vacuum cleaner when you use it.

- The children can get burn if the body is overheated.

▶ Do not mount or make any physical impacts on the body.

– It may result in injury or damage.

▶ Use the carrying handle for lifting or carrying the vacuum cleaner.

▶ Do not lift or carry the vacuum cleaner putting a brush in the groove for storage.

▶ Use a dry cloth or towel to clean the body and make sure to unplug the vacuum cleaner before cleaning. Do not spray water directly or use volatile materials(such as benzen, thinner or alcohol) or combustible sprays(such as a dust remover) for cleaning.

- If water or other liquid gets into the product and cause malfunction, turn off the power button on the body, unplug the power plug and then consult a service center.

▶ Do not use alkaline or industrial detergents, air fresheners or (acetic) acids to clean the washable parts of the vacuum cleaner.(Refer to the following table.)

- It may cause damage, deformation or discoloration of the plastic parts.

The washable parts Dust bin of		the body, Dust filter, Sponge filter,
Available detergent	Neutral detergent	Kitchen cleaner
Unavailable detergent	Alkaline detergent	Bleach, Mold cleaner, etc.
	Acid detergent	Paraffin oil, Emulsifier, etc.
	Industrial detergent	NV-I, PB-I, Opti, Alcohol, Acetone, Benzene, Thinner, etc.
	Air freshener Air	freshener(Spray)
	Oil Animal or vegetable oil
	Etc. Edible acetic acid, Vinegar, Glacial acetic acid, etc.

CAUTION

In use

▶ Do not use the pipe for anything other than its intended purpose.

– It may result in injury or damage.

When you lift up the handle of dust bin while using the vacuum cleaner, safety device will be activated and there might be changes in operating noise.

- Operating noise may change when you hold the handle of the dust bin while using the vacuum cleaner, but the circular tube on bottom of the dust bin prevents dust from spilling out.

▶ Unplug the vacuum cleaner if you do not use it for a long time.

– It may cause electric shock or fire.

▶ Do not pull the power cord fully and hold the power cord with one hand when rewinding it.

- If you try to pull it fully, power cord can be damaged and if you don't hold the power cord while rewinding, it may lose control and cause injury or damage to people or objects around it.

If any abnormal sounds, smells or smoke come from the vacuum cleaner, immediately unplug the power plug and contact a service center.

- There is a risk of fire or electric shock.

▶ Do not use the vacuum cleaner in any places near heating appliances(such as stove), combustible spray or flammable materials.

- It may cause fire or deformation of the product.

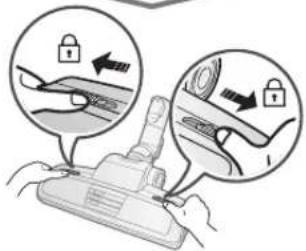

Assembling

Accessories

Technical line drawing of a mechanical device with three inset diagrams (no text or symbols)

10

Line drawing of a vacuum cleaner with three different components (no text or symbols)

12

Options

oor / ^ Carpet

16

18

19

Line drawing of a vacuum cleaner blade with handle and mounting base (no text or symbols)

Name of each part

① Pipe (SC07H40**V Series)
② Handle control
③ Hose
④ Dust bin
⑤ Cord rewind button
⑥ Power button
⑦ Filter light
⑧ Power cord
⑨ Outlet filter
⑩ 2-step brush (SC07H40**V Series)
⑪ 2-step brush (SC15H40**V Series / SC15K41**** Series)
⑫ Pipe (SC15H40**V Series / SC15K41**** Series)
⑬ 2-in-1 accessory (Crevice tool)
⑭ 2-in-1 accessory (Dusting brush)
⑮ User manual
⑯ Mini turbo
⑰ Anti-Tangle tool
⑱ Power pet
⑲ Power pet
20 Parquet master

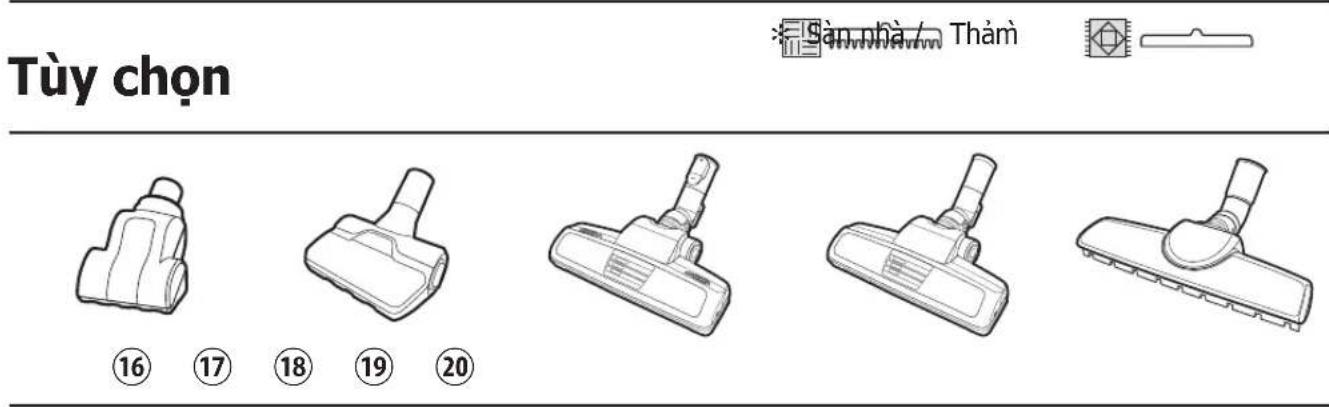

Where to use the brushes

Using the vacuum cleaner

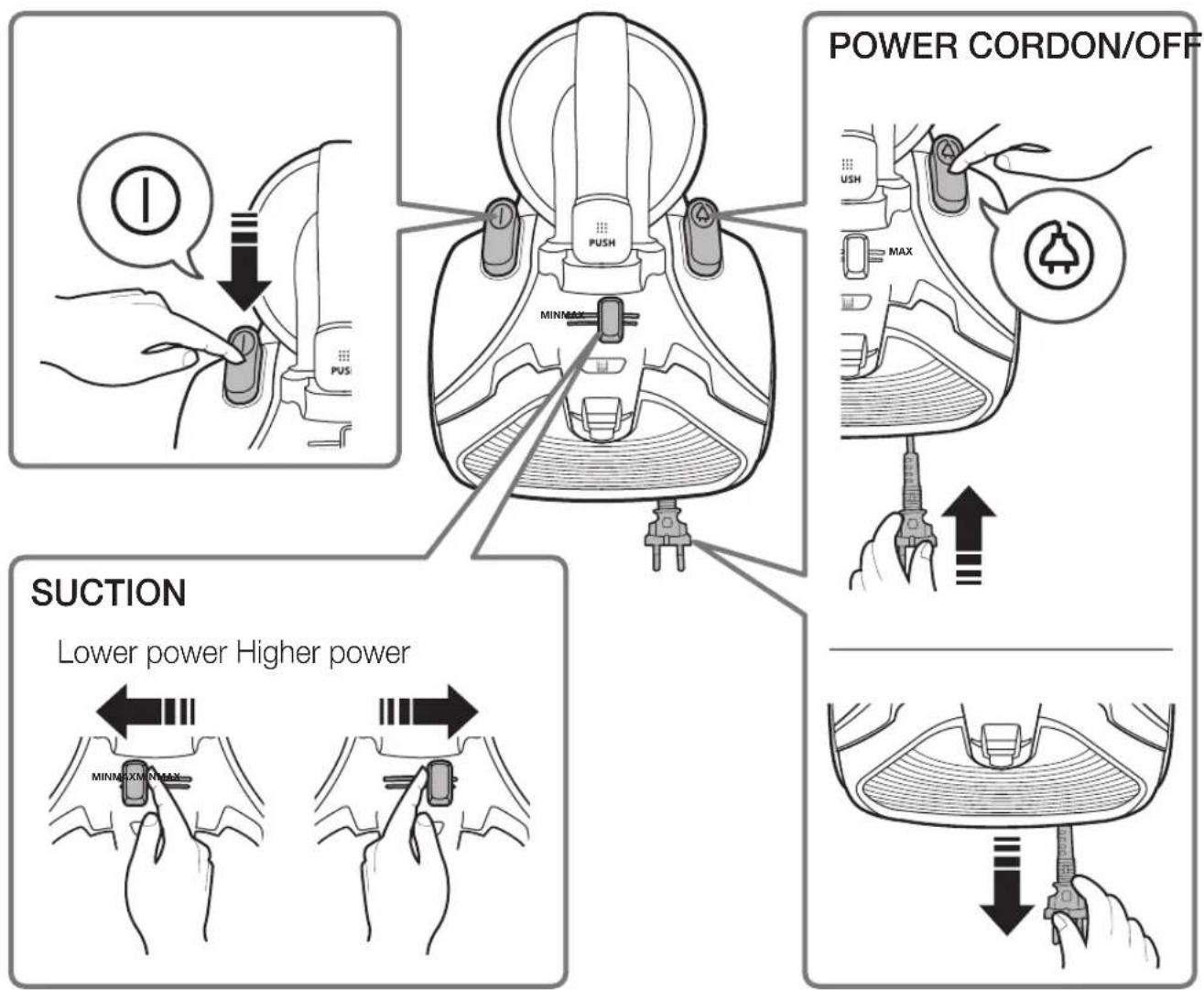

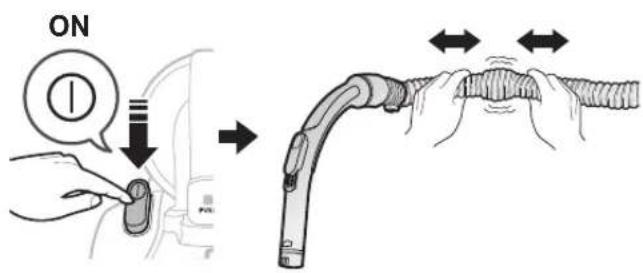

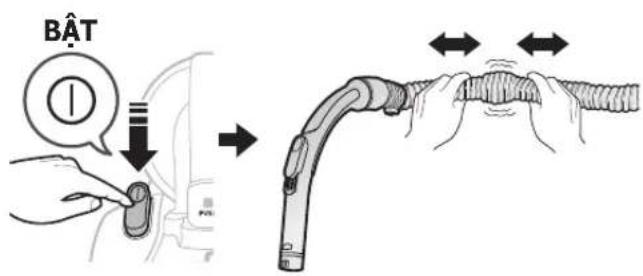

Using the handle control

Using the body

Cleaning and maintaining

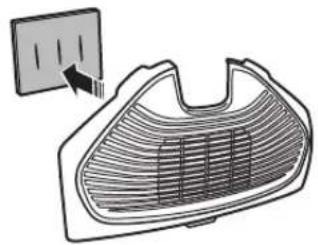

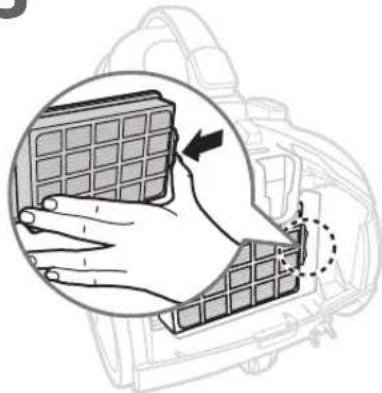

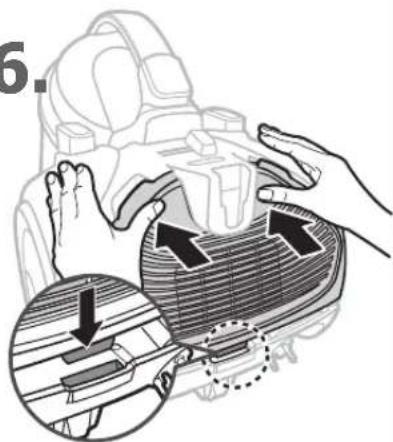

Cleaning the outlet filter

Cleaning the pipe Cleaning the h

Illustration of a hand holding a pen or tool, showing a step-by-step assembly from being inserted into a cylindrical device (no text or symbols present)

e

Cleaning and maintaining

When to empty the dust bin

Hand inserting a plug into an electrical outlet socket (no text or symbols visible)

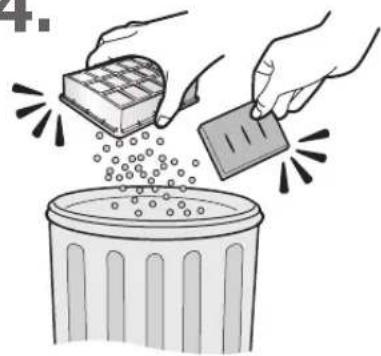

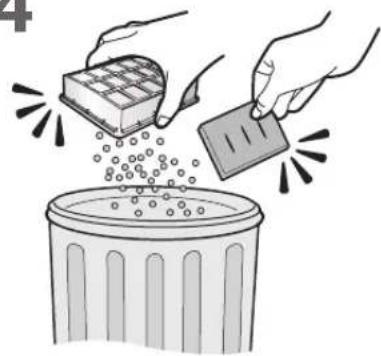

Cleaning the dust filter
1

Illustration of a hand using a fan to clean or adjust a container, showing the process with a magnified view (no text or symbols)

2

Line drawing of a hand pouring liquid into a trash bin with a lid (no text or symbols)

3

Illustration of a hand pouring liquid into a trash bin with particles rising (no text or symbols)

4

Illustration of a hand holding a faucet with steam rising from a bowl (no text or symbols)

5

Illustration of a sun above a brick wall and a small bowl with a sphere, no text or symbols present.

6

7

Illustration of a kettle being open with a lid, showing liquid level and a downward arrow (no text or symbols)

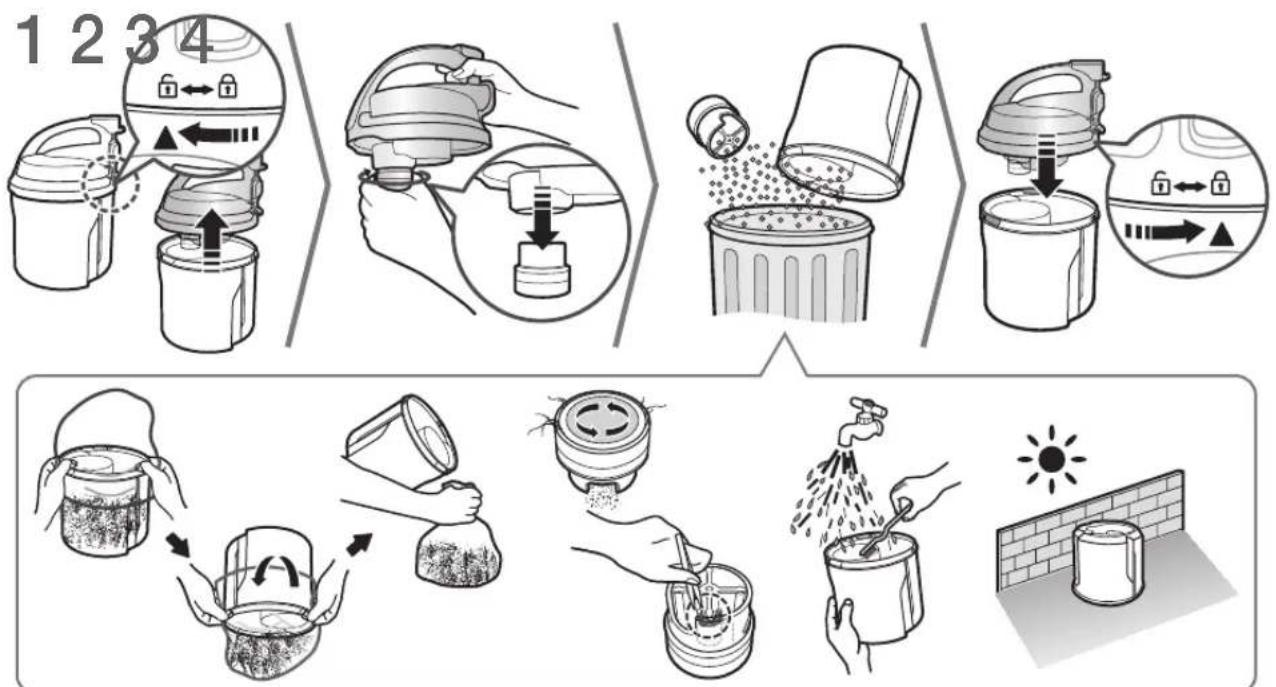

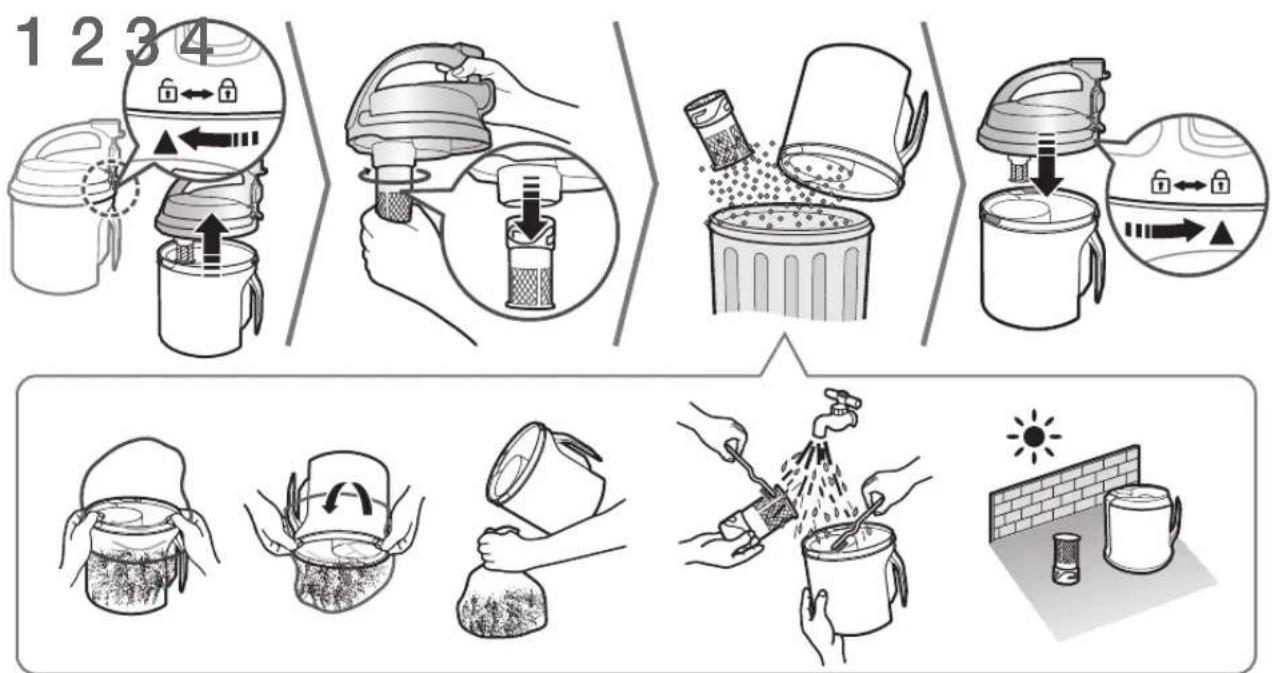

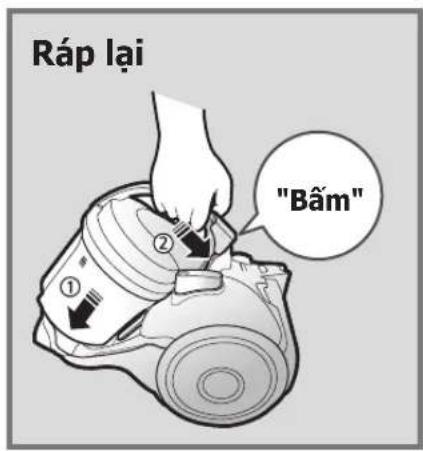

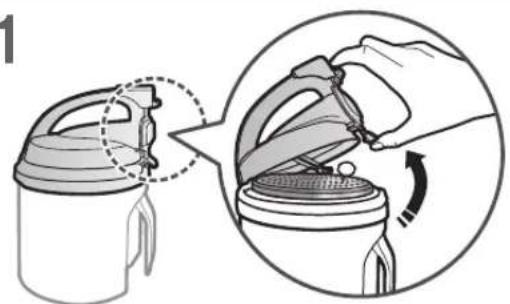

Cleaning the dust bin

SC**H40*** SERIES

SC15K41**** SERIES

* Anti-Tangle Turbine (Cyclone Force)
- Based on internal testing. Tested at the turbine fan using a mix of hair, pet hair on Floor.

Cleaning and maintaining

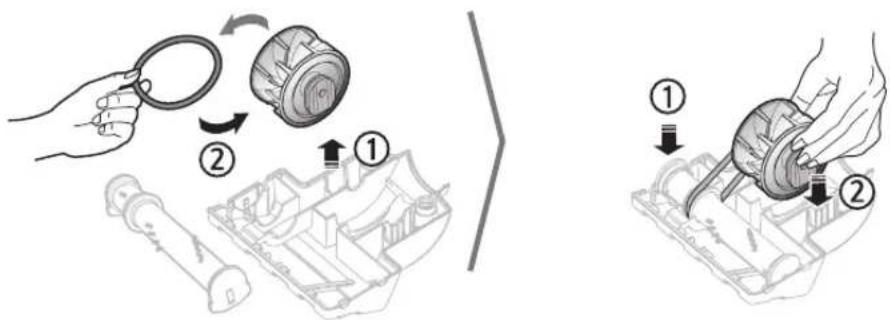

To replace the brush-roller

To replace the belt

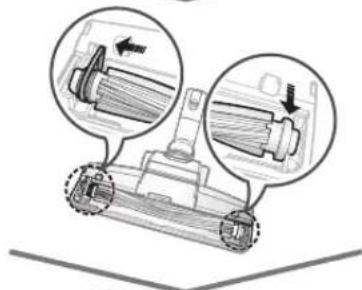

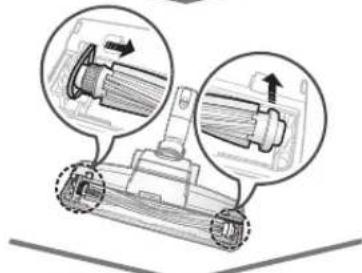

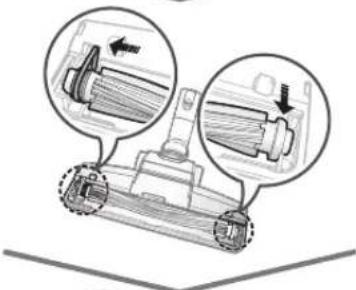

Cleaning the power pet

1

2

Technical illustration of a mechanical device with two views showing internal components (no text or symbols)

3

Illustration of a pair of scissors cutting a tool (no text or symbols)

4

Technical line drawing of a mechanical device with a curved handle and lever (no text or symbols)

5

Diagram of a vacuum cleaner with two views of the component (no text or symbols present)

6

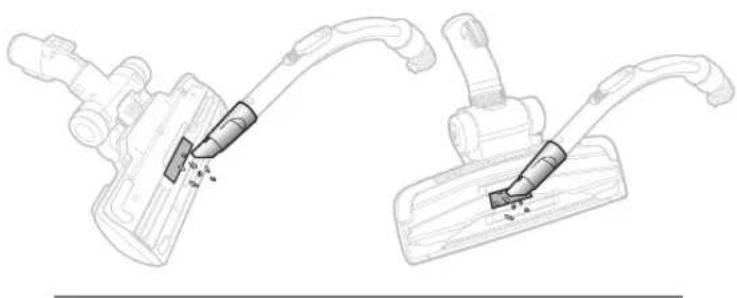

Cleaning the 2-step brush

Technical line drawing of two mechanical components with clamps and bolts, no text or symbols present

Cleaning the parquet master

Line drawing of a handheld device with a clip and handle (no text or symbols)

Cleaning the anti tangle tool

Technical line drawing of a handheld device with a handle and internal component (no text or symbols)

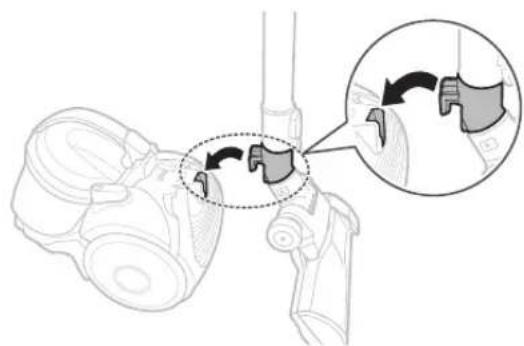

Storing the vacuum cleaner

Diagram of a camera with a close-up inset showing the mechanical component being adjusted (no text or symbols present)

Notes and cautions

In use

Note

▶ Safety device will cut off the power when the vacuum cleaner was on for more than 30 minutes without any button input. In this case, press the [☐] button on the body or unplug the power plug and then plug it again.

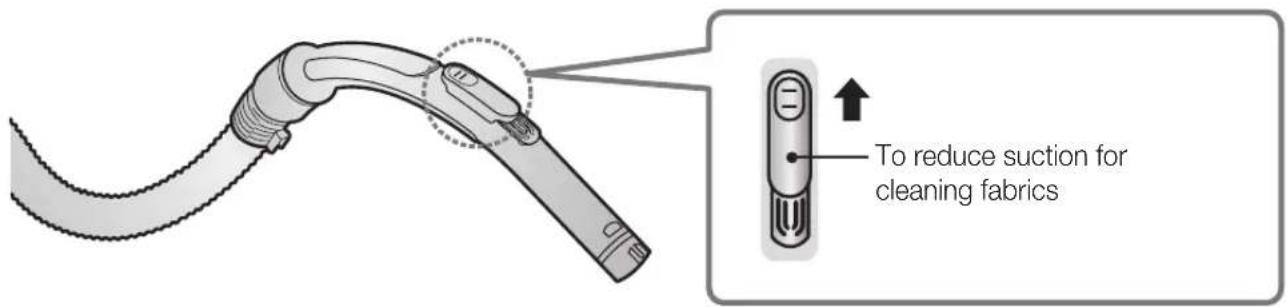

▶ When you use the dusting brush or crevice tool, you may feel vibration from the vacuum cleaner.
▶ Please do not press the button of dust bin handle when carrying the vacuum cleaner.
The operating noise may change once the safety device is activated to prevent the dustbin from getting detached.

- The circular tube on bottom of the dustbin prevents dust from spilling out.

Caution

▶ When removing the power plug from the electrical outlet, grasp the plug, not the cord.

About storing

Note

▶ Hold the power cord and then press [ ] button since you can get injured if the power cord may lose control while rewinding it.
▶ If the power cord is not rewinding well, press the [A] button again after pulling the power cord about 2\~3 m

Caution

▶ Store the vacuum cleaner in the shade to prevent deformation or discoloration.

Cleaning and maintenance

Note

▶ To make the dust filter cleaner, add neutral detergent into lukewarm water and soak the filter for 30 minutes before washing it.
▶ Do not wash the outlet filter with water.
▶ To maintain the best performance of the outlet filter, replace them once a year.
▶ To prevent floors from scratches, inspect condition of the brush and replace it if it is worn down.
Inspect the belt in the mini turbo to ensure that it is in good condition. If the belt is broken or cracked, replace it according to "To replace the belt" instructions.
▶ Replacement filters are available at your local Samsung distributors.

Caution

▶ Suction may reduce noticeably due to wrong reassembling of the dust filter.
▶ Make sure the dust filter is completely dry before putting it back into the vacuum cleaner. Allow 12 hours for it to dry.
▶ Dry the dust filter in the shade, not under sunlight, to prevent transformation or discoloration.
▶ You may wash the dust bin with cold water.
When suction is noticeably reduced continuously or vacuum cleaner abnormally overheats, please clean the outlet filter.
▶ Please contact a nearest service center if you cannot remove foreign matters from the hose.
▶ If tool is required for cleaning, please be careful not to hurt the mesh.

Troubleshooting

PROBLEM SOLUTION
Motor does not start.	▶ Check cable, plug and socket.▶ Leave to cool.
Suction force is gradually decreasing.	▶ Check for blockage and remove.
Low or decreasing suction.	▶ Please check filter and, if required, clean as illustrated in the instructions. if filters are out of condition change them to new ones.
Cord does not rewind fully.	▶ Pull the cord out 2-3 m and push down the button.
Vacuum cleaner does not pick up dirt.	▶ Check hose and replace if required.
Body overheating.	▶ Please check filters, if required clean as illustrated in the instruction.
Static electricity discharge.	▶ Please decrease power suction.▶ This can also occur when air in the room is very dry.Please ventilate the room to air humidity become a normal.

Thermal protector : This vacuum cleaner has a special thermostat that protects the motor in case of its overheating. If the vacuum cleaner suddenly shuts off, turn off the switch and unplug the vacuum cleaner. Make sure that there is power in the socket.

To avoid electric shock, please contact a qualified electrician. Check the vacuum cleaner for possible source of overheating such as a full dust bin, a blocked hose, pipe, or clogged filter. If these conditions are found, fix them and wait at least 30 minutes before attempting to use the vacuum cleaner. After the 30 minute period, plug the vacuum cleaner back in and turn on the switch. If the vacuum cleaner still does not run, contact a service engineer.

SAMSUNG

อุปกรณ์เสริม

Line drawing of a mechanical device with two inset diagrams showing internal components (no text or symbols)

10

Technical line drawing of a mechanical clamp and two separate parts (no text or symbols)

12

13

Line drawing of a mechanical clamp or fixture component (no text or symbols)

ชื่อของขึ้นส่วน

Illustration of hands installing or adjusting a car interior panel with arrows indicating movement (no text or symbols present)

2.

Diagram of a curved, mesh-like structure with internal vertical lines and a small inset panel (no text or symbols)

1.

Illustration of a hand holding a grid device inside a vehicle's hood, with an arrow indicating rotation (no text or symbols present)

1.

Illustration of hands using a tool to generate waste from a trash bin (no text or symbols)

1.

1.

Illustration of a hand holding a pen with a handle, showing the process from being inserted into a wire (no text or symbols present)

ยอดท่ออ่อน

ในการเปลี่ยนสายพาน

2.

Mechanical component diagram showing two views of a shaft assembly with arrows indicating direction (no text or symbols present)

3.

Illustration of a pair of scissors cutting a cable with a clip (no text or symbols)

4.

Technical line drawing of a mechanical lever assembly (no text or symbols)

5.

Diagram of a vacuum cleaner with two views showing internal components (no text or symbols)

6.

Technical line drawing of two mechanical components with clamps and connectors (no text or symbols)

Line drawing of a handheld device with a probe inserted into a component (no text or symbols)

Line drawing of a handheld device with a handle and lever mechanism (no text or symbols)

Diagram showing a person adjusting a device with a magnified inset highlighting the step (no text or symbols present)

Hotline no : 1282 (for HHP)

0-2689-3233 (only for HHP)

0-2689-3232 (OTH products)

1800-29-3232 (Toll free)

www.samsung.com/th/support

Phụ kiện

Tên của mỗi bộ phận

TIÊNG VIÊT-07

Sử dụng máy hút bụi

Illustration of hands installing or adjusting a car interior panel with arrows indicating movement (no text or symbols present)

2

Diagram of a car hood with internal mesh structure and a small panel showing three vertical lines (no text or symbols)

3

Diagram showing a hand holding a grid device inside a vehicle's dashboard, with an arrow indicating rotation (no text or symbols present)

4

Illustration of hands using a tool to generate waste from a trash bin (no text or symbols)

5

6

Illustration of a hand holding a pen with a spring, showing the process from being inserted into a wire (no text or symbols present)

Làm sạch và bảo trì

Hand inserting a plug into an electrical outlet socket (no text or symbols visible)

Illustration of a hand using a fan to clean or adjust a container, showing the process with a magnified view (no text or symbols)

2

Line drawing of a hand pouring liquid into a container with a banana lid (no text or symbols)

3

Illustration of a hand pouring liquid into a trash bin with particles (no text or symbols)

4

Line drawing of a hand washing a faucet with water flowing from the sink (no text or symbols)

5

Illustration of a sun shining on a brick wall and a bowl with a small sphere, no text or symbols present.

6

7

Illustration of a hand washing a trash bin with an iron shool open, showing liquid level (no text or symbols)

Đế thay thể đai

Làm sạch power pet

1

2

Diagram of a mechanical device with two views showing internal components (no text or symbols)

3

Illustration of a pair of scissors cutting a cable (no text or symbols)

4

Technical line drawing of a mechanical device with lever and base (no text or symbols)

5

Diagram of a vacuum cleaner with two views of the component (no text or symbols present)

6

Technical line drawing of two mechanical devices with clamps and connectors (no text or symbols)

Line drawing of a handheld device with a pointed tip and handle (no text or symbols)

Technical line drawing of a mechanical device with a handle and internal component (no text or symbols)

Diagram of a camera with a close-up inset showing the mechanical component being adjusted (no text or symbols present)

Chú ý và thận trọng

Trong sử dụng

Chú y
