USER MANUAL Airwave 360 CWA BT320 COBRA

Wireless Music Receiver

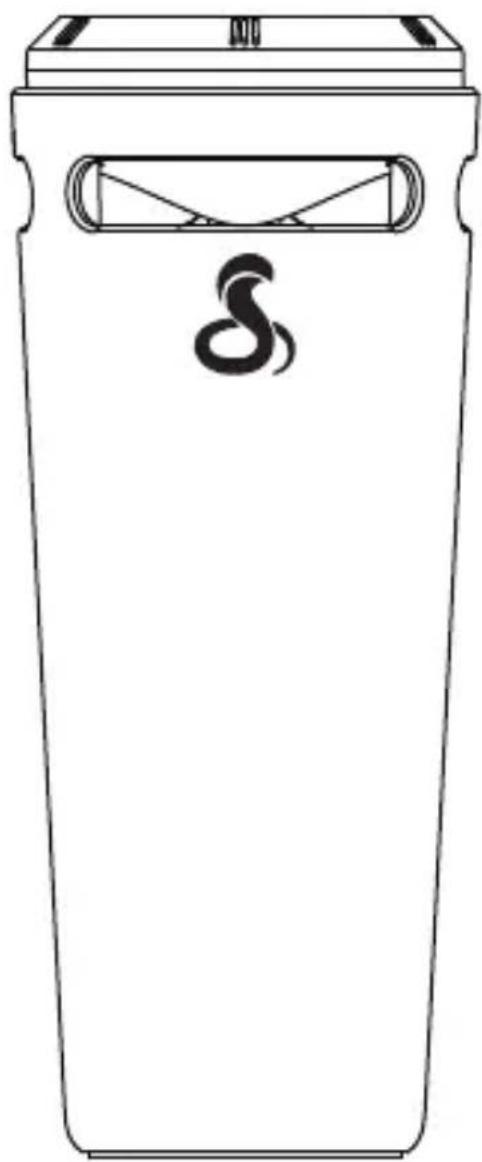

Line drawing of a tall, empty trash bin with a circular inlet and a stylized symbol on the lid (no text or labels)

CWA BT320

Product Information Guide

IMPORTANT

To get the full capability of your new Cobra Airwave™ 360, please read this manual. It's more than just a Bluetooth® Speaker!

INTUITIVE DIAL CONTROL INTERFACE

Press anywhere on the perimeter of Dial Control or rotate the dial to:

• Play/Pause music
• Interrupt music to answer an incoming call
• Hang up a call and resume music
• Increase or decrease volume

Other Controls:

• Track Forward/Reverse
• Access voice command
• Hand gesture controls

CARE AND MAINTENANCE

1. Never try to disassemble or service the product by yourself.
2. Keep the Cobra Airwave ^™ 360 and accessories out of reach from children.
3. Do not expose the Cobra Airwave ^™ 360 to temperatures above +55 deg C (+131 deg F). If the product is operated in extreme hot or cold temperature, the battery capacity is reduced. Use it at room temperature for maximum battery capacity.

CHARGING

The Cobra Airwave ^™ 360 has a built-in Li-ion battery (3.7V, 1600 mAH), so it can be used without connecting to a power supply. To charge the battery, follow these steps:

1. Connect the micro USB connector to the Cobra Airwave ^TM 360 DC 5V input.
2. Plug the USB full-size connector into the 12V accessory car plug (included). A common USB type AC charger (DC 5V, 500mA) can be used as well or any USB power source, or

3. Place the Cobra Airwave ^™ 360 in its charging dock (not included). Please make sure the charging contact on the bottom of the device is lined up correctly to the charging contact on the base.

4. When the device is charging the LED status indicator will be RED. When fully charged the RED status indicator LED will go off.

5. A full charge will last for up to 20 hours of normal use.

DIAL CONTROL INTERFACE

Top view Phone Gesture sensor Smartphone Voice Command access Play Music track Prev/Next buttons LED status indicator Volume Up or Down Stop Microphone Gesture sensor

Bottom view

Power ON/OFF switch

Front view Rear view

Simple line drawing of a trash bin with a handle and circular symbol on the lid (no text or labels)

Micro USB jack Audio Out (3.5mm Stereo)

OPERATION

Turning the Cobra Airwave™ 360 On or Off

The ON/OFF switch is located on the bottom of the Cobra Airwave ^™ 360.

Pairing the Cobra Airwave™ 360 with a smartphone or any Bluetooth® enabled music device

To use the Cobra Airwave ^™ 360 with any Bluetooth ^® enabled smartphone or media device, you must first pair the device to the Cobra Airwave ^™ 360. Once they have been paired for the first time, the phone or media device will automatically re-connect to the Cobra Airwave ^™ 360 when the power is turned to the ON position and Bluetooth ^® is enabled on your device. For additional information, see the operation manual for your smartphone or media device.

Connecting with smartphone

1. Turn Bluetooth ^® on in your settings menu. It will begin searching for any Bluetooth ^® device within range.
2. Make sure the Cobra Airwave ^TM 360 is turned to the ON position, then press and hold the Dial Control for 3 seconds until a double-beep sounds and the LED flashes orange and blue.
3. You will see the Cobra Airwave ^™ 360 on the devices list on your phone. Touch the Cobra Airwave 360 to pair. A single beep will sound and "Connected" will appear in the device's screen.

ADJUSTING VOLUME

To adjust the Cobra Airwave ^™ 360 volume, rotate the Dial Control clockwise to increase the volume or counterclockwise to decrease it.

Circular mechanical component with central hub and three side ports, no visible text or symbols

- Volume can be adjusted by either the Dial Control or the paired Bluetooth® device connected to the Cobra AirWave™ 360.

LOW BATTERY INDICATION

For Apple iOS devices there is a battery indicator shown on the device: FULL ☒ LOW ☒

Other Bluetooth ^® devices may not show any indication. By default the low battery sound indication on the Cobra Airwave ^™ 360 is switched off. To switch it on, press and hold 🏠 until a confirmation tone occurs. After that, 3 beeps occur every 5 minutes when there is approximately 10% battery power remaining. Press and hold 🏠 again to switch it off.

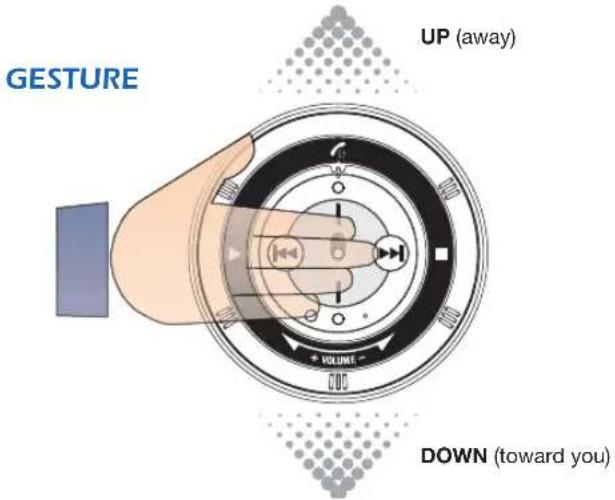

GESTURE CONTROLS

1. The distance between your hand and the Cobra Airwave ^TM 360 should be less than 2.4 inches (6 cm).

2. By default the feature is switched off. To switch it on, press and hold 📋 for 2 seconds until your hear a confirmation beep.

3. When a call is received, wave up or down in the direction of the gray arrows to answer it.

4. To end a call, wave up or down again.

5. While playing music, wave up or down to track forward or track rewind.

GESTURE UP (away) VOLUME DOWN (toward you)

Pairing a new device with the Cobra Airwave™ 360

1. Long press the Dial Control to disconnect the device that's playing music.
2. Turn on BT/scan with a different device.
3. Connect with new device and play.

USING VOICE COMMAND FUNCTIONS Voice commands with Siri® or Samsung S Voice® enabled devices

To access voice commands press the ⏻ once briefly and wait to hear a beep. Wait for the chime sound indicating voice command is ready to access before speaking. Do NOT press and HOLD the ⏻ button, but press briefly once. With a little practice this will become routine.

OFFICE VOLUME -

Answer/hang up/place a call

1. While playing music: if a call comes through while playing music, click on the phone icon on the Dial Control to answer the call. To hang up, press the phone icon again.

1. To ignore the call, press of the Dial Control twice to ignore and send to voice mail.

2. If "Gesture Recognition" is on, when you receive an incoming call, wave your hands over the sensor in the direction shown to answer.

3. You can also press the "Smartphone Voice Command Access Button" to activate your phone and place a call.

Illustration of a hand holding a circular mechanical component with labeled parts (no text or symbols)

AUDIO OUT

The Cobra Airwave™ 360 can also be connected to other audio devices using the 3.5mm audio out cord provided. Examples include: car stereo, home stereo, sound bar, etc.

• Music from the Bluetooth connected device will play on the audio system connected to the Cobra Airwave™ 360.
• Any use of a mobile device for phone calls or voice commands will pause the music and the Cobra Airwave™ 360 will function normally as a hands free interface to the Bluetooth connected mobile device.
• Whenever your smartphone is in the phone dialing screen mode the Cobra Airwave™ 360 presumes you are using the smartphone for voice communication and music could remain paused even after the call has ended. To resume playing music, close the phone dial screen on the smartphone or use the Dial Control.

3.5mm Output

10 11

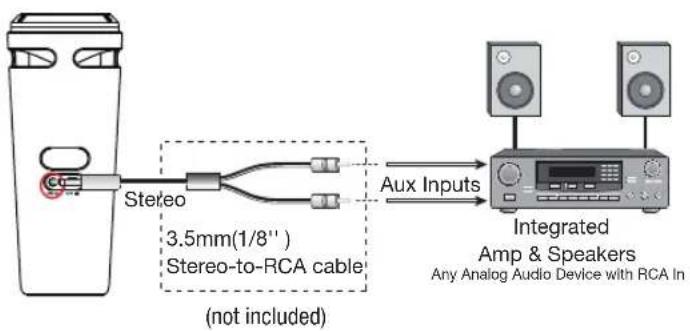

STEREO AUDIO OUTPUT TO HOME SYSTEM

Connecting the Cobra Airwave™ 360 to a home audio system will provide a useful way to hold your Bluetooth® connected smartphone or tablet in your hand and let the Cobra Airwave™ 360 act as an interface to your sound system.

Though each audio system is a little different, the Cobra Airwave ^™ 360 3.5mm stereo output can be connected using a variety of cables and connectors available online or at retail stores.

Stereo 3.5mm(1/8") Stereo-to-RCA cable (not included) Aux Inputs Integrated Amp & Speakers Any Analog Audio Device with RCA In

FCC & INDUSTRY CANADA STATEMENT

For Products Purchased in USA:

NOTE: This device complies with part 15 of FCC rules:

Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) This device must accept any interference received including interference that may cause undesired operati

CAUTION: Modifications or parts not approved by Cobra Electronics Corporation may violate FCC Rules and void authority to operate this equipment.

For Products Purchased in Canada:

This device complies with Industry Canada license-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This device complies with Part 15 of the FCC Rules and with RSS-210 of Industry Canada. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

FCC & INDUSTRY CANADA STATEMENT continued

This Class B digital apparatus complies with Canadian ICES-003.

NOTE: The manufacturer is not responsible for any radio or TV interference caused by unauthorized modifications or changes to this equipment. Such modifications or changes could void the user's authority to operate the equipment. This equipment is a portable device. The output power of this device is less than 20mW. The SAR test is not required.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation.

If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help

Trademark Statement

Cobra ^® and the snake design are registered trademarks of Cobra Electronics Corporation, USA. Cobra AirWave ^™ and Cobra Electronics Corporation ^™ are trademarks of Cobra Electronics Corporation, USA.

iPhone ^® , iPod ^® touch and Siri ^® are trademarks of Apple, Inc, registered with the U.S. and other countries.

Samsung S Voice ^® is a registered trademark of Samsung Electronics Company, LTD.

The Bluetooth ^® word mark is a registered trademark owned by Bluetooth SIG, Inc. and any use of such marks by Cobra Electronics Corporation is under license.

Quick Reference Guide

ModeControlsActionFunctions
Standby D	al Control Press for	2 seconds Pair to BT
	Dial Control Press	for 3 seconds Unpair	all BT devices
	Dial Control Press twice Auto redial
	Track Fwd Press	for 3 seconds Turn Low Battery beep on/off
	Track Rew Press	for 3 seconds Turn Gesture on/off
	Voice Command	Press	Enable Siri or S-Voice
Music	Dial Control	Press	Play/Pause
	Track Fwd Press Track forward
	Track Rew	Press	Track rewind
	Gesture Forward	Wave Track forward
	Gesture Backward	Wave	Track rewind
Phone	Dial Control	Press Answer incoming call
	Dial Control	Press twice	Send incoming call to voice mail
	Gesture	wave	Answer or end call
