Product Type	Electronic Keyboard
Model	Portatone PSR-1100
Brand	Yamaha
Number of Keys	76 (Touch-sensitive)
Polyphony	64 notes
Voices	676 voices + 21 drum/SFX kits
Styles	181 auto accompaniment styles
Display	320 x 240 dot LCD with backlight
Recording	16-track sequencer, up to 20,000 notes
Connectivity	MIDI In/Out, USB TO HOST, AUX In, Headphones
Power Supply	AC adapter (PA-6A) or 6 x D-size batteries
Dimensions (W x D x H)	Approx. 1280 mm x 380 mm x 150 mm
Weight	Approx. 12.5 kg (without batteries)
Speaker System	2 x 12W amplifiers, dual speakers
Effects	Reverb (41 types), Chorus (41 types), DSP (246 types)
Main Functions	Auto accompaniment, registration memory, one-touch setting, harmony, arpeggio
Care & Cleaning	Wipe with a soft, dry cloth. Do not use solvents.
Safety	Keep away from water, heat, and direct sunlight. Use only recommended accessories.
Spare Parts & Repairability	Contact authorized Yamaha service centers for genuine parts and repairs.
Included Accessories	Music rest, AC adapter (PA-6A), CD-ROM (optional), user manual

Frequently Asked Questions - Portatone PSR-1100 YAMAHA

How do I connect the PSR-1100 to a computer?

Use a USB cable from the USB TO HOST port on the keyboard to your computer. You may need to install Yamaha USB-MIDI drivers from the included CD-ROM or download them from Yamaha's website.

Can I use a sustain pedal with this keyboard?

Yes, connect a standard sustain pedal (e.g., Yamaha FC5) to the SUSTAIN jack on the rear panel. The pedal works with piano and other voices.

How do I transpose the keyboard?

Press the TRANSPOSE button and use the +/- buttons to shift the pitch in semitone steps. The transpose range is -12 to +12 semitones.

What type of batteries does the PSR-1100 use?

It requires 6 D-size (LR20) batteries for portable operation. Battery life depends on usage; approximately 4-6 hours with alkaline batteries.

How can I restore factory settings?

Turn off the keyboard. Then hold down the highest white key (C7) while turning the power back on. This resets all settings to factory defaults.

Does the keyboard have a headphone jack?

Yes, there is a PHONES jack on the front left panel. Plugging in headphones automatically mutes the built-in speakers.

Can I record my playing?

Absolutely. Use the REC button to access the 16-track sequencer. You can record up to 20,000 notes in real time and play back your performance.

How do I shift octaves?

Use the OCTAVE UP/DOWN buttons to shift the keyboard range in octave steps. The display shows the current octave setting.

What file formats can the keyboard read?

It can read Standard MIDI Files (SMF) Format 0 and 1 from a computer via USB. Also, it supports Yamaha style files (.sty) and registration files.

Is there a way to split the keyboard into two zones?

Yes, press the SPLIT button to enable split mode. You can assign different voices to the left and right sections of the keyboard.

USER MANUAL Portatone PSR-1100 YAMAHA

This product utilizes batteries or an external power supply (adapter). DO NOT connect this product to any power supply or adapter other than one described in the manual, on the name plate, or specifically recommended by Yamaha.

WARNING: Do not place this product in a position where anyone could walk on, trip over, or roll anything over power or connecting cords of any kind. The use of an extension cord is not recommended! IF you must use an extension cord, the minimum wire size for a 25' cord (or less) is 18 AWG. NOTE: The smaller the AWG number, the larger the current handling capacity. For longer extension cords, consult a local electrician.

This product should be used only with the components supplied or; a cart, rack, or stand that is recommended by Yamaha. If a cart, etc., is used, please observe all safety markings and instructions that accompany the accessory product.

SPECIFICATIONS SUBJECT TO CHANGE:

The information contained in this manual is believed to be correct at the time of printing. However, Yamaha reserves the right to change or modify any of the specifications without notice or obligation to update existing units.

This product, either alone or in combination with an amplifier and headphones or speaker/s, may be capable of producing sound levels that could cause permanent hearing loss. DO NOT operate for long periods of time at a high volume level or at a level that is uncomfortable. If you experience any hearing loss or ringing in the ears, you should consult an audiologist.

IMPORTANT: The louder the sound, the shorter the time period before damage occurs.

Some Yamaha products may have benches and / or accessory mounting fixtures that are either supplied with the product or as optional accessories. Some of these items are designed to be dealer assembled or installed. Please make sure that benches are stable and any optional fixtures (where applicable) are well secured BEFORE using.

Benches supplied by Yamaha are designed for seating only. No other uses are recommended.

NOTICE:

Service charges incurred due to a lack of knowledge relating to how a function or effect works (when the unit is operating as designed) are not covered by the manufacturer's warranty, and are therefore the owners responsibility. Please study this manual carefully and consult your dealer before requesting service.

ENVIRONMENTAL ISSUES:

Yamaha strives to produce products that are both user safe and environmentally friendly. We sincerely believe that our products and the production methods used to produce them, meet these goals. In keeping with both the letter and the spirit of the law, we want you to be aware of the following:

Battery Notice:

This product MAY contain a small non-rechargeable battery which (if applicable) is soldered in place. The average life span of this type of battery is approximately five years. When replacement becomes necessary, contact a qualified service representative to perform the replacement.

This product may also use “household” type batteries. Some of these may be rechargeable. Make sure that the battery being charged is a rechargeable type and that the charger is intended for the battery being charged.

When installing batteries, do not mix batteries with new, or with batteries of a different type. Batteries MUST be installed correctly. Mismatches or incorrect installation may result in overheating and battery case rupture.

Warning:

Do not attempt to disassemble, or incinerate any battery. Keep all batteries away from children. Dispose of used batteries promptly and as regulated by the laws in your area. Note: Check with any retailer of household type batteries in your area for battery disposal information.

Disposal Notice:

Should this product become damaged beyond repair, or for some reason its useful life is considered to be at an end, please observe all local, state, and federal regulations that relate to the disposal of products that contain lead, batteries, plastics, etc. If your dealer is unable to assist you, please contact Yamaha directly.

NAME PLATE LOCATION:

The name plate is located on the bottom of the product. The model number, serial number, power requirements, etc., are located on this plate. You should record the model number, serial number, and the date of purchase in the spaces provided below and retain this manual as a permanent record of your purchase.

Model

Serial No.

Purchase Date ____

VORSICHTSMASSNAHMEN

BITTE LESEN SIE DIES SORGFÄLTIG DURCH, BEVOR SIE FORTFAHREN

Line drawing of a mechanical device with internal components and a pointer (no text or symbols)

Diagram of a floppy disk with a magnified inset showing a drop in the bottom-right corner (no text or symbols)

Style Sections....30

One Touch Setting....32

Music Finder...... 33

Simple line drawing of a rectangular device with two cables, one emitting wires and the other connected to a plug (no text or symbols)

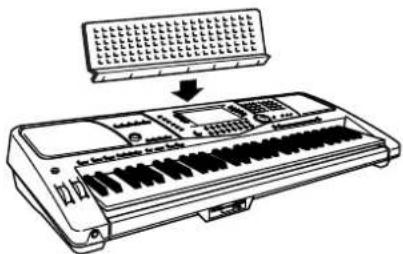

Notenablage

Line drawing of a keyboard with an open top and mouse, showing no text or symbols

Vocal Harmony (nur PSR-2100)

6 Taste [EXTRA TRACKS (STYLE)] S. 82

⑦ Taste [TRACK 2 (L)] S. 82

8 Taste [TRACK 1 (R)] S. 82

9 Taste [REPEAT].... S. 82

10 Taste [REC].... S. 95

11 Taste [TOP] S. 81

12 Taste [START/STOP].... S. 79

13 Taste [REW] S. 81

14 Taste [FF] S. 81

STYLE

15 STYLE-Tasten S. 62

TRANSPOSE

16 Tasten [◀] [▶] S. 144

TEMPO

⑰ Tasten [◀] [▶] ...... S. 53

18 Taste [TAP TEMPO] S. 54

GESAMTLAUTSTÄRKE

19 Dial [MASTER VOLUME].... S. 17

20 Taste [FADE IN / OUT] S. 68

MULTI PAD

25 Taste [INTRO] S. 31, 69

26 Taste MAIN [A] S. 67

27 Taste MAIN [B] S. 67

28 Taste MAIN [C] S. 67

29 Taste MAIN [D] S. 67

30 Taste [ENDING / rit.].... S. 31, 69

31 Taste [AUTO FILL IN] S. 69

32 Taste [OTS LINK] S. 71

33 Taste [SYNC.STOP] S. 68

34 Taste [SYNC.START] S. 63

35 Taste [START/STOP].... S. 63

DIGITAL STUDIO

36 Taste [SOUND CREATOR].... S. 90

37 Taste [DIGITAL RECORDING] S. 95, 111

38 Taste [MIXING CONSOLE] S. 124

MENU

39 Taste [DEMO].... S. 55

40 Taste [HELP] S. 52

41 Taste [FUNCTION] S. 136

DISPLAYREGLER

42 Tasten [A] bis [J] S. 43
43 Taste [DIRECT ACCESS] S. 50
44 Taste [BALANCE].... S. 64
45 Taste [CHANNEL ON/OFF] S. 64, 81
46 Tasten [1▲▼] bis [8▲▼] S. 38 - 48
47 Taste [BACK].... S. 43, 49
48 Taste [NEXT].... S. 43, 49
49 Taste VOICE PART ON / OFF [MAIN].... S. 59
50 Taste VOICE PART ON / OFF [LAYER].... S. 59
51 Taste VOICE PART ON / OFF [LEFT] S. 59
52 Taste [ENTER] S. 49
53 Datenrad [DATA ENTRY]...... S. 49
54 Taste [EXIT] S. 43
55 Regler [LCD CONTRAST] S. 17

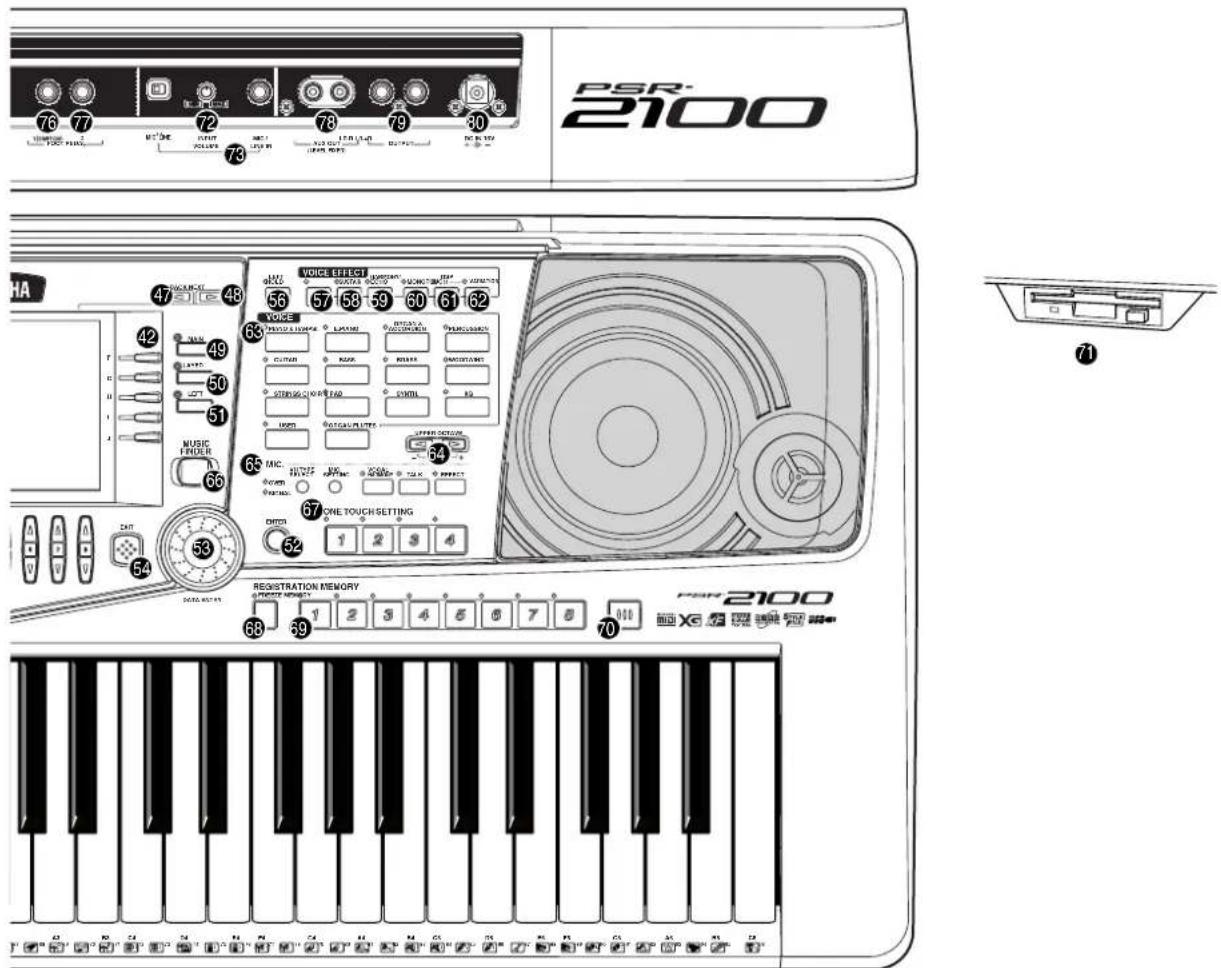

VOICE-EFFEKTE

56 Taste [LEFT HOLD].... S. 61
57 Taste [TOUCH].... S. 60
58 Taste [SUSTAIN] S. 60
59 Taste [HARMONY / ECHO].... S. 61
60 Taste [MONO] S. 61
61 Taste [DSP] S. 60
62 Taste [VARIATION].... S. 61

VOICE

63 Tasten VOICE S. 57

OBERE OKTAVE

64 Taste [UPPER OCTAVE] S. 61

MIC.

65 Tasten MIC. (nur PSR-2100) S. 131

MUSIC FINDER

66 Taste [MUSIC FINDER].... S. 72

ONE TOUCH SETTING

1

HINWEIS

Line drawing of a device with an open lid and internal compartments (no text or symbols)

VORSICHT

HINWEIS

(SECTIONS: MAIN A/B/C/D, INTRO, ENDING, BREAK)

Song-Wiedergabe

Diagram of a device with an open panel and a black arrow indicating a component (no text or symbols present)

Six identical car door frame diagrams arranged in a row, each with a central panel and no text or symbols.

HINWEIS

Simple black arrow pointing downward to the right end of a horizontal bar (no text or symbols)

HINWEIS

1

HINWEIS

Tasten [3▲▼][4▲▼] (Section)

C = Akkorc
C, R = empfohlene

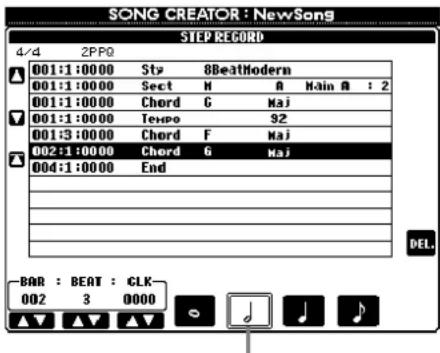

Srittweise Eingabe

Pure diagram of seven identical vehicle compartments arranged in a row, no text or symbols present

■High Key/Note Limit

• High Key

HINWEIS

Mixing Console

Pure diagram of a rectangular container with eight identical car compartments, no text or symbols present.

Row of identical car parking compartments with no visible text or symbols

Clock, Transmit Clock, Receive Transpose, Start/Stop

■Clock (Taktgeber)

Pure diagram of six identical car compartments with no text or symbols, arranged in a row (no text or labels)

Pure diagram of five identical vehicle compartments with no text or symbols

Diagram of a device with an open panel and a slot, showing internal components (no text or symbols)

Two hand icons pointing at a square button, no text or symbols present

Illustration of a guitar with motion lines indicating sound or vibration (no text or symbols)

[1▲▼] - [8▲▼]-Tasten 19, 38–48

3BAND EQ (3-BAND EQUALIZER) 133

A

[A] - [J]-Tasten....19, 43

AUX OUT (LEVEL FIXED) [L / L+R] [R]-Buchsen .....19

B

[BACK]-Taste 19, 43, 49

[BALANCE]-Taste....19, 64

Bar Clear....118

Bar Copy....118

Bass 97

Buchse FOOT PEDAL 1/2 ....156

Buchsen AUX OUT (LEVEL FIXED) [L / L+R] [R] ......156

Buchsen OUTPUT [L / L+R] [R] 156

C

Cent....138

Channel....105

[CHANNEL ON / OFF]-Taste 19, 64, 81

CHD....109

Chord 97

Chord Detect 150

Chord Fingering....142

CHORD TUTOR....142

Chorus....129

Clock....149

COMMON 91

COMPRESSOR....134

CONFIG 1....151

CONFIG 2 152

Controller 142

Cool! 58

D

[DATA ENTRY]-Datenrad 19,49

[EXTRA TRACKS (STYLE)]-Taste 18, 82

F

Fade In Time, Fade Out Time, Fade Out Hold Time......151

[FADE IN / OUT]-Taste....18, 68

FAVORITE 74

[FOOT PEDAL 1 (SWITCH)]-Buchse....19, 156

[FOOT PEDAL 2]-Buchse....19, 156

GM System Level 1....17, 162

Groove 116

Groove-Parameter....116

H

Harmony-Typen....147

Harmony-Zuweisungen 147

[HELP]-Taste....18, 52

High Key....120

[INTRO]-Taste 18, 31, 67

K

Kanal 64, 81, 118, 140

Kanal-Events 159

Keyboard Touch....144

Keyboard/Panel 144

Keyboard-Percussion....58

KEYWORD....73, 74

Kirnberger 139

|MASTER VOLUME|-Dial....18, 17

Message Switch....149

Metronom 151

|METRONOME|-Taste.... 18, 53

MIC....131

MIC.-Tasten (nur PSR-2100) 19, 131

[MIC. LINE IN]-Buchse....19, 155

MICROPHONE SETTING 133

[MIC. SETTING]-Taste 19, 131

MIDI 148

MIDI [OUT] [IN]-Anschlüsse....19, 156

MIDI IN....156

MIDI OUT....156

MIDI-Anschlüsse 156

One Touch Setting....32

ONE TOUCH SETTING [1] - [4]-Tasten .....19, 70, 71

Open/Save-Displays....39

Organ Flutes (Orgelflöten)....15, 58, 94

Organ Type (Organ Flutes)....94

OVERALL SETTING ....133

Receive Transpose 149

REGISTRATION EDIT-Display 88

Registration Memory....87

Registration Sequence....145

REGISTRATION-MEMORY-Tasten [1]–[8] ......19, 87

STYLE-Tasten....18, 62

TEMPO [◀] | ◀]-Tasten....18, 53

TEMPO FROM....73

TEMPO TO....73

Tempoanzeigen - MAIN-Display....54

[TOP]-Taste 18, 81

[TOUCH]-Taste 19,60

[TRACK 1 (R)]-Taste....18, 82

[TRACK 2 (L)]-Taste ....18, 82

Transmit....149

Transmit Clock....149

TRANSPOSE [◀] | ◀]-Tasten 18, 144

Transpose Assign 144

Tune 126

TUNING....126

U

VOICE PART ON / OFF [LEFT]-Taste 19, 59

VOICE PART ON / OFF [MAIN]-Taste 19, 59

Voice Set 146

Voice-Effekte....60

VOICE-Tasten 19,57

Volume/Voice....125

90 DAYS LABOR 1 YEAR PARTS

Yamaha Corporation of America, hereafter referred to as Yamaha, warrants to the original consumer of a product included in the categories listed below, that the product will be free of defects in materials and/or workmanship for the periods indicated. This warranty is applicable to all models included in the following series of products:

PSR SERIES OF PORTATONE ELECTRONIC KEYBOARDS

If during the first 90 days that immediately follows the purchase date, your new Yamaha product covered by this warranty is found to have a defect in material and/or workmanship, Yamaha and/or its authorized representative will repair such defect without charge for parts or labor.

If parts should be required after this 90 day period but within the one year period that immediately follows the purchase date, Yamaha will, subject to the terms of this warranty, supply these parts without charge. However, charges for labor, and/or any miscellaneous expenses incurred are the consumers responsibility. Yamaha reserves the right to utilize reconditioned parts in repairing these products and/or to use reconditioned units as warranty replacements.

THIS WARRANTY IS THE ONLY EXPRESS WARRANTY WHICH YAMAHA MAKES IN CONNECTION WITH THESE PRODUCTS. ANY IMPLIED WARRANTY APPLICABLE TO THE PRODUCT, INCLUDING THE WARRANTY OF MERCHANT ABILITY IS LIMITED TO THE DURATION OF THE EXPRESS WARRANTY. YAMAHA EXCLUDES AND SHALL NOT BE LIABLE IN ANY EVENT FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES.

Some states do not allow limitations that relate to implied warranties and/or the exclusion of incidental or consequential damages.

Therefore, these limitations and exclusions may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

CONSUMERS RESPONSIBILITIES

If warranty service should be required, it is necessary that the consumer assume certain responsibilities:

1. Contact the Customer Service Department of the retailer selling the product, or any retail outlet authorized by Yamaha to sell the product for assistance. You may also contact Yamaha directly at the address provided below.
2. Deliver the unit to be serviced under warranty to: the retailer selling the product, an authorized service center, or to Yamaha with an explanation of the problem. Please be prepared to provide proof purchase date (sales receipt, credit card copy, etc.) when requesting service and/or parts under warranty.
3. Shipping and/or insurance costs are the consumers responsibility.* Units shipped for service should be packed securely. *Repaired units will be returned PREPAID if warranty service is required within the first 90 days.
   IMPORTANT: Do NOT ship anything to ANY location without prior authorization. A Return Authorization (RA) will be issued that has a tracking number assigned that will expedite the servicing of your unit and provide a tracking system if needed.
4. Your owners manual contains important safety and operating instructions. It is your responsibility to be aware of the contents of this manual and to follow all safety precautions.

EXCLUSIONS

This warranty does not apply to units whose trade name, trademark, and/or ID numbers have been altered, defaced, exchanged removed, or to failures and/or damages that may occur as a result of:

1. Neglect, abuse, abnormal strain, modification or exposure to extremes in temperature or humidity.
2. Improper repair or maintenance by any person who is not a service representative of a retail outlet authorized by Yamaha to sell the product, an authorized service center, or an authorized service representative of Yamaha.
3. This warranty is applicable only to units sold by retailers authorized by Yamaha to sell these products in the U.S.A., the District of Columbia, and Puerto Rico. This warranty is not applicable in other possessions or territories of the U.S.A. or in any other country. Please record the model and serial number of the product you have purchased in the spaces provided below.

Model

Serial #

Sales Slip #____

Purchased from

Date

(Retailer)

YAMAHA CORPORATION OF AMERICA

Electronic Service Division

6600 Orangethorpe Avenue

Buena Park, CA 90620

KEEP THIS DOCUMENT FOR YOUR RECORDS. DO NOT MAIL!

FCC INFORMATION (U.S.A.)

1. IMPORTANT NOTICE: DO NOT MODIFY THIS UNIT!

This product, when installed as indicated in the instructions contained in this manual, meets FCC requirements. Modifications not expressly approved by Yamaha may void your authority, granted by the FCC, to use the product.

1. IMPORTANT: When connecting this product to accessories and/or another product use only high quality shielded cables. Cable/s supplied with this product MUST be used. Follow all installation instructions. Failure to follow instructions could void your FCC authorization to use this product in the USA.

2. NOTE: This product has been tested and found to comply with the requirements listed in FCC Regulations, Part 15 for Class "B" digital devices. Compliance with these requirements provides a reasonable level of assurance that your use of this product in a residential environment will not result in harmful interference with other electronic devices. This equipment generates/uses radio frequencies and, if not installed and used according to the instructions found in the users manual, may cause interference harmful to the operation of

other electronic devices. Compliance with FCC regulations does not guarantee that interference will not occur in all installations. If this product is found to be the source of interference, which can be determined by turning the unit "OFF" and "ON", please try to eliminate the problem by using one of the following measures:

Relocate either this product or the device that is being affected by the interference.

Utilize power outlets that are on different branch (circuit breaker or fuse) circuits or install AC line filter/s.

In the case of radio or TV interference, relocate/reorient the antenna. If the antenna lead-in is 300 ohm ribbon lead, change the lead-in to co-axial type cable.

If these corrective measures do not produce satisfactory results, please contact the local retailer authorized to distribute this type of product. If you can not locate the appropriate retailer, please contact Yamaha Corporation of America, Electronic Service Division, 6600 Orangethorpe Ave, Buena Park, CA90620

The above statements apply ONLY to those products distributed by Yamaha Corporation of America or its subsidiaries.

OBSERVERA!

For details of products, please contact your nearest Yamaha representative or the authorized distributor listed below.

Yamaha Canada Music Ltd.

135 Milner Avenue, Scarborough, Ontario,

M1S 3R1, Canada

Tel: [phone]

U.S.A.

Yamaha Corporation of America

6600 Orangethorpe Ave., Buena Park, Calif. 90620,

U.S.A

Tel: [phone]

CENTRAL & SOUTH AMERICA

MEXICO

Yamaha de Mexico S.A. De C.V.,

Javier Rojo Gomez No.1149, Col. Gpe Del

Moral, Deleg. Iztapalapa, 09300 Mexico, D.F.

Tel: [phone]

BRAZII.

Yamaha Musical do Brasil LTDA.

PANAMA AND OTHER LATIN

AMERICAN COUNTRIES/

CARIBBEAN COUNTRIES

Sherbourne Drive, Tilbrook, Milton Keynes,

MK7 8BL, England

Tel: [phone]

IRELAND

Danfay Ltd.

61D. Sallynoggin Road, Dun Laoghaire, Co. Dublin

Tel: [phone]

GERMANY

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

Yamaha Music Central Europe

Branch Nederland

Clarissenhof 5-b, 4133 AB Vianen, The Netherlands

Tel: [phone]

BELGIUM/LUXEMBOURG

Yamaha Music Central Europe GmbH,

Branch Belgium

Rue de Geneve (Genevastraat) 10, 1140 - Brussels,

Belgium

Tel: [phone]

FRANCE

147 Skiathou Street, 112-55 Athens, Greece

Tel: [phone]

SWEDEN

Yamaha Scandinavia AB

J. A. Wettergrens Gata 1

Box 30053

S-400 43 Göteborg, Sweden

Tel: [phone]

DENMARK

YS Copenhagen Liaison Office

Generatorvej 8B

DK-2730 Herlev, Denmark

Tel: [phone]

FINLAND

F-Musiikki Oy

Kluuvikatu 6, P.O. Box 260,

SF-00101 Helsinki, Finland

Tel: [phone]

NORWAY

OTHER EUROPEAN COUNTRIES

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

AFRICA

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650

Tel: [phone]

MIDDLE EAST

TURKEY/CYPRUS

Yamaha Music Central Europe GmbH

Siemensstraße 22-34, 25462 Rellingen, Germany

Tel: [phone]

OTHER COUNTRIES

Yamaha Music Gulf FZE

LB21-128 Jebel Ali Freezone

P.O.Box 17328, Dubai, U.A.E.

Tel: [phone]

ASIA

HONG KONG

Tom Lee Music Co., Ltd.

11/F., Silvercord Tower 1, 30 Canton Road,

Tsimshatsui, Kowloon, Hong Kong

Tel: [phone]

INDONESIA

PT. Yamaha Music Indonesia (Distributor)

PT. Nusantik

Gedung Yamaha Music Center, Jalan Jend. Gatot

Subroto Kav. 4, Jakarta 12930, Indonesia

Tel: [phone]

KOREA

Yamaha Music Korea Ltd.

Tong-Yang Securities Bldg. 16F 23-8 Yoido-dong,

Youngdungpo-ku, Seoul, Korea

Tel: [phone]

MALAYSIA

Yamaha Music Malaysia, Sdn., Bhd.

Lot 8, Jalan Perbandaran, 47301 Kelana Jaya,

Petaling Jaya, Selangor, Malaysia

Tel: [phone]

PHILIPPINES

Yupangco Music Corporation

339 Gil J. Puyat Avenue, P.O. Box 885 MCPO,

Makati, Metro Manila, Philippines

Tel: [phone]

SINGAPORE

Yamaha Music Asia Pte., Ltd.

11 Ubi Road #06-00, Meiban Industrial Building,

Singapore

Tel: [phone]

TAIWAN

Yamaha KHS Music Co., Ltd.

3F, #6, Sec.2, Nan Jing E. Rd. Taipei.

Taiwan 104, R.O.C.

Tel: [phone]

THAILAND

Siam Music Yamaha Co., Ltd.

121/60-61 RS Tower 17th Floor,

Ratchadaphisek RD., Dindaeng,

Bangkok 10320, Thailand

Tel: [phone]

THE PEOPLE'S REPUBLIC OF CHINA

AND OTHER ASIAN COUNTRIES

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650

Tel: [phone]

OCEANIA

AUSTRALIA

Yamaha Music Australia Pty. Ltd.

Level 1, 99 Queensbridge Street, Southbank,

Victoria 3006, Australia

Tel: [phone]

NEW ZEALAND

Music Houses of N.Z. Ltd.

146/148 Captain Springs Road, Te Papapa,

Auckland, New Zealand

Tel: [phone]

COUNTRIES AND TRUST

TERRITORIES IN PACIFIC OCEAN

Yamaha Corporation,

Asia-Pacific Music Marketing Group

Nakazawa-cho 10-1, Hamamatsu, Japan 430-8650

Tel: [phone]

YAMAHA

Yamaha PK CLUB (Portable Keyboard Home Page, English only)

http://www.yamahaPKclub.com/

Yamaha Manual Library

http://www2.yamaha.co.jp/manual/german/
