Product Type	Tower Speaker
Model	Dream Tower-101
Brand	Pure Acoustics
Dimensions (H x W x D)	38.6 x 7.9 x 11.8 inches (980 x 200 x 300 mm)
Weight	33 lbs (15 kg)
Power Handling (RMS)	150 Watts
Frequency Response	40 Hz - 20 kHz
Impedance	8 Ohms
Sensitivity	90 dB (2.83V/1m)
Drivers	Dual 6.5" Woofers, 1" Silk Dome Tweeter
Cabinet Material	MDF with Vinyl Finish
Connectivity	Binding Posts (Bi-wire capable)
Recommended Amplifier Power	30 - 200 Watts
Placement	Floor-standing, 2 feet from walls
Care Instructions	Wipe with dry cloth; avoid moisture
Safety	Place on stable surface; keep away from heat sources
Spare Parts	Contact Pure Acoustics for replacement drivers or crossovers
Warranty	2 years limited
Included Accessories	Speaker grille, user manual, foam port plugs

Frequently Asked Questions - Dream Tower-101 Pure Acoustics

What amplifier power should I use with the Dream Tower-101?

We recommend an amplifier with 30 to 200 Watts RMS per channel at 8 Ohms to achieve optimal performance without risk of damage.

Can I bi-wire these speakers?

Yes, the Dream Tower-101 features bi-wire capable binding posts. Remove the jumpers between the terminals to bi-amp or bi-wire.

What is the best placement for tower speakers?

Place the speakers at least 2 feet (60 cm) from the back wall and 1 foot from side walls to improve bass response and soundstage.

How do I clean the speakers?

Use a soft, dry cloth to wipe the cabinet. Do not use water or cleaning solvents. For the grille, gently vacuum with a soft brush attachment.

What is the frequency response range?

The Dream Tower-101 reproduces frequencies from 40 Hz to 20 kHz, delivering deep bass and clear highs.

Do these speakers come with a warranty?

Yes, Pure Acoustics offers a 2-year limited warranty covering manufacturing defects. Contact your retailer or Pure Acoustics support.

Can I use them in a home theater setup?

Absolutely. The Dream Tower-101 works well as front left/right speakers in a surround sound system. They are magnetically shielded to avoid TV interference.

What is the impedance of these speakers?

The nominal impedance is 8 Ohms, compatible with most home stereo amplifiers and receivers.

How do I connect the speakers to my amplifier?

Use speaker wire to connect the positive and negative terminals on the speaker to the corresponding outputs on your amplifier. Ensure correct polarity.

What should I do if the sound is distorted?

Reduce the amplifier volume. Distortion may indicate clipping due to too much power or low-quality source. Also check that the speaker wires are securely connected.

USER MANUAL Dream Tower-101 Pure Acoustics

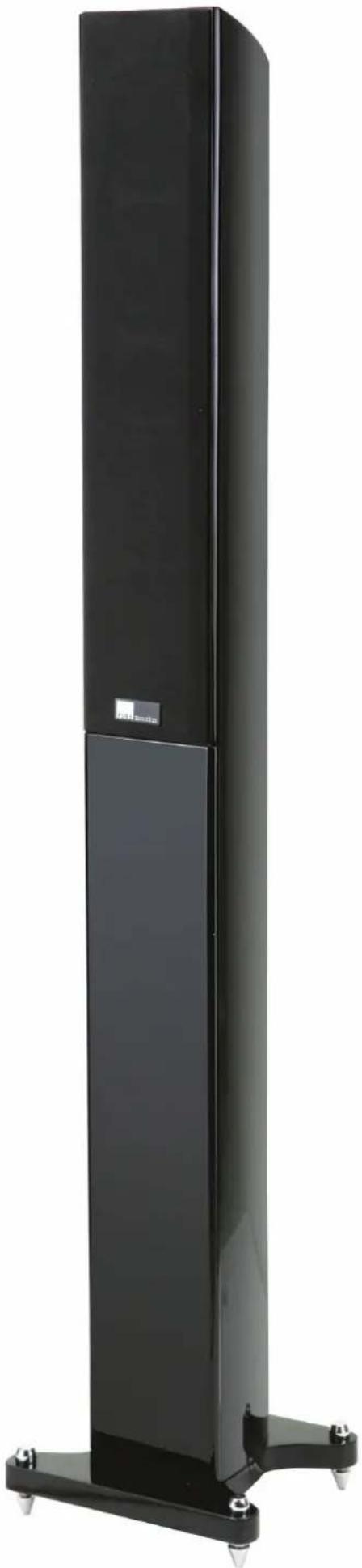

Product photo of black audio speakers and two tall speakers with visible sound waves (no text or symbols)

Pure Acoustics, Inc. 18 Fuller Place

Brooklyn, NY 11215, USA, Tel [phone]

www.pure-acoustics.com

Black vertical stand with metallic legs and mounting feet, no visible text or symbols

Introduction

Thank you for purchasing Pure Acoustics' products, and welcome to the Pure Acoustics family of satisfied customers!

Pure Acoustics was established to fulfill the need for high quality speakers of exceptional design at an affordable price. After years of research and development, and by manufacturing all parts ourselves -- from the voice-coil to the uniquely-designed crossover -- Pure Acoustics is able to offer you speakers of superior value.

Each speaker component has been designed and engineered with first-rate materials to produce exceptional sound. Our speakers offer the best of it all – high-quality sound, hand-made solid construction, and a remarkably stylish appearance.

We welcome you to witness the results. Our team's dedication to quality, reliability and attractive design has created some of the best-value speakers you can find today.

Reading the complete manual will help you to set up your speakers properly and reward you with a fine listening experience. Pure Acoustics distribution centers in Europe, Asia, Australia and the Americas will be happy to assist you with any questions you may have. Please look for the distributor nearest you on our web site, www.pure-acoustics.com.

Connections

Make sure all equipment is turned off. When connecting the speakers, be sure to retain the correct polarity. Most speaker cables will have (+) red sign for positive and (-) black sign for negative.

Connect the speaker cable to the positive (+) front-left tower speaker terminal on the amplifier and to the positive (+) terminal on the front-left tower speaker. Connect the speaker cable to the negative (-) front-left tower speaker terminal on the amplifier and to the negative (-) terminal on the front left tower speaker. Repeat the same step for the right – side front tower speaker.

If your system includes a center speaker, connect the speaker cable to the positive (+) center speaker terminal on the amplifier and to the positive (+) terminal on the center speaker. Connect the speaker cable to the negative (-) center speaker terminal on the amp and to the negative (-) terminal on the center speaker.

If your system includes a satellite speakers Connect the speaker cable to the positive (+) satellite left speaker terminal on the amplifier and to the positive (+) terminal on the rear-left speaker. Connect the speaker cable to the negative (-) rear-left speaker terminal on the amplifier and to the negative (-) terminal on the rear-left speaker. Repeat the same step for the right-side rear speaker.

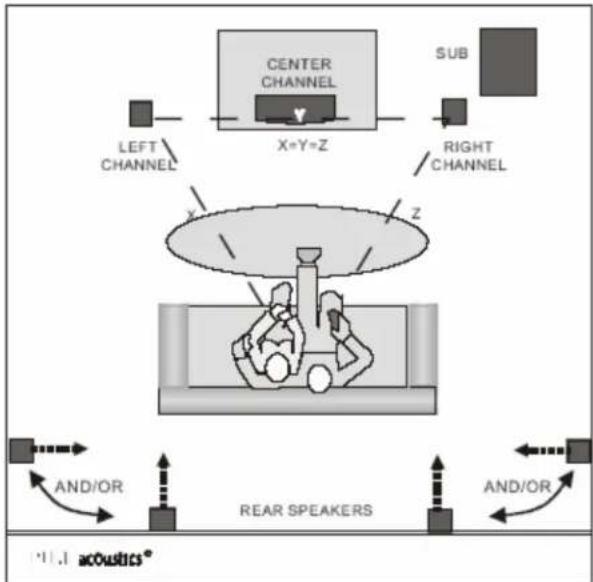

Position

THE FRONT SPEAKERS should be placed on each side of your TV or in front of your favorite listening position. As a general guideline, the space from the speakers to the listening position should be 1.5 times the distance between the speakers. For example, if your listening position is 9ft (2.7m) away from the speakers, the distance between the speakers should be 6ft (1.8m)

THE CENTER CHANNEL SPEAKER should be on top of or just above your TV.

THE SATELITE SPEAKERS should be positioned either to the side of, or behind, your listening position. Typical placement is on the side walls, slightly above ear level, about two-thirds of the way back from the front of the room. This allows the surround speakers to aim directly at the listener, placing you in the middle of a five-speaker sound field.


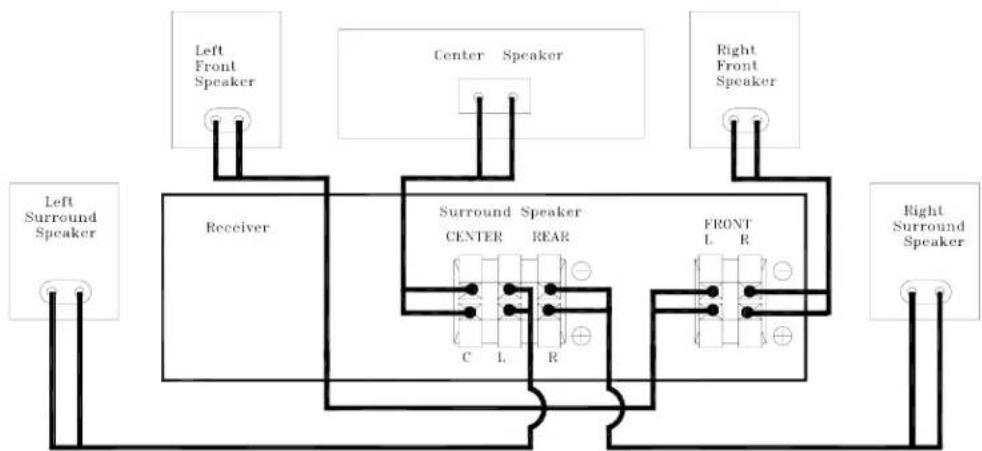

Set-Up Diagram

Running time and cleaning

The performance of the speakers may change during the initial use due to storage and mechanical limitations. Please allow 15 hours of use for the temperature effect and mechanical parts to attain their intended design characteristics.

Make sure to turn all equipment off before cleaning. The cabinet only requires occasional dusting. Please avoid touching the drive units.

Limited one-year warranty

Pure Acoustics products have been designed and manufactured to the highest quality standards. However, in the event that something malfunctions, Pure Acoustics and your local authorized distributor warrant free of charge parts and labor (some exclusions may apply) for a period of one year. This warranty is only valid for the original owner. This warranty is limited to the repair of the product. This warranty will not apply to units that were subject to misuse, neglect, abuse, alteration or improper installation. This warranty will not cover damage due to fire, water, heat, lightning or any other cause beyond the control of Pure Acoustics. Retention of your original dated receipt is required in order to obtain warranty service from your local authorized Pure Acoustics Dealer.

TECHNICAL SPECIFICATIONS

	Dream Tower F	Dream Tower C	Dream Tower S
POWER HANDLING 140 Watts	120 Watts 120 Watts
FREQUENCY RESPONSE	60 Hz – 20 KHz	75 Hz – 20 KHz	75 Hz – 20 KHz
SENSITIVITY (+/- 3db)	92db	90db	90db
IMPEDENCE	4 Ohm	4 Ohm	4 Ohm
DRIVER COMPLIMENT	2 way DRAV FIG.	2 way DRAV FIG.	2 way DRAV FIG.
WOOFER	Four 3" PPWoofer-transfer cone,20mmASV voice coil,Y30 ferrite magnet,NOMEX damper	One 3"Woofer-transfercone, 20mmASVvoice coil, Y30 ferritemagnet, NOMEXdamper	One 3"Woofer-transfer cone,20mmASV voice coil,Y30 ferrite magnet,NOMEX damper
TWEETER	1" black silk diaphragm,25mmKSV/CCAW voicecoil, Space freezingmagnetic liquidtechnology, N42neodymium magnet	1" black silkdiaphragm,25mmKSV/CCAWvoice coil, Spacefreezing magneticliquid technology,N42 neodymiummagnet	1" black silkdiaphragm,25mmKSV/CCAWvoice coil, Spacefreezing magneticliquid technology, N42neodymium magnet
CROSSOVER FREQUENCY	3,200 Hz	2,700 Hz	2,700 Hz
DIMENSIONS (H X W X D)	100x10x9.8 Cm Cm(39.3 x 4 x 3.8 In)	33x10x9.8 Cm(13 x 4 x 3.8 In)	25x10x9.8 Cm(9.8 x 4 x 3.8 In)
WEIGHT	6.2 Kg (12.4 lbs)	2.4 Kg (2.4 lbs)	1.9 Kg (2.2 lbs)
FINISH	Any color	Any color	Any color
GRILLE	Black	Black	Black
CARTONDIMENSIONS (H X W X D)	19x104x33 Cm(7x41x13 In)	19x42x16 Cm(7x16.5x6.3 In)	21.7x33x18 Cm(8.25x13x7.2 In)
CARTON WEIGHT	13.5 Kg (30 lbs)	3 Kg (6.8 lbs)	3 Kg (6.8 lbs)
CARTON CONTAINS	2 front towers speakers	1 center speaker	2 satellite speakers

Design and specifications are subject to change without notice.
