10291 - Coffee maker KORONA - Free user manual and instructions

Product Type	Drip Coffee Maker
Brand	Korona
Model	10291
Capacity	1.25 L (approx. 10-12 cups)
Carafe Material	Glass with handle and lid
Power	1000 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (W x D x H)	30 x 20 x 35 cm
Weight	1.5 kg
Water Level Indicator	Yes, transparent water tank with markings
Anti-Drip System	Yes, stops dripping when carafe is removed
Auto Shut-Off	Yes, after approx. 2 hours
Filter Type	Permanent mesh filter (or paper filter optional)
Controls	On/Off switch with indicator light
Keep Warm Function	Yes, hot plate keeps coffee warm
Removable Water Reservoir	Yes, for easy filling and cleaning
Cord Length	Approx. 0.8 m
Safety Features	Auto shut-off, boil-dry protection
Maintenance	Descaling recommended every 1-2 months
Included Accessories	Measuring spoon, instruction manual

Frequently Asked Questions - 10291 KORONA

How do I use the Korona 10291 coffee maker?

Fill the water tank with fresh cold water up to the desired level, add ground coffee to the permanent filter (or use a paper filter), place the carafe on the hot plate, and press the on/off switch. The coffee will start brewing and the keep-warm function will activate automatically.

What type of coffee grounds should I use?

Use medium-ground coffee suitable for drip coffee makers. Avoid very fine grounds as they may clog the filter.

How do I clean the coffee maker?

After each use, discard used grounds and rinse the filter and carafe with warm water. Wipe the exterior with a damp cloth. For deeper cleaning, run a cycle with a mixture of water and white vinegar (1:1) every 1-2 months to descale.

How do I descale the Korona 10291?

Fill the water tank with a mixture of equal parts water and white vinegar. Run a brewing cycle without coffee. When finished, discard the mixture and run two more cycles with fresh water to rinse. Always refer to the manual for specific instructions.

What is the capacity of the coffee maker?

The water tank holds up to 1.25 liters, which brews approximately 10-12 cups of coffee (depending on cup size).

Does the coffee maker have an auto shut-off feature?

Yes, the machine automatically shuts off after approximately 2 hours to ensure safety and energy saving.

Can I use the coffee maker without a paper filter?

Yes, the machine comes with a permanent mesh filter that can be used repeatedly. You may also use size #4 paper filters for easier cleanup.

Why is my coffee not hot enough?

Ensure the carafe is properly placed on the hot plate and the keep-warm function is active. If the temperature still seems low, the hot plate may need cleaning or the unit may require descaling. Also, pre-warming the carafe with hot water can help maintain temperature.

What should I do if the coffee maker stops brewing mid-cycle?

Check for power connection, ensure the water tank is properly seated, and verify there is no blockage in the filter basket. If the problem persists, contact Korona customer service.

Where can I find replacement parts for the Korona 10291?

Replacement carafes and filters may be available from authorized Korona dealers or online retailers. Contact Korona support for specific part numbers and availability.

USER MANUAL 10291 KORONA

Top-down view of a coffee cup with dark liquid, placed on a saucer with a fluted side (no text or symbols visible)

Exterior view of a Korona coffee maker with clear glass and black casing (no visible text or symbols on device body)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

3D rendering of a stainless steel teapot with a handle and spout, showing internal components and a pointer arrow (no text or symbols)

Top-down view of a black and white kitchen pot with control knob and side handle (no text or symbols visible)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

by incorrect use.

sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

liquid.

An electric appliance is not a toy!

and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by

before cleaning.

surfaces to avoid any damage to the appliance.

anyone to trip when in use. Do not allow the cord to hang over sharp edges.

Do not use the appliance,

Have it checked and, if necessary, repaired by a qualified modifications to or repair the appliance yourself.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

high during operation. Therefore, do not touch the appliance

handle. Danger of serious burns!

respectively during operation, hot steam evaporates. Danger of serious burns!

from spilling. Danger of serious burns!

dishwasher safe.

cool down before cleaning.

Instruction Manual

Product Description

1. Appliance lid

2. Watertank with water level indicator

3. Filterholder

4. Power cord and plug

Before First Use

appliance is complete.

and Care.

and connect it to a properly installed wall socket.

coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

Brewing Coffee

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.

indicate the required water level to brew the desired number

slightly down.

1. For each cup of coffee, use one leveled measuring spoon

the amount of coffee!

lever button of the lid is pointing towards the handle.

the appliance. The integrated indicator light indicates that the appliance is in operation. An integrated mechanism automatically opens the lid for the brewing through function. The brewing process can be interrupted at any time by

again the appliance will continue with the brewing process.

Note: If you wish to have a cup of coffee before the brewing cycle

Due to the automatic drip stop, dripping will automatically process will automatically resume.

burns!

removed.

minutes and the indicator light will go OFF as well.

1. If you wish to switch off the appliance before automatic

Always disconnect the appliance from the mains if you are not using it!

Note: If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

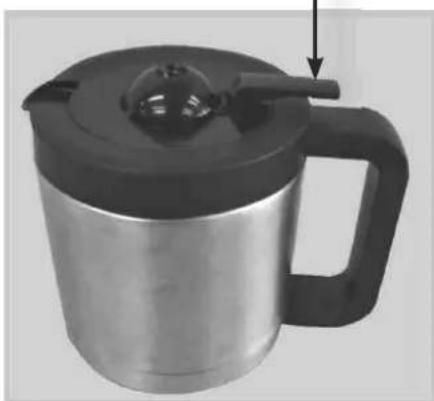

Thermo jug / brewing through lid

Tip: Before starting the brewing process, rinse your thermo

efficiently.

The brewing through lid does not close hermetically. Therefore,

When serving coffee, simply press down and hold the lever button of the lid and the coffee will be pouring out from the

spout.

Metallic stainless steel kettle with black handle and spout, no visible text or symbols

Removing / Fastening the brewing through lid

unlock and lock symbol.

Close-up of a black ceramic teapot with a lid and handle, showing internal components and directional arrows (no text or symbols visible)

be lifted off.

clockwise until it is fixed. The lever button of the lid should point

Cleaning and Care

Before cleaning, always switch off the appliance and t it from the mains. Let it completely cool down.

Clean the body of the appliance with a moistened soft cloth.

tap water and dry it afterwards. Never immerse the brewing through lid in water.

All detachable parts can be cleaned in warm water using some dishwashing detergent. Rinse them afterwards and dry them thoroughly.

DESCALING

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

limescale built up in the appliance.

To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under Before First Use.

coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must

according to the EU directive on Waste Electric And

collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Technical data subject to change!

CE

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

instructions

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

guaranteed period, the customer must provide evidence of the

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 9

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired

Abstract geometric shape with curved and angular lines, no text or symbols present

KORONA
