Product Type	Drip Coffee Maker
Model	10304
Brand	Korona
Dimensions (approx.)	25 cm (W) x 20 cm (D) x 30 cm (H)
Weight (approx.)	1.5 kg
Power Supply	220-240 V, 50/60 Hz
Power Consumption	800 W
Water Tank Capacity	1.0 L
Carafe Material	Glass
Housing Material	Plastic
Filter Type	Permanent filter (1x4) or paper filter No. 4
Brewing Function	Automatic drip brewing with keep-warm plate
Anti-Drip System	Yes
Auto Shut-Off	After 2 hours
Cleaning	Removable filter basket; decalcify regularly with vinegar solution
Safety Features	Overheat protection, automatic shut-off
Spare Parts Available	Carafe, filter basket, measuring spoon
Repairability	User-replaceable parts (carafe, filter); for others contact service center
Warranty (typical)	2 years

Frequently Asked Questions - 10304 KORONA

How do I descale my Korona 10304 coffee maker?

Mix equal parts white vinegar and water and fill the tank. Run a brew cycle without coffee grounds, then run two cycles with fresh water to rinse.

What type of filter does this coffee maker use?

It uses a permanent filter (included) or standard paper filter No. 4.

Why is my coffee weak?

Possible reasons: too little ground coffee, too coarse grind, or machine needs descaling. Use about 1 tablespoon per cup and a medium grind.

How do I clean the carafe?

Wash the glass carafe with warm soapy water and a soft sponge. Avoid abrasive pads to prevent scratches.

Can I brew tea in this machine?

Technically yes, but it's not recommended as coffee oils may affect taste. Use a paper filter and choose an appropriate tea.

Why does my coffee maker leak?

Check if the carafe is properly positioned, the filter basket is correctly inserted, or the anti-drip valve is stuck. Clean and reposition.

How long does a brew cycle take?

A full carafe (1 liter) takes approximately 10 to 12 minutes.

Does the keep-warm plate stay on permanently?

No, it has an automatic shut-off after 2 hours for safety.

Can I use pre-ground coffee?

Yes, any medium-ground drip coffee works. Avoid very fine or coarse grinds.

Where can I buy spare parts?

Check the Korona website or authorized service centers. Common parts like carafe and filter basket are available online.

USER MANUAL 10304 KORONA

Top-down view of a hand holding a coffee cup with dark liquid, no text or symbols visible

White KORONA coffee maker with control panel and side door (no visible text or symbols on device)

CE

Close-up of a white appliance with an open lid and arrow indicating a drop or compression action (no text or symbols visible)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

• Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  • in case of malfunction.
• if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Your coffee maker is only intended for making coffee.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

- Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!

- Never operate the appliance without water.

- Never exceed the Max. filling level to avoid any boiling water from spilling. Danger of serious burns!

- Only use the thermo jug with this coffee maker.

- Only use the thermo jug with the lid on (brewing and serving coffee).

- Do not clean the thermo jug in the dishwasher, it is not dishwasher safe.

- Do not use the thermo jug if it shows any signs of damages.

- Do not move the appliance during operation.

- Do not place the appliance near any inflammable objects.

- Always unplug the appliance after use and let it completely cool down before cleaning.

Product Description

1. Appliance lid
2. Water tank with water level indicator
3. Thermo jug with brewing through lid
4. Main switch (O / I)
5. Function switch with indicator light (EIN)
6. Water outlet
7. Filter holder
8. Power cord and plug
9. Mounting plate

Before First Use

• Remove all packaging material and check whether the appliance is complete.
  • Fully unwind the power cord.
• Clean the detachable parts as described under Cleaning and Care.
• Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
• Before making your first coffee, rinse the unit by filling the water tank (2) up to the Max. and operate it 2 - 3 times without coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

Brewing Coffee

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
2. Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (8 cups).

Note: Make sure that the coffee maker is switched off before filling up the water tank with water.

1. Insert a standard paper filter 1 x 4 into the removable filter holder (7). Make sure to fold the edges of the paper filter and push it slightly down.

2. For each cup of coffee, use one leveled measuring spoon of grounded coffee. For stronger or milder coffee, adjust the amount of coffee!

3. Close the appliance lid (1).

4. Place the thermo jug (3) with its lid on into the appliance. Make sure that the lid is properly screwed on and that the lever button on the lid is pointing towards the handle.
5. Make sure that the thermo jug (3) is properly placed into the appliance.
6. First press the main switch (O / I) (4) and then the function switch (EIN) (5) to switch on the appliance. The integrated indicator light indicates that the appliance is in operation. An integrated mechanism automatically opens the lid for the brewing through function.

Note: The brewing process can be interrupted at any time by pressing the main switch (4). Resume the brewing cycle by pressing the main switch (4) again.

Note: If you wish to have a cup of coffee before the brewing cycle is completed, remove the thermo jug (3) from the appliance. Due to the automatic drip stop, dripping will automatically cease. Put the thermo jug (3) back within 30 seconds, dripping process will resume automatically.

1. After the brewing cycle is completed (no more water is dripping through the filter), the thermo jug (3) can be removed.

Attention: The appliance will automatically shut-off after the brewing cycle is completed. The indicator light of the function switch (5) will go OFF as well.

1. After the brewing cycle is completed, press the main switch (4) to completely switch off the appliance.

Note: Never open the appliance lid (1) during operation – hot water could evaporate – Danger of serious burns!

If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Always disconnect the appliance from the mains if you are not using it!

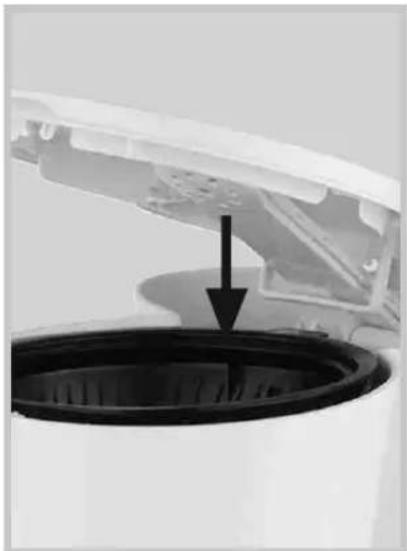

Inserting the filter holder

Close-up of a car interior with an open lid and arrow indicating a drop or change (no text or symbols visible)

To properly insert the filter holder, make sure that the flap of the filter holder is properly aligned.

Thermo jug / brewing through lid

The thermo jug (3) accumulates heat energy. Therefore, the jug should preferably be filled to its max. capacity.

Tip: Before starting the brewing process, rinse your thermo jug (3) with hot tap water. To obtain tasteful coffee, brew at least half a jug otherwise the temperature will not be held as efficiently.

The brewing through lid does not close hermetically. Therefore, always hold the thermo jug (3) upright when filled with coffee.

When serving coffee, simply press down and hold the lever button of the lid and the coffee will be pouring out from the spout.

To remove the lid, turn it anti-clockwise until it can be lifted off. To fasten the lid, insert it into the thermo jug and turn it clockwise until it is fixed. The lever button of the lid should point towards the handle of the jug.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth. Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

The thermo jug (3) is not dishwasher safe, rinse it with some tap water and dry it afterwards. All detachable parts can be cleaned in warm water using some dishwashing detergent, rinse them afterwards and dry them thoroughly.

DESCALING

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance. To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under Before First Use.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Coffee maker 10304 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 / 60 Hz

Rated Power: 730 - 870 W

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service

Am Steinbach 9

59872 Meschede-Enste

Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Abstract geometric design with curved gray shapes on white background (no text or symbols)

KORONA

Ref: 10304/05-2015.06
