Product Type	Desktop Paging Microphone
Brand	Audac
Model	PDM200
Microphone Type	Dynamic
Polar Pattern	Cardioid (Unidirectional)
Frequency Response	80 Hz - 12 kHz
Sensitivity	-72 dB ± 3 dB
Impedance	600 Ohm
Output Connections	3-pin XLR (audio) + 3 connection leads (chime)
Connection Cable Length	1.5 meters
Dimensions (W x D x H)	162 x 122 x 368 mm
Weight	960 g
Switch Functions	Permanently on, Momentary on, Off
Chime Circuit	Integrated RC network for external chime modules
Application	Announcements in conference areas, warehouses, offices, shops
Base	Stable, solid base with adjustable gooseneck
Color	Black
Power Requirement	No external power (passive dynamic microphone)
Compliance	CE marked, conforms to EMC Directive 89/336/EEC
Maintenance	Clean with dry cloth; avoid moisture and dust
Safety	Use according to manual; do not expose to liquids or impact
Spare Parts & Repairability	Contact authorized dealer or service center for repairs

Frequently Asked Questions - PDM200 Audac

What type of microphone is the Audac PDM200?

The PDM200 is a dynamic paging microphone with a cardioid (unidirectional) polar pattern, ideal for focused announcements.

What are the switch functions on the PDM200?

The microphone has a three-function switch: Permanently on, Momentary on (push-to-talk), and Off.

How do I connect the PDM200 to an AUDAC COM12/24 amplifier with chime?

Connect the XLR wires as follows: Shield (Pin 1) to G (Ground), Red wire (Pin 2) to H (Hot), Black wire (Pin 3) to C (Cold). For the chime circuit: Blue wire to G, Green wire to SW (Switch).

What is the frequency response of the PDM200?

The frequency response is 80 Hz to 12 kHz, suitable for speech and announcements.

What is the sensitivity of the PDM200?

Sensitivity is -72 dB ± 3 dB (relative to 1V/Pa at 1 kHz).

What is the impedance of the PDM200?

The output impedance is 600 ohms, standard for dynamic microphones.

How long is the connection cable on the PDM200?

The attached cable is 1.5 meters long, terminated with a 3-pin XLR and additional chime leads.

What are the dimensions and weight of the PDM200?

Dimensions are 162 x 122 x 368 mm (WxDxH) and weight is 960 g (2.12 lbs).

Is the PDM200 suitable for outdoor use?

The PDM200 is designed for indoor use in professional environments like conference rooms, offices, and shops. Avoid exposure to rain or extreme humidity.

Does the PDM200 require batteries or external power?

No, the PDM200 is a passive dynamic microphone and does not need any power source.

USER MANUAL PDM200 Audac

Paging Microphone PDM200

AUDAC

PROFESSIONAL AUDIO EQUIPMENT

PDM200 Paging Microphone

Black desktop microphone with adjustable neck and base (no visible text or symbols)

User Manual

General

The PDM200 is a polyvalent dynamic gooseneck microphone, mounted on a solid, very stable base and fitted with a three function switch.

The functions are: - Permanently on

• Momentary on
• Off

It is also equipped with a RC network for the operation of chime modules. Due to its uni-directional characteristics, it is suitable for making announcements in big area's like conference places, warehouses, professional offices, shops, ...

A connection cable with a length of 1.5m is attached to the base of the unit.

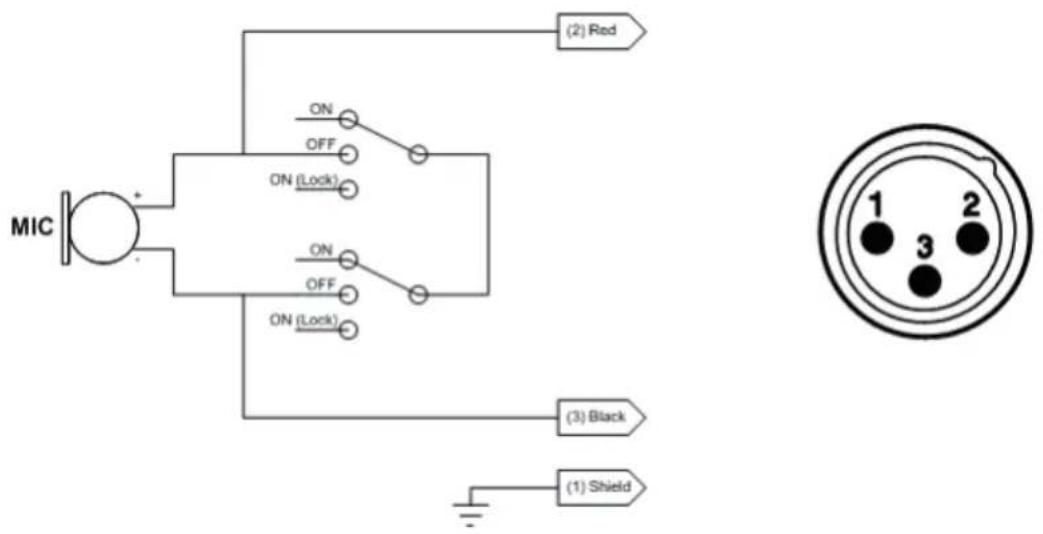

Microphone Circuit

Chime Circuit

Connecting the PDM200

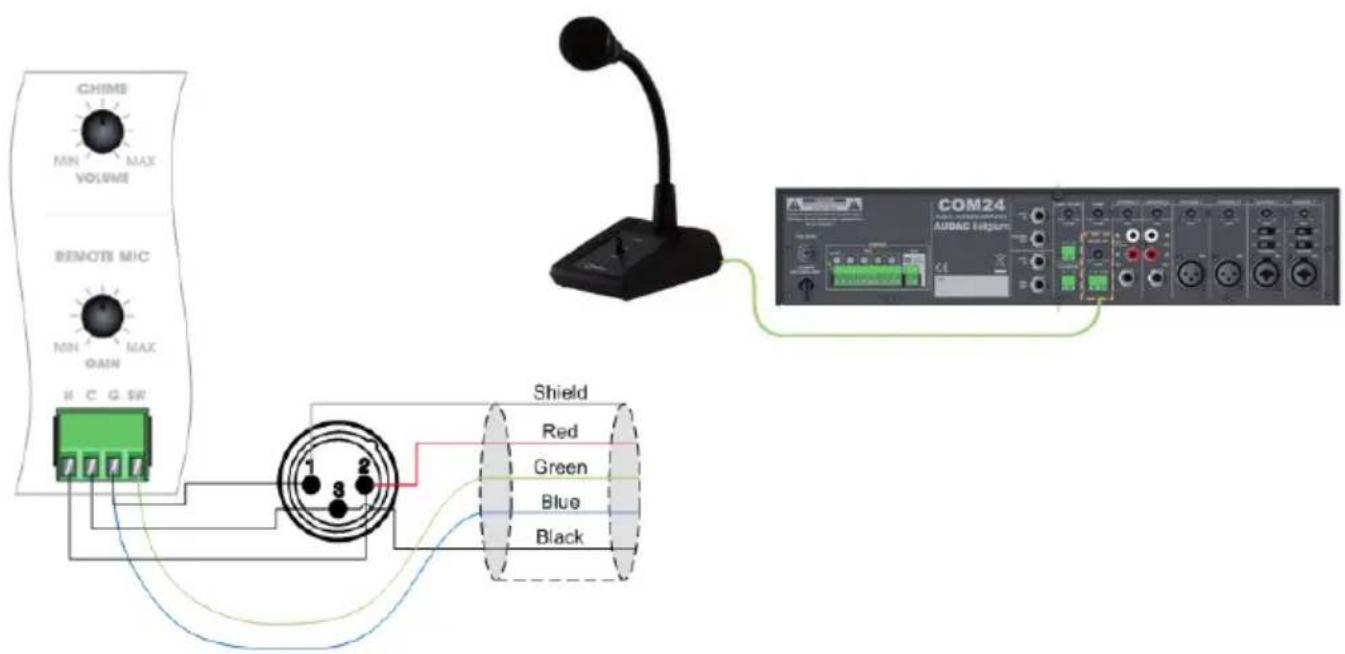

When connecting the PDM200 to an AUDAC COM12/24 Public Address amplifier using the integrated chime module of the COM12/24, the microphone should be connected to the "Remote Mic" input according to the diagram shown below:

Connect the

1) Shield (Pin 1 of XLR) to the G (Ground) terminal
2) Red wire (Pin 2 of XLR) to the H (Hot) terminal
3) Black wire (Pin 3 of XLR) to the C (Cold) terminal
4) Blue wire of the chime circuit to the G (Ground) terminal
5) Green wire of the chime circuit to the SW (Switch) terminal

Specifications

Microphone type Dynamic

Polar pattern Cardioid

Frequency response 80 Hz - 12 kHz

Sensitivity -72 dB ± 3 dB

Impedance 600 Ohm

Output connections 3-pin XLR

3 connection leads (Chime)

Connection cable 1.5 meter

Dimensions 162 x 122 x 368 mm

Weight 960g

CE

Eligible to bear CE marking. Conforms to European EMC Directive 89/336/EEC. Meets applicable tests and performance criteria in European standard EN 55103 (1996) parts 1 and 2, for residential (E1) and light industrial (E2) environments.
