INN-082 - Anti-insectes Innofit - Free user manual and instructions

Product Type	Electric Insect Killer
Brand	Innofit
Model	INN-082
Category	Anti-insectes
Color	White / Black
Housing Material	ABS Plastic
Dimensions (L x W x H)	25 x 20 x 35 cm
Net Weight	0.8 kg
Power Source	Mains (220-240V AC, 50/60Hz)
Power Consumption	6 W
Coverage Area	Up to 40 m²
Attractant Type	UV-A Fluorescent Tube (2 x 4W)
Insect Elimination Method	Electric Grid (up to 2000V)
Protection Grid	Removable Safety Mesh (8mm spacing)
Drip Tray	Removable, Easy Clean
Cleaning	Unplug, remove tray, brush dead insects; wash tray with soapy water
Safety Features	Double insulation, thermal fuse, protective mesh contact stop
Certifications	CE, RoHS
Included Accessories	Manual, hanging chain
Warranty	2 Years

Frequently Asked Questions - INN-082 Innofit

How do I clean the Innofit INN-082 insect killer?

Always unplug the device before cleaning. Remove the protective grid and drip tray. Use a soft brush to remove dead insects from the grid. Wash the drip tray with mild soap and water, then dry thoroughly before reassembly.

What is the coverage area of the INN-082?

The device covers up to 40 m² (430 sq ft), making it suitable for living rooms, bedrooms, and small offices.

Can I leave the insect killer on overnight?

Yes, the INN-082 is designed for continuous operation. It has a low power consumption of 6W and includes safety features such as a thermal fuse and protective mesh.

How often should I replace the UV tubes?

UV tubes typically last about 6,000 hours (approximately 8 months of continuous use). To maintain effectiveness, replace them when they stop attracting insects or every year.

Is the device safe around children and pets?

Yes, the outer protective mesh has small openings (8mm) that prevent direct contact with the high-voltage grid. However, place it out of reach and supervise children/pets around the device.

What if the insect killer stops working?

Check the power cord and outlet. Ensure the thermal fuse hasn't tripped (wait 10 minutes to reset). If still not working, contact Innofit support for assistance.

Does the device make noise?

The UV tubes are silent. When insects contact the grid, you may hear a faint sizzling or popping sound, which is normal.

Can I use this insect killer outdoors?

No, the INN-082 is designed for indoor use only. It is not weatherproof and may pose an electrical hazard if exposed to moisture.

How do I replace the UV tubes?

Unplug the device, remove the protective grid and drip tray. Gently twist and pull the old tube out, then insert a new tube of the same type (2 x 4W). Reassemble the parts.

What is the warranty period for this product?

Innofit offers a 2-year warranty against manufacturing defects. Keep your purchase receipt for warranty claims.

USER MANUAL INN-082 Innofit

innoliving easy tech, easy life

SPINOTTO ANTIZANZARE

INN-082

MANUALE D'USO

USER MANUAL

INN-082 Spinotto ANTIZANZARE

COME FUNZIONA

CE

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Icon of a person reading a book inside a circle (no text or symbols)

Simple geometric diagram of two concentric squares (no text or symbols)

Thanks for purchasing INNOLIVING mosquito zapper, a safe and efficient way to eliminate mosquitoes and other annoying insects. This devise doesn't use chemical products dangerous for humans and for environment.

Before use, read carefully all the safety norms and instructions for use, keep this manual for future reference.

WARNINGS AND SAFETY NORMS

• Keep all packing material (plastic bags, cardboard, polystyrene, etc..) out of reach of the children, since they are potential sources of danger and must be disposed of as provided by law.
• After having removed the appliance from its packaging, verify its integrity and any presence of damage caused by transport. If in doubt, do not use the appliance and contact an authorized service centre.
• Do not use the appliance if the cable or plug is damaged.

• The device shall be used indoors only and protected from the elements.

• The water jet of a garden pipe on the device may result in an electric shock.

• Not suitable for use inside barns, stables or similar.
• Never expose the device to rain, do not forget it outdoors, and do not expose it to very dirty environments.
• The device shall not be used in dusty areas or with flammable or explosive vapours.
• Keep out of reach of children.
• The device shall not be used by people (children included) with reduced physical or mental capacities or without any experience or knowledge, unless they are under the supervision of a person responsible for their safety or they have been instructed on how to use the device.
• Children shall be watched over to make sure they do not play with the device.
• In case of fault or malfunctioning of the appliance, switch it off and do not tamper with it. If the device needs to be repaired, contact an authorized technical assistance centre.
• Should the plug be damaged, have it replaced by the authorized service centre, so as to prevent any possible risk.it
• Do not use the appliance if it has fallen on the

floor, if there are visible signs of damage or if it has a leak.

• Never touch the product with damp hands or feet.
• Do not use the device if it is wet or shows signs of moisture.
• Avoid the plug touching hot surfaces.
  • Always make sure to leave enough room around the unit to ensure a correct air circulation.
• Before plugging the device in, make sure the mains voltage is the same specified on the label. The label is on the device.
• Do not cover the unit as this could create danger of overheating.
• Do not insert any objects in the opening of the appliance.
• Use the appliance only for mentioned purpose, namely as appliance for domestic use. Any other use must be consider improper and therefore dangerous.
• The manufacturer is not responsible for any eventual damage caused by improper or faulty use.
• Do not use the appliance in bathroom or in the immediate surroundings of showers, bath-tubs or swimming pools.
• Do not reach for product that has fallen into

water or other liquid. In this case disconnect it from the power and remove it from the socket.

• Do not use the appliance near furniture, curtains or other combustible materials.
• Do not place the appliance near flammable vapour or explosive dust.
• Do not use this appliance with a programmer, timer or any other device that switches the appliance on automatically, since a fire risk exist if the appliance is covered or positioned incorrectly
• Do not use the appliance with extension cords or multiple outlets

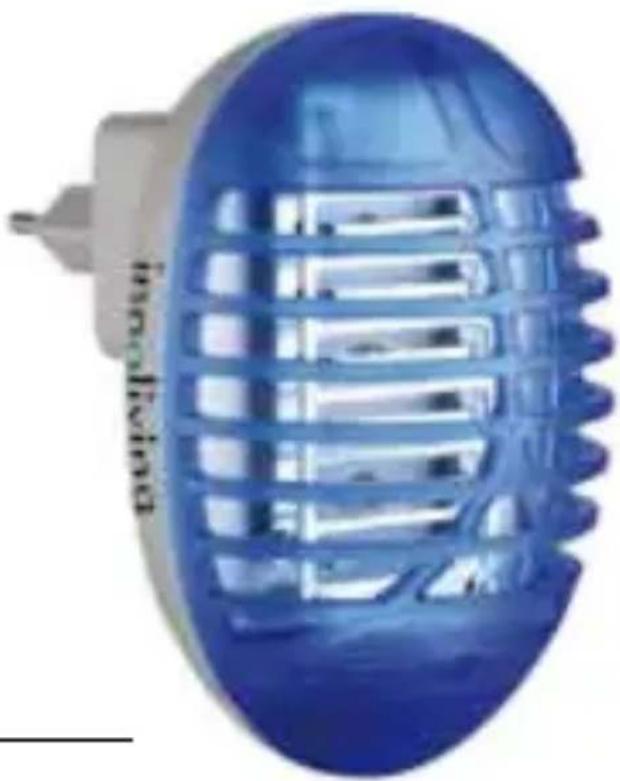

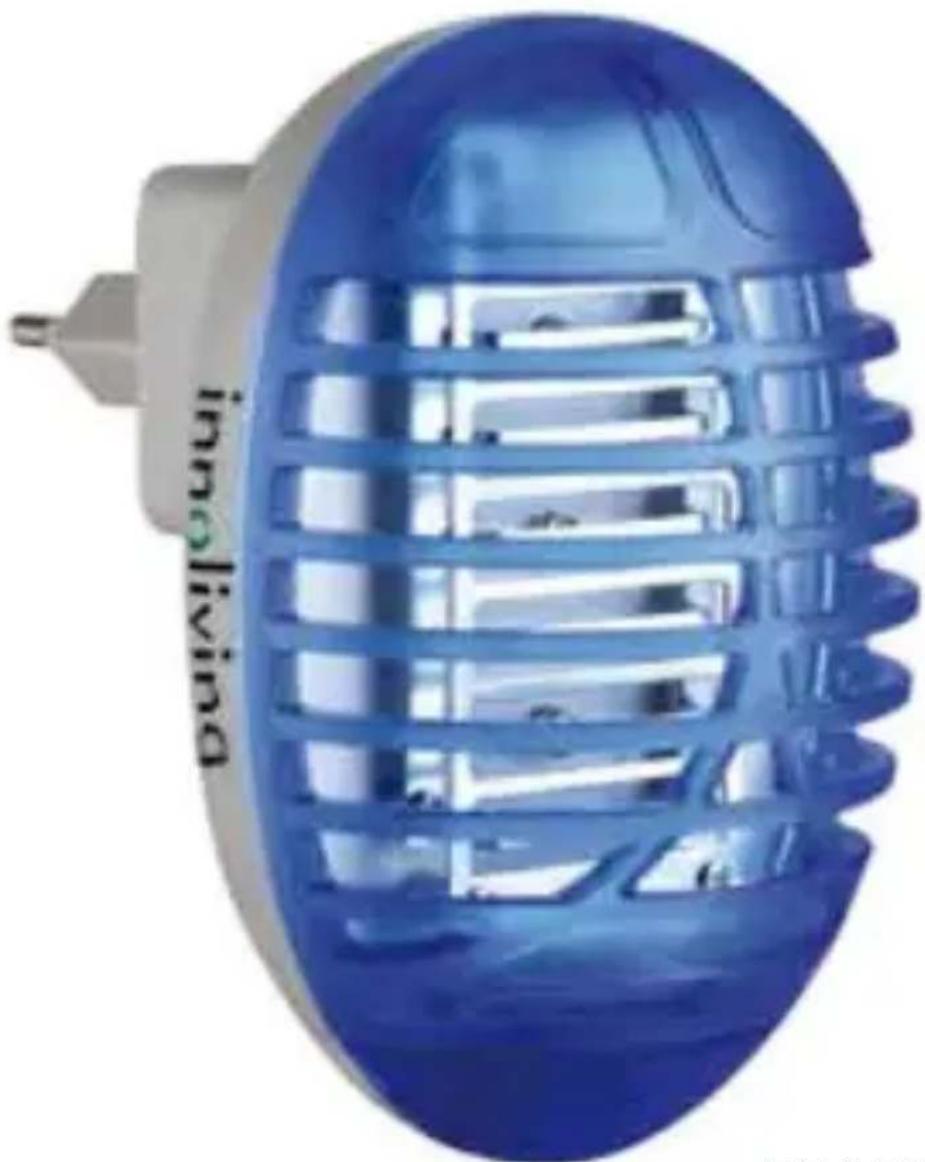

DESCRIPTION OF THE PRODUCT

plug

Blue and white photo of a medical device with internal grid pattern (no visible text or symbols)

Removable tray ____

HOW IT WORKS

Insects' attention is caught by the visual features generated by light contrast, blue light and UV light. Mosquitoes, sand flies and various other annoying insects are attracted by the special light of INNOLIVING zapper and remain electrocuted at the slightest contact with the electrified grid.

To optimise its attractive effectiveness, the device shall be used in poor-lighted environments.

Make sure that the mains supply voltage corresponds to that of the appliance.

Put down the appliance on your favourite place. Connect the product to the power supply net, and make it working for the time that you need.

Regardless of the chosen positioning, keep the device out of the reach of children and pets.

Never expose it to rain or turn it on when it's wet.

CLEANING AND MAINTENANCE

Before starting any maintenance operation, make sure that the power cable is disconnected.

For cleaning the grid, use a brush (some model are equipped with it).

Do not touch the electrified grid with conductor things.

Do not immerse in water.

A periodical cleaning, improve the efficiency of the appliance.

ATTENTION TO CLEAN THE DEVICE DO NOT USE WATER AND NEVER IMMERSE IT INTO WATER.

RATING LABEL

Innoliving Spa

Via Merloni 9 - 60131 Ancona - Italy INN-082 Spinotto antizanzare Mosquito Zapper

220-240V\~50/60Hz 2W

CE

This product complaints with all the applicable EU directives.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

INFORMATION TO USERS according to Legislative Decree No. 49 of March 14, 2014 “2012/19/UE Implementation of the Directive on Waste Electrical and Electronic Equipment (WEEE)”

The crossed-out dustbin symbol indicates that the product at the end of its life must be collected separately from other waste. The user should, therefore, take the equipment

with the essential components at the end of its useful life to the separate collection center of electronic and electrical waste, or return it to the retailer when purchasing new equipment of equivalent type, in ratio of one to one, or one to zero for devices with larger side less than 25 CM. The separate collection for the decommissioned equipment for recycling, treatment and environmentally compatible disposal contributes to avoid possible negative effects on the environment and human health and promotes recycling of the materials. Improper disposal of the product by the user entails the application of administrative sanctions according to Legislative Decree No. 49 of 14 March 2014

Silhouette of a person reading a book inside a circle (no text or symbols)

Read carefully the user manual

Simple geometric diagram of two concentric squares (no text or symbols)

Class II insulated electrical appliance

ATTENTION: high voltage

innoliving easy tech, easy life

Innoliving Spa Via Merloni, 9 60131 Ancona Italy Tel 199.188.335 www.innoliving.it

MADE IN CHINA

CE
