USER MANUAL STR-DA4400ES SONY

3-875-807-13(1) Multi Channel AV Receiver STR-DA4400ES Printed in Malaysia ©2008 Sony Corporation Operating Instructions

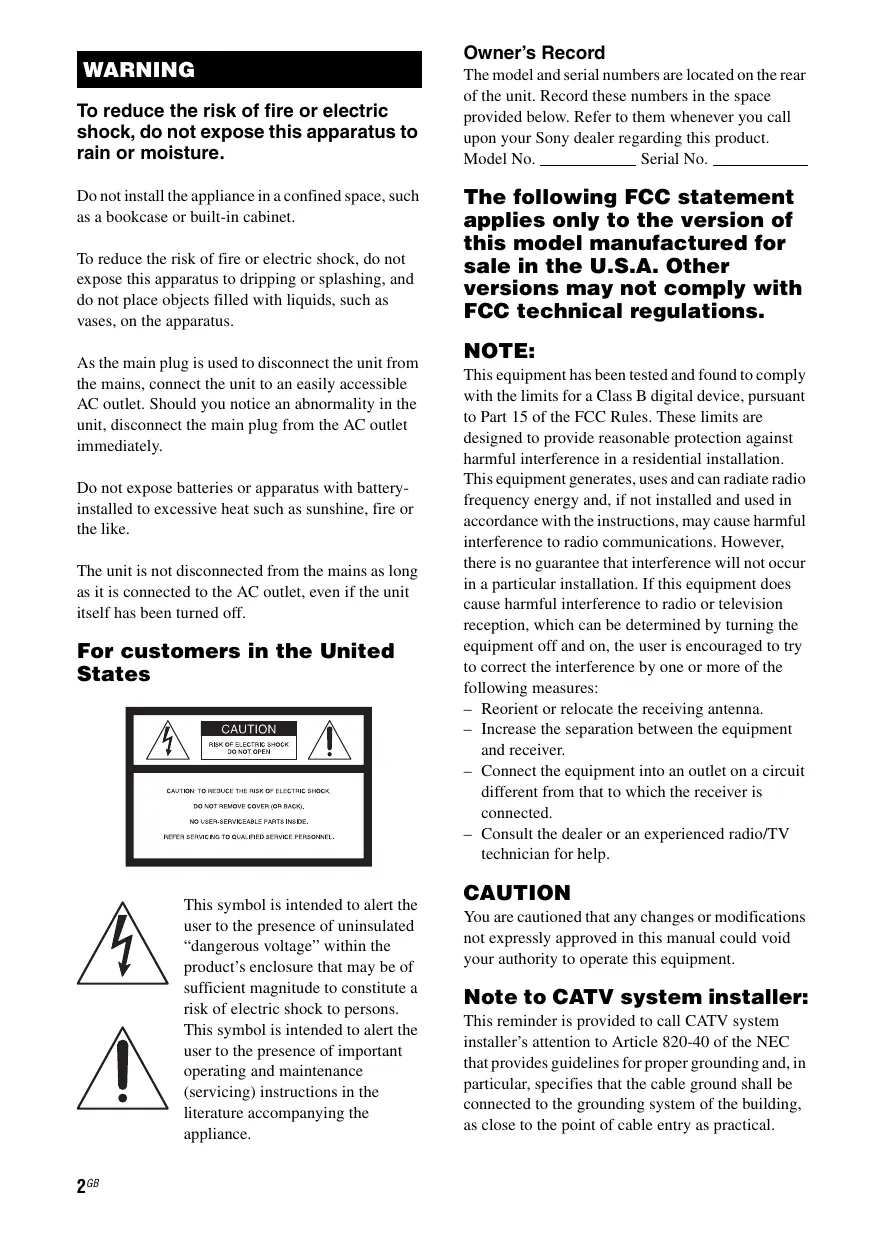

WARNING To reduce the risk of fire or electric shock, do not expose this apparatus to rain or moisture. Do not install the appliance in a confined space, such as a bookcase or built-in cabinet. To reduce the risk of fire or electric shock, do not expose this apparatus to dripping or splashing, and do not place objects filled with liquids, such as vases, on the apparatus. As the main plug is used to disconnect the unit from the mains, connect the unit to an easily accessible AC outlet. Should you notice an abnormality in the unit, disconnect the main plug from the AC outlet immediately. Do not expose batteries or apparatus with batteryinstalled to excessive heat such as sunshine, fire or the like. The unit is not disconnected from the mains as long as it is connected to the AC outlet, even if the unit itself has been turned off. For customers in the United States This symbol is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons. This symbol is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance. 2GB Owner’s Record The model and serial numbers are located on the rear of the unit. Record these numbers in the space provided below. Refer to them whenever you call upon your Sony dealer regarding this product. Model No. Serial No. The following FCC statement applies only to the version of this model manufactured for sale in the U.S.A. Other versions may not comply with FCC technical regulations. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: – Reorient or relocate the receiving antenna. – Increase the separation between the equipment and receiver. – Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. – Consult the dealer or an experienced radio/TV technician for help. CAUTION You are cautioned that any changes or modifications not expressly approved in this manual could void your authority to operate this equipment. Note to CATV system installer: This reminder is provided to call CATV system installer’s attention to Article 820-40 of the NEC that provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical. About This Manual

• The instructions in this manual are for model STR-DA4400ES. Check your model number by looking at the lower right corner of the front panel.
• The instructions in this manual describe the controls on the supplied remote. You can also use the controls on the receiver if they have the same or similar names as those on the remote. On Copyrights
• “Neural-THX” and “neural THX” introduced in the Operating Instructions and displayed in the display window and on the GUI menu screen mean Neural-THX Surround. This receiver incorporates Dolby* Digital and Pro Logic Surround and the DTS** Digital Surround System.
• Manufactured under license from Dolby Laboratories. Dolby, Pro Logic, Surround EX, and the doubleD symbol are trademarks of Dolby Laboratories. ** Manufactured under license under U.S. Patent #’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Master Audio are trademarks of DTS, Inc. © 1996-2007 DTS, Inc. All Rights Reserved. This receiver incorporates High-Definition Multimedia Interface (HDMI™) technology. This product using Neural-THX® Surround is manufactured under license from Neural Audio Corporation and THX Ltd. Sony Corporation hereby grants the user a non-exclusive, non-transferable, limited right of use to this product under USA and foreign patent, patent pending and other technology or trademarks owned by Neural Audio Corporation and THX Ltd. “Neural Surround”, “Neural Audio”, “Neural” and “NRL” are trademarks and logos owned by Neural Audio Corporation, THX is a trademark of THX Ltd., which may be registered in some jurisdictions. All rights reserved. The font type (Shin Go R) installed in this receiver is provided by MORISAWA & COMPANY LTD. These names are the trademarks of MORISAWA & COMPANY LTD., and the copyright of the font also belongs to MORISAWA & COMPANY LTD. iPod is a trademark of Apple Inc., registered in the U.S. and other countries. All other trademarks and registered trademarks are of their respective holders. In this manual, ™ and ® marks are not specified. The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc. and any use of such marks by Sony Corporation is under license. Other trademarks and trade names are those of their respective owners. “M-crew Server” is a trademark of Sony Corporation. “BRAVIA” is a trademark of Sony Corporation. HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. XM Ready® is a registered trademark of XM Satellite Radio Inc. All rights reserved. ©2008 SIRIUS Satellite Radio Inc. “SIRIUS” and the SIRIUS dog logo are registered trademarks of SIRIUS Satellite Radio Inc. 3GB

• Table of Contents Getting Started Enjoying Surround Sound 1: Installing speakers p. 19
• 2: Connecting speakers p. 21
• 3: Connecting the monitor p. 23
• 4a: Connecting the audio components p. 25
• 4b: Connecting the video components p. 30
• 5: Connecting the antennas (aerials) p. 39
• 6: Preparing the receiver and the remote p. 40
• 7: Displaying the GUI menu on the TV screen p. 41
• 8: Setting the speakers p. 42
• 9: Calibrating the appropriate speaker settings automatically (Auto Calibration) p. 44
• Guide to on-screen display operation p. 51
• Playing back with 2-channel sound p. 73
• Playing back with multi-channel surround p. 74
• Enjoying a surround effect for music p. 77
• Enjoying a surround effect for movies p. 79
• Using Multi-zone Features What you can do with the Multi-zone function p. 83
• Making a multi-zone connection p. 84
• Setting the speakers in zone 2 p. 86
• Switching the zone setting of the remote p. 87
• Operating the receiver from another zone (ZONE 2/ZONE 3 operations) p. 87
• Playback Enjoying sound/images from the component connected to the receiver p. 53
• Enjoying sound/images from the components connected to the DIGITAL MEDIA PORT p. 55
• Operating the TDM-iP1/iP50/TDM-NC1 using the GUI menu of the receiver p. 56
• Tuning Listening to FM/AM radio p. 60
• Presetting FM/AM radio stations p. 62
• Listening to satellite radio p. 63
• Connecting a satellite radio tuner p. 65
• Preparing to listen to a satellite radio p. 65
• Selecting a channel of the satellite radio p. 67
• Presetting satellite radio channels p. 68
• Restricting access to specific channels (Parental Lock) (SIRIUS only) p. 69
• 4GB Using Other Features Using “BRAVIA” Sync features p. 89
• Switching between digital and analog audio p. 92
• Enjoying the sound/images from other inputs (Input Assign) p. 93
• Using the sleep timer p. 96
• Enjoying the surround effect at low volume levels p. 96
• Recording using the receiver p. 97
• Switching the command mode of the receiver and the remote p. 99
• Using a bi-amplifier connection p. 100
• Adjusting Settings Using the setting menu p. 102
• Auto Calibration p. 103
• Speaker settings p. 105
• Surround settings p. 109
• EQ settings p. 110
• Multi Zone settings p. 111
• Audio settings p. 112
• Video settings p. 113
• HDMI settings p. 115
• System settings p. 116
• Operating without connecting to a TV p. 116
• Using the Remote Operating each component using the remote p. 122
• Programming the remote p. 124
• Performing several commands in sequence automatically (Macro Play) p. 127
• Setting remote commander codes that are not stored in the remote p. 129
• Clearing all the contents of the remote’s memory p. 131
• Additional Information Glossary p. 132
• Precautions p. 135
• Troubleshooting p. 136
• Specifications p. 141
• Index 5GB Description and location of parts Front panel To remove the cover Press PUSH. When you remove the cover, keep it out of reach from children. Status of the POWER button Off The receiver is turned off (initial setting). Press POWER to turn the receiver on. You cannot turn the receiver on using the remote. On/Standby Press ?/1 on the remote to turn the receiver on or set it to the standby mode. When you press POWER on the receiver, the receiver will be turned off. 6GB Name A POWER Function Name Press to turn the receiver on or off. J 2CH/A.DIRECT Press to select sound field (page 73, 74, 77, A.F.D. 79). MOVIE B AUTO CAL MIC Connects to the jack supplied optimizer microphone for the Digital Cinema Auto Calibration function (page 45). p. 143

TONE Adjusts FRONT/ CENTER/ SURROUND/ SURROUND BACK BASS and TREBLE. Press TONE MODE repeatedly to select BASS or TREBLE, then turn TONE to adjust the level. D MEMORY/ ENTER Press to operate a tuner (FM/AM) and satellite TUNING MODE radio (XM/SIRIUS). MUSIC K ZONE/ POWER, SELECT Press SELECT repeatedly to select zone 2, zone 3 or main zone. Each time you press POWER, the output signals for the selected zone will be turned on or off (page 83).

Press to select the input signal from the component connected to the HDMI IN jacks (page 31).

Press to select the component connected to the MULTI CHANNEL INPUT jack (page 28). N PHONES jack Connects to headphones. TUNING E Remote sensor Receives signals from remote commander. F DIMMER G DISPLAY

I Display window Press repeatedly to adjust brightness of the display. Press repeatedly to select information displayed on the display. Press to select the input mode when the same components are connected to both digital and analog jacks (page 92). Function O SPEAKERS Switch to OFF, A, B, (OFF/A/B/A+B) A+B of the front speakers (page 44).

Connect to a portable PORTABLE AV audio/video component IN jacks such as a camcorder or video game. Q MULTI CHANNEL DECODING lamp Lights up when multichannel audio signals are decoded. The current status of the selected component or a list of selectable items appears here (page 9). continued 7GB Name Function R INPUT SELECTOR Turn to select the input source to play back. To select the input source for zone 2 or zone 3, press ZONE/ SELECT (qa) to select zone 2 or zone 3 first (“ZONE 2 INPUT” or “ZONE 3 INPUT” appears on the display), then turn INPUT SELECTOR to select the input source. S MASTER VOLUME Turn to adjust the volume level of all speakers at the same time. 8GB Indicators on the display Name Function A SW Lights up when subwoofer is connected and the audio signal is output from the SUBWOOFER jack. While this indicator lights up, the receiver creates a subwoofer signal based on the L.F.E. signal in the disc being played back or the low frequency components of the front channels. continued 9GB Name Function Name Function B Playback channel indicators The letters (L, C, R, etc.) indicate the channels being played back. The boxes around the letters vary to show how the receiver downmixes the source sound (based on the speaker settings). C Input indicators Light up to indicate the current input.

Surround (monaural or the surround components obtained by Pro Logic processing) SBL Surround Back Left SBR Surround Back Right

Surround Back (the surround back components obtained by 6.1 channel decoding) Example: Recording format (Front/ Surround): 3/2.1 Output channel: Surround speakers are set to “NO.” Sound Field: A.F.D. AUTO

INPUT Lights up constantly with either following the corresponding indicators that indicate the current input status. HDMI The receiver recognizes a component connected via an HDMI IN jacks. DMPORT The DIGITAL MEDIA PORT adapter is connected and “DMPORT” is selected. MULTI IN The multi-channel input is selected. AUTO Lights up with the corresponding indicators that indicate the current input when INPUT MODE is set to “Auto.” COAX Digital signal is input through the COAXIAL jack. OPT Digital signal is input through the OPTICAL jack. ANALOG No digital signal is being input. When INPUT MODE is set to “Analog,” or when the “2ch Analog Direct” is being selected, it also lights up.

D EQ Lights up when the equalizer is activated. E D.C.A.C. Lights up when auto calibration is activated. F ZONE 2/ ZONE 3 Lights up while operation in zone 2/zone 3 is being enabled. G SLEEP Lights up when the sleep timer is activated. Name Function Name Function H L.F.E. Lights up when the disc being played back contains an L.F.E. (Low Frequency Effects) channel and the L.F.E. channel signal is actually being reproduced, the bars underneath the letters light up to indicate the level. Since the L.F.E. signal is not recorded in all parts of the input signal the bar indication will fluctuate (and may turn off) during playback.

Lights up when dynamic range compression is activated. M VOLUME Displays the current volume. N Dolby Digital Surround indicators Lights up one of the respective indicators when the receiver is decoding the corresponding Dolby Digital format signals. I DSD Lights up when the receiver is receiving DSD (Direct Stream Digital) signals (page 31). J Tuning indicators Lights up when the receiver tunes in radio stations, or satellite radio stations. STEREO Stereo broadcast MONO Monaural broadcast

The XM Mini Tuner and Home Dock are connected and “XM” is selected. SIRIUS The SiriusConnect Home tuner is connected and “SIRIUS” is selected. CAT The category mode is selected during the satellite radio operation. PRESET The tuning mode is set to the preset mode. MEMORY A memory function, such as Name Input, etc., is activated. K BI-AMP

Dolby Digital ;D+ Dolby Digital Plus ;D EX Dolby Digital Surround EX Note When playing a Dolby Digital format disc, be sure that you have made digital connections and that INPUT MODE is not set to “Analog.” O DTS-HD indicators Light up when the receiver is decoding DTS-HD. DTS-HD Lights up constantly with the one of the following indicators. MSTR DTS-HD Master Audio LBR DTS-HD Low Bit Rate Audio HI RES DTS-HD High Resolution Audio P ;TrueHD Lights up when the receiver is decoding Dolby TrueHD. Q L-PCM Lights up when Linear PCM (Pulse Code Modulation) signals are input. Lights up when surround back speakers selection is set to “BI-AMP.” continued 11GB Name Function R Dolby Pro Logic indicators Lights up one of the respective indictors when the receiver applies Dolby Pro Logic processing to 2 channel signals in order to output the center and surround channel signals. ;PL Dolby Pro Logic ;PLII Dolby Pro Logic II ;PLIIx Dolby Pro Logic IIx Note This indicator does not light when either the center speaker and surround speaker is not connected. S DTS(-ES) indicators Light up when DTS or DTS-ES signals are input. DTS Lights up when the receiver is decoding DTS signals. Either 96/24 or NEO:6 also lights up depending on the input signal format or decoding format. 96/24 DTS 96/24 (96 kHz/24 bit) decoding NEO:6 DTS Neo:6 Cinema/Music DTS-ES Lights up with the either following indicator depending on the input signal decoding format. DISCRETE DTS-ES Discrete 6.1 MATRIX DTS-ES Matrix 6.1 Note When playing a DTS format disc, be sure that you have made digital connections and that INPUT MODE is not set to “Analog.” T Neural-THX Lights up when the receiver applies Neural-THX processing to input signals. 12GB Rear panel A DIGITAL INPUT/OUTPUT section OPTICAL IN/ Connect to a DVD OUT jacks player, Super Audio CD player, etc. The COAXIAL IN COAXIAL jack provides a better jacks quality sound (page 23, 26, 31, 34, 35). HDMI IN/ OUT* jacks Connect to a DVD player, Blu-ray Disc Player, or a satellite tuner. An image and the sound are output to TV or a projector (page 23, 31). B Control jacks for Sony equipment and other external components IR REMOTE IN/OUT jacks Connect an IR repeater (page 83). TRIGGER OUT jacks Connect to interlock on/off of the power supply of other 12V TRIGGER compliant components, or the amplifier/receiver of zone 2 or zone 3 (page 111). C DMPORT Connect to a Sony DIGITAL MEDIA PORT adapter (page 26). D ANTENNA section FM ANTENNA Connects to the FM jack wire antenna (aerial) supplied with this receiver (page 39). ANTENNA jack Connects to the AM loop antenna (aerial) supplied with this receiver (page 39). XM jack Connects to the XM Mini Tuner and Home Dock (not supplied) (page 65). SIRIUS jack Connects to a SiriusConnect Home tuner (not supplied) (page 65). continued 13GB

jacks Connect to a DVD player, TV, or a satellite tuner (page 23, 34, 35).

H VIDEO/AUDIO INPUT/OUTPUT

section AUDIO IN/ OUT jacks Connect to a VCR or a DVD player etc. (page 23, 34, 35, 36). VIDEO IN/ OUT* jacks F RS-232C port Used for maintenance and service. AUDIO OUT jacks VIDEO OUT jack Connect to the component in zone 2 or zone 3 (page 83). G AUDIO INPUT/OUTPUT section AUDIO IN/ OUT jacks Connect to a tape deck or MD deck, etc (page 26, 29). MULTI CHANNEL INPUT jacks Connect to a Super Audio CD player or DVD player with an analog audio jack for

channel sound (page 28). PRE OUT jacks Connect to an external power amplifier. EXT VIDEO IN Connects to the jack component when you want to watch in PIP (Picture in Picture) window. I SPEAKERS section Connects to speakers (page 21).

• You can watch the selected input image when you connect the HDMI OUT jack or MONITOR OUT jacks to a TV (page 23). You can operate this receiver using a GUI (Graphical User Interface) (page 41). 14GB Remote commander You can use the supplied remote to operate the receiver and to control the Sony audio/video components that the remote is assigned to operate. Name Function A AV ?/1 (on/ standby) Press to turn on or off the audio/ video components that the remote is assigned to operate (page 124). If you press ?/1 (2) button at the same time, it will turn off the receiver and other Sony components (SYSTEM STANDBY). Note The function of the AV ?/1 switch changes automatically each time you press the input button (5). B ?/1 (on/ standby) Press to turn the receiver on or off. If zone 2 or zone 3 is selected, only the main receiver is turned on or off with this button. To turn off all components including an amplifier in zone 2 or zone 3, press ?/1 and AV ?/ 1 (1) at the same time (SYSTEM STANDBY). Main remote commander (RM-AAL016) The RM-AAL016 remote is used for illustration purpose. Saving the power in standby mode. When “Control for HDMI” (page 115) and “RS-232C Control” (page 116) are set to “OFF.” C ZONE Press to switch the zone 2 or zone 3 operation (page 83). D AMP Press to enable the receiver operation (page 41). E Input buttons Press one of the buttons to select the component you want to use. When you press any of the input buttons, the receiver turns on. The buttons are factory assigned to control Sony components (page 53, 87). You can program the remote to control non-Sony components following the steps in “Programming the remote” (page 124).

Press TV (wf), then press TV INPUT to select the input signal of a TV. G WIDE Press TV (wf), then press WIDE repeatedly to select the wide picture mode. continued 15GB Name Function Name Function

Press SHIFT (wg), then press to enter direct tuning mode (page 61, 67). I CLEAR Press SHIFT (wg), then press to – clear a mistake when you press the incorrect numeric button. – return to continuous playback, etc. of the satellite tuner or DVD player. S m/M a) x a) X a) N a) b) ./> a) Press to operate the DVD player, Blu-ray Disc Player, CD player, MD deck, tape deck, or component connected to the

Press SHIFT (wg), then press ENT/MEM to enter the value after selecting a channel, disc, or track using the numeric buttons, or to store a station during tuner operation. K MOVIE Press to select sound field for movies (page 79). L MUSIC Press to select sound field for music (page 77). M NIGHT MODE Press AMP (4), then press NIGHT MODE to activate the NIGHT MODE function (page 96). N SLEEP Press to activate the sleep timer function and the duration which the receiver turns off automatically (page 96).

Press to switch the display mode of the menu between GUI MODE (to display the menu on the TV screen) and DISPLAY MODE (to display the menu in the display window). CATEGORY Press to select the category MODE mode for satellite tuner. TUNING +/– Press to select station. T PRESET + b)/– Press to register FM/AM/ satellite tuner stations or to select preset stations. TV CH + b)/– Press TV (wf), then press TV CH + /– to operate the TV, satellite tuner, VCR, etc. U F1/F2 INPUT MODE Press BD or DVD (5), then press F1 or F2 to select a component to operate.

• HDD recorder F1: HDD F2: DVD player, Blu-ray Disc Player
• DVD/VHS combo player F1: DVD player, Blu-ray Disc Player F2: VHS Press AMP (4), then press INPUT MODE to select the input mode when the same components are connected to both digital and analog jacks (page 92).

Press to set up the remote (page 99). Press V/v/B/b to select the menu items. Then press enter the selection. W THEATER Press to turn the Theater mode on and off when connecting the receiver to products featuring “BRAVIA” Sync. Q OPTIONS TOOLS Press to display and select items from option menus for receiver, DVD player, TV, or Blu-ray Disc Player, etc. X TV Press to enable the TV operation. Y SHIFT R MENU HOME Press to display the menu used to operate audio/video components or a TV. Press to light up the button. It changes the remote button function to activate the buttons with pink printing.

V/v/B/b 16GB Name Function Name Function Z Numeric buttons Press SHIFT (wg), then press to – preset/tune to preset stations. – select track numbers of the CD player, DVD player, Bluray Disc Player or MD deck. Press -/-- (wj) to select track number 10. – select channel numbers of the VCR or satellite tuner. – After pressing TV (wf), press the numeric buttons to select the TV channels. ed RETURN/ EXIT O Press to return to the previous menu or exit the menu while the menu or on-screen guide of the VCR, DVD player, or satellite tuner is displayed on the TV screen. wj -/-- Press to select – track numbers over 10 of the VCR, satellite tuner, CD player or MD deck. – channel numbers of the Digital CATV terminal. wk A.F.D. Press to select sound field (page 74). wl 2CH/ A.DIRECT Press to select sound field or to switch the audio of the selected input to analog signal without any adjustment (page 73). e; RESOLUTION Press RESOLUTION repeatedly to change the resolution of signals output from the HDMI OUT or COMPONENT VIDEO MONITOR OUT jack. ea PIP es DISPLAY Press PIP to switch the image of the PIP (Picture in Picture) window. The image of the PIP window is the one from the EXT VIDEO IN jack. You can swap the position of the main screen and the PIP window by pressing (qh). Note The HDMI video signals are not output while the PIP window is displayed. Press to select information displayed in the display window, TV screen of the VCR, satellite tuner, CD player, DVD player, Blu-ray Disc Player, or MD deck. Note In the GUI MODE, press the button to display the menu on the TV screen. ef CATEGORY Press to select the category for satellite tuner. B·/·b Press to select an album. eg DISC SKIP Press to skip a disc when using a multi-disc changer. eh MASTER VOL +/– Press to adjust the volume level of all speakers at the same time. TV VOL +/– ej MUTING Press TV (wf), then press TV VOL +/– to adjust the volume level of the TV. Press to turn off the sound temporarily. Press the button again to restore the sound. Press to display the menus of ek BD/DVD/ TOP MENU, the DVD player on the TV screen. Then use V/v/B/b and MENU to perform a menu operations. MACRO1, MACRO2 Press AMP (4), then press MACRO 1 or MACRO 2 to set up the macro function (page 127).

See the table on page 123 for information on the buttons that you can use to control each component. The tactile dot is attached to these buttons (TV/5, N, PRESET +/TV CH +). Use as a mark of operation. Notes

• Some functions explained in this section may not work depending on the model.
• The above explanation is intended to serve as an example only. Therefore, depending on the component, the above operation may not be possible or may operate differently than described. continued 17GB Sub remote commander (RMAAU038) This remote can only be used to operate the receiver. You can control the main functions of the receiver with simple operations using this remote. Name Function E OPTIONS Press to display and select items from option menus. F MENU Press to display the menu to operate the receiver. G DMPORT Press to operate the component connected to the DIGITAL MEDIA PORT adapter (page 55).

Skips tracks. H INPUT SELECTOR Press to select the input source to play back. I MASTER Press to adjust the volume level. VOLUME +/– Name Function A ?/1 (on/ standby) Press to turn a receiver on or off. B 2CH/ A.DIRECT Press to select sound field (page 73, 74, 77, 79). A.F.D. MOVIE MUSIC

Press to switch the display mode of the menu between GUI MODE (to display the menu on the TV screen) and DISPLAY MODE (to display the menu in the display window).

After pressing GUI MODE (3), press V/v/B/b to select the menu item. Then press to enter the selection. V/v/B/b 18GB J MUTING Press to turn off the sound temporarily. Press the button again to restore the sound. K RETURN/ EXIT Press to return to the previous menu or exit the menu. L DISPLAY Press to select information displayed in the display window. Note In the GUI MODE, press the button to display the menu on the TV screen. M PIP Press PIP to switch the image of the PIP (Picture in Picture) window. The image will be changed as follows. EXT VIDEO t ZONE 2 VIDEO t OFF. You can swap the position of the main screen and the PIP window (swap) by pressing the (4). You can expand or shrink the window using V/v (4). You can also change the window’s position using B/b (4). Note The HDMI video signals are not output while the PIP window is displayed. 1: Installing speakers This receiver allows you to use a 7.1 channel system (7 speakers and one subwoofer). Enjoying a 5.1/7.1 channel system To fully enjoy theater-like multi-channel surround sound requires five speakers (two front speakers, a center speaker, and two surround speakers) and a subwoofer (5.1 channel system). You can enjoy high fidelity reproduction of DVD or Blu-ray Disc software recorded sound in the Surround EX format if you connect one additional surround back speaker (6.1 channel system) or two surround back speakers (7.1 channel system.) Example of a 7.1 channel speaker system configuration Example of a 5.1 channel speaker system configuration AFront left speaker BFront right speaker CCenter speaker DSurround left speaker ESurround right speaker HSubwoofer AFront left speaker BFront right speaker CCenter speaker DSurround left speaker ESurround right speaker FSurround back left speaker GSurround back right speaker HSubwoofer continued 19GB Getting Started Getting Started Tips

• The angle A should be the same.

• When you connect a 6.1 channel speaker system, place the surround back speaker behind the seating position.

• Since the subwoofer does not emit highly directional signals, you can place it wherever you want. 20GB 2: Connecting speakers Getting Started Before connecting cords, make sure to disconnect the AC power cord (mains lead).

A Monaural audio cord (not supplied) B Speaker cords (not supplied) AFront speaker A (L) BFront speaker A (R) CCenter speaker DSubwooferb) ESurround back speaker (L)c) FSurround back speaker (R)c) GSurround speaker (L) HSurround speaker (R) a) If you have an additional front speaker system, connect them to the FRONT SPEAKERS B terminals. You can select the front speaker system you want to use with the SPEAKERS switch (OFF/A/B/ A+B) on the front panel (page 44). continued 21GB

When you connect a subwoofer with an auto standby function, turn off the function when watching movies. If the auto standby function is set to on, it turns to standby mode automatically based on the level of the input signal to a subwoofer, then sound may not be output. If you connect only one surround back speaker, connect it to the SURROUND BACK SPEAKERS L terminals. Notes

• When you connect all the speakers with a nominal impedance of 8 ohms or higher, set “Impedance” in the Speaker settings menu to “8 Ω.” In other connections, set it to “4 Ω.” For details, see “8: Setting the speakers” (page 42).
• Before connecting the AC power cord (mains lead), make sure that metallic wires of the speaker cords are not touching each other between the SPEAKERS terminals. Tip To connect certain speakers to another power amplifier, use the PRE OUT jacks. The same signal is output from both the SPEAKERS terminals and the PRE OUT jacks. For example, if you want to connect just the front speakers to another amplifier, connect that amplifier to the PRE OUT FRONT L and R jacks. ZONE 2 connection You can assign the SURROUND BACK SPEAKERS terminals E and F to the speakers of the zone 2. Set “Sur Back Assign” to “ZONE2” in the Speaker settings menu. See “Using Multi-zone Features” (page 83) for details on connection and operation in zone

22GB 3: Connecting the monitor TV monitor Audio signals

A Optical digital cord (not supplied) B Audio cord (not supplied) C Component video cord (not supplied) D HDMI cable (not supplied) E Video cord (not supplied) continued 23GB Getting Started You can watch the selected input image when you connect the HDMI OUT jack or MONITOR OUT jacks to a TV. You can operate this receiver using a GUI (Graphical User Interface). It is not necessary to connect all the cables. Connect audio and video cords according to the jacks of your components. Notes

• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
• Connect image display components such as a TV monitor or a projector to the MONITOR VIDEO OUT jack on the receiver. You may not be able to record, even if you connect recording components.
• Turn on the receiver when the video and audio of a playback component are being output to a TV via the receiver. If the power supply of the receiver is not turned on, neither video nor audio is transmitted.
• Depending on the status of the connection between the TV and the antenna (aerial), the image on the TV screen may be distorted. In this case, place the antenna (aerial) farther away from the receiver. Tips
• The receiver has a video conversion function. For details, see “Notes on converting video signals” (page 38).
• The sound of the TV is output from the speakers connected to the receiver if you connect the audio output jack of the TV and the TV IN jacks of the receiver. In this configuration, set the sound output jack of the TV to “Fixed” if it can be switched between either “Fixed” or “Variable.”
• The screen saver is activated when the GUI menu is displayed on the TV screen and there has been no operation attempted for 15 minutes. 24GB 4a: Connecting the audio components Getting Started How to hook up your components This section describes how to hook up your components to this receiver. Before you begin, refer to “Component to be connected” below for the pages which describe how to connect each component. After hooking up all your components, proceed to “5: Connecting the antennas (aerials)” (page 39). Component to be connected Super Audio CD player/ CD player MD player Page With digital audio output

25GB Connecting components with digital audio input/output jacks The following illustration shows how to connect a Super Audio CD player, CD player, an MD deck and DIGITAL MEDIA PORT adapter.

Super Audio CD player, CD player

A Optical digital cord (not supplied) B Audio cord (not supplied) C Coaxial digital cord (not supplied) Notes

• When connecting optical digital cords, insert the plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
• To disconnect the DIGITAL MEDIA PORT adapter, observe the following precautions. – Remove the DIGITAL MEDIA PORT adapter after removing the cord when cords are connected to the COMPONENT VIDEO jack. 26GB – Remove the DIGITAL MEDIA PORT adapter by squeezing the sides of the connector, since the connector is locked in place. Tip All the digital audio jacks are compatible with 32 kHz, 44.1 kHz, 48 kHz, 88.2 kHz and 96 kHz sampling frequencies. Notes on playing a Super Audio CD on a Super Audio CD player Getting Started

• No sound is output when playing a Super Audio CD on a Super Audio CD player connected to only the COAXIAL SA-CD/ CD IN jack on this receiver. When you play a Super Audio CD, connect the player to the MULTI CHANNEL INPUT or SA-CD/CD IN jacks. Refer to the operating instructions supplied with the Super Audio CD player.
• Connect a player which can output DSD signals from the HDMI jack to the receiver using an HDMI cable.
• You cannot make digital recordings of a Super Audio CD.
• When connecting optical digital cords, insert the plugs straight in until they click into place.
• Do not bend or tie optical digital cords. If you want to connect several digital components, but cannot find an unused input See “Enjoying the sound/images from other inputs (Input Assign)” (page 93). 27GB Connecting components with multi-channel output jacks If your DVD player, Blu-ray Disc Player or Super Audio CD player is equipped with multi-channel output jacks, you can connect them to the MULTI CHANNEL INPUT jacks of this receiver to enjoy multi-channel sound. Alternatively, the multi-channel input jacks can be used to connect an external multi-channel decoder. DVD player, Blu-ray Disc Player, Super Audio CD player, etc.

A Audio cord (not supplied) B Monaural audio cord (not supplied) Notes

• Before connecting cords, make sure to disconnect the AC power cord (mains lead).
• DVD player, Blu-ray Disc Player and Super Audio CD players may not have the SURROUND BACK jacks.
• When “Sur Back Assign” is set to “BI-AMP” or “ZONE2” in the Speaker settings menu, the input to the SUR BACK jacks is invalid. 28GB

• Audio input signals from MULTI CHANNEL INPUT jacks are not output to any audio output jacks. The signals cannot be recorded. Connecting components with analog audio jacks Super Audio CD player, CD player

MD deck Turntable A Audio cord (not supplied) Notes

• If your turntable has a ground (earth) wire, connect it to the (U) SIGNAL GND terminal.
• Before connecting cords, make sure to disconnect the AC power cord (mains lead). 29GB Getting Started The following illustration shows how to connect a component with analog jacks, such as tape deck, turntable, etc. 4b: Connecting the video components How to hook up your components Video input/output jacks to be connected This section describes how to hook up your components to this receiver. Before you begin, refer to “Component to be connected” below for the pages which describe how to connect each component. After hooking up all your components, proceed to “5: Connecting the antennas (aerials)” (page 39). Component to be connected Page TV monitor

DVD player, Blu-ray Disc Player

Camcorder, video game, etc.

30GB The image quality depends on the connecting jack. Refer to the illustration that follows. Select the connection according to the jacks on your components. Digital Analog High quality image Getting Started Connecting components with HDMI jacks HDMI is the abbreviated name for HighDefinition Multimedia Interface. It is an interface which transmits video and audio signals in digital format. HDMI features

• A digital audio signals transmitted by HDMI can be output from the speakers and the PRE OUT jacks on this receiver. This signal supports Dolby Digital, DTS, DSD, and linear PCM.
• Linear PCM (sampling frequency less than 192 kHz) with digital audio signals of up to 8 channels can be received with this receiver using the HDMI IN jack.
• Analog video signals input to the VIDEO jack, or COMPONENT VIDEO jacks can be output as HDMI signals. Audio signals are not output from an HDMI OUT jack when the image is converted.
• This receiver supports DSD transmission (Super Audio CD), extended by HDMI ver1.2.
• This receiver supports High Bitrate Audio (DTS-HD Master Audio, Dolby TrueHD), Deep Color and xvYCC transmission, extended by HDMI ver1.3.
• The HDMI jacks of this receiver support the Control for HDMI function. The HDMI OUT B jack, however, does not support the Control for HDMI function.
• HDMI IN 6 is input which is considered sound quality. Input IN 6 when you need higher quality sound. You can also use IN 6 jack in the same manner as the HDMI IN 1 to IN 5 jacks. continued 31GB DVD player Satellite tuner/Set-top box Audio/video signals Audio/video signals

Blu-ray Disc Player, PS3™, hard disk recorder Audio/video signals

Audio/ video signals Audio signals TV monitor, projector, etc. A HDMI cable (not supplied) We recommend that you use a Sony HDMI cable. B Optical digital cord (not supplied) C Audio cord (not supplied) To enjoy TV multi channel surround sound broadcasting You can listen to TV multi channel surround sound broadcasting from the speakers connected to the receiver. Connect the OPTICAL output jack of the TV to the OPTICAL IN jack of the receiver. 32GB Tip Connect to at least one of the audio cords (B or C). Notes on connecting cables Notes on HDMI connections

• Check the setup of the connected component if an image is poor or the sound does not come out of a component connected via the HDMI cable.
• An audio signal input to the HDMI IN jack is output from the speaker output jacks, HDMI OUT jack and PRE OUT jacks. It is not output from any other audio jacks.
• A video signal input to the HDMI IN jack can only be output from the HDMI OUT jack. The video input cannot be output from the VIDEO OUT jacks or MONITOR VIDEO OUT jacks.
• The audio and video signals of HDMI input are not output from the HDMI OUT jack while the receiver menu is displayed.
• When you want to listen to the sound from the TV speaker, set “Audio Out” to “TV+AMP” in the HDMI settings menu. If set to “AMP,” the sound is not output from the TV speaker.
• Be sure to turn on the receiver when video and audio signals of a playback component are being output to a TV through this receiver. Unless the power is on, neither video nor audio signals will be transmitted.

• Audio signals (sampling frequency, bit length, etc.) transmitted from an HDMI jack may be suppressed by the connected component. Check the setup of the connected component if an image is poor or the sound does not come out of a component connected via the HDMI cable.
• Sound may be interrupted when the sampling frequency, the number of channels or audio format of audio output signals from the playback component is switched.
• When the connected component is not compatible with copyright protection technology (HDCP), the image and/or the sound from the HDMI OUT jack may be distorted or may not be output. In this case, check the specification of the connected component.
• Refer to the operating instructions of each component connected for details.
• You can enjoy High Bitrate Audio (DTS-HD Master Audio, Dolby TrueHD), DSD, multichannel Linear PCM only with an HDMI connection.
• Set the image resolution of the player to more than 720p/1080i to enjoy High Bitrate Audio (DTS-HD Master Audio, Dolby TrueHD).
• The image resolution of player may need certain settings be made before you can enjoy DSD and multi-channel Linear PCM. Refer to the operating instructions of the player.
• Not every HDMI component supports all functions that are defined by the specified HDMI version. For example, components that support HDMI, ver. 1.3a, may not support Deep Color. 33GB Getting Started

• We recommend that you use an HDMI cable with the HDMI logo (made by Sony) for the HDMI jack corresponding to high speed (an HDMI version1.3a, category 2 cable) when you view images or listen to sound during a Deep Color transmission or when you watch a video image of 1080p or higher.
• We do not recommend using an HDMI-DVI conversion cable. When you connect an HDMI-DVI conversion cable to a DVI-D component, the sound and/or the image may not be output. Connect other audio cords or digital connecting cords, then set “Input Assign” in the Input Option menu when the sound is not output correctly.
• Before connecting cables, make sure to disconnect the AC power cord (mains lead). Connecting a DVD player, Blu-ray Disc Player The following illustration shows how to connect a DVD player, Blu-ray Disc Player. It is not necessary to connect all the cables. Connect audio and video cords according to the jacks of your components. DVD player, Blu-ray Disc Player Audio signals

A Optical digital cord (not supplied) B Coaxial digital cord (not supplied) C Audio cord (not supplied)

• When you connect a component equipped with an OPTICAL jack, set “Input Assign” in the Input menu. 34GB

D Component video cord (not supplied) E Video cord (not supplied) Notes

• To output multi-channel digital audio, set the digital audio output setting on the DVD player, Blu-ray Disc Player. Refer to the operating instructions supplied with the DVD player, Blu-ray Disc Player.
• Before connecting cords, make sure to disconnect the AC power cord (mains lead). Connecting a satellite tuner, Set-top box Satellite tuner, Set-top box Audio signals

A Optical digital cord (not supplied) B Audio cord (not supplied) C Component video cord (not supplied) D Video cord (not supplied) Note Before connecting cords, make sure to disconnect the AC power cord (mains lead). 35GB Getting Started The following illustration shows how to connect a satellite tuner, Set-top box. It is not necessary to connect all the cables. Connect audio and video cords according to the jacks of your components. Connecting components with analog video and audio jack The following illustration shows how to connect a component which has analog jacks such as a DVD recorder or VCR, etc. It is not necessary to connect all the cables. Connect audio and video cords according to the jacks of your components. DVD recorder, VCR Audio signals Video signals

A Audio cord (not supplied) B Video cord (not supplied) 36GB

C Audio/video cord (not supplied) Camcorder, video game Note Before connecting cords, make sure to disconnect the AC power cord (mains lead). Function for conversion of video signals This receiver is equipped with a function for converting video signals.

• Composite video signals can be output as HDMI video and component video signals.
• Component video signals can be output as HDMI video and video signals. As the initial setting, video signals input from the connected component are output to the HDMI OUT jack or MONITOR OUT jacks as shown in the table below. We recommend you set the video conversion function to match the resolution of the monitor you are using. For details on the video converting function, see “ Video settings” (page 113). OUTPUT jack INPUT jack HDMI OUT COMPONENT VIDEO MONITOR OUT

a : Video signals are output. – : Video signals are not output. continued 37GB Notes on converting video signals

• When video signals from a VCR, etc., are converted on this receiver and then output to your TV, depending on the status of the video signal output, the image on the TV screen may appear distorted horizontally or no image may be output.
• HDMI video signals cannot be converted to component video signals and video signals.
• The converted video signals are output only from the MONITOR OUT jacks. They are not output from VIDEO OUT jack or the ZONE 2 VIDEO OUT jack.
• When you play a VCR with an image improvement circuit, such as TBC, the images may be distorted or may not be output. In this case, set the image improvement circuit function to off.
• The resolution of the signals output to the

COMPONENT VIDEO MONITOR OUT

jacks is converted up to 1080i. The resolution of the signals output to the HDMI OUT jack is converted up to 1080p.

• COMPONENT VIDEO MONITOR OUT jacks have restrictions on resolution when the resolution of video signals protected by copyright technology is converted. Resolution of up to 480p can be output to the

COMPONENT VIDEO MONITOR OUT

jacks. The HDMI OUT jack has no restriction on resolution.

• Video signals for which the resolution has been converted cannot be output from either the COMPONENT VIDEO MONITOR OUT jacks or the HDMI OUT jack. The video signals are output from the HDMI OUT jack when both are connected.
• Set “Resolution” to “AUTO” or “480i/576i” in the Video settings menu to output the video signals from the MONITOR VIDEO

OUT, COMPONENT VIDEO MONITOR

OUT jacks when both are connected. 38GB To display Closed Caption Set “Resolution” to “DIRECT” in the Video settings menu when receiving a signal that supports Closed Captions. Use the same kind of cords for the input/output signals. To connect a recording component When recording, connect the recording component to the VIDEO OUT jack of the receiver. Connect cords for input and output signals to the same type of jack, as VIDEO OUT jack do not have an up-conversion function. Note Signals output from the MONITOR OUT jacks may not be recorded properly. 5: Connecting the antennas (aerials) Getting Started Connect the supplied AM loop antenna (aerial) and FM wire antenna (aerial). FM wire antenna (aerial) (supplied) AM loop antenna (aerial) (supplied)

• The shape of the connector varies depending on the area. Notes
• To prevent noise pickup, keep the AM loop antenna (aerial) away from the receiver and other components.
• Be sure to fully extend the FM wire antenna (aerial).
• After connecting the FM wire antenna (aerial), keep it as horizontal as possible.
• Before connecting cords, make sure to disconnect the AC power cord (mains lead). 39GB 6: Preparing the receiver and the remote Connecting the AC power cord (mains lead) Connect the supplied AC power cord (mains lead) to the AC IN terminal on the receiver, then connect the AC power cord (mains lead) to a wall outlet. Performing initial setup operations Before using the receiver for the first time, initialize the receiver by performing the following procedure. This procedure can also be used to return settings you have made to their factory defaults. POWER TONE MODE HDMI IN Notes
• Before connecting the AC power cord (mains lead), make sure that metallic wires of the speaker cords are not touching each other between the SPEAKERS terminals.
• Connect the AC power cord (mains lead) firmly. AC IN terminal To the wall outlet AC power cord (mains lead) (supplied) A several space is left between the plug and the rear panel even when the power cord (mains lead) is inserted firmly. The cord is supposed be connected this way. This is not malfunction. 40GB

Press POWER to turn off the receiver.

Hold down POWER while pressing TONE MODE and HDMI IN to turn on the receiver.

Release the TONE MODE and HDMI IN after a few seconds. After “MEMORY CLEARING...” appears on the display for a while, “MEMORY CLEARED.” appears. All the settings you have changed or adjusted are reset to the initial settings. Insert two R6 (size-AA) batteries in the RMAAL016 remote commander. Insert two R6 (size-AA) batteries in the RMAAU038 remote control. Observe the correct polarity when installing batteries. 7: Displaying the GUI menu on the TV screen You can select the functions or change the settings of the receiver by using the GUI menu on the TV screen. Follow the procedure below to make the settings so that the GUI menu appears on the TV screen. Tip Refer to “Operating without connecting to a TV” (page 116) if you want to operate the receiver without connecting to a TV. RM-AAL016 RM-AAU038 ?/1 Notes AMP

• Do not leave the remote in an extremely hot or humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of batteries.
• Do not expose the remote sensor to direct sunlight or lighting apparatuses. Doing so may cause a malfunction.
• If you do not intend to use the remote for an extended period of time, remove the batteries to avoid possible damage from battery leakage and corrosion.
• When you replace the batteries, the programmed remote codes may be cleared. If this happens, program the remote codes again (page 124). GUI MODE MENU Tip When the remote no longer operates the receiver, replace all the batteries with new ones.

Connect a TV monitor to this receiver. Refer to “3: Connecting the monitor” (page 23).

Turn on the receiver and the TV. Press AMP. The receiver can be operated using the remote. continued 41GB Getting Started Inserting batteries into the remote

Press GUI MODE. After “GUI MODE ON” has appeared in the display window of the receiver, “GUI MODE” appears. 8: Setting the speakers Setting the speaker impedances Set the appropriate speaker impedance for the speakers you are using. AMP The receiver menu is displayed on the TV screen. V/v/b, Tip You can select the language to be used for messages on the GUI menu on the TV screen from English, Spanish, French and German. For details, see System settings” (page 116). To exit the menu Press MENU. MENU

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen. 42GB

Getting Started Press V/v repeatedly to select “ Settings,” then press

The Settings menu list appears on the TV screen. To exit the menu Press MENU. Notes

Press V/v repeatedly to select “Speaker,” then press or b.

Press V/v repeatedly to select “Impedance,” then press

Press V/v repeatedly to select “4 Ω” or “8 Ω” depending on the speakers you are using, then press

• If you are not sure of the impedances of the speakers, refer to the operating instructions supplied with your speakers. (This information is often on the back of the speaker.)
• When you connect all speakers with a normal impedance of 8 ohms or higher, set “Impedance” to “8 Ω.” When connecting other types of speakers, set it to “4 Ω.”
• When you connect front speakers to both the SPEAKERS A and B terminals, connect the speakers with a normal impedance of 8 ohms or higher. – When you connect speakers with impedance of 16 ohms or higher in both “A” and “B” configuration: Set “Impedance” to “8 Ω” in the Speaker settings menu. – For other types of speakers in other configurations: Set “Impedance” to “4 Ω” in the Speaker settings menu. The parameter you have selected is entered. 43GB Selecting the front speakers You can select the front speakers you want to drive. SPEAKERS switch 9: Calibrating the appropriate speaker settings automatically (Auto Calibration) Set the SPEAKERS switch to select the front speaker system you want to drive. Note This setting is not available when headphones are connected. Set to To select

The speakers connected to the FRONT SPEAKERS A terminals.

The speakers connected to the FRONT SPEAKERS B terminals. A+B The speakers connected to both the FRONT SPEAKERS A and B terminals (parallel connection). OFF No audio signals are output from any speaker terminals, or the PRE OUT jacks. The DCAC (Digital Cinema Auto Calibration) function allows you to perform automatic calibration, such as checking the connection between each speaker and the receiver, adjusting the speaker level, and measuring the distance of each speaker from your seating position automatically. Before you perform the auto calibration Before you perform the auto calibration, set up and connect the speakers (page 19-22).

• The AUTO CAL MIC jack is used for the supplied optimizer microphone only. Do not connect other microphones. Doing so may damage the receiver and the microphone.
• During the measurement, the sound that comes out of the speakers is very loud. The volume of the sound cannot be adjusted. Pay attention to the presence of children or to the effect on your neighborhood.
• Perform the measurement in a quiet environment to avoid the effect of noise and get a more accurate measurement.
• If there are any obstacles in the path between the optimizer microphone and the speakers, the calibration cannot be performed correctly. Remove any obstacle from the measurement area to avoid measurement error.
• When you use a bi-amplifier connection, set “Sur Back Assign” to “BI-AMP” in the Speaker settings menu before you perform auto calibration. Notes
• The auto calibration function does not work if headphones are connected.
• Cancel MUTING if it is set to on. 44GB Optimizer microphone

• If you connect a subwoofer with an auto standby function, set it to off (deactivated). Getting Started Note Depending on the characteristics of the subwoofer you are using, the setup distance value may be further away from the actual position. To use the receiver as a preamplifier

Connect the supplied optimizer microphone to the AUTO CAL MIC jack.

Set up the optimizer microphone. Place the optimizer microphone at your seating position. Use a stool or tripod so that the optimizer microphone remains at the same height as your ears. On setting up the active subwoofer

• When a subwoofer is connected, turn on the subwoofer and turn up the volume beforehand. Turn the MASTER VOLUME knob to just before the mid-point.
• If you connect a subwoofer with the crossover frequency function, set the value to maximum. You can use the auto calibration function when you use the receiver as a pre-amplifier. In this case, the distance value shown on the display may differ from the actual distance value. However, there will be no problems even if you continue to use the receiver with that value. Performing auto calibration The auto calibration function allows you to measure the following:
• Speaker connectionsa)
• Polarity of speakers
• Frequency characteristicsc) a) This receiver corrects signals by analog downmix processing only for the center speaker and subwoofer when the multi-channel input is selected. The correction is invalid for other speakers. b) The measurement result is not utilized when the multi-channel input is selected. c) • Signals with a sampling frequency of higher than 96 kHz are always played back at either

• The measurement result is not utilized in the following cases. –The multi-channel input is selected. –“2ch Analog Direct” is being used.
• The measurement result is not utilized when Dolby TrueHD signals with a sampling frequency of higher than 96 kHz are being received.

Press V/v repeatedly to select “ Settings,” then press

The Settings menu list appears on the TV screen. AMP

Press V/v repeatedly to select “Auto Calibration,” then press or b.

Press V/v repeatedly to select “Quick Setup,” then press

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen. 46GB The screen on which you can select the item to be measured appears.

Getting Started Press V/v repeatedly and un-check the items you do not want to measure, then press b. The confirmation screen, asking whether you are ready to start measurement, appears. Note

Press to select “Start.” The measurement starts in five seconds. When the measurement ends, a beep sounds and the measurement result appears on the TV screen.

Press to select “Next.” “Save auto calibration (auto speaker setup)?” appears. To save the measurement results, follow the steps in “Saving the measurement results” (page 48). If a warning message or error code appears on the screen, see “Message list after auto calibration measurement” (page 49). When the speaker(s) is (are) out of the phase, “Out Phase” is displayed on the TV screen. The “+” and “–” terminals of the speaker may be connected the other way around. However, depending on the speakers, “Out Phase” appears on the TV screen even though the speakers are connected properly. This is because of the speakers’ specifications. In this case, you can continue to use the receiver. Tips

• Operations other than turning the receiver on or off are deactivated during the measurement.
• In the following situations, the measurements have not been performed correctly or auto calibration cannot be performed. – when connecting special speakers, such as dipole speakers. – when using the zone 2/zone 3 function in zone 2/ zone 3.
• You can change the unit of distance use in “Distance Unit” in the Speaker settings menu. To cancel the measurement The measurement is cancelled when you change the volume, switch functions, change the setting of the SPEAKERS switch, or connect headphones. 47GB Saving the measurement results To save the measurement results obtained in “Performing auto calibration” (page 45), proceed with the following steps.

Press B/b to select “Yes” in step 8 in “Performing auto calibration,” then press The selecting screen of the calibration type appears.

Press V/v repeatedly to select the auto calibration type, then press Parameter Explanation Full Flat Makes the measurement of frequency from each speaker flat. Engineer Sets the frequency to one that matches that of the Sony listening room standard. Front Reference Adjusts the characteristics of all the speakers to match the characteristics of the front speaker. OFF Sets the auto calibration EQ to off. The measurement results are saved.

Press b. The exit screen appears. 48GB

• After reflecting the results of a compensation for a frequency characteristic, signals with a sampling frequency of higher than 96 kHz are always played back at either 44.1 kHz or 48 kHz.
• The frequency response measurement result is not utilized in the following cases. – The multi-channel input is selected. – “2ch Analog Direct” is being used.
• The measurement result is not utilized when Dolby TrueHD signals with a sampling frequency of higher than 96 kHz are being received. Tip The size of a speaker (LARGE/SMALL) is determined by the low characteristics. The measurement results may vary, depending on the position of the optimizer microphone and speakers, and the shape of the room. It is recommended that you follow the measurement results. However, you can change those settings in the Speaker settings menu. Save the measurement results first, then try to change the settings if you want. If a warning message or error code appears in step 8 of “Performing auto calibration” (page 45), check the problem of the error and perform auto calibration again.

Press B/b to select “Yes,” then press when “Error occurred during calibration, press to investigate.” appears on the screen. Confirm the details of the measurement results, then proceed with the appropriate remedy.

Press B/b to select “Retry,” then press

Repeat steps 6 to 8 in “Performing auto calibration” (page 45). To save measurement results that caused an error without taking a remedy 1 Press B/b to select “No”, then press when “Error occurred during calibration, press to investigate.” appears on the screen. 2 Follow the steps in “Saving the measurement results” (page 48) to save the measurement results. Message list after auto calibration measurement Display Explanation Code 30 Headphones are connected. Remove the headphones and perform the auto calibration again. Code 31 SPEAKERS (OFF/A/B/A+B) is set to OFF. Set it to others and re-perform the measurement. Code 32 None of the speakers were detected. Make sure that the optimizer microphone is connected properly and reperform the measurement. If the optimizer microphone is connected properly but the error code appears, the optimizer microphone cable may be damaged or improperly connected. Code 33

Warning 40 The measurement has completed. However, the noise level is high. You may be able to perform the measurement properly if you try it again, even though the measurement cannot be performed in all environments. Try to perform the measurement in a quiet environment. Warning 41 Warning 42 The input from the microphone is too big.

• It may be too close the distance between the speaker and the microphone. Retry the measurement after setting apart from each other.
• It may be that the volume is too big when you use the receiver as a preamp. Warning 43 The distance and position of a subwoofer cannot be detected. Or the angle of the speaker position cannot be detected. This may be caused by noise. Try to perform the measurement in a quiet environment. None of the front speakers are connected or only one front speaker is connected. The optimizer microphone is not connected. Either the left or right surround speakers is not connected. Surround back speakers are connected even though surround speakers are not connected. Connect the surround speaker(s) to the SURROUND terminals.
• The surround back speaker is connected only to the SURROUND BACK SPEAKERS R terminals. When you connect only one surround back speaker, connect it to the SURROUND BACK SPEAKERS L terminals. continued 49GB Getting Started Checking the auto calibration results Display Explanation NO WARNING There is no warning information.

No speakers are connected. Tip Depending on the position of the subwoofer, the measurement results for polarity may vary. However, there will be no problems even if you continue to use the receiver with that value. 50GB You can display the menu of the receiver on the TV screen and select the function you want to use on the TV screen by pressing V/v/B/b and on the remote. To display the menu of the receiver on the TV screen, make sure that the receiver is in “GUI MODE” following the steps in “7: Displaying the GUI menu on the TV screen” (page 41). Getting Started Guide to on-screen display operation

Press V/v repeatedly to select the menu you want, then press or b to enter the menu mode. The menu item list appears on the TV screen. AMP GUI MODE Example: When you select “

Press V/v repeatedly to select the menu item you want to adjust, then press to enter the menu item.

Press RETURN/EXIT O. Press AMP. To exit the menu The receiver can be operated using the remote. Press MENU. Press MENU. The menu is displayed on the TV screen. continued 51GB To exit “GUI MODE”

Press GUI MODE. “GUI MODE OFF” appears and you can operate the receiver using the menu in the display window of the receiver. The menu item list appears on the TV screen. Example: When you select “ Overview of the main menus Menu icon Input” Description Input Selects the input source component connected to the receiver (page 53). Music Selects the music from the audio component connected to the DIGITAL MEDIA PORT adapter (page 55). FM/AM/XM/ Selects the built-in FM/AM SIRIUS radio or satellite tuner connected (page 60, 63). Settings Press V/v repeatedly to select a menu you want, then press or b to enter the menu mode.

Press OPTIONS while the menu item list is displayed. The option menu appears. You can adjust the settings of the speakers, the surround effect, equalizer, audio, video and other inputs connected to the HDMI jacks (page 102). Using the option menus When you press OPTIONS, the option menus for the selected main menu are displayed. You can select a related function without reselecting the menu.

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select the option menu item you want, then press

Playback The menu item list appears on the TV screen.

Press V/v repeatedly to select the component you want, then press The menu screen disappears and the playback screen of the external input appears. Selected input AMP Components that can be used Video1, Video2 VIDEO 1, 2 VCR, etc., connected to the VIDEO 1 or VIDEO 2 jack.

Blu-ray Disc Player, etc., connected to the BD jack. DVD DVD player, etc., connected to the DVD jack. SAT Satellite tuner, etc., connected to the SAT jack.

TV connected to the TV jack. TAPE Tape deck, etc., connected to the TAPE jack. MASTER VOL

MD deck, etc., connected to the MD jack. MUTING SA-CD/CD Super Audio CD or CD player, etc., connected to the SA-CD/CD jack. Phono Turntable, etc., connected to the PHONO jack. MULTI IN Component connected to the MULTI CHANNEL INPUT jack. V/v/B/b, OPTIONS MENU

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen. HDMI1, 2, 3, HDMI components connected to the 4, 5, 6 HDMI1, HDMI2, HDMI3, HDMI4, HDMI5, or HDMI6 jack. continued 53GB Playback Enjoying sound/images from the component connected to the receiver Press V/v repeatedly to select “ Input,” then press or b.

Turn on the component and start playback.

Press V/v/B/b to select a character one by one, then press

Press V/v/B/b to select “Finish,” then press

• You can adjust the volume differently depending on the speed with which you turn the MASTER VOLUME knob. To turn the volume up or down quickly: turn the knob quickly. To make fine adjustment: turn the knob slowly.
• You can adjust the volume differently depending on the length of time you press and hold the MASTER VOL +/– button on the remote. To turn the volume up or down quickly: press and hold the button. To make a fine adjustment: press the button and release it immediately. To activate the muting function Press MUTING on the remote. To cancel, press MUTING on the remote again or press MASTER VOL + to raise the volume. To avoid damaging your speakers Before you turn off the receiver, be sure to turn down the volume level. Naming the input (Name Input) You can enter a name of up to 8 characters for inputs and display it. This is convenient for labeling the jacks with the names of the connected components.

Press V/v repeatedly on the “ Input” screen to select the input you want to name.

Press OPTIONS. The option menu appears.

Press V/v repeatedly to select “Name Input,” then press The soft keyboard appears on the screen. 54GB The name you entered is registered. To cancel naming input Press V/v/B/b to select “Cancel,” then press

Changing the display items (List Mode) When you select “ Input,” you can change the items to be displayed.

Press V/v repeatedly on the “ Input” screen to select the input you want.

Press OPTIONS. The option menu appears.

Press V/v repeatedly to select “List Mode,” then press

Press V/v repeatedly to select the item you want to display, then press

• Input Assign Input name and audio/video input jack assigned to the input are displayed in a list.
• Sound Field Input name and the sound field selected for the input are displayed in a list.
• A/V Sync Input name and the delay set on the “A/ V Sync” menu for the input are displayed in a list. Enjoying sound/images from the components connected to the DIGITAL MEDIA PORT AMP Playback The DIGITAL MEDIA PORT is for enjoying sound/images from a portable audio source or computer by connecting a DIGITAL MEDIA PORT adapter. Available DIGITAL MEDIA PORT adapters vary in each area. For details on connecting the DIGITAL MEDIA PORT adapter, see “Connecting components with digital audio input/output jacks” (page 26). V/v/b, MENU Sony offers the following DIGITAL MEDIA PORT adapters:
• TDM-BT1 Bluetooth™ Wireless Audio Adapter
• TDM-NW1/NW10 DIGITAL MEDIA PORT Adapter

The receiver can be operated using the remote. The DIGITAL MEDIA PORT adapter is an optional product. Notes

• Do not connect an adapter other than the DIGITAL MEDIA PORT adapter.
• Before disconnecting the DIGITAL MEDIA PORT adapter, make sure to turn the receiver off using the remote.
• Do not connect or disconnect the DIGITAL MEDIA PORT adapter to/from the receiver while the system is turned on.
• Depending on the type of DIGITAL MEDIA PORT adapter, the images are also output. Press AMP.

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select “ Music,” then press or b.

Press V/v repeatedly to select “DMPORT,” or a component connected to the DIGITAL MEDIA PORT adapter, then press

continued 55GB The component connected to the DIGITAL MEDIA PORT adapter is recognized and “DMPORT” on the screen will change to the respective component’s name with an icon. If the adapter connected cannot be recognized, “DMPORT” is displayed on the TV screen. Icon Component that is connected Operating the TDM-iP1/ iP50/TDM-NC1 using the GUI menu of the receiver Make sure that “System GUI” is selected in step 4 in “Changing the operation screen using the DIGITAL MEDIA PORT” (page 58). DMPORT A component other than one of the following is connected. iPod AMP The iPod model recognized is connected. Network The Network Client Client recognized is connected. Bluetooth The Bluetooth drive recognized is connected. Mobile Phone

The Mobile Phone recognized is connected. Select a track you want to play using the component connected to the DIGITAL MEDIA PORT adapter. V/v, Press MASTER VOL +/– to adjust the volume. OPTIONS MENU

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen.

56GB Press V/v repeatedly to select “ Music,” then press

Press V/v repeatedly to select the component connected to the DIGITAL MEDIA PORT adapter you want to play, then press

Displayed only when M-crew Server is connected. Displayed only when a DLNA server other than M-crew Server is connected. c) Displayed as “Genre,” “Artist” or “Album,” depending on setting of “List Mode.”

Press MASTER VOL +/– to adjust the volume. Press OPTIONS. The option menu appears.

Press V/v repeatedly to select the playback mode you want from the following. x Shuffle (TDM-iP1/iP50 only) Plays all the tracks in random order.

• Off Deactivates the shuffle play mode.
• Albums Plays all the tracks on an album in random order.
• Songs Plays all the tracks in “Songs” in random order. x Repeat (TDM-iP1/iP50 only) Plays one or all the tracks repeatedly.
• Off Deactivates the repeat play mode.
• One Plays one track repeatedly.
• All Plays all the tracks repeatedly. x List Mode (TDM-NC1 only) Selects a range of tracks to be played back.
• Genre Plays back tracks in the selected genre.
• Artist Plays back tracks of the selected artist.
• Album Plays back tracks in the selected album. Selecting the playback mode

Play back the track you want to listen to following the steps outlined in “Operating the TDMiP1/iP50/TDM-NC1 using the GUI menu of the receiver” (page 56). continued 57GB Playback The contents list appears.

DIGITAL MEDIA PORT message list Message appears Explanation No Adapter The adapter is not connected. No Device There is no device connected to the adapter. No Audio No audio file was found. Loading The data is being read. No Server* There is no server connected. No Track* No track was found. No Item* No item was found. Connecting* Connecting to the server. Configuring* The network is setting up. Warning* Check the display of the

adapter. Party Mode* Searching* Changing the operation screen using the DIGITAL MEDIA PORT You can change the operation screen using the GUI menu. The DMPORT Control mode is supported by the DIGITAL MEDIA PORT adapters like TDM-iP1/iP50, TDM-NC1. This mode is not supported by other adapters.

Press V/v repeatedly on the “ Music” screen to select the DIGITAL MEDIA PORT adapter you want, then press or b.

Press OPTIONS. The option menu appears.

The unit is currently in party mode “Guest.” Press V/v to select “DMPORT Control,” then press If “DMPORT Control” is not displayed, see the operating instructions supplied with component for details on operating that component. Searching the server.

Press V/v repeatedly to select the mode you want, then press You can select the following modes in this menu;

• System GUI This mode is for the TDM-iP1/iP50 and TDM-NC1. The list of tracks will be displayed on the GUI screen of the receiver. You can select a track you want and play back it on each GUI screen.
• Adapter GUI This mode is for the TDM-iP1/iP50 and TDM-NC1. The menu of the adapter will be displayed on the TV screen.
• iPod This mode can be selected only when the TDM-iP1/iP50 is connected. 58GB To operate the TDM-iP1/iP50 or TDM-NC1 using the adapter menu Playback Make sure that “Adapter GUI” is selected in step 4 in “Changing the operation screen using the DIGITAL MEDIA PORT” (page 58). For details on operating the adapter using the adapter GUI menu, refer to the operating instructions supplied with the adapter you are using. To operate the TDM-iP1/iP50 using the iPod menu Make sure that “iPod” is selected in step 4 in “Changing the operation screen using the DIGITAL MEDIA PORT” (page 58). For details on operating the iPod, refer to the operating instruction supplied with the iPod. 59GB Tuning into a station automatically (Auto Tuning) Tuning Listening to FM/AM radio You can listen to FM and AM broadcasts through the built-in tuner. Before operation, make sure you have connected the FM and AM antennas (aerials) to the receiver (page 39). Tip The tuning scale for direct tuning is shown below.
• AM band 10 kHz The AM tuning scale can be changed (page 61). SHIFT AMP Numeric buttons

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select FM” or “ AM,” then press or b. The FM or AM menu list appears on the TV screen.

Press V/v to select “Auto Tuning,” then press

Press V/v. Press V to scan from low to high, press v to scan from high to low. The receiver stops scanning whenever a station is received. In case of poor FM stereo reception 1 Tune in the station you want to listen to V/v/B/b, using Auto Tuning, Direct Tuning (page 61), or select the preset station you want (page 62). 2 Press OPTIONS. OPTIONS The option menu appears. 3 Press V/v to select “FM Mode,” then MENU press

4 Press V/v to select “MONO,” then press 60GB

Tuning into a station directly (Direct Tuning) Enter the frequency of a station directly by using the numeric buttons.

Changing the AM tuning scale You can change the AM tuning scale to either 9 kHz or 10 kHz on the receiver. POWER Press AMP. TUNING MODE The receiver can be operated using the remote. Tuning

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select FM” or “ AM,” then press or b.

Press V/v to select “Direct Tuning,” then press

Press POWER to turn off the receiver.

While holding down TUNING MODE, press POWER on the receiver.

Change the current AM tuning scale to 9 kHz (or 10 kHz). Example 1: FM 102.50 MHz Select 1 b 0 b 2 b 5 Example 2: AM 1,350 kHz Select 1 b 3 b 5 b 0 Tip If you have tuned in an AM station, adjust the direction of the AM loop antenna (aerial) for optimum reception. To reset the scale to 10 kHz (or 9 kHz), repeat the procedure above. Note All preset stations will be erased when you change the tuning scale. If you cannot tune in a station “– – – .– – MHz” appears and then the display returns to the current frequency. Make sure you have entered the right frequency. If not, repeat step 5. If you still cannot tune in a station, the frequency is not used in your area. 61GB

Presetting FM/AM radio stations You can preset up to 30 FM and 30 AM stations. Then you can easily tune in the stations you often listen to. AMP Press V/v to select a preset number, then press The station is stored as the selected preset number.

Repeat steps 1 to 4 to preset another station. You can store stations as follows:

• AM band: AM1 to AM30
• FM band: FM1 to FM30 Tuning to preset stations

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select FM” or “ AM,” then press or b.

Press V/v to select the preset number station you want. V/v/B/b, OPTIONS Preset numbers from 1 to 30 are available. MENU

Tune in the station that you want to preset using Auto Tuning (page 60) or Direct Tuning (page 61). Naming preset stations (Name Input)

On “ FM” or “ AM” screen, press V/v to select the preset number on which you have stored the station and which you want to name.

Press OPTIONS. In case of poor FM stereo reception, switch the FM reception mode (page 60).

Press OPTIONS. The option menu appears.

Press V/v to select “Memory,” then press

The option menu appears.

Press V/v repeatedly to select “Name Input,” then press The soft keyboard appears on the screen. 62GB

Press V/v/B/b to select a character one by one, then press Press V/v/B/b to select “Finish,” then press The name you entered is registered. Listening to satellite radio You can listen to XM Radio and SIRIUS Satellite Radio by connecting a satellite tuner, not supplied, to the receiver. To cancel naming input XM Radio service Tuning Press V/v/B/b to select “Cancel,” then press

About XM Radio XM is North America’s number one satellite radio company, offering an extraordinary variety of commercial-free music, plus the best in premier sports, news, talk radio, comedy, children’s and entertainment programming, broadcast in superior digital audio quality coast to coast. For more information, or to subscribe, U.S. customers visit xmradio.com or call XM Listener Care at 1-800-XMRADIO (1-800-967-2346); Canadian customers visit xmradio.ca or call XM Listener Care at 1-877-GETXMSR (1877-438-9677). XM Ready® Legal XM monthly service subscription sold separately. XM Mini-Tuner and Home Dock required (each sold separately) to receive XM service. It is prohibited to copy, decompile, disassemble, reverse engineer, hack, manipulate or otherwise make available any technology or software incorporated in receivers compatible with the XM satellite Radio System. Installation costs and other fees and taxes, including a one-time activation fee may apply. All fees and programming subject to change. Channels with frequent explicit language are indicated with an XL. Channel blocking is available for XM radio receivers by calling 1-800-XMRADIO (U.S. residents) and 1-877-GETXMSR (Canadian residents). Only available in the 48 contiguous United States and Canada. ©2008 XM Satellite Radio Inc. All rights reserved. continued 63GB XM Ready® Subscription Once you have installed the XM Mini-Tuner Home Dock, inserted the XM Mini-Tuner, connected the XM Mini-Tuner Home Dock to your XM Ready® audio system, and installed the antenna, you are ready to subscribe and begin receiving XM programming. There are three places to find your eight character XM Radio ID: On the XM Mini-Tuner, on the XM Mini-Tuner package, and on XM Channel 0. Record the Radio ID below for reference. ssssssss Note The XM Radio ID does not use the letters “I”, “O”, “S” or “F”. Activate your XM Satellite Radio service in the U.S. online at http://activate.xmradio.com or call 1-800-XMRADIO (1-800-967-2346). Activate your XM Satellite Radio service in Canada online at https://activate.xmradio.ca or call 1-877-GETXMSR (1-877-438-9677). You will need a major credit card. XM will send a signal from the satellites to activate the full channel lineup. Activation normally takes 10-15 minutes, but during peak busy periods you may need to keep your XM Ready audio system on for up to an hour. When you can access the full lineup on your XM Ready audio system you are done. SIRIUS Satellite Radio service SIRIUS Satellite Radio: The Best Radio On Radio SIRIUS brings all your favorite entertainment including 100% commercial-free music, plus superior sports coverage, uncensored talk and comedy, world-class entertainment, news, weather and more for your car, home or office. Sirius is available in the US for subscribers with addresses in the continental US and is available in Canada for subscribers with a Canadian address. Required subscription plus compatible SiriusConnect Home Tuner with antenna are required and sold separately. SIRIUS 64GB Programming is subject to change. Visit sirius.com or siriuscanada.ca for the most complete and up-to-date channel lineup and product information. “ SIRIUS” and the SIRIUS dog logo and related marks are trademarks of SIRIUS Satellite Radio Inc. All rights reserved. To Subscribe to SIRIUS Satellite Radio Purchase and connect a SiriusConnect Home Tuner to your Sirius Ready home audio system. You are then ready to activate and subscribe to Sirius by either calling 1.888.539.SIRIUS (7474) or log on to sirius.com (US), siriuscanada.ca (Canada). It is that easy. Connecting a satellite radio tuner SIRIUS jack Preparing to listen to a satellite radio XM jack AMP Tuning V/v/b, OPTIONS To connect to the XM jack MENU Before operating the system, connect the XM Mini-Tuner and Home Dock to the XM jack. Note To ensure optimal reception of XM’s satellite signal, move your antenna to various window locations around your home to see where the best reception will be received. Most XM customers place the antenna in a south-facing window with a clear view to the sky. To connect to the SIRIUS jack Connect the SiriusConnect Home tuner. When you use the SiriusConnect Home tuner with this receiver, be sure to connect the AC power adaptor supplied with the tuner to a wall outlet. Keep the SiriusConnect Home tuner, antenna, and AC power adaptor away from the speaker cords and the power cord to avoid picking up noise. Checking the ID number

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select XM” or “ SIRIUS,” then press or b. continued 65GB

Press V/v to select “ALL,” then press or b. When the Preset Mode screen is displayed, change the tuning mode to “Category Mode,” then select “ALL.” Press OPTIONS, then press V/v repeatedly to select “Category Mode.” Press V/v to select the channel 0, then press

Check the XM Radio ID or Sirius ID on the TV screen and write it in the space provided here. XM Radio ID:_____________________ Sirius ID:_________________________ You can also check the XM Radio ID and Sirius ID using the display on the receiver. Checking receiving conditions (Antenna Aiming) Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select XM” or “ SIRIUS,” then press or b.

Press OPTIONS. The option menu appears.

Press V/v repeatedly to select “Antenna Aiming,” then press The Antenna Aiming screen appears. 66GB While checking the quality of the reception, adjust the direction of the antenna to obtain the best reception. To exit the menu Press MENU.

Selecting a channel of the satellite radio Press V/v repeatedly to select the category, then press

• ALL: You can select a channel from all the categories.
• (category name): You can select a channel from one category. When the “Preset Mode” screen is displayed, press OPTIONS, then press V/ v repeatedly to select “Category Mode.” AMP Press V/v to select the channel, then press The selected channel is being received. The channel information is displayed on the TV screen. Note V/v/b, OPTIONS MENU When you select a channel in the “Category Mode,” the channel you selected may not be the one in the category you want. This is because one channel may belong to more than one category. Selecting a channel by inputting the channel number directly (Direct Tuning)

Selecting a channel by category (Category Mode) You can select a channel from one category or all the categories.

Press V/v repeatedly to select XM” or “ SIRIUS,” then press or b. Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select XM” or “ SIRIUS,” then press or b.

Press OPTIONS. Press MENU. The menu is displayed on the TV screen.

The receiver can be operated using the remote. Press AMP. The receiver can be operated using the remote. Press AMP. The option menu appears.

Press V/v to select “Direct Tuning,” then press

Press the numeric buttons to enter the channel number. Press OPTIONS. The option menu appears. continued 67GB Tuning

The selected channel is tune in. Presetting satellite radio channels You can select the channels you want directly by presetting them using the preset numbers. You can preset up to 30 XM Radio channels and 30 SIRIUS Satellite Radio channels. AMP V/v/b, OPTIONS MENU

Press OPTIONS. The option menu appears.

Press V/v to select “Memory,” then press The preset number selection screen appears. 68GB

Press V/v repeatedly to select the preset number you want to use as the preset channel, then press

Repeat steps 1 to 4 to preset another channel. (Parental Lock) (SIRIUS only) You can restrict access to certain channels using your own lock code. The lock code is set to “0000” as the default. Change the lock code before you use this function for the first time. See “To change the lock code (Lock Code)” (page 70). You can store channels from 1 to 30. Selecting preset channels

Press AMP. The receiver can be operated using the remote.

Press V/v repeatedly to select XM” or “ SIRIUS,” then press or b. Press V/v to select the preset number from the preset list, then press

V/v/b, OPTIONS RETURN/ EXIT O You can select stored preset channels from 1 to 30. Notes

• The channel information you have preset may be changed if XM Satellite Radio Inc. or SIRIUS Satellite Radio Inc. change their channel programming.
• When the “Category Mode” screen is displayed, press OPTIONS, then press V/v to select “Preset Mode.”

Select a channel you want to lock using Category Mode (page 67) or Direct Tuning (page 67).

Press OPTIONS. The option menu appears.

Press V/v to select “Parental Lock,” then press or b. continued 69GB Tuning Preset channels from 1 to 30 are available, and a default channel is preset for all the preset channels when you purchase the receiver. The selected channel is registered as the preset channel you selected in step 1. Restricting access to specific channels

Press V/v repeatedly to select “ON,” then press “Enter your 4-digit lock code.” appears.

Enter your 4-digit lock code using the numeric buttons. “The channel has been locked.” appears and the Parental Lock is set. To delete the numbers you have entered, go back to step 2 by pressing RETURN/ EXIT O, and then repeat the procedure above from step 2. 2 Enter your 4-digit lock code using the numeric buttons. The channel is tuned in. To cancel the Parental Lock 1 Select a channel you want to unlock using Category Mode (page 67) or Direct Tuning (page 67). 2 Press OPTIONS. The option menu appears. 3 Press V/v to select “Parental Lock,” then press To change the lock code (Lock Code) 1 Select a channel you want to change the lock code using Category Mode (page 67) or Direct Tuning (page 67). 2 Press OPTIONS. The option menu appears. 3 Press V/v to select “Lock Code,” then press “Enter your 4-digit lock code.” appears. 4 Enter your 4-digit lock code using the numeric buttons. “Enter a new lock code.” appears. 5 Enter a new 4-digit lock code using the numeric buttons. “To confirm, enter your new lock code again.” appears. 6 Reenter the new lock code with the numeric buttons. “The lock code has been changed.” appears. To listen to the locked channels 1 Select a locked channel you want to listen to using Category Mode (page 67) or Direct Tuning (page 67). “The channel is locked. Enter your 4-digit lock code.” appears. 70GB or b. 4 Press V/v repeatedly to select “OFF,” then press “Enter your 4-digit lock code.” appears. 5 Enter your 4-digit lock code using the numeric buttons. “The channel has been unlocked.” appears and the channel is unlocked. Notes

• When you select a channel using Category Mode, locked channels are skipped.
• When the receiver is reset to the factory settings, the lock code returns to the default (0000), but the Parental Lock settings are not removed.
• You cannot preset locked channels. If you set the Parental Lock for a preset channel, the preset information for that channel returns to the default.
• You cannot set the Parental Lock for channel 0 or channel 184. Message list SIRIUS Satellite Radio message list Message appears Explanation Antenna Error The antenna is not connected properly. Check the connection between the SiriusConnect Home tuner and the antenna. Acquiring Signal The receiving condition is not good. Remedies Call 888-539SIRI You have not subscribed for the selected — channel. Check Sirius Tuner The SiriusConnect Home tuner is not connected properly. Check all the connections, and then turn the system on again. Also make sure if the AC adaptor supplied with the SiriusConnect Home tuner is connected to a wall socket. Invalid Channel You have entered an invalid channel number. The channel to be tuned-in is void due to the change by the broadcast service, or the receiving condition is not good. Locked Channel The selected channel is locked.

Subscription Updated The subscription information has been — updated. Updating Channels xx% Completed (xx are for integers) Channel information is being updated. — Firmware Updating The SiriusConnect Home tuner firmware is being updated.

There is no text information in the channel. This is not an error. The text information may not be displayed depending on the system condition, for example, right after the system has received a channel. XM Radio message list Message appears Explanation Remedies Check Antenna The XM antenna is not connected to the Check that the XM antenna is securely connected XM Mini-Tuner Dock or the XM to the XM Mini-Tuner Dock and check the antenna cable is damaged. antenna cable for damage. Replace the XM antenna if the cable is damaged. continued 71GB Tuning Try moving the antenna to another location. For details about the antenna location, see the instructions supplied with the SiriusConnect Home tuner. Message appears Explanation Remedies CH Unauthorized You selected an XM channel that is Consult the latest channel guide at blocked or cannot be received with your www.xmradio.com for the current list of channels. XM subscription package. For information on receiving this channel, visit www.xmradio.com or contact XM Satellite Radio at 1-800-967-2346. No Signal The XM Mini-Tuner is not receiving the XM satellite signal. Something may be blocking the XM antenna’s view of the satellites or the antenna is not properly aimed. Check for antenna obstructions and reposition the XM antenna to get better signal reception. Use the Antenna Aiming option to optimize the antenna position (page 66). See instructions supplied with the XM Mini-Tuner and Home Dock for antenna installation information. Loading The XM Mini-Tuner is acquiring audio or program information from the XM satellite signal. This message can also occur in weak XM signal conditions. Note that the receiver may not respond to some buttons while this message is displayed. This message should disappear in a few seconds in good signal conditions. If you see this message often, reposition the XM antenna for better signal reception. Use the Antenna Aiming option to optimize the antenna position (page 66). Off Air You selected an XM channel is not currently broadcasting. Check back later; in the mean time, select another channel. (space)–––– No artist name or song title is available No action required for this selection. CH Unavailable The selected channel is not available. The channel may have been reassigned to a different channel number. This message may occur initially with a new radio or a radio that has not received XM’s signal for an extended period. Consult the latest channel guide at www.xmradio.com for the current list of channels. For cases of a new radio or a radio that has not received XM’s signal for an extended period, allow the radio to receive the XM satellite signal for at least 5 minutes and then try to select the channel again. Check XM Tuner The XM Mini-Tuner is not installed or Confirm the XM Mini-Tuner is fully seated in the not fully seated in the XM Mini-Tuner dock and check the XM Mini-Tuner dock cable is Dock or the XM Mini-Tuner dock is not connected to the receiver. connected to the receiver. 72GB Enjoying Surround Sound Playing back with 2-channel sound You can switch the output sound to 2-channel sound regardless of the recording formats of the software you are using, the playback component connected, or the sound field settings of the receiver. Enjoying Surround Sound 2CH/ A.DIRECT Press 2CH/A.DIRECT repeatedly to select the 2-channel sound mode of the sound output you want. 2CH mode Effect 2ch Stereo The receiver outputs the sound from the front left/right speakers only. There is no sound from the subwoofer. Standard 2 channel stereo sources completely bypass the sound field processing and multi-channel surround formats are downmixed to 2 channel. 2ch Analog Direct You can switch the audio of the selected input to 2 channel analog input. This function enables you to enjoy high quality analog sources. When using this function, only the volume and front speaker balance can be adjusted. Note No sound is output from the subwoofer in the 2ch Stereo mode. To listen to 2 channel stereo sources using the front left/right speakers and a subwoofer, select “A.F.D. Auto.” When you select “A.F.D. Auto,” the receiver will generate a low frequency signal for output to the subwoofer from a 2 channel signal, even if there is no L.F.E. signal. 73GB Playing back with multi-channel surround The Auto Format Direct (A.F.D.) mode allows you to listen to higher fidelity sound and select the decoding mode for listening to a 2 channel stereo sound as multi-channel sound. AMP A.F.D. V/v/b, MENU Press A.F.D. repeatedly to select the A.F.D. mode you want. A.F.D. mode Multi-channel audio after decoding Effect A.F.D. Auto (Detecting automatically) Presets the sound as it was recorded/encoded without adding any surround effects. Multi Stereo (Multi Stereo) Outputs 2 channel left/right signals from all speakers. Enhanced Surround

You can select the surround sound effect you want. For details on available surround sound effects and how to set one, see “Setting a multi-channel surround sound effect” (page 75). 74GB Setting a multi-channel surround sound effect

Start playing a sound source you want to listen to (CD, DVD, etc.). Press AMP. The receiver can be operated using the remote.

Press V/v repeatedly to select “ Settings,” then press

The Settings menu list appears on the TV screen.

Press V/v repeatedly to select “Surround,” then press or b.

Press V/v repeatedly to select “Enhanced Sur Mode,” then press

Press V/v repeatedly to select the A.F.D. mode you want, then press or b. A.F.D. mode Multi-channel audio after decoding PLII* 5-channel signals Performs Dolby Pro Logic II mode decoding. This setting is ideal for movies encoded in Dolby Surround. In Addition, this mode can reproduce sound in 5.1 channel system for watching videos of overdubbed or old movies. PLIIx* 7-channel signals Performs Dolby Pro Logic IIx mode decoding. This setting is ideal for movies encoded in Dolby Surround. In addition, this mode can reproduce sound in 7.1 channel system for watching videos of overdubbed or old movies. Neo:6 Cinema 7-channel signals Performs DTS Neo:6 Cinema mode decoding. Neo:6 Music 7-channel signals Performs DTS Neo:6 Music mode decoding. This setting is ideal for normal stereo sources such as CDs. Neural-THX 7-channel signals Next generation of Neural-THX® Surround. In addition to stereo enhancement processing and pure discrete 5.1 surround sound, now capable of full 360° 7.1 surround sound playback from Neural-THX® Surround encoded content. Effect

• You can select “PLII” when there is no surround back speaker on the Speaker Pattern menu, or you can select “PLIIx” when there is a surround back speaker. You cannot select both settings at the same time. continued 75GB Enjoying Surround Sound The menu for surround sound effect appears. The menu is displayed on the TV screen. Notes
• This function does not work when the multichannel input is selected.
• This function does not work when DTS-HD signals with a sampling frequency of higher than 48 kHz are being received.
• This function does not work when Dolby TrueHD signals with a sampling frequency of higher than 96 kHz are being received.
• If you set up the sound field effect while the receiver is receiving signals with a sampling frequency of higher than 48 kHz, the signals will always be played back at either 44.1 kHz or 48 kHz.
• If you set up the sound field during DTS 96/24 signal reception, the signal will be played back only at 48 kHz.
• The beginning of the sound stream may be dropped out when Neural-THX processing is turned on or off. Tips
• We usually recommend “A.F.D. Auto.”
• You can identify the encoding format of DVD software, etc., by looking at the logo on the package.
• Dolby Pro Logic IIx decoding is effective, when 2 channel or 5.1 channel signals are input.
• Neural-THX is effective when 2 channel or

5.1 channel signals are input.

76GB Enjoying a surround effect for music You can take advantage of surround sound simply by selecting one of the receiver’s preprogrammed sound fields. They bring the exciting and powerful sound of concert halls into your home. Press MUSIC repeatedly to select the surround effect you want for music. Sound field Effect D.Concert Hall A Uses 3D sound imaging to reproduce the sound characteristics of a concert hall, which simulates a large sound stage produced by reflectivity. D.Concert Hall B Uses 3D sound imaging to reproduce the sound characteristics of a concert hall, which simulates resonant and unique reverberative sound. Jazz Club Reproduces the acoustics of a jazz club. Live Concert Reproduces the acoustics of a 300-seat live house. Stadium Reproduces the feeling of a large open-air stadium. Sports Reproduces the feeling of sports broadcasting. Portable Audio Reproduces a clear enhanced sound image from your portable audio device. This mode is ideal for MP3 and other compressed music. continued 77GB Enjoying Surround Sound MUSIC To listen to music through headphones connected to the receiver Sound field Effect Headphone (2ch) This mode is selected automatically if you use headphones when “2ch Stereo” mode or A.F.D. mode is selected. Standard 2 channel stereo sources completely bypass the sound field processing and multi-channel surround formats are downmixed to 2 channels. Headphone Theater DCS This mode is selected automatically when you use headphones when sound field is selected for movie/music. It allows you to experience a theater-like environment while listening through a pair of headphones. Headphone (Direct) Outputs the analog signals without processing by the tone, sound field, etc. Headphone (Multi) This mode is selected automatically if you use headphones when the multichannel input is selected. Outputs the front analog signals from the MULTI CHANNEL INPUT jacks. To turn off the surround effect for MUSIC Press 2CH/A.DIRECT or A.F.D. Notes

• The sound fields for music do not work when the multi-channel input is selected.
• The sound fields for music do not work when DTSHD signals with a sampling frequency of higher than 48 kHz are being received.
• The sound fields for music do not work when Dolby TrueHD signals with a sampling frequency of higher than 96 kHz are being received.
• If you set up the sound field during DTS 96/24 signal reception, the signal will be played back only at 48 kHz.
• If you set up the sound field effect while the receiver is receiving signals with a sampling frequency of higher than 48 kHz, the signals will always be played back at either 44.1 kHz or 48 kHz.
• When one of the sound fields for music is selected, no sound is output from the subwoofer if all the speakers are set to “LARGE” in the Speaker settings menu. However, the sound will be output from the subwoofer if the digital input signal contains L.F.E. signals, or if the front or surround speakers are set to “SMALL,” the sound field for movie is selected, or “Portable Audio” is selected. 78GB Enjoying a surround effect for movies You can take advantage of surround sound simply by selecting one of the receiver’s preprogrammed sound fields. They bring the exciting and powerful sound of movie theaters into your home. Press MOVIE repeatedly to select the surround effect you want for movies. Sound field Effect Cinema Studio EX A DCS Reproduces the sound characteristics of the Sony Pictures Entertainment “Cary Grant Theater” cinema production studio. This is a standard mode, great for watching almost any type of movie. Cinema Studio EX B DCS Reproduces the sound characteristics of the Sony Pictures Entertainment “Kim Novak Theater” cinema production studio. This mode is ideal for watching science-fiction or action movies with lots of sound effects. Cinema Studio EX C DCS Reproduces the sound characteristics of the Sony Pictures Entertainment scoring stage. This mode is ideal for watching musicals or films where orchestra music is featured in the soundtrack. V.Multi Dimension DCS Creates many virtual speakers from a single pair of actual surround speakers. To turn off the surround effect for MOVIE Press 2CH/A.DIRECT or A.F.D. continued 79GB Enjoying Surround Sound MOVIE Notes
• The sound fields for movies do not work when the multi-channel input is selected.
• The sound fields for movies do not work when DTS-HD signals with a sampling frequency of higher than 48 kHz are being received.
• The sound fields for movies do not work when Dolby TrueHD signals with a sampling frequency of higher than 96 kHz are being received.
• If you set up the sound field during DTS 96/24 signal reception, the signal will be played back only at 48 kHz.
• If you set up the sound field effect while the receiver is receiving signals with a sampling frequency of higher than 48 kHz, the signals will always be played back at either 44.1 kHz or 48 kHz.
• The effects provided by the virtual speakers may cause increased noise in the playback signal.
• When listening with sound fields that employ the virtual speakers, you will not be able to hear any sound coming directly from the surround speakers. Tips
• Sound fields with DCS marks use DCS technology. See “Glossary” (page 132).
• When the sound field’s DCS mark is selected, the Digital Cinema Sound lamp lights up on the display. 80GB Digital audio formats supported by the receiver Digital audio formats that this receiver can decode depend on digital audio input jacks for the components connected. This receiver supports the following audio formats. Audio format Maximum number of channels Connection of the playback component and the receiver COAXIAL/OPTICAL HDMI 5.1ch

Multi channel Linear PCM a) a)Audio signals are output in another format if the playback component does not correspond to the format. For details, refer to the operating instructions of the playback component. b)Signals with a sampling frequency of higher than 96 kHz are played back at 96 kHz or 88.2 kHz. 82GB Using Multi-zone Features What you can do with the Multi-zone function You can enjoy images and sounds from a component connected to the receiver in a zone (zone 2 or zone 3) other than the main zone. For example, you can watch the DVD in the main zone and listen to the CD in zone 2 or zone 3. When using an IR repeater (not supplied), you can operate both a component in the main zone and Sony receiver in zone 2 or zone 3 from zone 2 or zone 3. Using Multi-zone Features To operate the receiver from zone 2 or zone 3 You can operate the receiver without pointing the remote toward the IR repeater of the receiver if you connect an IR repeater (not supplied) to the IR REMOTE jack. Use an IR repeater when you install the receiver in a place where signals from the remote cannot reach. 83GB Making a multi-zone connection 1:Zone 2 connections 1 Outputs sound from speakers in zone 2 using the SURROUND BACK SPEAKERS terminals of the receiver. Main zone Zone 2 STR-DA4400ES

RM-AAL016 A IR repeater (not supplied) B Speakers C Sony Amplifier/Receiver

• You can also connect to the COMPONENT VIDEO ZONE 2 OUT jack. 84GB 2:Zone 3 connections Main room Zone 3

RM-AAL016 Using Multi-zone Features A IR repeater (not supplied) B Speakers C Sony Amplifier/Receiver 85GB

Press V/v to select “Speaker Pattern,” to select the pattern that has no surround back speakers.

Press V/v to select “ZONE2,” then press

Setting the speakers in zone 2 When the speakers in zone 2 are connected to the SURROUND BACK SPEAKERS terminals of the receiver (page 84), make the setting so that the sound selected in zone 2 is output from the speakers connected to the SURROUND BACK SPEAKERS terminals. AMP Press V/v repeatedly to select “Sur Back Assign,” then press

MENU Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select “ Settings,” then press

Press V/v repeatedly to select “Speaker,” then press or b. 86GB Switching the zone setting of the remote The remote commanders are initially set to be used in zone 2. If you want to use them in zone 3, switch the zone setting of the remote. RM SET SHIFT ?/1 Operating the receiver from another zone (ZONE 2/ZONE 3 operations) The following operations are described for connecting an IR repeater and operating the receiver in zone 2 or zone 3. When an IR repeater is not connected, use this receiver in the main zone. ZONE ?/1 2, 3 ZONE

Input buttons Press ?/1 while pressing RM SET UP. The AMP and ZONE buttons flash.

Press ZONE. The AMP button goes off, the ZONE button keeps flashing and the SHIFT button lights up.

Press the numeric button 2 for the zone 2, or 3 for the zone 3 while the ZONE button is flashing. The ZONE button lights up.

MASTER VOL Press ENT/MEM. The ZONE button flashes twice and the remote switches to zone 2 or zone 3 mode.

Turn on the main receiver (this receiver).

Turn on the amplifier in zone 2 or zone 3. continued 87GB Using Multi-zone Features ENT/ MEM

Press ZONE. The remote switches to zone 2 or zone 3. Change the zone setting of the remote to zone 3 in advance (page 87).

Press ?/1. The zone function is activated.

Press one of the input buttons on the remote to select the source signals you want to output. For zone 2, analog video and audio signals are output. For the zone 3, only analog audio signals are output. When you select SOURCE, the signals of the current input of the main zone are output.

Adjust to a suitable volume.

• In the case of illustration 1-1 (page 84), adjust the volume using MASTER VOL +/– on the remote.
• In the case of illustration 1-2 (page 84) or 2 (page 85), adjust the volume using the receiver of zone 2 or zone 3. To finish the zone 2/zone 3 operation Press ?/1 after pressing ZONE. Tips
• Even when this receiver is standby mode (press ?/1 on the remote to turned off this receiver), the receiver in zone 2 or zone 3 remains turned on. To turn off all receivers, press ?/1 and AV ?/1 on the main remote at the same time (SYSTEM STANDBY).
• Only signals from components connected to the analog input jacks are output through the ZONE 2 or ZONE 3 jacks. No signals are output from components connected to only the digital input jacks.
• When SOURCE is selected, the signals input to the MULTI CHANNEL INPUT jacks are not output from the ZONE 2 OUT or ZONE 3 OUT jacks even when the multi-channel input is selected. The analog audio signals of the current function are output. 88GB Using Other Features We recommend that you connect the receiver to products featuring “BRAVIA” Sync. Note Using “BRAVIA” Sync features What is “BRAVIA” Sync? Control for HDMI is a mutual control function standard used by HDMI CEC (Consumer Electronics Control) for HDMI (HighDefinition Multimedia Interface). The Control for HDMI function does not work in the following cases:
• When you connect the receiver to a component which is not correspond with Sony’s Control for HDMI function.
• When you connect the receiver and components using other than HDMI connection. Preparing for the “BRAVIA” Sync To use the “BRAVIA” Sync, turn the Control for HDMI function on for both the receiver and the connected component. The receiver is compatible with the “Control for HDMI-Easy Setting” function. When your TV is compatible with the “Control for HDMI-Easy Setting” function When you connect a Sony TV with the “Control for HDMI-Easy Setting” function, the Control for HDMI function of the receiver can be turned on simultaneously by turning the Control for HDMI function of the TV on. 1 Make sure that the receiver, TV, and playback components are connected using an HDMI cable (not supplied). (The respective components must be compatible with the Control for HDMI function.) 2 Turn on the receiver, TV and playback components. 3 Turn the Control for HDMI function of the TV on. The Control for HDMI function of the receiver and all the connected components are simultaneously turned on. During setup, “SCANNING” appears in the display window of the receiver, and once setting is completed, “COMPLETE” will appear. Wait until the setup is complete. For details on setup of the TV, refer to the operating instructions of your TV. continued 89GB Using Other Features “BRAVIA” Sync is compatible with a Sony TV, Blu-ray Disc/DVD player, AV amplifier, etc., that is equipped with the Control for HDMI function. By connecting Sony components that are compatible with the “BRAVIA” Sync with a HDMI cable (not supplied), operation is simplified as below:
• One-Touch Play: When you play back a component such as a DVD/Blu-ray Disc Player, the receiver and the TV are turned on automatically and switch to the appropriate HDMI input.
• System Audio Control: While watching TV, you can select to output the sound from the TV speaker or the speakers connected to the receiver.
• System Power Off: When you turn off the TV, the receiver and connected components are also turned off simultaneously. Depending on the connected component, the Control for HDMI function may not work. See the operating instructions of the component. Notes
• When you pull out the HDMI cable or change the connection, perform the steps given in “When your TV is compatible with the “Control for HDMIEasy Setting” function” (page 89) or “When your TV is not compatible with the “Control for HDMIEasy Setting” function.”
• When you assign the component video input to the HDMI input using the Input Assign function, you cannot set “Control for HDMI” to “ON.”
• While “Control for HDMI-Easy Setting” is being set, you cannot use functions such as One-Touch Play or System Audio Control.
• When you set up the receiver using the “Control for HDMI-Easy Setting” from a TV, turn on the TV, the receiver and the playback components beforehand.
• When you set up the receiver using the “Control for HDMI-Easy Setting” from a TV, before you make the “Control for HDMI-Easy Setting” function effective, make the Control for HDMI function of the components that are not compatible with the “Control for HDMI-Easy Setting” function effective. When your TV is not compatible with the “Control for HDMI-Easy Setting” function Turn the Control for HDMI function of the receiver and the connected component on individually. ?/1 AMP HDMI input buttons GUI MODE V/v/b, MENU 1 Perform the steps given in “When your TV is compatible with the “Control for HDMI-Easy Setting” function” (page 89). 2 Press AMP. The receiver can be operated using the remote. 3 Press MENU. The menu is displayed on the TV screen. 4 Press V/v repeatedly to select

Settings,” then press or b. 5 Press V/v repeatedly to select “HDMI,” then press or b. 6 Press V/v repeatedly to select “Control for HDMI,” then press 90GB or b. 7 Press V/v repeatedly to select “ON,” then press The Control for HDMI function of the receiver is activated. 8 Press GUI MODE to exit the GUI menu. If the GUI menu is displayed, the Control for HDMI function of the playback components will not work properly. 9 Press one of the HDMI input buttons to display the image of the playback components for which you want to set the Control for HDMI function. 10Turn the Control for HDMI function of the connected component on. For details on setting the connected component, refer to its operating instructions. 11Repeat steps 9 and 10 to set the Playing back components with one-touch operation (One-Touch Play) By a simple operation (one-touch), components connected to the receiver with HDMI connections start automatically. You can enjoy the sound/image using connected components. Play back a connected component. The receiver and TV are turned on simultaneously, and sound and image are output from the receiver and TV. Note Depending on the TV, the start of the content may not be output. You can enjoy the TV sound from the speakers connected to the receiver by a simple operation. Depending on the TV settings, while you are watching the TV, the receiver turns on and switches to the “TV” function automatically. TV sound is output from the speakers connected to the receiver, and the volume of the TV is minimized simultaneously. You can use the System Audio Control function as follows.

• The sound of the TV is output from the speakers connected to the receiver when you turn the receiver on while the sound is being output from the TV speaker.
• You can adjust the receiver’s volume when you adjust the TV volume. You can also operate this function using the TV menu. For details, see the operating instructions of the TV. Notes
• When “Control for HDMI” is set to “ON,” the “Audio Out” settings in the HDMI settings menu will set automatically depending on the System Audio Control settings.
• When you connect a TV that does not have System Audio Control function, the System Audio Control function does not work.
• If the TV is turned on before turning on the receiver, the TV sound will not be output for a moment. Turning off the receiver with the TV (System Power Off) When you turn the TV off by using the power button on the TV’s remote, the receiver and the connected components turn off automatically. You can also use the receiver’s remote to turn off the TV. continued 91GB Using Other Features Control for HDMI function and to display the image of all the playback components you want to use. Enjoying the TV sound from the speakers connected to the receiver (System Audio Control) AV ?/1 Switching between digital and analog audio

When you connect components to both digital and analog audio input jacks on the receiver, you can fix the audio input mode to either of them, or switch from one to the other, depending on the type of material you intend to watch. Press TV, then press AV ?/1. The TV, receiver and connected components are turned off. AMP Notes

• Set the TV power supply interlock function to on before using the System Power Off function. For details, see the operating instructions of the TV.
• Depending on the status, the connected components may not be turned off. For details, see the operating instructions of the connected components. Input buttons INPUT MODE 92GB

Press the input button. You can also use INPUT SELECTOR on the receiver.

Press AMP. Press INPUT MODE repeatedly to select the audio input mode. The selected audio input mode appears on the TV screen.

• Auto Gives priority to digital audio signals when there are both digital and analog connections. If there are no digital audio signals, analog audio signals are selected.
• Analog Specifies the analog audio signals input to the AUDIO IN (L/R) jacks. Notes (Input Assign) You can reassign video and/or audio signals to another input. Example) Connect the OPTICAL OUT jack of the DVD player to the OPTICAL VIDEO 1 IN jack of this receiver when you want to input the only digital optical audio signals from the DVD player. Connect the component video jack of the DVD player to the COMPONENT VIDEO IN 1/ COMPONENT VIDEO IN 2, or COMPONENT VIDEO IN 3 jack of this receiver when you want to input the video signals from the DVD player. Assign video and/or audio signals to the DVD input jack using “Input Assign” in the Input menu. Using Other Features

• Some audio input modes may not be set up depending on the input.
• When either HDMI input, satellite tuner or DIGITAL MEDIA PORT adapter is selected, “------” appears on the display, and you cannot select other modes. Select an input mode other than the HDMI input, satellite tuner and DIGITAL MEDIA PORT adapter then set the audio input mode.
• When “2ch Analog Direct” is being used, or the multi-channel input is selected, audio input is set to “Analog.” You cannot select other modes. Enjoying the sound/ images from other inputs AMP V/v/B/b, OPTIONS MENU continued 93GB

Press AMP. The receiver can be operated using the remote.

Press MENU. The menu is displayed on the TV screen.

Press V/v repeatedly to select “ Input,” then press or b.

Press V/v to select the input name you want to assign.

Press OPTIONS. The option menu appears.

Press V/v to select “Input Assign,” then press

Press V/v/B/b to select the audio and/or video signals you want to assign to the input selected in step 4, then press

Initial setting When you assign a component video input to the HDMI input via the Input Assign menu, component video signals are not converted to HDMI video signals and are not output from the HDMI OUT jack. Component video signals are output from the COMPONENT VIDEO MONITOR OUT jack. In this case, the resolution of the GUI output is set to “480p” for both component video input and HDMI video input. Notes

• You cannot assign optical signals from an input source to the optical input jacks on the receiver, and you cannot assign coaxial signals from the input source to the coaxial input jacks on the receiver.
• When you assign the digital audio input, the INPUT MODE setting may change automatically.
• You cannot reassign more than one HDMI input to the same input.

• You cannot reassign more than one digital audio input to the same input.
• You cannot reassign more than one component video input to the same input.
• When you assign a component video input to the HDMI input, set “Control for HDMI” to “OFF.” 95GB Using Other Features HDMI3 Using the sleep timer You can set the receiver to turn off automatically at a specified time. Enjoying the surround effect at low volume levels This function allows you to retain a theater like environment at low volume levels. This function can be used with other sound fields. When watching a movie late at night, you will be able to hear the dialog clearly even at a low volume level. AMP SLEEP Press SLEEP repeatedly. Each time you press SLEEP, the display changes cyclically as follows: NIGHT MODE When sleep timer is being used, “SLEEP” lights up in the display window of the receiver.

The receiver can be operated using the remote. Tip To check the remaining time before the receiver turns off, press SLEEP. The remaining time appears on the display. If you press SLEEP again, the sleep timer will be changed. Press AMP.

Press NIGHT MODE. The NIGHT MODE function is activated. The NIGHT MODE is set to on and off as you press NIGHT MODE. Notes

• This function does not work when the multichannel input is selected.
• This function does not work when Dolby TrueHD signals with a sampling frequency of higher than 96 kHz are being received. 96GB

• If the NIGHT MODE function is turned on while the receiver is receiving signals with a sampling frequency of higher than 96 kHz, the signals will always be played back at either 44.1 kHz or 48 kHz. Tip While this function is on, the Bass, Treble, and Effect Levels increase, and “D. Range Comp” is automatically set to “MAX.” Recording using the receiver You can record from a video/audio component using the receiver. Refer to the operating instructions supplied with your recording component. Input buttons You can record onto a MiniDisc or audio tape using the receiver. See the operating instructions supplied with your MD deck or tape deck.

Prepare the playback component for playing. For example, insert a CD into the CD player.

Prepare the recording component. Insert a blank MD or tape into the recording deck and adjust the recording level. continued 97GB Using Other Features Recording onto a MiniDisc or audio tape

Start recording on the recording deck, then start playback on the playback component. Notes

• Sound adjustments do not affect the signal output from the MD OUT jacks.
• The audio input signals from the MULTI CHANNEL INPUT jacks are not output. To record digital sound Connect a component for playback to the digital audio input (OPTICAL IN) jack, and connect the recording component to the OPTICAL MD OUT jack. Recording onto recording media

Prepare the component for playing. For example, insert the video tape you want to copy into the VCR.

Prepare the recording component. Insert a blank video tape, etc., into the recording component (VIDEO 1) for recording.

Start recording on the recording component, then start playback on the playback component. Notes

• Some sources contain copy guards to prevent recording. In this case, you may not be able to record from the sources.
• The audio input signals from the MULTI CHANNEL INPUT jacks are not output.
• Only analog input signals are output from the analog output jack (for recording). 98GB

• Only digital input signals are output from the digital output jack (for recording).
• HDMI sound cannot be recorded. Switching the command mode of the receiver and the remote Switching the command mode of the receiver RM SET SHIFT 1, 2 ?/1 AMP ZONE ENT/ MEM

Press ?/1 while pressing RM SET UP. The AMP and ZONE buttons flash.

Press AMP. The ZONE button goes off, the AMP button keeps flashing and the SHIFT button lights up.

Press the numeric button 1 or 2 while the AMP button is flashing. When you press 1, the command mode is set to AV SYSTEM 1. When you press 2, the command mode is set to AV SYSTEM The AMP button lights up.

Turn on the receiver while pressing 2CH/A.DIRECT. Press ENT/MEM. The AMP button flashes twice, then the command mode setting process is completed. When the command mode is set to “AV2,” “COMMAND MODE [AV2]” appears on the display. When the command mode is set to “AV1,” “COMMAND MODE [AV1]” appears on the display. 99GB Using Other Features You can switch the command mode (COMMAND MODE AV 1 or COMMAND MODE AV 2) of the receiver and the remote. Switch the command mode from the initial setting to the appropriate setting, if other Sony component is operated accidentally by the same remote, when you are operating the receiver using the remote supplied with the receiver. The command modes of both the receiver and the remote are those of the initial setting (COMMAND MODE AV 2). The receiver and the remote, on the contrary, should use the same command mode. If the command modes of the receiver and the remote are different, you cannot use the remote to operate the receiver. Switching the command mode of the main remote commander Switching the command mode of the sub remote commander Using a bi-amplifier connection If you are not using surround back speakers, you can use the SURROUND BACK SPEAKERS terminals for the front speakers for use with a bi-amplifier connection. DISPLAY To connect speakers Front speaker (R) Front speaker (L) MUTING

Press MUTING and at the same time while pressing DISPLAY. Connect the jacks on the Lo (or Hi) side of the front speakers to the FRONT SPEAKERS A terminals, and connect the jacks on the Hi (or Lo) side of the front speakers to the SURROUND BACK SPEAKERS terminals. Make sure that metal fittings of Hi/Lo attached to the speakers have been removed from the speakers. Not doing so may cause a malfunction of the receiver. To set up speakers 1 Press AMP. The receiver can be operated using the remote. 2 Press MENU. The menu is displayed on the TV screen. 100GB 3 Press V/v to select “ press Settings,” then or b. 4 Press V/v to select “Speaker,” then press or b. 5 Press V/v to select “Speaker Pattern,” then press

6 Press V/v to select the appropriate speaker pattern so that there are no surround back speakers. 7 Press RETURN/EXIT O. 8 Press V/v to select “Sur Back Assign,” then press

9 Press V/v to select “BI-AMP,” then press The same signals output from the FRONT SPEAKERS A terminals can be output from the SURROUND BACK SPEAKERS terminals. Using Other Features Notes

• You cannot use the FRONT SPEAKERS B terminals for a bi-amplifier connection.
• When you use the auto calibration function, make the bi-amplifier settings before you perform auto calibration.
• If you make the bi-amplifier settings, the speaker level, balance, and equalizer settings of the surround back speakers become invalid, and those of the front speakers are used.
• Signals output from the PRE OUT jacks are used with the same settings as those of the SPEAKERS terminals.
• If the Speaker Pattern is set to the setting that there are surround back speakers, you cannot make the bi-amplifier settings. 101GB Adjusting Settings Using the setting menu You can adjust the various settings for speakers, surround effects, multi zone, etc. using the setting menu. To display the menu of the receiver on the TV screen, make sure that the receiver is in “GUI MODE” by following the steps in “7: Displaying the GUI menu on the TV screen” (page 41).

Press V/v repeatedly to select “ Settings,” then press b to enter the menu mode. The setting menu list appears on the TV screen. AMP

Press V/v repeatedly to select the menu item you want, then press to enter. Example: When you select “Auto Calibration” V/v/B/b, RETURN/ EXIT O OPTIONS MENU

Press AMP. The receiver can be operated using the remote.

Press V/v repeatedly to select the parameter you want, then press to enter. To return to the previous screen Press RETURN/EXIT O. To exit the menu Press MENU. Setting menu list Menu icon Description Auto Calibration Sets the speaker level or distance and makes the measurement automatically. Speaker Sets the speaker position and impedance manually (page 105). Adjusts the sound field (surround effect) you choose (page 109).

Adjusts the equalizer (bass/ treble sound) (page 110). Multi Zone Makes the settings for Multi Zone (page 111). Audio Sets various sound items (page 112). Video Adjusts the resolution of analog video signals (page 113). HDMI System Makes settings for sound/ images from components connected to the HDMI jacks (page 115). Sets the screen saver or language of the menu guide display (page 116). Quick Setup Performs Auto Calibration. For details, see “9: Calibrating the appropriate speaker settings automatically (Auto Calibration)” (page 44). Note The measurement results will be overwritten and saved on Position 1 in the Enhanced Setup menu. Enhanced Setup You can register three patterns for “Seating Position” depending on the seating positions, listening environment, and measurement conditions. You can also select a calibration type to compensate the each speaker. To register more than one set of settings for the listening environment You can select the seating position you want and register the measurement results of the auto calibration for that seating position. 1 Press V/v repeatedly on the Enhanced Setup screen to select the “Seating Position” for which you want to register the measurement results.

• Pos. (Position) 3 2 Press b to perform auto calibration. To set a compensation type for the speakers You can select the compensation type to be used for the speakers for each Seating Position. continued 103GB Adjusting Settings Surround Auto Calibration 1 Press V/v repeatedly to select the “Seating Position” for which you want to set the speaker compensation type, then press

2 Press V/v repeatedly to select “Calibration Type” you want, then press

• Full Flat Makes the measurement of frequency from each speaker flat.
• Engineer Sets the frequency to match that of the Sony listening room standard.
• Front Reference Adjusts the characteristics of all the speakers to match the characteristics of the front speakers.
• OFF Sets the auto calibration EQ to off. Note You cannot set “Calibration Type” for “Seating Position” for which the measurement results have not been registered. To confirm the equalizer setting for the Seating Position 1 Press V/v repeatedly to select the “Seating Position” for which you want to confirm the equalizer setting. 2 Press OPTIONS. The option menu appears. 3 Press V/v repeatedly to select “EQ Curve,” then press

4 Press B/b repeatedly to select the speaker on the screen for which you want to confirm the equalizer setting.

• SURROUND BACK 104GB To name the Seating Position 1 Press V/v repeatedly to select the “Seating Position” for which you want to name. 2 Press OPTIONS. The option menu appears. 3 Press V/v repeatedly to select “Name Input,” then press The soft keyboard appears on the screen. 4 Press V/v/B/b/ to select a character one by one, then press

Speaker settings You can adjust each speaker manually. You can also adjust the speaker levels after the auto calibration is completed. Note The Speaker settings are only for the current “Seating Position.” Impedance You can set the speaker impedance. For details, see “8: Setting the speakers” (page 42). x4Ω x8Ω Center Mix You can set the analog downmix settings on or off. x OFF If there is a center speaker connected, this setting is set to “OFF” automatically. x ON We recommend you set “Center Mix” to “ON” to enjoy digital audio with high quality sound when you do not have a center speaker connected. Analog downmix works when you set “Center Mix” to “ON.” This setting is also effective to input signals from the MULTI CHANNEL INPUT jacks. Sur Back Assign You can make settings for the surround back speaker(s). Speaker Pattern x OFF If you have not connected surround back speakers, select “OFF.” x BI-AMP To select the speaker pattern 1 Press V/v repeatedly to select “Speaker Pattern,” then press The Speaker Pattern screen appears. 2 Press V/v to select the speaker pattern you want, then press

3 Press RETURN/EXIT O. If you connect front speakers in a bi-amplifier configuration, select “BI-AMP” (page 100). x ZONE2 If you are using the surround back speakers in zone 2, select “ZONE2.” When you select “ZONE2,” the input to the SUR BACK jacks of the MULTI CHANNEL INPUT is invalid (page 86). Note Set “Sur Back Assign” to “OFF,” then connect the surround back speakers to this receiver when you want to change the connection from a bi-amplifier connection or a zone 2 connection to a surround back speakers connection. Re-set up the speakers after you connect the surround back speakers. Refer to “Auto Calibration” (page 44) or “Manual Setup” (page 106). 105GB Adjusting Settings Select “Speaker Pattern” according to the speaker system which you are using. You do not need to select the speaker pattern after auto calibration. Manual Setup You can adjust each speaker manually on the Manual Setup screen. You can also adjust the speaker levels after the auto calibration is completed. To adjust the speaker level You can adjust each speaker’s level (center, surround left/right, surround back left/right, subwoofer). 1 Press V/v/B/b repeatedly to select the speaker on the screen for which you want to adjust the level, then press

2 Press B/b repeatedly to select “Level:,” then press

3 Press V/v to set the level of the selected speaker, then press You can adjust the level from –20 dB to +10 dB in 0.5 dB steps. For the front left/right speakers, you can adjust the balance on either side. You can adjust the front left level from FL–10.0 dB to FL+10.0 dB in 0.5 dB steps. You can also adjust the front right level from FR–10.0 dB to FR+10.0 dB in 0.5 dB steps. Note When one of the sound fields for music is selected, no sound is output from the subwoofer if all the speakers are set to “LARGE.” However, the sound will be output from the subwoofer if the digital input signal contains L.F.E. signals, or if the front or surround speakers are set to “SMALL,” the sound field for movie is selected, or “Portable Audio” is selected. 106GB To adjust the distance from the seating position to each speaker You can adjust the distance from the seating position to each speaker (front left/right, center, surround left/right, surround back left/ right, subwoofer.) 1 Press V/v/B/b repeatedly to select the speaker on the screen for which you want to adjust the distance from the seating position, then press

2 Press B/b repeatedly to select a “Distance:,” then press

3 Press V/v to set the distance of the selected speaker, then press You can adjust the distance from 3 feet 3 inches to 32 feet 9 inches (1.0 meter to 10.0 meters) in 1 inch (1 cm) steps. To adjust the size of each speaker You can adjust each speaker’s (front left/right, center, surround left/right, surround back left/ right) size. 1 Press V/v/B/b repeatedly to select the speaker on the screen for which you want to adjust the size, then press

2 Press B/b repeatedly to select a “Size:,” then press

3 Press V/v to set the size of the selected speaker, then press

• LARGE If you connect large speakers that will effectively reproduce bass frequencies, select “LARGE.” Normally, select “LARGE.”
• SMALL If the sound is distorted, or you feel a lack of surround effects when using multichannel surround sound, select “SMALL” to activate the bass redirection circuitry and output the bass frequencies of each channel from the subwoofer or other “LARGE” speakers. Tips
• The “LARGE” and “SMALL” settings for each speaker determine whether the internal sound processor will cut the bass signal from that channel. When the bass is cut from a channel, the bass redirection circuitry sends the corresponding bass frequencies to the subwoofer or other “LARGE” speakers. However, since bass sound has a certain amount of directionality, it is best not to cut it, if possible. Therefore, even when using small speakers, you can set them to “LARGE” if you want to output the bass frequencies from that speaker. On the other hand, if you are using a large speaker, but prefer not to have bass frequencies output from that speaker, set it to “SMALL.” If the overall sound level is lower than you prefer, set all speakers to “LARGE.” If there is not enough bass, you can use the equalizer to boost the bass levels.
• The surround back speakers will be set to the same setting as that of the surround speakers.
• When the front speakers are set to “SMALL,” the center, surround, and surround back speakers are also automatically set to “SMALL.”
• If you do not use the subwoofer, the front speakers are automatically set to “LARGE.” Lets you set the bass crossover frequency of speakers that has been set to “SMALL” in the Speaker menu. Measured speaker crossover frequency is set for each speaker after the auto calibration.

Press B/b to select the speaker on the screen you want to adjust. Press V/v to adjust the value, then press b. You can select the test tone type on the Test Tone screen. Tips

• To adjust the level of all speakers at the same time, press MASTER VOL +/–.
• The adjusted value is shown on the display during adjustment. To output a test tone from each speaker You can output a test tone from the speakers in sequence. 1 Press B/b to select “Test Tone,” then press The Test Tone screen appears. 2 Press V/v to adjust the parameter, then press

• AUTO The test tone is output from each speaker in sequence.
• L, C, R, SR, SBR, SBL, SL, SW You can select which speakers will output the test tone. 3 Press V/v to adjust “Level:,” then press

To output a test tone from adjacent speakers You can output a test tone from adjacent speakers so that you can adjust the balance between the speakers. 1 Press B/b to select “Phase Noise,” then press The Phase Noise screen appears. 2 Press V/v to adjust the parameter, then press

• L/R, L/C, C/R, R/SL, R/SR, SR/SL, SR/ SBR, SBR/SBL, SR/SB, SBL/SL, SB/ SL, SL/L, L/SR Lets you output the test tone sequentially continued 107GB Adjusting Settings Crossover Freq (Speaker crossover frequency) Test Tone from adjacent speakers. Some items may not be displayed, depending on the setting of the speaker pattern. 3 Press V/v to adjust “Level:,” then press

To output the source sound from adjacent speakers You can output the source sound from adjacent speakers so that you can adjust the balance between the speakers. 1 Press B/b to select “Phase Audio,” then press The Phase Audio screen appears. 2 Press V/v to adjust the parameter, then press

• L/R, L/C, C/R, R/SL, R/SR, SR/SL, SR/ SBR, SBR/SBL, SR/SB, SBL/SL, SB/ SL, SL/L, L/SR Lets you output front 2 channel source sound (instead of the test tone) sequentially from adjacent speakers. Some items may not be displayed, depending on the setting of the speaker pattern. 3 Press V/v to adjust “Level:,” then press

When a test tone is output from a different speaker than the speaker displayed on the screen The speaker pattern to the connected speaker is not set up correctly. Make sure the speaker connection and the speaker pattern match. D. Range Comp (Dynamic range compressor) Lets you compress the dynamic range of the soundtrack. This may be useful when you want to watch movies at low volumes late at night. Dynamic range compression is possible with Dolby Digital sources only. x OFF The dynamic range is not compressed. x AUTO The dynamic range is compressed automatically. x STD The dynamic range is compressed as intended by the recording engineer. x MAX The dynamic range is compressed dramatically. Tips When a test tone is not output from the speakers

• The speaker cords may not be connected securely. Check to see if they are connected securely and cannot be disconnected by pulling on them slightly.
• The speaker cords may have the short-circuit problem. 108GB

• Dynamic range compressor lets you compress the dynamic range of the soundtrack based on the dynamic range information included in the Dolby Digital signal.
• “STD” is the standard setting, but it only enacts light compression. Therefore, we recommend using the “MAX” setting. This greatly compresses the dynamic range and lets you view movies late at night at low volumes. Unlike analog limiters, the levels are predetermined and provide a very natural compression. Distance Unit (Distance unit) Lets you select the unit of measure for setting distances. x meter The distance is displayed in meters. x feet Surround settings You can adjust the sound effect on the Sound Filed Setup screen. Note The setup items you can adjust on each menu vary depending on the sound field. The distance is displayed in feet. Sound Field Setup You can select the surround sound field and adjust the effect level on the Sound Field Setup screen. For details on the sound field, see “Enjoying Surround Sound” (page 73). To select the surround sound field 1 Press V/v repeatedly to select “Sound Field Select,” then press

2 Press V/v repeatedly to select the surround sound you want, then press. Field Select,” then press

2 Press V/v repeatedly to select the surround sound you want, then press

3 Press V/v to select “Effect Level.”

50% 80% 100% 150% Note Effect Level adjustment is valid only when “Cinema Studio EX DCS ” is selected. 109GB Adjusting Settings To adjust the effect level 1 Press V/v repeatedly to select “Sound Enhanced Sur Mode You can select the decoding mode for the sound field. For details on the decoding modes available, see “Setting a multi-channel surround sound effect” (page 75). EQ settings You can use following parameters to adjust the tonal quality (bass/treble level) of front, center and surround back speakers. Bass Treble x PLII Performs Dolby Pro Logic II decoding. A source recorded in 2 channel format is decoded into 5.1 channels. Level (dB) Frequency (Hz) x PLIIx Performs Dolby Pro Logic IIx decoding. Notes x Neo:6 Cinema Performs DTS Neo:6 Cinema mode decoding. x Neo:6 Music Performs DTS Neo:6 Music mode decoding. This setting is ideal for normal stereo sources such as CDs. x NEURAL-THX Next generation of Neural-THX® Surround. In addition to stereo enhancement processing and pure discrete 5.1 surround sound, now capable of full 360° 7.1 surround sound playback from Neural-THX® surround encoded content. Note You can select “PLII” when there is no surround back speaker on the Speaker Pattern menu, while you can select “PLIIx” when there is a surround back speaker. You cannot select both settings at the same time. 110GB

• This function does not work in the following cases. – The multi-channel input is selected. – Sound Field is set to “2ch Analog Direct.”
• This function does not work when Dolby TrueHD signals with a sampling frequency of higher than 96 kHz are being received.
• If the equalizer is adjusted while the receiver is receiving signals with a sampling frequency of higher than 96 kHz, the signals will always be played back at either 44.1 kHz or 48 kHz. To adjust the equalizer on the EQ screen 1 Press B/b to select the speaker on the screen you want to adjust, then press

2 Press B/b to select “Bass” or “Treble.” 3 Press V/v to adjust the gain, then press

Multi Zone settings Adjusting the volume for zone 2/ zone 3 You can make settings for the main zone, zone 2 or zone 3. You can adjust the volume in the main zone. If “Sur Back Assign” is set to “ZONE2” in the Speaker settings menu, you can also adjust the volume of zone 2. Turning the power on or off for zone 2/zone 3 You can turn zone 2 or zone 3 operation on or off. “Main” (this receiver) is always selected. You cannot turn it off.

Press V/v to select the zone you want to turn on or off, then press Press V/v to select “ON” or “OFF,” then press

Press V/v to select the zone for which you want to adjust the volume, then press

Press B/b to select “Volume,” then press

Selecting the criteria for output of signals to control each zone You can turn the receiver on or off in another zone, or select various options for use of the 12V Trigger function.

Press V/v to select the zone you want, then press

You can select the source that is output to the zone. Audio and video signals are output to zone 2, while only audio signals are output to zone 3.

Press B/b to select “12V Trigger,” then press

Press V/v to select the zone to which you want to output audio/video signals, then press

Press B/b to select “Input,” then press

Lets you turn off output of 12V triggers even when the main receiver is turned on. Lets you turn the output of 12V triggers on or off manually using the CIS command of the IR remote. x ZONE Lets you turn the output of 12V triggers on or off based on whether the selected zone is turned on or off. continued 111GB Adjusting Settings Selecting the output source for each zone x INPUT (for “Main” only) Lets you turn on the output of 12V triggers when the preset input is selected. When you select “Input,” the setting display which sets each input trigger to on/off appears. Press V/v to select the input, then press check the box. x MAIN (for “Zone2” and “Zone3” only) Lets you link operation of trigger in zone 2 or zone 3 to the main receiver. Tips

• Even when this receiver is standby mode (press ?/1 on the remote to turned off this receiver), the receiver in zone 2 or zone 3 remains turned on.
• Only signals from components connected to the analog input jacks are output through the ZONE 2 OUT/ZONE 3 OUT jacks. No signals are output from components connected to only the digital input jacks.
• When SOURCE is selected, the signals input to the MULTI CHANNEL INPUT jacks are not output from the ZONE 2 OUT or ZONE 3 OUT jacks even when the multi-channel input is selected. The analog audio signals of the current function are output.
• When “Tuner” is selected; the same type of radio station (FM/AM) selected in the main zone is set in zone 2 and zone 3. However, you can select the input other than “Tuner” in zone 2 and zone 3.
• When the receiver in the main zone is turned off, or an input source other than “Tuner” is selected, you can select a radio station from AM or FM in zone

2. When the receiver in the main zone and zone 2

are turned off, you can select a radio station from AM or FM in zone 3. When two of the receivers in the main zone, zone 2 or zone 3 are turned off, you can select a broadcast from FM/AM/XM/SIRIUS in one zone in which the receiver is turned on. Audio settings You can make settings for the audio to suit your preference. A/V Sync (Synchronizes audio and video output) Lets you delay the output of audio to minimize the time gap between audio output and visual display. x 0 ms – 300 ms You can adjust the delay from 0 ms to 300 ms in 10 ms steps. Notes

• This function is useful when you use a large LCD or plasma monitor or a projector.
• This function does not work in the following cases. – The multi-channel input is selected. – “2ch Analog Direct” is being used. Dual Mono (Digital broadcast language selection) Lets you select the language you want to listen to during a digital broadcast. This feature only functions for Dolby Digital sources. x MAIN/SUB Sound of the main language will be output through the front left speaker, and sound of the sub language will be output through the front right speaker simultaneously. x MAIN Sound of the main language will be output. x SUB Sound of the sub language will be output. 112GB Decode Priority (Digital audio input decoding priority) Lets you specify the input mode for the digital signal input to the DIGITAL IN jacks or HDMI IN jacks. x PCM When signals from the DIGITAL IN jack are selected, PCM signals are given priority (to prevent interruption when playback starts). However, when other signals are input, there may be no sound, depending on the format. In this case, set this item to “AUTO.” When signals from the HDMI IN jack are selected, only PCM signals are output from the connected player. When signals in any other format are received, set this item to “AUTO.” x AUTO Automatically switches the input mode between Dolby Digital, DTS, DSD or PCM. Note Makes settings for video. Resolution (Converting video signals) Lets you convert the resolution of analog video input signals. For details on video input/output conversion classified according to the Resolution menu settings, see Figure 1 on page 114. x AUTO x DIRECT Lets you output analog video input signals without conversion. x 480i/576i x 480p/576p x 720p Adjusting Settings Even when “Decode Priority” is set to “PCM,” the sound may be interrupted at the very beginning of the first track due to signals on the CD being played back. Video settings x 1080i x 1080p continued 113GB Figure 1 “Resolution” menu setting Output from HDMI OUT jack Input signals DIRECT AUTO (initial setting) 480i/576i 480p/576p 720p, 1080i 1080p MONITOR MONITOR VIDEO COMPONENT OUT jack VIDEO OUT jacks Component video

z : Video signals are converted and output through the video converter. a : The same type of signal as that of the input signal is output. Video signals are not converted. – : Video signals are not output. a)The resolution is set automatically, depending on the connected monitor. b)When the TV is connected to jacks other than the HDMI jacks, 480i/576i signals are output when “Resolution” is set to “AUTO.” c)480p/576p signals are output even if 480i/576i is set. d)Video signals without copyright protection are output based on the settings menu. Video signals with copyright protection are output as 480p. Notes

• Video signals are not output from the COMPONENT VIDEO MONITOR OUT or MONITOR VIDEO OUT jacks when the monitor, etc., is connected to the HDMI OUT jack.
• If you select a resolution that the connected TV does not support in the “Resolution” menu, the images from the TV cannot be output correctly.
• Converted HDMI image output signals do not support “x.v.Color (x.v.Colour).”
• Converted HDMI image output signals do not support Deep Color. 114GB x AMP HDMI settings Makes the required settings for components connected to the HDMI jacks. The HDMI audio signals from the playback component is only output to speakers connected to the receiver. The multi-channel sound can be played back as it is. Note Control for HDMI Lets you turn the function which controls components connected to the HDMI jack using an HDMI cable on or off. x OFF x ON Note When you set “Control for HDMI” to “ON,” “Audio Out” may be changed automatically. Audio Out (Setting HDMI audio input) Audio signals are not output from the TV’s speakers when “Audio Out” is set to “AMP.” Subwoofer Level Lets you set the level of the subwoofer to 0 dB or +10 dB when PCM signals are input via an HDMI connection. You can set the level for each HDMI input independently. x 0 dB x AUTO Automatically sets the level to 0 dB or +10 dB depending on the frequency. x +10 dB Adjusting Settings Lets you set the HDMI audio signals output from the playback component connected to the receiver via an HDMI connection. x TV+AMP The sound is output from TV’s speaker and the speakers connected to the receiver. Notes
• The sound quality of the playback component depends on the TV’s sound quality, such as the number of channels, and the sampling frequency, etc. When the TV has stereo speakers, the sound output from the receiver is also stereo as that of the TV, even if you play multi-channel source.
• When you connect the receiver to a video component (projector, etc.), sound may not be output from the receiver. In this case, select “AMP.”
• When you select the input that you have assigned the HDMI input, sound does not output from the TV. 115GB System settings Customizes the settings of the receiver. Screen Saver Operating without connecting to a TV You can operate the receiver using the display window of the receiver even if the TV is not connected to the receiver. Lets you activate the screen saver function for the GUI menu on the TV connected to the receiver. AMP x OFF The screen saver function is disabled. x ON When there has been no operation attempted for 15 minutes, the screen saver function is activated automatically. RS-232C Control Lets you use this menu for the zone 2/zone 3 operation. x OFF x ON V/v/b, RETURN/ EXIT O MENU Language Selects the language for the messages on the screen. x English x Español x Français x Deutsch Using the menu in the display window If “GUI MODE” is displayed in the display window of the receiver, press GUI MODE to switch the display mode of the menu to “DISPLAY MODE.”

Turn on the receiver. Press AMP. The receiver can be operated using the remote. 116GB

Press MENU. The menu is displayed in the display window of the receiver. Example: When you select “Level Settings”

Press V/v repeatedly to select the menu, then press or b.

Press V/v repeatedly to select the menu item, then press The parameter appears in brackets.

Press V/v repeatedly to select the parameter you want, then press The parameter is entered and the brackets disappear from the display. Adjusting Settings Tip To return to the previous step, press RETURN/EXIT

1.0 to 10.0 (m) (0.1 m step)

[xxxxxxxxx] SUB WOOFER [xxxxxxxxx] meter, feet feet 40 to 200 (10 Hz step)

CNT A.DOWN MIX [xxx] OFF, ON OFF SP IMPEDANCE [xohm] 4ohm, 8ohm 8ohm Adjusting Settings DISTANCE UNIT [xxxxx] FR CROSSOVER* [xxxxx]

PARENTAL LOCK [xxx] LOCK CODE EDIT ?

OFF, CTRL, ZONE, INPUT

OFF 12V TRIG. ZONE2 [xxxxx]

OFF, CTRL, ZONE, MAIN

OFF 12V TRIG. ZONE3 [xxxxx]

OFF, CTRL, ZONE, MAIN

OFF RS-232C CONTROL [xxx] OFF, ON

NAME IN ? [xxxxxxxx] To change the display You can check the sound field, etc., by changing the information on the display. 1 Press AMP. The receiver can be operated using the remote. 2 Select the input for which you want to check the information. 3 Press DISPLAY repeatedly. Adjusting Settings Each time you press DISPLAY, the display will change as follows. Input you selected t Sound field type t Stream Information t Input name ... When listening to FM and AM radio Station name t Frequency t Sound field type t Volume... Index name appears only when you have assigned one to the input or preset station. Index name does not appear when only blank spaces have been entered. When tuning in a channel from a satellite tuner Channel name t Channel number t Category t Artist name t Song title t Composer name (SIRIUS only) t Signal strength t Sound field type 121GB Using the Remote Operating each component using the remote You can control Sony or non-Sony components you are using with the remote supplied with the receiver. The remote is initially set to control Sony components. When you change the settings of the remote according to the components you are using, you can control non-Sony and other Sony components that the remote is initially unable control (page 124). Operating the components connected to the receiver

Press the input button that matches the connected component that you want to operate.

Press the appropriated buttons to use the function listed in the table below. Note You may not be able to operate some functions for the components you are using. 122GB Table of buttons used to control each component Component TV VCR Button DVD Blu-ray HDD PSX Video Digital DSS Digital Tape deck DAT CD DIGITAL player, Disc Recorder CATV (UC) satellite/ A/B deck player, MEDIA DVD/ Player player, terminal PORT terrestrial VHS (UC) receiver deck device combo player (EURO) AV ?/1

LD player only. Deck B only. DVD only. Video CD only. 123GB

Programming the remote You can customize the remote to match the components connected to your receiver. You can even program the remote to control nonSony components and also Sony components that the remote is normally unable to control. The procedure below uses as an example a case in which a VCR made by a company other than Sony is connected to the VIDEO 2 IN jacks on the receiver. RM SET

AV ?/1 SHIFT Numeric buttons Input buttons Press the numeric buttons to enter the numeric code (or one of the codes if more than one code exists) corresponding to the component and the maker of the component you want to control. The input button lights up. Note For a TV remote code value, only numbers in the 500’s are valid.

Press ENT/MEM or ENTER. Once the numeric code has been verified, the RM SET UP button flashes twice and the remote automatically exits the programming mode. The input button also turns off. To cancel programming ENT/ MEM

Press AV ?/1 while pressing RM SET UP. The RM SET UP button flashes.

While the RM SET UP button is flashing, press the input button (including TV) for the component you want to control. For example, if you are going to control a VCR connected to VIDEO 2 IN jack, press VIDEO 2. RM SET UP and the input button light up. If you press the button for a component of which you cannot program the remote, such as TUNER, PHONO, DMPORT or SOURCE, etc., the RM SET UP button keeps flashing. 124GB Press RM SET UP during any step. The numeric codes corresponding to the component and the maker of the component Use the numeric codes in the tables below to control non-Sony components and also Sony components that the remote is normally unable to control. Since the remote signal that a component accepts differs depending on the model and year of the component, more than one numeric code may be assigned to a component. If you fail to program your remote using one of the codes, try using other codes. Notes

• The numeric codes are based on the latest information available for each brand. There is a chance, however, that your component will not respond to some or all of the codes.
• All of the input buttons on this remote may not be available when used with your particular component. To control a CD player To control a PSX Maker SONY DENON JVC KENWOOD MAGNAVOX MARANTZ ONKYO PANASONIC PHILIPS PIONEER TECHNICS YAMAHA Maker SONY Code(s) 101, 102, 103 104, 123 105, 106, 107 108, 109, 110 111, 116 112, 113, 114

To control a video CD player Maker SONY Code(s)

Performing several commands in sequence automatically (Macro Play) The Macro Play function lets you link several commands in a sequential order as a single command. The remote provides 2 macro lists (MACRO 1 and MACRO 2). You can specify up to 20 commands for each macro list. Note When setting up Macro Play, replace the batteries with new ones.

Input buttons Press the buttons you want to program in the same sequence as you want the operation(s) to be performed. Press Operations to be programmed N, x, X, M, m,

Performs the operation of the button. The input Switches inputs. button for more than 1 second MACRO 1 or MACRO 2 Make a one second interval. When you want to make a longer interval, press MACRO 1 or MACRO 2 repeatedly. The input button selected in step 2 flashes twice, then lights up again.

Repeat steps 2 and 3 when you want to program operations for other components.

Press RM SET UP to finish the programming process. N, x, X, M, m,

Tip If the RM SET UP button flashes five times in step 1, and the macro programming process does not start, replace the batteries with new ones. Press MACRO 1 or MACRO 2 for more than 1 second while pressing RM SET UP. To cancel programming The RM SET UP button flashes and one of the input buttons lights up (as the initial setting, the VIDEO1 button lights). Press RM SET UP. Also, not pressing any button for 60 seconds cancels the settings. The previous command remains valid. Press the input button for the component for which you want to program the sequence of operation(s). 128GB Starting macro play

Press AMP. The AMP button lights up, and then turns off.

Press MACRO 1 or MACRO 2 to start the macro. The macro starts and execute the commands in the order you assigned them. While the commands are being sent, the AMP button flashes and the RM SET UP button lights up. When the commands have been sent, the RM SET UP and AMP buttons turn off. To erase a programmed macro 1 Press MACRO 1 or MACRO 2 for more Setting remote commander codes that are not stored in the remote Even if a remote commander code is not one of the presets stored in the remote, it is possible for the remote to learn the code using the learning function. Note When setting up the receiver to learn the remote command modes, replace the batteries with new ones. THEATER than 1 second while pressing RM SET UP to clear the stored macro. The RM SET UP button flashes. 2 Press RM SET UP. RM SET

SHIFT Numeric buttons Settings stored as macro are cleared. Input buttons

Press THEATER while pressing RM SET UP. The RM SET UP button lights up.

Press the input button (VIDEO2 in the example) for the component you want to operate with the new command. The input button flashes. (The RM SET UP button remains lit.) continued 129GB Using the Remote Example for storing a new commander code for the numeric button 1 when the VIDEO2 input is selected.

Press SHIFT, then press the numeric buttons (button 1 in the example) you want to store the new command. The input button you selected in step 2 lights up. (The RM SET UP button remains lit.)

Point the remote code receiver section of the remote toward the receiver/transmitter on the remote commander to be learned from. While the second remote is receiving the signal, the input button selected in step 2 turns off. Using a command that has been learned When selecting a learned input, press the button used to learn that function. To erase the learned code 1 Press THEATER while pressing RM SET UP. 2 Press the input button (VIDEO2 in the example) for which you want to clear the setting. The input button flashes. (The RM SET UP button remains lit.) 3 Press ?/1 for more than 1 second. The input button flashes twice, repeatedly. About 5 cm - 10 cm (2" - 4") The RM SET UP button flashes twice, then the learning process is completed. When the learning process fails, the RM SET UP button flashes five times. Try to perform process again from step 2.

Press RM SET UP to finish the Learning function process. Tips

• When the memory capacity for storing remote commander codes reaches a certain limit, the RM SET UP button flashes 10 times, and then the learning process ends.
• If the RM SET UP button flashes five times in step 1, and the learning process does not start, replace the batteries with new ones. To cancel learning Press RM SET UP. Also, not pressing any button for 60 seconds cancels the settings. 130GB 4 Press SHIFT, then press numeric buttons (button 1 in the example) to clear the stored setting. The RM SET UP button flashes twice, then the clearing process is completed. When the clearing process fails, the RM SET UP button flashes five times. Try to perform process again from step 2. Clearing all the contents of the remote’s memory AV ?/1 ?/1 Using the Remote MASTER VOL

Release all buttons. All the contents of the remote’s memory (e.g., all the programmed data) are cleared. 131GB x Crossover frequency Additional Information Glossary x Cinema Studio EX A surround sound mode that can be regarded as the compilation of Digital Cinema Sound technology, delivers the sound of a dubbing theater using three technologies: “Virtual Multi Dimensions,” “Screen Depth Matching,” and “Cinema Studio Reverberation.” “Virtual Multi Dimensions,” the virtual speaker technology, creates a virtual multisurround environment with actual speakers up to 7.1 channels, and brings the surround sound experience of a theater with the latest facilities into your home. “Screen Depth Matching” reproduces treble attenuation, fullness, and depth of sound usually created in a theater using sound emission from behind the screen. This is then added to the front and center channels. “Cinema Studio Reverberation” reproduces the sound characteristics of state-of-the-art dubbing theaters and recording studios, including Sony Pictures Entertainment’s dubbing studios. There are three modes, A/B/ C, available according to the studio type. x Component video A format for transmitting video signal information consisting of three separate signals: luminance Y, chrominance Pb, and chrominance Pr. High quality pictures, such as DVD video or HDTV pictures, are transmitted more faithfully. The three jacks are colorcoded green, blue, and red. x Composite video A standard format for transmitting video signal information. The luminance signal Y and chrominance signal C are combined and transmitted together. 132GB The frequency at which two speaker’s frequencies intersect. x Deep Color Video signals for which the color depth of signals passing through an HDMI jack have been raised. The number of colors that could be expressed by 1 pixel was 24 bits (16,777,216 colors) with the current HDMI jack. However, the number of colors which can be expressed by 1 pixel will be 36, etc., bits when the receiver corresponds to Deep Color. Since the gradation of the depth of a color can be expressed more finely with more bits, continuous color changes can be more smoothly expressed. x Digital Cinema Sound (DCS) Unique sound reproduction technology for home theater developed by Sony, in cooperation with Sony Pictures Entertainment, for enjoying the exciting and powerful sound of movie theaters at home. With this “Digital Cinema Sound” developed by integrating a DSP (Digital Signal Processor) and measured data, the ideal sound field intended by filmmakers can be experienced at home. x Digital Concert Hall “Digital Concert Hall” delivers richer sound for 2ch stereo sources such as CDs, etc. With the use of 5.1ch or 7.1ch speakers and virtual speaker technology, stereoscopic reverberation and reflected sound are reproduced, and music software can be enjoyed with richer sound and presence. The sound field in a concert hall is recreated by a geometrical analysis of the concert hall and precise modeling of reflected and reverberant sounds based on actual measured data. Tonal qualities such as sound strength and frequency response are taken into account and calculated on the DSP (Digital Signal Processor) to bring reverberation in. Sound is enjoyed with natural and comfortable resonance, as if listening to music in a concert hall. x Dolby Digital Digital audio encoding/decoding technology developed by Dolby Laboratories, Inc. It consists of front (left/right), center, surround (left/right) and subwoofer channels. It is a designated audio standard for DVD-video and also known as 5.1 channels surround. x Dolby Digital Plus Dolby Digital Plus provides the flexibility and efficiency to deliver more channels of compelling surround sound for high-definition video media. Its superior coding efficiencies enable up to 7.1ch of high-quality multichannel audio without negatively impacting bit budgets allocated for video performance or additional feature sets. x Dolby Digital Surround EX Acoustic technology developed by Dolby Laboratories, Inc. Surround back information is matrixed into regular left and right surround channels so that the sound can be reproduced in 6.1 channels. Active scenes, especially, are recreated with a more dynamic and realistic sound field. x Dolby Pro Logic II This technology converts 2 channels stereo recorded audio into 5.1 channels for playback. Old movies encoded in the traditional stereo format can be enhanced with 5.1 channels surround sound. Technology for 7.1 channels (or 6.1 channels) playback. Along with audio encoded in Dolby Digital Surround EX, 5.1 channels Dolby Digital encoded audio can be reproduced in

7.1 channels (or 6.1 channels). Furthermore,

existing stereo recorded content can also be reproduced in 7.1 channels (or 6.1 channels). x Dolby Surround (Dolby Pro Logic) Audio processing technology developed by Dolby Laboratories, Inc. Center and mono surround information is matrixed into two stereo channels. When reproduced, audio is x Dolby TrueHD Dolby TrueHD is Dolby’s lossless audio technology developed for high-definition optical discs. Dolby TrueHD audio is bit-forbit identical to the original studio masters and provides supreme-quality audio up to 8ch at 96 kHz/24 bit and up to 6ch at 192 kHz/24 bit. Together with high-definition video, it offers an unprecedented home theater experience. x DSD Audio format used for a Super Audio CD. DSD converts analog signals to digital and records them directly, without adding any processing, so that no information is omitted. Recording and playback of high fidelity, quality sound is achieved. x DTS 96/24 A high sound quality digital signal format. It records audio at a sampling frequency and bit rate of 96 kHz/24 bit which is the highest possible for DVD-video. The number of playback channels varies depending on the software. x DTS Digital Surround Digital audio encoding/decoding technology for theaters developed by DTS, Inc. It compresses audio less than Dolby Digital, delivering a higher quality sound reproduction. x DTS-ES Format for 6.1 channels playback with surround back information. There are two modes, “Discrete 6.1” which records all channels independently, and “Matrix 6.1” which matrixes surround back channel into surround left and surround right channels. It is ideal for playback of motion picture soundtracks. continued 133GB Additional Information x Dolby Pro Logic IIx decoded and output in 4 channels surround sound. This is the most common audio processing method for DVD-video. x DTS-HD x Interlace Audio format which extends the conventional DTS Digital Surround format. This format consists of a core and an extension, and the core part has DTS Digital Surround compatibility. There are two kinds of DTS-HD, DTS-HD High Resolution Audio and DTS-HD Master Audio. DTS-HD High Resolution Audio has a maximum transmission rate of 6 Mbps, with lossy compression (Lossy), and DTS-HD High Resolution Audio corresponds to a maximum sampling frequency of 96 kHz, and a maximum of 7.1 ch. DTS-HD Master Audio has a the maximum transmission rate of

24.5 Mbps, and uses lossless compression

(Lossless), and DTS-HD Master Audio corresponds to a maximum sampling frequency of 192 kHz, and a maximum of 7.1 ch. A scanning method which completes a picture by displaying half of the lines on a tube surface of a TV or monitor each 1/60 second. First, all the odd-numbered lines are drawn, leaving spaces between each line, then all the evennumbered lines are drawn to fill the spaces. “i” of “480i” stands for “Interlace.” x DTS Neo:6 This technology converts 2 channels stereo recorded audio for 7 channels playback. There are two modes to select according to the playback source or your preference, CINEMA for movies, and MUSIC for stereo sources such as music. x HDMI (High-Definition Multimedia Interface) HDMI (High-Definition Multimedia Interface) is an interface that supports both video and audio on a single digital connection, allowing you to enjoy high quality digital picture and sound. The HDMI specification supports HDCP (High-bandwidth Digital Contents Protection), a copy protection technology that incorporates coding technology for digital video signals. x High Bitrate Audio It refers to the audio formats of the compression method (DTS-HD Master Audio, Dolby TrueHD, etc.) which is a high bitrate format recorded mainly on Blu-ray Disc etc. 134GB x L.F.E. (Low Frequency Effects) Sound effects of low frequencies which are output from a subwoofer in Dolby Digital or DTS, etc. By adding a deep bass with a frequency between 20 to 120 Hz, audio becomes more powerful. x Neural THX Neural Surround™, THX® Technologies has been chosen as the official surround sound broadcast format for XM Satellite Radio’s “XM HD Surround” and other leading FM/HD radio stations in the USA and worldwide. Neural Surround, THX Technologies delivers the rich envelopment and discrete image detail of surround sound in a format 100% compatible with stereo. x PCM (Pulse Code Modulation) A method of converting analog audio to digital audio for easy enjoyment of digital sound. x Progressive A scanning method that draws all scanning lines sequentially, as opposed to interlaced scanning where all the odd and then all the even lines are drawn. “p” of “480p” stands for “Progressive.” x x.v.Color (x.v.Colour) “x.v.Color (x.v.Colour)” enables the more faithful reproduction of various colors such as the brilliant colors of flowers and the turquoise blue of the southern ocean. Precautions On safety Should any solid object or liquid fall into the cabinet, unplug the receiver and have it checked by qualified personnel before operating it any further. On power sources

• Before operating the receiver, check that the operating voltage is identical with your local power supply. The operating voltage is indicated on the nameplate on the back of the receiver.
• The unit is not disconnected from the AC power source (mains) as long as it is connected to the wall outlet, even if the unit itself has been turned off.
• If you are not going to use the receiver for a long time, be sure to disconnect the receiver from the wall outlet. To disconnect the AC power cord (mains lead), grasp the plug itself; never pull the cord.
• One blade of the plug is wider than the other for the purpose of safety and will fit into the wall outlet only one way. If you are unable to insert the plug fully into the outlet, contact your dealer.
• AC power cord (mains lead) must be changed only at a qualified service shop.

• Do not place the receiver near heat sources, or in a place subject to direct sunlight, excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet that might block the ventilation holes and cause malfunctions.
• Do not place the receiver near equipment such as a television, VCR, or tape deck. (If the receiver is being used in combination with a television, VCR, or tape deck, and is placed too close to that equipment, noise may result, and picture quality may suffer. This is especially likely when using an indoor antenna (aerial). Therefore, we recommend using an outdoor antenna (aerial).) On operation Before connecting other components, be sure to turn off and unplug the receiver. On cleaning Clean the cabinet, panel, and controls with a soft cloth slightly moistened with a mild detergent solution. Do not use any type of abrasive pad, scouring powder, or solvent, such as alcohol or benzine. If you have any questions or problems concerning your receiver, please consult your nearest Sony dealer. Additional Information On heat buildup Although the receiver heats up during operation, this is not a malfunction. If you continuously use this receiver at a large volume, the cabinet temperature of the top, side and bottom rises considerably. To avoid burning yourself, do not touch the cabinet. On placement
• Place the receiver in a location with adequate ventilation to prevent heat buildup and prolong the life of the receiver. 135GB Troubleshooting If you experience any of the following difficulties while using the receiver, use this troubleshooting guide to help you remedy the problem. Should any problem persist, consult your nearest Sony dealer. Audio There is no sound, no matter which component is selected, or only a very low-level sound is heard.
• Check that the speakers and components are connected securely.
• Check that all speaker cords are connected correctly.
• Check that both the receiver and all components are turned on.
• Check that MASTER VOLUME control is not set at –∞ dB. Try to set it at about –40 dB.
• Check that SPEAKERS (OFF/A/B/A+B) is not set to OFF (page 44).
• Press MUTING on the remote to cancel the muting function.
• Check that you have selected the correct component with INPUT SELECTOR.
• Check that headphones are not connected.
• When only a very low-level sound is heard, check to see if NIGHT MODE is activated (page 96).
• The protective device on the receiver has been activated. Turn off the receiver, eliminate the short-circuit problem, and turn on the power again. There is no sound from a specific component.
• Check that the component is connected correctly to the audio input jacks for that component.
• Check that the cord(s) used for the connection is (are) fully inserted into the jacks on both the receiver and the component. 136GB There is no sound from one of the front speakers.
• Connect a pair of headphones to the PHONES jack to verify that sound is output from the headphones. If only one channel is output from the headphones, the component may not be connected to the receiver correctly. Check that all the cords are fully inserted into the jacks on both the receiver and the component. If both channels are output from the headphones, the front speaker may not be connected to the receiver correctly. Check the connection of the front speaker which is not outputting any sound.
• Make sure you have connected both the L or R jack to an analog component and not just to either the L or R jack. Use a monaural-stereo cable (not supplied). However, there will be no sound from the center speaker when a sound field (Pro Logic, etc.) is selected. When the center speaker is not connected, sound is output only from the front left/right speakers. There is no sound from analog 2 channel sources.
• Check to make sure the selected audio (digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu (page 93). There is no sound from digital sources (from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is not set to “Analog.”
• Check that the “2ch Analog Direct” is not being used.
• Check to make sure the selected audio (digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu (page 93). The source sound input from the HDMI IN jack is not output from an amplifier or the TV speaker connected to the receiver.
• Check that the component is connected correctly to the HDMI IN jack for that component.
• The sound is not output when you display the receiver’s menu on the TV monitor. Press MENU to turn off the display.
• Depending on the playback component, component may need to be set up. Refer to the operating instructions supplied with the each component.
• Be sure to use a connecting cable for the HDMI jack corresponding to high speed (an HDMI version1.3a, category 2 cable) when you view images or listen to sound during a Deep Color transmission. The left and right sounds are unbalanced or reversed.
• Check that the speakers and components are connected correctly and securely.
• Adjust the balance parameters using the Auto Calibration settings menu. There is no sound, or only a very lowlevel sound is heard from the center/ surround/surround back speakers.
• Select a “Cinema Studio EX” mode (page 79). There is no sound from the surround back speakers.
• Some discs have no Dolby Digital Surround EX flag even though the packages have Dolby Digital Surround EX logos. There is no sound from the subwoofer.
• Check that the subwoofer is connected correctly and securely.
• Make sure you have turned on your speaker.
• When all speakers are set to “LARGE” and “Neo:6 Cinema,” or “Neo:6 Music” is selected, there is no sound from the subwoofer. The surround effect cannot be obtained.
• Make sure the sound field function is on (press MOVIE or MUSIC).
• Sound fields function only for signals with a sampling frequency of up to 48 kHz. Dolby Digital or DTS multi-channel sound is not reproduced.
• Check that the DVD, etc. you are playing is recorded in Dolby Digital or DTS format.
• When connecting the DVD player, etc., to the digital input jacks of this receiver, make sure the setting for the digital audio output of the connected component is available. Recording cannot be carried out.
• Check that the components are connected correctly (page 25).
• Select the source component (page 53). continued 137GB Additional Information There is severe hum or noise.
• Check that the speakers and components are connected securely.
• Check that the connecting cords are away from a transformer or motor, and at least 10 feet (3 meters) away from a TV set or fluorescent light.
• Move your TV away from the audio components.
• Make sure you have grounded the U SIGNAL GND terminal (only when a turntable is connected).
• The plugs and jacks are dirty. Wipe them with a cloth slightly moistened with alcohol.

• Adjust the speaker level (page 106).
• Make sure the center/surround speaker (s) is (are) set to either “SMALL” or “LARGE.” The MULTI CHANNEL DECODING lamp does not light up in blue.
• Check that the playback component is connected on a digital jack and the input is selected properly on this receiver.
• Check whether the input source of the software being played back corresponds to the multi-channel format.
• Check whether the setup on the playback component is set to multi-channel sound.
• Check to make sure the selected audio (digital) input jack is not assigned to other inputs in “Input Assign” in the Input menu (page 93). There is no sound from the component connected to the DIGITAL MEDIA PORT adapter.
• Adjust the volume of this receiver.
• The DIGITAL MEDIA PORT adapter and/or component is not connected correctly. Turn off the receiver, then reconnect the DIGITAL MEDIA PORT adapter and/or component.
• Check the DIGITAL MEDIA PORT adapter and/or component device to make sure it supports this receiver. Video There is no picture or an unclear picture appears on the TV screen or monitor.
• Select the appropriate input on the receiver (page 53).
• Set your TV to the appropriate input mode.
• Move your TV away from the audio components.
• Assign the component video input correctly.
• The input signal should be same as input when you are up-converting an input signal with this receiver (page 37). 138GB The image of the COMPONENT VIDEO OUT is corrupted.
• Video input signals other than 480p component are not received when signals are output from the VIDEO jack. Input 480i component video signals.
• When component input signals other than 480p are output, use the COMPONENT VIDEO OUT jack and set “Resolution” to “DIRECT.” Images of the source with HDMI connection is not output to the TV.
• Make sure that cables are correctly and securely connected to components.
• Depending on the playback component, component may need to be set up. Refer to the operating instructions supplied with the each component.
• Be sure to use a connecting cable for the HDMI jack corresponding to high speed (an HDMI version1.3a, category 2 cable) when you view images or listen to sound during a Deep Color transmission. Recording cannot be carried out.
• Check that the components are connected correctly (page 30).
• Select the source component (page 53). The GUI does not appear on the TV screen.
• Press GUI MODE to display “GUI MODE” on the display.
• Check the TV is connected correctly. Tuner The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied) to connect the receiver to an outdoor FM antenna (aerial) as shown on page 139. If you connect the receiver to an outdoor antenna (aerial), ground it against lightning. To prevent a gas explosion, do not connect the ground (earth) wire to a gas pipe. Outdoor FM antenna (aerial) Control for HDMI Receiver Ground (earth) wire (not supplied) To ground The system cannot receive satellite channels at all.
• The receiving condition is not good. Move the antenna to the place where the condition is good.
• Check that you subscribed to the desired satellite radio service (see page 63). No sound is output from the receiver and TV speaker while using the System Audio Control function.
• Make sure the TV is compatible with the System Audio Control function.
• If the TV does not have System Audio Control function, set the “Audio Out” settings in HDMI settings menu to – “TV+AMP” if you want to listen to the sound from the TV speaker and receiver. – “AMP” if you want to listen to the sound from the receiver.
• You cannot listen to the sound of a component connected to the receiver while a TV is selected as the input on the receiver. – Change the input of the receiver to HDMI when you want to watch a program on a component connected to the receiver. – Change the TV channel when you want to watch a TV broadcast. – Select the component or input you want to watch when you watch a program on the component connected to the TV. Refer to the operating instructions of the TV on this operation. continued 139GB Additional Information Radio stations cannot be tuned in.
• Check that the antennas (aerials) are connected securely. Adjust the antennas (aerials) and connect an external antenna (aerial), if necessary.
• Keep the satellite radio antenna, away from the speaker cords and the power cord to avoid picking up noise.
• The signal strength of the stations is too weak (when tuning in with automatic tuning). Use direct tuning.
• Make sure you set the tuning interval correctly (when tuning in AM stations with direct tuning).
• No stations have been preset or the preset stations have been cleared (when tuning by scanning preset stations). Preset the stations (page 62).
• Press DISPLAY so that the frequency appears on the display. The Control for HDMI function does not work.
• Check the HDMI connection (page 31).
• Make sure “Control for HDMI” is set to “ON” in HDMI settings menu.
• Make sure the connected component is compatible with the Control for HDMI function.
• Check the Control for HDMI settings on the connected component. See the operating instructions of the connected component.
• If you change the HDMI connection, connect/disconnect the AC power cord, or there is a power failure, repeat the procedures of “Preparing for the “BRAVIA” Sync” (page 89).

• When using the Control for HDMI function, you cannot control the connected component using TV’s remote. – Depending on the connected component and TV, you may need to set up the component and TV. Refer to the operation instructions supplied with each component and TV. – Change the input of the receiver to the HDMI input connected to the component. Remote commander The remote does not function.
• Point the remote at the remote sensor on the receiver.
• Remove any obstacles in the path between the remote and the receiver.
• Replace all the batteries in the remote with new ones, if they are weak.
• Make sure that the command modes of the receiver and the remote are the same. If the command mode of the receiver and the remote are different, you cannot operate the receiver with the remote (page 99).
• Make sure you select the correct input on the remote.
• When you operate a programmed nonSony component, the remote may not function properly depending on the model and the maker of the component. Error messages If there is a malfunction, the display shows a code of two numbers and a message. You can check the condition of the system by the message. Refer to the following table to solve the problem. If any problem persists, consult your nearest Sony dealer. PROTECTOR Irregular current is output to the speakers, or the upper panel of the receiver is covered with something. The receiver will automatically turn off after a few seconds. 140GB Check the connection of speakers and turn on the power again. For other messages, refer to “Message list after auto calibration measurement” (page 49), “XM Radio message list” (page 71), “SIRIUS Satellite Radio message list” (page 71) and “DIGITAL MEDIA PORT message list” (page 58). Reference sections for clearing the memory To clear See All memorized settings page 40 Frequency response Specifications AUDIO POWER SPECIFICATIONS

POWER OUTPUT AND TOTAL

HARMONIC DISTORTION: With 8 ohm loads, both channels driven, from 20 – 20,000 Hz; rated 120 watts per channel minimum RMS power, with no more than 0.09% total harmonic distortion from 250 milliwatts to rated output. Amplifier section RIAA equalization curve ± 0.5 dB MULTI CHANNEL INPUT, SA-CD/CD, TAPE, MD, TV, VIDEO 1/2, BD, DVD, SAT 10 Hz – 100 kHz ± 3 dB Inputs (Analog) PHONO Sensitivity: 2.5 mV Impedance: 50 kohms S/N: 90 dB (A, 20 kHz LPF) MULTI CHANNEL INPUT, SA-CD/CD, TAPE, MD, TV, VIDEO 1/2, BD, DVD, SAT Sensitivity: 150 mV Impedance: 50 kohms S/N: 100 dB (A, 20 kHz LPF) Inputs (Digital) BD, DVD, SA-CD/CD (Coaxial) Impedance: 75 ohms S/N: 96 dB (A, 20 kHz LPF) VIDEO 1, TV, SAT, TAPE, MD (Optical) S/N: 96 dB (A, 20 kHz LPF) Outputs TAPE (REC OUT), Voltage:150 mV MD (REC OUT), Impedance: 1 kohm VIDEO 1, ZONE 2, ZONE 3 (AUDIO OUT) FRONT L/R, CENTER, Voltage: 2 V Impedance: 1 kohm SURROUND L/R, SURROUND BACK L/R, SUBWOOFER FM tuner section Tuning range

Antenna (aerial) FM wire antenna (aerial) Antenna (aerial) terminals 75 ohms, unbalanced

on the sound field settings and the source, there may be no sound output. Measured under the following conditions: Power requirements: 120 V AC, 60 Hz continued 141GB Additional Information POWER OUTPUT Rated Power Output at Stereo Mode1) 2) (8 ohms 20 Hz – 20 kHz, THD 0.09%): 120 W + 120 W Reference Power Output at Stereo Mode (4 ohms 20 Hz – 20 kHz, THD 0.15%): 120 W + 120 W Reference Power Output (8 ohms 1 kHz, THD 0.7%) FRONT2): 130 W + 130 W CENTER2): 130 W SURROUND2): 130 W + 130 W SURROUND BACK2): 130 W + 130 W Reference Power Output (4 ohms 1 kHz, THD 0.7%) FRONT2): 120 W + 120 W CENTER2): 120 W SURROUND2): 120 W + 120 W SURROUND BACK2): 120 W + 120 W PHONO AM tuner section Supplied accessories Tuning scale 10 kHz step 9 kHz step Tuning range 530 – 1,710 kHz 531 – 1,710 kHz Intermediate frequency 450 kHz Antenna (aerial) Loop antenna (aerial) Video section Inputs/Outputs Video: 1 Vp-p, 75 ohms COMPONENT VIDEO: Y: 1 Vp-p, 75 ohms PB/CB: 0.7 Vp-p, 75 ohms PR/CR: 0.7 Vp-p, 75 ohms 80 MHz HD Pass Through HDMI Video Input/Output (HDMI Repeater block) 640 × 480p@60 Hz 720 × 480p@59.94/60 Hz 1280 × 720p@59.94/60 Hz 1920 × 1080i@59.94/60 Hz 1920 × 1080p@59.94/60 Hz 720 × 576p@50 Hz 1280 × 720p@50 Hz 1920 × 1080i@50 Hz 1920 × 1080p@50 Hz 1920 × 1080p@24 Hz General Power requirements 120 V AC, 60 Hz Power output (DIGITAL MEDIA PORT) DC OUT:5 V, 700 mA Power consumption 480 W/580 VA (U.S.A./ Canada) Power consumption (during standby mode)

0.9 W (when “Control for

HDMI” and “RS-232C Control” are set to “OFF”) Dimensions 430 × 175 × 430 mm (17 × 6 7/8 × 17 inches) (width/height/depth) including projecting parts and controls Mass (Approx.)

16.0 kg (35 lb 5 oz)

142GB Operating Instructions (this manual) Quick Setup Guide (1) GUI Menu List (1) Optimizer microphone ECM-AC2 (1) FM wire antenna (aerial) (1) AM loop antenna (aerial) (1) AC power cord (mains lead) (1) Main remote commander (1) Sub remote commander (1) R6 (size-AA) batteries (4) Design and specifications are subject to change without notice.

• Standby power consumption
• Halogenated flame retardants are not used in the printed wiring boards. Index Symbols U SIGNAL GND terminal 29 Numerics 2 channel 73 2ch Analog Direct 73 2ch Stereo Mode 73 4 Ω 43

Calibration Type Select 48, 118 Category Mode 67 CD player 26, 29 Center Mix 105, 119 Changing the display 121 Cinema Studio EX (mode) 79 Clear memory 40 remote 131 Connections antennas 39 audio components 25

D. Range Comp (Dynamic range compressor) 108, 118 DCAC (Digital Cinema Auto Calibration) 44 DCS 79 Decode Priority 113, 120

DIGITAL MEDIA PORT 13, 18, 26, 55

Direct Tuning 61, 67 Display 9 Distance Unit 109, 119 DMPORT Control 58 Dolby Digital EX 81 DTS Neo:6 (Cinema, Music) 75 Dual Mono 112, 120 DVD player 32, 34 DVD recorder 36

GUI (Graphical User Interface) 23, 41

Subwoofer Level 115, 121 Super Audio CD player 26, 28, 29 Sur Settings 120 Surround 75, 109 System 116

• TDM-NW1/NW10 DIGITAL MEDIA PORT Adapter

PARENTAL LOCK [xxx] LOCK CODE EDIT ?

OFF, CTRL, ZONE, INPUT

OFF 12V TRIG. ZONE2 [xxxxx]

OFF, CTRL, ZONE, MAIN

OFF 12V TRIG. ZONE3 [xxxxx]

OFF, CTRL, ZONE, MAIN

OFF RS-232C CONTROL [xxx] OFF, ON

DIGITAL MEDIA PORT 14, 20, 29, 59

GUI (Graphical User Interface) 26, 44
