Helix E 4X.2 - Speaker Audiotec Fischer - Free user manual and instructions

Product Type	Car Speaker
Brand	Audiotec Fischer
Model	Helix E 4X.2
Speaker Size	4 inches (100 mm)
Speaker Type	2-Way Coaxial
Impedance	4 ohms
RMS Power Handling	40 Watts
Peak Power Handling	80 Watts
Frequency Response	80 Hz - 20 kHz
Sensitivity	89 dB
Tweeter Type	Dome Tweeter
Mounting Depth	45 mm
Mounting Diameter	90 mm
Weight	0.3 kg (0.66 lbs)
Material	Polypropylene Cone, Rubber Surround
Woofer Magnet	Ferrite
Power Supply	12V Car Electrical System
Maintenance	Clean with a soft dry cloth; avoid moisture
Safety	Use within specified power range; professional installation recommended
Spare Parts & Repairability	Contact authorized service centers for spare parts; not user-serviceable
General Information	Designed for car audio systems; compatible with most vehicles

Frequently Asked Questions - Helix E 4X.2 Audiotec Fischer

What is the size of the Helix E 4X.2 speaker?

The Helix E 4X.2 is a 4-inch (100 mm) coaxial speaker.

What is the power handling of this speaker?

It handles 40 Watts RMS and 80 Watts peak power.

What is the impedance of the Helix E 4X.2?

The impedance is 4 ohms.

Does the speaker come with mounting hardware?

Yes, it typically includes screws and a mounting bracket. Check the package contents.

Can I use this speaker in my car door?

Yes, it is designed for car doors and other locations with a 4-inch speaker cutout.

What is the frequency response of the Helix E 4X.2?

The frequency response ranges from 80 Hz to 20 kHz.

Is the tweeter adjustable?

The tweeter is fixed but can be angled slightly for better staging.

How do I clean the speaker?

Use a soft, dry cloth to wipe the surface. Avoid using liquids or abrasive cleaners.

Can I install this speaker myself?

Basic installation is possible, but professional installation is recommended for optimal performance.

Where can I find spare parts?

Spare parts are available through Audiotec Fischer authorized dealers and service centers.

USER MANUAL Helix E 4X.2 Audiotec Fischer

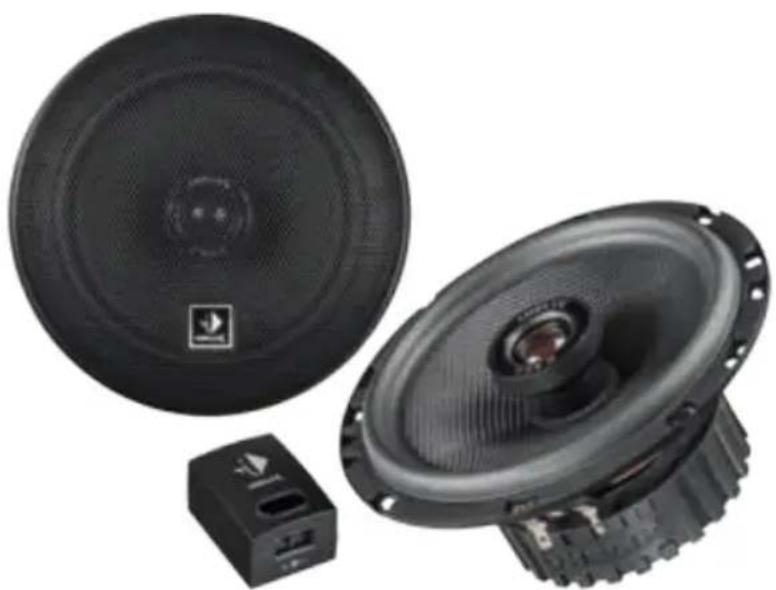

Exterior view of a black HELIX F-82C-2 speaker with visible sound waves and speaker components (no text or symbols on main body)

Exterior view of a black speaker with two circular plates and a small electronic device (no text or symbols visible)

E 62C.2 / E 52C.2 / E 42C.2

E 6X.2 / E 5X.2 / E 4X.2

Component- and coaxial speaker systems

E 4X.2E 42C.2 / E 4B.2

E 5X.2E 52C.2 / E 5B.2

E 6X.2E 62C.2 / E 6B.2

E 1T

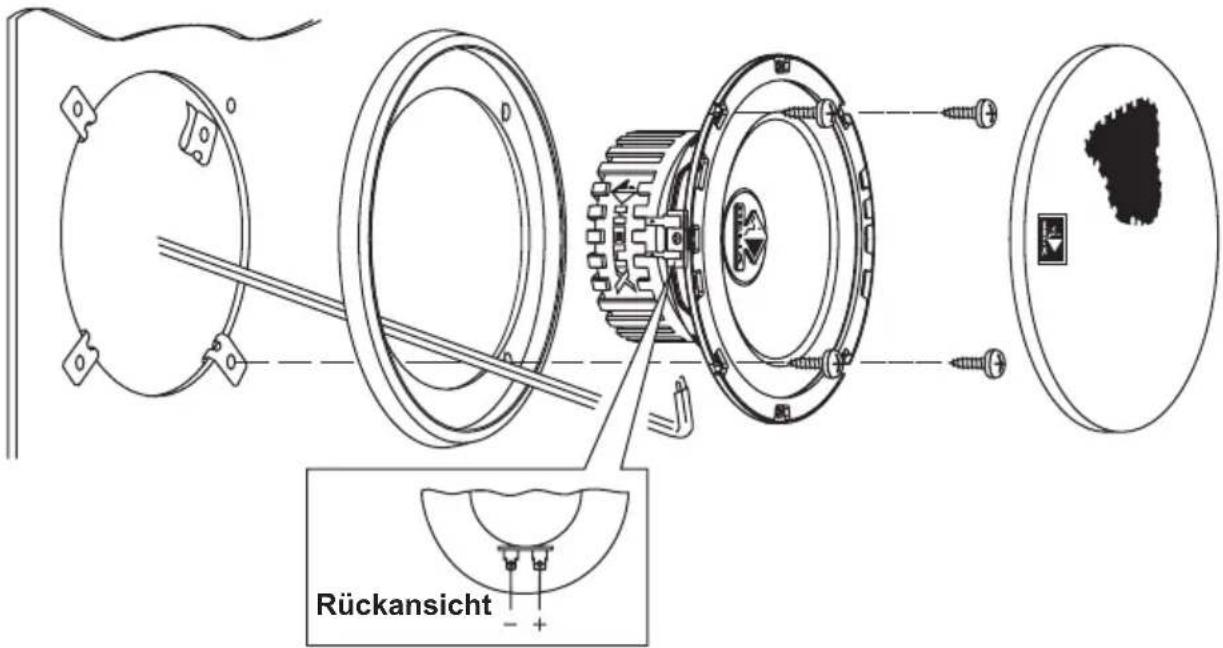

Einbau Tieftöner

Diagram of a laboratory filtration setup with funnel, test tubes, and sample collection (no text or labels)

versenkter Einbau

Diagram of a laboratory filtration setup with funnel, condenser, and evaporator (no text or labels)

Diagram of a mechanical assembly showing a component being inserted into a housing with screw fasteners (no text or labels)

Congratulations on your purchase of this high-quality HELIX speaker system.

This system highlights best quality, excellent manufacturing and state-of-the-art technology.

After 30 years of experiences in research & development of audio products this speaker system generation sets new standards.

We wish you many hours of enjoyment with your new HELIX speakers.

Yours

AUDIOTEC FISCHER Team

General instructions

General instructions for installing a HELIX speaker system

To prevent damage to the speakers and possible injury, read this manual carefully and follow all installation instructions. This product has been checked for proper function prior to shipping and is guaranteed against manufacturing defects.

For a proper performance and to ensure full warranty coverage, we strongly recommend to get this product installed by an authorized HELIX dealer. If you choose to perform your own installation read the following information and precautions carefully. Failure to follow the stated precautions may result in personal injury and/or damage to the audio system or vehicle.

1. Always make sure that the speaker will fit into the intended mounting location and that there is adequate depth for the magnet system.

2. Check for adequate space between speaker and window, window crank, power window mechanism, seat, rear deck torsion bars, and other items which may interfere with the speaker's mounting. This is very important if any hole cutting is required. Detailed size information is indicated in the dimension section of this manual. Take care that the mounting surface is flat and free from all obstructions.

3. Do not mount the speakers where water may splash on them.

4. The quality of the installation has a significant effect on the overall performance of the speaker system. Treat each installation step with a high degree of attention.

5. Avoid low frequency cancellation caused by air leakage between the speaker basket and the mounting surface (e.g. mounted on a bended or uneven surface or mounted in an oversized hole).

6. Mounting panel reinforcement may be necessary in some cases in order to ensure a stable, torsion-free and even surface. This can be achieved by mounting the speaker on a metal or wooden sub-baffle behind the body or door panel. Consult an installation specialist for further advices.

7. In most cases you can use the original speaker mounting locations at the doors, body panels or the rear deck. If these are not available you have to prepare your own secure installation place. Due to their structural integrity and accessibility the precut mounting holes should be used whenever possible.

Important:

Never cut any metal that is an integral part of an automobile's safety or structural car body.

General instructions for connecting HELIX speaker systems

We strongly recommend that you operate the complete audio system at low volume before final installation. This will allow a trial listening test before securing the loudspeakers into their mounting locations.

Make sure that all speaker wiring is fully protected from cutting or wear at sharp edges. This can lead into a short circuit which might damage your head unit, amplifier and/or speaker system.

Make sure that all speaker wires have sufficient length in order to reach the speaker terminals without stress on the wire or connectors.

General instructions for mounting HELIX speaker systems

Once you have tested the complete speaker system and have confirmed correct operation, turn off the audio system and prepare the loudspeaker for final mounting.

1. Place the loudspeaker in the mounting position as shown in the illustration "Mounting the woofer".
2. Fix the speaker with its mounting ring in its installation place and check if all screws are in the right position to the fixing holes. Use the included screw clips to secure the screws. Tighten all screws evenly.
3. Attach the mesh to the mounting ring.

Features

Component systems

• Woofer with very stiff and non-resonating woofer cones made from woven fiberglass
• Specially shaped rubber surround for larger effective cone area and increased maximum excursion
• 1 inch / 25 mm silk dome tweeter with neodymium magnet for brilliant and smooth treble response
• Tweeters are 25^ tiltable for perfect alignment with listening position
• Individual HELIX design basket with additional ventilation holes for better voice coil cooling and high power handling
• Complex, separate crossover with 6/12 dB slope, bandstop filter, tweeter protection and adjustable tweeter level
• Grille included

Coaxial systems

• Woofer with very stiff and non-resonating cones made from woven fiberglass
• Specially shaped rubber surround for larger effective cone area and increased maximum excursion
• 0.75 inch / 19 mm silk dome tweeter with neodymium magnet for brilliant and smooth treble response
• Tweeters are 360^ pivotable and 25^ tiltable for perfect alignment with listening position (E 5X.2 / E 6X.2)
• Individual HELIX design basket with additional ventilation holes for better voice coil cooling and high power handling
• Separate inline crossover with integrated tweeter protection
• Grille included

E 4X.2E 42C.2 / E 4B.2

E 5X.2E 52C.2 / E 5B.2

E 6X.2E 62C.2 / E 6B.2

E 1T

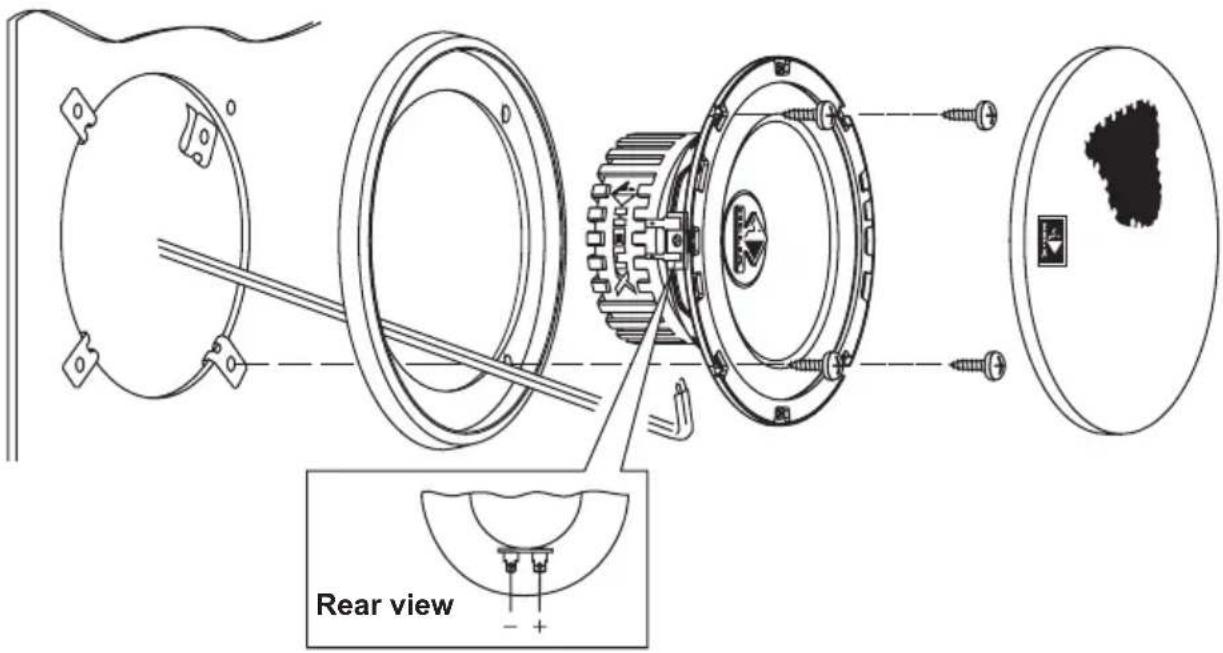

Mounting the woofer

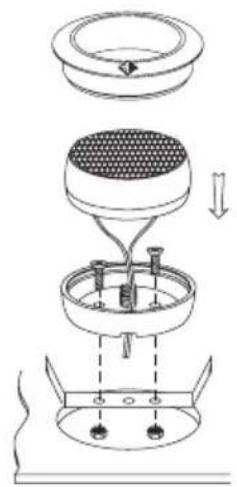

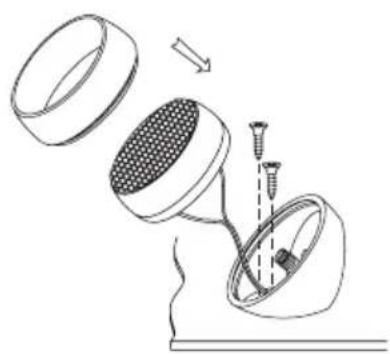

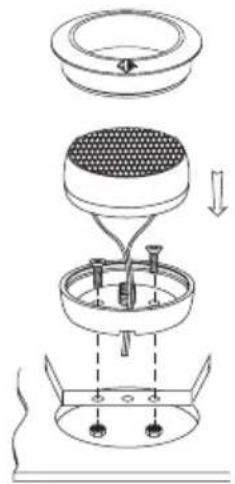

Mounting the tweeter

Surface mount Flush mount

Diagram of a funnel assembly with a lid, internal components, and screw base (no text or labels)

Diagram of a gasifier or reactor with cooling tower and heat exchanger (no text or labels)

Angle mount

Diagram of a mechanical assembly showing a component being inserted into a housing, with no visible text or symbols.

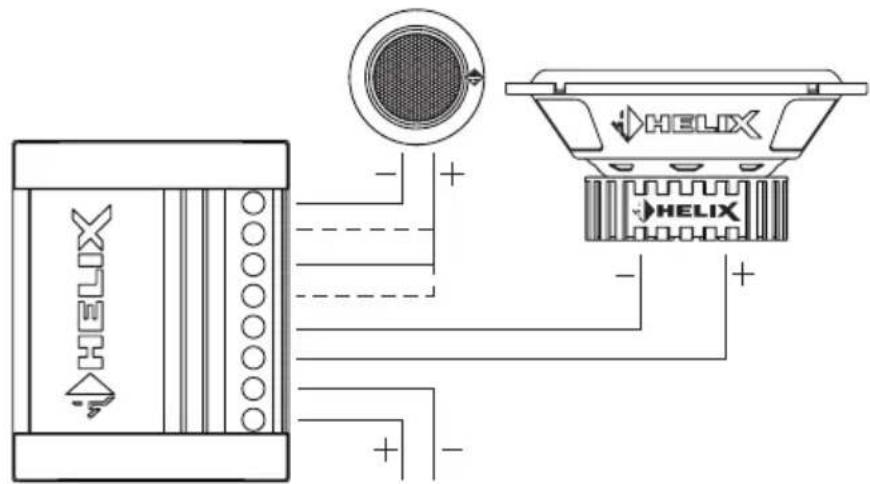

Connecting the crossover

Component systems:

	E 62C.2 E 52C.2 E 42C.2
Power handling RMS / Max. 75 / 220 Watts 60 / 180 Watts 50 / 150 Watts
Frequency range 50 Hz - 25,000 Hz 60 Hz - 25,000 Hz 75 Hz - 25,000 Hz
Sensitivity 91 dB 1W / 1m 90 dB 1W / 1m 89 dB 1W / 1m
Impedance 4 Ohms 4 Ohms 4 Ohms
Diameter W / T 165 mm / 25 mm; 6.50" / 1"	130 mm / 25 mm; 5.25" / 1"	100 mm / 25 mm; 4" / 1"
Installation depth W / T	65 mm / 17.5 mm; 2.56" / 0.70"	54 mm / 17.5 mm; 2.05" / 0.70"	48 mm / 17.5 mm; 1.89" / 0.70"
Crossover	Separate, 6/12 dB slope, bandstop filter, tweeter protection and adjustable tweeter level	Separate, 6/12 dB slope, bandstop filter, tweeter protection and adjustable tweeter level	Separate, 6/12 dB slope, bandstop filter, tweeter protection and adjustable tweeter level

Coaxial systems:

	E 6X.2	E 5X.2	E 4X.2
Power handling RMS / Max. 60 / 180 Watts 50 / 150 Watts 40 / 120 Watts
Frequency range 55 Hz - 22,000 Hz 65 Hz - 22,000 Hz 80 Hz - 22,000 Hz
Sensitivity 91 dB 1W / 1m 90 dB 1W / 1m 89 dB 1W / 1m
Impedance 4 Ohms 4 Ohms 4 Ohms

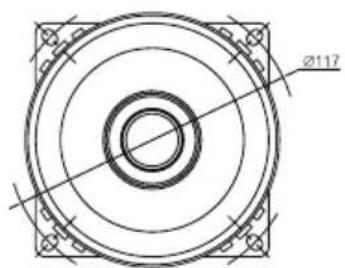

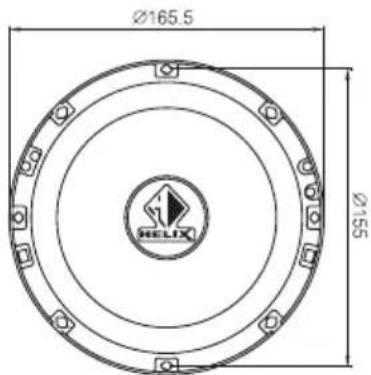

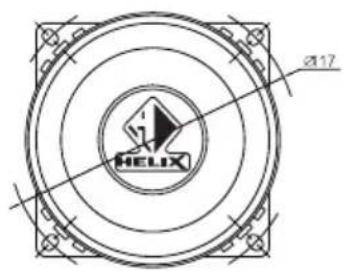

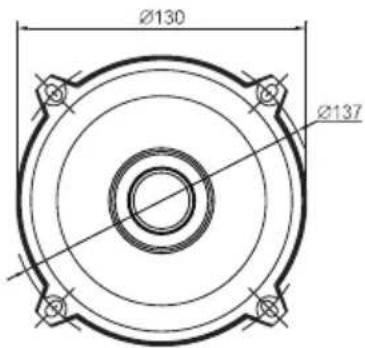

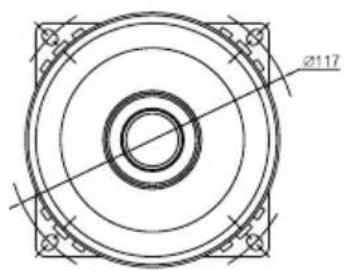

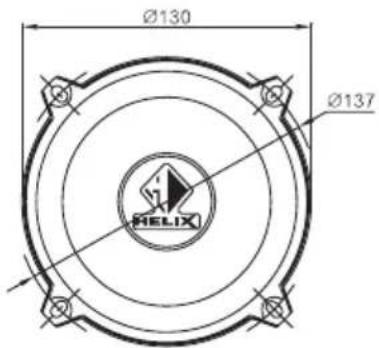

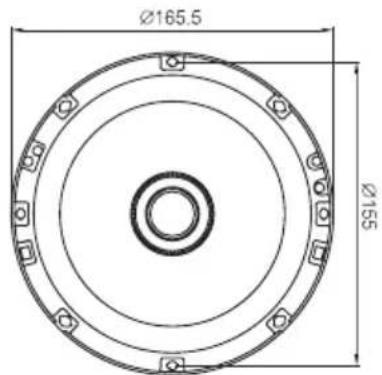

Diameter	165 mm; 6.50”	130 mm; 5.25”	100 mm; 4”

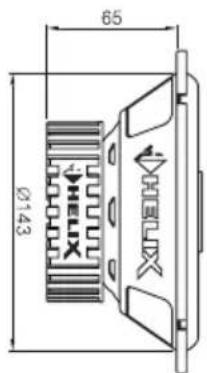

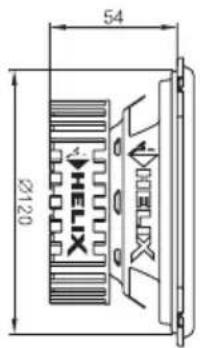

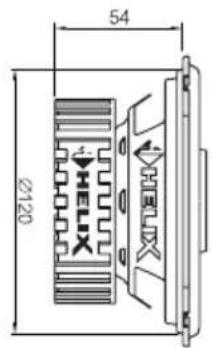

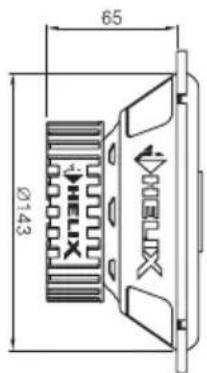

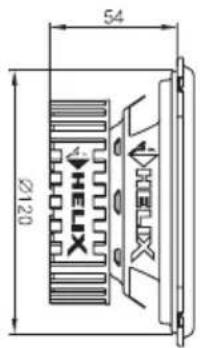

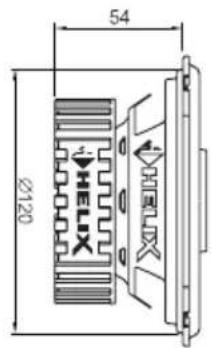

Installation depth	65 mm; 2.56”	54 mm; 2.13”	48 mm; 1.89”
Crossover	Separate inline cross-over with 6 dB slope and integrated tweeter protection	Separate inline cross-over with 6 dB slope and integrated tweeter protection	Separate inline cross-over with 6 dB slope and integrated tweeter protection

Warranty Disclaimer

The limited warranty comply with legal regulations. Failures or damages caused by overload or improper use are not covered by the warranty.

Please return the defective product only with a valid proof of purchase and a detailed malfunction description.

Technical specifications are subject to change!

Errors are reserved!

For damages on the vehicle and the speaker caused by handling errors of the speaker system we can't assume liability.
