Product Type	Range Hood
Brand	Amica
Model	KH 17228 E
Width	60 cm
Installation Type	Built-in / Under Cabinet
Extraction Type	Ducted or Recirculating
Max Extraction Rate	650 m³/h
Noise Level (max)	65 dB(A)
Number of Speeds	3
Control Type	Push Button
Lighting	2 x 2 W LED
Filter Type	Aluminum Grease Filter
Filter Cleaning	Dishwasher safe
Charcoal Filter (for recirculation)	Optional, replace every 6 months
Power Supply	220-240 V, 50 Hz
Power Consumption (max)	150 W
Weight	12 kg
Dimensions (W x D x H)	60 x 50 x 15 cm
Duct Diameter	150 mm
Energy Classification	B
Warranty	2 years
Included Accessories	Installation kit, instruction manual

Frequently Asked Questions - KH 17228 E AMICA

How do I install the Amica KH 17228 E range hood?

Installation should be done by a qualified professional. The hood must be mounted at least 65 cm above electric hobs and 75 cm above gas hobs. Ensure proper ducting or use the recirculation kit.

How often should I clean the grease filter?

Clean the aluminum grease filter every month or when the indicator lights up (if equipped). It can be washed in a dishwasher or by hand with warm soapy water. Dry thoroughly before reinstalling.

Can I use the range hood in recirculation mode?

Yes, the KH 17228 E can be used in recirculation mode with an optional charcoal filter. Replace the charcoal filter every 6 months to maintain efficiency.

What is the noise level of this hood?

The maximum noise level is 65 dB(A) at the highest speed. Lower speeds produce significantly less noise.

How do I replace the LED lights?

The LED lights are built-in and should be replaced by a qualified technician. If the lights fail, contact Amica customer service for assistance.

Why is my range hood not extracting properly?

Check if the grease filter is clogged, the duct is blocked, or if the charcoal filter (if used) needs replacement. Also ensure the hood is installed at the correct height.

How do I reset the filter alarm?

Press and hold the speed button for 3 seconds until the indicator turns off. Refer to the manual for exact procedure.

Can I control the hood remotely?

No, the KH 17228 E does not have remote control. It is operated via push buttons on the front panel.

What are the dimensions of the hood?

The dimensions are 60 cm width, 50 cm depth, and 15 cm height. For exact measurements, refer to the installation manual.

Is the power cord included?

Yes, the hood comes with a power cord. Ensure it is connected to a grounded outlet with the correct voltage (220-240 V).

USER MANUAL KH 17228 E AMICA

KH 17207 E

KH 17208 E

KH 17209 S

KH 17210 S

Before using the appliance, please carefully read this manual!

THANK YOU FOR PURCHASING AN AMICA APPLIANCE

DEAR CUSTOMER!

You are now a user of a kitchen extractor hood. This hood has been designed and manufactured specially with a view to satisfying your expectations and it will certainly constitute a fitting element of a modern kitchen. The modern structural solutions and the newest technologies used in production of this hood guarantee its high effectiveness and good appearance.

Please read these instructions carefully before installing the hood. They will help you avoid mistakes during installation and operation of the hood.

We wish you a lot of satisfaction from choosing our kitchen extractor hood.

Symbols appearing in these instructions have the following meaning:

Important information concerning proper operation of the appliance and your personal safety.

Tips on how to use the appliance.

Risks resulting from improper operation of the appliance. Activities that must be performed by a qualified technician.

Information on how to protect the environment.

This indicates actions than must not be performed by the user.

TABLE OF CONTENTS
GUIDELINES CONCERNING THE SAFETY OF USE 15

INSTALLATION		16
OPERATION	AND MAINTENANCE		17
ENVIRONMENTAL	PROTECTION	19

The appliance is intended for household use only.

The manufacturer reserves the right to introduce changes which do not affect the operation of the appliance.

● The manufacturer will accept no responsibility for any damage due to installation or operation not conforming to these instructionsi

- Cooker hood is designed to remove cooking odours. Do not use cooker hood for other purposes.

- Connect the cooker hood operating in extraction mode to a suitable ventilation duct (do NOT connect the cooker to smoke or flue gas ducts, which are in use). It requires installation of the air extraction duct to the outside. The duct length (typically 120 or 150mm in diameter) should not exceed 4-5 m. The air exhaust duct is also required for telescopic and under furniture cooker hoods operating in air recirculation mode.

- Cooker hood operating in air recirculation mode requires the installation of an activated charcoal filter. In this case, installing an extractor duct is not required, however it is recommended to install an air guide vane. (chimney cooker hoods only).

- The cooker hood features independent lighting and exhaust fan that can be operated at one of several speeds.

- Depending on the type, the hood is designed to be permanently attached to a vertical wall over a gas or electric stove (chimney and universal hoods); on the ceiling over a gas or electric stove (island hoods); on the vertical built in furniture over a gas or electric stove (telescopic and built-in hoods). Before installing, make sure that the wall/ceiling structure is strong enough to suspend the hood. Some hoods are very heavy.

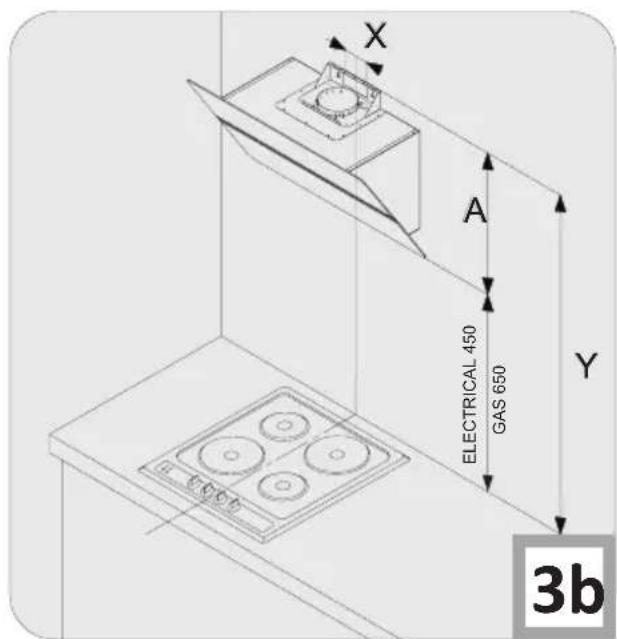

- For details of the installation distance above an electric hob please refer to product technical sheet. If the installation instructions of the gas cooker specify a greater distance, this must be taken into account (Fig. 1a/b/c).

- Do not leave an open flame under the hood. When the pots are removed from the burner, set the minimum flame. Always make sure that the flame does not extend outside the pot, because it causes unwanted loss of energy and a dangerous concentration of heat.

- Any food cooked in fat shall be constantly monitored, since overheated fat can ignite very easily.

- Pull the plug of the power cord from a wall socket before any filter cleaning or repair operation.

- The textile grease filter should be replaced, and the aluminium filter should be cleaned at least every one month in connection with the existing fire danger (saturated fat is very flammable).

- If any other non-electric devices are used in the same room as the hood (e.g. liquid fuel ovens, flow-through or volumetric water heaters), it is necessary to provide appropriate ventilation (air supply). Safe operation is possible when during simultaneous operation of the hood and combustion devices dependent on air supply the negative pressure of not more than 0.004 milibar is maintained at the loca-

tion of these devices inside the room (this point does not apply when the hood is used as an odour absorber).

● Do not lean on hood

- The hood should be frequently cleaned inside and on the outside surfaces (at least once a month). See “Cleaning section” in this manual.

- If the power wire gets broken, it should be replaced with a new one in a specialist repair shop.

● Make sure the appliance can be easily disconnected from the mains, either by pulling the plug out of the mains socket, or by switching the two-pole switch off.

- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

● Children should be supervised to ensure that they do not play with the appliance.

- Check if the voltage indicated on the rating plate corresponds to the local power supply parameters.

● Before installing unwind and straighten the power cord.

- Warning! The packaging materials (polyethylene bags, small pieces of foamed polystyrene etc.) should be kept away from children while unpacking.

NOTE: Before connecting the hood to the mains power supply always check that the power cord is properly installed and is not trapped by the appliance. It is recommended to make sure the hood operates correctly before installation.

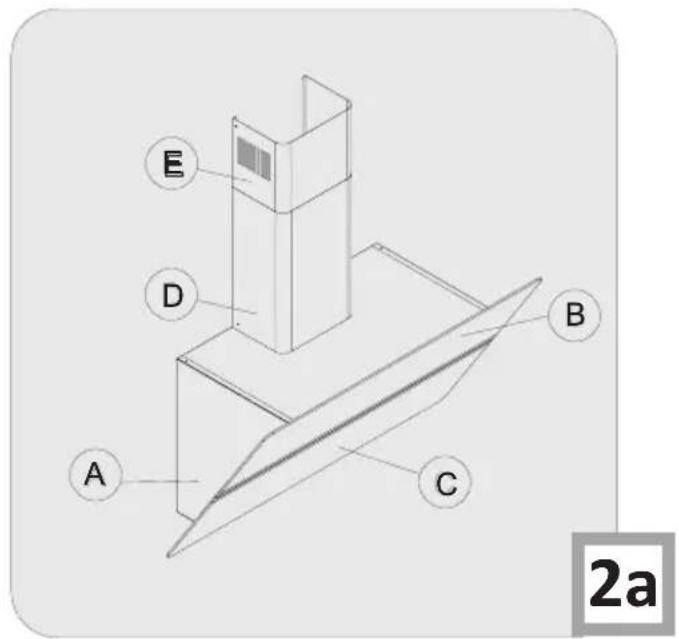

Elements

kitchen hood consists of the following elements (Fig. 2):

1. Cooker hood body A equipped with a light, a fan unit and a decorative lower masking frame D. The body includes decorative front glass panel (B) and tilting glass panel (C)
2. Additional decorative top masking frame E,
3. Air guide F,
4. Top masking frame bracket G,
5. A set of wall plugs (H, I, J)

Installation

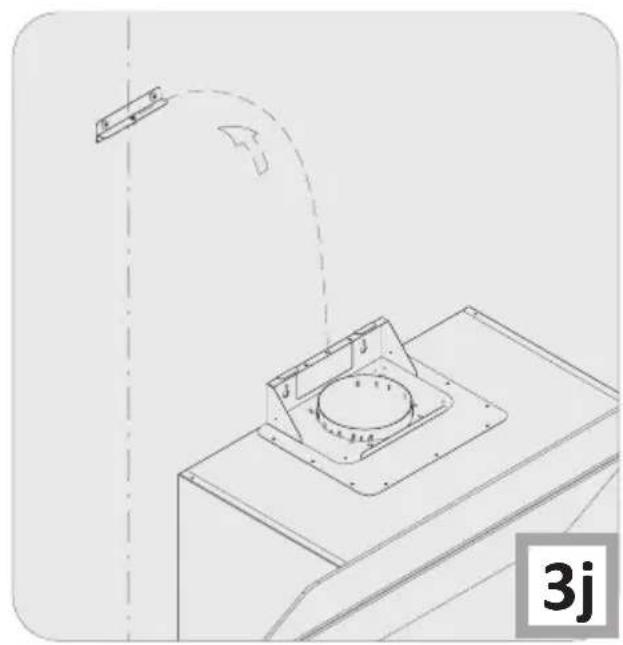

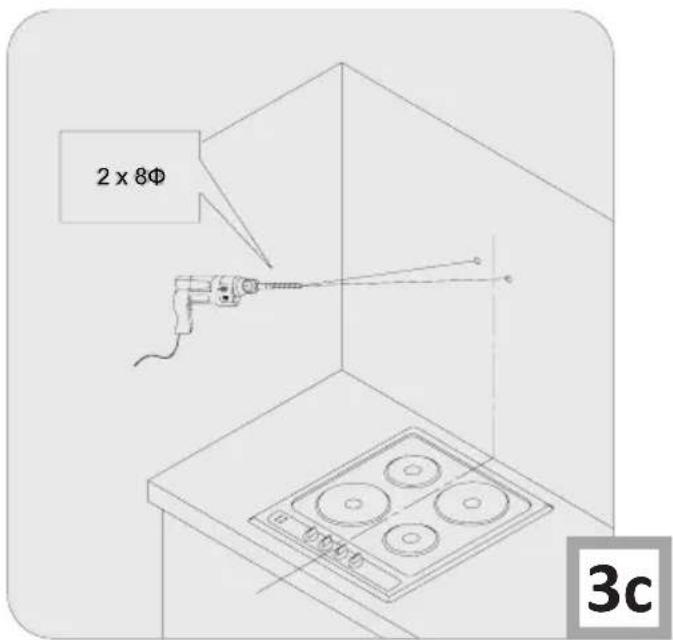

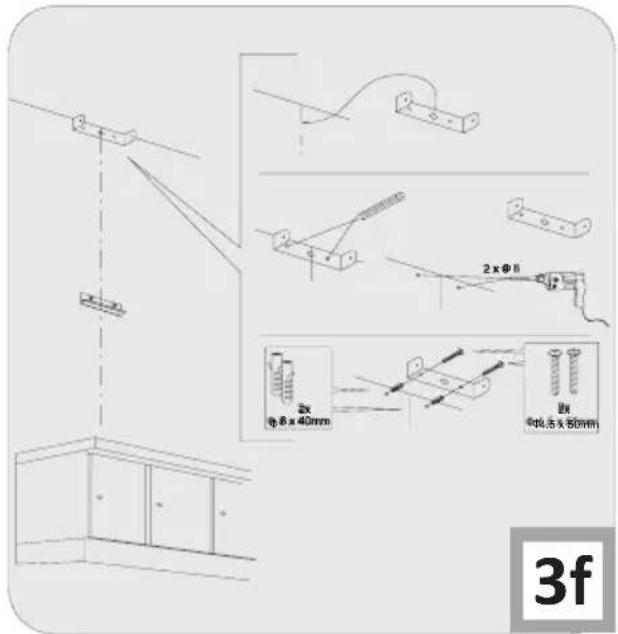

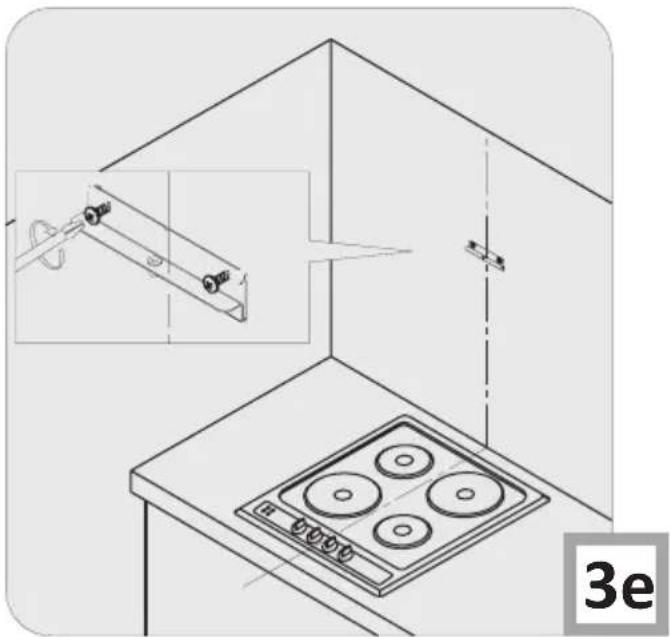

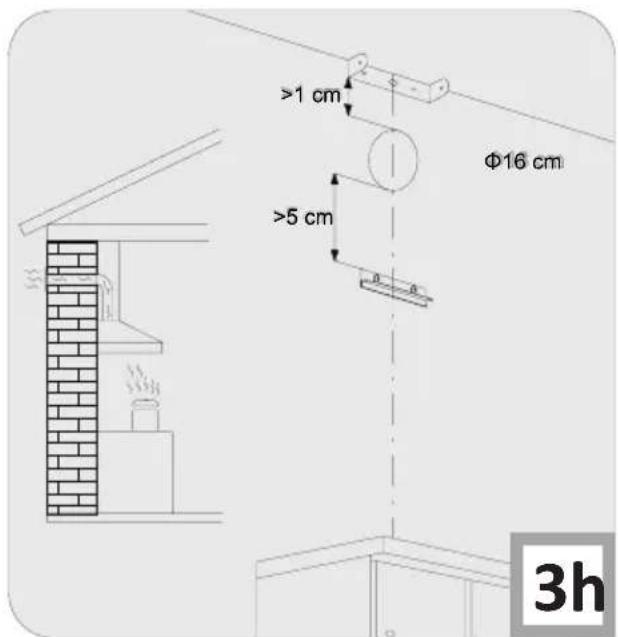

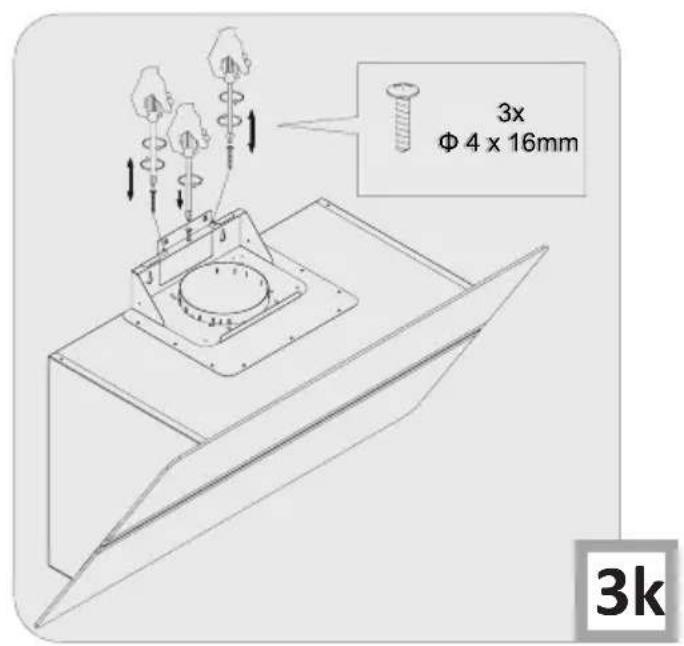

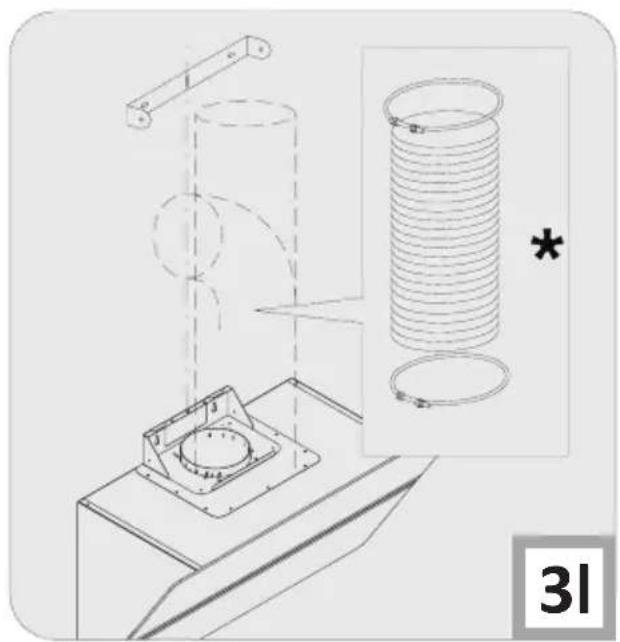

Step-by-step appliance installation is shown on Fig. 3...

Setting the air extractor mode of operation of the hood

In the extractor mode air is discharged to the outside by a special conduit. In that setting any carbon filters shall be removed. The hood should be connected to the opening discharging air to the outside by means of a rigid or flexible conduit of 120 mm diameter, which should be purchased in a shop selling installation materials.

A qualified installer should be commissioned to make the connection.

Setting the odour absorber mode of operation of the hood

In this option filtered air returns to the room through openings in the front of the hood. In this setting it is necessary to install the carbon filter. It is recommended to install the air guide (availability depending on model).

In some universal hoods you need to switch lever inside the hood (Fig. 8) to switch between the extraction and air recirculation modes. The cleaned air is returned to the room through the holes in the top of the unit.

Furniture and telescopic cooker hoods operating in air recirculation mode require installation of the exhaust duct. The other end of the duct should be directed to the room as it will discharge filtered air.

Fan speeds

The lowest and medium speeds should be used under normal conditions and with low concentration of fumes. The maximum speed should be used in case of high concentration of kitchen fumes, e.g. during frying or grilling.

Use control panel to control your cooker hood (Fig. 4)

• “-” and “+” touch sensors control cooker hood fan speed in the range from 1 to 4,
• “+” touch sensor increases cooker hood fan speed
• “-” touch sensor reduces cooker hood fan speed
• Timer touch sensor activates fan timer (max 90 min.)
• Lights "L" touch sensor switches cooker hood lights on/off independently of fan operation. Press for a short time to switch on/off lights.

Program function (Timer)

- This cooker hood has a timer function, which controls fan operation. It can be programmed to automatically switch off the fan after 10 to 90 minutes in 10 minutes intervals.

- In order to activate the timer function set the cooker hood fan at a required speed by pressing the “+” touch sensor and then touch the timer (clock) touch sensor. The display will show a flashing 0 to indicate that timer setup mode is activated. Now select the delay time to switch off the cooker hood fan by touching “+”, keeping in mind that the number displayed musts be multiplied by the 10 minute interval (For example 1=10 min, 2=20 min, 3=30 min, and so on)

- Once the required delay time is set, confirm it by touching the timer (clock) symbol again. The display will stop flashing and indicate current fan speed. A small flashing dot by the value corresponding to fan speed indicates that timer is counting down. To cancel the fan timer function, touch the timer (clock) sensor while the countdown timer is running.

Note: The timer function must be activated within 20 seconds. If no action is taken the cooker hood will switch to normal operation mode. Electronics protected with a 250V-1.6 A fuse / quick acting (5x20 glass fuse-element).

When fan and light is off the appliance will automatically go into standby after 20 seconds from the moment any sensor is touched. Power consumption of the appliance is less than 1W in standby mode In this mode, the sensor backlight remains off. touch any sensor to resume normal operation (additional sensor next to the dot on the display).

Regular maintenance and cleaning of the device will ensure faultless operation, and help extend the life of the unit. Attention should be paid to replacing grease and carbon filters according to instructions.

Aluminium grease filter

Cleaning

For normal hood operation, aluminium grease filter should be cleaned every month in the dishwasher or by hand using a mild detergent or liquid soap.

To replace:

Dismantling of aluminium grease filter is shown on Figure 5.

Acrylic filter is used in some models. This filter should be replaced at least once every two months or more frequently if the appliance is used intensively.

Charcoal filter (only the recirculation version)

Operation - Carbon filters can be used only when the hood is not connected to any ventilation duct. Filters with active carbon can absorb odours until they are saturated. They cannot be washed or regenerated and should be replaced at least every 2 months or more frequently in case of very intensive use.

Replace:

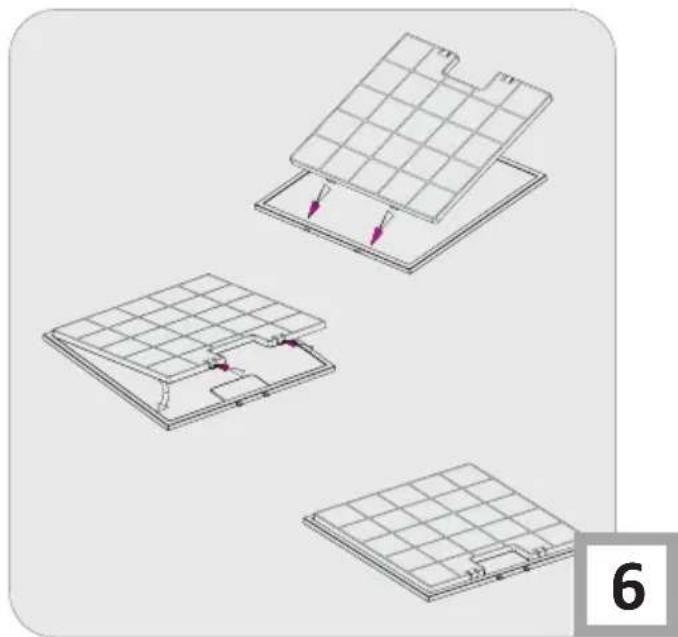

Dismantling of charcoal filter is shown on Figure 6.

Lighting

See Figure 7 for details how to replace lights. Use incandescent / halogen / LED modules of the same specification as those factory-installed in the appliance.

Cleaning

Normal hood cleaning:

• Do not use a soaked cloth, sponge, or water jet.
• Do not use solvents or alcohol, as they may tarnish lacquered surfaces.
• Do not use caustic substances, especially for cleaning stainless steel.
• Do not use a rough or abrasive cloth.

It is recommend to use a damp cloth and a neutral detergent.

Aluminium filters may be washed in the dishwasher. The colour of aluminium filters may change after several washings. This is normal and it is not necessary to renew the filters.

ENVIRONMENTAL PROTECTION

Recycling of the packaging

Our packaging is made of environmentally friendly materials, which can be reused:

● The external packaging is made of cardboard/foil
● The FCKW free shape of foamed polystyrene (PS)
● Polyethylene (PE) foils and bags

ELIMINATION / DISPOSAL OF THE EU- IPMENT

If the appliance is no longer in use, cut the connecting cable off the used equipment before scrapping. We also recommend that the appliance is locked or render it useless so that the appliance presents no

danger to children while being stored for disposal. This appliance is marked with a symbol of the crossed out waste container in conformance with the European Directive 2002/96/EC. Such marking informs that the equipment may not be kept together with other waste coming from the household after the period of its use. The user is obliged to dispose of the appliance at the waste collection point authorised by the local authority. The local waste collection points, shops and communal units form an appropriate system enabling the disposal of the equipment.

Handling the used electrical and electronic equipment and any hazardous substances contained therein in a correct manner is vital to avoid damage the local natural environment. Therefore care and responsibility should always be taken in the disposal of these products

Manufacturer's Declaration

The manufacturer hereby declares that this product meets the requirements of the following European directives:

● Low Voltage Directive 2006/95/EC,
● Electromagnetic Compatibility (EMC) Directive 2004/108/EC,
• ErP Directive 2009/125/EC

and has thus been marked with the symbol and been issued with a declaration of compliance made available to market regulators.

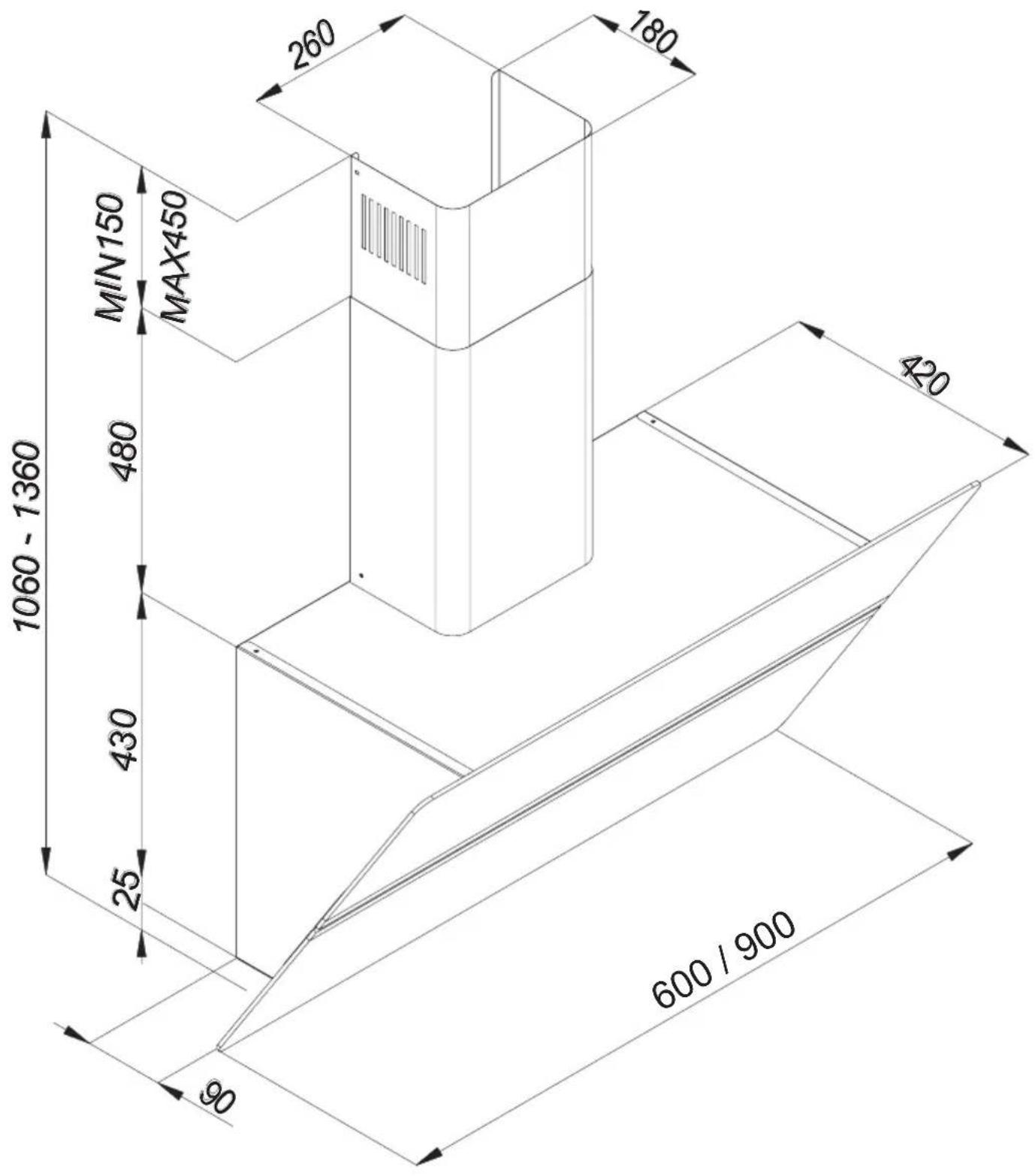

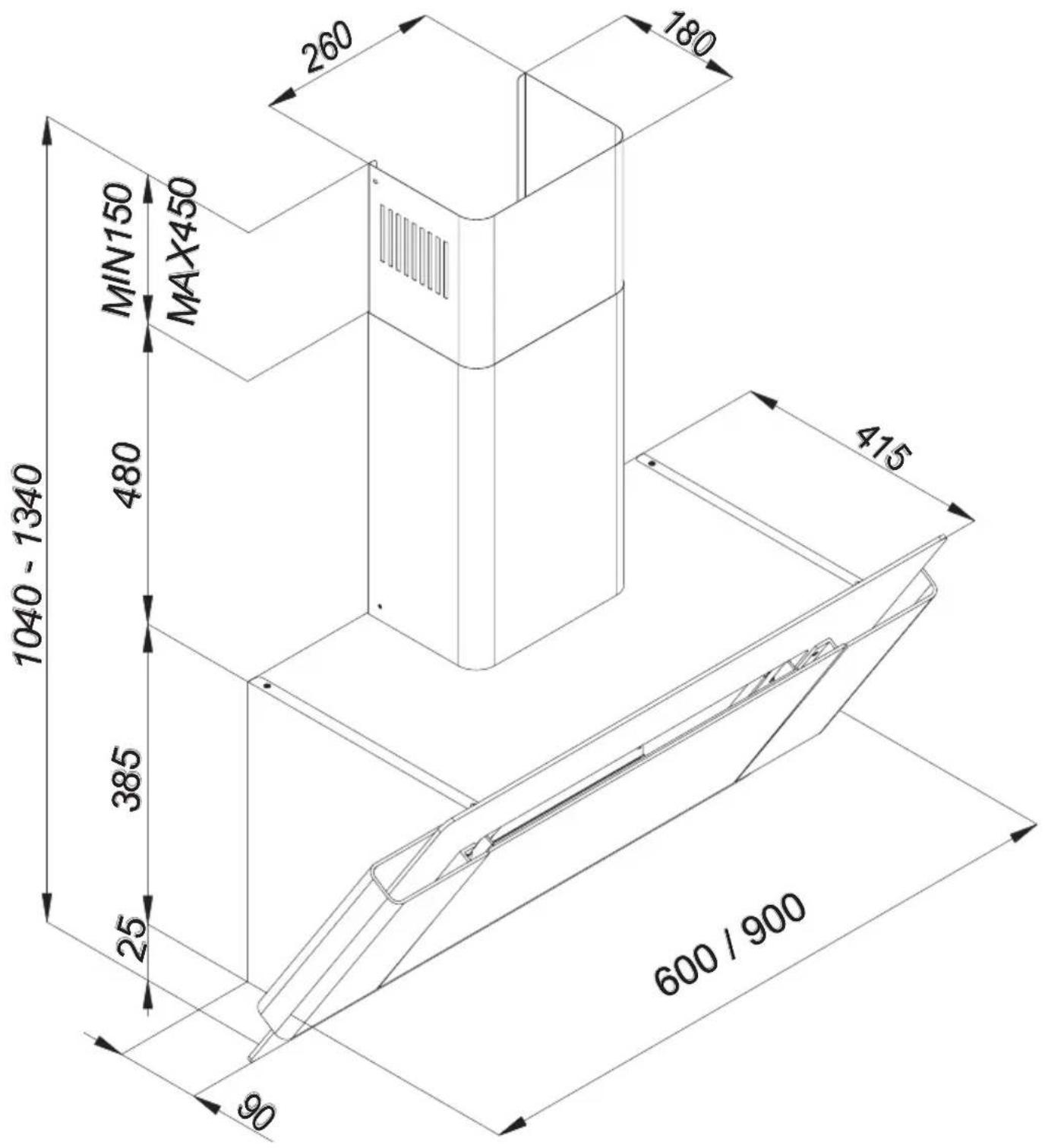

TECHNICAL SPECIFICATION

Supplier name Amica Wronki S.A.
Model ID (Model)	KH 17207 E KH	17208 E KH 17209	S KH 17210 S
	1160629 1160	630 1160631 1160	632
Air flow at highest fan speed [m3/h] max	900 max 900 max	700 max 720
Noise level at highest fan speed [dB]	52,8 52,8 48,9 48,9
Minimum distance between cooker hood and the hob's surface [mm]	650 650 650	650
Voltage [V/Hz] 230 V / 50Hz 230 V / 50Hz	230 V / 50Hz 230 V / 50Hz
Incandescent / halogen / LED light	O / O / √	O / O / √	O / O / √	O / O / √
Number of lamps x lighting power [W]	2 x 3 2 x 3 2 x 3 2 x 3
Total power consumption [W]	206 206 206	206
Protection class	I	I	I	I
Colour: stainless steel inox / white / black / brown / other	O / O / √ / O / O	O / O / √ / O / O	O / O / √ / O / O	O / O / √ / O / O
Width [mm]	600 900 600	900
Depth [mm]	420 420 415	415
Height [mm]	1060-1360	1060-1360	1040-1340	1040-1340
Outlet [mm]	120 /150	120 /150	120 /150	120 /150
Appliance net weight [kg]	18,9 24,7 21,5	27,4
