Product Type	Range Hood
Brand	Gorenje
Model	GHV8B
Width	60 cm
Depth	50 cm
Height (Min-Max)	45-65 cm (adjustable chimney)
Weight	Approx. 12 kg
Power Supply	220-240 V, 50/60 Hz
Motor Power	150 W
Total Power Consumption	170 W (including lights)
Maximum Extraction Rate	650 m³/h (ducted mode)
Noise Level (Max Speed)	62 dB(A)
Number of Speeds	3 speeds + intensive
Lighting	2 x LED, 3 W each
Filter Type	Aluminum grease filter (dishwasher safe)
Controls	Electronic push buttons
Installation Type	Wall-mounted, ducted or recirculating
Energy Class	A+
Duct Diameter	150 mm
Recirculation Kit (Optional)	Carbon filter (sold separately)
Cleaning	Grease filter cleanable; surface with damp cloth
Safety Features	Auto shut-off, motor thermal protection

Frequently Asked Questions - GHV8B GORENJE

How do I install the GHV8B range hood?

The hood should be installed at least 65 cm above an electric hob and 75 cm above a gas hob. Follow the mounting template included. Ensure the wall can support the weight. For ducted mode, connect to an external vent. For recirculation, install carbon filters.

How often should I clean the grease filter?

Clean the aluminum grease filter every 2-3 months, or more if you cook frequently. It is dishwasher safe. Remove the filter, wash with mild detergent, and dry completely before reinserting.

Can I use the hood in recirculation mode?

Yes, but you need to purchase a carbon filter kit (sold separately). Install it according to the manual. The hood will then recirculate filtered air back into the kitchen.

What is the noise level of the GHV8B?

The noise level ranges from about 42 dB on the lowest speed to 62 dB on maximum speed. The intensive speed may be slightly louder but is only used for short periods.

How do I change the LED lights?

LED lights are integrated and should be replaced by a qualified technician. If malfunctioning, contact Gorenje service. Do not attempt to open the light unit yourself.

Does the hood have a remote control?

No, the GHV8B is controlled via electronic push buttons on the front panel. There is no remote control included.

What does the intensive speed do?

The intensive speed runs the motor at maximum power for about 5-10 minutes to quickly eliminate strong odors or steam. It then automatically returns to the previous speed setting.

How do I clean the stainless steel surface?

Use a soft cloth with warm water and mild detergent. Avoid abrasive cleaners, steel wool, or chlorine-based products. Wipe in the direction of the grain to avoid scratches.

What should I do if the hood is not working?

Check the power supply, ensure the plug is inserted, and the circuit breaker is on. If still not working, the motor thermal protection may have tripped; let it cool for 30 minutes. If problem persists, contact Gorenje support.

Where can I find spare parts like filters?

Spare parts can be ordered from Gorenje authorized service centers or online retailers. Use the model number GHV8B to ensure compatibility. Keep the manual for part references.

USER MANUAL GHV8B GORENJE

Diagram showing a 3D structure transforming into a cylindrical component, with no visible text or symbols.

3D illustration of a mechanical device with a knob and curved arrow indicating rotation (no text or symbols)

3D diagram of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

5

⑥

⑦

You have purchased a product of our new series of cooker hoods. We hope that our product will serve you well and for long time. We recommend you to study these instructions and to operate this product according to them.

IMPORTANT INFORMATION AND RECOMMENDATIONS

• The cooker hood should not be connected to smoke flue, which is used for combustion exhaust
• The appliance can be used in exhaust mode (the exhaustion of exhalations into waste air stack) or, after additional buying of carbon filter and recirculation set in recirculation mode (circulation through carbon filter).
• If there is in operation simultaneously with the cooker hood (in exhaustion mode) appliance of type B in the same room - heat source (for instance with gas, oil, diesel fuel or with solid fuel), which draw combustion air directly from the room, then it should be taken into account, that these appliances create at combustion a certain level of under-pressure. Therefore it is necessary to provide a sufficient inflow of air (from the outside environment).
• The cooker hood is an electric appliance with Y – type connection. If the power cord is damaged, it should be replaced with the producer, his/her service technician or with similarly qualified person, for to prevent the creation of dangerous situation.
• Do not handle with open flame under the cooker hood (for instance at flambéing etc.)!
• Do not use hot plates (burners) under hood without pots!
• The big fat deposits from roasting on the anti-fat filter should be regularly removed.
• The accessible parts could be hot at using of cooking devices.
• This appliance is designed for normal household use.
• Follow the below determined instructions at replacing of filters.
• This appliance should be operated with adults only.

- This appliance is not designed for use with persons (including children), their physical, sensual or mental disability or lack of experience and knowledge hinders the safe use of appliance, except when they are under supervision or they were introduced concerning use of appliance with the person responsible for their safety. The children should be supervised for ensure, that they would not play with the appliance.

- The producer is not responsible for damages caused with faulty installation or faulty using of appliance.

ATTENTION

• Plug in cooker hood to the net before fixing on the wall and check function of motor (all speeds) and function of lights.
• Check whether motor is not too noisy, whether have regular running.
• Do not remove protection foil from cooker hood and decoration chimney.
• Check if carton box is not demaged, check sufrace of cooker hood if there are not scratches or dishing.
  IN CASE OF FAILS DO NOT FIX COOKER HOOD ON THE WALL AND CLAIMED IT AT YOUR SALER!!!
• Fix the cooker hood on the wall with protection foil. After fixing and setting right height of decoration chimney remove protection foil.
• Do not move with decoration chimney without protection foil. In other case there will be scratches on surface.

Following these instructions you avoid useless claiming.

DESCRIPTION (FIG.1)

A – Cooker hood

B – Lower part of decoration chimney

C – Upper part of decoration chimney

D – Lifting off door

E - Carbon filter (for recirculation only)

F – Anti-grease filter – metal cassette

M - Cover of decorative chimney

ELECTRIC CONNECTION

- Check before installation of appliance that the voltage in your power net corresponds to data given on the production sheet inside of the appliance.

• The appliance is provided with a power cord is ended with a plug – class I. of protection against electric shock.
• Connect the appliance to a socket corresponding to valid national standards.

INSTALLATION

The distance between the cooker hood and the hotplate should not be less as:

• 450 mm over electric the hob (fig.2)
- 650 mm over gas burners

ATTENTION

• The attached dowels and screws are designed for fastening of cooker hood on a wall from concrete or full bricks. For other wall material a corresponding type and size of dowels and screws should be used.
• Leave the fastening of cooker hood to a specialist!
• When installing cooker hood do not keep it by glass front surfaces!

MOUNTING OF COOKER HOOD

• Remove cooker hood from the packaging.
• A part of packaging is the mounting guide – see fig. 3.

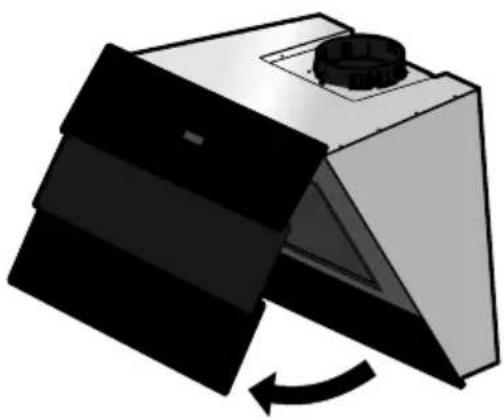

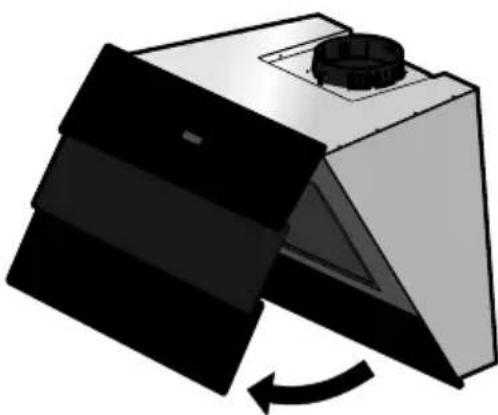

• Open the cooker hood and take off the fat catching metal filter.
• Place the mounting guide on the wall (botom edge of guid = bottom edge of cooker hood) and mark the location of openings for the dowels in the required height.
• Drill the openings for the dowels on the marked places „G“ and „H“. Tap the dowels into the bored openings.
• Screw in the screws into the dowels in the openings „G“ and hang up the cooker hood on them.
• Lock the location of cooker hood with two screws in the openings „H“.

IMPORTANT:

The horizontal location of cooker hood should be observed.

THE EXHAUSTION VERSION

- At use of exhaustion version (see fig. 4) the exhalations are led into the exhaustion opening with the exhaustion hose, which is connected to the cooker hood with a flange. The exhaustion hose and the

fastening clips should be bought additionally.

- The exhaustion is provided through the upper outlet of the cooker hood, on which the exhaustion hose should be connected and the other end of hose should be connected into the exhaustion opening. The diameter of exhaustion hose should be the same as the diameter of connecting flange – e.g. ∅ 150 mm, or ∅ 120 mm with a reduction piece (if you use connection hose ∅ 120 mm, you will decrease exhaust capacity and increase noise level)

MOUNTING OF EXHAUSTION VERSION AND OF DECORATION CHIMNEY

• Fasten with help of a hose clip on the hinged on cooker hood the one end of exhaustion hose, fasten the other end into the exhaustion opening.
• Both parts (the upper C and lower B) of decoration chimney, shifted one to the other, place on the hinged on cooker hood.
• Shift the upper part C into the required height, mark the upper location and mark the fastening openings of console (K).
• Remove the decoration chimney and bore the marked openings for the dowels.

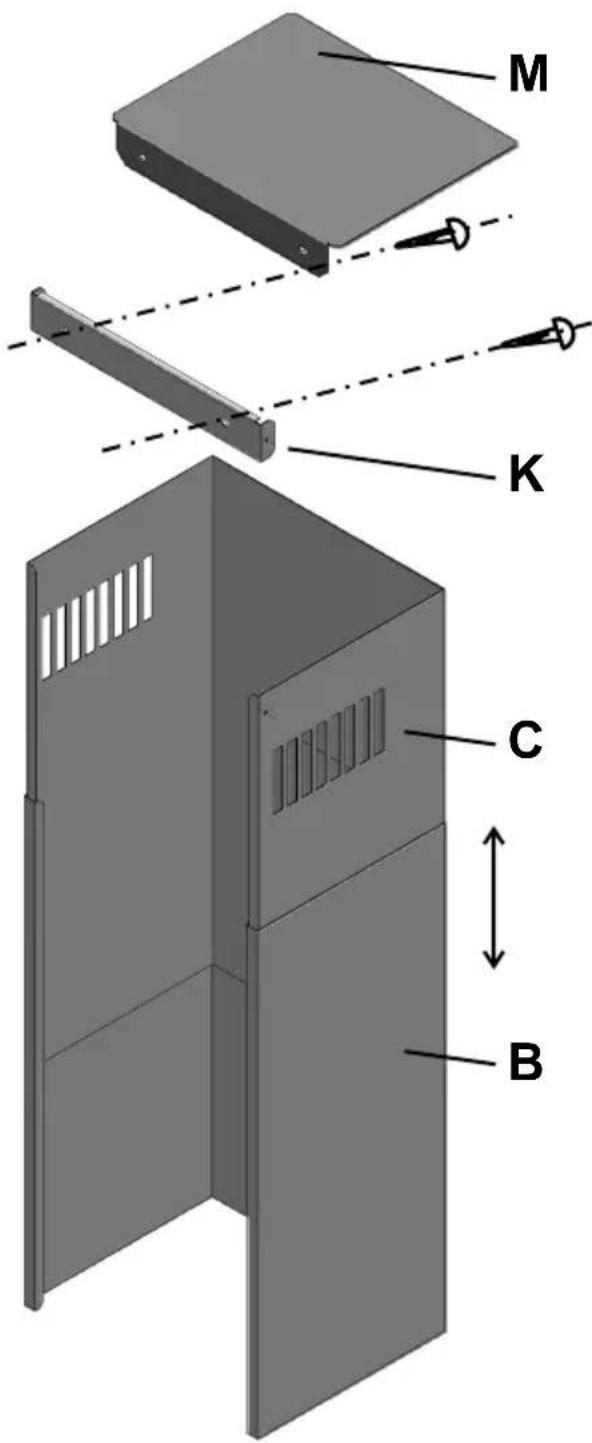

• Screw on the console (K) together with cover of decoration chimney (M).
• Fasten once more the both parts of decoration chimney, shift out its upper part and fasten to the console with two screws.

IMPORTANT:

Remove protection foil from decoration chimney not until last assembly of decoration chimney!

IMPORTANT!

The carbon filter should not be installed in the cooker hood at exhaustion version.

RECIRCULATION VERSION

- A carbon filter and recirculation set should be bought for the cooker hood in recirculation version (fig. 9). The exhalations are exhausted through the carbon filter.(fig. 1 (E)) The circulation air with removed smell is led with exhausted hose through air spreader to the ventilation openings in upper part of decorative chimney to the room.

- This version is used in cases, when there is no waste air stack at disposal.

CAUTION!

The carbon filter should be installed in the cooker hood at recirculation.

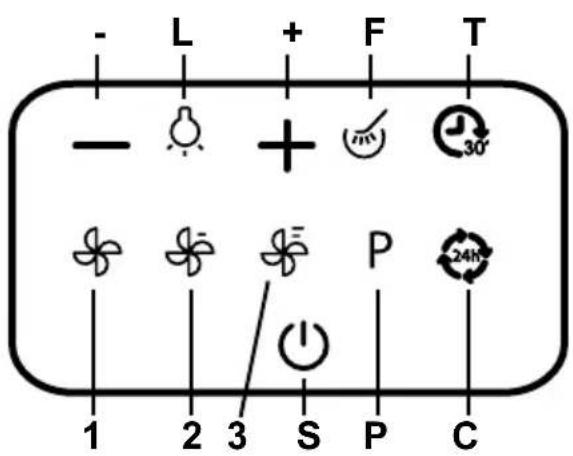

CONTROL (FIG. 6)

S - sensor of switching on/off function (sensor of power switch)

L - sensor of light switching on/off function

-- sensor to reduce light intensity

+ - sensor to increase the pntesity of light

1, 2, 3 - sensors for setting on of capacity level

P - sensor of increased capacity function (BOOSTER)

F – signal light for signaling the pollution level for the filter

C - sensor of CLEAN and FRESH function

T - sensor of TIMER

CAUTION

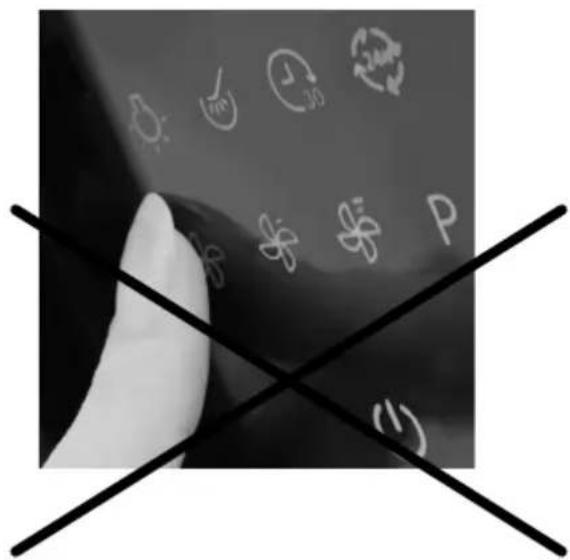

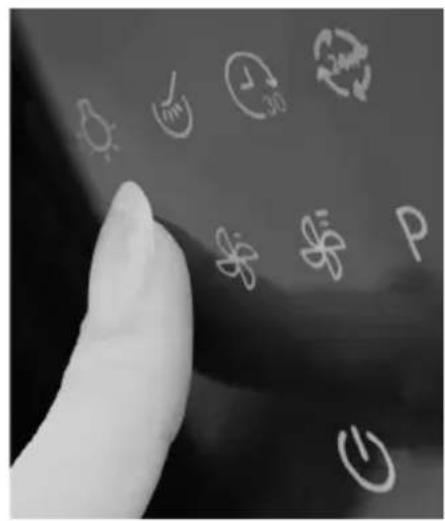

• The sensor touch control is activated with single placing of finger on the corresponding symbol on the control board. Therefore keep the control board clean and dry.
• Do not allow to children the use or cleaning of appliance.
• PREVENT the undesired switching on of appliance, for instance with pets!
• The set up parameters will be set to zero at disconnection of cooker hood from the power.

The capacity of cooker hood can be regulated in four levels using the touch symbols on the control board. The reaction time of symbols is 0.5 seconds – this is the necessary time for holding the finger on the corresponding symbol.

SWITCHING ON OF COOKER HOOD

The sensor S is shining with lower intensity after connecting the cooker hoods to the power net. With pressing the S sensor (power switch) the cooker hoods will be switched on – the control board will shining and activated.

SETTING UP OF CAPACITY LEVEL FOR THE COOKER HOOD

Using of sensors 1-3 we can set up the capacity level after switching on of the cooker hood.

BOOSTER – FUNCTION OF INCREASED CAPACITY

• The function „BOOSTER“ is used for fast switching on of the maximal capacity for the cooker hood.
• The „BOOSTER“ function is activated with pressing of „P“ symbol.
• The duration of cooker hood operation in this mode is max. 10 minutes. After elapsing of this period the capacity will be automatically decreased to level 3.

DEACTIVATION – CANCELLING OF „BOOSTER“ FUNCTION

The „booster“ function is cancelled with pressing one from symbols 1, 2 or 3.

SETTING OF LIGHT INTENSITY OF COOKER HOOD

After switching ON of cooker hood press sensor "L". With help of sensors "+" and "-" set required intensity of light.

NOTE:

For repeated switching ON of cooker hood the intensity of lights remain the same as was before last swithing OFF

SWITCHING OFF LIGHTING OF THE COOKER HOOD

The lighting of cooker hood can be switched off with pressing of sensor „L“.

SETTING OF LIGHT INTENSITY OF COOKER HOOD

• After switching ON of cooker hood press sensor "L".
• With help of sensors “+” and “-” set required intensity of light.

NOTE:

For repeated switching ON of cooker hood the intensity of lights remain the same as was before last switching OFF

TIMER

• The TIMER function is used for automatic switching off of the cooker hood.
• The function is activated with pressing of sensor „T“
• The capacity level can be changed at used timer function.
• The operation duration of cooker hood in this mode is 30 minutes.
• The cooker hood will be switched off automatically after elapsing of this time period.

METHOD

• Switch on the cooker hood with pressing of the sensor „S“.
• Select the desired capacity level (1, 2 or 3)
• Press the timer sensor „T“.
• The capacity level can be changed during the operation in the „TIMER“ mode.
• The deactivation of timer can be made with repeated pressing of sensor „T“.

REMARK

At switching off of the cooker hood with sensor „S“ also the timer function is switched off.

CLEAN AND FRESH FUNCTION METHOD

• Switch on the cooker hood with pressing of the sensor „S“.
• Activate the CLEAN and FRESH function with pressing of the sensor „C“.
• Every hour the cooker hood will be switched on for 5 minutes during this activated function.
• The cooker hood in this mode is working on the capacity level no.1.

REMARK

The CLEAN and FRESH function will be automatically switched off at switching of cooker hood to „BOOSTER“ or to other capacity level.

DEACTIVATION OF CLEAN AND FRESH FUNCTION

With repeated pressing of sensor „C“.

SIGNAL LIGHT FOR THE POLLUTION LEVEL OF THE FILTER

• The signal light for the pollution level of the filter will shine after 100 hour of operation of the cooker hood. Provide the checking of pollution level of the metal filter.
• Press the sensor (symbol "F") for at least 5 seconds after provided check and cleaning of the filter, the counter of operation hours will be set to zero with it.

AUTOMATIC SWITCHING OFF OF THE COOKER HOOD

If no change in the setting or other selection is made up to 5 minutes from switching on of the cooker hood with the sensor „S“, then the cooker hood switches automatically off.

SAFETY SWITCHING OFF OF THE COOKER HOOD

• It switches everything except the CLEAN and FRESH function off.
• If no change in the setting of the cooker hood is made during the last 48 hours, a safety switching off of the cooker hood is realized.

MAINTENANCE AND CLEANING

• At cleaning or maintenance switch the appliance off from the power and this with disconnecting from the socket or with switching off of corresponding circuit breaker.
• The regular maintenance and cleaning ensure the efficiency, reliability and longer lifetime of cooker hood.
• Pay special attention to anti-fat filter and to carbon filter.
• For cleaning of cooker hood do not use cleaning articles containing aggressive substances mainly chlorine and dissolvents.

ANTI-GREASE METAL FILTER

• The anti-fat metal filter (F) catches the fat particles.
• The metal filter should be cleaned manually or in dishwasher (at 65 °C) with use of appropriate detergents.
• The filter can slightly change its color when washed in dishwasher; nevertheless this fact has no influence to its functionality.

- Let the filter thoroughly dry after washing and return it to cooker hood in dry state only.

CASSETTE CARBON FILTER

• The carbon filter (E) absorbs the kitchen smell.
• The carbon filter should be never washed!
• Provide the cleaning cycle always after lighting on of symbol „F“ on the control board of cooker hood.

INSTALLATION OF CASSETTE CARBON FILTER

• Disconnect the appliance from the power net.
• Take out the anti-fat filter (F) and fasten the cassette carbon filter (E) to its internal side – see the picture.

NOTICE!

The caught fat in the filter has influence not only to the effectiveness of cooker hood but at neglected maintenance could cause also a fire! Therefore we recommend the observation of instructions for cleaning and changing of filters.

LIQUIDATION OF CARBON FILTERS AFTER FINISHED LIFETIME

• The used filters can be put to normal household waste.
• The liquidation should be provided in concordance with the corresponding national standards and regulations.

CLEANING

• Clean regularly the internal and external parts of cooker hood with soft cleaning agents.
• Never use abrasive cleaning means.
• Clean the glass surfaces with special means for glass, mirrors and windows.

METHOD OF USE AND LIQUIDATION OF PACKAGING

Grooved cardboard, packaging paper
- sale to waste collecting company - to collecting vessels for used paper
- other reuse
Polystyrene
- to corresponding collecting vessels Packaging foil and PE backs
- to collecting vessels for plastic

LIQUIDATION OF APPLIANCE AFTER FINISHING OF USE

This appliance is marked in accordance with Directive 2002/96/EC on manipulation with waste from electric and electronic equipment – WEEE. This directive determines the unified European (EU) frame for collection and recycling of used equipment.

The appliance contains valuable materials which should be reused after finishing of their use. Please give your used appliance to waste processing company.

CLAIMS

If there is any defect on the appliance within the guarantee period, do not repair it self. Apply a claim in the shop in which you bought the appliance or at service representatives, mentioned in the Guarantee conditions.

At applying of claim observe the text of Guarantee sheet and GUARANTEE CONDITIONS.

REMARK:

The producer reserves the right for providing of minor changes, resulting from innovations or from technologic modifications of the product

BASIC TECHNICAL DATA

Type GHV6B

Quantity of motors 1

Max. motor capacity 200 W

Lighting - halogen 2 x 20 W

Total power consumption of cooker hood 240 W

Electric voltage 230 V ac

Protection class against electric shock I.

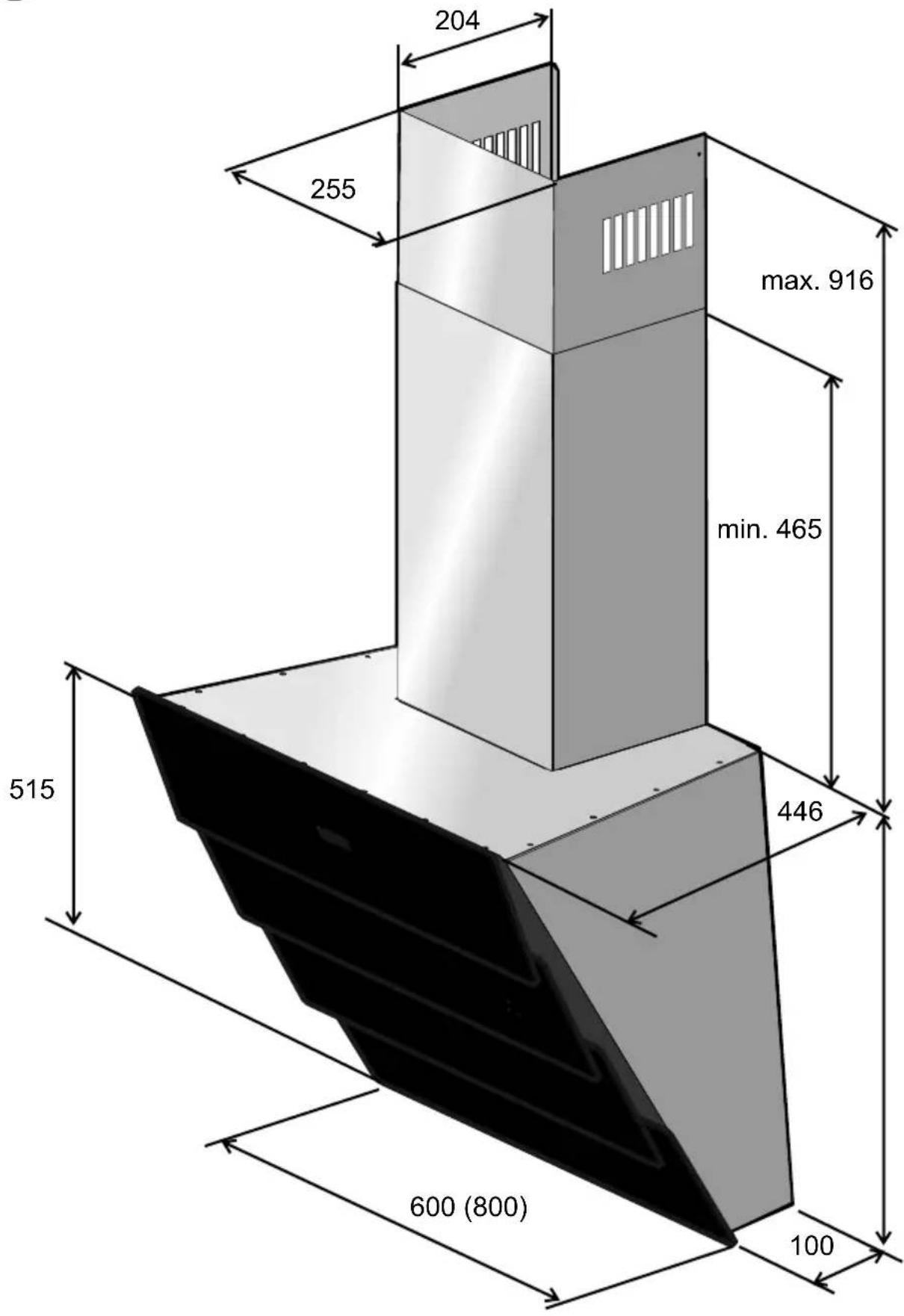

Dimensions (mm): 600 x 446 x w x d x h (Fig. 7) 515

Noise level 59 dBA

Color - version Inox - glass

Anti-fat filter 1 pc – metal

Control TOUCH CONTROL

Number of capacity levels 3 + BOOSTER

Exhaustion ∅ 150 mm

Exhaustion with reduction ∅ 120 mm

Exhaustion - upper

- recirculation

ACCESSORIES OF COOKER HOOD

Dowels and screws fro mounting of cooker hood on a wall and screws for fastening of decoration chimney

Screws 5 x 50 mm (6 pieces)

Screw 3,9 x 8 mm (2pc)

Dowels H 8 (6 pieces)

Upper cover of decoration chimney for recirculation

Console for fastening of decoration chimney

Decoration chimney (2 pieces)

Backflow valve – is integral part of ventilator motor

Reduction ∅ 150 / 120 mm

BASIC TECHNICAL DATA

Type GHV8B

Quantity of motors 1

Max. motor capacity 200 W

Lighting - halogen 2 x 20 W

Total power consumption of cooker hood 240 W

Electric voltage 230 V ac

Protection class against electric shock I.

Dimensions (mm): 800 x 446 x w x d x h (Fig. 7) 515

Noise level 59 dBA

Color - version Inox - glass

Anti-fat filter 1 pc – metal

Control TOUCH CONTROL

Number of capacity levels 3 + BOOSTER

Exhaustion ∅ 150 mm

Exhaustion with reduction ∅ 120 mm

Exhaustion - upper

- recirculation

*The declared noise emission level of this appliance is 59dB (A), what represents the A level of acoustic power in comparison to reference acoustic power 1pW.

ACCESSORIES OF COOKER HOOD FOR ORDERING

Carbon filter - set -SAP 330276

Prolongation of decoration chimney – SAP 322151

Exhaustion hose

∅ 120 or ∅ 150 mm + fastening clip

Recirculation set

326024en

FUNKCIJA CLEAN AND FRESH POSTOPEK

IZKLOP FUNKCIJE CLEAN AND FRESH

Ogljikov filter - set (SAP 322147)

FUNKCE CLEAN AND FRESH POSTUP

DEAKTIVACE FUNKCE CLEAN AND FRESH
