Product Type	Freestanding Oven
Brand	Zanker
Model	KOB55602XK
Energy Source	Electric
Oven Capacity	71 L
Number of Functions	8
Cooking Functions	Convection, Grill, Defrost, Pizza, Fan, Conventional, Top Heat, Bottom Heat
Control Type	Rotary knobs with digital timer
Display	LED digital display
Cleaning Type	Catalytic liners (rear wall)
Door Type	Tempered glass, double glazed
Interior Light	Yes, halogen
Safety Features	Child lock, automatic shut-off, cool touch door
Dimensions (H x W x D)	595 x 595 x 568 mm
Weight	32 kg
Energy Efficiency Class	A+
Voltage	230 V / 50 Hz
Power Rating	2.7 kW
Spare Parts Availability	Heating elements, thermostat, door hinge, control knobs available
Repairability Index	7.5 / 10
Warranty	2 years
Accessories Included	1 enamel baking tray, 1 wire shelf

Frequently Asked Questions - KOB55602XK ZANKER

How do I set the timer on my Zanker KOB55602XK oven?

Turn the timer knob to the desired time (up to 120 minutes). The oven will switch off automatically when the time elapses. For minute minder, use the same knob.

What is the maximum temperature of this oven?

The maximum temperature is 250 °C for conventional heating and 220 °C for fan-assisted functions.

Can I use aluminium foil in the oven?

Yes, but avoid covering the bottom of the oven or the heating elements. Place foil on the baking tray only.

How do I clean the catalytic liners?

Run the oven empty at 250 °C for 60 minutes. The liners absorb grease and burn it off. Wipe gently with a damp cloth after cooling.

Why is my oven not heating?

Check the power supply, circuit breaker, and that the function selector is set correctly. If still not working, the heating element may be faulty.

Does the oven have a child lock?

Yes, press and hold the '+' and '-' buttons simultaneously for 3 seconds to activate. The display shows 'LOC'. Repeat to deactivate.

Can I defrost food in this oven?

Yes, select the defrost function (usually a snowflake symbol). The fan runs without heat to circulate air and thaw food gently.

What type of bulbs does the interior light use?

It uses a 25 W halogen bulb (G9 base). Replace only when the oven is cool and disconnected from power.

How do I replace a faulty thermostat?

Disconnect the oven, remove the back panel, locate the thermostat sensor, unplug the old one, and plug in the new. Use only genuine Zanker spare parts.

Where can I find the energy efficiency label?

The energy efficiency label is on the back of the oven or inside the manual. This model is class A+.

USER MANUAL KOB55602XK ZANKER

Additional functions	8
Helpful hints and tips	8
Care and cleaning	13
What to do if...	15
Installation	16
Environment concerns	17

Subject to change without notice.

Safety information

Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

Children and vulnerable people safety

⚠ Warning! Risk of suffocation, injury or permanent disability.

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised by an adult or a person who is responsible for their safety.
• Do not let children play with the appliance.
• Keep all packaging away from children.
• Keep children and pets away from the appliance when it operates or when it cools down. Accessible parts are hot.
  • If the appliance has a child safety device, we recommend that you activate it.
• Cleaning and user maintenance shall not be made by children without supervision.

General Safety

• Internally the appliance becomes hot when in operation. Do not touch the heating elements that are in the appliance. Always use oven gloves to remove or put in accessories or ovenware.
• Do not use a steam cleaner to clean the appliance.

• Before maintenance cut the power supply.

• Do not use harsh abrasive cleaners or sharp metal scrapers to clean the glass door since they can scratch the surface, which may result in shattering of the glass.

• To remove the shelf supports first pull the front of the shelf support and then the rear end away from the side walls. Install the shelf supports in the opposite sequence.

Safety instructions

Installation

Warning! Only a qualified person must install this appliance.

• Remove all the packaging.
• Do not install or use a damaged appliance.
• Obey the installation instruction supplied with the appliance.
  • Always be careful when you move the appliance because it is heavy. Always wear safety gloves.
• Do not pull the appliance by the handle.
• Keep the minimum distance from the other appliances and units.
• Make sure that the appliance is installed below and adjacent safe structures.
• The sides of the appliance must stay adjacent to appliances or to units with the same height.

Electrical connection

Warning! Risk of fire and electrical shock.

• All electrical connections should be made by a qualified electrician.
  • The appliance must be earthed.
• Make sure that the electrical information on the rating plate agrees with the power supply. If not, contact an electrician.
• Always use a correctly installed shockproof socket.
• Do not use multi-plug adapters and extension cables.

• Make sure not to cause damage to the mains plug and to the mains cable. Contact the Service or an electrician to change a damaged mains cable.

• Do not let mains cables to come in touch with the appliance door, specially when the door is hot.

• The shock protection of live and insulated parts must be fastened in such a way that it cannot be removed without tools.
• Connect the mains plug to the mains socket only at the end of the installation. Make sure that there is access to the mains plug after the installation.
• If the mains socket is loose, do not connect the mains plug.
• Do not pull the mains cable to disconnect the appliance. Always pull the mains plug.
• Use only correct isolation devices: line protecting cut-outs, fuses (screw type fuses removed from the holder), earth leakage trips and contactors.
• The electrical installation must have an isolation device which lets you disconnect the appliance from the mains at all poles. The isolation device must have a contact opening width of minimum 3 mm.

Use

Warning! Risk of injury, burns or electric shock or explosion.

• Use this appliance in a household environment.
• Do not change the specification of this appliance.
• Make sure that the ventilation openings are not blocked.
• Do not let the appliance stay unattended during operation.
• Deactivate the appliance after each use.
• Be careful, when you open the appliance door while the appliance is in operation. Hot air can release.

• Do not operate the appliance with wet hands or when it has contact with water.

• Do not apply pressure on the open door.

• Do not use the appliance as a work surface or as a storage surface.
• Always keep the appliance door closed when the appliance is in operation.
• Open the appliance door carefully. The use of ingredients with alcohol can cause a mixture of alcohol and air.
• Do not let sparks or open flames to come in contact with the appliance when you open the door.
• Do not put flammable products or items that are wet with flammable products in, near or on the appliance.

Warning! Risk of damage to the appliance.

• To prevent damage or discoloration to the enamel:
• Do not put ovenware or other objects in the appliance directly on the bottom.
• Do not put aluminium foil directly on the bottom of the appliance.
  – do not put water directly into the hot appliance.
  – do not keep moist dishes and food in the appliance after you finish the cooking.
• be careful when you remove or install the accessories.
• Discoloration of the enamel has no effect on the performance of the appliance. It is not a defect in the sense of the warranty law.
• Use a deep pan for moist cakes. Fruit juices cause stains that can be permanent.

Care and Cleaning

Warning! Risk of injury, fire or damage to the appliance.

- Before maintenance, deactivate the appliance and disconnect the mains plug from the mains socket.

• Make sure the appliance is cold. There is the risk that the glass panels can break.
• Replace immediately the door glass panels when they are damaged. Contact the Service.
• Be careful when you remove the door from the appliance. The door is heavy!
• Clean regularly the appliance to prevent the deterioration of the surface material.
• Remaining fat or food in the appliance can cause fire.
• Clean the appliance with a moist soft cloth. Only use neutral detergents. Do not use abrasive products, abrasive cleaning pads, solvents or metal objects.
• If you use an oven spray, obey the safety instructions on the packaging.
• Do not clean the catalytic enamel (if applicable) with any kind of detergent.

Internal light

- The type of light bulb or halogen lamp used for this appliance, is only for household appliances. Do not use it for house lighting.

Warning! Risk of electrical shock.

• Before replacing the lamp, disconnect the appliance from the power supply.
• Only use lamps with the same specifications.

Disposal

Warning! Risk of injury or suffocation.

• Disconnect the appliance from the mains supply.
• Cut off the mains cable and discard it.
• Remove the door catch to prevent children and pets to get closed in the appliance.

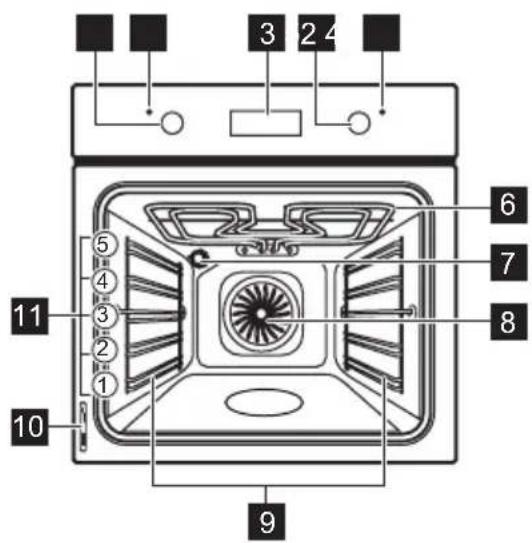

1 Knob for the oven functions
2 Power indicator
3 Electronic programmer

4 Knob for the temperature
5 Temperature indicator
6 Grill
7 Oven lamp
8 Fan
9 Shelf support, removable
10 Rating plate
11 Shelf positions

Oven accessories

• Wire shelf
  For cookware, cake tins, roasts.

• Combi pan
  For cakes and biscuits. To bake and roast or as a pan to collect fat.

Before first use

Warning! Refer to the Safety chapters.

Initial cleaning

• Remove all accessories and removable shelf supports (if applicable).
• Clean the appliance before first use.

Important! Refer to the chapter "Care and cleaning".

Setting the time

You must set the time before you operate the oven.

When you connect the appliance to the electrical supply or after a power cut, the indicator for the Time of Day function flashes.

Press the + or - button to set the correct time.

After approximately five seconds, the flashing stops and the display shows the time of day you set.

To change the time, press ⚠ again and again until the indicator for the Time of Day function flashes. You must not set the Duration I→I or End →I function at the same time.

Preheating

Preheat the empty appliance to burn off the remaining grease.

1. Set the function □ and the maximum temperature.

2. Let the appliance operate for one hour.

3. Set the function 📋 and the maximum temperature.

4. Let the appliance operate for ten minutes.

5. Set the function ☐ and the maximum temperature.

6. Let the appliance operate for ten minutes.
   Accessories can become hotter than usual. The appliance can emit an odour and smoke. This is normal.
   Make sure that the airflow is sufficient.

Daily use

Warning! Refer to the Safety chapters.

To use the appliance, push the knob. The knob comes out.

Activating and deactivating the appliance

1. Turn the knob for the oven functions to an oven function. The power indicator comes on while the appliance operates.

2. Turn the knob for the temperature to a temperature.

The temperature indicator comes on while the temperature in the appliance increases.

1. To deactivate the appliance, turn the knob for the oven functions and the knob for the temperature to the Off position.

Oven functions

Oven function Application
		Off position The appliance is off.
		Conventional Cooking	To bake and roast on one oven level. The top and bottom heating elements operate at the same time.
		Bottom Heat	To bake cakes with crispy or crusty bottom. Only the bottom heating element operates.
		True Fan Cooking	To roast or roast and bake food with the same cooking temperature, on more than one shelf, without flavour transference.
		Grilling	To grill flat food items in small quantities in the middle of the shelf. To make toast.
		Fast Grilling	To grill flat food items in large quantities. To make toast. The full grill element operates.
		Defrost	To thaw frozen food. The knob for the temperature must be in the off position.

Electronic programmer

1 Function indicators
2 Time display
3 Button +
4 Selection button
5 Button -

Clock function Application
💡	Time of day To set, change or check the time of day.
💡	Minute Minder To set a countdown time. This function has no effect on the operation of the oven.
→!	Duration To set how long the appliance must operate.
→!	End To set when the appliance must be deactivated.

You can use Duration I and End at the same time to set the time when the appliance must be activated and then deactivated. First set Duration I→I, then End→I

Setting the clock functions

1. For Duration I→I and End →set an oven function and temperature. This is not necessary for the Minute Minder △.
2. Press the Selection button again and again until the indicator for the necessary clock function flashes.

1. Press + or - to set the time for the necessary clock function.

The display shows the indicator for the clock function you set. When the set time ends, the indicator flashes and an acoustic signal sounds for two minutes.

With the Duration I→I and End - functions, the appliance deactivates automatically.
4. Press a button to stop the signal.

1. Turn the knob for the oven functions and the knob for the temperature to the off position.

Cancelling the clock functions

1. Press the Selection button again and again until the necessary function indicator flashes.

Additional functions

Cooling fan

When the appliance operates, the cooling fan activates automatically to keep the surfaces of the appliance cool. If you deactivate the appliance, the cooling fan continues to operate until the temperature in the appliance cools down.

Helpful hints and tips

• The appliance has five shelf levels. Count the shelf levels from the bottom of the appliance floor.
• The appliance has a special system which circulates the air and constantly recycles the steam. With this system you can cook in a steamy environment and keep the food soft inside and crusty outside. It decreases the cooking time and energy consumption to a minimum.
• Moisture can condense in the appliance or on the door glass panels. This is normal. Always stand back from the appliance when you open the appliance door while cooking. To decrease the condensation, operate the appliance for 10 minutes before cooking.
• Clean the moisture after each use of the appliance.
• Do not put the objects directly on the appliance floor and do not put aluminium foil on the components when you cook. This can change the baking results and cause damage to the enamel.

Baking cakes

- Do not open the oven door before 3/4 of the set cooking time is up.

Baking and roasting table

CAKES

TYPE OF DISH	Conventional Cooking True Fan Cooking				Cooking time [min]	Notes
	Shelf position	Temp [°C]	Shelf position	Temp [°C]
Whisked recipes	2	170	3 (2 and 4)	160	45 - 60	In a cake mould

1. Press and hold the button -. The clock function goes out after some seconds.

Safety thermostat

Incorrect operation of the appliance or defective components can cause dangerous overheating. To prevent this, the oven has a safety thermostat which interrupts the power supply. The oven activates again automatically when the temperature drops.

• If you use two baking trays at the same time, keep one empty level between them.
• Use a deep pan for very fatty food to prevent the oven from stains that can be permanent.
• Leave the meat for approximately 15 minutes before carving so that the juice does not seep out.
• To prevent too much smoke in the oven during roasting, add some water into the deep pan. To prevent the smoke condensation, add water each time after it dries up.

Cooking meat and fish

Cooking times

Cooking times depend on the type of food, its consistency, and volume.

Initially, monitor the performance when you cook. Find the best settings (heat setting, cooking time, etc.) for your cookware, recipes and quantities when you use this appliance.

TYPE OF DISH	Conventional Cooking True Fan Cooking				Cooking time [min]	Notes
	Shelf position	Temp [°C]	Shelf position	Temp [°C]
Shortbread dough	2	170	3 (2 and 4)	160	20 - 30	In a cake mould
Buttermilk cheesecake	1	170	2	165	60 - 80	In a 26 cm cake mould
Apple cake (Apple pie)	2 170 2 (left and right)		right)	160 80 - 100	In two 20 cm cake moulds on a wire shelf1)
Strudel	3	175	2	150	60 - 80	In a baking tray
Jam-tart 2 170 2 (left and right)				165 30 - 40	In a 26 cm cake mould
Sponge cake	2	170	2	160	50 - 60	In a 26 cm cake mould
Christmas cake / Rich fruit cake	2	160	2	150	90 - 120	In a 20 cm cake mould1)
Plum cake	1	175	2	160	50 - 60	In a bread tin1)
Small cakes - one level	3 170 3 140 -			150	20 - 30 In a baking tray
Small cakes - two levels	-	-	2 and 4	140 - 150	25 - 35 In a baking tray
Small cakes - three levels	-	-	1, 3 and 5	140 - 150	30 - 45 In a baking tray
Biscuits / pastry stripes - one level	3 140 3 140 -			150	30 - 35 In a baking tray
Biscuits / pastry stripes - two levels	-	-	2 and 4	140 - 150	35 - 40 In a baking tray
Biscuits / pastry stripes - three levels	-	-	1, 3 and 5	140 - 150	35 - 45 In a baking tray
Meringues - one level	3	120	3	120	80 - 100	In a baking tray
Meringues- two levels	-	-	2 and 4	120	80 - 100	In a baking tray1)
Buns	3	190	3	190	12 - 20	In a baking tray1)
Eclairs - one level	3	190	3	170	25 - 35	In a baking tray
Eclairs - two levels	-	-	2 and 4	170	35 - 45	In a baking tray
Plate tarts	2	180	2	170	45 - 70	In a 20 cm cake mould
Rich fruit cake	1	160	2	150	110 - 120	In a 24 cm cake mould
Victoria sandwich	1	170	2	160	50 - 60	In a 20 cm cake mould

1) Preheat for 10 minutes.

BREAD AND PIZZA

TYPE OF DISH	Conventional Cooking True Fan Cooking				Cooking time [min]	Notes
	Shelf position	Temp [°C]	Shelf position	Temp [°C]
White bread	1	190	1	190	60 - 70	1 - 2 pieces, 500 gr per piece ^1)
Rye bread	1	190	1	180	30 - 45	In a bread tin
Bread rolls	2	190	2 (2 and 4)	180	25 - 40	6 - 8 rolls in a baking tray ^1)
Pizza	1	230 - 250	1 230 -	250	10 - 20	In a baking tray or a deep pan ^1)
Scones	3	200	3	190	10 - 20	In a baking tray ^1)

1) Preheat for 10 minutes.

FLANS

TYPE OF DISH	Conventional Cooking True Fan Cooking				Cooking time [min]	Notes
	Shelf position	Temp [°C]	Shelf position	Temp [°C]
Pasta flan	2	200	2	180	40 - 50	In a mould
Vegetable flan	2	200	2	175	45 - 60	In a mould
Quiches	1	180	1	180	50 - 60	In a mould ^1)
Lasagne	2	180 - 190	2 180 -	190	25 - 40	In a mould ^1)
Cannelloni	2	180 - 190	2 180 -	190	25 - 40	In a mould ^1)

1) Preheat for 10 minutes.

MEAT

TYPE OF DISH	Conventional Cooking True Fan Cooking				Cooking time [min]	Notes
	Shelf position	Temp [°C]	Shelf position	Temp [°C]
Beef	2	200	2	190	50 - 70	On a wire shelf
Pork	2	180	2	180	90 - 120	On a wire shelf
Veal	2	190	2	175	90 - 120	On a wire shelf
English roast beef, rare	2	210	2	200	50 - 60	On a wire shelf
English roast beef, medium	2	210	2	200	60 - 70	On a wire shelf
English roast beef, well done	2	210	2	200	70 - 75	On a wire shelf
Shoulder of pork	2	180	2	170	120 - 150	With rind
Shin of pork	2	180	2	160	100 - 120	2 pieces
Lamb	2	190	2	175	110 - 130	Leg
Chicken	2	220	2	200	70 - 85	Whole
Turkey	2	180	2	160	210 - 240	Whole
Duck	2	175	2	220	120 - 150	Whole
Goose	2	175	1	160	150 - 200	Whole
Rabbit	2	190	2	175	60 - 80	Cut in pieces
Hare	2	190	2	175	150 - 200	Cut in pieces
Pheasant	2	190	2	175	90 - 120	Whole

FISH

TYPE OF DISH	Conventional Cooking True Fan Cooking				Cooking time [min]	Notes
	Shelf position	Temp [°C]	Shelf position	Temp [°C]
Trout / Sea bream	2	190	2	175	40 - 55	3 - 4 fish
Tuna fish / Salmon	2	190	2	175	35 - 60	4 - 6 fillets

Grilling

i Preheat the empty oven for 10 minutes, before cooking.

Quantity Grilling Cooking time [min]TYPE OF DISH Pieces [g] Shelf position			Temp [°C] 1st side 2nd side
Fillet steaks	4	800	4	max.	12 - 15
Beef steaks	4	600	4	max.	10 - 12
Sausages	8	-	4	max.	12 - 15
Pork chops	4	600	4	max.	12 - 16
Chicken (cut in 2)	2	1000	4	max.	30 - 35
Kebabs	4	-	4	max.	10 - 15
Breast of chicken	4	400	4	max.	12 - 15
Hamburger	6	600	4	max.	20 - 30
Fish fillet	4	400	4	max.	12 - 14
Toasted sandwiches	4 - 6	-	4	max.	5 - 7
Toast	4 - 6	-	4	max.	2 - 4

Defrosting

TYPE OF DISH	[g]	Defrosting time [min]	Further defrosting time [min]	Notes
Chicken	1000	100 - 140	20 - 30	Place the chicken on an up-turned saucer placed on a large plate. Turn halfway through.
Meat	1000	100 - 140	20 - 30	Turn halfway through.
Meat	500	90 - 120	20 - 30	Turn halfway through.
Trout	150	25 - 35	10 - 15	-
Strawberries	300	30 - 40	10 - 20	-
Butter	250	30 - 40	10 - 15	-
Cream	2 x 200	80 - 100	10 - 15	Cream can also be whipped when still slightly frozen in places.
Gateau	1400	60	60	-

Drying - True Fan Cooking
Cover the oven shelves with baking parchment.

VEGETABLES

TYPE OF DISH	Shelf position		Temperature [°C] Time [hr]
	1 level 2 levels
Beans	3	1/4	60 - 70	6 - 8
Peppers	3	1/4	60 - 70	5 - 6
Vegetables for soup	3	1/4	60 - 70	5 - 6
Mushrooms	3	1/4	50 - 60	6 - 8
Herbs	3	1/4	40 - 50	2 - 3

FRUIT

TYPE OF DISH	Shelf position		Temperature [°C] Time [hr]
	1 level 2 levels
Plums	3	1/4	60 - 70	8 - 10
Apricots	3	1/4	60 - 70	8 - 10
Apple slices	3	1/4	60 - 70	6 - 8
Pears	3	1/4	60 - 70	6 - 9

Information on acrylamides

Important! According to the newest scientific knowledge, if you brown food (specially the one which

Care and cleaning

contains starch), acrylamides can pose a health risk. Thus, we recommend that you cook at the lowest temperatures and do not brown food too much.

Warning! Refer to the Safety chapters.

• Clean the front of the appliance with a soft cloth with warm water and a cleaning agent.
  • To clean metal surfaces use a usual cleaning agent.
• Clean the oven interior after each use. Then you can remove dirt more easily and it does not burn on.
• Clean stubborn dirt with a special oven cleaner.
• Clean all oven accessories after each use and let them dry. Use a soft cloth with warm water and a cleaning agent.
• If you have nonstick accessories, do not clean them using aggressive agents, sharp-edged objects or a dishwasher. It can destroy nonstick coating.

Stainless steel or aluminium appliances:

Clean the oven door with a wet sponge only. Dry it with a soft cloth.

Do not use steel wool, acids or abrasive materials, as they can cause damage to the oven surface. Clean the oven control panel with the same precautions.

Cleaning the door gasket

• Regularly do a check of the door gasket. The door gasket is around the frame of the oven cavity. Do not use the appliance if the door gasket is damaged. Contact the Service Centre.
  • To clean the door gasket, refer to the general information about cleaning.

Shelf supports

You can remove the shelf supports to clean the side walls.

Removing the shelf supports

Line drawing of a hand inserting a component into a device panel (no text or symbols)

① Pull the front of the shelf support away from the side wall.

2 Pull the rear end of the shelf support away from the side wall and remove it.

Installing the shelf supports

Install the shelf supports in the opposite sequence.

The rounded ends of the shelf supports must point to the front.

Oven lamp

Warning! Be careful when you change the oven lamp. There is a risk of electrical shock.

Before you change the oven lamp:

- Deactivate the oven. - Remove the fuses in the fuse box or deactivate the circuit breaker.

Put a cloth on the bottom of the oven to prevent damage to the oven light and glass cover. Always hold the halogen lamp with a cloth to prevent grease residue from burning on the lamp.

1. Turn the glass cover counterclockwise to remove it.
2. Clean the glass cover.
3. Replace the oven light bulb with an applicable 300 °C heat-resistant oven light bulb. Use the same oven lamp type.
4. Install the glass cover.

Cleaning the oven door

The oven door has two glass panels. You can remove the oven door and the internal glass panel to clean it.

The oven door can close if you try to remove the internal glass panel before you remove the oven door.

Caution! Do not use the appliance without the glass panels.

Technical line drawing of a mechanical assembly with a magnified inset showing a component detail (no text or symbols)

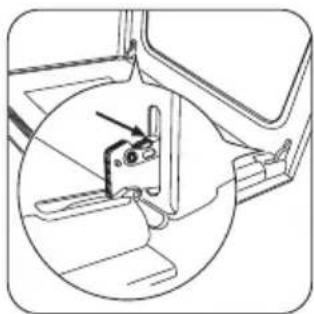

① Open the door fully and hold the two door hinges.

Line drawing of a mechanical component with an arrow indicating rotation (no text or symbols)

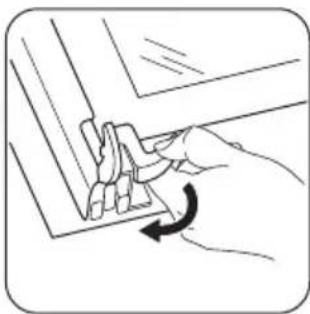

② Lift and turn the levers on the two hinges.

Line drawing of a hand holding a folded or folded object with directional arrows indicating movement (no text or symbols)

③ Close the oven door to the first opening position (halfway). Then pull forward and remove the door from its seat.

Technical line drawing of a rectangular frame with two circular cutouts, no text or symbols present

4 Put the door on a soft cloth on a stable surface.

Illustration of a hand holding a wooden bracket with a curved arrow indicating rotation (no text or symbols)

⑤ Release the locking system to remove the internal glass panel.

6 Turn the two fasteners by 90° and remove them from their seats.

Diagram of a rectangular device with two labeled parts (1 and 2), showing internal structure and arrows indicating direction (no text or symbols beyond labels)

⑦ Carefully lift (step 1) and remove (step 2) the glass panel.

Clean the glass panel with water and soap. Dry the glass panel carefully.

Installing the door and the glass panel

When the cleaning is completed, install the glass panel and the oven door. Do the above steps in the opposite sequence.

What to do if...

The screen-printing zone must face the inner side of the door. Make sure that after the installation the surface of the glass panel frame on the screen-printing zones is not rough when you touch it. Make sure that you install the internal glass panel in the seats correctly. Refer to the illustration.

Diagram showing two views of a mechanical component with arrows indicating direction (no text or symbols)

Warning! Refer to the Safety chapters.

Problem Possible cause Remedy
The oven does not heat up.	The appliance is deactivated.	Activate the appliance.
The oven does not heat up.	The clock is not set.	Set the clock.
The oven does not heat up.	The necessary settings are not set.	Make sure that the settings are correct.
The oven does not heat up. The fuse in the fuse box is released.		Do a check of the fuse. If the fuse is released more than one time, contact a qualified electrician.
The oven lamp does not operate.	The oven lamp is defective.	Replace the oven lamp.
The display shows 12.00.	There was a power cut.	Set the clock.
Steam and condensation settle on the food and in the oven.	You left the dish in the oven for too long.	Do not keep the dishes in the oven for longer than 15 - 20 minutes after the cooking ends.

If you cannot find a solution to the problem yourself, contact your dealer or the service centre.

The necessary data for the service centre is on the rating plate. The rating plate is on the front frame of the appliance cavity.

We recommend that you write the data here:

Model (MOD.)

Product number (PNC) ....

Serial number (S.N.) ....

Installation

Warning! Refer to the Safety chapters.

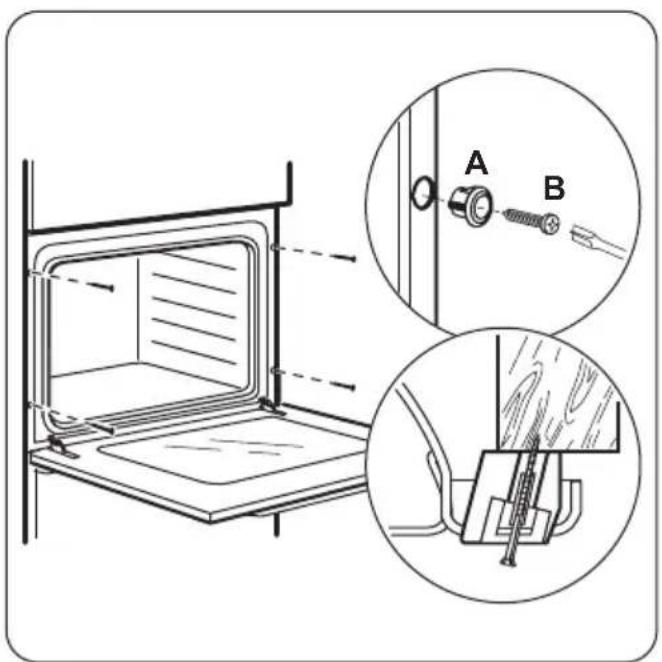

Building In

Electrical installation

Warning! Only a qualified person must do the electrical installation.

The manufacturer is not responsible if you do not follow the safety precautions from the chapter

"Safety Information".

This appliance is supplied with a main plug and a main cable.

Cable

Cable types applicable for installation or replacement: H07 RN-F, H05 RN-F, H05 RRF, H05 VV-F, H05 V2V2-F (T90), H05 BB-F.

For the section of the cable refer to the total power (on the rating plate) and to the table:

Total power Section of the cable

maximum 1380 W 3 x 0.75 mm ^4

Environment concerns

The symbol 📀 on the product or on its packaging indicates that this product may not be treated as household waste. Instead it should be taken to the appropriate collection point for the recycling of electrical and electronic equipment. By ensuring this product is disposed of correctly, you will help prevent potential negative consequences for the environment and human health, which could otherwise be caused by inappropriate waste handling of this product. For more

Total power Section of the cable

maximum 2300 W 3 x 1 mm ^4

maximum 3680 W 3 x 1.5 mm²

The earth cord (green / yellow cable) must be 2 cm longer than phase and neutral cables (blue and brown cables).

detailed information about recycling of this product, please contact your local council, your household waste disposal service or the shop where you purchased the product.

Packaging material

The packaging material is environmentally-friendly and recyclable. Plastic parts are marked with international abbreviations such as PE, PS, etc. Dispose of the packaging material in the containers provided for this purpose at your local waste management facility.

Inhalt

Line drawing of a hand inserting a component into a device (no text or symbols)

Technical line drawing of a mechanical assembly with an inset circular detail showing a component (no text or symbols)

Line drawing of a mechanical clamp or bracket assembly with an arrow indicating rotation (no text or symbols)

Illustration of a hand pressing down on a mechanical component (no text or symbols visible)

Technical line drawing of a rectangular frame with two circular cutouts at the bottom (no text or symbols)

Illustration of a hand holding a wooden bracket with a curved arrow indicating rotation (no text or symbols)

Diagram of a rectangular electronic device with two labeled parts (1 and 2), showing internal structure and arrows indicating direction (no text or symbols beyond labels)

Diagram showing two views of a mechanical component with arrows indicating direction (no text or symbols)

Was tun, wenn ...

Umwelttipps
