Product Type	Smart Thermostat
Brand	eQ-3
Model	HMIP-WTH
Dimensions (H x W x D)	85 x 85 x 25 mm
Weight	120 g (including batteries)
Power Supply	2 x AA alkaline batteries (1.5 V)
Battery Life	Up to 2 years
Display	Backlit LCD
Temperature Control Range	5 °C to 30 °C
Temperature Accuracy	±0.5 °C
Humidity Sensor	Yes
Wireless Protocol	Homematic IP (868 MHz)
Range (open field)	Up to 100 m
Programmable Schedules	Up to 3 daily schedules
Compatibility	Homematic IP system (HMIP-HAP, CCU3, etc.)
Mounting	Wall mount (screws and dowels included)
Protection Class	IP20 (indoor use only)
Maintenance	Clean with a dry, soft cloth. Avoid liquids and abrasives.
Safety	Low voltage device; handle batteries properly; do not expose to water.
Spare Parts / Repairability	Batteries only; non-repairable by end user; professional service required.

Frequently Asked Questions - HMIP-WTH EQ-3

How do I install the HMIP-WTH thermostat?

Remove the old thermostat if present. Mount the wall plate using the included screws and dowels. Insert the batteries, then attach the thermostat to the wall plate. Follow the pairing instructions in the manual to connect to your Homematic IP access point.

How do I pair the thermostat with the Homematic IP access point?

Press and hold the pairing button on the access point for 3 seconds until the LED flashes. Then, press and hold the thermostat's button (or follow its menu) for 2 seconds to start pairing. Wait for confirmation on the access point.

What type of batteries does the thermostat use and how long do they last?

It uses two AA alkaline batteries (1.5 V). Battery life is up to 2 years depending on usage and signal strength. When the battery is low, a warning appears on the display.

Can I schedule heating times with the HMIP-WTH?

Yes, the thermostat supports programmable schedules. You can set up to 3 daily schedules with different temperature setpoints for each day. Programming can be done via the device menu or the Homematic IP app.

What is the temperature control range and accuracy?

The temperature control range is 5 °C to 30 °C, with an accuracy of ±0.5 °C. The built-in sensor measures the room temperature to maintain the setpoint.

How do I reset the thermostat to factory settings?

To reset, remove one battery, then reinsert it while pressing and holding the button (or a specific sequence as detailed in the manual). For exact steps, refer to the user manual page 22.

Is the thermostat compatible with other smart home systems?

The HMIP-WTH is designed specifically for the Homematic IP system. It is not directly compatible with other systems like Zigbee or Z-Wave without additional bridges. However, third-party integrations via Homematic IP interfaces may exist.

Can I use the thermostat without a Homematic IP access point?

No, the thermostat requires a Homematic IP access point (e.g., HMIP-HAP) or a CCU3 central unit to function. It communicates via the proprietary wireless protocol and cannot operate standalone.

What should I do if the thermostat is not responding?

First, check the batteries and replace if low. Ensure the access point is powered and within range. Try a factory reset. If the issue persists, consult the manual or contact eQ-3 support.

How do I clean and maintain the thermostat?

Clean the surface with a dry, soft cloth. Do not use water, solvents, or abrasive cleaners. Avoid exposing the device to moisture or direct sunlight. Regular battery checks are recommended.

USER MANUAL HMIP-WTH EQ-3

Installation and operating manual

homematic® 20.5°C

Lieferumfang

Anzahl Bezeichnung

2 G H I 8.8.8 °C MANU BOOT J K L M

3

N O P0X PA86K

5

Pure electrical circuit lines without any symbols

4

Q P P Q

6

Line drawing of a hand holding a device with a screen and circular button (no text or symbols)

7

Line drawing of a hand holding a battery and its open circuit board (no text or symbols)

8

Line drawing of a hand inserting a wall-mounted device into a panel (no text or symbols)

Inhaltsverzeichnis

1 Homematic IP Wall Thermostat with Humidity Sensor

1 Clip-on frame

1 Mounting plate

2 Double-sided adhesive strips

2 Screws 3.0 x 30 mm

2 Plugs 5 mm

2 1.5 V LR03/micro/AAA batteries

1 Operating manual

1st English edition 03/2015

Documentation © 2015 eQ-3 AG, Germany

All rights reserved. Translation from the original version in German. This manual may not be reproduced in any format, either in whole or in part, nor may it be duplicated or edited by electronic, mechanical or chemical means, without the written consent of the publisher.

Typographical and printing errors cannot be excluded. However, the information contained in this manual is reviewed on a regular basis and any necessary corrections will be implemented in the next edition. We accept no liability for technical or typographical errors or the consequences thereof.

All trademarks and industrial property rights are acknowledged. Printed in Hong Kong

Changes may be made without prior notice as a result of technical advances.

Version 1.0 // 141789

Table of contents

1 Information about this manual....31
2 Hazard information....31
3 Function and device overview ....33
4 General system information 35
5 Start-up 35

5.1 Teaching-in....35
5.2 Mounting 37

5.2.1 Adhesive strip mounting....37
5.2.2 Screw mounting....38
5.2.3 Installation in multiple combinations 39

6 Operation....40
7 Replacing batteries 42
8 Troubleshooting 43

8.1 Weak battery 43
8.2 Command not confirmed....44
8.3 Duty cycle 44
8.4 Error codes and flashing sequences 45

9 Restore factory settings....47

10 Maintenance and cleaning 48
11 General information about radio operation......48
12 Technical specifications....49

1 Information about this manual

Please read this manual carefully before beginning operation with your Homematic IP components. Keep the manual so you can refer to it at a later date if you need to. If you hand over the device to other persons for use, please hand over this manual as well.

Symbols used:

Attention!

This indicates a hazard.

Note.

This section contains important additional information!

2 Hazard information

Do not open the device. It does not contain any parts that can be maintained by the user. In the event of an error, please have the device checked by an expert.

For safety and licensing reasons (CE), unauthorized change and/or modification of the device is not permitted.

The device may only be operated in dry and dust-free environment and must be protected from the effects of moisture, vibrations, solar or other methods of heat radiation, cold and mechanical loads.

The device is not a toy; do not allow children to play with it. Do not leave packaging material lying around. Plastic films/bags, pieces of polystyrene, etc. can be dangerous in the hands of a child.

We do not assume any liability for damage to property or personal injury caused by improper use or the failure to observe the hazard information. In such cases any claim under warranty is extinguished! For consequential damages, we assume no liability!

The device may only be operated within residential buildings.

Using the device for any purpose other than that described in this operating manual does not fall within the scope of intended use and shall invalidate any warranty or liability.

3 Function and device overview

With the Homematic IP Wall Thermostat with Humidity Sensor you can conveniently regulate the room temperature via the Homematic IP app according to individually tailored heating phases.

In the climate control solution, the wall thermostat can simply be taught-in to the Homematic IP Access Point to control one or more Homematic IP Radiator Thermostats. The wall thermostat serves to measure the temperature and humidity in a room. The data is cyclically transmitted to radiator thermostats in order to regulate the room temperature precisely.

Thanks to battery operation, the device is highly flexible where mounting and selecting a mounting location are concerned. The device is mounted and removed very easily with the supplied clip-on frame using screws or adhesive strips. It is compatible with a number of different surfaces including furniture, brick walls, tiles or glass. It is also possible to integrate the wall thermostat into existing brand switch systems.

Device overview (see figure 1):

(A) Clip-on frame
(B) Electronic unit (thermostat)
(C) Display
(D) System button (teach-in button and LED)
(E) Control wheel
(F) Mounting plate

Display overview (see figure 2):

(G) ^ C Setpoint/actual temperature and humidity
(H) Manual operation
(I) Boost function
(J) Operating lock
(K) Open window symbol
(L) Radio transmission
(M) Battery symbol

4 General system information

This device is part of the climate control solution of Homematic IP and works with the HmlP radio protocol. All devices of the climate control solution can be configured comfortably and individually with a smartphone via the Homematic IP app. The available functions provided by the Homematic IP system in combination with other components are described in the Homematic IP User Guide. All current technical documents and updates are provided at www.eQ-3.de.

5 Start-up

5.1 Teaching-in

Please read this entire section before starting the teach-in procedure.

First set up your Homematic IP Access Point via the Homematic IP app to enable operation of other Homematic IP devices within your system. For further information, please refer to the operating manual of the Access Point.

To integrate the wall thermostat into your system and enable it to communicate with other Homematic IP devices, you must teach-in the device to your Homematic IP Access Point first.

To teach-in the wall thermostat, please proceed as follows:

• Open the Homematic IP app on your smartphone.
• Select the menu item "Teach-in device".
• To remove the electronic unit (B) from the frame, take hold of the sides of the electronic unit and pull it out (see figure 6).
  • Turn over the electronic unit (B).
• Insert two new 1.5 V LR03/micro/batteries into the battery compartment, making sure that you insert them the right way round (see figure 7).
• Teach-in mode remains activated for 3 minutes.

You can manually start the teach-in mode for another 3 minutes by pressing the system button (D) shortly (see figure 8).

• Your device will automatically appear in the Homematic IP app.
• To confirm, please enter the last four digits of the device number (SGTIN) in your app or scan the QR code (please see the sticker supplied or attached to the device).
• Please wait until teach-in is completed.
• In the app, give the device a name and allocate it to a room.
  • If teaching-in was successful, the LED lights up

green. The device is now ready for use.

• If the LED lights up red, please try again.

5.2 Mounting

Please read this entire section before starting to mount the device.

You can use the supplied clip-on frame (A) to mount the wall thermostat or easily integrate it into an existing switch (see „5.2.1 Adhesive strip mounting“ on page 37).

If you want to mount the wall thermostat with the supplied clip-on frame, you can use

• the supplied double-sided adhesive strips or
• the supplied screws

to fix it to a wall.

5.2.1 Adhesive strip mounting

For mounting the assembled wall thermostat with adhesive strips, please proceed as follows:

- Choose a site for installation.

Make sure that the mounting surface is smooth, solid, non-disturbed, free of dust, grease and solvents and not too cold to ensure long-time adherence.

Start-up

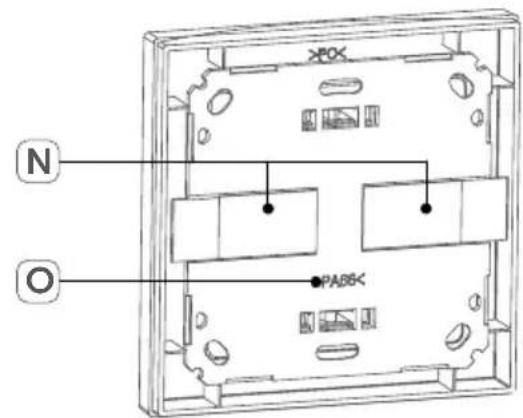

• Fix the adhesive strips (N) on the back side of the mounting plate (F) in the provided area. Make sure that you can read the letters on the back side (O) (see figure 3) and that the clips on the mounting plate latch into the openings on the wall thermostat.
• Remove the protective film from the adhesive strips.
• Press the assembled wall thermostat with the back side to the wall in the position where it should subsequently be attached.

5.2.2 Screw mounting

For mounting the wall thermostat with screws, please proceed as follows:

- Choose a site for installation.

Make sure that no electricity or similar lines run in the wall at this location!

• Position the mounting plate (F) on the desired site on the wall. Make sure that the arrow on the mounting plate is pointing upwards.
• Use a pen to mark the positions of bore holes (P) (diagonally opposite) in the mounting plate on the wall (see figure 4).

Start-up

The bore holes (Q) can be used for installation with a flush-mounting box.

• Now drill the bore holes.

If you are working with a stone wall, drill the marked 5 mm holes and insert the plugs supplied. If you are working with a wooden wall, you can pre-drill 1.5 mm holes to make screws easier to insert.

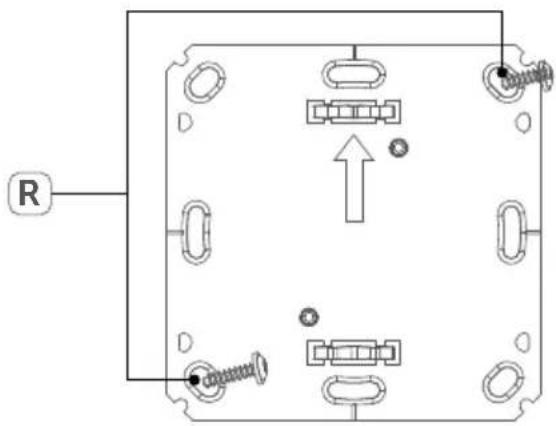

• Use the supplied screws and plugs (R) to fasten the mounting plate to the wall (see figure 5).
• Attach the clip-on frame (A) to the mounting plate.
• Place the electronic unit (B) back into the frame (see figure 1). Make sure that "TOP" and the arrows on the back side point upwards and that the clips on the mounting plate latch into the openings on the electronic unit.

5.2.3 Installation in multiple combinations

You can mount the wall thermostat with the attachment frame (A) provided or use it with frames of other manufacturers as well as integrate the electronic unit (B) into a multi-gang frame. You can flexibly fix the mounting plate (F) to the wall using adhesive strips or screws. For mounting with multiple combinations, make sure that the

mounting plate of the wall thermostat is seamlessly aligned to the already fixed mounting plate/retaining ring.

The wall thermostat is designed to fit into frames supplied by the following manufacturers:

Manufacturer	Frame
Berker S.1	B.1, B.3, B.7 glass
ELSO Joy
GIRA System 55, Standard 55, E2, E22, Event, Esprit
merten	1-M, Atelier-M, M-Smart, M-Arc, M-Star, M-Plan
JUNG A 500, AS 500, A plus, A creation

6 Operation

After teaching-in and mounting have been performed, simple operations are available directly on the device.

If the wall thermostat is in standby mode, please press the control wheel (E) once before operation to activate the device.

• Temperature: Turn the control wheel (E) to the right or to the left to manually change the temperature of the Homematic IP Radiator Thermostat. In automatic mode, the manually set temperature will remain the same until the next point at which the profile changes. Afterwards, the defined heating profile will be activated again. During manual operation, the temperature remains activated until the next manual change.
• Manual and automatic mode: Press and hold down the control wheel (E) to switch between manual and automatic mode. In automatic mode, the defined heating profile of the Homematic IP app is active. In manual operation the temperature can be set directly on the device or via the app and will remain active until the next manual change.
• Boost function: Press the control wheel (E) shortly to activate the boost function for heating up the radiator quickly and briefly by opening the valve. There will be a pleasant room temperature right away because of the radiated heat.

The operating lock of the wall thermostat can be activated and deactivated via the Homematic IP app. Tap on the menu symbol in the top left of the screen of your app and select the menu item "Device overview". Select your wall thermostat to switch the operating lock "ON" or "OFF".

7 Replacing batteries

If the symbol for empty batteries (appears in the display or in the app, please replace the used batteries by two new LR03/micro/AAA batteries. You must observe the correct battery polarity.

To replace the batteries of the wall thermostat, please proceed as follows:

• Once mounted, the electronic unit (B) can easily be pulled out of the frame (A) and removed from the mounting plate (F). To remove the electronic unit from the frame, take hold of the sides of the electronic unit and pull it out (see figure 6). You do not need to open the device.
• Turn the electronic unit over to remove or insert the batteries.
• Insert two new 1.5 V LR03/micro/batteries into the battery compartment, making sure that you insert them the right way round (see figure 7).
• Put the electronic unit back into the frame. Make sure that "TOP" and the arrows on the back side point upwards and that the clips on the mounting plate latch into the openings on the electronic unit.
• Please pay attention to the flashing signals of the device LED while inserting the batteries (see "8.4 Error codes and flashing sequences" on page 45).

Once the batteries have been inserted, the wall thermostat will perform a self-test/restart (approx. 2 seconds). Afterwards, initialisation is carried out. The LED test display will indicate that initialisation is complete by lighting up orange and green.

Never recharge standard batteries. Do not throw the batteries into a fire. Do not expose batteries to excessive heat. Do not short-circuit batteries. Doing so will present a risk of explosion.

Used batteries should not be disposed of with regular domestic waste! Instead, take them to your local battery disposal point.

8 Troubleshooting

8.1 Weak battery

Provided that the voltage value permits it, the wall thermostat will remain ready for operation also if the battery voltage is low. Depending on the particular load, it may be possible to send transmissions again repeatedly, once the batteries have been allowed a brief recovery period. If the voltage drops too far during transmission, the empty battery symbol (☐) and the corresponding error code will be displayed on the device (see „8.4 Error codes and flashing sequences" on page 45). In this case, replace the empty batteries by two new batteries (see „7 Replacing batteries" on page 42).

8.2 Command not confirmed

If at least one receiver does not confirm a command, the device LED lights up red at the end of the failed transmission process. The failed transmission may be caused by radio interference (see „11 General information about radio operation" on page 48). This may be caused by the following:

• Receiver cannot be reached.
- Receiver is unable to execute the command (load failure, mechanical blockade, etc.).
• Receiver is defective.

8.3 Duty cycle

The duty cycle is a legally regulated limit of the transmission time of devices in the 868 MHz range. The aim of this regulation is to safeguard the operation of all devices working in the 868 MHz range.

In the 868 MHz frequency range we use, the maximum transmission time of any device is 1% of an hour (i.e. 36 seconds in an hour). Devices must cease transmission when they reach the 1% limit until this time restriction comes to an end. Homematic IP devices are designed and produced with 100% conformity to this regulation.

During normal operation, the duty cycle is not usually reached. However, repeated and radio-intensive teach-in processes mean that it may be reached in isolated instances during start-up or initial installation of a system. If the duty cycle is exceeded, this is indicated by three slow

flashes of the device LED, and may manifest itself in the device temporarily working incorrectly. The device starts working correctly again after a short period (max. 1 hour).

8.4 Error codes and flashing sequences

Flashing code M	Meaning Solution
Battery symbol (1)	Battery voltage low	Replace the batteries of the device (s. „7 Replacing batteries” on page 42).
Antenna symbol flashing (1)	Connection to Homematic IP Access Point is lost	Please check the connection to the Homematic IP Access Point.
Lock symbol (1)	Operating lock activated	Deactivate the operating lock via the app.
Fast orange flashing (during radio transmission)	Radio transmission/attempting to transmit	Please wait for the feedback of the receiver
1x long green lighting	Transmission confirmed	You can continue with operation.

Troubleshooting
Restore factory settings

1x long red lighting	Transmission failed	Please try again (s. „8.2 Command not confirmed“ on page 44).
Slow orange flashing (every 10 seconds)	Teach-in mode active	Please enter the last four numbers of the device serial number to confirm (s. „5.1 Teaching-in“ on page 35).
Short orange lighting (after green or red confirmation)	Batteries empty	Replace the batteries (s. „7 Replacing batteries“ on page 42).
3x slow red flashing	Duty cycle exceeded (s. „8.3 Duty cycle“ on page 44) or device defective	Please see your app for error message or contact your retailer.
1x orange and 1 x green lighting (after inserting batteries)	Test display Once	the test display has stopped, you can continue.

9 Restore factory settings

The factory settings of the device can be restored. If you do this, you will lose all your settings.

To restore the factory settings of the wall thermostat, please proceed as follows:

• To remove the electronic unit (B) from the frame, take hold of the sides of the electronic unit and pull it out (see figure 6).
• Remove the (old) batteries.
• Insert the batteries ensuring that the polarity is correct (see figure 7) while pressing and holding down the system button (D) for 4s at the same time, until the LED will quickly start flashing orange (see figure 8).
  • Release the system button again.
• Press and hold down the system button again for 4s, until the status LED lights up green.
• Release the system button to finish the procedure.

The device will perform a restart.

10 Maintenance and cleaning

The device does not require you to carry out any maintenance other than replacing the battery when necessary. Enlist the help of an expert to carry out any maintenance or repairs.

Clean the device using a soft, lint-free cloth that is clean and dry. You may dampen the cloth a little with lukewarm water in order to remove more stubborn marks. Do not use any detergents containing solvents, as they could corrode the plastic housing and label.

11 General information about radio operation

Radio transmission is performed on a non-exclusive transmission path, which means that there is a possibility of interference occurring. Interference can also be caused by switching operations, electrical motors or defective electrical devices.

The range of transmission within buildings can differ greatly from that available in the open air. Besides the transmitting power and the reception characteristics of the receiver, environmental factors such as humidity in the vicinity have an important role to play, as do on-site structural/screening conditions.

eQ-3 AG hereby declares that this device complies with the essential requirements and other relevant regulations of Directive 1999/5/EC.

You can find the full declaration of conformity at www.eQ-3.de.

12 Technical specifications

Device short description: HMIP-WTH

Supply voltage: 2x 1.5 V LR03/micro/AAA

Current consumption: 50 mA max.

Battery life: 2 years (typ.)

Degree of protection: IP20

Ambient temperature: 0 to 35 °C

Dimensions (W x H x D):

Without frame: 55 x 55 x 23.5 mm

Including frame: 86 x 86 x 25 mm

Weight: 100 g (incl. batteries)

Radio frequency: 868.3 MHz/869.525 MHz

Receiver category: SRD category 2

Typ. open area RF range: >150 m

Duty cycle: < 1 % per h/< 10 % per h

Method of operation: Type 1

Degree of pollution: 2

Subject to technical changes.

Instructions for disposal

Do not dispose of the device with regular domestic waste. Electronic equipment must be disposed of at local collection points for waste electronic equipment in compliance with the Waste Electrical and Electronic Equipment Directive.

Information about conformity

The CE sign is a free trading sign addressed exclusively to the authorities and does not include any warranty of any properties.

For technical support, please contact your retailer.

QR code image containing encoded data, no visible human-readable text

Bevollmächtigter des Herstellers: Manufacturer's authorised representative:

e.QB

eQ-3 AG Maiburger Straße 29 26789 Leer / GERMANY www.eQ-3.de
