Product Type	Alarm Clock Radio
Brand	Blaupunkt
Model	CLR 42-1
Dimensions (approx.)	20.5 x 11.0 x 12.5 cm
Weight (approx.)	0.5 kg
Power Supply	AC 230V, 50Hz
Battery Backup	1x 9V battery (for time and alarm settings)
Alarm Type	Dual alarm with buzzer or radio
Snooze Function	Yes, 9-minute snooze
Radio Band	FM (87.5-108 MHz)
Display Type	LED digital display
Dimming Function	Yes, adjustable brightness levels
Sleep Timer	Yes, up to 90 minutes
Additional Features	Nap timer, gradual wake-up (radio), alarm volume control
Care and Cleaning	Wipe with a soft, dry cloth; avoid water and solvents
Safety Precautions	Keep away from moisture and extreme temperatures; do not cover ventilation slots
Spare Parts Availability	No spare parts available; device is non-repairable by user
Manual Language	English (PDF available)

Frequently Asked Questions - CLR 42-1 BLAUPUNKT

How do I set the time on the Blaupunkt CLR 42-1?

Press and hold the TIME button until the hour digits flash. Use the HOUR and MIN buttons to adjust, then press TIME again to confirm.

How do I set the alarm?

Press and hold the ALARM button for the desired alarm (AL1 or AL2). Adjust the hour and minute using HOUR and MIN buttons. Press ALARM again to save. Ensure the alarm indicator is on.

How do I switch between AM and PM?

The clock switches automatically based on the time you set. The PM indicator will appear on the display during afternoon/evening hours.

How do I turn off the alarm after it sounds?

Press the SNOOZE button for a 9-minute delay, or press the ALARM button to turn it off completely. The alarm will reset for the next day.

How do I use the radio function?

Press the RADIO ON/OFF button to turn on the radio. Use the TUNE +/- buttons to search for stations. Press and hold a preset button (1-5) to store a station.

How do I adjust the volume?

Use the VOLUME +/- buttons (located on the top or side) to increase or decrease the volume for both alarm and radio.

What type of battery is used for backup?

A 9V battery (not included) is used to maintain time and alarm settings during a power outage. Open the battery compartment on the bottom to install.

How do I clean the alarm clock?

Unplug the device before cleaning. Use a soft, dry cloth to wipe the exterior. Do not use water, abrasive cleaners, or solvents.

Can I use this device with a different voltage?

No, the Blaupunkt CLR 42-1 is designed for AC 230V, 50Hz only. Using a different voltage may damage the device.

How do I reset the unit to factory settings?

Press and hold the ALARM and TIME buttons simultaneously for 3 seconds until the display resets. You will need to set the time and alarms again.

USER MANUAL CLR 42-1 BLAUPUNKT

Dual alarm clock radio

Inhaltsverzeichnis

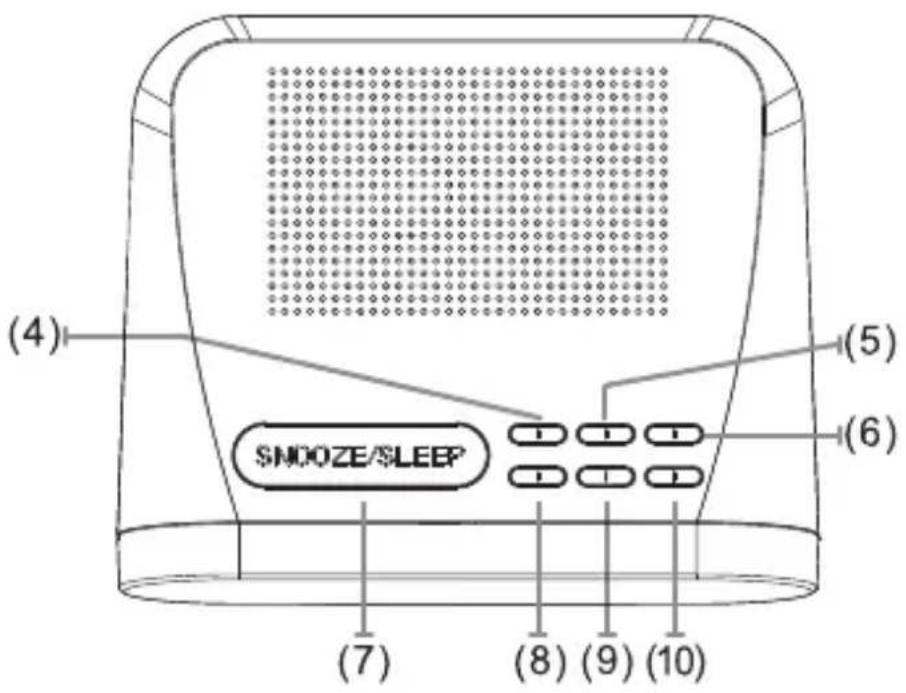

(1) (2) BUZZ A11 RA D10 12:15: BUZZ A12 RA D10 (3)

(4) (5) (6) NOOZE/LEEP (7) (8) (9) (10)

IMPORTANT SAFETY INSTRUCTIONS

CAUTION RISK OF ELECTRIC SHOCK. DO NOT OPEN

Important Safety Instructions

Caution:

To reduce the risk of electric shock, do not dismantle the product and do not expose the apparatus to rain or moisture. No user-serviceable parts inside. Refer servicing to qualified personnel only.

Explanation of Graphical Symbols:

The lightning flash within an equilateral triangle is intended to alert you to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute an electric shock to a person or persons.

The exclamation point within an equilateral triangle is intended to alert you to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

To achieve the utmost in enjoyment and performance, and in order to become familiar with its features, please read this manual carefully before attempting to operate this product. This will assure you years of trouble free performance and listening pleasure.

Important Notes

• This safety and operating instruction should be retained for future reference.

- The apparatus should not be exposed to dripping or splashing or placed in a humid atmosphere such as a bathroom.

○ Do not install the product in the following areas:

- Places exposed to direct sunlight or close to radiators.

○ On top of other stereo equipment that radiate too much heat.

○ Blocking ventilation or in a dusty area.

○ Areas where there is constant vibration.

○ Humid or moist places.

- Do not place near candles or other naked flames.

- Operate the product only as instructed in this manual.

- Before turning on the power for the first time, make sure the power adaptor is properly connected.

For safety reasons, do not remove any covers or attempt to gain access to the inside of the product. Refer any servicing to qualified personnel.

Do not attempt to remove any screws, or open the casing of the unit; there are no user serviceable parts inside. Refer all servicing to qualified service personnel.

Conformity

Model number: CLR 42-1

Description: Dual alarm clock radio

Brand name: Blaupunkt

Responsible party: M3 Electronic GmbH

Gutenbergstrasse 5, D-65830 Kriftel. Germany

Hereby, Blaupunkt Competence Center Audio M3 Electronic GmbH, declares that this Class 1 equipment is in compliance with the essential requirement and other relevant provisions of Directive 1999/5/EC.

Letter of conformity can be obtained from [e-mail].

SAFETY INSTRUCTIONS

1. Read Instructions - All the safety and operating instructions must be read before the product is operated.

2. Retain Instructions - The safety and operating instructions should be kept with the product for future reference.

3. Heed warnings - All warnings on the product and in the operating instructions should be adhered to.

4. Follow instructions - All operating and users' instructions should be followed.

5. Installation - Install in accordance with the manufacturer's instructions.

6. Power sources - This product should be operated only from the type of power source indicated by the marking adjacent to the power cord entry. If you are not sure of the type of power supply to your home, consult your product dealer or local power company.

7. Grounding or polarization - the product is not required to be grounded. Ensure that the plug is fully inserted into the wall outlet or extension cord receptacle to prevent blade or pin exposure. Some versions of the product are equipped with a power cord fitted with a polarized alternating line plug (a plug having one blade wider than the other). This plug will fit onto the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug. When using an extension power-supply cord or a power-supply cord other than that supplied with the appliance, it should be fitted with the appropriate molded plugs and carry safety approval appropriate to the country of use.

8. Power cord protection - Power-supply cords should be routed so that they are not likely to be walked on, kinked or pinched by items placed on or against them, paying particular attention to cords from plugs, receptacles and the point where they exit from the product.

9. Overloading - Do not overload wall outlets, extension cords, or multiple sockets, as this can result in a risk of fire or electric shock.

10. Ventilation - The product must be properly ventilated. Do not place the product on a bed, sofa, or other similar surface. Do not cover the product with any items such as tablecloths, newspapers, etc.

11. Heat - The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products, including amplifiers that produce heat. No naked flame sources, such as lighted candles, should be placed on the apparatus.

12. Water and moisture - To reduce the risk of fire or electric shock, do not expose the product to train, dripping, splashing or excessive moisture such as in a sauna or bathroom. Do not use this product near water, for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement or near a swimming pool (or similar).

13. Object and Liquid Entry - Never push objects of any kind into this product through openings, as they may touch dangerous voltage points or short-circuit parts that could result in a fire or electric shock. Never spill liquid of any kind on the product. Do not place any object containing liquid on top of the product.

14. Cleaning - Unplug the product from the wall outlet before cleaning. Dust in the woofer may be cleaned with a dry cloth. If you wish to use an aerosol cleaning spray, do not spray directly on the cabinet; spray onto the cloth. Be careful not to damage the drive units.

15. Attachments - Do not use attachments not recommended by the product manufacturer, as they may cause hazards.

16. Accessories - Do not place this product on an unstable cart, stand, tripod, bracket or table. The product may fall, causing serious injury to a child or adult, and serious damage to the product. Use only with a cart, stand, tripod, bracket or table recommended by the manufacturer or sold with the product. Any mounting of the product should follow the manufacturer's instructions and should use a mounting accessory recommended by the manufacturer.

17. Moving the product - A product and cart combination should be moved with care. Quick stops, excessive force and uneven surfaces may cause the product and cart combination to overturn.

18. Unused periods - The power cord of the appliance should be unplugged from the outlet during lightning storms or when the apparatus is left unused for a long period of time.

19. Servicing - Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified service personnel.

20. Please remove the power plug form the main power source or wall power source when not in use. When plugged in to a power source, the system is in standby mode, so the power is not entirely cut off.

21. Replacement parts - When replacement parts are required, ensure that the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock or other hazards.

22. Mains fuses - For continued protection against fire hazard, use fuses only of the correct type and rating. The correct fuse specification for each voltage range is marked on the product.

23. Do not turn up the volume while listening to a section with very low level inputs or no audio signals. If you do, the speaker may be damaged when a peak level section is suddenly played.

24. The only means of completely disconnecting the product from the power supply is by removing the power cord from the wall outlet or the product. The wall outlet or the power cord entry to the product must remain freely accessible at all times while the product is in use.

25. Try to install the product near a wall socket or extension cord and shall be easily accessible.

26. The highest environmental temperature suitable for this product is 35°C.

27. ESD hints - The normal function of the product may be disturbed by strong Electro-Magnetic Interference. If so, simply reset the product to resume normal operation by following the instruction manual. In case the function could not resume, please use the product in other location.

28. Battery

1). The batteries must not be exposed to excessive heat such as sunshine, fire or the like.

2). The batteries should be drawn to the environmental aspects of battery disposal.

3). Battery usage CAUTION-to prevent battery leakage which may result in body injuries, property damage, or damage to the apparatus:

- Install all batteries correctly, + and - as marked on the apparatus.

- Do not mix batteries (old and new or carbon and alkaline, etc.)

- Remove batteries when the unit is not used for a long time.

WARNING

This appliance is not intended for use by persons (including children) with reduced physical sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

1. Never use the device unsupervised! Switch off the device whenever you are not using it, even if this only for a short while.

2. The appliance is not intended to be operated by means of an external timer or separate remote control system.

3. If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

4. Before operating this system, check the voltage of this system to see if it is identical to the voltage of your local power supply.

5. The unit should not be impeded by covering the ventilation opening with items such as newspaper, table-cloths, curtains etc. Make sure that there are at least 20 cm of space above and at least 5 cm of space on each side of the unit.

6. The apparatus must not be exposed to dripping or splashing and that objects filled with liquids, such as vases, must not be placed on the apparatus.
7. To prevent fire or shock hazard, do not expose this equipment to hot places, rain, moisture or dust.
8. Do not locate this unit near any water sources e.g. taps, bathtubs, washing machines or swimming pools. Ensure that you place the unit on a dry, stable surface.
9. Do not place this unit close to a strong magnetic field.
10. Do not place the unit on a amplifier or receiver.
11. Do not place this unit in a damp area as the moisture will affect the life of electric components.
12. If the system is brought directly from a cold to a warm location, or is placed in a very damp room, moisture may condense on the lens inside the player. If this occurs, the system will not operate properly. Please leave the system turned on for about an hour until the moisture evaporates.
13. Do not attempt to clean the unit with chemical solvents as this might damage the finish. Wipe with a clean, dry or slightly damp cloth.
14. When removing the power plug from the wall outlet, always pull directly on the plug, never pull on the cord.
15. The mains plug is used as the disconnect device, the disconnect device must remain readily operable.

INTRODUCTION

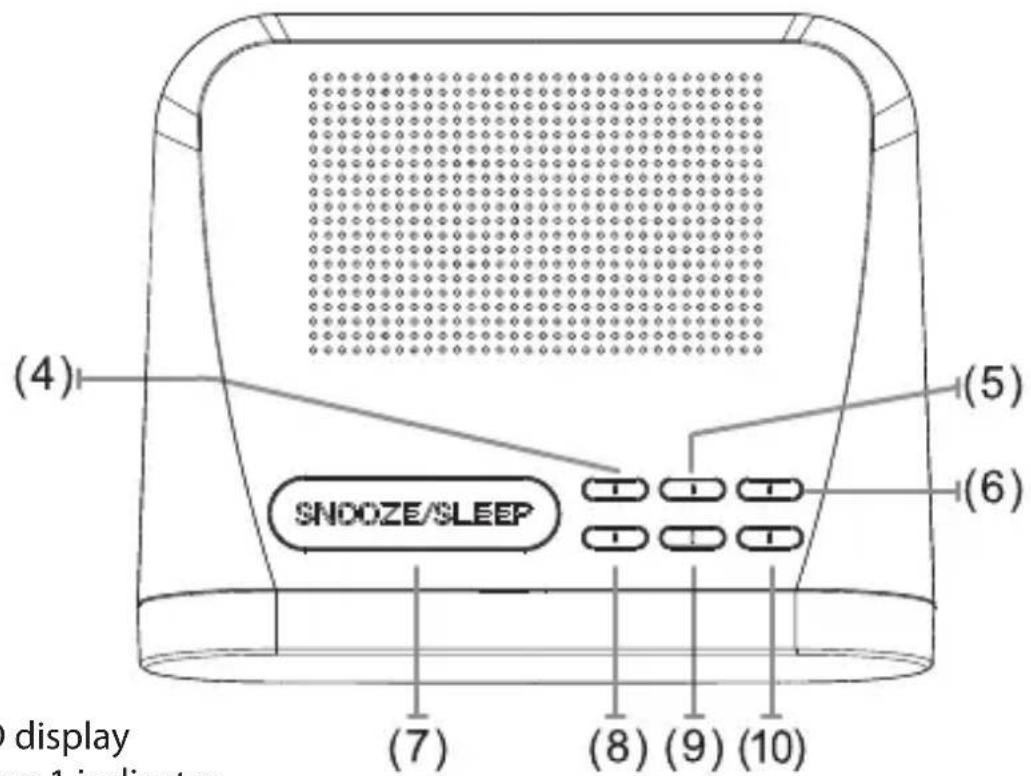

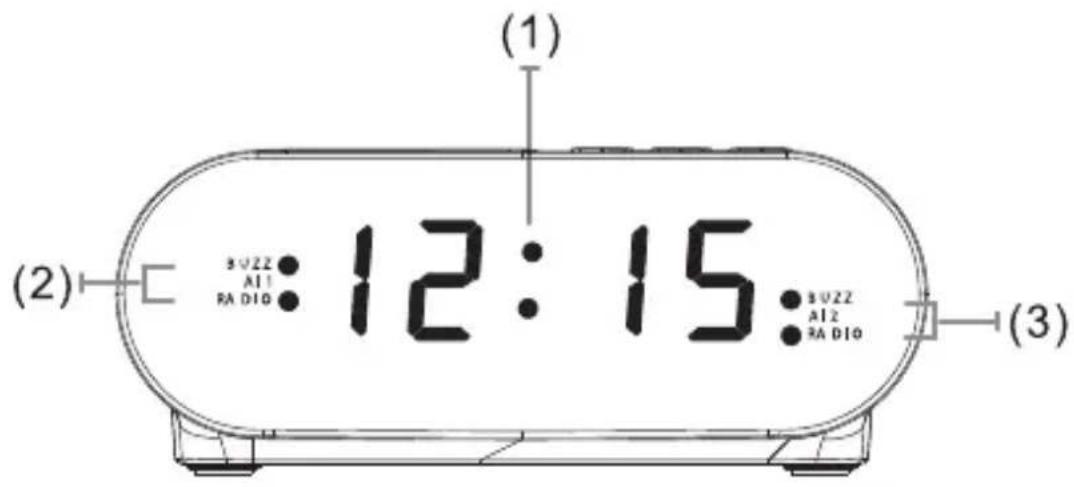

B VZZ A11 RA DIO 12:15 B VZZ A12 RA DIO (1) (2) (3)

SNOOZE/SLEEP (4) (5) (6) (7) (8) (9) (10) display type 1 indicator

1. LED display
2. Alarm 1 indicator
3. Alarm 2 indicator
4. Clock/Memory button
5. Hour/Tuning backward button
6. Minute/Tuning Forward button
7. Snooze/Sleep button
8. Power/Source button
9. AL1/Volume - button
10. AL2/Volume + button

SETTING THE CLOCK

1. If in radio mode, press the SOURCE (8) button to turn off/on the unit.
2. Press and hold the CLK/MEM (4) button until the display begins to blink, then release the button.
3. Press the HOUR (5) button to adjust the hour.
4. Press the MIN (6) button to adjust the minutes.
5. Press the CLK/MEM (4) button to finish the time sitting.

SETTING THE SLEEP TIMER

1. In radio mode, press the SNOOZE/SLEEP (7) button repeatedly to set the sleep timer (90, 80, 70, 60, 50, 40, 30, 20, 10 minutes).
2. Once the set sleep time has expired the clock radio will switch off automatically.

SETTING THE ALARM

1. If in radio mode, press and hold the source (8) button to turn off the unit.
2. Press and hold the AL1 (9) or AL2 (10) button unit: the display begins to blink, then release the button.
3. Press the AL1 (9) or AL2 (10) button to switch between Buzzer (BB) or Radio.
4. Press the HOUR (5) button to adjust the hour.
5. Press the MIN (6) button to adjust the minutes.
6. Press the AL1 (9) or AL2 (10) button to confirm the setting.
7. Once the set alarm time is reached, the alarm will sound.
8. To cancel the alarm setting, press the AL1 (9) or AL2 (10) buttons until the indicator no longer lights.
9. To cancel the alarm sound when the alarm time is up, please press SOURCE (8) button.

SNOOZE AND ALARM STOP

After the alarm sounds:

1. Press the SNOOZE/SLEEP (7) button to delay the alarm for additional 9 minutes.
2. Or press the SOURCE (8) button to turn off the alarm when the set alarm time is reached again.

(

TUNING THE FM RADIO

1. Press the SOURCE (8) button to switch on the clock radio.
2. Press the (6) buttons to adjust the radio to the desired frequency.
3. Press and hold the buttons to search for the next available frequency.
4. Press the VOL+ (9) / VOL- (10) buttons to adjust the volume.
5. Press and hold the SOURCE (8) button to switch off the radio.
   Note: total 10 FM stations can be saved as preset.

SAVING A STATION AS A PRESET

1. Follow the instructions for TUNING THE RADIO.
2. Tune to the desired station.
3. Press and hold the CLK/MEM (4) button until the display begins to blink, then release the button.
4. Press the MIN (6) or HOUR (5) button to adjust the number.
5. Press the CLK/MEM (4) button again to save the current radio station as a preset.

TUNING TO A PRESET RADIO STATION

1. Follow the instructions for TUNING THE RADIO and SAVING A STATION AS A PRESET.

2. Press the CLK/MEM (4) button to cycle through preset radio stations.

BATTERY BACKUP

1. The battery backup is intended for short power outages only. The clock radio's primary functions cannot run off of battery backup alone.
2. Requires 2 x AA size batteries (not included).
   Note: the battery power is for clock time, alarm setting and preset station backup only; the display will be switched off in battery power mode.

SPECIFICATION:

FM frequency: 87.5\~108 Mhz

Power source: AC 230V/50Hz

Display: 0.9"/2,3 cm LED display (height)

Alarm: dual alarm with beep or radio source

Snooze time: 9 minutes

Power consumption (on mode): 3 Watts

Power consumption (standby mode): <1 Watt

Dimensions: 140 x 118 x 56 mm (L x W x H)

Symbol of a trash bin crossed with a diagonal line, representing waste sorting or disposal (no text or labels)

This symbol on the product or in the instructions means that your electrical and electronic equipment should be disposed at the end of its life separately from your household waste.

There are separate collection systems for recycling in the EU.

For more information, please contact the local authority or your retailer where you purchased the product.
