Brand	ABUS
Model	TVAC22010
Product Type	Audio/Video Converter
Input Interfaces	HDMI, VGA, Composite (RCA), 3.5mm audio jack
Output Interfaces	HDMI, VGA, Composite (RCA), optical audio
Max Resolution	1920x1080p @ 60Hz
Power Supply	5V DC, 1A via USB or included adapter
Power Consumption	2.5W (max)
Dimensions (W x D x H)	120 x 70 x 25 mm
Weight	150 g
Operating Temperature	0°C to 40°C
Supported Audio Formats	PCM, Dolby Digital, DTS
Video Conversion	Analog to digital / digital to analog
EDID Management	Built-in EDID emulation for compatibility
Housing Material	Metal casing with ventilation slots
Included Accessories	User manual, power adapter, mounting bracket
Compliance	CE, RoHS

Frequently Asked Questions - TVAC22010 ABUS

How do I connect the converter?

Connect your source device to the input (e.g., HDMI or VGA) and your display to the output. Ensure the power adapter is plugged in. The EDID management ensures automatic setup.

What cable do I need for VGA to HDMI conversion?

You need a VGA cable from your source to the converter's VGA input, and an HDMI cable from the converter's output to your display. Audio is transmitted via a separate 3.5mm or optical cable if needed.

Can I convert HDMI to VGA with this device?

Yes, the TVAC22010 supports bidirectional conversion between HDMI and VGA, as well as other formats. Select the appropriate input/output ports.

Why is there no image on my display?

Check all cable connections, ensure the power LED is on, and verify that the input source is sending a compatible resolution. The converter supports up to 1080p. Try an EDID reset by unplugging power for 10 seconds.

Does this converter support audio?

Yes, it supports audio through HDMI, VGA (with separate audio cable), composite RCA, or optical output. Audio formats include PCM, Dolby Digital, and DTS.

What is the maximum resolution supported?

The maximum resolution is 1920x1080p @ 60Hz for both input and output. Lower resolutions are also supported.

Is the device compatible with HDCP?

Yes, the converter supports HDCP pass-through for protected content. Ensure your source and display are HDCP-compliant.

How do I clean and maintain the converter?

Disconnect power before cleaning. Use a dry, soft cloth to wipe the exterior. Avoid liquids and abrasive cleaners. Ensure ventilation slots are not blocked.

Can I mount the converter on a wall?

Yes, the package includes a mounting bracket and screws. Secure it to a flat surface, ensuring proper ventilation. The metal casing is designed for heat dissipation.

Where can I find the user manual?

The user manual is available for free download in PDF format from notice-facile.com. Search by model TVAC22010 or ABUS.

USER MANUAL TVAC22010 ABUS

These user manual contains important information for installation and operation.

This should be also noted when this product is passed on to a third party.

Therefore look after these operating instructions for future reference!

A list of contents with the corresponding page number can be found in the index on page 14.

HD-SDI Repeater

6V-15V PLL LOCK - SDI REPEATER - INPUT OUTPUT -

Bedienungsanleitung

Version 04/2012

CE

SDI REPIATER

HD-SDI Repeater

Netzteil

Bedienungsanleitung

Original English user manual. Keep for future use.

Introduction

Dear Customer,

Thank you for purchasing this product.

This product meets the requirements of the applicable European and national guidelines. The corresponding declarations and documents can be obtained from the manufacturer (www.abus-sc.com).

To maintain this condition and to ensure risk-free operation, you as the user must observe these operation instructions!

Before initial start-up, read through the complete operating instructions observing operating and safety instructions.

All company and product names mentioned in this document are registered trademarks. All rights reserved.

If you have any questions, please contact your installer or your local dealer!

Disclaimer

This user manual was prepared with greatest care. If you should notice omissions or inaccuracies, please inform us about these on the back of this manual given address.

The ABUS Security-Center GmbH assumes no liability for technical and typographical faults and reserves the right to make at any time modifications to the product or user manual without a previous announcement. The company is not liable or responsible for direct and indirect subsequent damages which are caused in connection with the equipment, the performance and the use of this product.

No guarantee for the content of this document is taken.

Icon explanation

A flash in the triangle is used if there is danger for the health, e.g. by an electric shock.

An exclamation mark in the triangle points to an important note in this user manual which must be minded.

This symbol can be found when you are to be given tips and information on operation.

Important safety advice

The warranty will expire for damage due to non-compliance with these operating instructions. ABUS will not be liable for any consequential loss!

ABUS will not accept liability for damage to property or personal injury caused by incorrect handling or non-compliance with the safety-instructions. In such cases the warranty will expire.

The device has been manufactured in compliance with international safety standards. Please read these safety advices carefully.

Safety advice

1. Mains supply

110 - 240V AC 50/60Hz

Operate this product only from the type of power supply indicated on the marking label. If you are not sure of the type of power supplied to your home, consult your local power company. Disconnect the product from the mains before you start any maintenance or installation procedures.

1. Overloading

Do not overload a wall outlet, extension cord or adapter as this may result in electric fire or shock.

1. Liquids

Setup the device only in dry and dust-protected rooms. Protect the device from any kind of liquids entering.

1. Cleaning

Disconnect the product from the wall outlet before cleaning. Use a light damp cloth (no solvents) to dust the product.

1. Ventilation

The slots on top of the product must be left uncovered to allow proper airflow into the unit. Do not stand the product on soft furnishings or carpets. Do not stack electronic equipments on top of the product.

1. Accessories

Do not use any unsupported accessories as these may be hazardous or cause damage the product.

1. Location

2. Setup the device only in dry and dust-protected rooms.

3. Protect the device from any kind of liquids entering.
4. Do not place the device near a radiator or heat register.
5. Setup the device only in areas with the advised operating temperatures of 0^ 50^ .

Warnings

Follow all safety and operating advises before starting-up the device!

1. Follow these directions. Failure to follow any of them may cause electrical shock:

2. Do not open the main body or the power supply.

3. Do not insert metal or inflammable objects inside the product.

4. In order to avoid any damage during lighting use a surge protection.

5. Do not use the product when it is out of order. If you continue to use the product when defective, serious damage can be caused to it. Make sure to contact your local product distributor if the product is out of order.

During the installation into an existing video surveillance system make sure that all devices are disconnected from the low and supply voltage circuit.

If in doubt allow a professional electrician to mount, install and wire-up your device. Improper electrical connection to the mains does not only represent at threat to you but also to other persons.

Wire-up the entire system making sure that the mains and low voltage circuit remain separated and cannot come into contact with each other in normal use or due to any malfunctioning.

Unpacking

While you are unpacking the device please handle it with utmost care.

If you notice any damage of the original packaging, please check at first the device. If the device shows damages, please contact your local dealer.

Table of contents

1. Intended use 15
2. Scope of delivery....15
3. Features and functions.... 15
4. Physical descriptions & functions.... 15
5. Maintenance and cleaning.... 16
   5.1 Maintenance.... 16
   5.2 Cleaning 16
6. Disposal....16
7. Technical data.... 16

1. Intended use

The HD-SDI Repeater is used to increase the transmission distance of HD-SDI Signals.

A detailed description of all functions can be found in chapter „3 Features and functions“.

2. Scope of delivery

SDI REPIATER

HD-SDI Repeater

Power Supply User manual

3. Features and functions

• Increase of transmission distance of HD-SDI signals
  • Max. transmission distance increase: 150 meter (RG6 cable), 80 meter (RG59 cable)
  • Status display for signal quality

4. Physical descriptions & functions

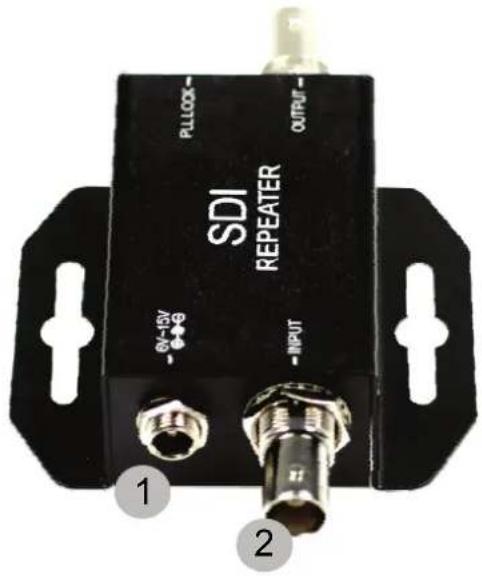

Front side Back side

SDI REPEATER PLLBOX OUTPUT 0V-15V G+G INPUT 1 2

1 – Power supply connector, 6,0 – 15,0 V DC, DC connector 5,5 x 2,1 mm
2 - HD-SDI input (BNC connector)

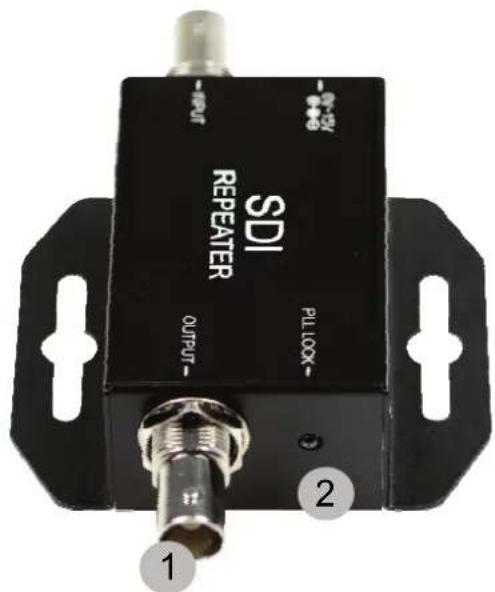

SDI REPEATER OUTPUT PILLLOCK 1 2

1 - HD-SDI output (BNC connector)
2 - Status LED (PLL Lock)

5. Maintenance and cleaning

5.1 Maintenance

Regularly check the product's physical state, e.g. check for damage of the housing.

If you suspect that safe operation cannot be guaranteed anymore, disconnect the product and ensure that it cannot be used by mistake.

You can assume that safe operation is not possible anymore when

• the device shows visible damage,
• the device does not function anymore

Please note:

The product is maintenance free for you. Inside the product are no parts that can be checked or repaired, so do not ever open it.

5.2 Cleaning

Wipe the product with a clean, dry cloth. If the device is very dirty, you can moisten the cloth with lukewarm water.

Ensure that no liquids can get into the device.

Do not use any chemical cleaners, since they could damage the housing surface or the screen (discolorations).

6. Disposal

Devices with this marking should not be put in the household garbage. Dispose of the product at the end of its lifetime according to the applicable regulations.

7. Technical data

Item number TVAC22010
Input 1 x BNC (HD-SDI)
Output 1 x BNC (HD-SDI)
Supported resolutions 720p50, 720p60, 1080i50, 1080i60, 1080p24, 1080p25, 1080p30, 1080p50, 1080p60, 2K (2048 x 1080)
Supported formats SD-SDI (SMPTE 259M)	HD-SDI (SMPTE 292M)3G-SDI (SMPTE 494M/495M)
Video system HD-SDI
Impedance	75
Voltage supply 6 - 15 V DC
Current consumption 500 mA
Operating temperature 0 ~ +50 °C
Dimension (WxLxH)	63,6 x 70 x 26 mm

Impressum

These operating instructions are published by ABUS Security-Center GmbH & Co.KG, Linker Kreuthweg 5, 86444 Affing, Germany. No reproduction (including translation) is permitted in whole or part e.g. photocopy, microfilming or storage in electronic data processing equipment, without the express written consent of the publisher. The operating instructions reflect the current technical specifications at the time of print. We reserve the right to change the technical or physical specifications.

© Copyright 04/2012 by ABUS Security-Center
