Product Type	Barcode Reader
Brand	Code Corporation
Model	CR2500
Dimensions (approx.)	170 x 70 x 100 mm (6.7 x 2.8 x 3.9 in)
Weight (approx.)	150 g (5.3 oz)
Power Supply	USB powered (5V DC)
Scan Capability	1D and 2D barcodes
Interface	USB HID, USB Virtual COM
Scan Engine	Laser or imaging (unspecified)
Depth of Field	Typical range: 0-250 mm for 1D codes
Reading Angle	±40° horizontal, ±30° vertical
Supported Symbologies	UPC, EAN, Code 39, Code 128, QR, Data Matrix, PDF417
Housing Material	Polycarbonate with rubber grips
Operating Temperature	0°C to 40°C (32°F to 104°F)
Cable Length	2.0 m (6.6 ft) standard
Maintenance	Clean lens with soft, lint-free cloth; avoid solvents
Safety	Complies with IEC 60825 Class 1 laser safety (if laser)
Spare Parts	Replacement USB cable, stand optional
Repairability	Cable replaceable by user; internal parts not user-serviceable
General Information	Plug-and-play with most systems; supports Windows, macOS, Linux

Frequently Asked Questions - CR2500 Code Corporation

How do I set up the CR2500 barcode reader?

Simply plug the USB cable into your computer and the reader will be recognized as a USB HID or USB COM device. You can start scanning barcodes immediately.

Does the CR2500 read 2D barcodes like QR codes?

Yes, the CR2500 supports both 1D and 2D barcodes, including QR codes and Data Matrix.

What types of barcodes are supported?

It supports common symbologies such as UPC, EAN, Code 39, Code 128, QR, Data Matrix, PDF417, and more.

How can I clean the CR2500?

Use a soft, lint-free cloth slightly dampened with water or a mild detergent to clean the housing. Clean the lens gently with a dry microfiber cloth. Avoid solvents or abrasive cleaners.

What should I do if the scanner stops working?

First, check the USB connection and try a different USB port. Restart your computer. If the issue persists, verify that the scanner is not in a configuration mode. You can also reset to factory defaults by scanning a configuration barcode (refer to the manual).

Can I change the beep volume or disable it?

Yes, the beep volume and tone can be configured via programming barcodes. Look for 'Beeper Volume' and 'Beeper Tone' barcodes in the user manual.

Is the CR2500 compatible with Mac or Linux?

Yes, the CR2500 works with Windows, macOS, and Linux as it emulates a standard USB keyboard or serial device. No special drivers are required.

How can I replace the USB cable?

The USB cable on the CR2500 is replaceable. Gently pull the cable out from the strain relief and insert a new one. Order a replacement cable from Code Corporation or an authorized dealer.

What is the maximum scanning distance?

The typical depth of field for 1D barcodes is up to 250 mm (10 inches), but it depends on barcode size and density. High-density codes may require closer distance.

How do I configure the scanner to add a prefix or suffix?

You can configure prefixes, suffixes, and other data formatting by scanning specific programming barcodes from the manual. These barcodes are provided in the user guide appendix.

USER MANUAL CR2500 Code Corporation

Black and red remote control device with a red handle and 'ode' label (no visible text or symbols on the device body)

Code Reader 2500 ^TM

Manual Version 6

Release Date: 12/15/09

Statement of Agency Compliance

The Code Reader 2500 has been tested for compliance with FCC regulations and was found to be compliant with all applicable FCC Rules and Regulations.

IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements, this device must not be co-located or operate in conjunction with any other antenna or transmitter.

CAUTION: Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

The Code Reader 2500 has been tested for compliance to CE standards and guidelines and was found to conform to applicable CE standards, specifically the EMC requirements EN 55024, ESD EN 61000-4-2, Radiated RF Immunity EN 61000-4-3, ENV 50204, EFT EN 61000-4-4, Conducted RF Immunity EN 61000-4-6, EN 55022, Class B Radiated Emissions, and Class B Conducted Emissions.

Code voids product warranty if the hard case has been opened or tampered with in any way.

In addition, a CB Test Certificate has been issued by the National Certification Board (NCB) indicating CR2500 meets all safety and quality standards in accordance to IEC 60950-1:2001, First Edition.

Code Reader 2500 User Manual

Copyright © 2005 Code Corporation.

All Rights Reserved.

The software described in this manual may only be used in accordance with the terms of its license agreement.

No part of this publication may be reproduced in any form or by any means without written permission from Code Corporation. This includes electronic or mechanical means such as photocopying or recording in information storage and retrieval systems.

NO WARRANTY. This technical documentation is provided AS-IS. Further, the documentation does not represent a commitment on the part of Code Corporation. Code Corporation does not warrant that it is accurate, complete or error free. Any use of the technical documentation is at the risk of the user. Code Corporation reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Code Corporation to determine whether any such changes have been made. Code Corporation shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material. Code Corporation does not assume any product liability arising out of or in connection with the application or use of any product or application described herein.

NO LICENSE. No license is granted, either by implication, estoppel, or otherwise under any intellectual property rights of Code Corporation. Any use of hardware, software and/or technology of Code Corporation is governed by its own agreement.

The following are trademarks or registered trademarks of Code Corporation:

CodeXML, Maker, QuickMaker, CodeXML Maker, CodeXML Maker Pro, CodeXML Router, CodeXML Client SDK, CodeXML Filter, HyperPage, CodeTrack, GoCard, GoWeb, ShortCode, GoCode, Code Router, QuickConnect Codes, Rule Runner

All other product names mentioned in this manual may be trademarks of their respective companies and are hereby acknowledged.

The software and/or products of Code Corporation include inventions that are patented or that are the subject of patents pending. U.S. Patents: 6997387, 6957769, 7428981, 6619547, 6736320, 7392933, 7014113, 7240831, 7353999, 7519239, 7204417, 6942152, 7070091, 7097099, 7621453

The Code Reader software uses the Mozilla SpiderMonkey JavaScript engine, which is distributed under the terms of the Mozilla Public License Version 1.1. Source code for this version of Spider Monkey is available at:

http://www.codecorp.com/source/spidermonkey.

The Code Reader software is based in part on the work of the Independent JPEG Group.

Code Corporation, 14940 South Pony Express Road, Suite 500, Bluffdale, UT 84065

www.codecorp.com

Table of Contents

Chapter 1 - Getting Started .... 1

1.1 - Introduction ...... 2
1.2-Unpacking 2
1.3 - Reader Battery Installation.... 3
1.4 - Attaching Handles 3
1.5 - Powering On/Off Reader 4
1.6 - Batch Operation 4

1.6.1 - Introduction ...... 4

1.7 - Cabled Operation 4

1.7.2 - CR2500 as a USB Keyboard 5

1.7.2.1 - Additional USB Communication Settings 6
1.7.2.2 - Keyboard Support.... 7

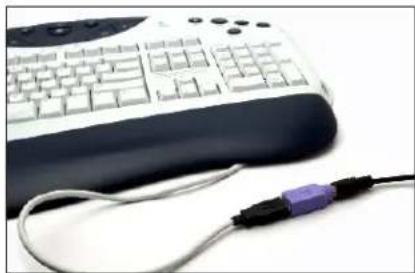

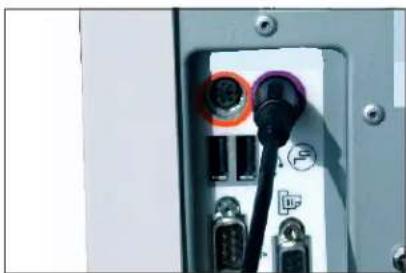

1.7.3 - PS/2 Cable Installation Guide 8

1.7.4 - RS-232 (Serial) Cable Installation Guide 9

1.7.4.1 - Additional RS-232 (Serial) Communication Data Bit Settings.... 10
1.7.4.2 - Additional RS-232 (Serial) Communication Baud Rate Settings.... 10
1.7.4.3 - Additional RS-232 (Serial) Communication Parity Settings.... 10

1.8 - Bluetooth Radio Operation....11

1.8.1 - Introduction ...... 11
1.8.2 - Bluetooth Radio Auto Connect.... 13
1.8.3 - Bluetooth Radio Auto Disconnect.... 13
1.8.4 - Bluetooth Radio Time Out Settings 14
1.8.5 - Bluetooth Radio Out of Range Notification Settings 14
1.8.6 - Auto Save Last Bluetooth Address.... 14

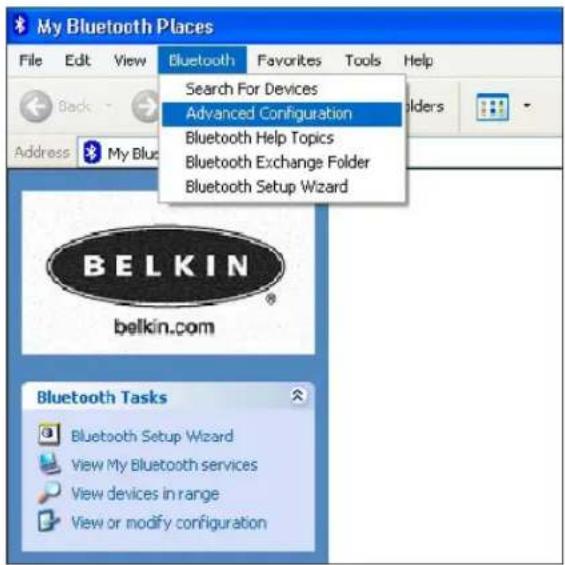

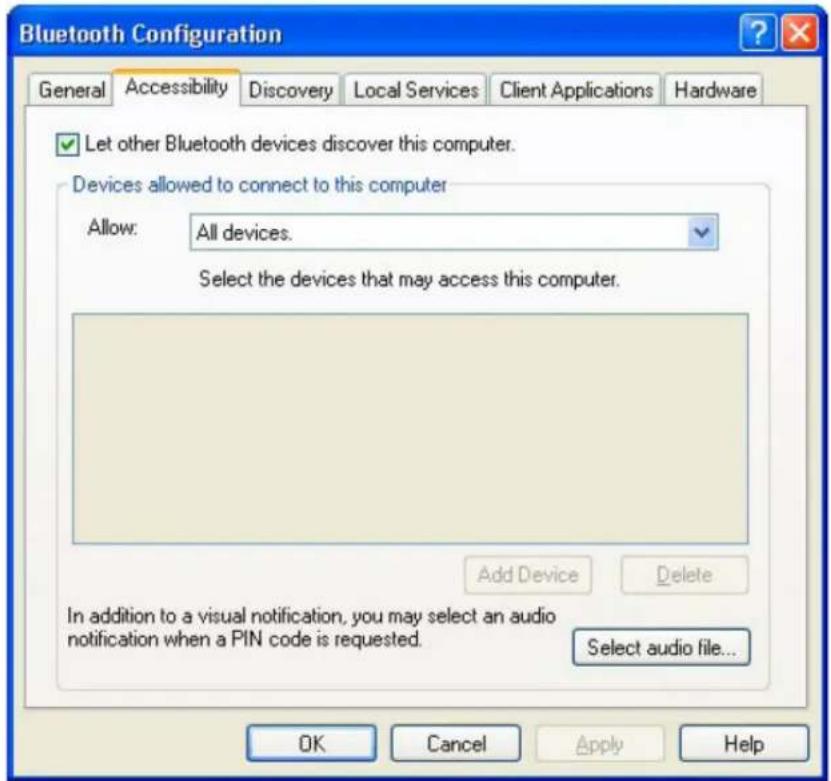

1.8.7 - Configuration for Belkin Bluetooth Manager Software (Version 1.4.2.10).... 15

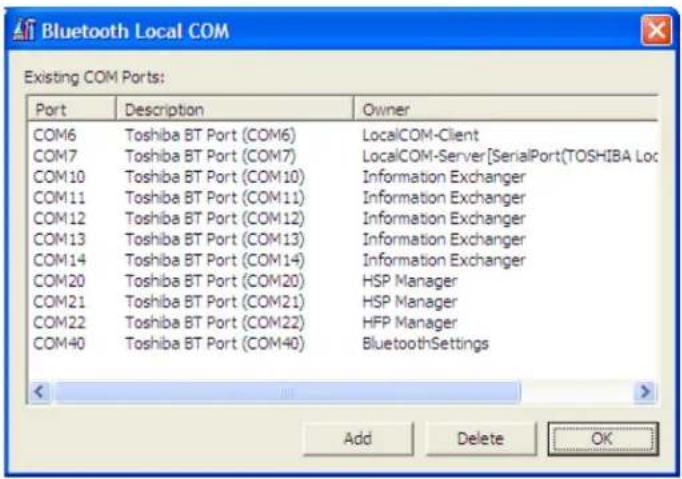

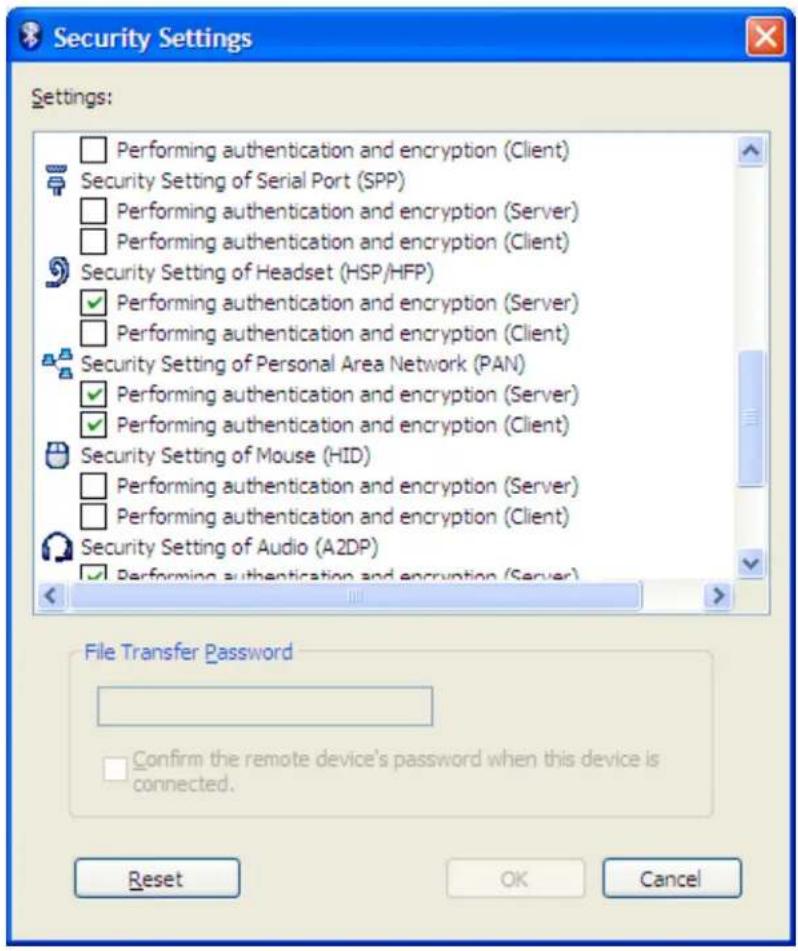

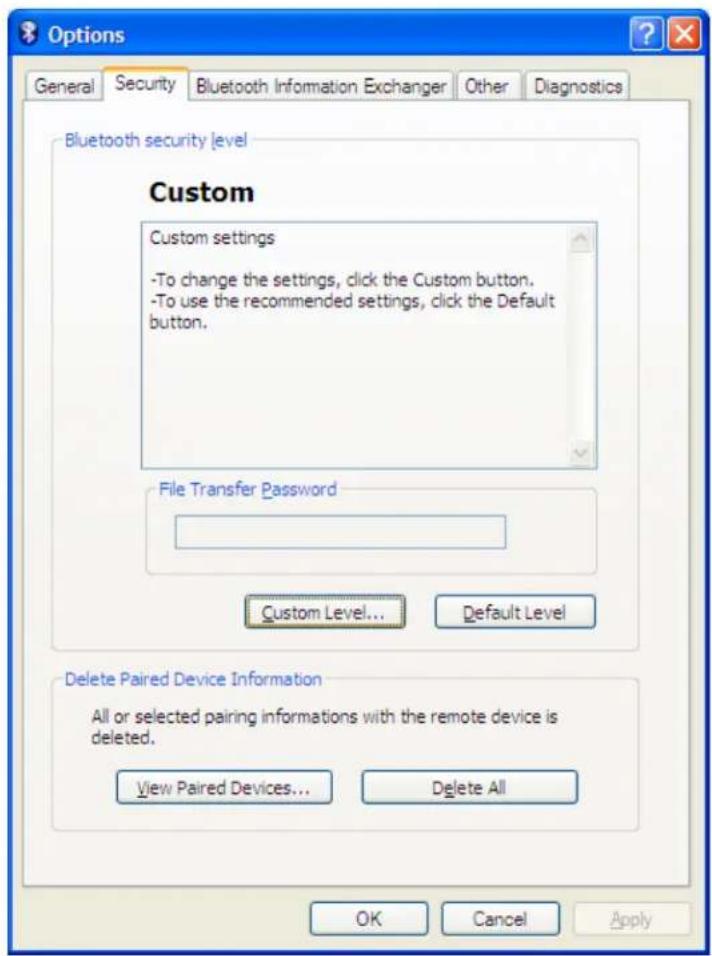

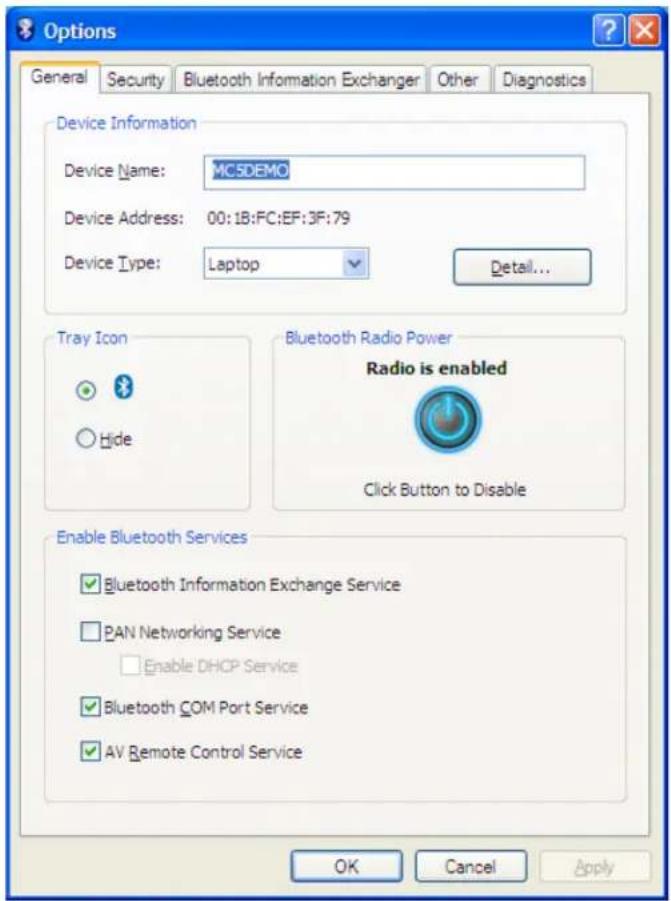

1.8.8 - Configuration for Toshiba Bluetooth Stack Instructions.... 17

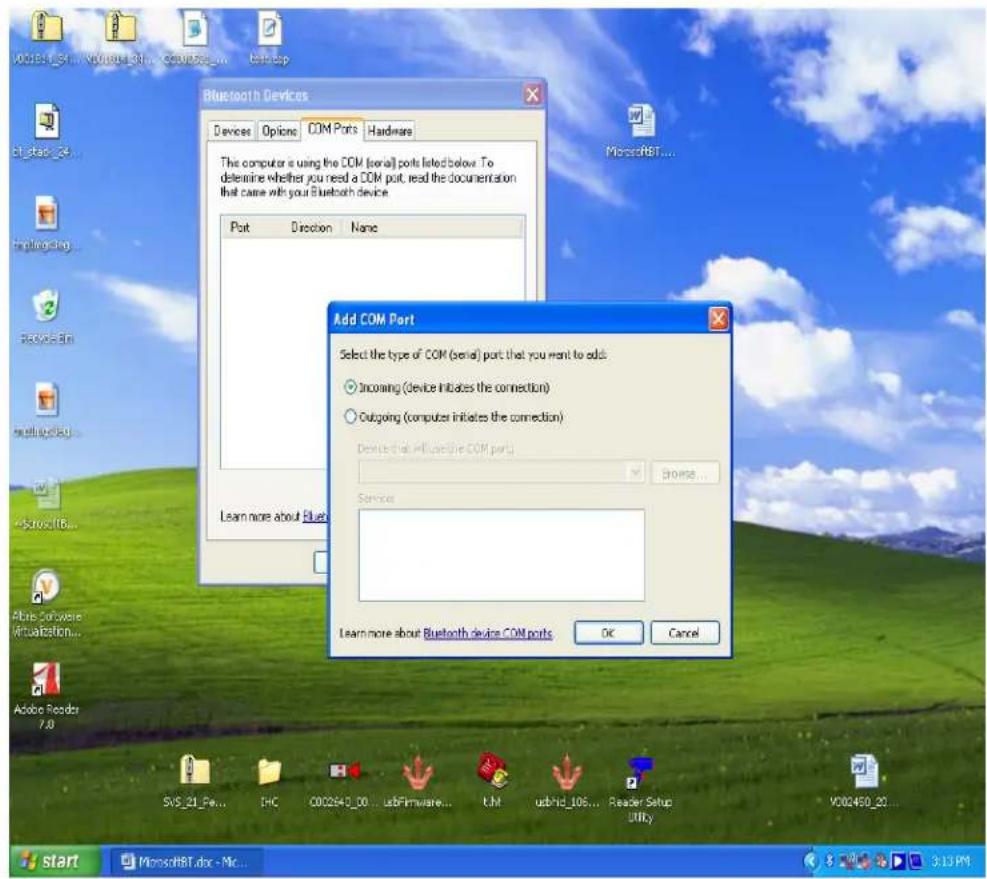

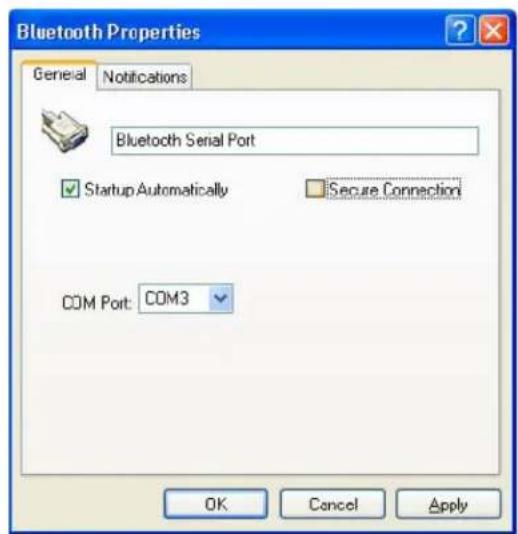

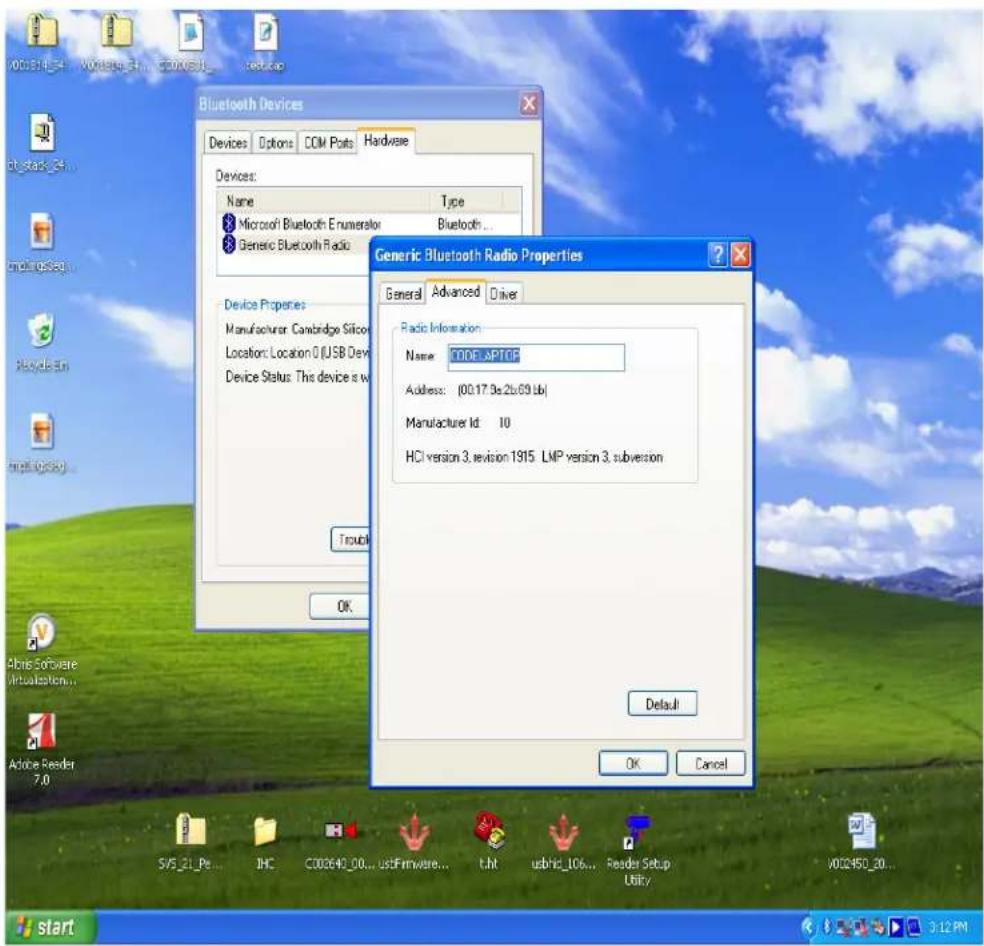

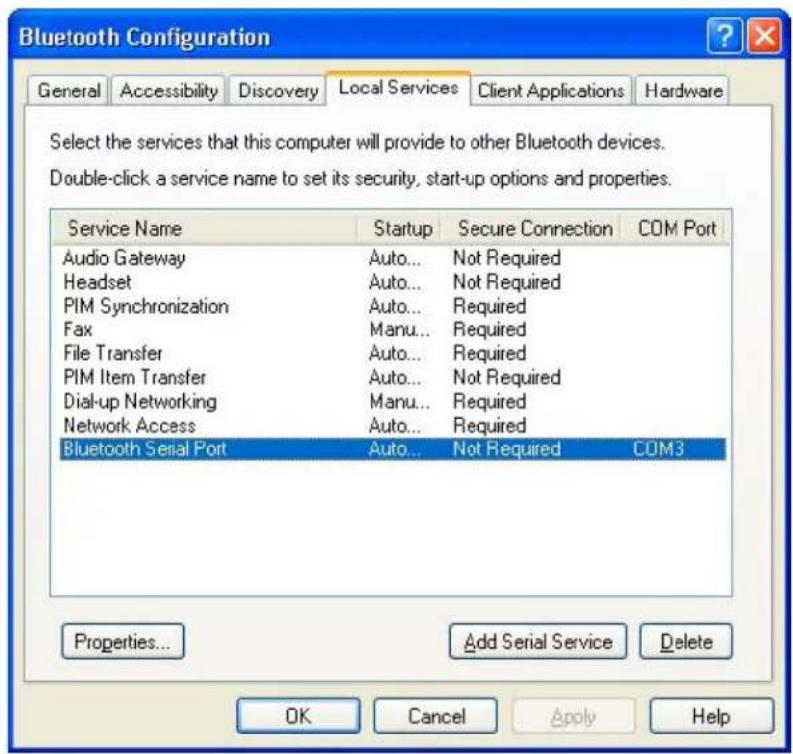

1.8.9 - Configuration for Microsoft Bluetooth Stack Instructions 20

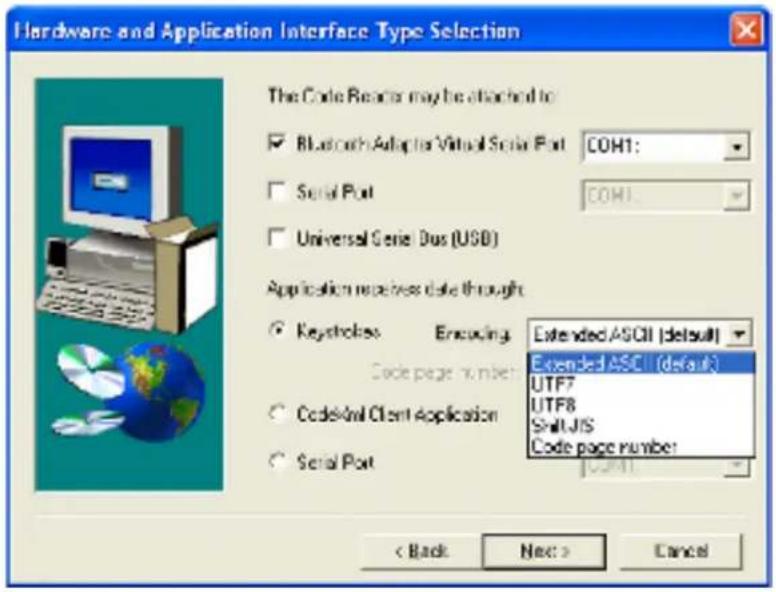

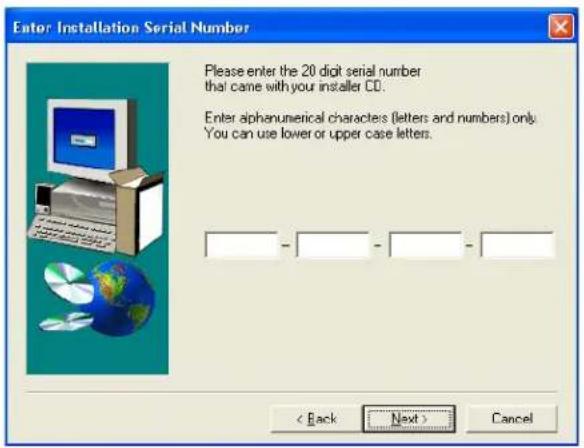

1.8.10 - Installing CodeXML Router Bluetooth Edition for Windows 22

1.9 - Targeting and Reading Techniques 23

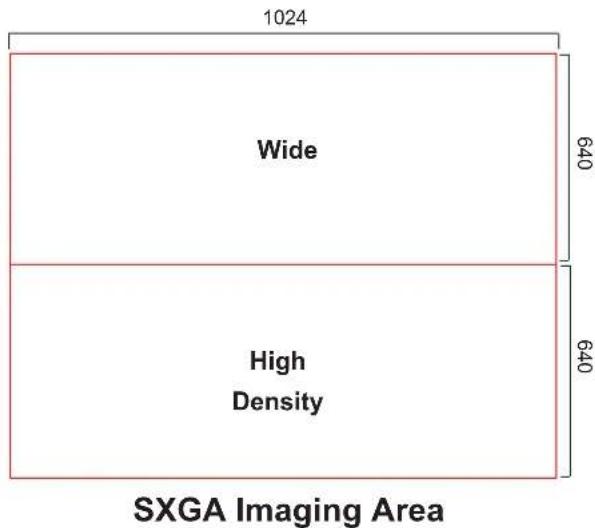

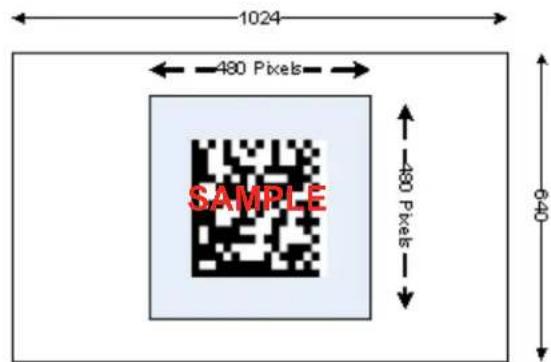

1.10 - Imager Field Selection and Resolution 24

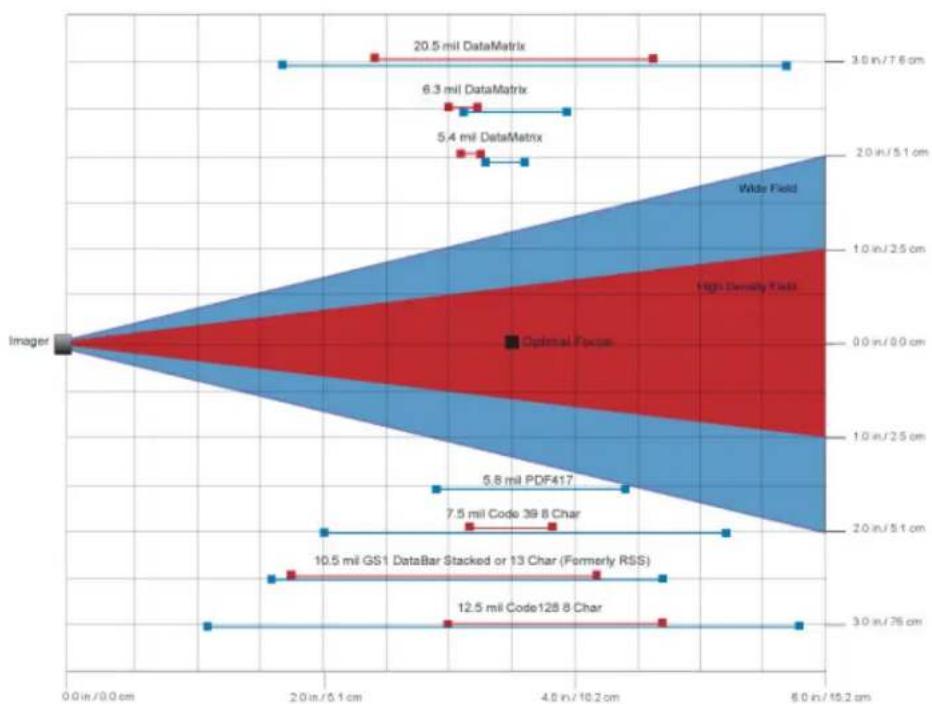

1.11 - Decode Zone 24

Chapter 2 - Optimization and Trigger Programming ...... 25

2.1 - Introduction 26
2.2 - Global Trigger Optimization Matrix.... 27
2.3 - Left Trigger Optimization Matrix 27
2.4 - Left Trigger Programming 28
2.5 - Right Trigger Optimization Matrix.... 28
2.6 - Right Trigger Programming 28
2.7 - Handle Optimization Matrix 29

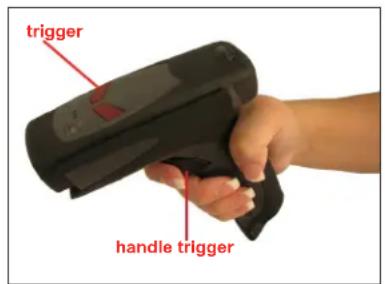

2.8 - Handle Trigger Programming 29
2.9 - Continuous Trigger Optimization Matrix 30

2.10 - Continuous Scan 30
2.11 - Continuous Scan Settings 31

2.11.1 - Continuous Scan - Sleep Time Out 31
2.11.2 - Continuous Scan - Trigger Delays 31
2.11.3 - Continuous Scan - Duplicate Scan Suppression.... 31

2.12 - Motion Detection Scan Settings 31

Chapter 3 - CR2500 Programming: Symbology Settings ...... 32

3.1 - Aztec Symbology.... 33
3.2 - Codabar Symbology.... 33
3.3 - Codablock F Symbology 33
3.4 - Code 11 Symbology 33
3.5 - Code 39 Symbology.... 34
3.6 - Code 93 Symbology.... 34
3.7 - Code 128 Symbology.... 34
3.8 - Composite Symbologies 35
3.9 - Data Matrix Symbology 35
3.10 - GoCode Symbology 35
3.11 - Interleaved 2 of 5 Symbology ...... 36
3.12 - Maxicode Symbology 36
3.13 - Matrix 2 of 5 Symbology.... 36
3.14 - Micro PDF417 Symbology 36
3.15 - MSI Plessy Symbology 37
3.16 - NEC 2 of 5 Symbology.... 37
3.17 - Optical Character Recognition (OCR) 37
3.18 - PDF 417 Symbology .... 37
3.19 - Pharmacode 38
3.20 - Postal Symbologies.... 38
3.21 - QR Code Symbology 38
3.22 - GS1 data bar (formerly RSS) Symbology 39
3.23 - Telepen Symbology 39
3.24 - UPC/EAN/JAN 39

Chapter 4 - Reader Feedback and Special Settings .... 40

4.1 - Volume and Vibration Settings 41
4.2 - Code Readability Index 41
4.3 - Backlight Intensity Settings 42
4.4 - Backlight Timeout Settings 42
4.5 - Targeting Settings.... 42
4.6 - Reader Power Off Settings.... 42
4.7 - Reader ID and Firmware Version 43
4.8 - Reader Settings Lock 43
4.9 - Lock-out Link Mode 43

Chapter 5 - Advanced Decode Performance .... 44

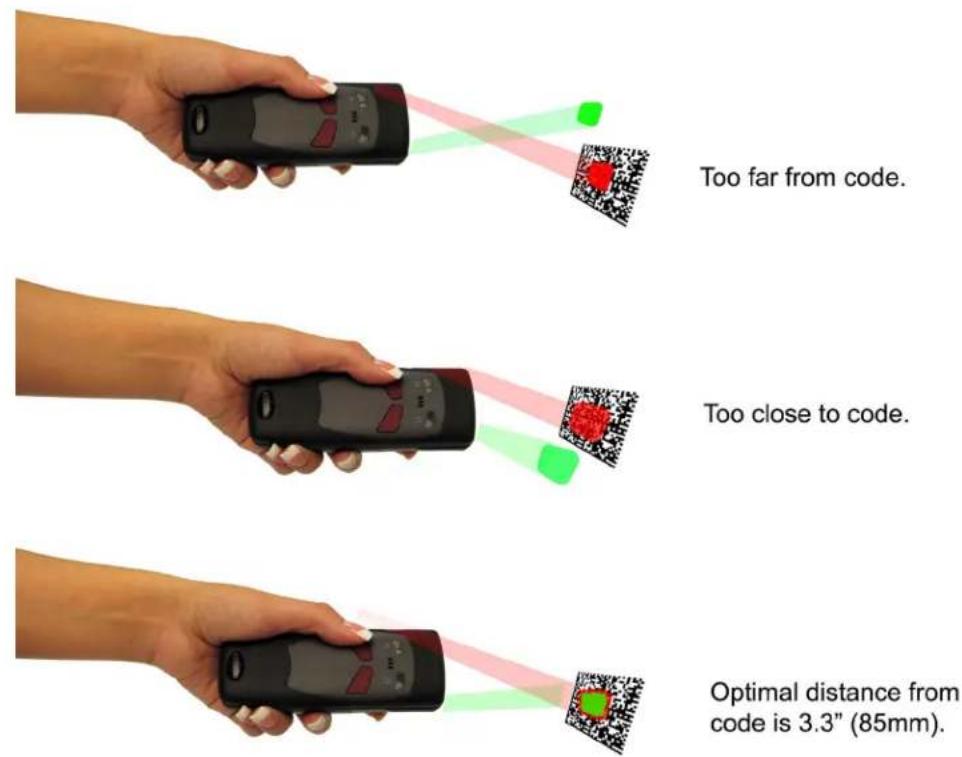

5.1 - Set Targeting Zone Tolerances.... 45

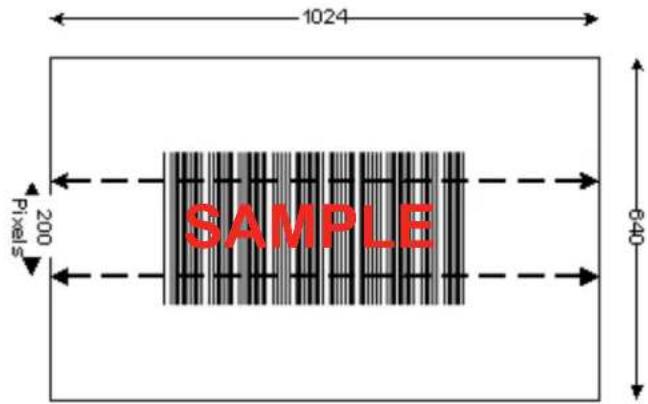

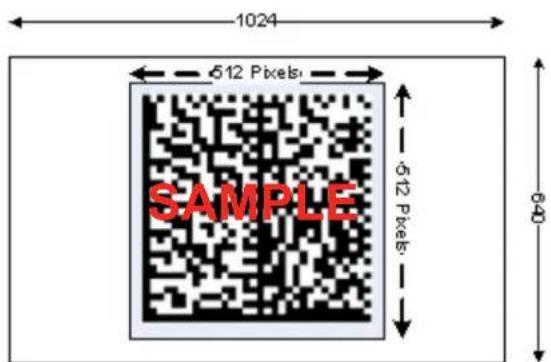

5.2 - Windowing.... 46
5.3 - Mirror Decoding.... 47
5.4 - Anti-Glare 47

Chapter 6 - Adding a Prefix or Suffix and Reader Text Commands .... 48

6.1 - Prefix Settings 49
6.2 - Suffix Settings 49
6.3-Erase Prefix and Suffix Settings 50
6.4 - Reader Text Commands.... 50

Chapter 7 - CR2500: Maintenance and Troubleshooting .... 51

7.1 - Reset Reader to Factory Defaults 52
7.2 - General Safety Information 52
7.3 - Warranty 53
7.4 - CR2500 Accessories 54
7.5 - Frequently Asked Questions 54
7.6 - CR2500 Maintenance 54

Chapter 1 - Getting Started

1.1 - Introduction

With new high-performance bar code reading technology the Code Reader 2500 (CR2500) is the most advanced mobile bar code reader on the market today. The CR2500 decodes bar codes faster and offers features not found in other readers, including new automatic glare reducing illumination technology. The result is unequaled performance, even on difficult reading surfaces, including circuit boards, IV bags, patient-wristbands, driver licenses and other shiny or curved surfaces.

The CR2500 also offers the next generation in dual-field optics and is the only bar code reader that can read both wide linear and the smallest of 2D bar codes. The optimal focus and field of view indicator of the CR2500 make bar code reading even easier than before.

Black remote control device with red buttons and ports (no visible text or symbols)

The CR2500 can be deployed in low and high-volume use-case scenarios and will excel in batch, cabled or Bluetooth wireless modes. Built on an open JavaScript platform, the CR2500 can be easily customized to meet the data manipulation needs of any end-user application. All scanned data configuration settings and JavaScript files are stored in non-volatile flash memory and are maintained in the event of a power loss.

Enabled for both in-stand and out-of-stand operation the CR2500 can be used as a wireless hand-held and fixed presentation reader. This lightweight, comfortable and easy to use bar code reader solution can be further accessorized to fit the needs of applications in the healthcare, public safety, manufacturing, aerospace, industrial automotive and defense environment. With its modular design and JavaScript platform, the CR2500 is future-proof and the most cost-effective reader available.

Representing the embodiment of Code's years of experience with high definition dual-field optics, the CR2500 establishes a new benchmark in aggressive reading performance and ease of use in a mobile imaging reader.

1.2 - Unpacking

Remove the CR2500 from its packing and inspect it for damage. If the reader was damaged during shipping, please call Code at [phone].

The standard CR2500 reader is shipped with a USB cable interface. The reader also features a 1950 mAH battery that must be installed in the reader at all times, unless a battery blank is being used.

Various accessories are available for the CR2500:

• 4 cable options (USB 6 ft., USB 12 ft., RS-232 (Serial) or PS/2)
  • Class 1 Bluetooth radio with 100 meters (300 feet) operating range (shorter range option available)
  • Ruggedized Cabled Handle
• Battery Handle (in two battery sizes)
• External Battery Charger

• CodeXML Bluetooth® Modems

• Power Supplies: US/Europe/SA/UK/Asia
- Reader Stand
• Lanyard Hook attachment option

NOTE: Please keep your packing materials. The CR2500 is shipped in an approved shipping container and should be used if you ever need to return your equipment for servicing.

1.3 - Reader Battery Installation

Attaching and Detaching the Lithium Ion Battery

The CR2500 can be purchased with a 1950 mAH Lithium Ion battery. To install battery, make sure the battery is in the correct position (figure 1.1). Place the plastic tab of the battery into the reader (figure 1.2). Push the battery in and slide the locking mechanism down (figure 1.3)

Charging the Lithium Ion Battery

The battery automatically charges every time a cable interface is attached to the reader and the host is powered up.

Note: The RS-232 (Serial) interface power adapter must be plugged into a wall socket for the reader to charge.

If you power-up the CR2500 with a completely discharged battery it will take up to 10 minutes before the reader will become operational.

Two hands holding black flip phone devices, one open showing a keypad and display screen (no visible text or symbols on device body)

Figure 1.1

Close-up of hands holding a black electronic device with a small white component inserted (no visible text or symbols)

Figure 1.2

Close-up of a hand holding a black remote control device with four pins inserted (no visible text or symbols)

Figure 1.3

1.4 - Attaching Handles

BH1 or BH2 Battery Handle

1. Make sure the reader has no battery or battery blank installed.

2. Insert the tab on the back of the BH1 or BH2 Handle into the reader's recessed slot typically utilized to secure the battery in place on the reader (Figure 1.6).

3. The reader 'snaps' to the handle utilizing the battery compartment (Figure 1.7). The reader will 'quick release' from the handle to accommodate quick and easy battery charging.
4. Optionally, the reader can be further secured to the handle with two threaded screws on the underside of the reader and handle (Figure 1.8).

Figure 1.6

Close-up of a hand holding a black handheld device (no visible text or symbols)

Figure 1.7

Close-up of a black electronic device with a yellow warning label on the front panel (no readable text or symbols)

Figure 1.8

1.5 - Powering On/Off Reader

To power on the reader, press and hold either of the red trigger buttons for 3 seconds (Figure 1.9).

The reader will power down after 2 hours of non-use. To change the default settings, please see Section 4.6 - Reader Power Off Settings.

Hand holding a black remote control device (no visible text or symbols)

Figure 1.9

1.6 - Batch Operation

1.6.1 - Introduction

Batch data storage and data transfer are controlled by the resident JavaScript application on your CR2500 reader. Please consult the Code Viewer user manual for the application on your CR2500 for instructions on how to control data storage and transfer.

1.7 - Cabled Operation

1.7.1- Introduction

The CR2500 is a Multi-Interface Unit (MIU) and is available with USB (6 ft. or 12 ft.), RS-232 (Serial) and PS/2 cables. All of the cables are connected to the CR2500 with a 8-pin DIN connector (Figure 1.3)

Three black USB connectors labeled USB, RS-232 (serial), and PS/2, shown without any text or symbols on the connectors themselves.

Hand Held CR2500 - To install a cable directly to the CR2500, correctly line up the 8-pin DIN connector into the back end of the reader. The arrows on the connector should be facing down (Figure 1.10). When the reader and the cable connector are lined up, firmly push the cable into the reader. The cable has a locking mechanism that will firmly hold the cable in place (Figure 1.11). To deattach the cable from the reader, you must pinch the plastic on the 8-pin DIN and pull back to disengage the connector.

Close-up of hands holding a black mobile phone connected to a USB cable (no visible text or symbols)

Figure 1.10 Figure 1.11

Close-up of hands using a handheld glucose meter to apply white granules (no text or symbols visible)

1.7 - Cabled Operation (continued)

CR2500 with Cabled Handle - If a handle was purchased for use with the CR2500, the 8-pin DIN connector is at the bottom of the handle (Figure 1.2). Insert the 8-pin connector and firmly push the cable into the handle. The cable has a locking mechanism that will firmly hold the cable in place. If using the H2 cabled handle, for additional stability, there is an optional cable attachment clip that can secure the cable to the handle with two threaded screws (Figure 1.13).

Close-up of hands holding a black plastic connector with a small tip, against a white background (no text or symbols visible)

Figure 1.12

Close-up of a black plastic connector with threaded end (no text or symbols visible)

Figure 1.13

1.7.2 - CR2500 as a USB Keyboard

To connect the CR2500 to your host computer via USB interface:

1. Attach the USB cable to CR2500 (Figure 1.14).
2. There is no need to power of the computer (Figure 1.15) Connect the USB cable to a USB port on the computer (Figure 1.16).
3. Once properly connected, the CR2500 will power on and beep.
4. Scan the below code (M049_03) for USB Keyboard Mode:

USB Keyboard Factory Reset

M049 03

Save Settings

M188 02

1. Scan the Save Settings Code (M188_02)

Close-up of hands using a handheld device to interact with a small red eye (no text or symbols visible)

Figure 1.14

Figure 1.15

Close-up of a computer interface panel with two connected ports and colored connectors (no visible text or symbols)

Figure 1.16

1.7.2.1 - Additional USB Communication Settings

USB Keyboard Mode - Data is sent from the Reader and interpreted by the host just as if a US keyboard was being used to enter data.

USB Downloader - This mode is used when downloading firmware.

USB Native Two Way Mode - This mode is utilized when there is a need for error-corrected communication between the CR2500 and an application through the USB port.

USB Virtual COM 1 Way Mode - This mode allows a USB-cabled CR2500 to function as a virtual COM port. To use the CR2500 in this mode, download the driver at www.codecorp.com/downloads.php.

USB HID POS (Terminal ID 131) - This mode allows a USB-cabled CR2500 to communicate as a USB HID POS (Terminal ID 131) device.

Scan the following codes to set the appropriate USB communication setting:

USB Keyboard

M134_02

USB Downloader USB Native Two Way Mode

M133 01

M135_04

USB Virtual COM 1 Way Mode

M668_01

USB HID POS (Terminal ID 131)

M736_01

1.7.2.2 - Keyboard Support

Scan the following codes to set appropriate keyboard mapping:

US English (Default)

No Leading 0

US English - Leading 0

US English - ctrl + char

for non-printable characters

for non-printable characters

for non-printable characters

M172_01

M602 01

M606_01

French

German

Japanese

Universal Keyboard

M603 01

M604 01

M605 01

M173 01

Alternative OS

(Windows CE/MAC/Unix/Linux)

Custom Keyboard

Enable

Alternative OS Disable

M171 01

Requests map to be installed

M585 02

M584 02

1.7.3 - PS/2 Cable Installation Guide

1. Power off the computer. If you disconnect the computer's keyboard while it is powered on, your computer will lock up.
2. Attach the the PS/2 cable to the CR2500.
3. If you have a cabled keyboard, detach the keyboard cable from the computer and connect that same connector to the female connection on the CR2500 PS/2 cable (Figure 1.17).
4. Now connect the male CR2500 PS/2 connector into the keyboard port on the computer (Figure 1.18).
5. Power on the computer. The CR2500 is powered by the PS/2 port and does not require a power supply.
6. Once properly connected, the CR2500 will power on and beep.

Close-up of a white keyboard with black buttons and purple connector (no visible text or symbols)

Figure 1.17

Close-up of a computer interface panel showing two connected ports with black cables (no visible text or symbols)

Figure 1.18

PS/2 Factory Reset

M060 03

Save Settings

M188 02

Code does not guarantee compatibility with all models of computers.

1.7.4 - RS-232 (Serial) Cable Installation Guide

1. Attach the RS-232 (Serial) Cable to the CR2500.
2. Connect the RS-232 (Serial) cable to a serial port on the computer (Figure 1.19). There is no need to power off the computer.
3. The RS-232 (Serial) interface has an optional 5V/1.5A power supply (Figure 1.20). If you have a power supply, plug the power supply adapter into the RS-232 (Serial) cable and then plug the power adapter into a wall socket (Figure 1.21).

Close-up of a mounted electronic device with visible wiring and connectors (no readable text or symbols)

Figure 1.19

Close-up of a black cable with a curved tip, isolated on white background (no text or symbols)

Figure 1.20

Close-up of a black electrical plug mounted on a wall, with a white power outlet above (no visible text or symbols)

Figure 1.21

1. Once properly connected, the CR2500 will power on and beep.
2. For RS-232 (Serial) mode scan M418_02 (below). If the power supply is not connected scan M074_02 (below).
3. Scan the Save Settings Code (M188_02).

RS-232 (Serial) Factory Reset

M418 02

RS-232 (Serial) Mode No Power Supply

M074 02

Save Settings

M188_02

RS-232 (Serial)

Factory Default Settings

Mode: RS-232 (Serial) One Way Mode

Baud Rate: 57600

Stop Bits: 2

Data Bits: 8

Parity: None

Warning: Code Corporation approved power adapter must be used. Reader failure due to use of incorrect power adapter will void warranties.

1.7.4.1 - Additional RS-232 (Serial) Communication Data Bit Settings

Scan the following codes to set the appropriate data bit:

7 Data Bits

8 Data Bits (Default)

1.7.4.2 - Additional RS-232 (Serial) Communication Baud Rate Settings

Scan the following codes to set the appropriate baud rate:

1200

2400

4800

9600

19200

38400

57600 (Default)

115200

1.7.4.3 - Additional RS-232 (Serial) Communication Parity Settings

Scan the following codes to set parity:

Even

Odd

None (Default)

1.8 - Bluetooth Radio Operation

1.8.1 - Introduction

The CR2500 features a Bluetooth® wireless radio. The radio allows for point-to-point wireless communication with other Bluetooth devices that support serial port protocol (SPP). If keyboard entry is necessary, Code XML Router will need to be installed. The following guide will give you general instructions on connecting your CR2500 to a desktop or laptop computer with a Bluetooth radio.

Connecting With A QuickConnect Code

The easiest way to connect to a Bluetooth device is to visit the Code website and create a QuickConnect Code that is specific to your device (Figure 1.22). This code will link your CR2500 directly to the desired Bluetooth device. To create a QuickConnect Code, you will need to know the Bluetooth address (often referred to as the BD_ADDR) of that device. You can usually find the 12-character Bluetooth address somewhere on the device near the device's serial number (see Figure 1.23).

Figure 1.22

Figure 1.23

If you purchased a CodeXML Bluetooth Modem or a Belkin® Bluetooth adapter from Code or from an authorized distributor, a QuickConnect Code was included. If you bought a Bluetooth adapter separately and wish to create a QuickConnect Code, please visit Code's web site at: http://www.codecorp.com/bdaddr.php.

Important Note: You will need to locate the Communications (COM) Port assigned to the Bluetooth serial port protocol. While installing the Bluetooth Configuration Manager Software that was included with your Bluetooth adapter, make sure to note the Communications (COM) Port number the software assigned for the adapter (e.g., COM 10). This is the COM Port through which the CR2500 will connect.

To connect your reader, use the following steps:

1. Power on the CR2500 reader by pressing one of the red buttons for one second to power on the reader.
2. Scan the Reset to RF Factory Defaults Code (M684_01).
3. Scan the Quick Connect Code you received or created from Code's website.
4. The CR2500 will automatically connect to the computer. By default, the CR2500 will beep once after it connects and beep four times in a row if it did not connect.
5. Scan the Save Settings Code (M188_02) if you want to save the wireless connection settings to the CR2500 so that the CR2500 will automatically try to connect wirelessly the next time it is powered on.

Example:
Reset to RF Factory Defaults QuickConnect Save Settings

M684 01

0003C92DB48F

M188 02

1.8 - Bluetooth Radio Operation (continued)

Radio Range and Transferring Data

The CR2500 radio is a Class 1 device. If connected to another Class 1 device the reader has roughly a 100 meter (300 feet) line of sight operating range. If connecting to a Class 2 or Class 3 device, the operating range may drop to match the lower range. Once a reader is connected, a serial application must be opened (HyperTerminal) unless Code XML Router is installed.

When the CR2500 detects the radio is out of range, the CR2500 will store data on the reader's non-volatile memory. The reader will continue to try and send data until radio is back in range. Once the data is sent the data will be erased from the reader's memory. The reader will continue to try and connect until it has reached the programmable radio time out setting.

The CR2500 Bluetooth protocol allows for two (2) forms of communication:

1. Standard Bluetooth Reliability Mode (previously One Way Mode) - Communication between the reader and host, that does not require host acknowledgement. This mode is only recommended when connecting to a device well within its specified range or if connecting to a simple device (e.g., printer). There are two settings in this mode:

2. Max Range (Default) - Greater range but data reliability is lower

3. Max Reliability - Limits range but reliability is improved

RF Standard Bluetooth

Reliability Mode (Max Range)

M127_01

RF Standard Bluetooth

Reliability Mode (Max Reliability)

M128_01

Note: One Way Mode doesn't guarantee data integrity, and you may have data loss when operating in the fringes of radio range or in the presence of radio interference.

1. Additional Bluetooth Reliability Mode (previously Two Way Mode) - This mode requires the implementation of software at the application level.* The reader receives confirmation via packet protocol verification and is 100% reliable. Data will be automatically

retransmitted if necessary.

RF Additional Bluetooth

Reliability Mode

M129 02

* Note: You will need either Code XML Router Software or a Code XML Bluetooth Modem on the PC side to use the Additional Bluetooth Reliability Mode.

If you are using the CodeXML Bluetooth Modem, you must use RF Additional Bluetooth Reliability Mode.

1.8 - Bluetooth Radio Operation (continued)

Permanently Establishing a Connection

Scan the Save Settings Code at the bottom of the page to make the RF settings (including which device to connect to) permanent on the reader:

Disconnecting from the Device

You may force disconnection by reading the disconnect code below (The CR2500 may not appear disconnected in the slave Bluetooth connection manager for 10 – 15 seconds after the command is issued). The CR2500 will also disconnect after 90 seconds of inactivity (Note: You may change the radio sleep time out setting; however, it may reduce battery life).

Bluetooth Disconnect

M114_02

Reconnecting to the Device

If the device is saved in RF mode and has a save connection (save was performed while connected) it will automatically reconnect when:

1. CR2500 is powered up
2. CR2500 wakes from sleep mode
3. CR2500 reads another code

1.8.2 - Bluetooth Radio Auto Connect

Auto Connect: After coming out of sleep mode or after powering up the CR2500 tries to auto connect with the last Bluetooth radio with which it was connected if the steps (previous) were followed (see Section 1.7.1 - Connecting with a Quick Connect Code). You may also re-connect by scanning a QuickConnect code.

Scan the following codes to enable or disable Auto Connect feature for the Bluetooth radio:

Bluetooth Radio

Bluetooth Radio

Auto Connect: On (Default)

Auto Connect: Off

M068_01

M067_01

1.8.3 - Bluetooth Radio Auto Disconnect

Note: Auto Connect should always be set to "On" if Auto Disconnect is set to "On". Otherwise the QuickConnect code would need to be re-scanned after every disconnect.

Auto Disconnect: This feature is used when multiple CR2500 readers are connecting to the same Bluetooth Radio. By enabling Auto Disconnect the CR2500 radio disconnects after each data transmission, allowing other radios to connect.

Scan the following codes to enable or disable Auto Disconnect feature for the Bluetooth radio:

Bluetooth Radio

Bluetooth Radio

Auto Disconnect: On

Auto Disconnect: Off (Default)

M066 01

M065 01

Save Settings

1.8.4 - Bluetooth Radio Time Out Settings

Scan the following codes to set the period of time before the Bluetooth Radio will go into sleep mode due to inactivity:

Note: Increasing the time before the reader will time out will decrease battery life.

90 Seconds (Default)
5 Minutes 10 Minutes
15 Minutes

30 Minutes
1 Hour
2 Hours

1.8.5 - Bluetooth Radio Out of Range Notification Settings

Scan the following codes to enable a beep or vibrate notification when the radio goes out of range:

Bluetooth - Out of Range

Bluetooth - Out of Range

Beep: On

Notify with Vibrate: On

Bluetooth - Out of Range

Bluetooth - Out of Range

Vibrate & Beep: On

Vibrate and/or Beep: Off (Default)

Note: This feature may also be utilized to remind users they are carrying a reader and help prevent users from walking away with a reader Bluetooth radio.

1.8.6 - Auto Save Last Bluetooth Address

If the reader is saved in the proper RF communication mode, enabling this setting will allow the reader to automatically save the last device to which it was connected, removing the need to scan the save setting after scanning the QuickConnect code.

Enable Auto Save
Disable Auto Save (Default)

Save Settings

1.8.7 - Configuration for Belkin Bluetooth Manager Software (Version 1.4.2.10)

In this version of the Belkin Bluetooth Manager software, you must disable the authentication feature to connect a CR2500. Follow the steps below:

1. Double click on the Bluetooth icon in the system tray. In the My Bluetooth Places Screen, select Advanced Configuration.

figure 2

1. Select the Local Services tab and double click on the Bluetooth Serial Port. Inder the General tab unselect the Secure Connection box. This disables the encryption feature and allows the CR2500 to connect to the Bluetooth adapter. Click Apply.

figure 4
figure 3

1.8.7 - Configuration for Belkin Bluetooth Manager Software (Continued)

1. Your local service Bluetooth Serial Port profile should now read "Not Required"

figure 5

1. Open the "Accessibility" Tab and verify that "All Devices" are allowed to connect (this is the default setting). You should now be able to connect your CR2500.

figure 6

1.8.8 - Configuration for Toshiba Bluetooth Stack Instructions

1. Navigate to the Control Panel and Open the Bluetooth Local COM Port Icon.

1. Identify the Appropriate Com Port owned by the LocalCOM-Server[SerialPort(TOSHIBA LocalCOM)] Owner.
2. Right Click on the Blutooth Manger Tray Icon and selection "Options", you can identify your Device Address here, in this example 00:1B:FC:EF:3F:79

1.8.8 - Configuration for Toshiba Bluetooth Stack Instructions (continued)

3a. Go to http://www.codecorp.com/bdaddr.php and create a QuickConnect code using the address from step 3. Use the CodeXML Router/2-way applications section if CodeXML Router will be installed. Else create a QuickConnect Code using the section for Serial Applications.

1. Optional – To remove the Passkey dialogue when connecting, Select the Security TAB and Select Custom Level.

1.8.8 - Configuration for Toshiba Bluetooth Stack Instructions (continued)

4a. Uncheck the settings under the Security Setting of Serial Port (SPP).

1. Install the Code XML Router Software to the Device on the Appropriate COM Port. Reboot the PC and then scan your QuickConnect code to connect. Please note that the Toshiba Stack does not allow a device to connect until the Com Port is opened. CodeXML Router must be installed or the serial application must be started before the QuickConnect Code is read.
2. Scan the QuickConnect Code generated in step 3. If step 4 was not done, Windows will prompt for a Passkey. The default Passkey is "12345678".

1.8.9 - Configuration for Microsoft Bluetooth Stack Instructions

1. Right click on the Microsoft Bluetooth Stack system tray icon, select "Open Bluetooth Settings".

2. Go to the "Hardware" tab and select the "Generic Bluetooth Radio" and then click "Properties". Next select the "Advanced" tab. Note the Address. For the example show below it is 00:17:9a:2b:69:bb.

1.8.9 - Configuration for Microsoft Bluetooth Stack Instructions (continued)

2a. Go to http://www.codecorp.com/bdaddr.php and create a QuickConnect code using the address from step 2. Use the CodeXML Router/ 2-way applications section if CodeXML Router will be installed, otherwise create a QuickConnect Code using the section for Serial Applications.

1. Under "COM Ports" tab, select "Add". In Add COM Port dialog box, select Incoming, click OK. Windows Installs driver and create a Bluetooth COM Port. Note the COM port number.

1. Install the Code XML Router Software to the Device on the Appropriate COM Port. Reboot the PC and then scan your QuickConnect code to connect. Please note that the Window Stack does not allow a device to connect until the Com Port is opened. CodeXML Router must be installed or the serial application must be started before the QuickConnect Code is read.

2. Scan the QuickConnect Code generated in step 3. Windows will prompt for a Passkey. The default Passkey is "12345678".

1.8.10 - Installing CodeXML Router Bluetooth Edition for Windows

1. Insert the Code Router Bluetooth Edition for Windows CD into your PC's CD drive. The CD will automatically begin the installation process. When you get to the screen pictured below, please enter the CD Serial # Key found on the card included in the CD case.

1. When you get to the screen pictured below, please choose from the appropriate settings. For a description of each setting, please see Chapter 3. If connecting via Bluetooth radio, you will need to know the Virtual COM port number your Bluetooth software has assigned (see Frequently Asked Questions). If you wish to enable the AutoDownload feature please check the appropriate box in the next screen. Finish the installation process and restart your computer.

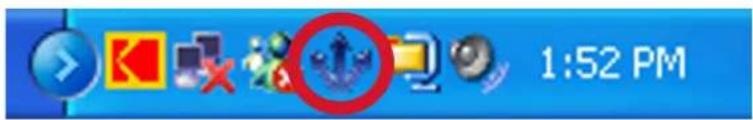

1. After restarting your computer, you will see a blue "arrows" icon in the system tray of your computer. CodeXML Router was successfully installed.

1.9 - Targeting and Reading Techniques

The CR2500 utilizes digital camera technology to take a picture of a symbol. Once an image is captured, the CR2500 utilizes advanced decoding algorithms to extract data from the captured image.

The CR2500 is available as a palm-held reader or users may purchase a handle (available in various types).

The palm held reader features left and right triggers. These triggers may be programmed to perform various features. The reader is shipped with the left trigger and right trigger functioning as a decode symbol command.

Each handle has a trigger on the grip. The two triggers on the top of the reader also work when the handle is attached (Figure 1.24).

Figure 1.24

To read a bar code with the CR2500:

1. The CR2500 features omnidirectional decoding. Center the symbol in any orientation within the targeting line pattern (figure 1.25).

Figure 1.25

Note: The CR2500 can read a bar code that is not centered or aligned; however, the CR2500 performs best when a code is aligned. If two (2) bar codes are within the imagers decode zone, the CR2500 will decode the symbol closest to the center of the targeting line.

1. The CR2500 was developed to decode both very small 2-dimensional symbols and larger 1-dimensional symbols. The reader has an innovative dual field decode zone. The CR2500 DECODES ONLY THE WIDE
   FIELD BY DEFAULT. By default, the reader will focus on wide field for larger codes (optimal focal point 3.3 inches). The reader can be programmed to focus on high density for smaller codes (optimal focal point is 3.3 inches).
2. Hold the CR2500 still - DO NOT SWIPE OR MOVE THE READER. Press the trigger until the CR2500 beeps, indicating the code has been successfully decoded.
3. The reader may be optimized to your specific environment by scanning codes in Chapter 2.

1.10 - Imager Field Selection and Resolution

The CR2500's dual field optical system may be modified based on your scanning environment.

The 1.3 Million Pixel imager is divided into wide field and high density decode zones. In each zone the resolution is 1024 x 640 pixels (see Figure 1.26).

If only the high density field is used (small symbols), the wide field image can be ignored. If only the wide field is used (large symbols), the high density field can be ignored. Further optimization may be obtained by "windowing" the field to a smaller area. BY DEFAULT, THE CR2500 DECODES ONLY THE WIDE FIELD.

Figure 1.26

1.11 - Decode Zone

Figure 1.27

Chapter 2 - Optimization and Trigger Programming

2.1 - Introduction

By defining if you are scanning large, small, high denisty or low density types of symbology(s), the CR2500 has options that will maximize decoding speed.

The chart below shows options that will improve performance based on parameters listed in each box.

SXGA

Both Fields	SBHigh Density CodesStandard Density CodesSmall to Large Codes
High Density Field	SHHigh Density CodesSmall Size2D
Wide Field	SWStandard Density CodesMedium to Large Codes

The CR2500 is easily customizable; each trigger can be independently programmed for different behavior.

High Density Field: The High Density Field can decode small bar codes. It has an optimal focal point of 3.3" (83.82 mm) away from the lens of the reader. See Figure 1.27 for optimal read distances.

Wide Field: The Wide Field can decode standard size bar codes. It has an optimal focal point of 3.3" (83.82 mm) away from the lens of the reader.

The following tables provide readable codes to program all or individual triggers to perform within different parameters. See Figure 1.28 for optimal read distances. The following tables provide the code to program all or individual triggers to perform with different parameters.

2.2 - Global Trigger Optimization Matrix

SXGA

Both Fields

High Density Field

Wide Field

M615 03

2.3 - Left Trigger Optimization Matrix

SXGA

Both Fields

High Density Field

Wide Field

M633 02

2.4 - Left Trigger Programming

Scan the following codes to set the left trigger functionality:

Left Trigger Take Picture

M179_01

2.5 - Right Trigger Optimization Matrix

SXGA

Both Fields

High Density Field

Wide Field

2.6 - Right Trigger Programming

Scan the following codes to set the right trigger functionality:

Right Trigger Take Picture

M186 01

Save Settings

2.7 - Handle Optimization Matrix

SXGA

Both Fields

High Density Field

Wide Field

2.8 - Handle Trigger Programming

Scan the following codes to turn picture taking mode on/off:

Handle Trigger Take Picture

M154 04

2.9 - Continuous Trigger Optimization Matrix

SXGA

Both Fields

High Density Field

Wide Field

2.10 - Continuous Scan

Scan the following codes to turn continuous scanning on/off:

Off (Default) On

2.11 - Continuous Scan Settings

2.11.1 - Continuous Scan - Sleep Time Out

Scan one of the codes below to set the amount of time a cabled CR2500 will operate in continuous scan mode, without a decode, before entering sleep mode:

Cabled - 2 hours (Default) Cabled - Always

M136 01

Cabled - Always

M137_01

Scan one of the codes below to set the amount of time an uncabled CR2500 will operate in continuous scan mode before entering sleep mode:

Uncabled - 5 minutes (Default) Uncabled - 15 Minutes Uncabled - 30 Minutes

M145 01

Uncabled - 15 Minutes Uncabled - 30 Minutes

M146_01

M147 01

Note: This function is only recommended for short term use because of battery consumption.

2.11.2 - Continuous Scan - Trigger Delays

Scan the following codes to set delay time between scans:

0 Seconds (Default) 1 Second 3 Seconds

M142_01

1 Second 3 Seconds

M143_01

M144_01

2.11.3 - Continuous Scan - Duplicate Scan Suppression

Scan the following codes to set the period of time during which duplicate codes are ignored:

0 Seconds (Default) 1 Second 3 Seconds

M222 01

1 Second 3 Seconds

M223 01

M224 01

2.12 - Motion Detection Scan Settings

Scan the following codes to set the reader to read when it detects motion in its scanning zone:

Motion Detection On Motion Detection Off

M701 01

Motion Detection Off

M702 01

M188 02

Save Settings

Chapter 3 - CR2500 Programming: Symbology Settings

3.1 - Aztec Symbology

Scan the following codes to enable/disable Aztec symbology settings:

Aztec On

Aztec Off (Default)

Sample Aztec Code

3.2 - Codabar Symbology

Scan the following codes to enable/disable Codabar symbology settings:

Codabar On (Default)

Codabar Off

Sample Codabar

3.3 - Codablock F Symbology

Scan the following codes to enable/disable Codablock F symbology settings:

Codablock F On

Codablock F Off (Default)

Sample Codablock F Code

Note: When Codablock F and Code 128 decoding are enabled, there is some danger of mistakenly decoding a damaged Codablock F symbol as a Code 128 symbol. Therefore, Code 128 decoding should be disabled when Codablock F decoding is enabled.

3.4 - Code 11 Symbology

Scan the following codes to enable/disable Code 11 symbology settings:

Code 11 On (Default)

Code 11 Off

Code 11 Checksum 1 digit

Code 11 Checksum 2 Digit & Stripped from Result

Code 11 Checksum 1 Digit & Stripped from Result

Code 11 Sample with 1 Checksum Digit

Save Settings

C004386_06_CR2500_User_Manual

3.5 - Code 39 Symbology

Scan the following codes to enable/disable Code 39 symbology settings:

Code 39 On (Default)

Code 39 Off

Enable Checksum

Disable Checksum (Default)

Enable Checksum and Strip From Result

Code 39 Extended Full ASCII On Code 39 Extended Full ASCII Off (Default)

Code 39 Short Margin On

Code 39 Short Margin Off (Default)

Sample Trioptic Code 39

Code 39 Trioptic On

Code 39 Trioptic Off

Sample Code 39 Code

3.6 - Code 93 Symbology

Scan the following codes to enable/disable Code 93 symbology settings:

Code 93 On (Default)

Code 93 Off

Sample Code 93 Code

3.7 - Code 128 Symbology

Scan the following codes to enable/disable Code 128 symbology settings:

Code 128 On (Default)

Code 128 Off

Code 128 Short Margin On

Code 128 Short Margin Off (Default)

Sample Code 128 Code

Save Settings

C004386_06_CR2500_User_Manual

3.8 - Composite Symbologies

Scan the following codes to enable/disable Composite symbology settings:

Composite On

Composite Off (Default)

M285 02

M284 02

3.9 - Data Matrix Symbology

Scan the following codes to enable/disable Data Matrix symbology settings:

Rectangular Data Matrix On

Rectangular Data Matrix Off (Default)

M242 01

M241_01

Data Matrix Inverse On

Data Matrix Inverse Off (Default)

M239 01

M240 01

Enable Improved Reading Capability

Disable improved reading capability

for hard to decode datamatrix symbols

for hard to decode datmatrix symbols (Default)

M744_01

M745 01

Sample Data Matrix Code

Sample Rectangular Data Matrix Code

3.10 - GoCode Symbology

GoCode is a miniature, two-dimensional (2-D) symbol. Developed to fit within a line of text, GoCode features a multi-dimensional, adaptable matrix pattern that may be reproduced on virtually any surface. GoCode is a private symbology and may be utilized by purchasing a runtime license through Code. GoCode has many significant advantages over all common linear barcodes and 2-D symbols. Please contact Code for more information on the benefits of utilizing a private symbology.

Sample GoCode

Save Settings

3.11 - Interleaved 2 of 5 Symbology

Scan the following codes to enable/disable Interleaved 2 of 5 symbology settings:

Int 2 of 5 On (Default)

Int 2 of 5 Off

Int 2 of 5 Two Digits On

Int 2 of 5 Two Digits Off

Int 2 of 5 Four Digits On

Int 2 of 5 Four Digits Off

Sample Int 2 of 5 Code

3.12 - Maxicode Symbology

Scan the following codes to enable/disable Maxicode symbology settings:

Maxicode On

Maxicode Off (Default)

Sample Maxicode

3.13 - Matrix 2 of 5 Symbology

Scan the following codes to enable/disable Matrix 2 of 5 symbology settings:

Matrix 2 of 5 On (Default) Matrix 2 of 5 Off

Matrix 2 of 5 Sample

3.14 - Micro PDF417 Symbology

Scan the following codes to enable/disable micro PDF 417 symbology settings:

MicroPDF417 On

MicroPDF417 Off (Default)

Sample MicroPDF417

Save Settings

C004386_06_CR2500_User_Manual

3.15 - MSI Plessy Symbology

Scan the following codes to enable/disable MSI Plessy symbology settings:

MSI Plessy On

MSI Plessy Off (Default)

Sample MSI Plessy

3.16 - NEC 2 of 5 Symbology

Scan the following codes to enable/disable NEC 2 of 5 symbology settings:

NEC 2 of 5 On (Default) NEC 2 of 5 Off

3.17 - Optical Character Recognition (OCR)

The Code Reader can read Optical Character Recognition (OCR) texts. The following codes can be used to enable/disable this feature. Fonts supported include Passport, ISBN, Price, MICR13, and a user defined template:

Disable OCR (Default) Enable OCR

Purchase of OCR license required.

Note: See Reader Host Interface Document for more details.

3.18 - PDF 417 Symbology

Scan the following codes to enable/disable PDF 417 symbology settings:

PDF 417 On (Default)

PDF417 Off

Macro PDF 417 On

Macro PDF 417 Off (Default)

Sample PDF 417 Code

Save Settings

3.19 - Pharmacode

For an explanation of Pharmacode settings and all programming codes please refer to Appendix G of the CR2500 User Manual. You may download the Appendix G at: http://www.codecorp.com/manuals.php

3.20 - Postal Symbologies

All postal code default settings are OFF. Scan the following codes to enable the appropriate Postal symbology:

Note: If you wish to change which Postal code is activated, you MUST first scan the disable all postal codes symbol and then scan your desired symbology.

Australian Post On

Japan Post On

KIX

Planet On

Postnet On

Postnet and Planet On

Royal Mail On

Disable All Postal Codes (Default) Sample Postnet Code

4-State CB On (Intelligent Mail)

3.21 - QR Code Symbology

Scan the following codes to enable/disable QR Code symbology settings:

QR Code On

QR Code Off (Default)

Enable Checksum

Disable Checksum (Default)

QR Code Inverse On

Both Inverse and Standard On

All QR On (includes Micro QR)

Inverse QR and Micro QR On

Sample QR Code

Sample Micro QR

Save Settings

3.22 - GS1 data bar (formerly RSS) Symbology

Scan the following codes to enable/disable GS1 data bar (formerly RSS) symbology settings:

GS1 data bar Limited On

Truncated Data051 data bar 14 Stacked On

GS1 data bar Expanded On (Default)

All GS1 data bar On

All GS1 data bar Off

Sample GS1 data bar Limited Code

Sample GS1 data bar 14 Code

Sample GS1 data bar 14 Truncated Code

Sample GS1 data bar 14 Stacked Code

3.23 - Telepen Symbology

Scan the following codes to enable/disable Telepen symbology settings:

Telepen On - Default

Telepen Off

Sample Telepen

3.24 - UPC/EAN/JAN

Scan the following codes to enable/disable UPC/EAN/JAN symbology settings:

UPC On (Default)

UPC Off

UPC Short Margin Enabled

UPC Short Margin Disabled

(Default)

UPC Extension On

UPC Extension Off

Sample UPC A Code

Save Settings

Chapter 4 - Reader Feedback and Special Settings

4.1 - Volume and Vibration Settings

Scan the following codes to set vibration mode:

Vibrate On / Beep On

M107 01

Vibrate On / Beep Off

M109_01

Vibrate Off / Beep On

M108 01

Scan the following codes to set your reader's volume:

Beep Off
Beep Low
Beep High (Default)

M110 01

M111_01

M112 01

4.2 - Code Readability Index

The Readability Index provides a measurement of a specific symbol's ease or difficulty to be decoded by the CR2500. The Readability Index is specific to the CR2500, and should not be confused with a verification quality measurement.

The Readability Index is a blend of information obtained from the internal operations of the decoding algorithm pertaining to contrast, symbology construct, error detection, forward error correction (if applicable), and other symbology-specific characteristics.

The Readability Index is a score on a scale of 01 (very poor) to 100 (very readable). Due to differences based on motion, skew, reflection, focus, and ambient lighting, the Readability Index on the same symbol may vary somewhat from read to read. However, a poor contrast or damaged symbol will score lower than a high contrast undamaged symbol. The Readability Index can be used as a quick check on the reliability of label generation or marking systems. When used in conjunction with the CR2500 stand (or fixed mount positioning) which fixes the distance from the reader to the symbol, and constant ambient light, the Readability Index provides a symbol quality assurance tool and check point for feedback to an overall label or marking quality control system.

The Readability Index is enabled by first reading a CodeXML rule into the permanent CR2500 Memory:

Code Readability Index Rule: Readability Index Output Enable: Readability Index Output Disable:

M061 02

M062_02

M063 02

Each time a data symbol is read, the index will be output, followed by a comma, (,) followed by the decoded data. The reader will store the rule and reset, but will not output the Readability Index until the Readability Index Output Enable code is read. The Reader will continue to output the Readability Index upon every read until disabled, either by reset or by reading the Readability Index Output Disable code.

4.3 - Backlight Intensity Settings

Scan the following codes to set the intensity of the CR2500's backlight with High being the brightest and Low being the dimmest:

Low

Med - Default

High

M678_03

M679 03

M680 03

4.4 - Backlight Timeout Settings

Scan the following codes to set the backlight settings:

Backlight Off

3 seconds (Default)

6 seconds

10 seconds

M686 05

M681 03

M682 03

M683 03

4.5 - Targeting Settings

Scan the following codes to turn targeting on/off:

On (Default)

Off

M055 01

M054 01

4.6 - Reader Power Off Settings

Scan the following codes to set the amount of time before a reader powers off:

1 Hour

2 Hours - Default

4 Hours

M691 02

M688 02

M689 02

4.7 - Reader ID and Firmware Version

To find out the Reader ID and firmware version, open a text editor program (i.e., Notepad, Microsoft Word, etc.) and read the following code:

Reader ID and Firmware

M153 01

You will see a text string indicating your firmware version and CR2500 ID number (see below):

Xap/iVVVVWWWWXXXXSSSSSSSSSPXX-XX+XXX

Xap/i - Code Internal ID (not applicable)

VVVV is the application firmware version number

WWWW is the bootloader firmware version number

XXXX is the radio firmware version number

SSSSSSSSS Reader's serial number (ten digits)

P is "A" if running firmware is the application, "B" if BootLoader

XXX-XX+XX - Internal ID (not applicable)

Example: Xap/i3000300006040010002363A06D-SD+SQ

Note: Code will periodically release new firmware for CR2500 readers. For information on latest firmware versions, call Code at [phone]. To upgrade firmware, please visit our website at http://www.codecorp.com/codesupport/html and follow instructions provided.

4.8 - Reader Settings Lock

To lock or unlock the current settings on your reader please scan the codes below:

Reader Settings Locked

Reader Settings Unlocked

M429 01

M428 01

NOTE: Prefix and Suffix programming codes, memory transfer and delete commands, "Clear All CodeXML Rules" and "Suffix -Erase/None" commands are not locked by this feature.

4.9 - Lock-out Link Mode

This mode can be used to establish a permanent connection between the reader and a CodeXML modem. Prepare the reader to communicate in 'RF Comm Mode' by scanning the QuickConnect code on the paired modem to which you wish to establish a permanent link. Listen for the single beep to verify the connection acknowledgement. Scan the Lockout Link Mode code (see below). Set appropriate timeout settings, if applicable (see Section 1.4.4).

To reassign a permanent connection to a different reader, scan the unlock link code. Using the 'new' reader' follow the directions outlined in the previous paragraph.

Lockout Link Mode

HUMook Link Mode

M710 02

M711_01

Save Settings

Chapter 5 - Advanced Decode Performance

5.1 - Set Targeting Zone Tolerances

The targeting tolerance is the zone around the green LED which is eligible for decoding. The values of each of the following codes are the percent tolerance based on the size of the barcode. As the targeting tolerance becomes smaller the targeting green LED must be more centered in the symbol being read. Conversely, as the targeting tolerance gets larger there is less precision needed with the green LED. If there is more than one decodable code in the field of the, the symbol closest to the targeting green LED will be decoded.

Too far from code.
Too close to code.
Optimal distance from code is 3.3" (85mm).

50 Most Accurate 75 100 125

M189 01

100 125

M190 01

M191 01

M192_01

1600 (Default)
150 200 400 Least Accurate

M193 01

M195 01

M194 01

M196_01

5.2 - Windowing

If only one size of bar code is being scanned in an application, the CR2500 can be optimized to reduce processing time by adjusting the viewing area within the field of view of the image.

By reducing the vertical window value of the imager to 200 pixels, 1-D codes are processed more quickly. Because only a horizontal strip of a 1-D code is needed to be decoded, using a narrow strip of the imager is all that is needed. The area above and below the 200 pixels, which is always in the center of the imager, is ignored. This approach reduces the number of pixels that must be processed.

Windowing can improve the processing time of 1D and 2D codes.

You may negatively impact reader performance if the window size is too small. If it is necessary to have the reader farther away than normal to read the code, the window may be too small.

Reading other types of codes, especially large codes, may be difficult while using this setting.

Medium Code Windowing

Small Code Windowing

5.2 - Windowing (continued)

Users may optimize the CR2500 decode zone if their application only requires one bar code format. If the size and density of the bar codes to be scanned are consistent, please select the setting below that best describes your environment.

1-Dimensional Codes ONLY (1024 X 200 pixels)

M209_01

Caution: It may be more difficult to read other codes while in this setting. You must have the reader farther away than normal.

Small 2-Dimensional Codes (480 x 480 pixels)

M210 01

Medium 2-Dimensional Codes (512 x 512 pixels)

M211_01

Large 2-Dimensional Codes (640 x 640 pixels)

M212_01

Reset to Default Setting (1024 X 640 pixels)

M213_01

5.3 - Mirror Decoding

Scan the following codes to enable/disable the mirroring feature:

On

Off (Default)

M182_01

M181 02

Note: The Mirroring feature allows the CR2500 to read codes as they are seen through a mirror (inversed 180°). If the Mirroring feature is enabled, non-mirrored reading ability will be disabled.

5.4 - Anti-Glare

Anti-glare technology improves performance on highly reflective surfaces. The CR2500 will detect when the glare from the illumination LEDs is preventing the reader from being able to decode the bar code. Once glare is detected the reader will attempt to control the illumination LEDs to remove or reduce the glare thereby improving performance.

Enable Anti-glare (default)

M753_01

Disable Anti-glare

M754_01

M188_02

Save Settings

Chapter 6 - Adding a Prefix or Suffix and Reader Text Commands

6.1 - Prefix Settings

If you scan the following codes, you will lose any unsaved settings. Make sure to save settings on your reader before scanning the prefix codes. If you scan more than one prefix you will receive each scanned prefix in your scanned data; (i.e., if you scan comma prefix twice, you will get two comma prefixes). Scan the following codes to set appropriate prefix:

Prefix - Comma

M159_02

Prefix - Space

M164_02

Prefix - Tab (Keyboard Mode)

M166_01

Prefix - Tab (Serial)

M218 02

Prefix - Erase

M404_01

Prefix - Carriage Return Line Feed (Serial)

M214_02

Note: If you require a special configuration, please contact Code at [phone] or email [e-mail].

6.2 - Suffix Settings

If you scan the following codes, you may lose your current settings. Make sure to save settings on your reader before scanning the Suffix codes. If you scan more than one suffix you will receive each scanned suffix in your scanned data; (i.e., if you scan comma suffix twice, you will get two comma suffixes). Scan the following codes to set appropriate suffix:

Suffix - Carriage Return (Suffix - Comma Suffix - Line Feed
(Serial)

M168 04

M160_04

M169_04
Suffix - Enter
(Keyboard Mode)

Suffix - Carriage Return Line Feed Suffix - Space (Serial)

M170 04

M165_04

M161_04

6.2 - Suffix Settings (continued)

Suffix - Tab (KeyboardSuffix)Tab

M167 04

Suffix - Erase (Serial)

M219_04

M405 02

6.3 - Erase Prefix and Suffix Settings

Scan the following codes to erase all prefix and suffix data.

Erase Prefix & Suffix Data

M406 02

6.4 - Reader Text Commands

Enabling Reader Text Commands allows the CR2500 to accept text commands via RS-232 (Serial) or RF communication. Scan the following codes to enable/disable reader text commands:

Reader Text Commands On Reader Text Commands Off - Default

M198 01

M197 02

Note: Text commands can only be sent to the reader when it is active. See Reader-Host Interface Document for more information.

Chapter 7 - CR2500: Maintenance and Troubleshooting

7.1 - Reset Reader to Factory Defaults

Scan the following codes to reset reader:

Step 1: Reset the Reader

Reset to USB Factory

Reset to PS/2 Factory

Default Settings

Default Settings

Default Settings

M049 03

M060_03

Reset to RS-232 (Serial) Factory

M418_02

Reset to RF One Way

Factory Default Settings

Bootloader Mode

M684_01

M692 01

Bootloader mode is utilized to download new version of bootloader firmware.

Step 2: Save Settings

M188_02

Step 3: Clear All CodeXML Rules

Prefix & Suffix

Clear All Stored Data

M052 01

M071_01

Note: If you scan these codes, you may lose your current settings. Make sure to save settings on your reader before scanning the reset codes.

7.2 - General Safety Information

Repairs and Adjustments - Only those individuals authorized by Code should attempt to make repairs or adjustments to CR2500 equipment. If the reader casing is opened the warranty is voided.

Power Supply - Use only the power supply provided for use with each specific reader when operating Code equipment.

Accessories - Only those accessories approved by Code (see page 2) should be utilized with Code equipment.

Non-compliance with any of the above may result in:

• Injury to individuals handling the equipment;
• Damage to the equipment; and
- Voiding of the maintenance contract.

Lithium Ion Battery - Warning: Charge the battery with Code cables ONLY. Do not open battery, dispose of in fire, or short circuit - it may ignite, explode, leak, or get hot causing personal injury.

7.3 - Warranty

Code Corporation's CR2500 carries a three year limited warranty as described herein.

Customers may purchase a one or two year extension to this warranty. Please contact a Code representative for more information.

Limited Warranty

Code manufactures its hardware products in accordance with industry-standard practices. Code warrants its products will be free from defects in materials and workmanship, provided that the products are used under normal operating condition intended by the Manufacturer. This warranty is provided to the original owner only and is not transferable to any third party. This warranty is subject to any and all accompanying disclaimers, limitations and other terms of this section.

Terms of Warranty

CR2500 readers carry a warranty of three years. Other products with serial numbers, such as but not limited to, radios, CodeXML modems, battery chargers, stands and power supplies are warranted for three years from date of shipment. Batteries and battery handles carry a two year warranty, or until battery capacity after recharge is less than sixty percent of new, whichever is shortest. Non-serialized items, such as but not limited to handles and cables, carry a 90-day limited warranty.

Exclusions

No warranty herein contained or set out shall apply to any product (i) which has been repaired, altered or tampered with unless done or approved by Code, (ii) which has not been maintained in accordance with any operating or handling instructions supplied by Code, (iii) which has been subjected to unusual physical or electrical stress, immersion in fluids, puncture, crushing, misuse, abuse, power shortage, improper power supply such as incorrect voltage or wrong polarity, negligence or accident, or (iv) which has been used other than in accordance with the product operating and handling instructions. Preventive maintenance is the responsibility of the customer and is not covered under this warranty.

Warranty Coverage and Procedure

During the warranty period, Code will repair or replace defective products returned to Code's service center in the US. For worldwide warranty service call Code Warranty Support at 1-801-495-2200 or email [e-mail].

If warranty service is required, Code will issue a Return Material Authorization Number. Products must be shipped in the original or comparable packaging, with shipping and insurance charges prepaid. Code will pay for shipping and insurance of repaired or replacement products worldwide. Code will use new or refurbished parts at its discretion and will own all parts removed from repaired products. Customer will pay for any pre-shipped replacement product in case it does not return the replaced product to Code within 7 days of receipt of the replacement product. The process for return and customer's charges will be in accordance with Code's Exchange Policy in effect at the time of the exchange.

Customer accepts full responsibility for its software and data including the appropriate backup thereof. Repair or replacement of a product during warranty will not extend the original warranty term. Code's Customer Service organization offers an array of service plans, such as on-site, depot, or phone support, that can be implemented to meet customer's special operational requirements and are available at a substantial discount during warranty period.

7.3 - Warranty (continued)

General

EXCEPT FOR THE WARRANTIES STATED ABOVE, CODE DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, ON PRODUCTS FURNISHED HEREUNDER, INCLUDING WITHOUT LIMITATION IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE AND NON-INFRINGEMENT. The stated express warranties are in lieu of all obligations or liabilities on part of Code for damages, including without limitation, special, indirect, or consequential damages arising out of or in connection with the use or performance of the product. Seller's liability for damages to buyer or others (regardless of the form of action, whether by contract, warranty, tort, malpractice, and/or otherwise) resulting from the use of any product, shall in no way exceed the purchase price of said product. In no event shall Code be liable for any consequential, special, indirect, incidental or punitive damages, or for any loss of profits, revenue or data, even if Code has been advised of the possibility thereof.

7.4 - CR2500 Accessories

Please visit www.codecorp.com for more information on Code accessories.

7.5 - Frequently Asked Questions

For a complete list of Frequently Asked Questions, please visit http://www.codecorp.com/faq.php

7.6 - CR2500 Maintenance

The CR2500 device operates efficiently and reliably and needs only a minimum of maintenance to operate. A few tips are given below for maintenance suggestions.

Cleaning the CR2500 Window

The CR2500 window should be clean to allow the best performance of the device. The window is the clear plastic piece inside the head of the reader. Do not touch the window. Your CR2500 uses CMOS technology that is much like a digital camera. A dirty window may stop the CR2500 from reading bar codes.

If the window becomes dirty, clean it with a soft, non-abrasive cloth or a facial tissue (no lotions or additives) that has been moistened with water. A mild detergent may be used to clean the window, but the window should be wiped with a water moistened cloth or tissue after using the detergent.

The CR2500 display screen and housing may be cleaned in the same way.

For applications that require cleaning with disinfectant, please use products with the following ingredients:

1) Isopropyl Alcohol
2) Ethyl Alcohol (Denatured Grade)

Code does not recommend using bleach.

Technical Support and Returns

For returns or technical support call Code Technical Support at [phone]. For all returns Code will issue an RMA number which must be placed on the packing slip when the reader is returned.

Visit http://www.codecorp.com/codesupport.php for more information.
