Product Type	Audio/Video Converter (HDMI over HDBaseT Extender)
Brand	Atlona
Model	AT-LINE-PRO5-GEN2
Video Resolution Support	Up to 4K@60Hz 4:4:4 (18 Gbps)
HDMI Specification	HDMI 2.0, HDCP 2.2
Transmission Distance	Up to 100m (328ft) via CAT6a/7
Audio Support	PCM, Dolby Digital, DTS up to 7.1
Input Interfaces	1 x HDMI Type A (female), 1 x RJ-45 (HDBaseT)
Output Interfaces	1 x HDMI Type A (female), 1 x RJ-45 (HDBaseT)
Power Supply	External 24V DC / 0.5A power adapter (included)
Power Consumption	6W (max)
Dimensions (W x D x H)	130 x 90 x 25 mm (5.1 x 3.5 x 1.0 in)
Weight	0.3 kg (0.66 lbs)
Operating Temperature	0°C to 40°C (32°F to 104°F)
Housing Material	Metal (aluminum alloy)
Mounting Options	Wall-mountable (brackets included)
LED Indicators	Power, Link, Signal
EDID Management	Built-in EDID pass-through and emulation
Maintenance & Cleaning	Wipe with dry soft cloth; avoid liquids; disconnect power before cleaning
Safety	CE, FCC, RoHS compliant; use only supplied power adapter
Spare Parts & Repairability	Contact Atlona support for replacement power supply; unit is not user-serviceable
General Information	Plug-and-play installation; supports IR and RS-232 pass-through

Frequently Asked Questions - AT-LINE-PRO5-GEN2 Atlona

What is the maximum HDMI cable length I can use before the AT-LINE-PRO5-GEN2?

For best performance, use HDMI cables shorter than 5 meters (16 ft) at the transmitter and receiver ends. Longer cables may cause signal degradation.

Does this device support 4K HDR content?

Yes, the AT-LINE-PRO5-GEN2 supports 4K@60Hz 4:4:4 and HDR10/HLG, provided that the source and display are compatible and the cabling meets Cat6a/7 standards.

How do I reset the unit to factory defaults?

There is a recessed reset button on the side panel. Press and hold it for 5 seconds using a paperclip until the LEDs flash, indicating a reset.

Can I use this extender with a CAT5e cable?

Yes, but performance may be limited. CAT5e supports up to 70 meters for 1080p; for 4K, CAT6a or CAT7 is recommended for the full 100 meters.

What power supply does this unit require?

It uses a 24V DC / 0.5A power adapter. Only use the included adapter to avoid damage.

How do I know if the device is receiving a signal?

The front panel has LED indicators: Power (green), Link (green when HDBaseT link is established), and Signal (green when video signal is detected).

Can I control the source device via IR from the display location?

Yes, the AT-LINE-PRO5-GEN2 supports IR pass-through. Connect an IR emitter to the transmitter and an IR receiver to the receiver unit for remote control.

Does this extender work with HDCP 2.2 sources?

Yes, it is fully HDCP 2.2 compliant, ensuring compatibility with most modern Blu-ray players, streaming devices, and gaming consoles.

What should I do if I have no picture on the display?

First, check all cable connections. Ensure the power LEDs are on. Try a different HDMI cable or source. If using a long cable run, test with a short cable first. Reset the unit if needed.

Where can I find the latest firmware for this device?

Firmware updates are available on Atlona's official website. Check the product page under Downloads. Use a USB cable (type not provided) to update via the built-in USB port.

USER MANUAL AT-LINE-PRO5-GEN2 Atlona

Atlona 11 Input Scaler and Switcher w/Dual Mirrored HDMI Outputs

AT-LINE-PRO5-GEN2

User Manual

Table of Contents

1. Introduction 3
2. Package Contents 3
3. Features
4. Specifications 4
5. Panel Descriptions
   a. Front Panel 4
   b. Rear Panel 5
6. Remote Control 5
7. On Screen Display Options 8
8. Connection and Installation 7
   9.RS-232 7-11
9. Safety Information 12
10. Warranty 13
11. Atlona Product Registration 14

Introduction

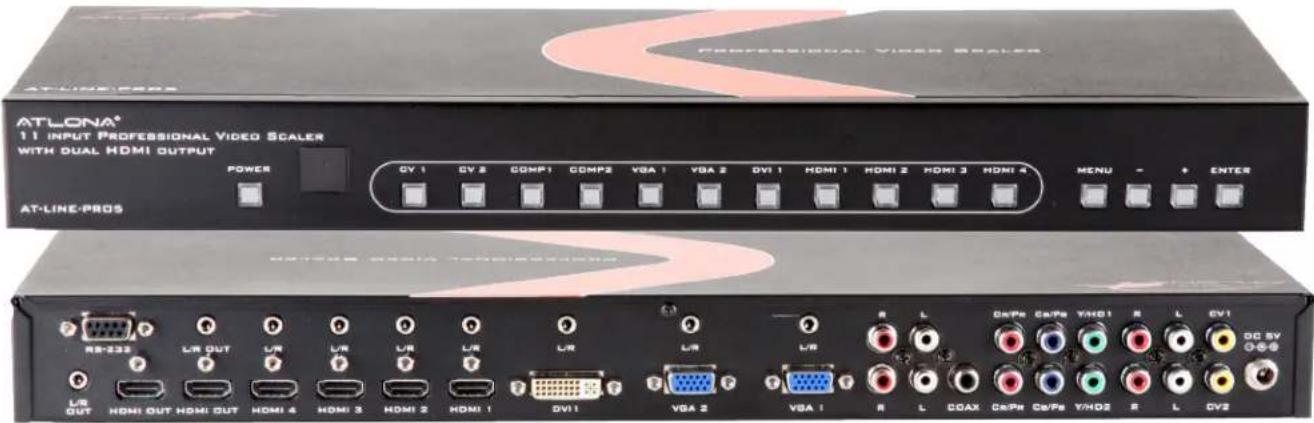

The Atlona 11 Input Scaler and Switcher w/Dual Mirrored HDMI Outputs allows 4 x HDMI or DVI (with use of HDMI to DVI adapter i.e AT14050), 1 x DVI, 3 x VGA, 2 x Component, 2 x Composite video inputs to be scaled to a dual HDMI outputs. With an on-screen display get the ability to change video, scaling, and output resolution options. With additional functions such as RS-232 and IR control the AT-LINE-PRO5 is easier than ever to control or integrate with a preexisting system.

Package Contents

• AT-LINE-PRO5
• 5V/3A DC power supply (110/240V)
• IR Remote Control
• Rack Ears
• User manual

Features

• Scaling any incoming Signal whether HDMI, DVI, VGA, Component or Composite to the native resolution of the display: VGA (640x480) \~ WUXGA (1920x1200) or 480p\~1080p
  • Audio embedding from any 3.5mm stereo audio input to HDMI outputs
• De-embedding audio from HDMI outputs to 3.5mm stereo audio output to allow video be routed to a projector and audio to an amplifier (i.e. AT-PA100-G2).
  • PAL to NTSC and NTSC to PAL conversion 50/60Hz
  • Supports RS-232 control
• IR Commands are available for using a universal remote or an IR control system
• Standard 1U size for easy rack mounting
  • Each input is accompanied with a 3.5mm stereo audio input, including HDMI so that it could be used with DVI sources (use a DVI to HDMI adapter such as AT14050)
• Horizontal and vertical shift, color, tint, brightness, contrast, detail, sizing, and top and bottom vertical blanking adjustments
• Supports input PC timing: VGA (640x480) \~WUXGA (1920x1200 Reduced Blanking Rate), 480p\~1080p
• Support input HDMI timing: 480i\~1080p60 and VGA (640x480) \~ WUXGA (1920x1200 Reduced Blanking Rate)
  • 1080p@60Hz color video up to 12 bits
  • Supports audio PCM 2CH
  • Supports deep color of 8 / 10 / 12 bits
  • Video-over-graphic overlay
  • ADC for both video and audio
• HDCP compliant

Specifications

TMDS Clock Frequency 225Mbps

Input Ports

4 x HDMI

7	x	3.5mm	stereo	audio
2	x	VGA
2	x	Component	Video
2	x	Composite	Video
1	x	DVI
	2	x	HDMI
2	x	3.5mm	stereo	audio

Resolution outputs Video: up to 1080p @ 60Hz

Vesa: up to 1920x1200 Reduced Blanking

Dimensions (WxDxH) 17.16x6.57x1.92 (inch) or 436x67x49 (mm)

Weight 4.6lbs or 2.1kg

Temperature Operating: 32°F to 104°F or 0°C to 40°C

Storage: -4°F to 140°F or -20°C to 60°C

Power consumption

8.5W

Panel Description

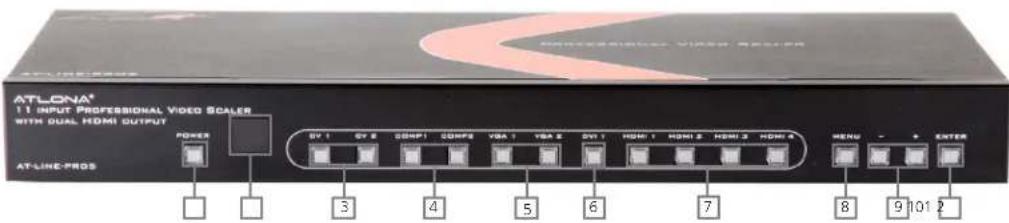

Front Panel

1. Power button: Press to Turn ON or set the device to standby mode. The LED will illuminate red when the power is ON.
2. IR Receiver: This IR window receives IR signal from the supplied IR remote control.
3. CV 1 & 2: Press CV1 or CV2 to select composite video inputs 1 or 2, the LED will illuminate red.
4. COMP 1 & 2: Press COMP1 or COMP2 to select component inputs 1 or 2, the LED will illuminate red.
5. VGA 1 & 2: Press VGA1 or VGA2 to select input 1 or 2, the LED will illuminate red.
6. DVI 1: Press this button to select DVI input, the LED will illuminate red.
7. HDMI 1 through 4: Press the HDMI number to choose input 1, 2, 3 or 4, the LED will illuminate red
8. MENU: Press this button to bring up the On Screen Display.
9. -/+ : Press -/+ buttons to make a selection.
10. ENTER: Press this button to confirm the selection.

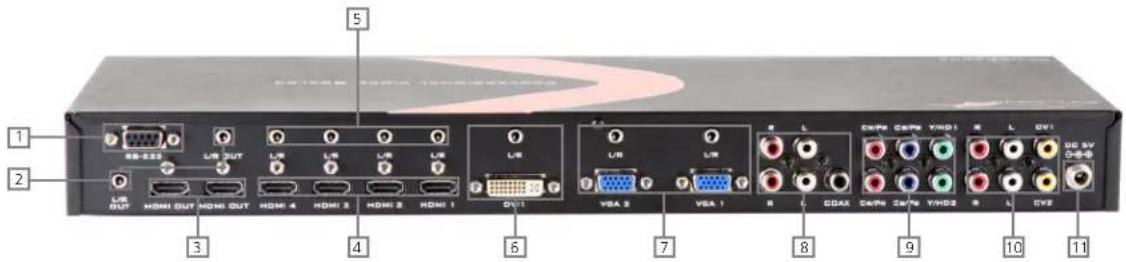

Back Panel

1. RS-232: Connect to a 3rd party control system or a computer with this port.
2. 3.5mm Stereo audio out - send stereo audio through to an amp (i.e. AT-PA100-G2)
3. HDMI Out - Mirrored outputs, connect to a display with HDMI or an HDMI to DVI connector (such as AT14048 which has a compatible locking connector to secure the connection).
4. HDMI In - Connect the HDMI sources here or DVI sources with an HDMI to DVI adapter (i.e. AT-14050)
5. 3.5mm Stereo In - Audio in port used for audio when using an HDMI to DVI adapted source.
6. DVI In & Stereo In: Connect to computer video sources. Use the 3.5mm stereo audio input to transfer audio through as well.
7. VGA In & Stereo In: These slots are for input sources such as Laptops, Desktop Computers, Document Cameras or any other VGA source. Each VGA input is accompanied with a 3.5mm stereo audio input.
8. COAX and RCA R/L ports: These ports are to embed analog (RCA R/L) and digital (coaxil) audio signals from any source.
9. Y/PB/PR : These ports are to connect input sources such as DVD players, Cables Boxes or HD Cameras.
10. CV & Stereo In: These ports are to connect to input sources such as VCRs or Security Cameras.
11. DC 5V: This port is to connect to the supplied power supply.

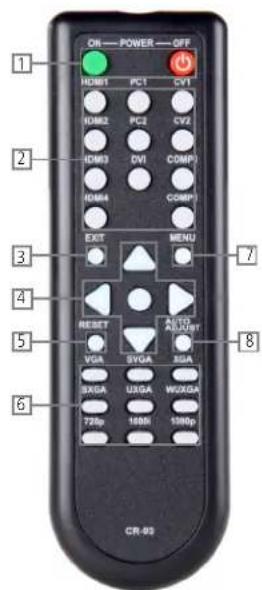

Remote Control

1. POWER ON/OFF: Press these buttons to power on the device or to set it to standby mode.
2. Input Selection: Press to switch between sources.
3. Exit: Press to exit from a sub menu or main menu.
4. On Screen Display operation. Press to increase/decrease the setting value of a selected parameter. OK (Enter): Press to confirm your selection.
5. Reset: Press the button to reset the unit's firmware setting to the factory default.
6. Output Resolution: Press to directly select output resolution. For other output resolutions that are not available on the remote please enter On Screen Display Menu to select them.
7. MENU: Press to bring up On Screen Display.
8. Auto Adjust: Press to optimize the position of the picture (picture centering) on the screen.

On Screen Display Menu

1st Tier Option 2nd Tier	Option Adjustment
Video PICTURE MODE	USER / STANDARD / VIVID / MOVIE
	CONTRAST 0 ~ 100 of Contrast Level
	BRIGHTNESS 0 ~ 100 of Brightness Level
	HUE 0 ~ 100 of Hue Level
	SATURATION 0 ~ 100 of Saturation Level
	SHARPNESS 0 ~ 100 of Sharpness Level
	SCALE OVERSCAN / UNDERSCAN / LETTER		RBOX/ PANSCAN / FULL
	NR LOW / MIDDLE / HIGH / OFF
	EXIT Back to the 1st Tier
COLOR COLOR TONE	USER / NORMAL / WARM / COOL
	RED 0 ~ 100 of Red Color Level
	GREEN 0 ~ 100 of Green Color Level
	BLUE		0 ~ 100 of Blue Color Level
	EXIT		Back to the 1st Tier
OUTPUT	VGA (640x480)	480i	576i	WXGA (1280x800)
	SVGA (800x600)	480p	576p	WSXGA (1680x1050)
	XGA (1024x768)	720p@60Hz	720p@50Hz	WUXGA (1920x1200)
	UXGA (1600x1200)	1080i@60Hz	1080i@50Hz	WUXGA+ (1440x900)
	SXGA+ (1400x1050)	1080p@60Hz	1080p@50Hz	1080p@30Hz
OSD	HPOSITION		0 ~ 100 of OSD Horizontal Position
	VPOSITION		0 ~ 100 of OSD Vertical Position
	TIMER		0 ~ 100 of OSD Show Time (sec.)
	BACKGROUND (transparency)		0 ~ 100 of OSD Transparency Level
	COLOR BAR		On: Color bar will display when the source is disconnected
			Off: After the source is disconnected, a black screen will be active for 50 seconds before the output signal is shut off
			Timeon 15min: Once the source is discontinued, a color bar will be active for 15 minutes before the output signal is shut off
	EXIT Back to the 1st Tier
AUDIO	SOURCE		HDMI / L/R / COAXIAL
	DELAY		OFF / 40MS / 110MS / 150 MS
	SOUND		ON / MUTE
	EXIT		Back to the 1st Tier
INFORMATION			SOURCE (Input interface)
			INPUT (Input Resolution)
			OUTPUT (Output Resolution)
			VERSION (Firmware Version)
EXIT	-		Close the OSD Menu

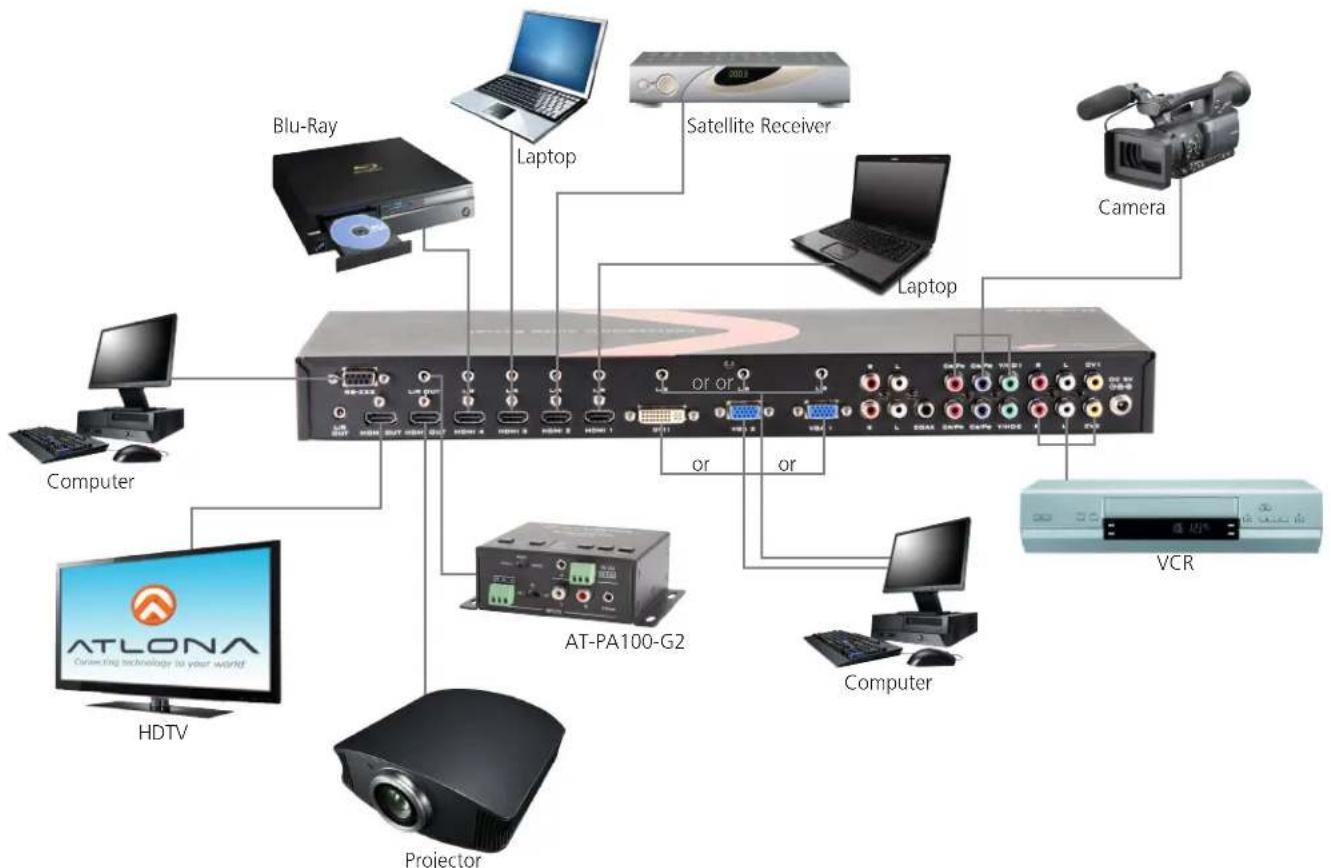

Connection and Installation

RS-232

Connection

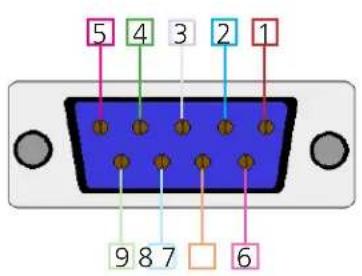

RS-232 is connected through a 9-pin female D connector. The pins will have functions associated with them, some will be unassigned.

Baud Rate: 19200bps
Data Bit: 8bits

No. Pin Function
1 ----	Not used
2 Tx	Transmit
3 Rx	Receive
4 ----	Not used
5 Gr d Ground
6 ----	Not used
7 ----	Not used
8 ----	Not used
9 ----	Not used

Parity: None
Stop Bit: 1bit

Command

The command codes are case sensitive, do not change capitalization, spacing, or lettering.

Note: Each command and feedback is terminated with a carriage return and linefeed.

Note: If the command fails or is incorrect the feedback should be "Command FAILED"

Set Commands

Command Feedback Description
S POWER 0 >POWER	OFF Power off
S POWER 1 >POWER	ON Power on
S SOURCE 0 >SOURCE	CV1 Set the input to	CV1
S SOURCE 1 >SOURCE	CV2 Set the input to	CV2
S SOURCE 2 >SOURCE	COMP1 Set the input to	COMP1
S SOURCE 3 >SOURCE	COMP2 Set the input to	COMP2
S SOURCE 4 >SOURCE	PC1 Set the input to	PC1
S SOURCE 5 >SOURCE	PC2 Set the input to	PC2
S SOURCE 6 >SOURCE	DVI Set the input to	DVI
S SOURCE 7 >SOURCE	HDMI1 Set the input to	HDMI1
S SOURCE 8 >SOURCE	HDMI2 Set the input to	HDMI2
S SOURCE 9 >SOURCE	HDMI3 Set the input to	HDMI3
S SOURCE 10 >SOURCE	HDMI4 Set the input to	HDMI4
S OUTPUT 0 >OUTPUT	NATIVE Set the output EDID to native
S OUTPUT 1 >OUTPUT	VGA Set the output EDID to VGA(640X480@60)
S OUTPUT 2 >OUTPUT	SVGA Set the output EDID to SVGA(800X600@60)
S OUTPUT 3 >OUTPUT	XGA Set the output EDID to XGA(1024X768@60)
S OUTPUT 4 >OUTPUT	SXGA Set the output EDID to SXGA(1280X1024@60)
S OUTPUT 5 >OUTPUT	UXGA Set the output EDID to UXGA(1600X1200@60)
S OUTPUT 6 >OUTPUT	480i Set the output EDID to 480i
S OUTPUT 7 >OUTPUT	480p Set the output EDID to 480p
S OUTPUT 8 >OUTPUT	720p Set the output EDID to 720p@60
S OUTPUT 9 >OUTPUT	1080i Set the output EDID to 1080i@60
S OUTPUT 10	>OUTPUT 1080p	Set the output EDID to 1080p@60
S OUTPUT 11	>OUTPUT 576i Set the output EDID to 576i@60
S OUTPUT 12	>OUTPUT 576p	Set the output EDID to 576p@60
S OUTPUT 13	>OUTPUT 720p50	Set the output EDID to 720p@50
S OUTPUT 14	>OUTPUT 1080i50	Set the output EDID to 1080i@50
S OUTPUT 15	>OUTPUT 1080p50	Set the output EDID to 1080p@50
S OUTPUT 16	>OUTPUT WXGA	Set the output EDID to WXGA (1280x800@60)
S OUTPUT 17	>OUTPUT WSXGA	Set the output EDID to WSXGA (1680x1050@60)
S OUTPUT 18	>OUTPUT WUXGA	Set the output EDID to WUXGA (1920X1200@60)
S OUTPUT 19 > OUTPUT 1080p30 Set the output EDID to 1080p@30
S OUTPUT 20	> OUTPUT WXGA+	Set the output EDID to WXGA+(1440X900@60)
S OUTPUT 21	> OUTPUT SXGA+	Set the output EDID to SXGA+ (1400X1050@60)
S SIZE 0 > SIZE FULL		Scale to Full Screen output
S SIZE 1 > SIZE OVERSCAN		Scale to Overscan Screen output
S SIZE 2 > SIZE UNDERSCAN		Scale to Underscan Screen output
S SIZE 3 > SIZE LETTERBOX		Scale to Letterbox Screen output
S SIZE 4 > SIZE PANSCAN		Scale to Panscan Screen output
S PICTUREMODE 0 > PICTUREMODE STANDARD		Set picture mode to STANDARD
S PICTUREMODE 1 > PICTUREMODE MOVIE		Set picture mode to MOVIE
S PICTUREMODE 2 > PICTUREMODE VIVID		Set picture mode to VIVID
S PICTUREMODE 3 > PICTUREMODE USER		Set picture mode to USER
S CONTRAST 0~100 > CONTRAST 0~100		Adjust Contrast between 0 and 100
S BRIGHTNESS 0~100 > BRIGHTNESS 0~100		Adjust Brightness between 0 and 100
S HUE 0~100 > HUE 0~100		Adjust Hue between 0 and 100
S SATURATION 0~100 > SATURATION 0~100		Adjust Saturation between 0 and 100
S SHARPNESS 0~100 > SHARPNESS 0~100		Adjust Sharpness between 0 and 100
S NR 0 >NR OFF		Set NR Mode to OFF
S NR 1 >NR LOW		Set NR Mode to LOW
S NR 2 >NR MIDDLE		Set NR Mode to MIDDLE
S NR 3 >NR HIGH		Set NR Mode to HIGH
S PCPHASE 0~63 > PCPHASE 0~63		Adjust the PC Phase between 0 and 63
S PCCLOCK 0~100 > PCCLOCK 0~100		Adjust the PC Clock between 0 and 100
S PCHPOSITION 0~100 > PCHPOSITION 0~100		Adjust the Horizontal Position between 0 and 100
S PCVPOSITION 0~100 > PCVPOSITION 0~100		Adjust the Vertical Position between 0 and 100
S COLORTEMP 0	>COLORTEMP NORMAL	Set Color Temperature to NORMAL
S COLORTEMP 1	>COLORTEMP WARM	Set Color Temperature to WARM
S COLORTEMP 2	>COLORTEMP COOL	Set Color Temperature to COOL
S COLORTEMP 3	>COLORTEMP USER	Set Color Temperature to USER
S RED 0~100	> RED 0~100	Adjust the RED hue between 0 and 100
S GREEN 0~100	> GREEN 0~100	Adjust the GREEN hue between 0 and 100
S BLUE 0~100	> BLUE 0~100	Adjust the BLUE hue between 0 and 100
S OSDHPOSITION 0~100	> OSDHPOSITION 0~100	Adjust the OSD Horizontal Position between 0 and 100
S OSDVPOSITION 0~100	> OSDVPOSITION 0~100	Adjust the OSD Vertical Position between 0 and 100
S OSDTIMEOUT 0~100 > OSDTIMEOUT 0~100		Adjust the OSD Timeout between 0 and 100
S OSDBACKGROUND 0~8	> OSDBACKGROUND 0~8	Adjust the OSD Background between 0 and 8
S AAUD 0	> AAUD 0 Mute audio
S AAUD X	> AAUD 1 ~ 41	Adjust volume level, replace X with 1 through 41
S AUDIODELAY 0	> AUDIODELAY OFF Turn	Audio Delay off
S AUDIODELAY 1	> AUDIODELAY 40ms Set	Audio Delay to 40mSec
S AUDIODELAY 2	> AUDIODELAY 110ms Set	Audio Delay to110mSec
S AUDIODELAY 3	> AUDIODELAY 150ms Set	Audio Delay to 150mSec

Status Commands

Command Feedback Description
R POWER	>POWER OFF~ON Displays POWER status
R SOURCE	>SOURCE CV~HDMI4 Displays SOURCE status
R OUTPUT	>OUTPUT NATIVE~SXGA+ Displays OUTPUT status
R SIZE	>SIZE FULL~PANSCAN Displays SIZE status
R PICTUREMODE	>PICTUREMODE STANDARD~USER Displays PICTUREMODE status
R CONTRAST	>CONTRAST 0~100 Displays CONTRAST value
R BRIGHTNESS	>BRIGHTNESS 0~100 Displays BRIGHTNESS value
R HUE	>HUE 0~100 Displays HUE value
R SATURATION	>SATURATION 0~100 Displays SATURATION value
R SHARPNESS	>SHARPNESS 0~100 Displays SHARPNESS value
R NR	>NR OFF~HIGH	Displays NR status
R PCHPOSITION	>PCHPOSITION 0~100	Displays PC H-POSITION value
R PCVPOSITION	>PCVPOSITION 0~100	Displays PC V-POSITION value
R PCCLOCK	>PCCLOCK 0~100	Displays PC CLOCK value
R PCPHASE	>PCPHASE 0~63	Displays PC PHASE value
R COLORTEMP	>COLORTEMP NORMAL~USER	Displays COLOR TEMP mode
R RED	>RED 0~100	Displays COLOR RED value
R GREEN	>GREEN 0~100	Displays COLOR GREEN value
R BLUE	>BLUE 0~100	Displays COLOR BLUE value
R OSDHPOSITION	>OSDHPOSITION 0~100	Displays OSD H-POSITION value
R OSDVPOSITION	>OSDVPOSITION 0~100	Displays OSD V-POSITION value
R OSDTIMEOUT	>OSDTIMEOUT 0~100	Displays OSD TIMEOUT value
R OSDBACKGROUND	>OSDBACKGROUND 0~8	Displays OSD BACKGROUND status
R AUDIOMUTE	>AUDIOMUTE OFF~ON	Displays AUDIO MUTE status
R AUDIODELAY	>AUDIODELAY OFF~150ms	Displays AUDIO DELAY status

Key Commands

Command Feedback Description
K POWER	>POWER Panel/remote	control key POWER
K CV1	>CV1 Ranel key CV1
K CV2	>CV2 Ranel key CV2
K COMP1	>COMP1 Panel key COMP
K COMP2 K COMP2		Panel key COMP2
K PC1	>PC1 Panel key PC1
K PC2	>PC2 Panel key PC2
K DVI K DVI Panel key DVI
K HDMI1	>HDMI1 Panel key HDMI1
K HDMI2	>HDMI2 Panel key HDMI2
K HDMI3	>HDMI3 Panel key HDMI3
K HDMI4	>HDMI4 Panel key HDMI4
K MENU	>MENU Panel key MENU
K DEC	>DEC Panel key DEC
K INC	>INC Panel key INC
K ENTER	>ENTER Panel key ENTER
K SOURCE	>SOURCE Remote control key SOURCE
K VGA	>VGA Remote control key VGA
K SVGA	>SVGA Remote control key SVGA
K XGA	>XGA Remote control key XGA
K SXGA	>SXGA Remote control key SXGA
K UXGA	>UXGA Remote control key UXGA
K 1080i60	>1080i60 Remote control key 1080i60
K 480p	>480p	Remote control key 480p
K 720P60	>720p60 Remote control key 720p
K 1080P60	>1080p60	Remote control key 1080p60
K UP	>UP	Remote control key UP
K DOWN	>DOWN Remote control key DOWN
K LEFT	>LEFT	Remote control key LEFT
K RIGHT	>RIGHT Remote control key RIGHT
K EXIT	>EXIT Remote control key EXIT
K AUTO	>AUTO	Remote control key AUTO
K RESET	>RESET	Remote control key RESET

Safety Information

Safeguards

To reduce the risk of electric shock, do not expose this product to rain or moisture

If the wall plug does not fit into your local power socket, hire an electrician to replace your obsolete socket.

Do not modify the wall plug. Doing so will void the warranty and safety features.

This equipment should be installed near the socket outlet and the device should be easily accessible in the case it requires disconnection.

Precautions

FCC regulations state that any unauthorized changes or modifications to this equipment, not expressly approved by the manufacturer, could void the user's authority to operate this equipment.

Operate this product using only the included external power supply. Use of other power supplies could impair performance, damage the product, or cause fires.

In the event of an electrostatic discharge this device may automatically turn off. If this occurs, unplug the device and plug it back in.

Protect and route power cords so they will not be stepped on or pinched by anything placed on or against them. Be especially careful of plug-ins or cord exit points from this product.

Avoid excessive humidity, sudden temperature changes or temperature extremes.

Keep this product away from wet locations such as bathtubs, sinks, laundries, wet basements, fish tanks, and swimming pools.

Use only accessories recommended by Atlona to avoid fire, shock, or other hazards.

Unplug the product before cleaning. Use a damp cloth for cleaning and not cleaning fluid or aerosols. Such products could enter the unit and cause damage, fire, or electric shock. Some substances may also mar the finish of the product.

Never open, remove unit panels, or make any adjustments not described in this manual. Attempting to do so could expose you to dangerous electrical shock or other hazards. It may also cause damage to your AT-LINE-PRO5-GEN2. Opening the product will void the warranty.

Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly.

Warranty

Limited Warranty

Atlona Technologies warrants that (a) its products (AT-LINE-PRO5-GEN2) will perform substantially in accordance with the accompanying written materials for a period of 3 years from the date of receipt and (b) that the product will be free from defects in materials and workmanship under normal use and service for a period of 3 years. In the event applicable law imposes any implied warranties, the implied warranty period is limited to 3 years from the date of receipt. Some jurisdictions do not allow such limitations on duration of an implied warranty, so the above limitation may not apply to customers that fall within those areas.

Customer Remedies

Atlona Technologies' and its suppliers' entire liability and Customer's exclusive remedy shall be, at Atlona Technologies' decision, either return of the price paid for the product, repair, or replacement of the product that does not meet this Limited Warranty and which is returned to Atlona Technologies with a copy of the Customer's receipt. This Limited Warranty is void if failure of the product has resulted from accident, abuse, misapplication, or natural occurrence. In example but not limited to: power surges (electrical storms, local power outage), dropping the product (or items on the product), contact with fluids, and physical misconduct (i.e. kicking or punching). Any replacement product will be warranted for the remainder of the original warranty period.

No other warranties

To the maximum extent permitted by applicable law, Atlona Technologies and its suppliers disclaim all other warranties, either expressed or implied, including, but not limited to, implied warranties of merchantability and fitness for a particular purpose, with regard to the product and any related written materials. This Limited Warranty gives customer specific legal rights. Customers may have other rights depending on the jurisdiction.

No liability for damages

To the maximum extent permitted by applicable law, in no event shall Atlona Technologies or its suppliers be liable for any damages arising out of the use of or inability to use this product, even if Atlona Technologies has been advised of the possibility of such damages. Such damages include but are not limited to: special, incidental, consequential, or indirect damages for personal injury, loss of business profits, business interruption, loss of business information, or any other pecuniary loss. Atlona Technologies' and its suppliers' entire liability under any provision of this agreement shall be limited to the amount actually paid by you for the product. Some Jurisdictions do not allow the exclusion or limitation of liability for consequential or incidental damage. The above limitations may not apply to you in such jurisdictional cases.

Atlona Product Registration

Thank you for purchasing this Atlona product. - We hope you enjoy it and will take an extra few moments to register your new purchase.

Registration creates an ownership record if your product is lost or stolen and helps ensure you'll receive notification of performance issues and firmware updates.

At Atlona, we respect and protect your privacy, assuring you that your registration information is completely secure. Atlona product registration is completely voluntary and failure to register will not diminish your limited warranty rights.

To register go to: http://www.atlona.com/registration
