3800i USB Kit - Barcode Reader HONEYWELL - Free user manual and instructions

Product Type	Handheld Barcode Scanner
Model	3800i USB Kit
Brand	Honeywell
Dimensions (L x W x H)	Approximately 6.0 x 2.7 x 3.8 in (15.2 x 6.9 x 9.7 cm)
Weight	Approximately 5.4 oz (153 g)
Power Supply	USB bus power (5V DC)
Interface	USB (Kit includes USB cable)
Scan Technology	Laser diode
Readable Symbologies	1D barcodes (UPC/EAN, Code 39, Code 128, etc.)
Scan Rate	Up to 100 scans per second
Read Range	Up to 17 in (43 cm) for 13 mil bar codes
Drop Spec	Designed to withstand 5 ft (1.5 m) drops to concrete
Operating Temperature	32°F to 104°F (0°C to 40°C)
Storage Temperature	-40°F to 140°F (-40°C to 60°C)
Cleaning	Wipe with a dry, soft cloth; avoid solvents
Safety Certifications	FCC, CE, UL, RoHS compliant
Spare Parts	Replacement USB cable and stand available
Warranty	Standard 1-year manufacturer warranty

Frequently Asked Questions - 3800i USB Kit HONEYWELL

How do I connect the 3800i USB Kit to my computer?

Simply plug the USB cable into an available USB port. The scanner will be recognized as a HID keyboard or virtual COM port depending on configuration.

Can the scanner read 2D barcodes?

No, the Honeywell 3800i is a laser scanner designed for 1D barcodes. It cannot read 2D codes like QR.

What is the maximum scanning distance?

The typical read range is up to 17 inches (43 cm) for standard 13 mil bar codes. Actual distance may vary by symbol density.

How do I clean the scanner?

Use a dry, lint-free cloth to wipe the exterior. Do not use harsh chemicals or liquids. Clean the scan window gently.

Is the scanner compatible with Windows, Mac, or Linux?

Yes, it works with any OS that supports USB HID or serial emulation. No special drivers are required for basic scanning.

What should I do if the scanner doesn't beep?

Check the USB connection and ensure power is supplied. Try reconnecting. If the issue persists, the scanner may need configuration barcodes from the manual.

Can I program the scanner to add prefixes or suffixes?

Yes, you can scan programming barcodes from the manual to add carriage returns, tab, or other characters.

How durable is the 3800i?

It is rated to withstand 5 ft (1.5 m) drops to concrete, making it suitable for industrial use.

Where can I find replacement parts?

Replacement USB cables and stands are available through Honeywell authorized distributors or online retailers.

Does the scanner support omni-directional scanning?

No, it is a single-line laser scanner and requires alignment with the barcode. It is not omni-directional.

USER MANUAL 3800i USB Kit HONEYWELL

Speichern

Manueller Trigger (Standard)

Bedarfsmodus

Suffix entfernen

Speichern

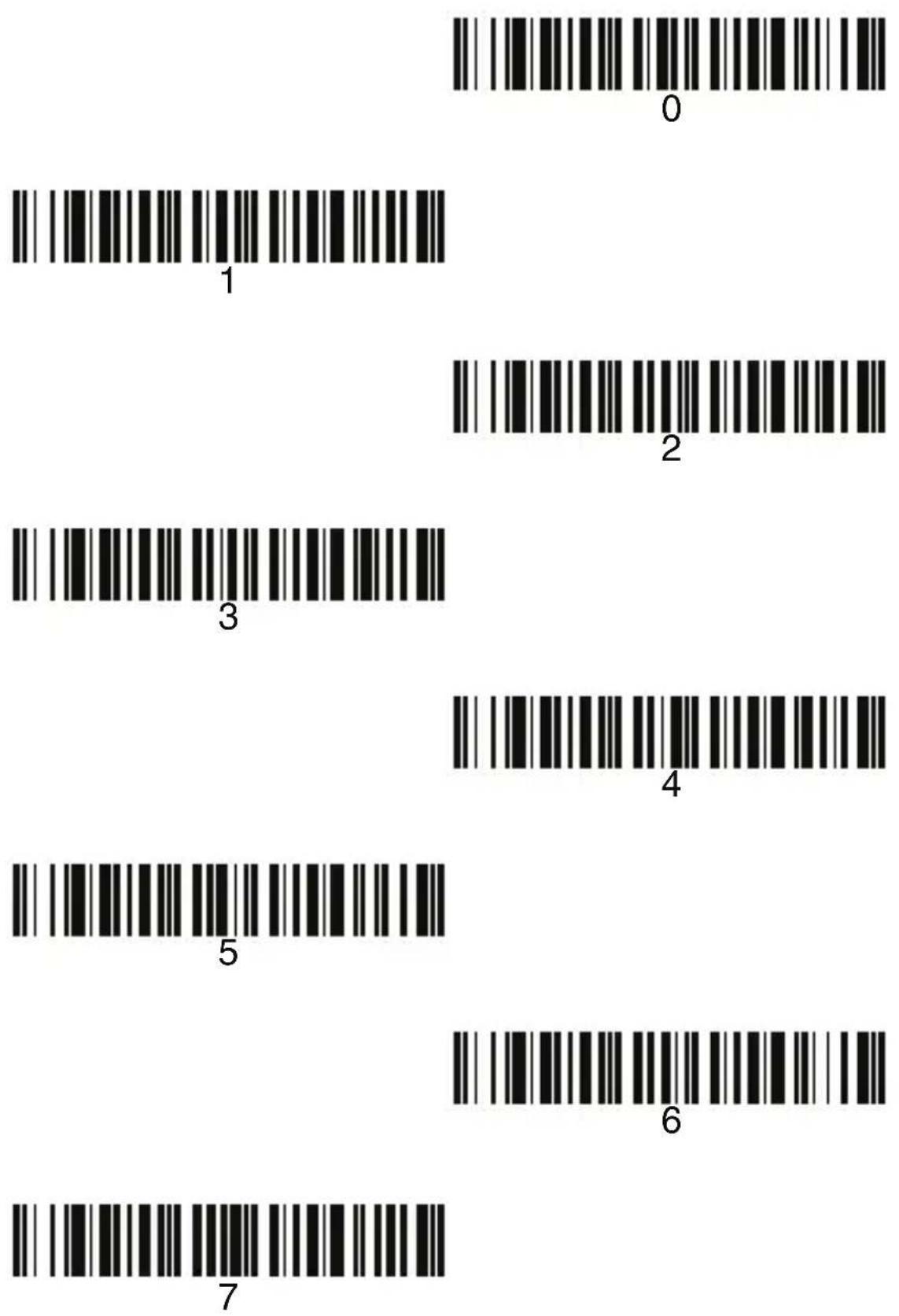

Programmiertabelle

Visual Menu

Honeywell International Inc. ("Honeywell") warrants its products to be free from defects in materials and workmanship and to conform to Honeywell's published specifications applicable to the products purchased at the time of shipment. This warranty does not cover any Honeywell product which is (i) improperly installed or used; (ii) damaged by accident or negligence, including failure to follow the proper maintenance, service, and cleaning schedule; or (iii) damaged as a result of (A) modification or alteration by the purchaser or other party, (B) excessive voltage or current supplied to or drawn from the interface connections, (C) static electricity or electrostatic discharge, (D) operation under conditions beyond the specified operating parameters, or (E) repair or service of the product by anyone other than Honeywell or its authorized representatives.

This warranty shall extend from the time of shipment for the duration published by Honeywell for the product at the time of purchase ("Warranty Period"). Any defective product must be returned (at purchaser's expense) during the Warranty Period to Honeywell factory or authorized service center for inspection. No product will be accepted by Honeywell without a Return Materials Authorization, which may be obtained by contacting Honeywell. In the event that the product is returned to Honeywell or its authorized service center within the Warranty Period and Honeywell determines to its satisfaction that the product is defective due to defects in materials or workmanship, Honeywell, at its sole option, will either repair or replace the product without charge, except for return shipping to Honeywell.

EXCEPT AS MAY BE OTHERWISE PROVIDED BY APPLICABLE LAW, THE FOREGOING WARRANTY IS IN LIEU OF ALL OTHER COVENANTS OR WARRANTIES, EITHER EXPRESSED OR IMPLIED, ORAL OR WRITTEN, INCLUDING, WITHOUT LIMITATION, ANY IMPLIED WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE.

HONEYWELL'S RESPONSIBILITY AND PURCHASER'S EXCLUSIVE REMEDY UNDER THIS WARRANTY IS LIMITED TO THE REPAIR OR REPLACEMENT OF THE DEFECTIVE PRODUCT WITH NEW OR REFURBISHED PARTS. IN NO EVENT SHALL HONEYWELL BE LIABLE FOR INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, AND, IN NO EVENT, SHALL ANY LIABILITY OF HONEYWELL ARISING IN CONNECTION WITH ANY PRODUCT SOLD HEREUNDER (WHETHER SUCH LIABILITY ARISES FROM A CLAIM BASED ON CONTRACT, WARRANTY, TORT, OR OTHERWISE) EXCEED THE ACTUAL AMOUNT PAID TO HONEYWELL FOR THE PRODUCT. THESE

LIMITATIONS ON LIABILITY SHALL REMAIN IN FULL FORCE AND EFFECT EVEN WHEN HONEYWELL MAY HAVE BEEN ADVISED OF THE POSSIBILITY OF SUCH INJURIES, LOSSES, OR DAMAGES. SOME STATES, PROVINCES, OR COUNTRIES DO NOT ALLOW THE EXCLUSION OR LIMITATIONS OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU.

All provisions of this Limited Warranty are separate and severable, which means that if any provision is held invalid and unenforceable, such determination shall not affect the validity of enforceability of the other provisions hereof. Use of any peripherals not manufactured/sold by Honeywell may result in damage not covered by this warranty. This includes but is not limited to: cables, power supplies, cradles, and docking stations. Honeywell International Inc. extends these warranties only to the first end-users of the products. These warranties are non-transferable.

The duration of the limited warranty for the 3800, 3800g, 3800gHD, 3800gPDF is five (5) years.

The duration of the limited warranty for the 3800i is three (3) years.

Disclaimer

Honeywell International Inc. (“Honeywell”) reserves the right to make changes in specifications and other information contained in this document without prior notice, and the reader should in all cases consult Honeywell to determine whether any such changes have been made. The information in this publication does not represent a commitment on the part of Honeywell.

Honeywell shall not be liable for technical or editorial errors or omissions contained herein; nor for incidental or consequential damages resulting from the furnishing, performance, or use of this material.

This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be photocopied, reproduced, or translated into another language without the prior written consent of Honeywell.

©2006-2008 Honeywell International Inc. All rights reserved.
