10401 - Coffee maker KORONA - Free user manual and instructions

Product Type	Drop Coffee Maker
Brand	KORONA
Model	10401
Power	915 - 1080 W
Voltage	220 - 240 V ~
Frequency	50/60 Hz
Protection Class	I
Capacity	12 cups (max)
Water Tank	With water level indicator, max fill line
Hot Plate	Yes, keeps coffee warm
Filter Holder	Removable, for standard 1x4 paper filters
Drip Stop	Automatic, pauses flow when carafe removed
Carafe	Glass, with lid and handle
Measuring Spoon	Included, for ground coffee
Cord Length	Approx. 1 m
Weight	Approx. 2 kg
Dimensions (approx.)	30 x 20 x 35 cm
Housing Material	Plastic
Cleaning	Detachable parts dishwasher safe; descale regularly
Safety Features	Auto shut-off if overheated; hot surface warning

Frequently Asked Questions - 10401 KORONA

How many cups of coffee can this Korona 10401 make at once?

The water tank has markings up to 12 cups. Do not exceed the Max. filling level (12 cups).

What type of filter do I need?

Use a standard 1x4 paper filter. Fold the edges and place it in the removable filter holder.

Can I use the coffee maker without a paper filter?

No, the appliance is designed for paper filters. Do not operate without a filter as coffee grounds may enter the carafe.

How do I clean the Korona 10401?

Unplug and let cool. Wipe the body with a damp cloth. All detachable parts (filter holder, carafe, lid) are dishwasher safe or can be washed in warm soapy water.

Why is my coffee not hot enough?

Ensure the carafe is properly placed on the hot plate and the appliance is switched on. The hot plate cycles on and off to maintain serving temperature.

How often should I descale the coffee maker?

Descale regularly depending on water hardness. Use a gentle descaler suitable for coffee makers, following the manufacturer's instructions. After descaling, rinse thoroughly as described in 'Before First Use'.

Can I open the lid while brewing?

No, never open the lid during operation. Hot steam and water can escape, causing serious burns.

What does the automatic drip stop do?

If you remove the carafe mid-brew, the drip stop automatically stops dripping. Replace the carafe within 30 seconds to resume.

What power supply does this model require?

The Korona 10401 operates on 220-240 V at 50/60 Hz. The power rating is 915-1080 W. Check your local voltage matches.

Does the Korona 10401 have a warranty?

Yes, it comes with a 2-year guarantee against defects in materials and workmanship. Keep your receipt as proof of purchase.

USER MANUAL 10401 KORONA

Top-down view of a white coffee cup filled with dark coffee, placed on a saucer with a yellow napkin beside it (no text or symbols visible)

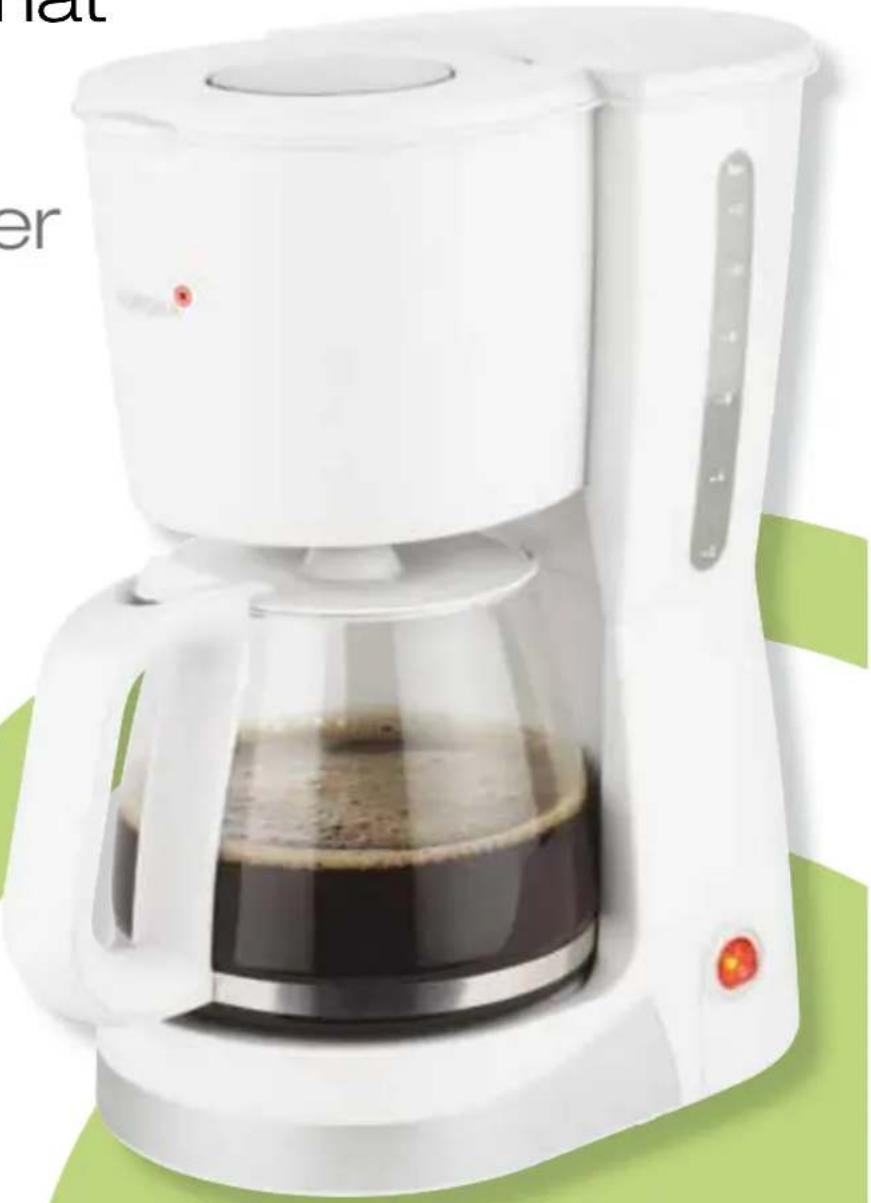

White modern coffee maker with clear glass and dark liquid, placed on a green surface (no visible text or symbols)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

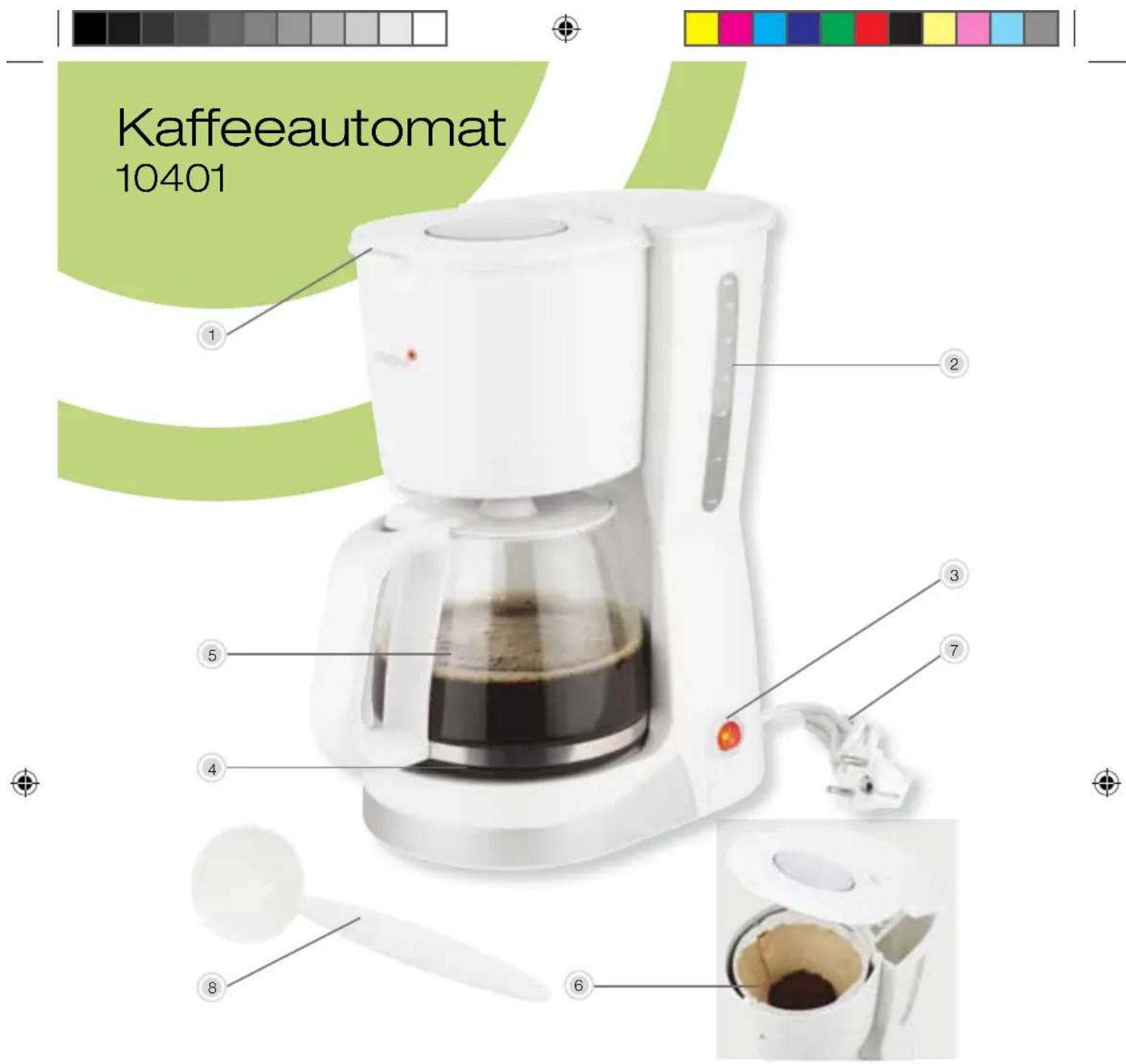

Produktbeschreibung

1 Appliance lid
2 Water tank with water level indicator
3 On/Off button with indicator light
4 Hot plate
5 Carafe
6 Filter holder
7 Power cord and plug
8 Measuring Spoon

Intended Use

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. Never attempt to heat any other liquids in it. This appliance is only intended for private household use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
- Incorrect or improper use can damage the appliance and cause injuries to the user.
- Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

- Never leave the appliance unattended during use.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise.

Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.

• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock, risk of fire and burns!

• Your coffee maker is only intended for making coffee.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!
• Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!
  • Never operate the appliance without water.
• Never exceed the Max. filling level to avoid any boiling water from spilling. Danger of serious burns!
• Do not leave the empty carafe on the hotplate.
• Do not use the carafe if it shows any damages.

Instruction Manual

ENGLISH

• Do not move the appliance during operation.
• Do not place the appliance near any inflammable objects.
• Always unplug the appliance after use and let it completely cool down before cleaning.

Before First Use

• Remove all packaging material and check whether the appliance is complete.
  • Fully unwind the power cord.
• Clean the detachable parts as described under Cleaning and Care.
• Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
• Before making your first coffee, rinse the unit by filling the water tank (2) up to the Max. and operate it 2 -3 times without coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them way to avoid suffocation.

Operation

Brewing Coffee

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
2. Open the appliance lid 1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (12 cups).
3. Insert a standard paper filter 1 x 4 into the removable filter holder (6). Make sure to fold the edges of the paper filter and push it slightly down.
4. For each cup of coffee, use one leveled measuring spoon (8) of grounded coffee. For stronger or milder coffee, adjust the amount of coffee!
5. Close the appliance lid (1) at detent position.
6. Place the carafe (5) into the appliance.
7. Press the On/Off button (3) to switch on the appliance. The integrated indicator light indicates that the appliance is in operation.

The brewing process can be interrupted at any time by pressing the On/Off button (3). Once the unit is switched on again the appliance will continue with the brewing process.

Note: If you wish to have a cup of coffee before the brewing cycle is completed, remove the carafe (5) from the appliance. Due to the automatic drip stop, dripping will automatically cease. Put the carafe (5) back within 30 seconds, dripping process will automatically resume.

1. After the brewing cycle is completed (no more water is dripping through the filter), the carafe (5) can be removed. When serving coffee do not remove the lid in order to preserve the proper serving temperature

Note: Never open the appliance lid (1) during operation – hot water could evaporate – Danger of serious burns!

1. As long as the appliance is switched on, you can keep the coffee hot, by returning the carafe (5) to the hotplate (4) after serving. The hotplate (4) will automatically cycle on and off to maintain the ideal serving temperature as long as the coffee maker is switched on.

2. Press the On/Off button (3) to switch the appliance off.

Note: If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Removing the Filter Holder

To remove the filter holder (6), you must lift up the handle to a upright position.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth.

Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

All detachable parts can be cleaned in the dishwasher or in warm water using some dishwashing detergent, rinse them afterwards and dry them thoroughly.

DESCALING

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance.

To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under Before First Use.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Coffee maker 10400/10401 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50/60Hz

Rated Power: 915 - 1080 W

Protection Class: I

Subject to change without notice.

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

KORONA electric GmbH, Sundern/Germany.

Service Adresse:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telefon Hotline:

Mail:

web:

02933 90284-80

[e-mail]

www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.

Two horizontal color swatches: one black with gradient squares, one yellow with solid squares (no text or symbols)

Two isolated black crosshair symbols on a white background, no text or labels present.

Two horizontal color swatches: one black with gradient squares, one yellow with solid squares (no text or symbols)

Two isolated black crosshair symbols on a white background, no text or labels present.

Two horizontal color swatches: one black with gradient squares, one yellow with solid squares (no text or symbols)

KORONA

Abstract green curved shape on white background (no text or symbols)

Ref: 10401/09-2012.8
