Product Type	Drip Coffee Maker
Dimensions (W x D x H)	25 x 20 x 30 cm
Weight	1.5 kg
Power Consumption	900 W
Water Tank Capacity	1.25 L
Number of Cups	Up to 12 cups
Automatic Shut-off	Yes, after 2 hours
Keep Warm Function	Yes, automatic
Anti-Drip System	Yes, removable filter basket
Filter Type	Permanent or paper (#4 cone)
Water Level Indicator	Yes, transparent tank
Carafe Material	Glass
Housing Material	Plastic
Color	White/Black
Power Cord Length	0.8 m
Voltage	220-240 V, 50/60 Hz
Maintenance	Descaling recommended every 2-3 months
Safety Features	Overheat protection, auto shut-off
Spare Parts Available	Carafe, filter basket, water tank
Warranty	2 years

Frequently Asked Questions - 10700 KORONA

How do I descale the Korona 10700 coffee maker?

Mix equal parts water and white vinegar, fill the tank, and run a brew cycle without coffee. Repeat with clean water. Descale every 2-3 months.

Can I use paper filters?

Yes, the Korona 10700 accepts #4 cone paper filters. You can also use the permanent filter included.

What does the anti-drip feature do?

The anti-drip system stops coffee flow when you remove the carafe, preventing spills. Ensure the carafe is placed back within 30 seconds.

How many cups can I brew at once?

The water tank holds up to 1.25 liters, which brews about 12 cups (125 ml each). Adjust water amount for fewer cups.

Why does the coffee maker turn off automatically?

The auto shut-off activates after 2 hours of inactivity for safety. You can turn it off manually anytime.

Can I brew ground coffee directly in the filter?

Yes, add ground coffee to the permanent filter or a paper filter. Use medium grind for best results.

The coffee tastes bitter. What should I do?

Bitter taste may be due to over-extraction. Use a coarser grind or reduce the amount of coffee. Also, descale if scale build-up.

How do I clean the carafe?

Wash the glass carafe with warm soapy water and a soft sponge. Do not abrasive cleaners. Rinse thoroughly.

Is the drip tray removable?

Yes, the drip tray is removable for easy cleaning. Slide it out, wash with mild detergent, and dry before reinserting.

What if the coffee maker does not start?

Check if the power cord is plugged in, the water tank has water, and the carafe is properly placed. If still not working, contact support.

USER MANUAL 10700 KORONA

Top-down view of a crourtleneck and a cup of dark coffee on a white saucer (no text or symbols visible)

CE

Black and silver coffee maker with digital display, no visible text or symbols on the device itself

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Kaffeeautomat

10700

1 HONIONA® max -10 -8 -6 -4 -2 min 2 3 10 4

Produktbeschreibung

Close-up of a black metal tool spilling red powder onto a white surface, with a numbered label '9' pointing to it (no text or symbols on the tool itself)

Diagram of a coffee maker with labeled parts 5 and 6 showing a feeding or processing process.

Close-up of a black coffee maker with labeled parts (7 and 8), no visible text or symbols beyond labels

Hand holding a black and silver stainless steel kettle (no text or symbols visible)

Black and silver photo of a coffee maker with a glass lid and control panel (no visible text or symbols)

1

2

3

10

4

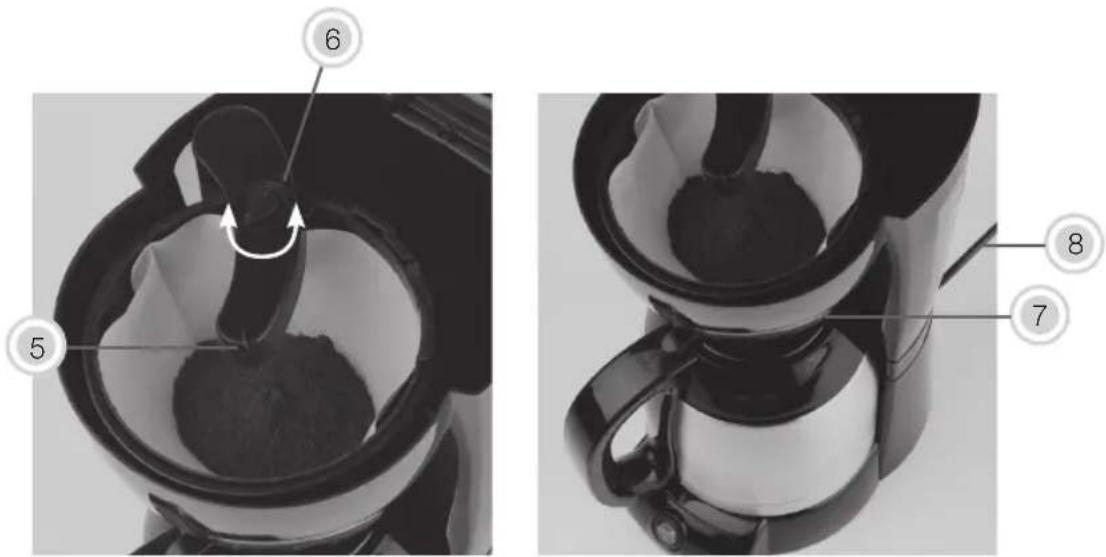

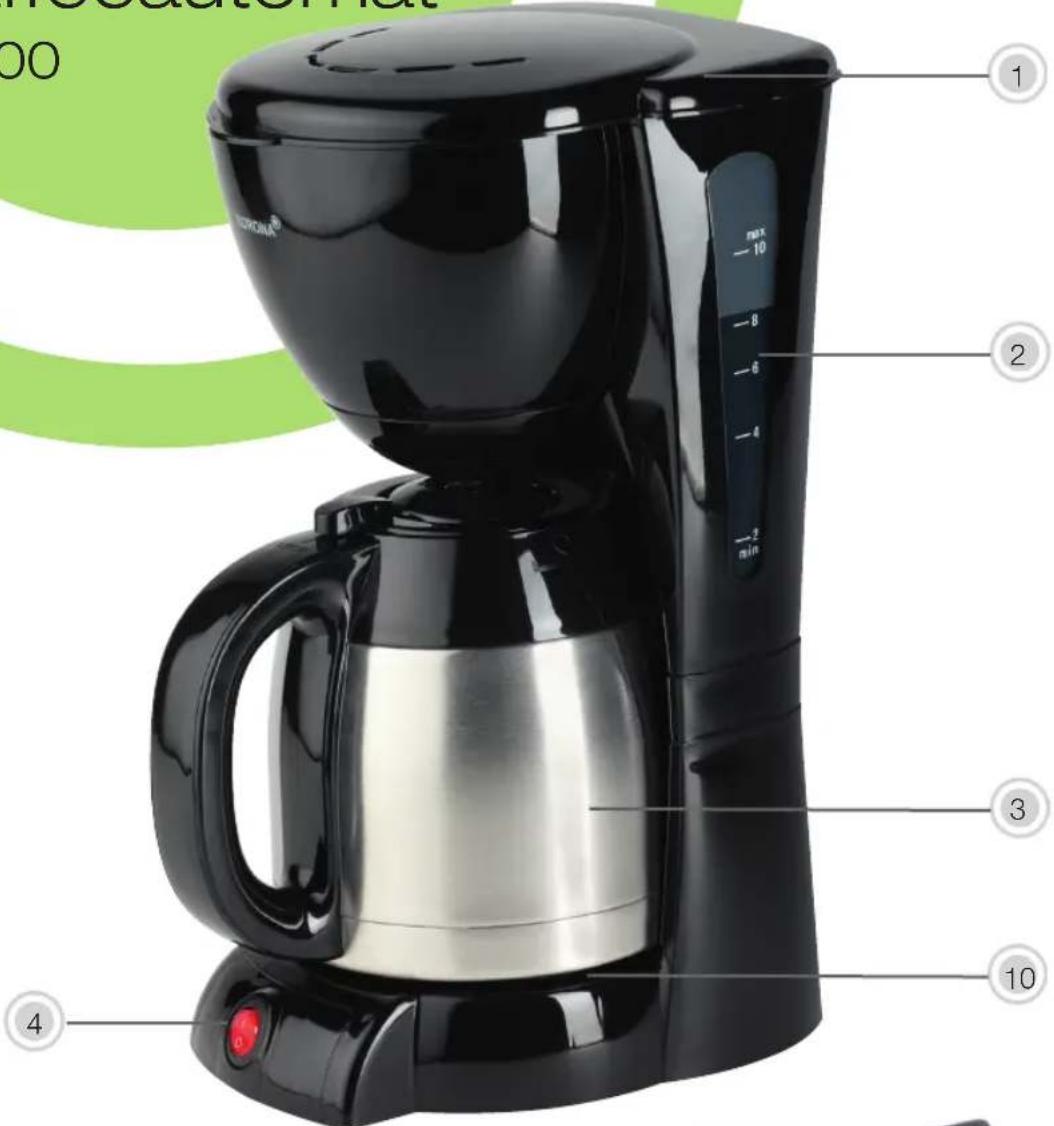

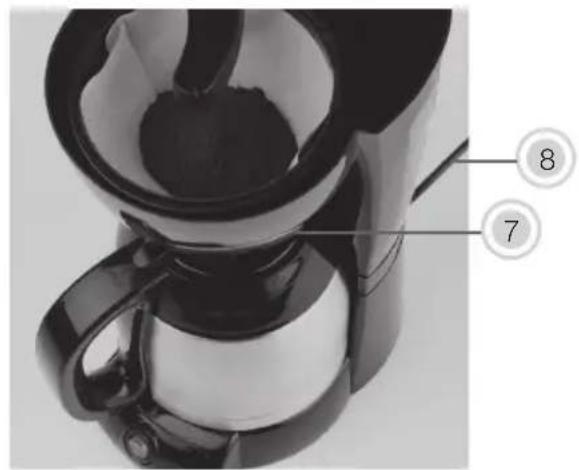

Product Description

1 Appliance lid
2 Water tank with water level indicator
3 Thermo carafe with brewing through lid
4 On/Off switch with indicator light
5 Water outlet
6 Aroma switch
7 Filter holder (removable)
8 Power cord and plug
9 Measuring spoon
10 Mounting-plate

Close-up of a black metal scoop filled with granular material, no text or symbols visible

9

Diagram of a coffee maker with labeled parts, showing the interior and exterior views of the device.

Intended Use

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. Never attempt to heat any other liquids in it.

This appliance is only intended for private household use!

Safety

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

Manufacturer takes no responsibility for any damage caused by incorrect use. Incorrect or improper use can damage the appliance and cause injuries to the user. Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Always unplug your appliance when it is not in use, and before cleaning.
  • Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  • in case of malfunction.
• if the appliance was dropped or is damaged otherwise.
  Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Three triangular warning symbols: warming, lightning bolt, and exclamation mark

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Your coffee maker is only intended for making coffee.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

- Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!

- Never operate the appliance without water.

- Never exceed the MAX. filling level to avoid any boiling water from spilling. Danger of serious burns!

- Only use the thermo jug with this coffee maker.

- Only use the thermo jug with the lid on (brewing and serving coffee).

- Do not clean the thermo jug in the dishwasher, it is not dishwasher safe.

- Do not use the thermo jug if it shows any signs of damages.

- Do not move the appliance during operation.

- Do not place the appliance near any inflammable objects.

- Always unplug the appliance after use and let it completely cool down before cleaning.

Before First Use

• Remove all packaging material and check whether the appliance is complete.
• Fully unwind the power cord.
• Clean the detachable parts as described under Cleaning and Care.
• Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
• Before making your first coffee, rinse the unit by filling the water tank (2) up to the Max. and operate it 2 -3 times without coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

Your coffee maker comes with an aroma function which enables you to choose your preferred strength of coffee (weak to strong).

Brewing Coffee

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
2. Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (10 cups).
3. Insert a standard paper filter 1 x 4 into the removable filter holder (7). Make sure to fold the edges of the paper filter and push it slightly down.
4. For each cup of coffee, use one leveled measuring spoon (9) of grounded coffee. For stronger or milder coffee, use the aroma switch (6) on top of the water outlet (5) to adjust the brewing strength of the coffee.
5. Make sure that the water outlet (5) is placed directly over the filter holder.
6. Close the appliance lid (1).
7. Place the thermo carafe (3) with its lid on into the appliance. Make sure that the lid is properly screwed on and that the handle of the lid is pointing towards the carafe handle.
8. Make sure that the thermo carafe is properly placed into the appliance and press the On/Off button (4) to switch on the appliance. The integrated indicator light indicates that the appliance is in operation. An integrated mechanism automatically opens the lid for the brewing through function.

Note: The brewing process can be interrupted at any time by pressing the On/Off button (4). Once the unit is switched on again the appliance will continue with the brewing process. If you wish to have a cup of coffee before the brewing cycle is completed, remove the thermo carafe (3) from the appliance. Due to the automatic drip stop, dripping will automatically cease. Put the thermo carafe (3) back within 30 seconds, dripping process will automatically resume.

1. After the brewing cycle is completed (no more water is dripping through the filter), switch off the appliance by pressing the On/Off switch (4).

Note: Never open the appliance lid (1) during operation – hot water could porate – Danger of serious burns!

1. When in use, the mounting-plate (10) for the thermo jug heats up. This function is not to keep the coffee warm. Please always switch off the appliance when the brewing process is finished. The coffee is kept warm by the double-layered stainless steal thermo jug.

Note: If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

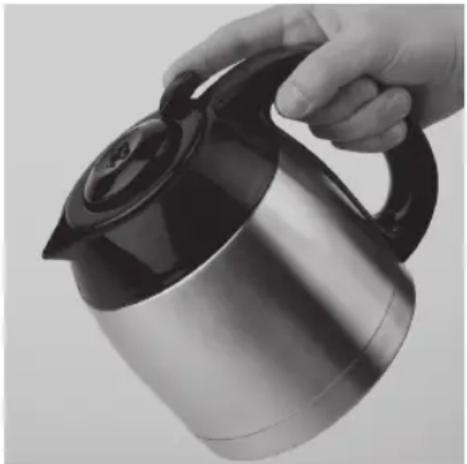

Thermo carafe / brewing through lid

Hand holding a black and silver digital water heater (no text or symbols visible)

The double walled stainless steel thermo carafe accumulates heat energy. Therefore, the carafe should preferably be filled to its max. capacity.

Tip: Before starting the brewing process, rinse your thermo jug with hot tap water. To obtain tasteful coffee, brew at least half a jug otherwise the temperature will not be held as efficiently.

The brewing through lid does not close hermetically. Therefore, always hold the thermo jug upright when filled with coffee.

When serving coffee, turn the lid anticlockwise by its handle from "LOCK" position, until the lid handle points towards the 🔔 symbol.

Note: After serving coffee, always close the lid of the jug in order to keep the coffee hot inside the thermo carafe.

To fasten the lid, turn it clockwise by its handle until the lid handle points towards the "LOCK" symbol.

To remove the lid from the thermo carafe, turn it anticlockwise by its handle until the lid handle points to the 🔍 symbol. The lid can now be lifted off.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth. Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

The thermo carafe is not dishwasher safe, rinse it with some tap water and dry it afterwards. All detachable parts can be cleaned in warm water using some dish-washing detergent, rinse them afterwards and dry them thoroughly.

Descaling

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove lime scale built up in the appliance.

To remove lime scale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under Before First Use.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Coffee maker 10700 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data

Voltage: 220 - 240 V \~ 50 Hz

Rated Power: 1000 Watt

Protection Class: I

Technical data subject to change!

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany

Service Adress:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telefon Hotline: Mail: web:

[phone] [e-mail] www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
