12010 - Coffee maker KORONA - Free user manual and instructions
Find the device manual for free 12010 KORONA in PDF.
| Product Type | Drip Coffee Maker |
| Brand | Korona |
| Model | 12010 |
| Dimensions (approx) | 25 x 20 x 30 cm |
| Weight (approx) | 1.5 kg |
| Power Supply | 120V / 60Hz (US) or 230V / 50Hz (EU) |
| Power Consumption | 800 - 1000 W |
| Water Tank Capacity | 1.2 L |
| Carafe Capacity | 10 cups (approx 1.2 L) |
| Brewing Method | Drip brewing with permanent or paper filter |
| Main Functions | Auto shut-off, keep-warm plate, pause & serve |
| Filter Type | #4 cone paper filter or included reusable filter |
| Indicators | Power indicator light, water level marks |
| Care and Cleaning | Removable filter basket, washable carafe, descale regularly |
| Safety Features | Auto shut-off after 2 hours, boil-dry protection |
| Spare Parts Availability | Carafe, filter basket, lid - contact Korona customer service |
| Repairability | User-replaceable parts: carafe, filter basket; other repairs by service center |
| Warranty | 1 year limited warranty |
| Manual Languages | English, German, and more via manual download |
Frequently Asked Questions - 12010 KORONA
User questions about 12010 KORONA
0 question about this device. Answer the ones you know or ask your own.
Ask a new question about this device
Download the instructions for your Coffee maker in PDF format for free! Find your manual 12010 - KORONA and take your electronic device back in hand. On this page are published all the documents necessary for the use of your device. 12010 by KORONA.
USER MANUAL 12010 KORONA


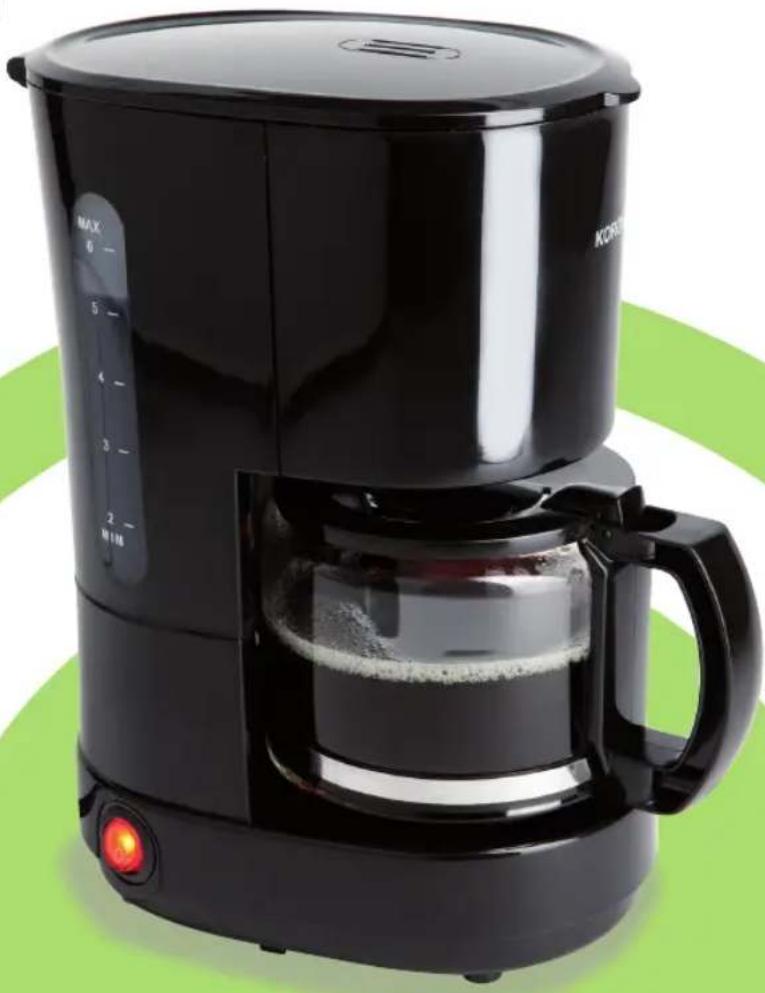

Black KOROLO coffee maker with clear glass and red control panel, no visible text or symbols on the device itself.CE
KORONA electric GmbH, Sundern/Germany
www.korona-electric.de
Kaffeeautomat
12010


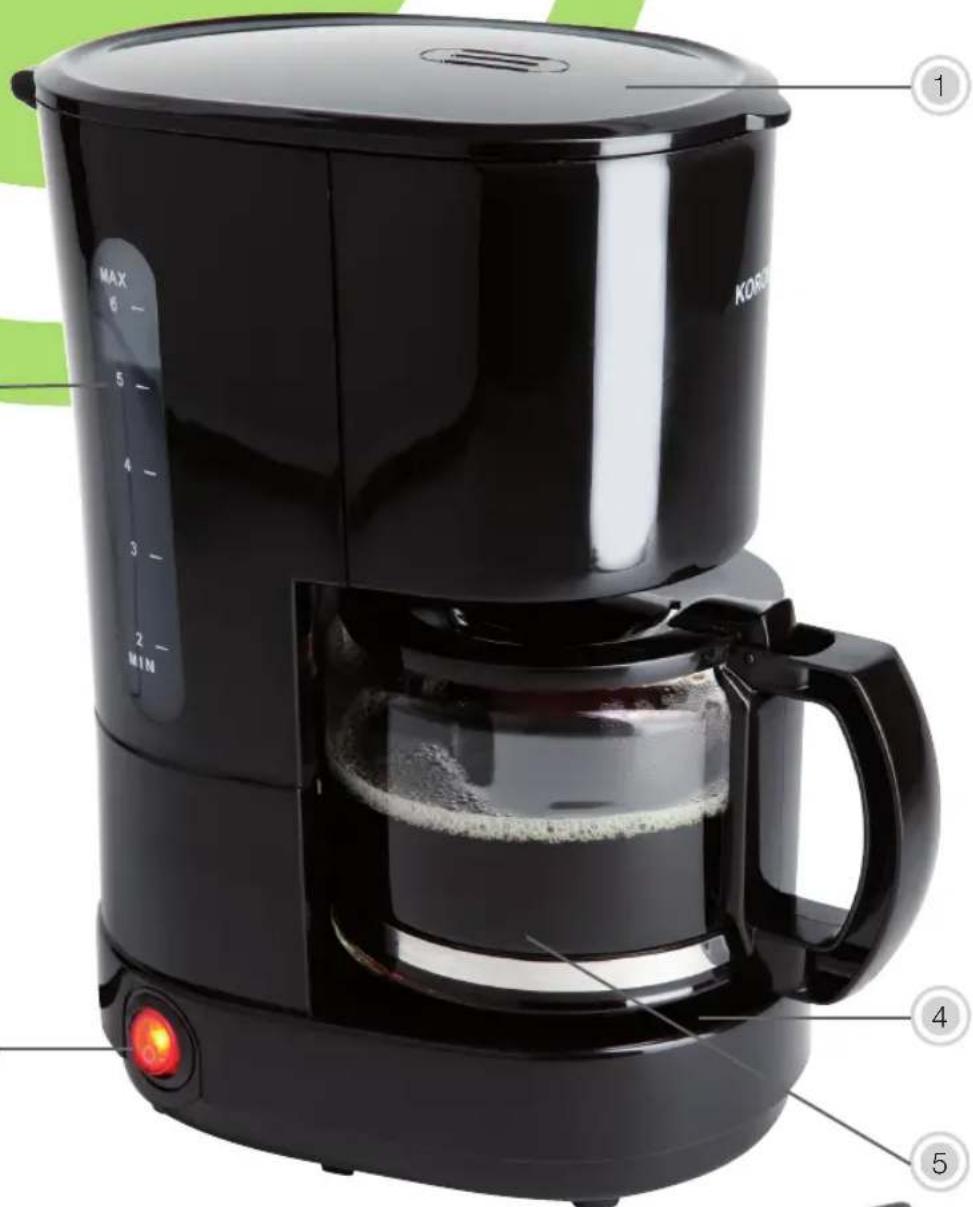

KORGE MAX 6 5 4 3 2 MIN ① ④ ⑤Produktbeschreibung


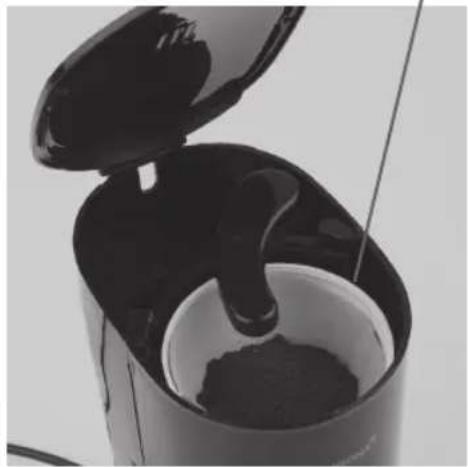

Close-up of a black coffee maker with open lid and white cup filled with powder (no visible text or symbols)
2 Water tank with water level indicator
3 On/Off switch with indicator light
4 Hot plate
5 Carafe
6 Filter holder + permanent filter

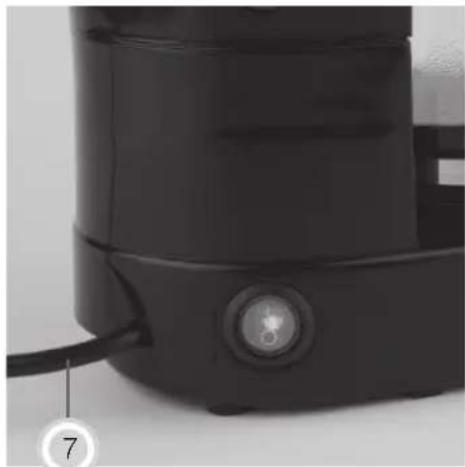

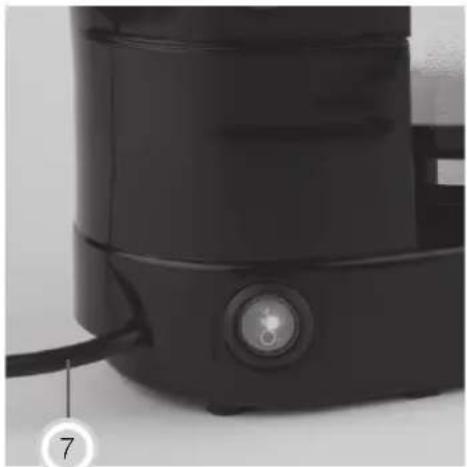

7 Power cord and plug
8 Measuring Spoon
Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.
This appliance is only intended for making coffee. Never attempt to heat any other liquids in it.
This appliance is only intended for private household use!
Safety
This symbol identifies hazards which may cause injuries!
This symbol warns of hot surfaces. Risk of burns!
This symbol identifies electric shock hazards!
General Safety Instructions
Manufacturer takes no responsibility for any damage caused by incorrect use. Incorrect or improper use can damage the appliance and cause injuries to the user. Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.
Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down.
Caution! Danger of electric shock!
- Never put the appliance, cord or plug into water or any other liquid.
- Do not use the appliance near a sink or wash basin.
- Do not use the appliance with wet hands.
- Do not use the appliance outdoors.
An electric appliance is not a toy!
- Never leave the appliance unattended during use.
- This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug – not the cord. - Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
- Do not bend the cord or wind it round the appliance.
Do not use the appliance,
- if the cord is damaged.
• in case of malfunction. - if the appliance was dropped or is damaged otherwise.
Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself. - Only use accessories evaluated for use with this appliance.
- Never attempt to drive any objects into the appliance.
- Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.
Special Safety Instructions
Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.
- Your coffee maker is only intended for making coffee.
- Place the appliance on an even and heat-resistant surface.
- Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!
- Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!
- Never operate the appliance without water.
- Never exceed the MAX. filling level to avoid any boiling water from spilling. Danger of serious burns!
- Do not leave the empty glass jug on the hot plate because otherwise the glass will break.
- Only use the carafe with this coffee maker.
- Only use the carafe with the lid on (brewing and serving coffee).
- Do not clean the carafe in the dishwasher, it is not dishwasher safe.
- Do not use the carafe if it shows any signs of damages.
- Do not move the appliance during operation.
- Do not place the appliance near any inflammable objects.
- Always unplug the appliance after use and let it completely cool down before cleaning.
Before First Use
- Remove all packaging material and check whether the appliance is complete.
- Fully unwind the power cord.
- Clean the detachable parts as described under Cleaning and Care.
- Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
- Before making your first coffee, rinse the unit by filling the water tank (2) up to the Max. and operate it 2 -3 times without coffee. After that your coffee maker is ready for operation.
Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.
Operation
Brewing Coffee
Using a Paper Filter
- Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
- Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (6 cups).
- Insert a standard paper filter 1 x 2 into the filter holder (6). Make sure to fold the edges of the paper filter and push it slightly down.
Note: When using a paper filter remove the permanent filter from the filter holder before inserting the paper filter.
- For each cup of coffee, use one leveled measuring spoon (8) of grounded coffee. For stronger or milder coffee, adjust the amount of coffee!
- Close the appliance lid (1).
- Place the carafe (5) into the appliance.
- Press the On/Off button (3) to switch on the appliance. The integrated indicator light indicates that the appliance is in operation.
The brewing process can be interrupted at any time by pressing the On/Off button (3). Once the unit is switched on again the appliance will continue with the brewing process.
Note: If you wish to have a cup of coffee before the brewing cycle is completed, remove the carafe (5) from the appliance. Due to the automatic drip stop, dripping will automatically cease. Put the carafe (5) back within 30 seconds, dripping process will automatically resume.
- After the brewing cycle is completed (no more water is dripping through the filter), the carafe (5) can be removed. When serving coffee do not remove the lid in order to preserve the proper serving temperature.
Note: Never open the appliance lid (1) during operation – hot water could evaporate – Danger of serious burns!
-
As long as the appliance is switched on, you can keep the coffee hot, by returning the carafe (5) to the hotplate (4) after serving. The hotplate (4) will automatically cycle on and off to maintain the ideal serving temperature as long as the coffee maker is switched on.
-
Press the On/Off button (3) to switch the appliance off.
Note: If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.
Using the permanent filter
When using the permanent filter, do not insert a paper filter!
Instead of inserting a paper filter into the filter holder (6) you can insert the permanent filter (6) into the filter holder. Add your grounded coffee and follow steps 5 – 10.
After use, remove the grounded coffee and clean the permanent filter (6) as described under Cleaning and Care.
Cleaning and Care
Before cleaning, always switch off the appliance and disconnect it from the set it completely cool down.
Never immerse the appliance in water. Danger! Electric Shock!
Clean the body of the appliance with a moistened soft cloth. Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.
The carafe is not dishwasher safe, rinse it with some tap water and dry it afterwards. All detachable parts can be cleaned in warm water using some dishwashing detergent, rinse them afterwards and dry them thoroughly.
Descaling
Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.
Never use any sharp, pointed or metal objects to remove lime scale built up in the appliance.
To remove lime scale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.
After descaling, always rinse your appliance as described under Before First Use.
Note: Descaler mixtures should not be poured down enamel coated sinks.
Storage
Disconnect the appliance from the mains and let it completely cool down.
Keep the appliance away from children and store it in a clean and dry place.
Disposal Instructions
Waste electrical devices marked with this sign must not be dis
posed of with your household waste, but – according to the EU
directive on Waste Electric And Electronic Equipment of 24th
March 2005 – are to be collected separately. Therefore, please
return this device at the end of its life cycle to special collection
points for disposal or your local dealer.
Your Coffee maker 12010 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.
Technical Data
Voltage: 220 - 240 V \~ 50 Hz
Rated Power: 600 Watt
Protection Class: I
Technical data subject to change!
Guarantee
This product is guaranteed against defects in materials and workmanship for a period of 2 years.
This guarantee is not valid:
- if the appliance has not been used in accordance to the instructions
• for damages due to wear and tear (batteries, etc.)
• for damages known by customer at time of purchase
• for damages caused by owner
This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.
In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).
The guarantee is to be asserted against
KORONA electric GmbH, Sundern/Germany
Service Adress:
KORONA Service, Am Steinbach 9, 59872 Meschede, Germany
Telefon Hotline: Mail: web:
+49 2933 90284-80 service@korona-electric.de www.korona-electric.de
within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
