Product Type	Drip Coffee Maker
Brand	Korona
Model	15010
Capacity	10 cups (1.25 L)
Power Consumption	800 W
Voltage	220-240 V, 50/60 Hz
Dimensions (HxWxD)	33 cm x 25 cm x 22 cm
Weight	1.5 kg
Material	Plastic housing, glass carafe
Carafe Type	Glass with handle and lid
Water Tank	Removable, transparent with level marks
Filter Type	Paper filter (size #4) or permanent filter (optional)
Brewing Time	Approx. 10 minutes for full carafe
Keep Warm Function	Automatic, keeps coffee hot for 1 hour
Auto Shut-off	Yes, after 1 hour
Anti-drip System	Yes, allows pouring during brewing
Water Level Indicator	Yes, on water tank
Cord Length	Approx. 80 cm
Cleaning	Wipe with damp cloth; descale regularly
Safety	Thermal fuse, overheat protection
Spare Parts	Carafe, filter basket, water tank available
Included Accessories	Glass carafe, measuring spoon, instruction manual
Warranty	2 years (subject to local regulations)

Frequently Asked Questions - 15010 KORONA

How do I descale my Korona 15010 coffee maker?

Mix equal parts water and white vinegar or use a commercial descaling solution. Fill the water tank, run a brew cycle without coffee, then rinse by running two cycles with fresh water.

Why is my coffee not hot enough?

Ensure the carafe is properly placed on the warming plate. The warming plate may need cleaning; also, preheat the carafe with hot water before brewing.

Can I use a permanent filter?

Yes, you can use a reusable #4 cone-shaped permanent filter instead of paper filters. Clean it after each use.

What should I do if the coffee maker leaks?

Check that the water tank lid is closed properly and the carafe is correctly positioned. Examine the anti-drip valve for blockages. Clean if necessary.

How do I clean the carafe?

Wash the glass carafe with warm, soapy water and a soft sponge. Avoid abrasive cleaners. Rinse thoroughly. The carafe is dishwasher safe on top rack.

Why does brewing stop prematurely?

This may indicate mineral buildup. Descale the machine. Also check if the water tank is empty or if the filter basket is overfilled.

How many cups does the 15010 make?

It has a 10-cup capacity (1.25 liters). A cup is typically 125 ml.

What type of coffee grounds should I use?

Use medium-ground drip coffee. Too fine may clog the filter; too coarse may result in weak coffee.

Does the machine have an auto shut-off?

Yes, it automatically turns off after 1 hour of keeping the coffee warm for safety.

Where can I find spare parts?

Spare parts like the carafe, filter basket, and water tank are available from the manufacturer's website or authorized dealers.

USER MANUAL 15010 KORONA

Top-down view of a crourt board and a cup of dark coffee on a white saucer (no text or symbols visible)

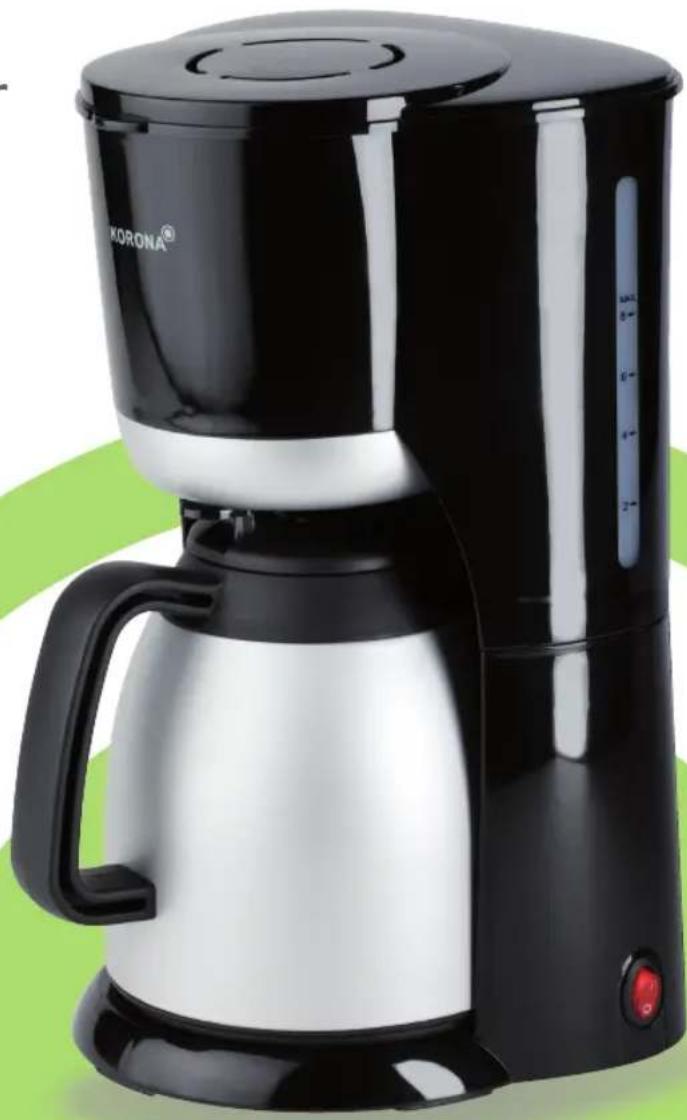

Exterior view of a black and silver KORONA coffee maker with water filter (no visible text or symbols on the device itself)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Kaffeeautomat

15010

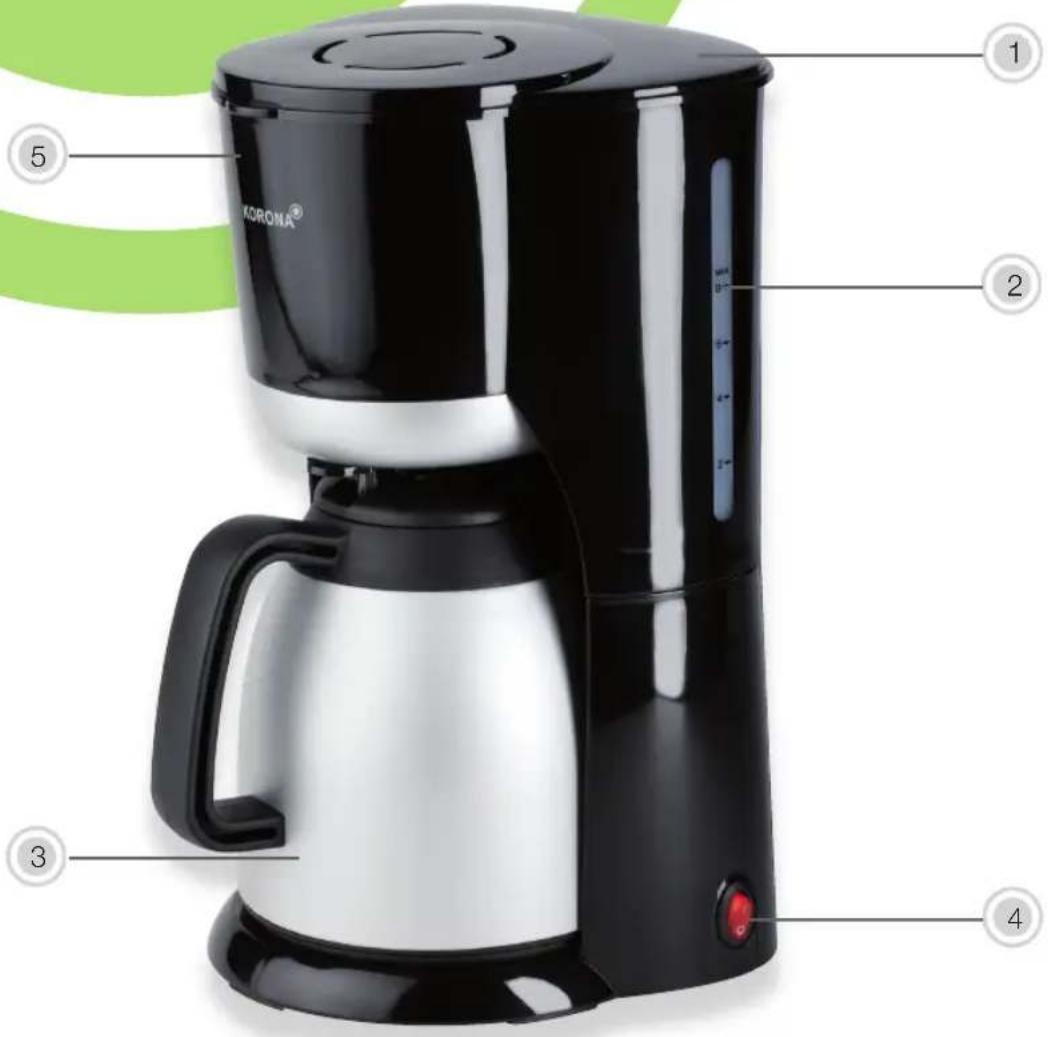

Labeled diagram of a Korona coffee maker with numbered parts for identification

Produktbeschreibung

Close-up of a black kettle with a white lid and handle, no visible text or symbols

Two-step illustration: top shows a black cylindrical device with a circular button, bottom shows powder being poured into a container (no text or symbols)

Close-up of a mechanical component with a circular label showing number 1, no visible text or symbols

Close-up of a black mechanical component with a circular label containing the number 2 (no visible text or symbols on the object itself)

Close-up of a dark, circular object with a curved handle and a numbered label '3' in the corner (no readable text or symbols on the object itself)

Close-up of a black ceramic kettle on a stovetop (no visible text or symbols)

1 Appliance lid
2 Water tank with water level indicator
3 Thermo carafe with brewing through lid
4 On/Off button with indicator light
5 Removable fi Iter holder

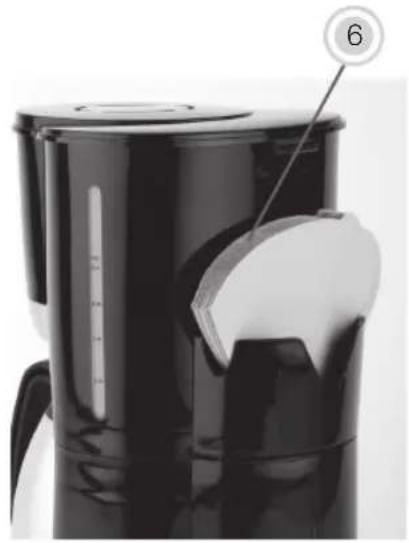

6 Paper filter storage

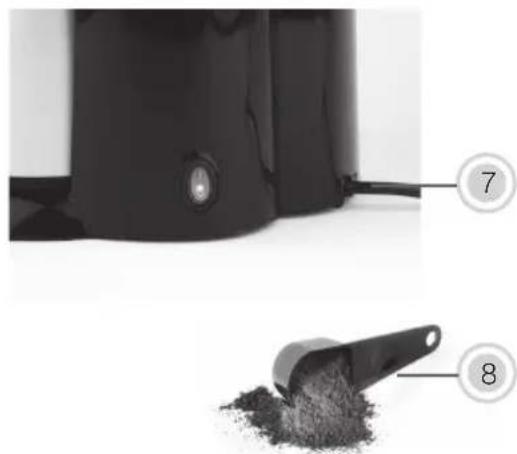

7 Power cord and plug
8 Measuring Spoon

Instruction Manual
ENGLISH

Close-up of a black industrial kettle with a white lid and label '6' pointing to it (no visible text or symbols on the device itself)

Close-up of a black cylindrical device with a small circular button and a numbered label '7' pointing to it (no visible text or symbols on the device itself)

Close-up of a black funnel-shaped container filled with granular material, with a circled number 8 pointing to it (no text or symbols on the container itself)

Intended Use

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. Never attempt to heat any other liquids in it.

This appliance is only intended for private household use!

Safety

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

Manufacturer takes no responsibility for any damage caused by incorrect use. Incorrect or improper use can damage the appliance and cause injuries to the user. Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

• Never put the appliance, cord or plug into water or any other liquid.
• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
  • Children should be supervised to ensure that they do not play with the appliance.
  • Always unplug your appliance when it is not in use, and before cleaning.
• Always pull the plug – not the cord.
• Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.
• Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.
• Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
  • in case of malfunction.
• if the appliance was dropped or is damaged otherwise.
  Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
• Only use accessories evaluated for use with this appliance.
• Never attempt to drive any objects into the appliance.
• Never attempt to open the housing yourself!
• The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of burns.

• Your coffee maker is only intended for making coffee.
• Place the appliance on a even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

- Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!

- Never operate the appliance without water.

- Never exceed the MAX. filling level to avoid any boiling water from spilling. Danger of serious burns!

- Only use the thermo jug with this coffee maker.

- Only use the thermo jug with the lid on (brewing and serving coffee).

- Do not clean the thermo jug in the dishwasher, it is not dishwasher safe.

- Do not use the thermo jug if it shows any signs of damages.

- Do not move the appliance during operation.

- Do not place the appliance near any inflammable objects.

- Always unplug the appliance after use and let it completely cool down before cleaning.

Before First Use

• Remove all packaging material and check whether the appliance is complete.
• Fully unwind the power cord.
• Clean the detachable parts as described under Cleaning and Care.
• Place the appliance on a even and heat resistant surface and connect it to a properly installed wall socket.
• Before making your first coffee, rinse the unit by filling the water tank (2) up to the Max. and operate it 2 - 3 times without coffee. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Warning: Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

Your coffee maker 15010 comes with an integrated filter paper storage which allows you to always have your filter paper on hand.

Brewing Coffee

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
2. Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (8 cups).
3. Insert a standard paper filter 1 x 4 into the removable filter holder (5). Make sure to fold the edges of the paper filter and push it slightly down.
4. For each cup of coffee, use one leveled measuring spoon (8) of grounded coffee. For stronger or milder coffee, adjust the amount of coffee!
5. Close the appliance lid (1).
6. Place the thermo carafe (3) with its lid on into the appliance. Make sure that the lid is properly screwed on and that the lever button on the lid is pointing towards the handle.
7. Make sure that the thermo carafe is properly placed into the appliance and press the On/Off button (4) to switch on the appliance. The integrated indicator light indicates that the appliance is in operation. An integrated mechanism automatically opens the lid for the brewing through function.

Note: The brewing process can be interrupted at any time by pressing the On/Off button (4). Once the unit is switched on again the appliance will continue with the brewing process.

Note: If you wish to have a cup of coffee before the brewing cycle is completed, remove the thermo carafe (3) from the appliance. Due to the automatic drip stop, dripping will automatically cease. Put the thermo carafe (3) back within 30 seconds, dripping process will automatically resume.

1. After the brewing cycle is completed (no more water is dripping through the filter), switch off the appliance by pressing the On/Off switch (4).

Note: Never open the appliance lid (1) during operation – hot water could evaporate – Danger of serious burns!

Note: If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Inserting the filter hold

Close-up of a mechanical component with a circular indicator labeled '1' (no visible text or symbols on the main subject)

Close-up of a black mechanical component with a circular label containing the number 2 (no readable text or symbols)

Close-up of a dark, circular object with a loop handle, possibly a container or container with a number 3 in the corner (no visible text or symbols on the object itself)

Please refer to the pictorial process flow for the onset of filter holder. Set the a (fig. 1) filter holder (5) with cut-out at the top after rear showing and keep in mind that the latch guidance (fig. 2) shows at the end of handle with the open side as well to the rear. After the filter holder as described, you move the handle after front (fig. 3), until the filter holder is locked.

Thermo carafe / brewing through lid

Close-up of a black ceramic kettle on a stove (no visible text or symbols)

The thermo carafe accumulates heat energy. Therefore, the carafe should preferably be filled to its max. capacity.

Tip: Before starting the brewing process, rinse your thermo carafe with hot tap water. To obtain tasty coffee, brew at least half a carafe otherwise the temperature will not be held as efficiently.

The brewing through lid does not close hermetically. Therefore, always hold the thermo carafe upright when filled with coffee.

When serving coffee, simply press down and hold the lever button of the lid and the coffee will be pouring out from the spout.

To remove the lid, turn it anti-clockwise until it can be lifted off.

To fasten the lid, insert it into the thermo carafe and turn it clockwise until it is fixed. The lever button of the lid should point towards the handle of the jug.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the et it completely cool down.

Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth. Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

The thermo carafe is not dishwasher safe, rinse it with some tap water and dry it afterwards. All detachable parts can be cleaned in warm water using some dish-washing detergent, rinse them afterwards and dry them thoroughly.

Descaling

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove lime scale built up in the appliance.

To remove lime scale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under Before First Use.

Note: Descaler mixtures should not be poured down enamel coated sinks.

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Coffee maker 15010 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data

Voltage: 230 V \~ 50/60 Hz

Rated Power: 900 Watt

Protection Class: I

Technical data subject to change!

Guarantee

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to the instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany

Service Adress:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telefon Hotline: Mail: Web:

[phone] [e-mail] www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (due to guarantee case) are not given to the customer.
