10220 - Coffee maker KORONA - Free user manual and instructions

Product Type	Coffee Maker
Brand	Korona
Model	10220
Capacity	1.25 L (10 cups)
Power	1000 W
Voltage	220-240 V ~ 50/60 Hz
Dimensions (approx.)	25 x 20 x 30 cm
Weight (approx.)	1.5 kg
Filter Type	Permanent reusable filter (included) or paper filter #4
Features	Programmable timer, keep-warm function, auto shut-off, water level indicator, anti-drip system
Housing Material	Plastic with stainless steel finish
Carafe Material	Glass with plastic handle
Cord Length	0.8 m
Maintenance	Descaling recommended every 3 months; clean removable parts with warm soapy water
Safety	Automatic power-off after 2 hours; overheat protection
Spare Parts Available	Carafe, filter basket, water tank lid
Repairability	User-replaceable parts: carafe, filter; professional repair for heating element
General Information	Drip coffee maker suitable for home use; manual in multiple languages available for download

Frequently Asked Questions - 10220 KORONA

How do I descale the coffee maker?

Use a mixture of equal parts water and white vinegar, run a brew cycle, then rinse with clean water twice. Repeat every 3 months.

Can I use paper filters?

Yes, you can use standard #4 paper cone filters. The machine also includes a permanent reusable filter.

How do I set the programmable timer?

Press the Program button, use the hour and minute buttons to set the desired brew time, and confirm with the Set button.

Why is my coffee maker not brewing?

Check that the water tank is filled, the carafe is properly positioned, and the filter basket is inserted. Also ensure the power cord is plugged in and the machine is turned on.

How do I clean the carafe?

Wash the carafe with warm soapy water and a soft sponge. Avoid abrasive cleaners. Rinse thoroughly.

What does the auto shut-off feature do?

The machine automatically turns off after 2 hours of inactivity to save energy and prevent accidents.

Can I brew less than a full pot?

Yes, you can brew as little as 2 cups. Ensure the water level is above the minimum mark.

How do I replace the reusable filter?

The permanent filter can be removed by lifting it out of the basket. Clean it regularly and replace if damaged.

What should I do if the machine leaks?

Check if the carafe is correctly placed and the water tank lid is sealed. Inspect the anti-drip valve for blockages. If leaking persists, contact support.

Is the coffee maker suitable for commercial use?

No, this model is designed for household use only. Using it commercially may void the warranty.

USER MANUAL 10220 KORONA

Top-down view of a coffee cup with dark liquid, placed on a saucer with a decorative leaf-shaped lid (no text or symbols visible)

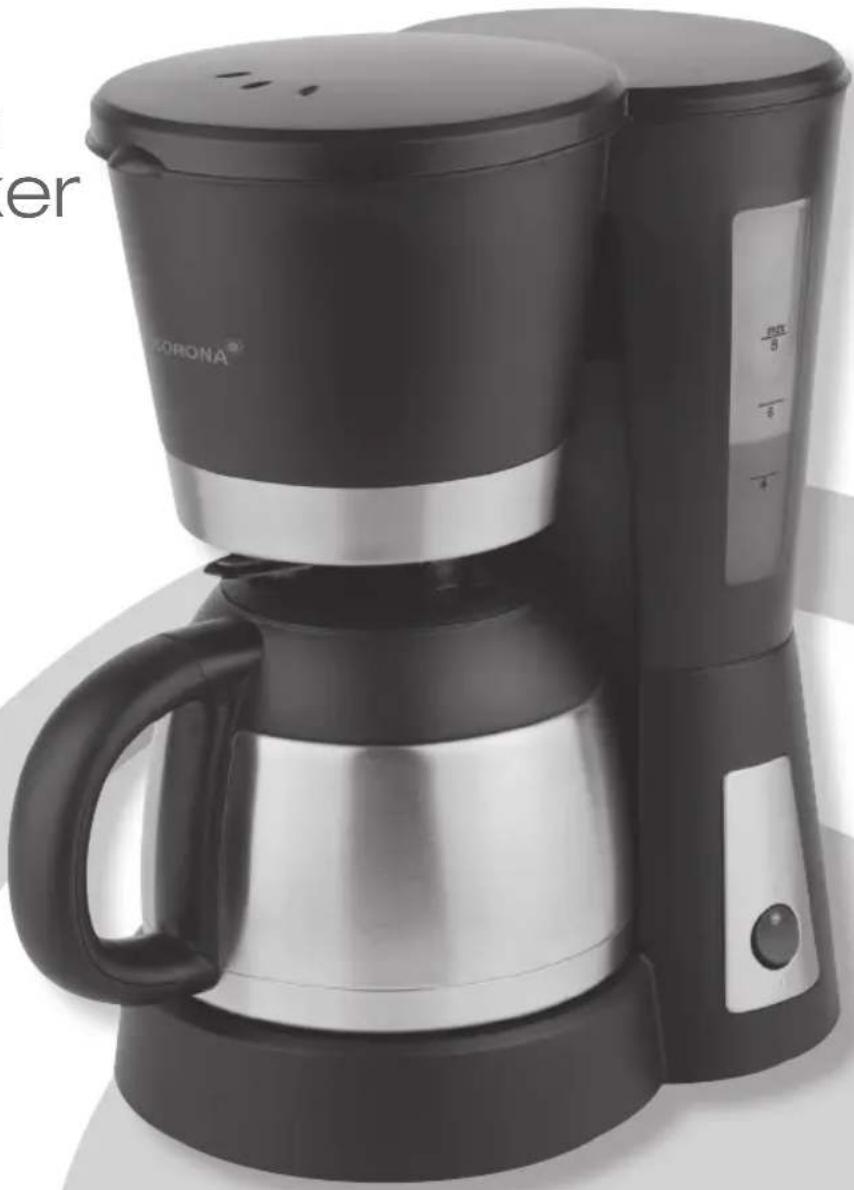

Black and silver model of a Korona coffee maker with a digital display (no visible text or symbols on the device itself)

CE

KORONA electric GmbH, Sundern/Germany

www.korona-electric.de

Warning symbols including exclamation mark, steam symbol, and lightning bolt

Close-up of a black ceramic pot with visible branding and internal components (no readable text or symbols)

Before use, please read these instructions carefully and keep them in a safe place for future reference. When passing on the appliance to a third party, make sure to include these instructions for use.

This appliance is only intended for making coffee. Never attempt to heat any other liquids in it. This appliance is only intended for private household use and not for commercial use!

Safety:

This symbol identifies hazards which may cause injuries!

This symbol warns of hot surfaces. Risk of burns!

This symbol identifies electric shock hazards!

General Safety Instructions

• Manufacturer takes no responsibility for any damage caused by incorrect use.
• Incorrect or improper use can damage the appliance and cause injuries to the user.
• Before connecting this appliance to the mains, make sure your local voltage matches the technical data of the appliance. Otherwise the appliance may overheat and get damaged.

Caution! Danger of electric shock!

- Never put the appliance, cord or plug into water or any other liquid.

• Do not use the appliance near a sink or wash basin.
• Do not use the appliance with wet hands.
• Do not use the appliance outdoors.

An electric appliance is not a toy!

• Never leave the appliance unattended during use.
- This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning the use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised.

- Keep the appliance and its cord out of reach of children less than 8 years.

- Always unplug your appliance when it is not in use, and before cleaning.

• Always pull the plug – not the cord.

- Keep the appliance and the cord well away from any hot surfaces to avoid any damage to the appliance.

- Make sure the cord may not inadvertently be pulled or cause anyone to trip when in use. Do not allow the cord to hang over sharp edges.

- Do not bend the cord or wind it round the appliance.

Do not use the appliance,

• if the cord is damaged.
• in case of malfunction.
- if the appliance was dropped or is damaged otherwise.
Have it checked and, if necessary, repaired by a qualified person/Customer Service. Never attempt to make any modifications to or repair the appliance yourself.
- Only use accessories evaluated for use with this appliance.
- Never attempt to drive any objects into the appliance.

• Never attempt to open the housing yourself!
- The appliance is not intended to be operated by means of an external timer or separate remote-control system.

Special Safety Instructions

Warning symbols including exclamation mark, steam symbol, and lightning bolt

Warning! To avoid the possibility of injury/damage to the appliance, electric shock and risk of fire and burns!

• Your coffee maker is only intended for making coffee.
• Place the appliance on an even and heat-resistant surface.
• Attention: The temperature of accessible surfaces may be high during operation. Therefore, do not touch the appliance during and/or immediately after operation. Only use the handle. Danger of serious burns!

- Never open the filter cover or the filter holder respectively during operation, hot steam evaporates. Danger of serious burns!

• Never operate the appliance without water.

- Never exceed the Max. filling level to avoid any boiling water from spilling. Danger of serious burns!

• Only use the thermo jug with this coffee maker.

- Only use the thermo jug with the lid on (brewing and serving coffee).

- Do not clean the thermo jug in the dishwasher, it dishwasher safe.

- Do not use the thermo jug if it shows any signs of damages.

- Do not move the appliance during operation.

- Do not place the appliance near any inflammable objects.

- Always unplug the appliance after use and let it completely cool down before cleaning.

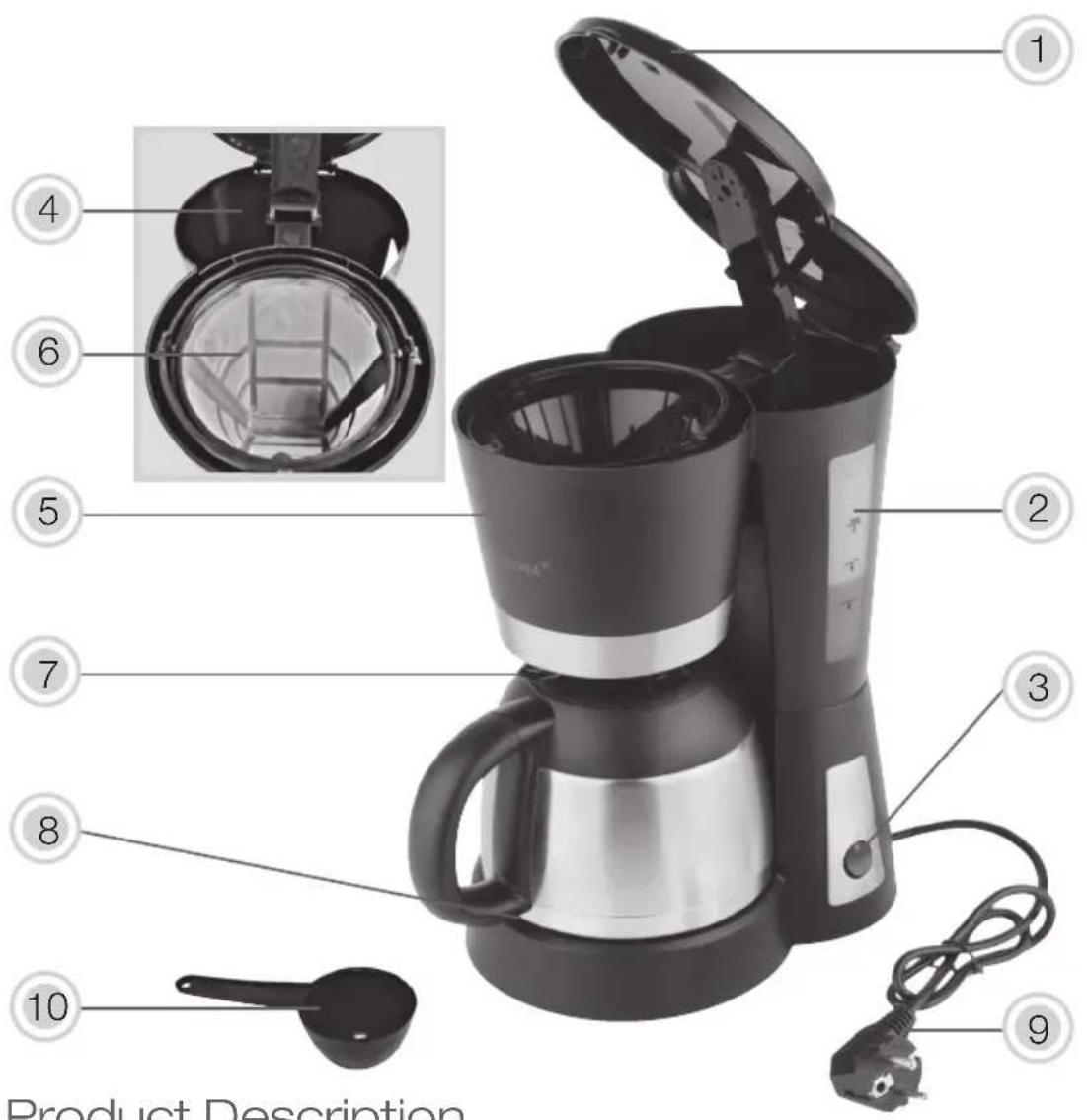

Product Description

Product Description

1. Appliance lid
2. Water tank with water level indicator
3. On / Off switch with indicator light
4. Water outlet
5. Filter holder
6. Permanent filter
7. Thermo jug with brewing through lid
8. Mounting plate
9. Power cord and plug
10. Measuring spoon

Before First Use

• Remove all packaging material and check whether the appliance is complete.
  • Fully unwind the power cord.
• Clean the detachable parts as described under Clean and Care.
• Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.
• Before making your first coffee, rinse the unit by filling the water tank (2) up to the Max. and operate it 2-3 times without coffee and paper filter resp. permanent filter. After that your coffee maker is ready for operation.

Note: After each rinse cycle, the appliance has to be switched off for approx. 5 minutes, in order to cool down

Warning: ⚠️ Plastic bags are a danger to toddlers and babies, therefore keep them away to avoid suffocation.

Operation

Your coffee maker 10220 comes with a permanent filter which has to be inserted into the filter holder before use. The permanent filter has to be cleaned after each time of usage. The usage of a paper filter is therefore not necessary. But, if you should wish to use a paper filter, just insert it (size 1 x 4) into the filter holder.

Brewing Coffee

Using a Paper Filter

1. Place the appliance on an even and heat resistant surface and connect it to a properly installed wall socket.

2. Open the appliance lid (1) and fill the water tank (2) with cold, fresh tap water. The markings on the water tank (2) indicate the required water level to brew the desired number of cups. Do not exceed the Max. filling level (8 cups).

3. Insert a standard paper filter 1 x 4 into the removable filter holder (5). Make sure to fold the edges of the paper filter and push it slightly down.

Note: When using a paper filter remove the permanent filter from the filter holder before inserting the paper filter.

1. For each cup of coffee, use one leveled measuring spoon (10) of grounded coffee. For stronger or milder coffee, adjust the amount of coffee!

2. Close the appliance lid (1).

3. Place the thermo jug (7) with its lid on into the appliance. Make sure that the lid is properly screwed on and that the lever button of the lid is pointing towards the handle.

4. Make sure that the thermo jug (7) is properly placed in the appliance and press the On/Off button (3) to switch on the appliance. The integrated indicator light indicates that the appliance is in operation. An integrated mechanism automatically opens the lid for the brewing through function. Note: The brewing process can be interrupted at any time by pressing the On/Off button (3). Once the unit is switched on again, the appliance will continue with the brewing process. If you wish to have a cup of coffee before the brewing cycle is completed, remove the thermo jug (7) from the appliance. Due to the automatic drip stop, dripping will automatically cease. Put the thermo jug (7) back within 30 seconds dripping process will automatically resume.

5. After the brewing cycle is completed (no more water is dripping through the filter), switch off the appliance by pressing the On/Off switch (3).

Note: Never open the appliance lid (1) during operation – hot water could evaporate – Danger of serious burns!

Note: If you wish to prepare more than one pot of coffee, the appliance has to be switched off for approx. 5 minutes, in order to cool down.

Using the permanent filter

When using the permanent filter, do not insert a paper filter!

Instead of inserting a paper filter into the filter holder (5) you can insert the permanent filter (6) into the filter holder (5). Add your grounded coffee and follow steps 5 – 8.

After use, remove the grounded coffee and clean the permanent filter (6) as described under Cleaning and Care.

Thermo jug / brewing through lid

The thermo jug (7) accumulates heat energy. Therefore, the jug should preferably be filled to its max. capacity.

Tip: Before starting the brewing process, rinse your thermo jug (7) with hot tap water. To obtain tasteful coffee, br least half a jug otherwise the temperature will not be held as efficiently.

The brewing through lid does not close hermetically. Therefore, always hold the thermo jug (7) upright when filled with coffee.

When serving coffee, simply press down and hold the lever button of the lid and the coffee will be pouring out from the spout.

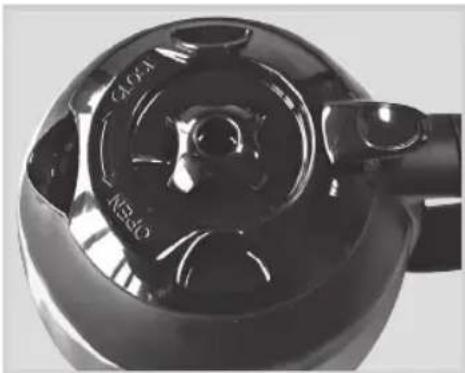

Removing / Fastening the brewing through lid

To remove / fasten the lid follow the arrow position.

Close-up of a black ceramic teapot with embossed markings (no readable text or symbols)

To remove the lid, turn it anti-clockwise until it can be lifted off. To fasten the lid, insert it into the thermo jug and turn it clockwise until it is fixed. The lever button of the lid should point towards the handle of the jug.

Cleaning and Care

Before cleaning, always switch off the appliance and disconnect it from the mains. Let it completely cool down. Never immerse the appliance in water. Danger! Electric Shock!

Clean the body of the appliance with a moistened soft cloth. Do not use any aggressive cleaning agents and/or other hard objects to clean the appliance.

The thermo jug is not dishwasher safe, rinse it with some tap water and dry it afterwards. All detachable parts can be cleaned in warm water using some dishwashing detergent, rinse them afterwards and dry them thoroughly.

DESCALING

Depending on the water quality and usage, calcification can occur. Therefore, to keep your coffee maker operating efficiently, you should descale it on a regular basis.

Never use any sharp, pointed or metal objects to remove limescale built up in the appliance. To remove limescale, use a common gentle descaler, which is suitable for your appliance. Follow the manufacturer's instructions.

After descaling, always rinse your appliance as described under Before First Use.

Note: Descaler mixtures should not be poured down enamel coated sinks

Storage

Disconnect the appliance from the mains and let it completely cool down.

Keep the appliance away from children and store it in a clean and dry place.

Disposal Instructions

Waste electrical devices marked with this sign must not be disposed of with your household waste, but – according to the EU directive on Waste Electric And Electronic Equipment of 24th March 2005 – are to be collected separately. Therefore, please return this device at the end of its life cycle to special collection points for disposal or your local dealer.

Your Coffee maker 10220 is packed in a retail box. Such boxes are recyclable waste, i.e. they are reusable or recyclable.

Technical Data:

Voltage: 220 - 240 V \~ 50 Hz

Rated Power: 800 W

Protection Class: I

Technical data subject to change!

Guarantee:

This product is guaranteed against defects in materials and workmanship for a period of 2 years.

This guarantee is not valid:

• if the appliance has not been used in accordance to instructions
  • for damages due to wear and tear (batteries, etc.)
  • for damages known by customer at time of purchase
  • for damages caused by owner

This guarantee does not affect your statutory right, nor any legal right you may have as a costumer under applicable national legislation governing the purchase of goods.

In order to assert his/her right in a guarantee case during the guaranteed period, the customer must provide evidence of the date of purchase (receipt).

The guarantee is to be asserted against

KORONA electric GmbH, Sundern/Germany.

Service Address:

KORONA Service, Am Steinbach 9, 59872 Meschede, Germany

Telephone Hotline: [phone]

Mail: [e-mail]

web: www.korona-electric.de

within 2 years after the date of purchase. In case of guarantee the customer is given the right to get the appliance repaired at our own or at an authorized shop. Further rights (du guarantee case) are not given to the customer.

KORONA

Abstract geometric shape with curved and angular gray segments, no text or symbols present

Ref: 10220/15-2014.1
