Product Type	Digital Satellite Decoder
Brand	Megasat
Model	3410se
Dimensions (approx.)	28 x 18 x 5 cm
Weight (approx.)	0.5 kg
Power Supply	12V DC, 1A via external adapter
Power Consumption	Max 15 W
Video Output	HDMI, Composite (RCA), RF
Audio Output	HDMI, Analog Stereo (RCA)
Supported Video Standards	MPEG-2, MPEG-4, H.264, HD 1080i
Tuner	DVB-S/S2, Single
Connectivity	USB 2.0, Ethernet, DiSEqC 1.0/1.2
Main Functions	Satellite TV reception, EPG, Parental lock, Timer record via USB
Remote Control	Included, infared
Maintenance	Clean with a soft, dry cloth. Do not use liquids or solvents.
Safety	Keep away from water and excessive heat. Use only the supplied power adapter.
Spare Parts & Repairability	Remote control and power adapter available separately. Repairs by qualified personnel only.
Operating Temperature	0°C to 40°C
Package Contents	Decoder, Remote control, Power adapter, HDMI cable, User manual

Frequently Asked Questions - 3410se MEGASAT

How do I connect the Megasat 3410se to my satellite dish?

Connect the satellite cable from your dish to the LNB IN port on the back of the decoder. Ensure the dish is aligned properly and the LNB is compatible (DVB-S/S2).

What power supply does the 3410se use?

It uses an external 12V DC, 1A power adapter. Only use the adapter provided with the unit to avoid damage.

Can I record programs with this decoder?

Yes, the decoder supports USB recording on a connected USB drive. You can schedule timer recordings via the EPG menu.

How do I update the firmware?

Download the latest firmware from the Megasat website to a USB stick, insert it into the decoder, and navigate to Settings > Firmware Update to install.

The decoder shows 'No Signal'. What should I do?

Check the antenna cable connection, ensure the dish is aligned to the satellite, and verify the DiSEqC settings in the installation menu match your setup.

What video outputs are available?

The decoder has HDMI (recommended), composite (RCA yellow/white/red), and RF output for older TVs.

Does it support HD channels?

Yes, it supports MPEG-4 and H.264 video codecs, allowing reception of HD channels up to 1080i resolution.

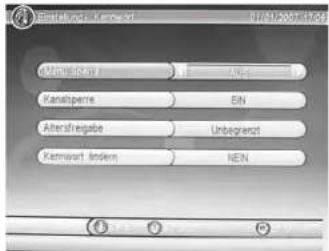

How do I set the parental lock?

Go to Settings > Parental Control and set a 4-digit PIN. You can then block specific channels or limit viewing according to age ratings.

Can I use a universal remote?

Yes, but you may need to program it with the correct code for Megasat decoder or use the learning function. Refer to your universal remote's instructions.

How do I clean the device?

Unplug the decoder and use a soft, dry cloth to wipe the surface. Never use liquids, solvents, or abrasive cleaners.

USER MANUAL 3410se MEGASAT

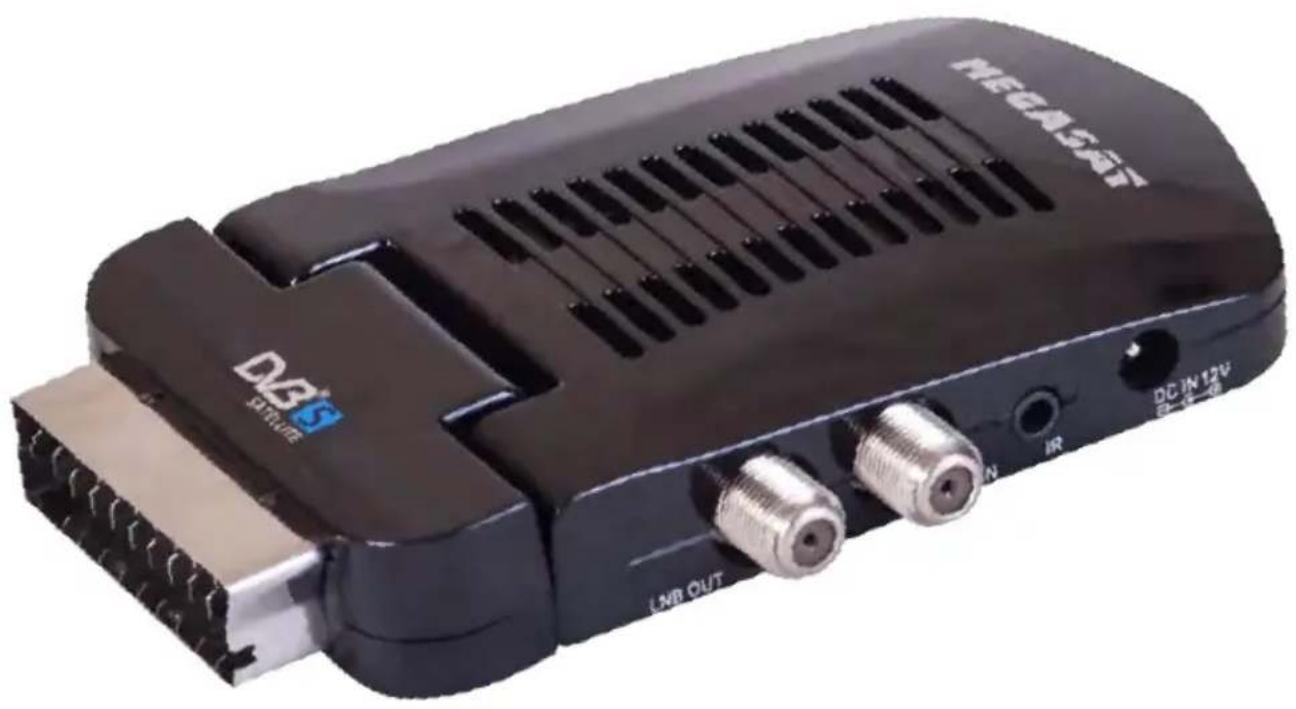

3410se Scart Receiver

Deutsch

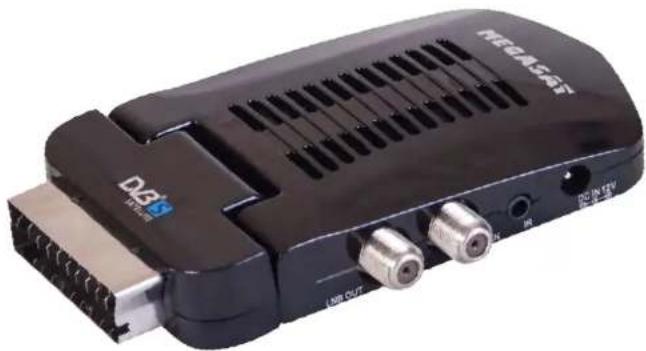

Black MEGASAT satellite TV device with external connectors and ventilation slots (no visible text or symbols on body)

Inhaltsverzeichnis

• Megasat 3410se Scart Receiver

• 230/12V Netzteil

- Fernbedienung

• KFZ-Adapterkabel

- 7x AAA Batterien

- USB Adapter

Technical line drawing of a mechanical component with internal channels and a base, labeled with number 1 (no text or symbols beyond label)

Technical line drawing of a device rear panel with I-USB connector (no text or symbols)

Hinweis:

Close-up of a metallic cylindrical object with a black handle, possibly a tool or component (no visible text or symbols)

Hinweis:

Einstellungen

Audiosprache

Hinweis

Close-up of a metallic cylindrical object with a flat top, against a dark background (no text or symbols visible)

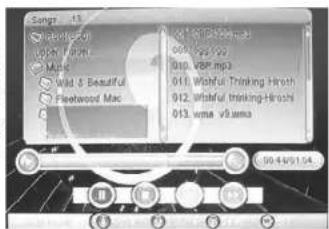

Multimedia PlayerMultimedia Player

Meine Bilder

Close-up of a wooden ruler with four circular buttons and a small circle, no visible text or symbols on the object itself.

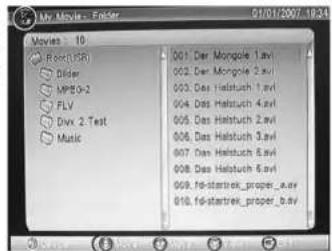

Multimedia Player Multimedia Player

Meine Filme

Electromagnetic Compatibility Directive 2004/108/EG

EN 55013:2001+A1:2003+A2:2006

HN55020:2007

HN6000372006+A17009+A27009

EN600322008

Low Voltage Directive 2006/95/FG

EN 60065:2002+A1:2006+A11:2008

MEGASAT

3410se Scart Receiver

English

Black D243-650 wireless router device with external ports and connectors (no visible text or symbols on body)

Stand: v2.0 Juli 2013

USER MANUAL

Table of content

Safety instructions....03

Delivery....03

Ports 04

Remote Control 05

Connection....06

First installation....08

Features 16

Multimediaplayer 19

Settings 24

Safety instructions

This device has been designed and manufactured to satisfy the international safety standards. Please read the following safety precautions carefully before operating this device.

Main Supply:

Before operating, please check the units operating voltage is 90\~264V AC 50/60Hz.

Overload:

Do not overload a wall outlet, extension cord or adapter, neither use damaged power cord or touch it with wet Zand as this may result in electric shock.

Liquid:

The device shall not be exposed to dripping or splashing water, and that no objects filled with liquids, such as base, shall be placed on the apparatus.

Ventilation:

Keep the slots of the device uncover to allow sufficient airflow to the unit. Do not put the device on soft furnishings or carpets. Do not expose the device to direct light or do not place it near a heater or in humid conditions. Do not stack other electronic equipments on top of the device.

Risk of suffocation:

Do not let children play with films or other packaging components, there is a risk of suffocation.

Cleaning:

Plug out the device from the wall outlet before cleaning. Clean the device by a soft cloth or mild solution of washing-up liquid (no solvents).

Connection:

Disconnect the device from the mains when you connect it to satellite LNB or disconnect it from LNB. Failure would possibly cause damage to the LNB.

Location:

Put the device indoor in order to avoid lightening, raining or sunlight.

Uncover:

Do not remove the cover, to reduce the risk of electric shock. Contact qualified and licensed service personnel to repair the device, or contact your dealer.

Delivery

When opening the package of this DVB-S receiver please make sure that the following accessories are included:

• Megasat 3410se scart receiver • 230/12 V power supply
- Remote control - Car adapter cable
- 7x AAA batteries - USB adapter
- User manual - Velcro tape

Note:

• If any item should be damaged or missing, please contact your dealer without delay.
- Keep the packaging materials, you may need them to transport your player in the future.
• Always transport or send the player in its original packing
- Do not change or modify any components of the device or accessories.

Megasat Werke GmbH | Industriestraße 4a | D-97618 Niederlauer | www.megasat.tv | [e-mail]

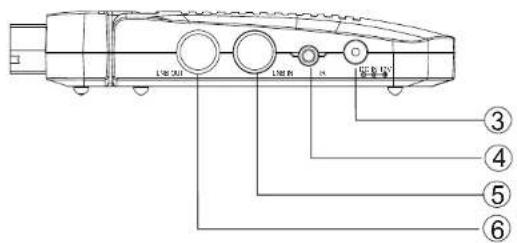

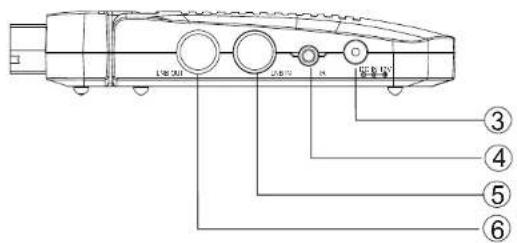

Ports Remote control

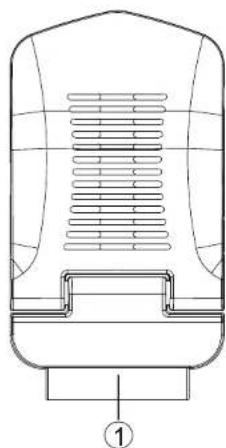

Technical line drawing of a mechanical component with internal channels and a base, labeled with number 1 (no text or symbols beyond label)

1. Scan output for IV
2. USB 7.0 port.
3. Power
4. Connecting the infrared sensor
5. LNB input
6. LNB output (loop function)

Technical line drawing of a device rear panel with I-USB connector (no text or symbols)

Inserting the batteries

1. Open the battery cover
2. Insert the battery into the receptacle and insert the receptacle into the remote.
3. Please uses only AAA batteries.
4. Close the battery cover.

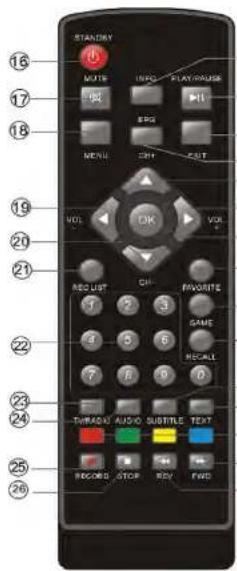

Keys

1. Information Button (INFO)
2. PLAY/PAUSE Button
3. Exit Button
4. EPG Button
5. Channel up (CI +) or navigation up
6. Volume + button or navigation right
7. OK Button
8. Favorite Button (FAV)
9. GAME BUTTON
10. RECAIT Button
11. Subtitle Button

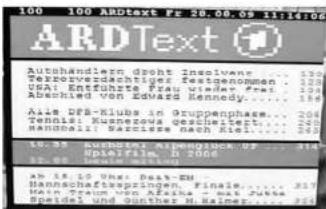

12. Videotext (ITX)
13. Color buttons
14. Fast Forward button by playback
15. Fast Rewind button by playback
16. STANDBY button
17. Mute Button
18. Menu Button
19. Volume - button or navigation left
20. Channel down (CH) or navigation down
21. RHC151 Button
22. Numeric Buttons
23. TV/RADIO Button
24. Audio Button
25. Record Button (no function)
26. STOP Button

Connection Connection

TV and antenna

• Ensure that the power switches of this unit and other equipment to be connected, are turned off before commencing connection
• Read attentively the instructions before connecting other equipments
• Ensure that you observe the color-coding when connecting audio and video cords
• Please connect the unit with TV by only one kind of video output format, and setup a suitable output mode (including signal mode and signal code type), otherwise there will be image distortion.

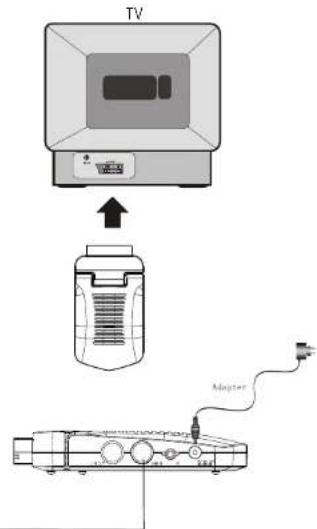

The schematic pictures show the connection between the receiver, the TV set and to the satellite dish.

How to

1. Connect the receiver with the SCART output of your TV.
2. Connect the antenna cable to the antenna input (LNSIN) of the receiver.
3. Screw the E-connector at the entrance hand hard.
4. Now connect the Receiver to the mains.
5. Turn on the receiver and Your TV.
6. If necessary, set the TV to the corresponding SCART input.

Note:

By using the loop through connector you can connect for example a second DVB-S Receiver.

USB

• Connect the USB flash drive carefully on to the USB port. In general the label should show the USB stick to the top.
• Remove the USB stick only when you are back in Live DVB-S program, otherwise the drive could be damaged.

Close-up of a metallic cylindrical object with a black handle, possibly a tool or bracket (no visible text or symbols)

Note:

• Due to legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.
• The USB port can be supported up to 16 G3 flash memory size. In order to the many different USB-Sticks and the build-in electronics components a support of all USB-Sticks can not guaranteed.
• Please format the USB-Sticks only with FAT 32 file system. Other file systems are not supported and can not recognize by the USB port.
• Save all data's from the USB memory before you connect to the device.

First installation First installation

Please install before starting the device all cable connections to the satellite dish and to the IV set (Only for changes)

By the first time using of the Receiver the First Time Installation appears on the screen. This menu includes two options:

- General Setting - My Dish

Settings

In the menu General Scilling you can find the settings for language and others. You can change between the two options by the navigation buttons UP and DOWN. If one of both has a dark blue background, than the option is active. Start the option by pressing the CX button. The single settings can be change by pressing the navigation buttons RIGHT and LEFT. The menu you can cancel or quit by the EXIT button.

OSD Language

Here you can set the OSD language. Change the language by using the navigation buttons RIGHT and LEFT. The new language will be set automatically.

Audio Language

With this option you can define the first language which is provide by DVR S broadcast. By setting the OSD language the Audio language will be set also automatically.

Subtitle Language

Here you can define, if you want to display Subtitles and in which language they appears on the screen.

Hinweis:

Here you can set the Time Zone setting automatically. The information will be taken from the EPG information. You can set also the Time Zone manually. Here for choose the setting OFF and then the next option is active.

Time Zone

Press the navigation buttons LEFT or RIGHT until your time (depending on Greenwich Meridian) appears on the screen. Plus values are in east direction and minus values in west direction. Before you continue the next steps, you shall be sure about the satellite installation system. Depend of the different way to install the dish and orientation, different kind of options are available.

My Dish

1. Single connection between Satellite / LNB and Receiver

If you orientates the dish to a specific satellite and you use a single or Multi-1NB. Each 1NB is directly connected with the cable to the receiver, then you uses these settings.

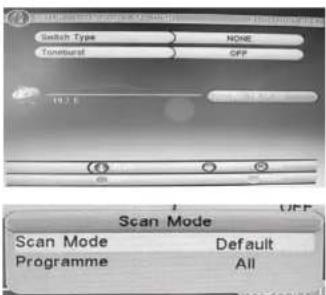

Switch off the two options. Switch type and long-burst.

- Switch Type None - Toneburst Off

Navigate to the third option until the is highlighted with dark blue. Start this option by pressing the OK button, the list is empty. Now you can add a satellite. Press the RED button to add a satellite. A list of pre-sets satellites appears on the screen. Choose the satellite which is orientated by the dish and confirm the selection by pressing the OK button.

First installation First installation

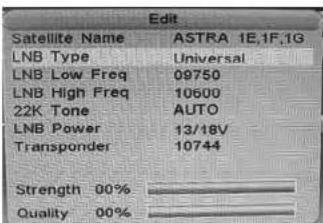

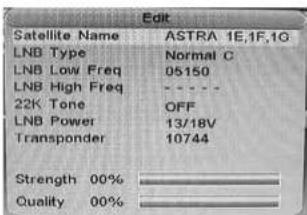

A new window appears on the screen with the parameters and settings of the satellite. Please pay attention that the LNB Type is made on Universal.

LNB Typ

The options are:

Normal C

Searching by analogue TV channels in low frequencies

Normal Cu

Searching by analogue IV channels in low frequencies

Universal

Searching for analogue and digital TV channels

LNB Low and High Frequency

By using the settings of LNB Type the low and high frequencies are set automatically.

22K Ton

By using the LNB Tyce Universal the setting for 22k Tone is set automatically to AUTO. This setting is responsible to find analogue and digital TV channels. By using the 22-kHz signal in conjunction with a universal LNB is the entire Astra satellite system to receive analogue and digitally with a single 60cm antenna. To receive digital TV and radio signals will therefore only one set-top box for digital television, are required.

LNB Power

The LNB needs for receiving digital TV channels a power of 13 V and 18V. Please use the setting 13/18V, otherwise not all TV channels can be found. In case of LNB Power is Off, the LNB do not get any power from the satellite receiver and no channels can be found and received.

Transponder

This selling needs normally no changes. Transponders are used in principle to a signal that comes from an earth station to a satellite prepare, so that the end user (IV, telephone, computer), the optimum signal sent and received can be recovered. A transponder is working on the whole as a kind of amplifiers and frequency converters. It receives multiple signals at a certain frequency from an earth station, amplifies these filters out interference, put it into another (the receiver dependent) frequency levels increased again and sends the signals back to Earth.

Strength

The received signal strength is shown in percentage and in the bar.

Quality

The received signal quality is shown in percentage and in the bar. Lower values are an indication for more artifacts, freeze pictures and other picture distortions.

Press the OK button and you can then adjust the other parameters of the scan. Press the BLUF button on the remote control and access to the final parameters for the search.

The searching and founded the TV channels, you can affect the order in which Scan Mode. A standard search or a 'blind' Search.

Scan-Modus

The searching runs in depending of the preset satellite and transponder lists.

- Blind Scan

With this option the searching runs without reading the transponder list and every received signal will be analyzed.

Programm

Allows you to decide whether you want to search only free channels or pay TV. The pay TV is encrypted and can usually only a very few times in clear to be seen. Approx. 2/3 of all TV channels are encrypted and can not therefore AS IRA with the recipient decrypts to be seen.

Note:

In the selection is only open after a successful scan, the IV channel list much more manageable.

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

First installation First installation

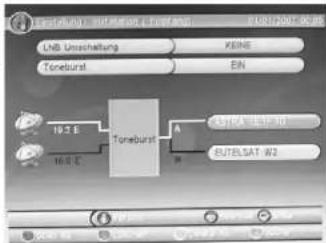

2. Single connection between Satellite / LNB and Receiver with Toneburst

Toneburst is an additional switching criterion that can deliver what the receiver. This signal does not include digital commands, but it can nevertheless be evaluated by most of the switches for position switching.

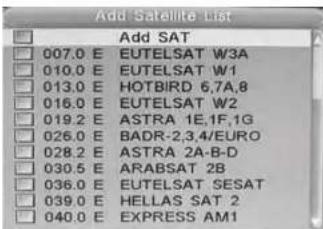

Now you can insert two satellites.

A new window appears on the screen with the parameters and settings of the satellite. Please pay attention that the LNB Type is made on Universal.

After all settings are running you can start searching. Here you have the option of the two selected satellite tiles scan individually or both of them together.

BLUE:

Single Satellite Search

RED:

Both Satellite Search in one run

Press the RED or BLUE button and you can influence the search and found the TV to where you are either with Scan Mode, a standard search or perform a blind search.

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

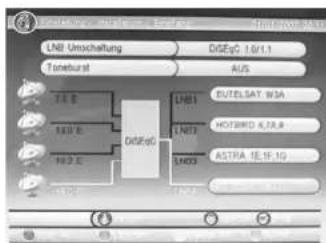

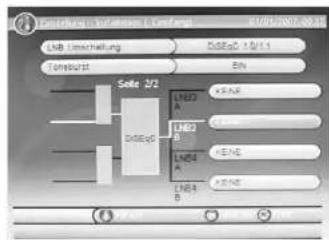

3. Using more than two satellite by DiSEqC 1.0/1.1

The distribution of analogue and digital signals from the Astra and Eurielsat is using DISOc™ (Digital Satellite Equipment Control, in other words: DeBScix) is possible if only one cable to be laid to the satellite receiver. Th's new tax system complements the conventional switching criteria, 14/18 Volt or 22 kHz, and removes the restrictions or maximum 4 switching states. In the simplest version of DISOc™ is used between two universal LNBs switch to. The 22 kHz switching circuit is used for the lower and upper frequency band LN3.

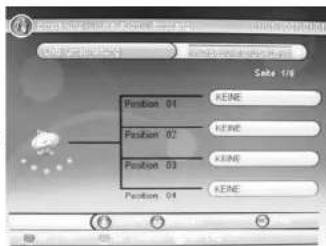

DISEqC 1.0 controls up to four LNBs with the command position A / B and Option A / B. DISEqC 1.1 controls up to 64 LNBs, it will switch in several levels of government. For 16 LNBs, take for example four 4 / 1 DISEqC 1.0 switch, whose outputs are then placed on the inputs of a 4 / 1 DISEqC 1.1 switch.

After selecting a configuration of the satellites could look like. Also look here at the settings for each satellite that the 1NR type was chosen correctly. Are required for receiving digital IV, the digital setting (Universal).

After all settings are running you can start searching. Here you have the option of the two selected satellites scan individually or both of them together.

BLUE:

Single Satellite Search

RED:

Both Satellite Search in one run

GREEN:

Delete all Satellite

YELLOW:

Delete the selected Satellite

Press the RED or BLUE button and you can influence the search and found the TV to where you are either with Scan Mode, a standard search or perform a 'blind' search.

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

First installation First installation

4. Using more than two satellite by DiSEqC 1.0/1.1 with Toneburst

In combination of DISEqC 1.0/1.1 and Toneburst you can use instead of between 4 satellite has a total of 8 different satellites. Select all the satellites. With the DOWN navigation key you can control the second page of the satellites.

After all settings are running you can start searching. Here you have the option of the two selected setti tes scan individually or both of them together.

BLUE:

Single Satellite Search

RED:

Both Satellite Search in one run

GREEN:

Delete all Satellite

YELLOW:

Delete the selected Satellite

Press the RED or BLUE button and you can influence the search and found the TV to where you are either with Scan Mode, a standard search or perform a "blind" search.

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received TV and radio stations are displayed in the two lists. After the scan, the TV and radio stations are stored in the two lists and the unit goes into the live image of the first TV station.

5. Using more than two satellite by DiSEqC 1.2 / USALS

DISEqC 1.2 provides additional control of three plants by DISEqC commands, via a single coaxial cable. Of the motor's staff was also a record producer (rod USALS) defined which is to find the satellite position is particularly simple. With the appropriate receiver is sufficient to enter the geographica position and the satellites are found automatically - provided that the curved path of the rotary engine has been correctly set mechanically.

Select the option LNB DiSEqC switch setting 12/USALS.

You now have two ways to make the settings, either via a DISFqC 1.7 or USAIS.

DiSEqC 1.2

Choose from the satellites, you can achieve with your motorized satellite dish.

Press the BLUE button and you can influence the search and found the TV to where you are either with scanning Mod. (Scan Mode) a standard search or perform a "blind" search.

Now, all search parameters are set and the scan can run. Press the OK button and the scan begins.

All received IV and radio stations are displayed in the two lists. After the scan, the IV and radio stations are stored in the two lists and the unit goes into the live image of the first IV station.

USALS

Define the search parameters by the options Set Limit, Set Area and Set IKB

Set Limit

Definition of angle of rotation in west and east direction

Set Area

Define the area where the dish are placed

Set LNB

Choose the parameters of the LNB

Features Features

Kanalliste

You can access to the channel list by pressing the OK button. The operation in the channel list is done by following buttons.

up/down:

Previous or Next TV channel

lc'1/righ.

Previous or Next page of the channel list

YELLOW

Change to favourite

BLUE:

Change to Satellite

OK:

Change to the selected V channel

EXIT

Quit of the channel is:

Subtitle

If you want to display to a TV program subtitles, press the SUBTITLE button. If subtitles are available, then you can activate it by pressing the OK button.

Note:

Not all TV broadcaster supporting Subtitles.

Audio Language and Sound Tracks

If you press during the live image the AUDIO button on the remote, you can access the audio settings of the TV.

The following three options, channel, Audio PID, and audio channel. The two options include further sub-options. Can each of these measures vary with the left/right buttons. The shift of the two main options audio mode and audio track can be reached via the up/down buttons.

Note

The TV and Radio list are very similar during operation.

Audio-Track Change the audio language, or change the sound track.

AUDIO PID: Shows the address of the sound track inside of the transport stream.

Audio Modus: Definition of the sound output (Stereo, Right, Left)

Note:

If you switches to the AC-B soundtrack, then there no sound is output via SCAR1. The sound is only available through the digital coaxial output in conjunction with an external audio decoder (Dolby Digital Amplifier).

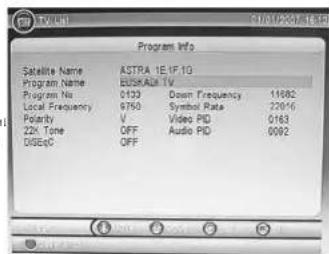

Information:

When you press the INFO button, then you get a variety of information. The first pressing the INFO button will take you to the overview. TV station names, active TV program, the next TV program whether video text is available and so on.

Pressing the IN-O button displays the HFG information of the active television program.

When is pressing the INFO button to get an overview of the frequency of the TV channel, date, specific information of the DVB S transmission and the two other important parameters of "signal strength" and "signal quality".

Tele-/Videotext:

The Videotext window you can start by pressing the TEXT button. Navigation of the Videotext window are

• Numeric button for access to the different video text pages
• left/right button for one page back or forward
• EXIT to quit the videotex, window

With the buttons left/right you can change the volume output.

TV/Radio

Press the TV/Radio button to switch between TV and Radio channels.

Change TV channel

Press the hoch/runter buttons (CH+/CH-) to change the TV channel.

Navigation by the Menu

Uses the navigation buttons to move between the settings.

Features Multimedia Player

EPG

Press the EPG button to start the EPG Guide. Following picture appears on the screen. The EPG window is organized into

Rechts open: Actually date and Time Links: TV channel list Mitus: Day of the Week and date Rechts: Live picture Rechts open: 7-days EPG overview Unic: Help information for navigation

You can operate inside of the EPG window by using:

up/down: Previous or next TV channel BLAU: Change to another Satellite left/right: Change from Channel list into the 7-day EPG overview EXIT: Quit of the EPG window

7-days EPG Overview

Using the buttons left/right move from the channel list in the 7-day overview. Now you have more buttons and functions for the operation are available.

up/down: Previous or next TV program

left/right: Change to the next day of the 7-day FPG overview

OK: Display of the detailed EPG information

RED. The selected TV program is booked and transferred into the Timer Programming list

EXIT: Quit of the Channel List

Detailed EPG Information

If you have selected in the 7-day overview to a broadcast and press the OK button, then appear the complete information of the broadcast. If the text is larger than in the window fills into it, so you can scroll with the left/right keys to the other pages. Press EXIT to quit the details.

Detail

If you want to use the USB port, please connect an USB storage to the USB plug.

Supported File Formats

From USB port you can playback picture in JEPG or GIF file format. You can playback music file with MP3 or WMA file format. You can playback video files in MPEG-1, MPEG-2 and MPEG-4 format. Do use only files with the suffix 'mpg' and 'avl'.

Supported USB storages

The USB port supports a lot of USB Sticks from different manufacture and different sizes. For recording and/or Time Shift, we suggest to uses USB Sticks with minimum of 8 GB size.

Close-up of a metallic cylindrical object with a dark handle, possibly a tool or device (no visible text or symbols)

Note USB Port:

Due to the legal requirements of CE-conformity, the customer is asked to only connect USB-Sticks to the USB port.

If you want to play pictures, music or videos from USB, go to the media player of the device. Plug in the USB or first, and press during the live image the MENU button.

Displayed until you press the left/right keys to multimedia is. The four sub menu's are:

• My Album
  • My Music
  • My Movies
  • My Recorder

Multimedia PlayerMultimedia Player

My Album

If you want to display images with the Megasa: 3400, connect a storage and access to the My Pictures menu by pressing the OK button. Please organize your storage so far that there are all the pictures in a folder.

After successful reading of the memory, you will be prompted for the folder. Press the BLUE button on the remote and then select the File Browser from the folder containing the images with the OK button. The images are then displayed in the file browser in a list.

up/down: Changes to the previous or next picture or folder

left/right: Changes to folder and file list in the file browser

OK: Starts the playback of the picture

INFO: Displays information regarding the storage

EXIT: Starts the Thumbnail overview of the pictures

By the Thumbnail Overview you have similar operation like in the file browser.

up/down: Changes to the above or bottom picture

left/right: Changes to previous or next pictures

OK: Starts the playback of the picture

BLUE Back to the file browser view

EXIT: Quts of the Thumbnail display and changes directly into the main menu

If many image files in the folder, it can take a bit more time until all the images are displayed. You will be informed of a status indicator (in percent).

If you have started a picture with the OK button, then you are more functions available.

Close-up of a metallic ruler with five circular buttons placed on it, no visible text or symbols.

RED: Starts Zoom function

YELLOW: Invert the picture vertical

BLUE: Invert the picture horizontal

GRF-N Can be start a music file during displaying the pictures

up/down: Change to the previous or next picture

left/right: Rotates the picture in every step of 90°

EXIT Quits into the Thumbnail overview

Zoom function

Press the RED button and the Zoom function starts. By pressing more than one time the RED button the Zoom factor changes in the following steps: 100%—>150%—>700%—>75%—>50%—>100%

Within the zoom feature you have the option to move the image magnification with the arrow keys

to move and therefore have different sections in the centre.

Music playback during the picture displaying

When you press the GREEN button while playing a picture, then the file browser appears on the screen. Locate a folder with music files. Star, the selected track by pressing the OK button. The other features are described on the next page, under "My Music". Press the EXIT button to switch back to the image displaying.

My Music

If you want to play music files with the Meqsat receiver, connect a USB and access to the My Music menu by pressing the OK button. After successful reading of the memory, you will be prompted for the folder. Then select the file browser from the folder containing the music files with the OK button. The images are then displayed in the file browser in a list. Left side shows the folder structure and the right side of the files.

RED: Starts the playback

YELLOW: Selects the repetition mode "Single", "All", "Random"

BLUE: Fast forward with the speed x2, x3 and x4

GREEN: Quits the Music playback, back to file browser

up/down: Change to the previous or next music file or folder

left/right: Changes between folder and file list in the file browser

INFO: Displays of information about the USB storage

EXIT: Quits the music playback and returns into the main menu

Fast Forward

If you press while playing music the BLUE button, then you start the fast forward. Each press the BLUE button increases the speed. The velocities change as follows:

x1->x2->x3->x4->x

Note:

To return to normal speed, you can use only the BLUE button.

Change the Volume

During the music playback you can change the volume by using the left/right button.

Supported File Formats

The 3400 supports music files with follow specification.

Format:

MP3 and WMA

Sampling Frequency: 8 - 48 kHz (MP3) or 52 - 48 kHz (WMA)

Bi. rate: 8 to 370 kbps (MP3) or 37 to 192 kbps (WMA)

Multimedia Player Multimedia Player

Meine Filme

If you want to play movie files with the Receiver, connect a USB and access to the My Movies menu by pressing the OK button.

MPEG 4 disc compatibility with this player is limited as follows:

1. Available resolution size of the MPEG-4 file is under 720x5/6 (W x H) pixel.
2. The file name of the MPFG 4 subtile is available by 15 characters.
3. If there is impossible code to express in the MPEG-4 file, it may be displayed as , _ , mark on the display.
4. If the number of the screen frame is over 30 per second, this unit may not operate normally.
5. If the video and audio structure of recorded file is not interleaved, either video or audio is outputted.

6. Playable MPEG 4 file, av, mpg, mpcg

7. Different MPEG 4 codices are supported. There must be encoded with are MPEG 4 part 2 (MPEG 4 SP/ASP) standard.

8. Container formats like "MOV", "MFA", "MOV" or similar are not supported.

9. No video files with a codec VC-1, H 264 or any container of MP4, MKV, 3GP or QT care not supported by the player.

10. Supported audio formats in the video files are:

MPEG-4:AC3 or MP3

MPEG1/2: MPEG-1 Layer 2 (MP2, MPA)

Sampling Frequency: 8 - 48 kHz (MP3), 24 - 48 kHz (AC3, MP2)

Bit Rate: 8 - 320 kbps (MP3), 92 - 256/448 kbps (MP2/AC3)

Note:

AC3 audio in movie files can only be played back only on the digital audio output and a corresponding Dolby Digital decoder. Take only the SCART output, then you will hear no sound from these files.

After successful reading of the memory, you will be prompted for the folder. Then select the file browser from the folder containing the movie files with the OK button. The images are then displayed in the file browser in a list. Left side shows the folder structure and the right side of the files.

up/down: Change to the previous or next

movie file or folder

left/right: Changes between folder and file

list in the file browser

INFO: Displays of information about

the storage

OK: Starts the playback

EXIT: Quits the music playback and

returns into the main menu

Select a movie and start it with the OK button. Top Left is the file name, which has played time and elapsed time. Among the aids to navigation will be displayed. You can always show with the IN-O button. After 10 seconds it shuts off automatically. To cancel the playback, please press the EXIT button on the remote control. The device returns into the file browser.

The buttons for navigation and operation are:

RHD: Starts the playback, m Pause the playback

YELLOW: Fast Radwind

BLUE: Fast Forward

GREEN: Slow playback

up/down: Change to the previous or next movie file

left/right: Changes the volume

EXIT: Quits the music playback and returns into the main menu

Star the playback, Pause the playback

Start playback of a movie with the OK or RED button. Pressing it causes the RED button, that the film is interrupted and the pause mode is active. The playback, you can continue with the RED button.

Stop the playback

Press the |X| button to cancel/stop the playback.

Slow Motion

During playback, press the GF-HN button, then holds the picture. With the BL UP button to set the speed for the slow play. The velocities change with each keystroke as follows:

$$ \text { Pause } \longrightarrow x 1 / 2 \longrightarrow x 1 / 4 \longrightarrow x 1 $$

Fast Forward or Fast Rewind

With the YELLOW and BLUE button you can quickly coil within the firm backwards and forwards. The velocities change with each keystroke as follows:

$$ x 1 \rightarrow x 2 \rightarrow x 4 \rightarrow x 8 \rightarrow x 1 6 \rightarrow x 3 2 \rightarrow x 1 $$

Settings

Settings

Main menu

The main menu of the DVB-5 receiver can be open by pressing the MENU button. The submenus are: • TV with TV list and EPG

• Radio with Radio list and Information
- Multimedia with My Album, My Music. My Movies and My Recorder
• Accessories with the game Comoxu, Calendar and Calculator
- Settings with Installation, TV settings, Password, Advance Timer, Default setting and SW Update

TV

The TV menu contains the submenus TV list and EPG display. With the TV you exit the list found by one or more TV channels via satellite

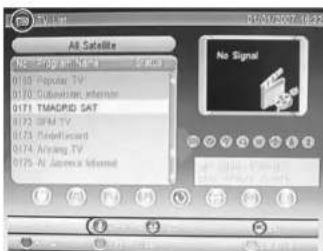

TV List

With the TV menu list, you have the poss bill ty to found TV to suit your needs sorting and editing. The following tools are available:

• Favourite
- Lock
• Fcill
•
+ Sort
Skin
(2)
• 2017
search

Each time you start the IV favourites list, the tool is active first. Using the left/right keys to change the tools.

With the following buttons you can operate the TV list:

up/down: Change to the previous or next TV channel left/right: Changes the tool

EXIT: Quit
YELLOW: Save the changes
BLUE: Change the satellite displaying

Define Favourite

Select the IV channel you want to put in the favourites list. Using the up/down buttons to select the IV channel. You can create a total of 8 favourite lists. Do this, press the numeric keys 1 to 8 The predefined favourite categories with the associated key (1 to 8) are:

1. News
2. Sport
3. Movies
4. bdijsik
5. Shopping
6. Shop
7. 10
8. DOYA
9. 6115

Operation:

1. Select a TV channel and press as the button 1 to save this station in the first favourites list.
2. To save the selected or selected TV stations in or the lists, press the YELLOW button.
3. Confirm the changes with the OK button, or cancel the operation with the EXIT button.

If you have accepted the changes, then you have with the FAV button to access the Favourites list (s). In the Favourites list, you can change the YELLOW button to display different lists and favourites.

Lock a TV channel

Do you want to block certain TV channels, so choose in the list by pressing the TV tool locks in which you rechts button to bottom links appear locks. Select using the hoch/nutter buttons to select the appropriate TV and press the OK button. At the selected TV channel will see a lock icon, Save the charges with the YH1 CW button and confirm the dialog with the OK button. The blocking is only active when the menu settings and password option is enabled channel locks. If you want to watch the locked TV, then you will be asked for a move to the locked TV channels for the password. Enter the password and then you can watch the TV channel.

Settings Settings

Edit a TV channel

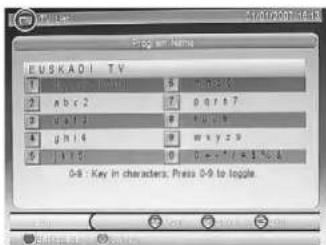

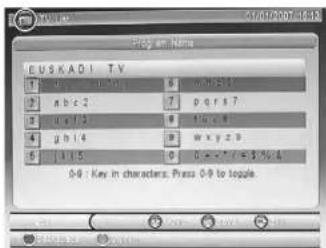

Do you want to edit individual TV stations, says in the TV list and select the Edit tool by pressing the rechts button below to edit links appear. Select using the up/down buttons to select the appropriate TV and press the OK button. Now you can change the TV channel name, the lower frequency and symbol rate.

Highlight the station name (the active element is dark blue) were deposited and then press the OK button to edit the station name.

The change of name takes place with the numeric keys in the SMS style. Thus, for example, contains the key, 2°, the letter, a', b', c' and, 2°. Do you want to now create a, b', so you need to twice the, 2' key.

Operation:

up/down: Change position

GREEN: Change to Capitals

RED: Delete the previous character

OK: Save the new name

EXIT: Quit the edit menu

With the OK button to save the changed noise. Press the EXIT button to return to the previous menu screen without saving.

Press the EXIT button to exit the exit menu and return to the TV list.

Move a TV channel

Do you want to move a single IV channel, select the Move tool, press the IV list, where you rechts button to move the bottom links appear. Select using the up/down buttons to select the appropriate TV and press the OK button. The selected IV channel will be ticked. Using the up/down buttons to move the IV to the new position, looking for a new station square in the lists and press the OK button. The IV station will be scored at this point. Save the change with the YELLOW button and confirm with the OK button.

Sort the TV channels

Do you want to rearrange the TV channel list, then select the TV button, the tool list sorting, in which you right button to bottom links appear sorting. Two possible sort options are available:

• Alphanumeric (from A to Z)

• Pay for Free Channel

With the RED button, you can change the channel in order from A to Z. Press the RED button reverses the order of up to Z A.

With the GREEN button, you can sort by pay IV or free channels. Try pressing the GREEN button and the recipient to open them sorted by pay channels. Pressing the GREEN button reverses the order. Press the EXIT key to stop the sorting. Confirm the change by pressing the OK button.

Skip a TV channel

Would you like some TV stations in the navigation to jump so choose in the list, press the TV tool skipping in which you right button until the bottom appears to skip links. Select using the left/right buttons to select the appropriate TV and press the OK button. The TV channel is marked with a symbol. Save the changes with the YELLOW button and confirm the query with the OK button.

Note:

When navigating this TV channel will now always skipped, and can not be selected using the up/down buttons. Only by the numeric input can be accessed at this station.

Delete a TV channel

Do you want to delete a single TV channel, so choose in the list, press the TV tool Delic where you right button until Delete appears below links. Select using the u/down buttons to select the appropriate TV and press the OK button. The selected TV channel will be marsed with a cross symbol. Save the changes to the YELLOW button and confirm the dialog with the OK button. The selected TV channel will be removed from the list.

Settings Settings

Search a TV channel

Want to search some TV, then choose in the list, press the TV search tool, where you right button to bottom links appear searches. Select using the up/down buttons to select the appropriate TV and press the OK button.

Enter the text style, the station name that you want to find in the TV list.

After entering the station name, press the OK button and the desired TV station is in the TV channel list appears, if it exists.

EPG

Under this menu, you can view the FPG information of TV channels. Detailed description of the HFG function.

Radio

The menu contains the submenus TV Radio list and EPG display. With the Edit menu, radio list, you found the TV from one or more satellites. They have the same options in radio list as in the TV list. Please read the individual steps in the TV list.

Setup

The Setup Menu includes following sub-menus:

• Installation
  • TV Setup
• Password
  • Advance Timer
• Set Default
• SW-Update

Installation

The Installation menu includes following sub-menus:

• Settings
  • My Dish
  • Transponder

The installation step is explained in the previous chapter.

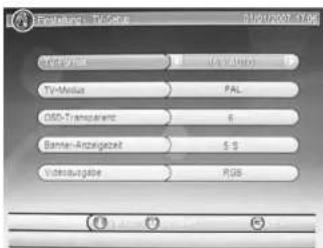

These settings are responsible for the kind of displaying the picture on the screen. The submenus are:

• TV Format
• TV Mode
• OSD Transparency
- Banner Display Time
- Video Output

Using the up/down keys to navigate the menus. Using the left/right keys to change the options. With the EXIT button to exit the TV settings, and implement the changes immediately and stored.

TV Format

With this menu, enter the type of your TV te envision. Please pay attention to the aspect ratio of your TV device and select it from the list.
If you have a 16:9 TV device, then you should select the option 16:9 CAR. If you have a 4:3 TV device, then you can select 4:3 LB.

TV Mode

In this menu you can choose between PAL, NTSC and AUTO. Use the AUTO option and then will always automatically select the correct setting.

OSD Transparency

With this option you can adjust the transparency of the OSD or messages. High values cause no transparency and low values have resulted in increasing transparency.

Banner Display Time

Here you can define the displaying time of the messages.

Video Output

With this option, you define the way down the video output. You can choose between RGB and CVBS. If your TV supports RGB interface device via the SCART, then you should use this option. RGB provides a better picture quality compared to Composite.

Password

In the Password menu you can define different locking features. The submenus are:

• Menu box
• Channel Lock
• Parental Control
• Change Password

Using the up/down keys to navigate the menus. Using the left/right keys to change the options. With the EXIT button to exit the IV scatings, and implement the changes immediately and stored.

Settings Settings

Menu Lock

With this option you can lock the menus and settings. Do you want to access it, you must always enter the password. The default password is 6-6-6-6. The option to the menu lock is on. The Off option turns off the menu lock.

Channel Lock

Use this option to switch the channel lock on or off. If you lock in the list of individual TV channels like TV, then this option must be active (On). If not, then the lock has no effect.

Parental Control

With this option you can define the level of the ESRB. The setting switches off the Unlimited. The higher the value (to 18), the more restrictive is the level of the ESRB.

Note:

This option can only be efficient, if the relevant information will also be sent to the transmitters. This is rarely the case in Europe.

Change Password

With this option you can change the default password. The default password is 6 6 6 6. Do you want to change the password, then change the option from No to Yes. After changing you will be prompted for the old password

1. Enter 6 6 6 6 on the remote control
2. Enter the new four-digit password
3. Repeat the new four-digit password
4. Then a message appears on the screen that the new password has been changed.

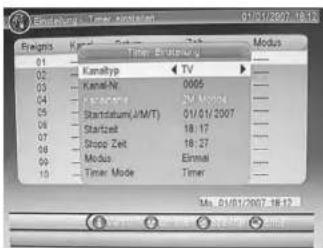

Timer Settings

With this menu you can program the timer. Either you have already a running program from EPG and then you can modify them. Of course you can also manually program the timer. Press the RHD button to add another timer added.

Following option you can edit:

• Channel type
- Channel No.
• Channel Name
- Start Date
- Start Time
- Stop Time
• Mode
- Timer Mode

Channel Type

Here you can choose between IV or Radio.

Channel No.

Please choose the channel no which shall be record.

Channel Name

The channel name corresponds with the channel no. There is no editing necessary.

Start Date

Insert the date, when the recording shall be starts.

Start Time

Insert the time, when the recording shall be starts.

Note:

Insert a few minutes before of the time, because often the IV program do not start exactly.

Stop Time

Insert the time, when the recording shall be stops.

Note

Insert a few minutes after of the time, because often the TV program do not ends exactly.

Modus

Here you can define the recording mode. The options are:

Single / Daily / Weekly / Monthly

Timer Modus

I cis you define the timer mode. The options are timer or recording. If you select recording, then start with the previous setting the recording.

Note

If you want to run a recording, then it must be connected to a USB memory.

Settings Troubleshooting

Confirm the programming with OK button and it will appear in the timer list.

With the RHD button, you can exit the settings. With the GRPHN button you can delete the programming. Press the EXIT button to exit timer setting.

Set Default

You have the possibility to undo all the settings and changes, where you load the default settings. Go to the option and may confirm with the OK button.

Note

All settings are reset. You must then continue to perform the search again.

The menu SW update contains two options:

- Update via USB

- Backup via USB

You have the opportunity to update the software via USB memory. Start this feature with the OK button.

Note:

The memory should only contain only the update file. If the file is found, then the process will start automatically.

During the backup, you can save the user database to memory. This contains your personal settings, the selected satellite and the TV channels found. Press the OK button to save the database. A short message appears on the screen.

Accessories

The accessory includes a game Gomoku (5 wins), a calendar and a simple calculator.

Symptom Correction
No DVB-S reception / serious distortion by mosaics or artefacts / freeze pictures	• No DVB-S reception in your region.• Realign the dish. Please pay attention to the direction of the satellite.• Please use a bigger dish.• Retry the Auto Scan.
No power • Plug the power cord into the outlet tightly and turn on the power.
Can not scan programs • Adjust the dish• Refer settings for searching
No picture / no coloured pictures • Control the connection to the TV set• Control the video output mode in the setup.• TV channel or program is scrambled
Remote control does not work • Change the batteries.• Operate within normal range (max. 5 meters, 30°)• The sensor is pointed to by bright light.
No sound • Cancel Mute. Press MUTE button• Increase volume. Press VOL+ button• Pay attention to connection to TV set or amplifier.
Audio / Subtile without function or can no choose	• Change audio track (press AUDIO button)• Change subtillic track (press SUB-III + button)• Other audio track is not supported• Subtilics are not supported by broadcaster

Specifications Notes

Item Specifications
Tuner Frequency range	950 - 2150 MHz
	Input resistance 75 Ohm
	Signal input level -65 - 25 dB
	Symbol rate 2-45 mbps
	LNB power supply 13/18 V at 350 mA
Demodulation Demodulator QPSR
Connectors I NB In + connector
Power	Input	AC 100 - 240 V ~ 50/60 Hz, DC 12 V
	Consumption	max. 5 Watt
Display	decoder module	PAL / NTSC
	Video resolution	720 x 576 (PAL) / 720 x 480 (NTSC)
	Aspect ratio 4:3 (Letter Box, Pan & Scan) / 16:9
Decoding	Video	Transport MPEG2 MP @ ML
	Audio	MPEG2 Audio Layer I & I
Other Compliance	ETS / EN 300 427	OVB S compliant
	Audio mode	I e/. / right (Stereo)

Note:

Weight and dimensions are not absolutely exact values.

Technical details can be changed at any time (according to manufacturer) without prior notice.

Declaration of Conformity

This complies with the following directives / standards is confirmed:

Electromagnetic Compatibility Directive 2004/108/EG

EN 55013:2001+A1:2003+A2:2006

FN:5020:2007

HN6'000372006+A1:2009+A2:2009

EN6'000332008

Low Voltage Directive 2006/95/FG

EN 60065:2002+A1:2006+A11:2008
