KR30914AW - Refrigerator GORENJE - Free user manual and instructions

Product Type	Freestanding Fridge-Freezer
Brand	Gorenje
Model	KR30914AW
Total Net Capacity	309 L
Fridge Net Capacity	225 L
Freezer Net Capacity	84 L
Energy Class	A++
Annual Energy Consumption	221 kWh
Climate Class	SN-T
Noise Level	42 dB(A)
Dimensions (H x W x D)	185.5 x 60 x 64 cm
Weight	68 kg
Power Supply	220-240 V, 50 Hz
Power Input	120 W
Star Rating	4 stars
Freezing Capacity	4.5 kg/24h
Storage Time without Power	24 h
Refrigerant	R600a
Defrost Type	NoFrost (frost-free)
Air Flow System	MultiFlow 360°
LED Lighting	Yes
Temperature Control	Electronic with digital display
Cleaning	Use warm water and mild detergent; avoid abrasive cleaners
Safety Features	Door alarm, child lock, automatic defrost
Spare Parts Availability	Genuine parts available from Gorenje service centers

Frequently Asked Questions - KR30914AW GORENJE

What is the correct temperature for the fridge and freezer compartments?

For optimal food preservation, set the fridge temperature between +2°C and +8°C (recommended +4°C) and the freezer temperature at -18°C or lower. Use the electronic control panel to adjust.

How do I install the fridge?

Place the fridge on a level, stable surface away from heat sources and direct sunlight. Allow at least 5 cm clearance around the sides and back for ventilation. Connect to a properly grounded power outlet (220-240 V).

Why is my fridge making unusual noises?

Some noises are normal: gurgling from refrigerant flow, clicking from the thermostat, or humming from the compressor. If the noise is loud or constant, check that the fridge is level and not touching walls or cabinets. Contact service if persists.

How often should I clean the condenser coils?

Clean the condenser coils at least once a year to maintain efficiency. Use a soft brush or vacuum cleaner. Disconnect power before cleaning. Coils are located at the back or bottom of the fridge.

What does the door alarm do?

The door alarm sounds if the fridge or freezer door is left open for more than 60 seconds. This prevents food spoilage and energy waste. Close the door to stop the alarm.

Can I change the door opening direction?

Yes, the KR30914AW allows reversible door hinges. Refer to the manual for detailed step-by-step instructions and recommended tools. You may need assistance due to door weight.

How to defrost the freezer?

This model features NoFrost technology, so no manual defrosting is needed. The system automatically prevents ice buildup. However, if frost forms due to excessive door openings, activate the 'Fast Freeze' function and remove excess items.

What should I do if the fridge is not cooling?

Check the power supply and ensure the socket is working. Verify the temperature settings are not too high. Clean the condenser coils if dusty. Ensure doors are sealing properly. If issue persists, contact Gorenje service.

Is there a child lock on this model?

Yes, the control panel includes a child lock function. Activate it by pressing and holding the 'Mode' button for 3 seconds. This prevents accidental temperature changes.

Where can I find spare parts or service?

Genuine spare parts and authorized service are available through Gorenje service centers worldwide. Visit the official Gorenje website or contact your local dealer. Use only original parts for safety.

USER MANUAL KR30914AW GORENJE

BEFORE USING THE APPLIANCE ....2

Safety Instructions 2

Recommendations.... 3

Installation and Switching On The Appliance 4

Before Switching On 4

THE VARIOUS FUNCTION AND POSSIBILITIES....5

Thermostat Setting 5

CLEANING AND MAINTENANCE 6

Defrosting 6

Replacing The Light Bulb 7

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION ....7

Changing of Door Opening Direction 7

BEFORE CALLING YOUR AFTER SALES SERVICE 8

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS ...... 10

PART- 1. BEFORE USING THE APPLIANCE

Safety Instructions

If the model contains R600a (see name plate under refrigerant, the coolant isobutane), a natural gas that is very environmentally friendly but also combustible. When transporting and installing the unit, care must be taken to ensure that none of the refrigeration circuit components become damaged. In the event of damage, avoid naked flames or ignition sources and ventilate the room in which the unit is placed for a few minutes.

Warning: Keep ventilation openings in the appliance enclosure or in the built-in structure clear of obstruction.

• Do not use mechanical devices or other artificial means to accelerate the defrosting process.
• Do not use electrical appliances in the refrigerator or freezer compartment of the appliance.
• If this appliance is to replace an old refrigerator with a lock, break or remove the lock as a safety measure before storing it, to protect children who might lock themselves inside while playing.
• Old refrigerators and freezers contain insulation gases and refrigerant, which must be disposed of properly. Entrust the disposal of a scrap unit categorically to the competence of your local waste disposal service and contact your local authority or your dealer if you have any questions. Please ensure that the pipework of your refrigerating unit does not get damaged prior to being picked up by the relevant waste disposal service.

Important note:

Please read this booklet before installing and switching on this appliance. The manufacturer assumes no responsibility for incorrect installation and usage as described in this booklet.

Please ask your municipal authority about the disposal of the WEEE for the reuse, recycle, and recovery purposes.

Conformity Information

• Tropical Class is defined for the environment temperatures between 16°C and 43°C in accordance with the TS EN ISO 15502 Standards.
• The appliance is designed in compliance with the EN15502, IEC60335-1 / IEC60335-2-24, 2004/108/EC standards.

Recommendations

Warning: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer. Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer. Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction. Do not damage the refrigerant circuit.

• Do not use adapters or shunts, which could cause overheating or burning.
• Do not plug in old, warped power supply cables.
• Do not twist or bend the cables.

Do not allow children to play with the appliance. Children must NEVER sit on drawers or hang from the door.

Do not use sharp metal objects to remove ice from the freezer compartment; they could puncture the refrigerator circuit and cause irreparable damage to the unit.

Do not plug in the power supply with wet hands.

Do not place containers (glass bottles or tin cans) of liquids, especially carbonated liquids, in the freezer, as they could burst during freezing.

Bottles containing a high percentage of alcohol must be sealed well and placed vertically in the refrigerator.

Do not touch the cooling surfaces, especially with wet hands, as you could be burned or injured.

Do not eat ice that has just been removed from the freezer.

This appliance is not intended for use by persons (including children) with reduced physical, sensory, or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent, or similarly qualified persons in order to avoid a hazard.

Installation and Switching On the Appliance

This appliance is connected to 220-240V or 200-230V and 50 Hz. Please check the nameplate of the appliance and ensure the voltage range is suitable for your mains voltage.

You may seek assistance from the service for installation and switching on the appliance.

- Before making the connection to the power supply, ensure that the voltage on the nameplate corresponds to the voltage of the electrical system in your home.

- Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we suggest you call an authorized electrician for assistance.

• The plug should be accessible after the appliance is positioned.

- The manufacturer is not responsible for failure to complete the ground connection as described in this booklet.

- Do not place the appliance in direct sunlight.

- Do not use outdoors and do not expose it to rain.

- Place the refrigerator away from heat sources and in a well-ventilated position. The refrigerator should be at least 50 cm from radiators, gas or coal stoves, and 5 cm from electric stoves.

- Keep the top free for at least 15 cm.

- Do not place heavy or numerous items on the appliance.

- If the appliance is installed next to another refrigerator or freezer, maintain a minimum distance of 2 cm to prevent condensation.

- Do not put very hot food or bowls on the top surface. This can damage the top.

- Fit the plastic wall spacers to the condenser at the back of the refrigerator to prevent it from leaning against the wall for good performance.

- The appliance must stand firmly and level on the floor. Use the leveling feet to compensate for an uneven floor.

- The outside of the appliance and the accessories inside should be cleaned with a solution of water and liquid soap; the inside of the appliance with sodium bicarbonate dissolved in lukewarm water. After drying, replace all the accessories.

Before Switching On

- Wait 3 hours before plugging the appliance into the power supply to ensure proper performance.

- There may be an odor when you first switch on the appliance. It will disappear after the appliance starts to cool.

PART 2: THE VARIOUS FUNCTIONS AND POSSIBILITIES

Thermostat Setting

- The thermostat automatically regulates the inside temperature of the refrigerator. By rotating the knob from position 1 to 5, colder temperatures can be obtained.

- The “0” position indicates that the thermostat is closed and no cooling is available.

- For short-term storage of food in the refrigerator, you can set the knob between the minimum and medium position (1-3).

- For long-term storage of food in the refrigerator, you can set the knob to the medium position (3-4).

Note that the ambient temperature, the temperature of freshly stored food, and how often the door is opened affect the temperature in the refrigerator compartment. If required, change the temperature setting.

- When you first switch on the appliance, for suitable cooling, the appliance should work continuously for 24 hours until it cools down to a sufficient temperature.

- During this time, do not open the door too often and do not place a lot of food inside the appliance.

- If the unit is switched off or unplugged, you must allow at least 5 minutes before restarting or re-plugging the unit in order not to damage the compressor.

- Larders (coolers) do not have a freezer compartment but can cool up to 4-6°C.

PART 3: CLEANING AND MAINTENANCE

• Disconnect the unit from the power supply before cleaning.
• Do not clean the appliance by pouring water.
• The refrigerator compartment should be cleaned periodically using a solution of bicarbonate of soda and lukewarm water.
• Clean the accessories separately with soap and water. Do not clean them in the washing machine.
• Do not use abrasive products, detergents or soaps. After washing, rinse with clean water and dry carefully. When the cleaning operations have been completed, reconnect the plug of the unit with dry hands.
• You should clean the condenser with a broom at least twice a year in order to provide energy saving and increase the productivity.

Defrosting

For cooler compartment:

• Defrosting occurs automatically in the refrigerator compartment during operation; the defrost water is collected by the evaporating tray and evaporates automatically.

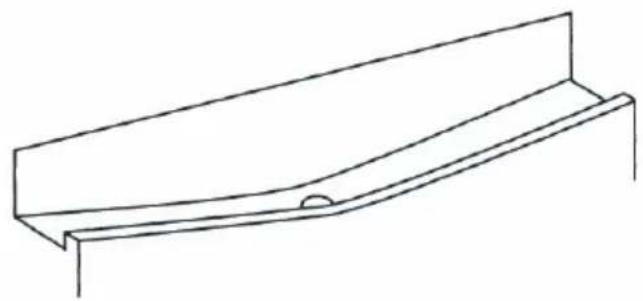

• The evaporating tray and the defrost water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting on the bottom of the refrigerator instead of flowing out.
• You can also pour 1/2 glass of water into the drain hole to clean inside.

Replacing The Light Bulb

When replacing the light of the refrigerator compartment:

1. Unplug the unit from the power supply.
2. Press the hooks on the sides of the light cover top and remove the light cover.
3. Change the present light bulb with a new one of not more than 15 W.
4. Replace the light cover and after waiting 5 minutes plug the unit.

PART- 4.

TRANSPORTATION AND CHANGING OF INSTALLATION POSITION

Transportation and Changing of Installation Position

• The original packages and foamed polystyrene (PS) can be concealed if required.
• In transportation the appliance should be tied with a wide stripe or a strong rope. The rules written on the corrugated box must be applied while transporting.
• Before transporting or changing old installation position, all the moving objects (ie, shelves, crisper...) should be taken out or fixed with bands in order to prevent the shake.

Changing of Door Opening Direction (for some models)

In case you need to change door-opening direction, please consult the domestic after sales service.

PART-5. BEFORE CALLING YOUR AFTER SALES SERVICE

If your refrigerator is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money.

What to do if your refrigerator does not operate ;

Check that ;

• There is no power,
• The general switch in your home is not disconnected,
• The thermostat setting is on the “0” position.
• The socket is not sufficient. To check this, plug in another appliance that you know is working into the same socket.

What to do if your refrigerator performs poorly:

Check that:

• You have not overloaded the appliance, • The doors are closed perfectly,
• There is no dust on the condenser,
• There is enough place at the rear and side walls.

If there is noise:

The cooling gas which circulates in the refrigerator circuit may make a slight noise (bubbling sound) even when the compressor is not running. Do not worry, this is quite normal. If these sounds are different, check that:

• The appliance is well leveled, - Nothing is touching the rear, - The stuffs on the appliance are vibrating.

If there is water in the lower part of the refrigerator:

Check that:

The drain hole for defrost water is not clogged (Use defrost drain plug to clean the drain hole).

If your fridge is not cooling enough:

Your fridge is designed to operate in the ambient temperature intervals stated in the standards, according to the climate class stated in the information label. We do not recommend operating your fridge out of stated temperatures value limits in terms of cooling effectiveness.

Climate Class	Ambient Temperature (°C)
T Between 16 and 43 (°C)
ST Between 16 and 38 (°C)
N Between 16 and 32 (°C)
SN Between 10 and 32 (°C)

Recommendations

• In order to increase space and improve the appearance, the « cooling section » of refrigerators is positioned inside the back wall of the refrigerator compartment. When the appliance is running, this wall is covered with frost or water drops, according to whether the compressor is running or not. Do not worry. This is quite normal. The appliance should be defrosted only if an excessively thick layer forms on the wall.
• If the appliance is not used for a long time (for example during the summer holidays), set the thermostat knob to the « 0 » position. Defrost and clean the refrigerator, leaving the door open to prevent the formation of mildew and smell.

THE PARTS OF THE APPLIANCE AND THE COMPARTMENTS

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

1) REFRIGERATOR SHELF 2) CRISPER COVER (SAFETY GLASS -In some models-) 3) CRISPER 4) LEVELING FEET 5) BOTTLE SHELF 6) EGG SHELF 7) THERMOSTAT BOX

CONTENTS

BEFORE USING THE APPLIANCE 12

Safety rules 12

Recommendations 13

• Do not allow children to play with the appliance. Children must NEVER sit on drawers or swing on the doors.
• Do not use sharp metal objects to remove ice from the freezer; they could puncture the cooling circuit and cause irreparable damage to the refrigerator.
• Do not plug in the electrical cable with wet hands.
• Do not place containers (glass bottles or cans) with liquid in the freezer, especially carbonated liquids, as they may burst during the freezing process.
• Bottles containing a high percentage of alcohol must be well sealed and stored vertically.
• Do not touch the cooling surfaces, especially not with wet hands, as you could injure yourself.

- The appliance should stand firmly on a surface and be level with the floor. Use the adjustable front feet to compensate for unevenness in the floor.

- The exterior of the appliance as well as the interior parts are cleaned with a mixture of water and liquid soap; the interior of the appliance is cleaned with baking soda diluted in lukewarm water.

Before switching on

2. PART DIFFERENT FEATURES AND POSSIBILITIES

Adjusting the thermostat

- The thermostat automatically adjusts the temperature in the refrigerator. By setting the thermostat knob from position 1 to position 5, the cooling temperature in the refrigerator is lowered.

- The refrigerator should be cleaned periodically with a solution of baking soda and lukewarm water.

- Clean the accessories separately with soap and water. Do not clean them in the dishwasher.

- Do not use harsh brushes, detergents, or soaps. After washing, rinse the surface with clean water and dry carefully. After cleaning is finished, plug the plug into the socket with dry hands.

Defrosting

2. PART DIFFERENT FUNCTIONS AND POSSIBILITIES

Continuing the thermostat

- The thermostat automatically adjusts the temperature in the refrigerator. By turning the knob from position 1 to 5, the temperature is raised.

- At position "0" the thermostat is switched off and the appliance does not cool.

- For short-term food storage in the refrigerator, set the thermostat knob to positions between 1 and 3.

- For long-term food storage in the refrigerator, set the thermostat knob to a position between 3 and 4.

- Note that the room temperature, the temperature of newly stored food, and the frequency of door openings affect the temperature in the refrigerator compartment. If necessary, change the temperature setting.

Defrosting

Refrigerator compartment

To replace the light bulb, follow these instructions:

Thermostat setting

Defrosting

Defrosting the refrigerator compartment;

- In the refrigerator compartment, defrosting occurs automatically during operation of the appliance; the defrost water is collected in the evaporating tray and evaporates automatically.

Thermostat adjustment

Defrosting

For refrigerators

Defrosting

Refrigerator compartment

Defrosting
