UR 1015 - Radio KARCHER - Free user manual and instructions

Product Type	Radio
Brand	Kärcher
Model	UR 1015
Dimensions (approx.)	200 x 120 x 80 mm
Weight (approx.)	500 g (without batteries)
Power Supply	4 x AA batteries (1.5 V each) or mains adapter (optional)
Frequency Bands	AM / FM
Tuning Method	Analog dial or digital buttons
Speaker	Built-in mono speaker
Headphone Jack	3.5 mm stereo
Antenna	Telescopic antenna for FM; built-in ferrite for AM
Display	LCD or LED frequency display (if equipped)
Controls	Volume knob, tuning knob, power switch, band selector
Battery Life (approx.)	Up to 40 hours with alkaline batteries
Maintenance	Clean with a soft, dry cloth. Do not use liquids or solvents.
Safety Precautions	Do not expose to rain or moisture. Avoid dropping. Do not disassemble.
Spare Parts / Repair	Contact Kärcher customer service for spare parts and repairs.
Intended Use	Portable radio for indoor and outdoor use (under shelter).
Manufacturer	Kärcher SE & Co. KG, Winnenden, Germany

Frequently Asked Questions - UR 1015 KARCHER

How do I turn on the Kärcher UR 1015 radio?

Turn the volume knob clockwise to switch on. Adjust volume as needed.

How do I tune to a radio station?

Select AM or FM band using the band selector. Rotate the tuning knob to find a station. For FM, extend the telescopic antenna for better reception.

What type of batteries does the UR 1015 use?

It requires 4 AA batteries (1.5 V). Insert them with correct polarity as marked inside the battery compartment.

Can I power the radio with a mains adapter?

Yes, if a compatible adapter is used. Connect it to the DC power jack (if present). Ensure voltage and polarity match.

Why is the reception poor?

For FM, fully extend the telescopic antenna. For AM, reposition the radio. Avoid interference from electronic devices.

How do I use the headphone jack?

Plug in a 3.5 mm headphone into the jack. The built-in speaker will be muted.

How to clean the radio?

Wipe the exterior with a soft, dry cloth. Do not use water, solvents, or abrasive cleaners.

Is the radio waterproof?

No, it is not waterproof. Keep it away from rain, splashes, and excessive moisture.

What does 'UR 1015' stand for?

UR likely stands for 'Universal Radio', and 1015 is the model number.

Where can I find replacement parts or service?

Contact Kärcher customer support or visit their website for spare parts and authorized service centers.

USER MANUAL UR 1015 KARCHER

1. Read Instructions - All the safety and operating instructions should be read before the appliance is operated.
2. Retain Instructions - The safety and operating instructions should be retained for future reference.
3. Heed Warnings - All warnings on the appliance and in the operating instructions should be adhered to.
4. Water and Moisture – Do not use the apparatus near water (e.g. bath tub, sink, swimming pool) or in wet places or tropical climates. Do not place objects filled with liquids, such as vases, on top of the apparatus. Do not expose the apparatus to dripping or splashing.
5. Setup – The apparatus should only be placed on a stable, flat surface. Do not let the apparatus fall down or expose it to shock.
6. Wall or Ceiling Mounting - The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.
7. Ventilation - The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or, placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings. Ensure a minimum distance of 5 cm around the apparatus for sufficient ventilation. Ensure that the ventilation is not impeded by covering the ventilation openings with items such as newspapers, table-cloths, curtains, etc.
8. Heat - The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
9. Power Sources - The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
10. Cables and Plugs – The mains plug shall remain readily operable. All cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, paying particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
11. Cleaning - The appliance should be cleaned only as recommended by the manufacturer. Clean by wiping with a dry and clean cloth. Do not use chemical cleaners or detergents. Always pull the mains plug before cleaning the unit.
12. Non-use Periods - The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.
13. Object and Liquid Entry - Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.
14. Damage Requiring Service - The appliance should be serviced by qualified service personnel when:

a) The power-supply cord or the plug has been damaged; or
b) Objects have fallen, or liquid has been spilled into the appliance; or
c) The appliance has been exposed to rain; or
d) The appliance does not appear to operate normally or exhibits a marked change in performance; or
e) The appliance has been dropped, or the enclosure damaged.

1. Servicing - The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

2. Open Fire – Keep the apparatus away from open fires. Do not place naked flame sources, such as lighted candles on the apparatus.

3. Thunderstorms – During a thunderstorm the mains plug should be unplugged.
4. Safety Check – After servicing the technician should conduct a safety check in order to ensure that the apparatus is working properly and safely.
5. Batteries – Always place batteries in the correct polarization into electrical components. Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. Do not mix old and new batteries. Take attention to the environmental aspects of battery disposal. Batteries shall not be exposed to excessive heat such as sunshine, fire or the like. Remove batteries before disposing of the product.
6. Headphones (if applicable) – Excessive sound pressure from earphones and headphones can cause hearing loss.

WARNING: To reduce the risk of fire or electric shock, do not expose this appliance to dripping or splashing.

WARNING: To reduce the risk of electric shock, do not remove cover (or back). No user serviceable parts inside. Refer servicing to qualified service personnel.

The lightning flash with arrowhead symbol within an equilateral triangle is intended to alert the user to the presence of uninsulated dangerous voltage within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

Batteries

Batteries may not be disposed of in regular house hold trash. Every consumer has the obligation to return batteries to special disposal locations.

Disposal of Used Electrical & Electronic Equipment

The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste. Please, dispose of this equipment at your applicable collection point for the recycling of electrical & electronic equipments waste. By ensuring the correct disposal of this product, you will help prevent potential hazards to the environment and to human health, which could otherwise be caused by unsuitable waste handling of this product. The recycling of materials will help conserve natural resources. For more detailed information about recycling of this product, please contact your local city office, your household waste disposal service or the shop where you purchased the product.

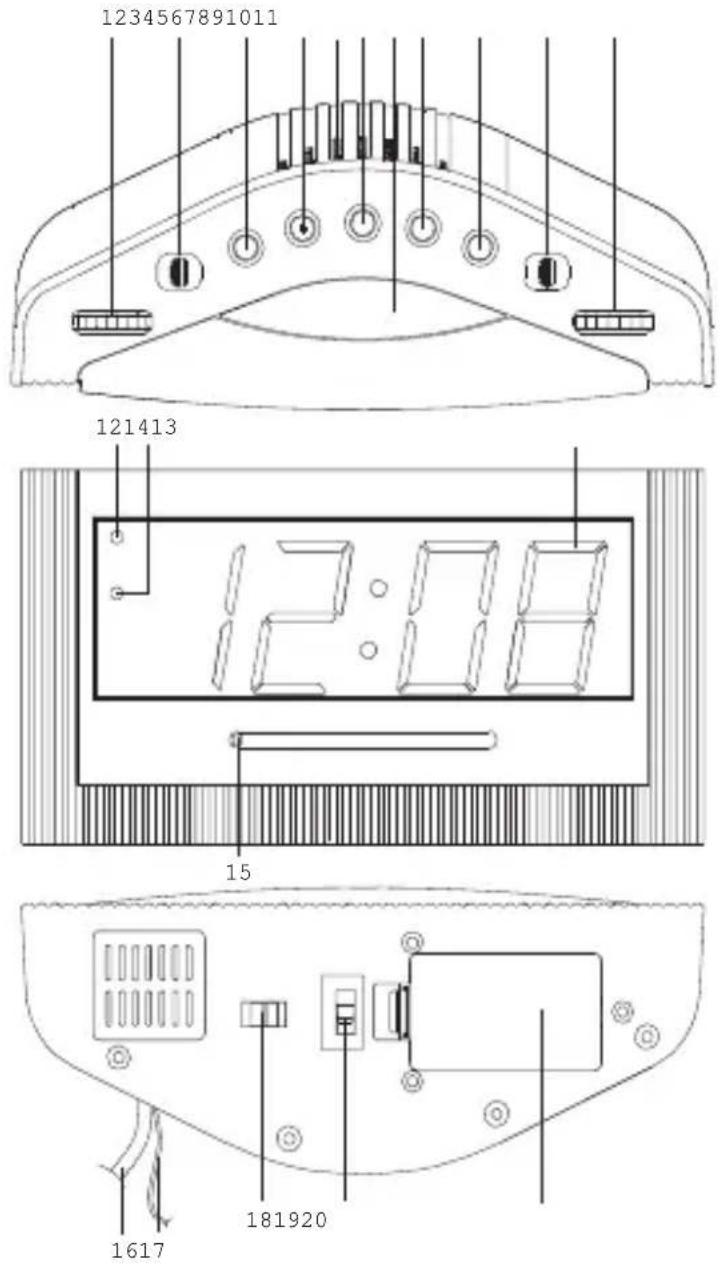

LOCATION OF CONTROLS

1. VOLUME/OFF/BUZZER KNOB
2. MODE SWITCH(ON/OFF/AUTO)
3. SLEEP ON/SET BUTTON
4. ALARM SET/OFF BUTTON
5. SPEAKER
6. TIME SET BUTTON
7. SNOOZE BUTTON
8. HOURBUTTON
9. MIN BUTTON
10. BAND SWITCH(AM/FM)

11. TUNING KNOB

12. PM INDICATOR (for 12 hours only)

13. ALARM ON INDICATOR
14. LED DIPLAY (1.8" (4.6cm), dimmable)
15. DIAL POINTER INDICATOR
16. AC POWER CORD
17. FM WIRE ANTENNA
18. DIMMER HI-LO CONTROL
19. VOLTAGE SELECTOR (OPTIONAL)
20. BATTERY DOOR

AC POWER CONNECTION

Make sure that the AC power cord is your local voltage cord, [ use VOLTAGE SELECTOR-optional (#19)] and then plug AC POWER CORD (#16) into the AC wall outlet.

EN

BACK UP BATTERY

1. Open the BATTERY DOOR (#20) by pressing the battery cover buckle.
2. Install a good quality 9 Volts battery (not included) in the battery compartment at the bottom of the unit.
3. Close the BATTERYDOOR (#20).
4. In the event of a power failure, the radio and time display will stop operating, but this battery will keep the clock time going. This means that although you will not be able to see the time, the battery - operated clock will continue operating.
5. When the power failure is over, the LED DISPLAY (#14) will again show the correct time without need for readjustment.

RADIO OPERATION

1. Turn on the unit by sliding the MODE switch (#2) to ON position.
2. Slide the BAND switch (# 10) to the required wave band.
3. Rotate the TUNING knob (#11) to obtain the desired radio station, the station frequency is indicated in the DIAL POINTER (#15).

The FM WIRE ANTENNA (# 17) located on the rear of the unit is for FM reception. The wire should be fully extended and positioned for optimum reception.

For AM reception there is a built in ferrite aerial. Rotate the unit to the position giving best reception

1. Adjust the VOLUME/OFF knob (#1) to obtain the desired sound level.

2. To turn off the radio, slide the MODE switch (#2) to OFF position.

SETTING THE CLOCK

After plugging the unit in or after a power failure, the LED DISPLAY(#14) will show 0:00 in standby mode.

1. In standby mode, press and hold the TIME SET button (#6).
2. Press the HOUR button (# 8) to adjust the hour.
3. Press the MIN button (#9) to adjust the minute.

NOTE: The clock uses a 12 hour display with a PM indicator.

Ensure that the correct 12 hours cycle is selected.

SETTING THE ALARM TIME

The alarm can be set to wake you by Buzzer or Radio.

1. Press and hold the ALARM SET/OFF button (#4).
2. Press the HOUR button (#8) to adjust the hour.
3. Press the MIN button (#9) to adjust the minute.
4. Slide the MODE switch (#2) to AUTO position, the alarm function is turn on and the ALARM INDICATOR (13) will light up.

SLEEP TO MUSIC

1. Slide the Mode switch (#2) to OFF position.
2. Press the SLEEP button (#3), the unit will enter to radio mode, and 0:59 will appear on the LED DISPLAY (#14), indicating that the radio will shut off automatically in 59 minutes. If you want to change the automatically shut off time, hold down the SLEEP button (#3) with one finger, and

press the HOUR button (#8) and MIN button (#9) to adjust as required (maximum 1 hour and 59 minutes).

1. Adjust radio as described in RADIO OPERATION.
2. Adjust the wake up time as described in SETTING THE ALARM TIME.
3. Slide the MODE switch (#2) to AUTO position.
4. At the wake up time set, the radio will turn on, broadcast for 1 hour and 59 minutes then shut off automatically. If nothing is touched, it will do the same thing every day until the MODE switch (#2) is set to OFF position.
5. If you want to wake to BUZZER instead of radio, rotate the VOLUME/OFF KNOB (#1) to OFF position until a click sound is heard. To shut off the alarm without disturbing the automatically daily program by slide the MODE switch (#2) to OFF position or press the ALARM SET/OFF button (#4).

SNOOZE FUNCTION

As soon as the BUZZER/RADIO alarm time is reached, the unit will turn on and alarm will sound. It can be turned off temporary by pressing the SNOOZE button (#7). The unit will turn on again in 9 minutes. Press the SNOOZE button (#7) again it will repeat this operation within 1 hour and 59 minutes. After 1 hour and 59 minutes, the alarm will automatically shut off and activate again after 24 hour.

TO SLEEP AND WAKE TO MUSIC

Would you like to be lulled to sleep by your favourite program, have the radio turn itself off, and then awaken you at a pre-set time, all automatically?

1. To turn radio on and adjust to your listening pleasure.
2. Set the controls as described in SLEEP TO MUSIC, slide the MODE switch (#2) to AUTO position.
3. With the wake up time already set as described in SETTING THE ALARM TIME, the radio will now shut off automatically in 1 hour and 59 minutes (or whatever period set) and then turn on again at the wake up time set.

DIMMER CONTROL

With the DIMMER switch (#18) set to HI position, the light of the LED will be brighter than it set to LO position.

SPECIFICATIONS

Power source: AC 110/220V 60/50Hz (Selectable) or 127/220V 60/50Hz (Selectable) or 120/220V 60/50Hz (Selectable) or 120/230V 60/50Hz (Selectable) or 220V 50Hz or 230V 50Hz or 240V 50Hz or 110V 60Hz (YOUR EXACT AC POWER CAN BE CHECKED FROM THE BACK PLATE OF UNIT)

DC 9 Volts back up (not included)

Tuning range: AM 540-1600 kHz

FM 88-108 MHz

Output: 0.4 Watts

Built in speaker: 2-1/4 inch, 8 Ohm

Technical specifications and design may change without notice.
