USER MANUAL iP46 IHOME

Portable Stereo Speakers for your iPod / iPhone®

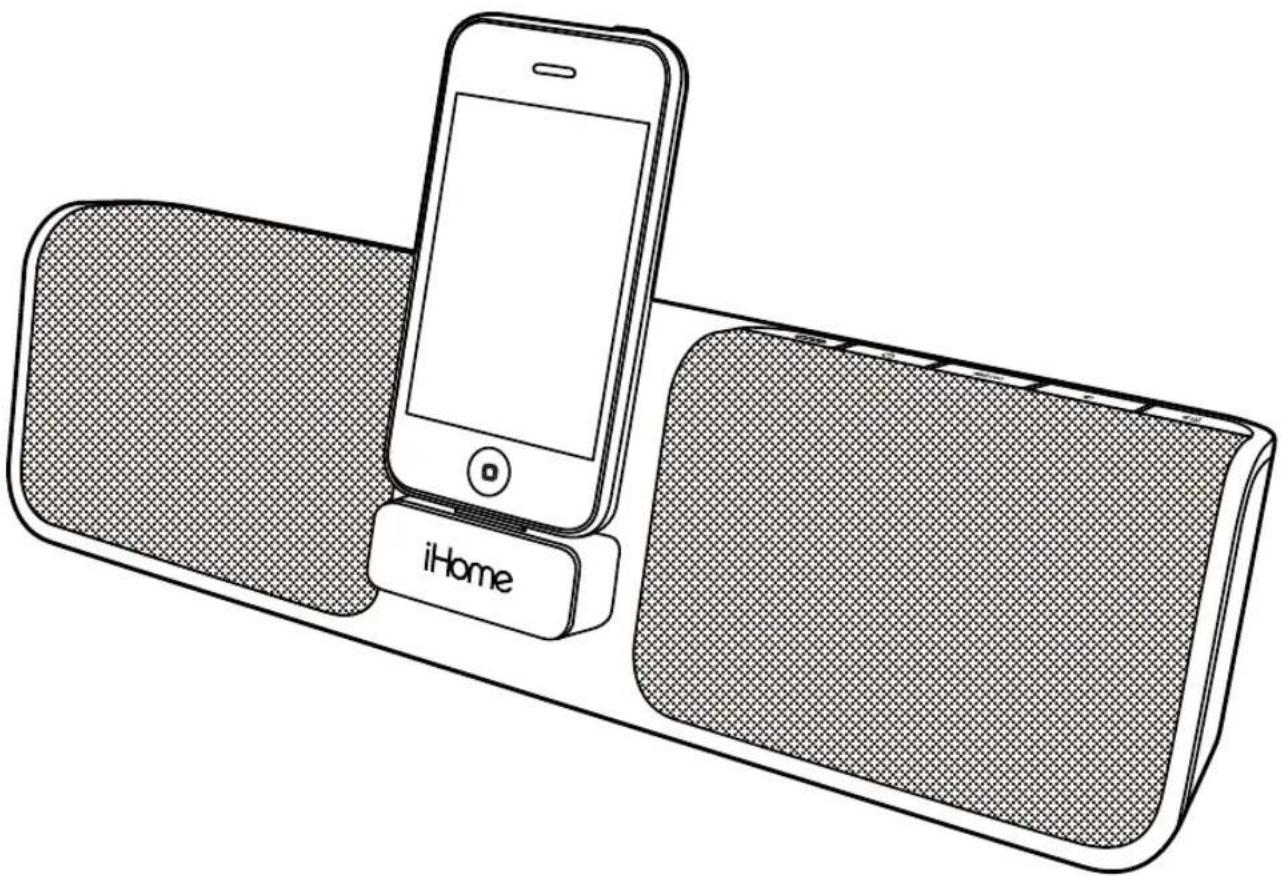

Line drawing of a smartphone connected to an iHome brand electronic device (no text or symbols on the device itself)

Questions? Visit www.ihomeaudio.com

Table of Contents

iP46 Quick Start 1

Controls and Indicators 2

Using the iP46 3-4

A Consumer Guide to Product Safety 5

Trouble Shooting 6

Warranty Information 7

FCC Information

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable protection against radio and TV interference in a residential area.

However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference you can try one or more of the following corrective measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
• Consult your dealer or an experienced radio/television technician if the problem still exists.

Modifying or tampering with your system's internal components can cause a malfunction and might invalidate the system's warranty and void your FCC authorization to operate it.

This Class B digital apparatus complies with Canadian ICES-003.

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner or similar materials can damage the surface of the unit.

iP46 Quick Start

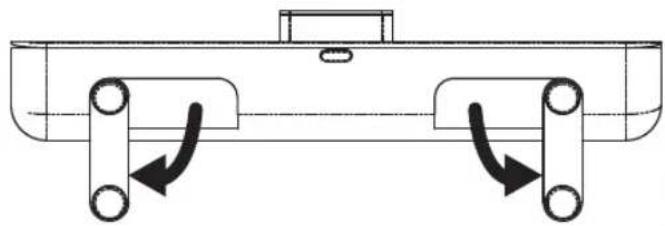

1:Stand

Technical line drawing of a mechanical component with two curved supports and directional arrows indicating motion (no text or symbols)

Fold out the stand feet on the bottom of the iP46, then turn unit up right for operation.

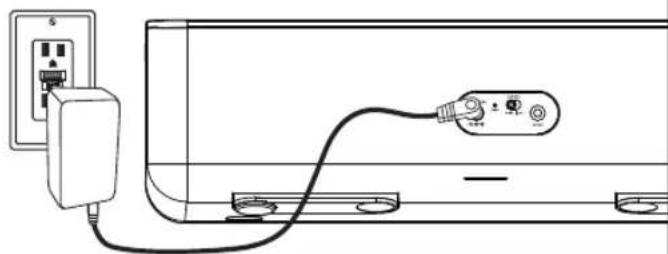

2:AC adaptor

Line drawing of a cable being inserted into an air conditioner unit (no text or symbols)

Plug the AC adaptor into the DC jack on the rear of the iP46 and the other end into a working outlet. The internal battery will charge.

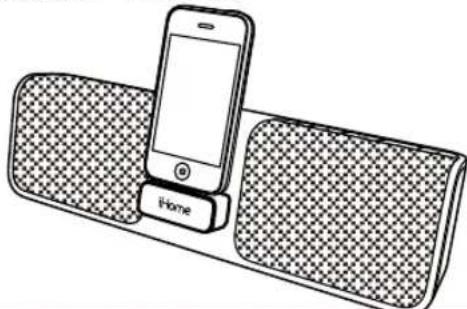

3:iPod/iPhone

Line drawing of a smartphone connected to a two-board device labeled 'iHome' (no additional text or symbols)

Press on the iHome name to release the retracting dock on the front of the unit. Gently dock your iPhone or iPod. Press the ⏻ Button to turn the iP46 on. Access iPod play mode on your iPhone or iPod to listen to audio. When connected to AC power, the dock will charge your iPhone or iPod until completely charged then stop charging.

Controls and Indicators

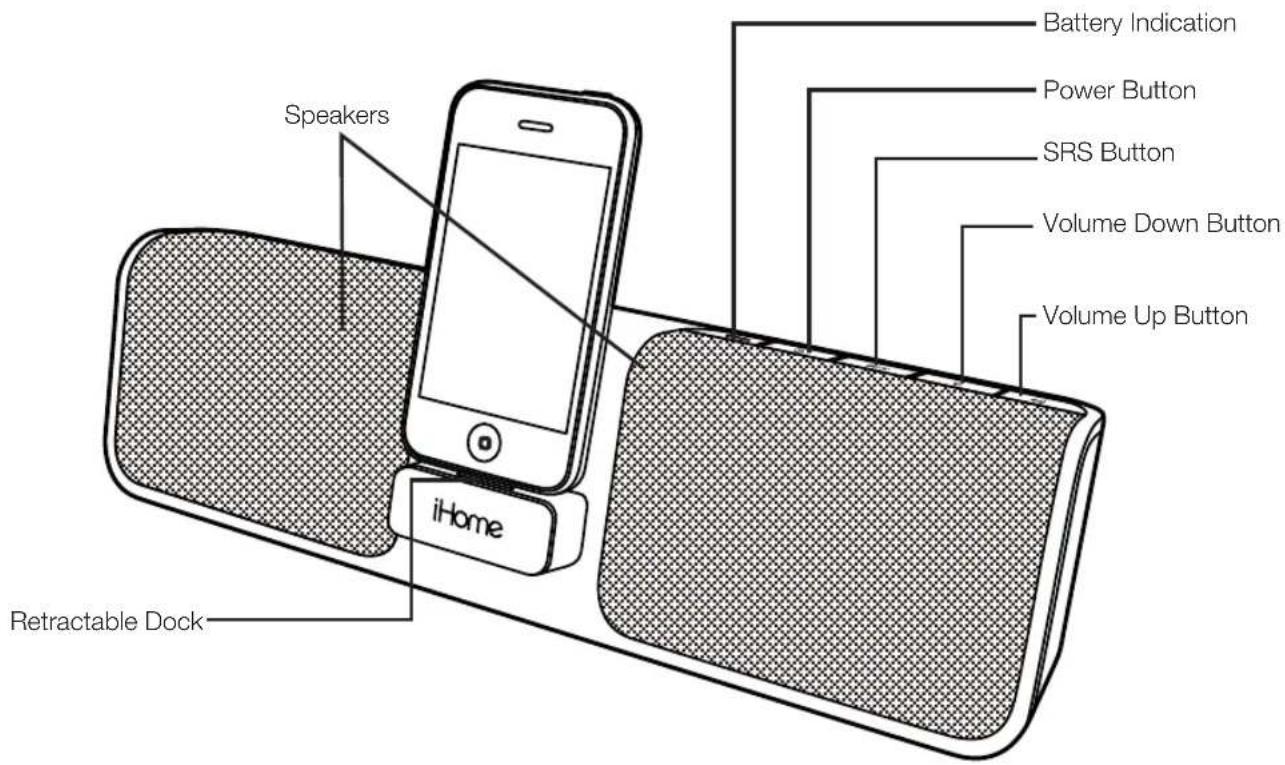

Front Panel

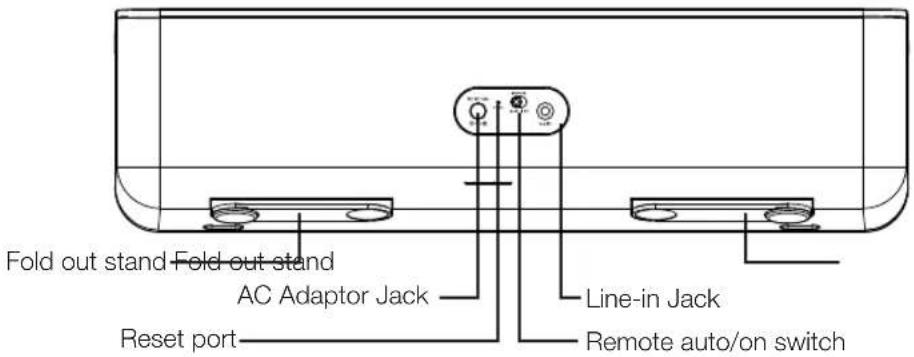

Rear Panel

Using the iP46

Charging & Playing iPhone and iPod

The iP46 has a retracting dock to play and charge your iPhone or iPod while connected to AC power (it will NOT charge when operating on the internal rechargeable battery). The dock will charge your iPhone or iPod until completely charged then stop charging.

1. Make sure the unit is connected to a working power source (AC adaptor is connected or internal battery is charged).

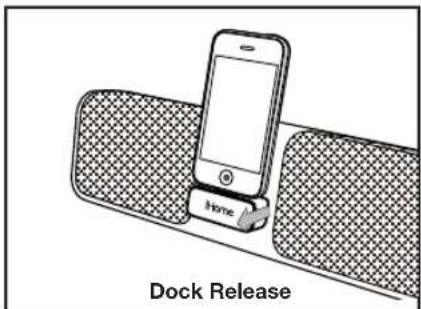

2. Press on the iHome name below the dock to release and access the dock (press back into unit when not in use).
3. Gently press your iPhone or iPod onto the dock. Do not force or use undue pressure. Make sure your iPhone or iPod is not in a case or "skin".
4. Press the ⏻ Button located on top of the iP46 to turn the unit on. Place your iPhone or iPod in play mode. Press the ◄ or ◀ Buttons located on top of the unit to adjust the system volume. Press the SRS™ Button for enhanced bass response.

Note: Docking an already playing iPhone or iPod will also turn the iP46 on.

Charging the Internal Battery

The iP46 has an internal rechargeable lithium ion battery. The battery condition indicator is located on top of the unit. When fully charged, the indicator will glow steadily. When the battery needs charging, the indicator will flash. To charge, connect the iP46 to a working AC outlet.

End-Of-Life Battery Disposal Instructions

This device uses a Lithium-ion battery that should last the lifetime of the device. If you suspect your battery may be dead, try charging it several times. If the battery does not recharge, please contact us for repair information. Please do NOT attempt to change the battery yourself. If the battery has died and you do not want Manufacturer to replace your battery, you should follow the disposal instructions below.

Consult local laws and regulations for proper battery disposal in your region. If there are no local regulations concerning battery disposal, please dispose of the device in a waste bin for electronic devices.

Caution: The Battery used in this device may present a risk of fire, explosion or chemical burn if mistreated

Battery shall not be exposed to excessive heat such as sunshine, fire, or the like. Do not use or charge the battery if it appears to be leaking, discolored, deformed, or in any way abnormal. Do not leave your battery discharged or unused for extended periods of time. When batteries are misused, they may explode or leak, causing burns and personal injury. If your battery leaks, use normal precaution and discard the battery immediately.

Using the iP46

Using the Aux Line-in Jack

The iP46 has an aux line-in jack located on the back of the unit to play other audio devices.

1. Connect one end of a standard 3.5mm audio cable (available at www.ihomeaudio.com) to the aux line-in jack and the other end into the headphone or line-out jack on your audio device.
2. Press the ⏻ Button on the iP46 to turn it on. Make sure your device is turned on, too.
3. Put your device into play mode. Press the 🔊 or 🔍 Buttons to adjust the system volume. You may need to adjust the volume on your device, too.
4. Press the ⏻ Button to turn the iP46 off. Remember to turn your device off, too.

Note: Do not play an audio device through the aux line-in jack while an iPhone or iPod is playing in the dock or you will hear both at once.

Using the Remote auto/on switch

The iP46 has a remote auto/on switch located on the back of the unit. Slide the switch to the AUTO position to save battery power when traveling or operating on the internal battery. AUTO disables remote operation when operating on the internal battery. Slide switch to ON position for normal remote operation

Resetting the iP46

If you experience any erratic operation with your iP46, you may wish to reset it to default settings to restore the software to proper operation. Note that doing so will overwrite current settings.

1. Insert one end of a paperclip or similar into the Reset port located next to the AC jack and press in for a few seconds.
2. Remove paper clip and try unit again.

A Consumer Guide to Product Safety

IMPORTANT SAFETY INSTRUCTIONS

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.

2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.

3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.

4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.

6. Cleaning - The unit should be cleaned only as recommended. See the Maintenance section of this manual for cleaning instructions.

7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.

8. Attachments – Do not use attachments not recommended by the product manufacturer.

9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.

10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.

11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:

A. the power supply cable or plug has been damaged.
B. objects have fallen into or liquid has been spilled into the enclosure.
C. the unit has been exposed to rain.
D. the unit has been dropped or the enclosure damaged.
E. the unit exhibits a marked change in performance or does not operate normally.

1. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the power cable should be unplugged from the unit to prevent damage or corrosion.

2. Servicing – The user should not attempt to service the unit beyond those methods described in the user's operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

Questions? Visit www.ihomeaudio.com

or call 1-800-288-2792 Toll Free

Trouble Shooting

Symptom Possible Problem		Solution
Unit doesn't respond (no power)	AC adaptor isn't plugged into a wall outlet or the connector is not plugged into the power supply jack on the back of the dock	Plug the AC adaptor into a wall outlet and plug the connector into the supply jack on the unit
	Wall outlet is not functioning or switched off	Plug another device into the same outlet to confirm the outlet is working. Make sure any associated power switch is ON
	Battery is weak/ dead	Charge internal battery by connecting AC adaptor to working outlet until battery indicator glows steadily.
iPod/iPhone does not dock properly	iPod/iPhone not docked properly	Remove your iPod/iPhone from the dock and check for obstruction on the connectors in the dock and on your iPod/iPhone. Make sure there is no “skin” or case on the iPod/iPhone. Then reseat it in the dock.
iPod/iPhone does not respond to the unit	iPod/iPhone is not docked properly	Remove your iPod/iPhone from the dock and check for obstruction on the connectors in the dock and on your iPod. Then reseat it in the dock.
	Your iPod/iPhone software is too old	Upgrade software on your iPod/iPhone via iTunes
	iPod/iPhone is locked up	Please make sure your iPod/iPhone is working properly before docking into the unit. Please refer to your iPod/iPhone manual for details.
	Using 1 ^st or 2 ^nd generation iPod, iPod shuffle or other devices.	Unit cannot control those iPod models or other devices. Use the Line-in jack to play these devices.
iPod/iPhone does not come on immediately	If your iPod/iPhone is not used for some time, it may enter deep sleep mode	Press the Menu button on your iPod/iPhone
	iPod/iPhone battery is run down or is too weak	Charge your iPod/iPhone for about 5 minutes
Unit operation is erratic	Unit requires reset	Insert the end of a paperclip or similar into the Reset port located next to the AC jack and press in for a few seconds to restore the unit to factory default settings. Doing so will overwrite any current settings.
Remote control doesn't work	Battery is weak or dead	Replace with new battery
	Remote Control is too far away or not aimed properly toward the device	Point the Remote Control toward the unit and use within 15 feet of the unit.
	Remote switch is in AUTO position	Move Remote switch to ON position

Limited 1 Year Warranty Information

iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 1 Year from the date of original purchase.

Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI Technologies will repair or, at its discretion, replace this product without charge (except for a \20.00 charge for handling, packing, return UPS/postage, and insurance). This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center listed below. The product must include proof of purchase, including date of purchase. The fee for service without proof of purchase is \40.00.

Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective batteries are the most common cause of problems encountered.

If service is still required:

1. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.
2. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.
3. Enclose a check or money order payable to the order of SDI Technologies, for the sum of \20.00 (\40.00 without proof of purchase).
4. Send the unit prepaid and insured, to the Factory Service Center listed below.

Consumer Repair Department

SDI Technologies Inc.

1330 Goodyear Drive

El Paso, TX 79936-6420

Disclaimer of Warranty

NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD's or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.

This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser. In no event will SDI Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI Technologies product.

© 2010 SDI Technologies, Inc. All rights reserved

Questions? Visit www.ihomeaudio.com

or call 1-800-288-2792 Toll Free

iHome®
