Product Type	Speaker System for iPod
Brand	iHome
Model	IH15W
Power Supply	AC adaptor, 120V ~ 60Hz
Power Adaptor Output	DC 5V, 2000mA
iPod/iPhone Compatibility	iPod with video (30GB, 80GB, 120GB), iPod classic, 2nd Gen Touch, 4th Gen nano (with inserts)
Charging	Charges docked iPod/iPhone automatically
Audio Input	Line-in (3.5mm) for external audio sources
Color Change Modes	Slow color change, fast color change, 2 fixed colors, off
Controls	Power, Volume up/down, Color button
Indicators	Power on indicator
Dimensions	Approx. 7.5 x 5 x 3.5 inches (estimated)
Weight	Approx. 1.5 lbs (estimated)
Maintenance	Clean with soft cloth moistened with mild soap and water
Safety Compliance	FCC Part 15 Class B, Canadian ICES-003
Warranty	90 days limited warranty from date of purchase
Repairability	Service by qualified personnel only; user can replace inserts
Accessories Included	AC adaptor, 4 dock inserts
Country of Origin	China

Frequently Asked Questions - IH15W IHOME

How do I charge my iPod/iPhone with the iHome iH15?

Simply dock your iPod/iPhone into the iH15 using the correct insert. It will begin charging automatically. The device will not overcharge.

Why is there no sound coming from the speakers?

Ensure the iPod is docked properly and in play mode. Also check that the volume is turned up. If using a line-in source, make sure the cable is fully inserted and the source device is playing.

How do I change the color of the lights?

Press the Color Button to cycle through modes: slow color change, fixed color, fast color change, another fixed color, and off.

Can I use an iPod Shuffle with the iH15?

Yes, connect the iPod Shuffle or other audio devices via the Line-in jack on the back of the unit using an audio cable.

What should I do if my iPod doesn't fit in the dock?

Ensure you are using the correct dock insert for your iPod model. The iH15 comes with 4 inserts. If none fit, contact iHome for a compatible insert.

How do I clean the iH15?

Use a soft cloth moistened with mild soap and water. Avoid harsh chemicals like benzene or thinner.

Why is the sound distorted?

Try lowering the volume on the iH15 or the connected device. Also, if using an external source, reduce its output volume. For iPhone users, enable Airplane mode to reduce TDMA noise.

What does the power indicator light mean?

The power indicator lights up when the iH15 is turned on. If it does not light, check the AC adaptor connection and wall outlet.

Can I leave my iPod docked overnight?

Yes, the iH15 is designed to charge your iPod without overcharging. It is safe to leave docked overnight.

Where can I get service or replacement parts?

Visit www.ihomeaudio.com or call 1-800-288-2792. For warranty service, send the unit with proof of purchase to the address in the manual.

USER MANUAL IH15W IHOME

Questions? Visit www.ihomeaudio.com

Table of Contents

Quick Start 1

Maintenance 1

Controls and Indicators 2

Playing and Charging iPod 3

Color Change mode 3

Using the Line-in Jack 3

A Consumer Guide to Product Safety 4

Trouble Shooting 5

Warranty Information 6

A Consumer Guide to Product Safety

This device complies with Part 15 of the FCC Rules, operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

This equipment complies with the limits for a Class B digital device as specified in Part 15 of FCC Rules. These limits provide reasonable protection against radio and TV interference in a residential area.

However, your equipment might cause TV or radio interference even when it is operating properly. To eliminate interference you can try one or more of the following corrective measures:

• Reorient or relocate the receiving antenna.
• Increase the distance between the equipment and the radio or TV.
• Use outlets on different electrical circuits for the equipment and the radio or TV.
  Consult your dealer or an experienced radio/television technician if the problem still exists.

Modifying or tampering with your system's internal components can cause a malfunction and might invalidate the system's warranty and void your FCC authorization to operate it.

This Class B digital apparatus complies with Canadian ICES-003.

Getting Started

Thank you for purchasing the iHome iH15 Color Change Speaker System for your iPod. Designed specifically to work with your iPod, this system provides high quality audio performance that invites your music to come out and play. Please read this instruction carefully before operating the unit and keep it for future reference.

Install iPod Insert

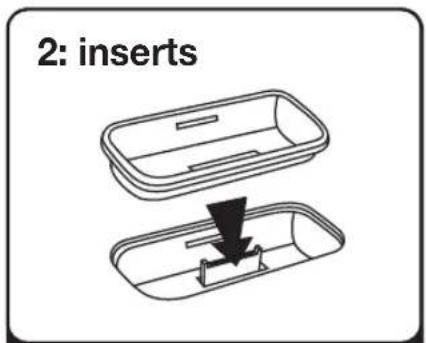

Your iH15 comes with 4 removable inserts to ensure your iPod fits properly in Dock. Please see table on Quick Start Section.

Install Power

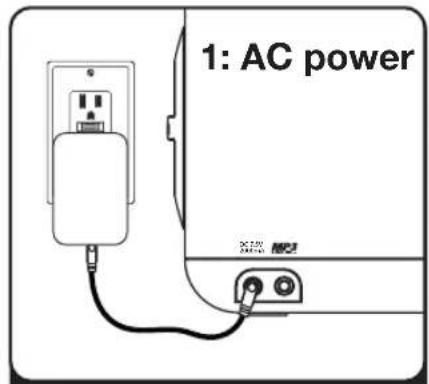

Plug the AC adaptor cable into the AC Adaptor Jack on the back of the unit and the other end into a standard 120V wall outlet.

iH15 Quick Start

Attach AC adaptor cable to jack on back of the iH15 and plug the other end into a wall socket to play and charge iPhone/iPod

Select the dock insert for your iPod® model from the table below and place insert in dock.

Never dock an iPod without the proper insert in place.

Insert an iPod into the dock (iPod must not be in a "skin" or case). iPod will charge while docked. Press the Power Button on the iH15 to listen to your iPod.

Use this insert	thin iPod with video (30 GB)Insert 9	2nd Gen Touchinsert 16	4th Gen nanoinsert 17
For this iPod	thin (30 GB) iPod with videothin (80GB, 120GB) iPod classic	2nd Gen Touch	4th Gen nano

NOTE: If you do not have an insert for your iPhone/iPod, please visit www.ihomeaudio.com or call iHome toll free at 800-288-2792 to purchase one.

Maintenance

• Place the unit on a level surface away from sources of direct sunlight or excessive heat.
• Protect your furniture when placing your unit on a natural wood and lacquered finish. A cloth or other protective material should be placed between it and the furniture.
• Clean your unit with a soft cloth moistened only with mild soap and water. Stronger cleaning agents, such as Benzene, thinner or similar materials can damage the surface of the unit.

Controls and Indicators

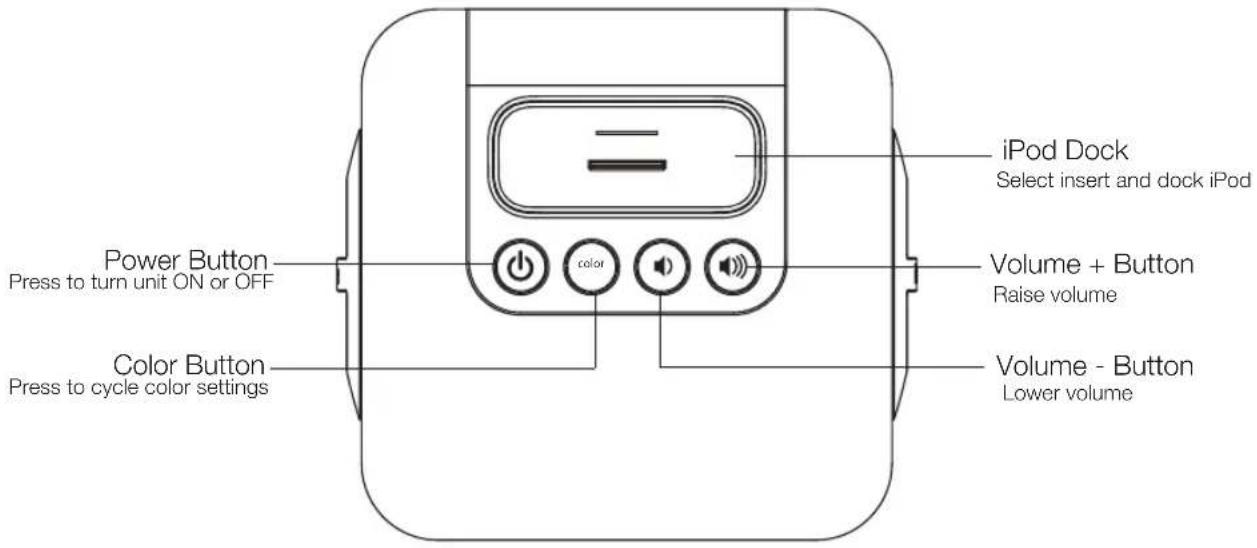

Top panel

Back panel

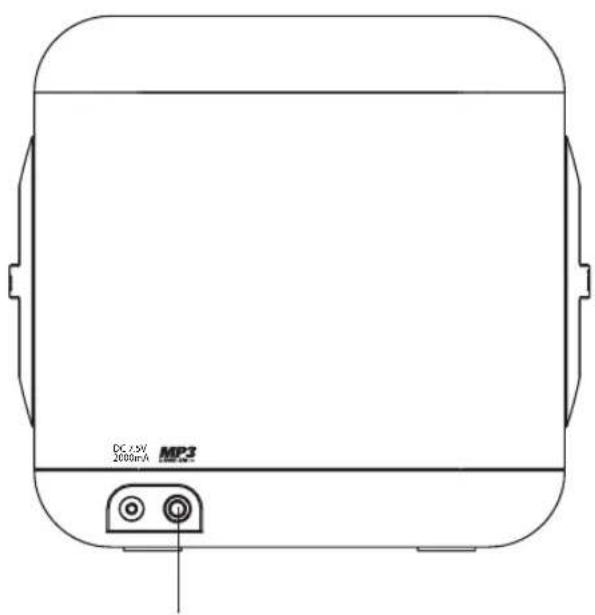

Line drawing of a rectangular electronic device with labeled ports (DC, MP3, 2000mA) and a small terminal block at the bottom (no text or symbols beyond labels)

Line-in JACK
Use audio cable (not included) to connect aux audio source

Playing and Charging your iPod

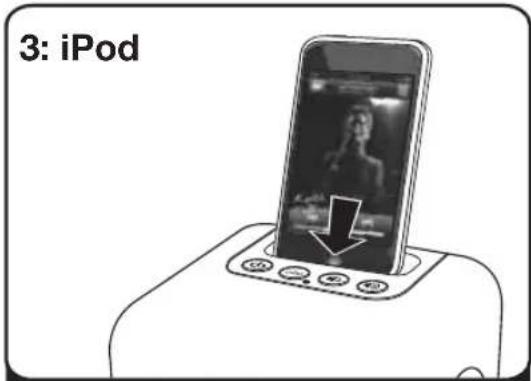

1. Place proper insert for your iPod (see insert table on Quick Start Section) in Dock, then gently dock iPod. When docked, iPod will charge until fully charged. The iPod will not overcharge.
2. Press the ⏻ Button on the iH15 to listen to your iPod. The power on indicator will light up to show the iH15 is on. Make sure your iPod is in play mode.
3. Press the 🔊 or 🔒 Button Volume to adjust the volume.
4. To switch off the unit, press the ⏻ Button again.

Color Change Mode

There are 5 color settings. Press the Color Button to cycle through them. The settings are: slow color change, fixed color, fast color change, fixed color and light off.

Using the Line-in Jack

1. Plug one end of an audio patch cord (available at ihome.com) into the headphone or line-out jack on your audio device and the other end of the patch cord into the iH15 Line-in Jack located on the back of the unit.
2. Press the ⏻ Button on the iH15 to play your audio device. The power on indicator will light up to show the iH15 is on. Place your device in play mode.
3. Press the 🔊 or 🔒 Button to adjust the volume.
4. To switch off the unit press the ⏻ Button again. Remember to turn off your audio device, too.

A Consumer Guide to Product Safety

IMPORTANT SAFETY INSTRUCTIONS

When used in the directed manner, this unit has been designed and manufactured to ensure your personal safety. However, improper use can result in potential electrical shock or fire hazards. Please read all safety and operating instructions carefully before installation and use, and keep these instructions handy for future reference. Take special note of all warnings listed in these instructions and on the unit.

1. Water and Moisture – The unit should not be used near water. For example: near a bathtub, washbowl, kitchen sink, laundry tub, swimming pool or in a wet basement.
2. Ventilation – The unit should be situated so that its location or position does not interfere with its proper ventilation. For example, it should not be situated on a bed, sofa, rug or similar surface that may block ventilation openings. Also, it should not be placed in a built-in installation, such as a bookcase or cabinet, which may impede the flow of air through the ventilation openings.
3. Heat – The unit should be situated away from heat sources such as radiators, heat registers, stoves or other appliances (including amplifiers) that produce heat.
4. Power Sources – The unit should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.
5. Power-Cable Protection – Power supply cables should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. It is always best to have a clear area from where the cable exits the unit to where it is plugged into an AC socket.
6. Cleaning – The unit should be cleaned only as recommended. See the Maintenance section of this manual for cleaning instructions.
7. Objects and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into any openings or vents located on the product.
8. Attachments – Do not use attachments not recommended by the product manufacturer.
9. Lightning and Power Surge Protection – Unplug the unit from the wall socket and disconnect the antenna or cable system during a lightning storm or when it is left unattended and unused for long periods of time. This will prevent damage to the product due to lightning and power-line surges.
10. Overloading – Do not overload wall sockets, extension cords, or integral convenience receptacles as this can result in a risk of fire or electric shock.
11. Damage Requiring Service – The unit should be serviced by qualified service personnel when:
    A. the power supply cable or plug has been damaged.
    B. objects have fallen into or liquid has been spilled into the enclosure.
    C. the unit has been exposed to rain.
    D. the unit has been dropped or the enclosure damaged.
    E. the unit exhibits a marked change in performance or does not operate normally.
12. Antenna - Do not connect an external antenna to the unit (other than that provided).
13. Periods of Nonuse – If the unit is to be left unused for an extended period of time, such as a month or longer, the power cable should be unplugged from the unit to prevent damage or corrosion.
14. Servicing – The user should not attempt to service the unit beyond those methods described in the user's operating instructions. Service methods not covered in the operating instructions should be referred to qualified service personnel.

Questions? Visit www.ihomeaudio.com

Trouble Shooting

Symptom	Possible Problem	Solution
Unit doesn't respond (no power)	AC adaptor isn't plugged to a wall outlet or the connector is not plugged into the power supply jack on the back of the unit	Plug the AC adaptor into a wall outlet and plug the connector into the power supply jack on the unit
	Wall outlet is not functioning	Plug another device into the same outlet to confirm the outlet is working
iPod cannot dock properly	Using no or wrong iPod insert	Make sure the dock insert is the proper fit for your iPod
	iPod is not docked properly	Remove your iPod from the connector and check for any obstruction on the connectors in the dock and on your iPod. Then reseat it in the dock.
Playing iPod but no sound	iPod is not docked properly	Remove your iPod from the connector and check for any obstruction on the connectors in the dock and on your iPod. Then reseat it in the dock.
	Your iPod is not playing	Press play button on your iPod to play it manually.
	iPod is locked up	Please make sure your iPod is working properly before docking it to the unit. Please refer to your iPod manual for detail.
	Using 1 ^st or 2 ^nd generation iPod, iPod Shuffle or other device	Please connect them with Line-in.
iPod didn't charge up	iPod is not docked properly	Remove your iPod from the connector and check for any obstruction on the connectors in the dock and on your iPod. Then reseat it in the dock.
	iPod is locked up/frozen	Please make sure your iPod is working properly before docking it to the unit. Please refer to your iPod manual for details.
	iPod battery has problem
Sound is distorted	Volume level is set too high	Decrease the unit volume
	Sound source is distorted	If iPod original sound source is poor quality, distortion and noise are easily noticed with high-power speakers.Try a different audio source such as a music CD.
		If you are using an iPod Shuffle or external sound source like older generation iPod, try reducing the output volume on the device itself. Also, try turning bass boost OFF.
	If you are playing your iPhone, you may encounter TDMA noise	Set your iPhone to Airplane mode. Note that doing so disables the phone until airplane mode is turned off.

Limited 90-Day Warranty Information

iHome Products, a division of SDI Technologies Inc. (hereafter referred to as SDI Technologies), warrants this product to be free from defects in workmanship and materials, under normal use and conditions, for a period of 90 days from the date of original purchase.

Should this product fail to function in a satisfactory manner, it is best to first return it to the store where it was originally purchased. Should this fail to resolve the matter and service still be required by reason of any defect or malfunction during the warranty period, SDI Technologies will repair or, at its discretion, replace this product without charge (except for a \10.00 charge for handling, packing, return UPS/postage, and insurance). This decision is subject to verification of the defect or malfunction upon delivery of this product to the Factory Service Center listed below. The product must include proof of purchase, including date of purchase. The fee for service without proof of purchase is \25.00.

Before returning this product for service, please first replace the batteries (if applicable) with fresh ones, as exhausted or defective batteries are the most common cause of problems encountered.

If service is still required:

1. Remove the batteries (if applicable) and pack the unit in a well padded, heavy corrugated box.
2. Enclose a photocopy of your sales receipt, credit card statement, or other proof of the date of purchase, if within the warranty period.
3. Enclose a check or money order payable to the order of SDI Technologies, for the sum of \10.00 (\25.00 without proof of purchase).
4. Send the unit prepaid and insured, to the Factory Service Center listed below.

Consumer Repair Department

SDI Technologies Inc.

1330 Goodyear Drive

El Paso, TX 79936-6420

Disclaimer of Warranty

NOTE: This warranty is valid only if the product is used for the purpose for which it was designed. It does not cover (i) products which have been damaged by negligence or willful actions, misuse or accident, or which have been modified or repaired by unauthorized persons; (ii) cracked or broken cabinets, or units damaged by excessive heat; (iii) damage to digital media players, CD's or tape cassettes (if applicable); (iv) the cost of shipping this product to the Factory Service Center and its return to the owner.

This warranty is valid only in the United States of America and does not extend to owners of the product other than to the original purchaser. In no event will SDI Technologies or any of its affiliates, contractors, resellers, their officers, directors, shareholders, members or agents be liable to you or any third party for any consequential or incidental damages, any lost profits, actual, exemplary or punitive damages. (Some states do not allow limitations on implied warranties or exclusion of consequential damages, so these restrictions may not apply to you.) This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

Your acknowledgement and agreement to fully and completely abide by the above mentioned disclaimer of warranty is contractually binding to you upon your transfer of currency (money order, cashier's check, or credit card) for purchase of your SDI Technologies product.

© 2008 SDI Technologies, Inc. All rights reserved

Questions? Visit www.ihomeaudio.com or call 1-800-288-2792 Toll Free

iH15-090508-0

Printed in China
