Product Type	Label Printer
Brand	C.Itoh
Model	EZ-1105
Print Technology	Thermal Transfer / Direct Thermal
Print Resolution	203 dpi (8 dots/mm)
Max Print Width	108 mm (4.25 inches)
Max Print Speed	101.6 mm/s (4 inches per second)
Supported Media	Labels, tags, receipts, wristbands
Media Width	25.4 mm to 118 mm (1" to 4.65")
Interface	USB 2.0, serial RS-232, optional Ethernet
Barcode Support	1D (Code 128, EAN-13) and 2D (QR, Data Matrix)
Dimensions (W x D x H)	220 x 280 x 180 mm
Weight	2.5 kg
Power Supply	AC 100-240V, 50/60Hz
Power Consumption	50W max, 5W standby
Display	LCD with backlight (2-line)
Memory	16 MB SDRAM, 8 MB Flash
Operating Temperature	5°C to 40°C
Humidity	20% to 85% non-condensing
Maintenance	Clean print head and platen roller regularly with isopropyl alcohol
Safety Compliance	CE, FCC, RoHS; avoid moisture
Spare Parts	Print head, platen roller, power adapter (optional)
Reparability	Replaceable print head and platen roller; service manual available
General Information	Designed for retail, logistics, and industrial labeling

Frequently Asked Questions - EZ-1105 C.Itoh

How do I load labels into the EZ-1105?

How do I clean the print head?

What types of barcodes can the EZ-1105 print?

How do I connect the printer to my computer?

Why is the printer printing blank labels?

What is the maximum label width?

How do I calibrate the media sensor?

Can I print without a ribbon?

What is the warranty period?

Where can I download the user manual?

USER MANUAL EZ-1105 C.Itoh

Exterior view of a black and white printer or scanner device (no visible text or symbols)

EZ-1105 / EZ-1305

GODEX

FCC COMPLIANCE STATEMENT FOR AMERICAN USERS

This equipment has been tested and found to comply with the limits for a CLASS A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference in which case the user will be required to correct the interference at own expense.

EMS AND EMI COMPLIANCE STATEMENT FOR EUROPEAN USERS

This equipment has been tested and passed with the requirements relating to electromagnetic compatibility based on the standards EN 55022:1998+A1:2000+A2:2003, CISPR 22, Class A EN 55024:1998+A1:2001+A2:2003, IEC 61000-4 Series EN 61000-3-2 / 2000 & EN 61000-3-3 / 1995. The equipment also tested and passed in accordance with the European Standard EN55022 for the both Radiated and Conducted emissions limits.

EZ-1105 / EZ-1305 TO WHICH THIS DECLARATION RELATES IS IN CONFORMITY WITH THE FOLLOWING STANDARDS

EN55022 : 1998,CLSPR 22, Class A / EN55024 : 1998IEC 61000-4 Serial / EN61000-3-2 : 2000 / EN 6100-3-3 : 1995 / CFR 47, Part 15/CISPR 22 3rd Edition : 1997, Class A / ANSI C63.4 : 2001 / CNS 13438 / IEC60950-1 : 2001 / GB4943 : 2001 / GB9254 : 1998 / GB17625.1 : 2003 /EN60950-1 : 2001

CAUTION

Danger of explosion if battery is incorrectly replaced Replace only with the equivalent type recommended by the manufacture. Dispose of used batteries according to the manufacturer's instructions.

Only use with power supply adapter model: WDS060240 (7A).

Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.

Specifications are subject to change without notice.

Safety Instructions

Please read the following instructions seriously.

1. Keep the equipment away from humidity.
2. Before you connect the equipment to the power outlet, please check the voltage of the power source.
3. Disconnect the equipment from the voltage of the power source to prevent possible transient over voltage damage.
4. Don't pour any liquid to the equipment to avoid electrical shock.
5. ONLY qualified service personnel for safety reason should open equipment.
6. Don't repair or adjust energized equipment alone under any circumstances. Someone capable of providing first aid must always be present for your safety
7. Always obtain first aid or medical attention immediately after an injury. Never neglect an injury, no matter how slight it seems.

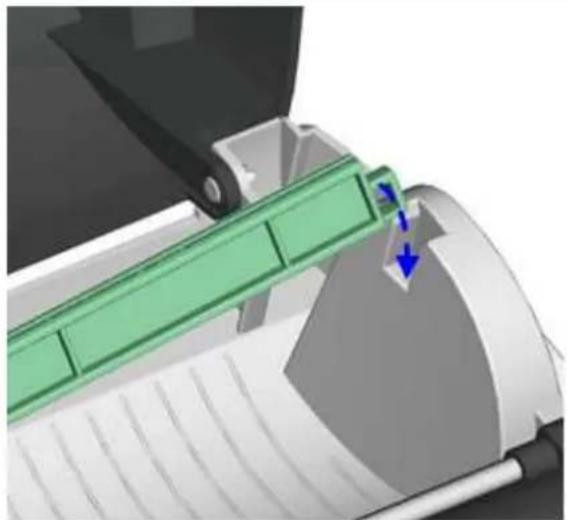

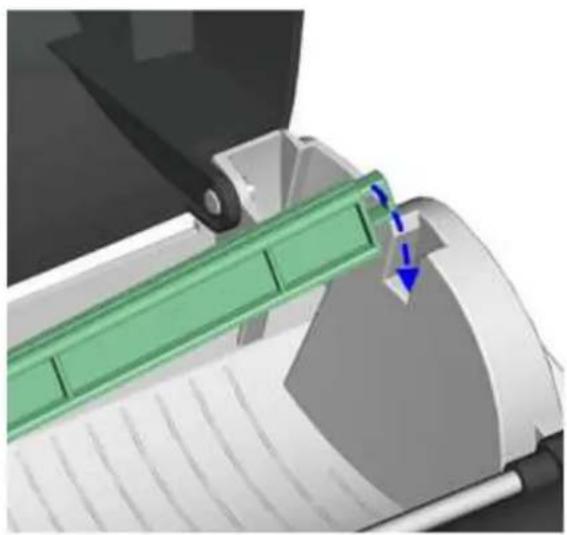

Safety Instructions
